Bypass Barn Door Hardware Explained: Single Track vs Double Track Systems

At The Barn Door Hardware Store, we've sold over 10,000 bypass systems since 2016. The #1 question from our customers?

"Single track or double track—which bypass system do I actually need?"

It’s a pretty important decision because it can be so very costly to fix and replace if you get it wrong. Take time to understand the differences, and you’ll get it right the first time.

So, here’s the guide that breaks down everything you need to know, based on real installation data from thousands of projects.

What makes bypass systems different (and why you probably need one)

Traditional barn doors require wall clearance equal to the door width. A 36-inch door needs 36 inches of clear wall space, but that’s often impossible in tight spaces or near corners.

Bypass systems solve this by allowing doors to slide past each other. Instead of requiring full wall clearance, doors overlap or stack, reducing space requirements by up to 60-70%.

I’m talking about applications like

• Closet openings
• Pantries and laundry rooms where space is premium
• Room dividers in open floor plans
• Any opening with limited wall space on both sides

If this is something you need, then great, but there are two main bypass track types to consider.

What is a single track bypass?

Perhaps the most common bypass track type, if you’re installing a barn door at home (residential setting), a single bypass track is probably going to be your go-to around 80% of the time.

Here’s why:

How single track systems work

Two doors hang on one shared track at different depths, with a standard 6-inch overlap. One door passes in front of the other during operation.

Key components:

• Single track mounted to the wall or header
• Two hanger sets at different depths
• T-guide floor system for front door
• J-guide system for the back door
• Adjustable door stops

Why choose a single track?

Ceiling clearance advantage: Only requires 5 inches above opening vs. 8+ inches for double track. This matters in:

• Homes with 8-foot ceilings
• Basement applications
• Renovations with existing trim work

Cost effectiveness: Typically 30-40% less expensive than comparable double-track systems. You’re looking at an average of $280-380 per opening vs. $420-620 for double track.

DIY-friendly installation: Single tracks are pretty straightforward pieces of kit, which means you can quite easily fit them yourself if you’re taking the DIY approach.

Any single track weight limitations?

The total capacity is approximately 220 pounds, distributed across both doors. This translates to:

• Hollow core doors: Up to 48 inches wide per door
• MDF/composite: Up to 42 inches wide per door
• Solid wood: Maximum 36 inches wide per door

Professional tip: We always recommend staying at 80% of rated capacity for longevity. A 250-pound-rated system should handle a maximum of 200 pounds in real-world use.

When a single track won't work

Now, single tracks aren’t for everyone. You’ll want to avoid if:

• Combined door weight exceeds 220 pounds
• Doors are thicker than 1-3/4 inches (causes clearance issues)
• High-frequency use (50+ operations daily)

What is a double track bypass?

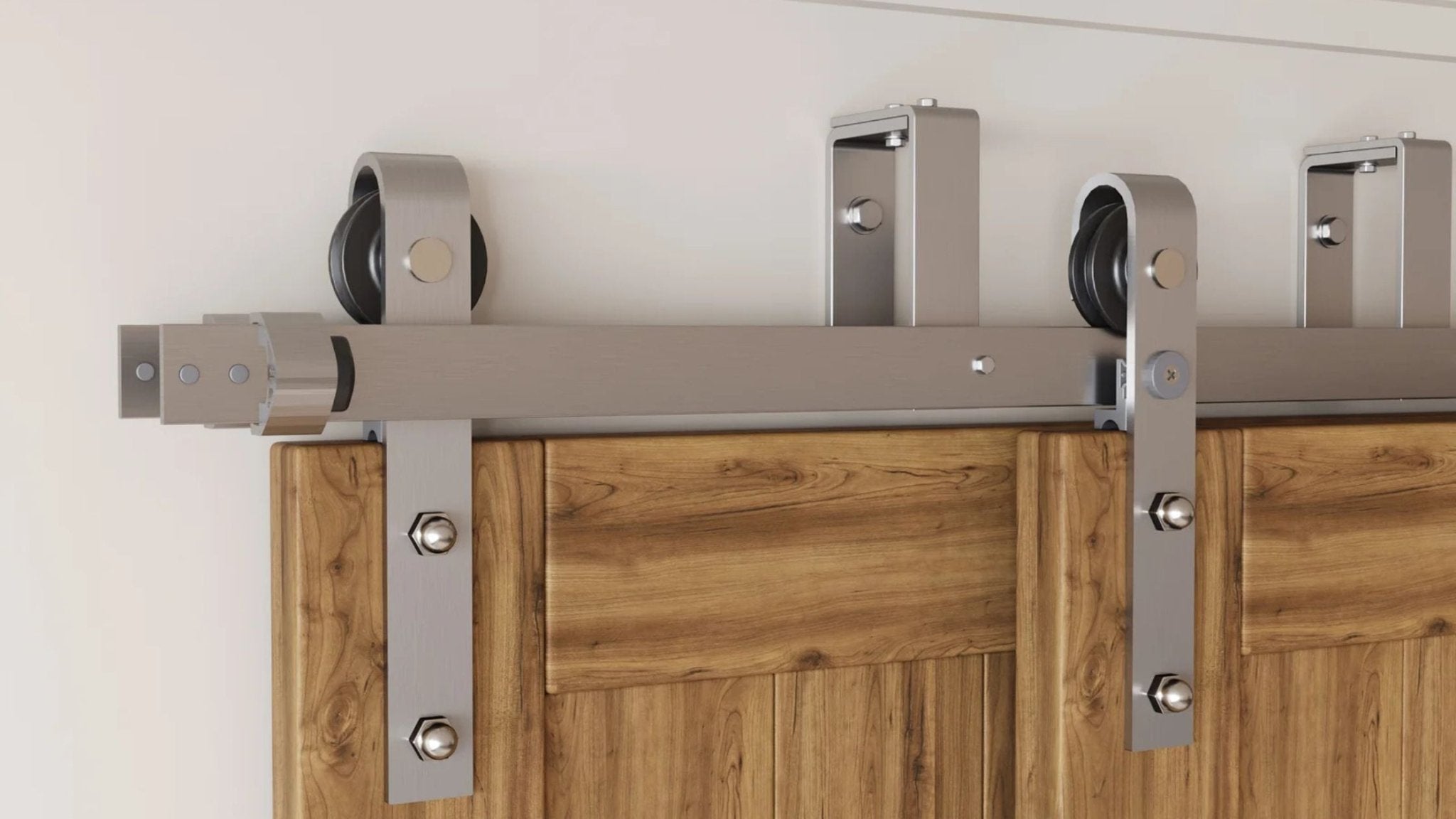

Double bypass track systems use parallel tracks—inner track mounted to the wall, outer track suspended by bypass brackets. Each door operates independently on its own track.

By far the best benefit is the superior weight capacity. In many cases, this can meet or exceed a 400+ pound total capacity, making double track suitable for:

• Solid wood doors up to 48 inches wide
• Extra-thick doors (up to 2-1/4 inches)
• Commercial applications requiring durability
• Future expansion to triple bypass systems

The benefits of such a system?

Independent door movement provides:

• Precise positioning anywhere along the track
• Reduced wear since doors don't physically interact during operation

In terms of requirements and limitations, you’ll need a ceiling clearance of at least 8 inches, with some decorative styles requiring up to 9-1/2 inches.

What’s more, you may not be able to install this yourself, due to the size and complexity of the track. Therefore, you may want to hire someone, adding to the cost, putting these tracks around 40-60% more than a single track.

Triple bypass systems: when you need maximum coverage

Triple bypass tracks take the double track concept one step further by adding a third door that operates independently on its own track layer. Think of it as three parallel tracks—inner, middle, and outer—each supporting its own door.

This system works best for extra-wide openings where you want the flexibility to access different sections independently. Picture a 12-foot closet where you can open just the section you need, or a room divider where you want multiple configuration options.

The trade-offs are significant, though.

Triple bypass requires a minimum ceiling clearance of 10 inches, and the hardware cost typically runs 2-3 times that of a standard double track system. Installation complexity increases substantially since all three tracks must be perfectly parallel and level.

Weight capacity remains similar to double track (around 400+ pounds total), but distributed across three doors instead of two. This actually works in your favor if you're using lighter doors, since each door carries less individual weight.

Most common applications include walk-in closets in master bedrooms, conference room dividers in commercial spaces, and large pantries where sectional access matters more than full opening capability.

The reality check: Triple bypass is overkill for most residential applications. Unless you have a specific need for three independently operating doors and can accommodate the ceiling clearance requirements, double track will handle your needs more cost-effectively.

How to make the right barndoor track choice

Based on analysis of over 3,000 installations, here's our professional recommendation process:

Choose single track if:

• ✅ Ceiling clearance under 5 inches
• ✅ Combined door weight under 220 pounds
• ✅ Budget under $400 per opening
• ✅ Primarily closet or light-use application
• ✅ DIY installation preferred

Choose double track if:

• ✅ Adequate ceiling clearance (8+ inches)
• ✅ Heavy doors (solid wood, oversized)
• ✅ High-frequency use (daily operations)
• ✅ Maximum functionality required
• ✅ Professional installation available

Conclusion

Single track systems deliver the best value for most residential applications. The lower cost, simpler installation, and minimal clearance requirements make them the practical choice for standard closets and everyday use.

Choose a double track when performance matters most—heavy doors, frequent use, or maximum functionality requirements justify the additional investment.

Still unsure?

Measure your ceiling clearance first. That single measurement often makes the decision for you. If you're borderline on weight requirements, remember that doors get heavier over time as hardware loosens and wood absorbs moisture.

Don't let confusion about bypass systems keep you from enjoying the space-saving benefits of barn doors. Whether you choose single track or double track, you'll get the functionality you need without sacrificing wall space.
