Cabinet barn door hardware is the same sliding mechanism as full-size barn door hardware, scaled down for lighter panels and smaller openings — cabinet doors, shutters, TV consoles, entertainment units, and built-ins. Both Goldberg Brothers and the house value line are available, with weight capacities from 50 lbs total system (value line) to 75 lbs per door (Goldberg Brothers). The brand comparison table below covers the key differences in weight, thickness range, and finish selection.
Cabinet barn door hardware is the same sliding mechanism as full-size barn door hardware — track, rollers, hangers, floor guide — scaled down for lighter panels and smaller openings. The right choice for cabinet doors, shutters, TV consoles, entertainment units, built-ins, and any furniture or millwork piece where a sliding panel makes more sense than a swinging door.
Both Goldberg Brothers and our house value line are available here. The two brands differ in weight capacity, door thickness range, and finish selection — covered in the comparison table below. If your panel is heavier than 75 lbs or thicker than 1-1/8 in, this collection won't cover it — see our standard sliding hardware or heavy duty hardware instead.
No soft close is available for cabinet configurations. Handles are not included — order separately from our handles collection.
Goldberg Brothers vs. house value line
| Goldberg Brothers | House value line | |
|---|---|---|
| Weight capacity | 75 lbs per door | 50 lbs total system |
| Door thickness | 3/4 in to 1‑1/8 in | 1/2 in to 1‑1/4 in |
| Finishes | All 17 finishes | Matte black, brushed nickel |
| Lead time | 10–15 days (made to order) | Ships in 2–3 business days |
| Double bypass option | Yes — email us for a quote | No |
For most cabinet applications with panels under 50 lbs, the house value line ships quickly and is a legitimate choice. For heavier panels, a specific finish outside matte black and brushed nickel, or a double bypass configuration, Goldberg Brothers is the right call.
Hanger styles
Cabinet hardware is available in seven hanger styles. All styles are available on the house value line. Goldberg Brothers carries straight strap and straight top mount.
| Style | Profile | Available on |
|---|---|---|

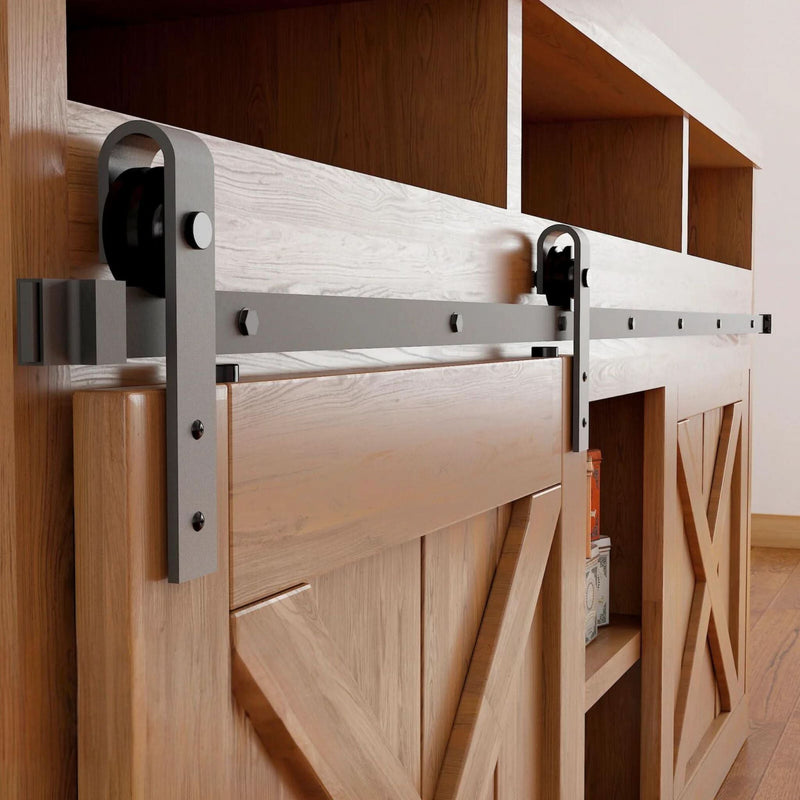

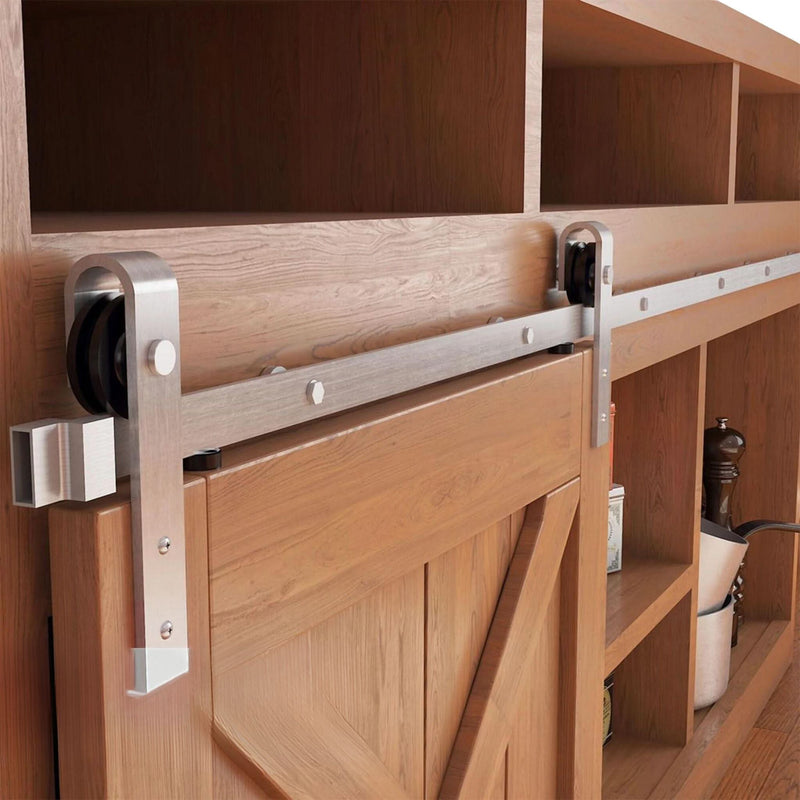

| J-strap | Classic curved strap — the most popular barn door hanger style | House value line |

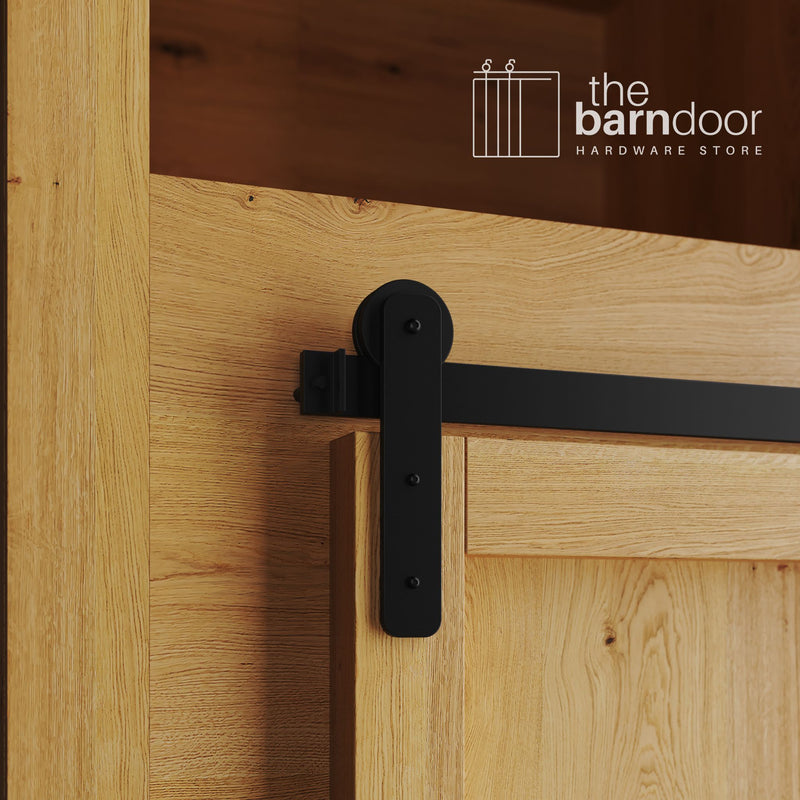

| Straight strap | Clean flat strap — modern and minimal | House value line, Goldberg Brothers |
| J top mount | J-shaped hanger that mounts to the top edge rather than the face | House value line |

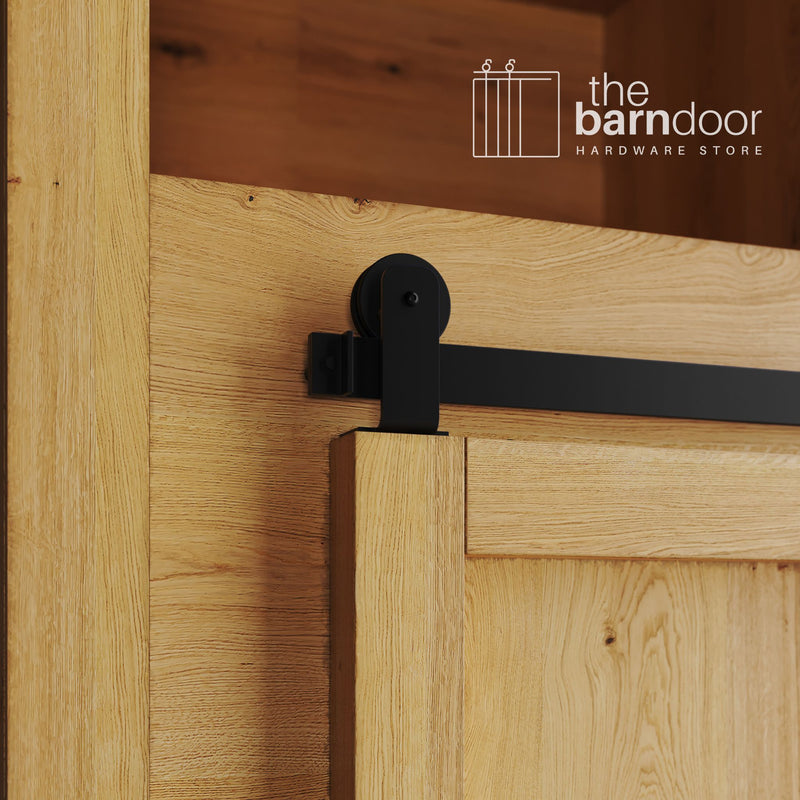

| Straight top mount | Flat hanger that mounts to the top edge of the panel | House value line, Goldberg Brothers |
| Arrow | Angled strap with a pointed profile — industrial look | House value line |
| Diamond | Diamond-shaped decorative hanger | House value line |
| Horseshoe | Wraps over the top edge — traditional barn hardware look | House value line |
| Puppy paw | Rounded decorative profile | House value line |
Single and double bypass configurations
If your opening requires two panels — a wide cabinet, an entertainment unit, or any application where a single sliding panel won't cover the full span — bypass configurations are available at the cabinet scale.
| Configuration | How it works | Available from |
|---|---|---|
| Single bypass | Two panels on one shared track, passing each other | Available in this collection — same rules apply as full-size single bypass |
| Double bypass | Two panels on two independent parallel tracks | Goldberg Brothers only — email us for a custom quote |
Track length
The same rule applies as with all sliding hardware: the track must be at least 2× the panel width for the panel to fully clear the opening. Measure the panel — not the opening width.
| Panel width | Minimum track length |
|---|---|
| 18 in | 36 in |
| 20 in | 39 in |
| 21 in | 42 in |
| 24 in | 48 in |
| 27 in | 54 in |
| 30 in | 60 in |
| 33 in | 66 in |
| 36 in | 72 in |
| 39 in | 78 in |
| 42 in | 84 in |
| 45 in | 90 in |
| 48 in | 96 in |
| 51 in | 102 in |
| 54 in | 108 in |
| 57 in | 114 in |
| 60 in | 120 in |
For a single bypass cabinet configuration, the same bypass track length formulas apply as with full-size single bypass hardware. Non-standard lengths are available on Goldberg Brothers products — email us before ordering. The house value line is available in standard lengths only.
