A 6-door one-way bifold kit is an advanced architectural hardware solution designed to manage six interconnected door panels that all fold and stack toward a single side of an opening. This system is the ultimate choice for massive spans or "disappearing walls" where you need to clear a significant amount of walkthrough space but only have wall clearance on one end. By chaining six panels together, you can cover expansive openings that would typically require complex pocket doors or multiple sliding tracks. It is engineered for various use cases, such as creating temporary room partitions in open-concept floor plans or concealing large-scale storage areas. Because of the weight and torque involved in moving six panels on a single pivot, this kit features precision-engineered bearings to ensure the entire assembly remains level and glides effortlessly despite the substantial number of moving parts.

The 6-door one-way bifold system is an excellent architectural solution for covering expansive openings where you want the ability to fully retract the doors to a single side. This configuration is particularly beneficial for large-scale "disappearing walls" or room dividers where wall space is entirely occupied on one side of the frame by furniture, structural columns, or nearby doorways. Because all six panels hinge together to stack at a single point, this system requires minimal "runway" on the opposite side, allowing you to maximize the open feel of a floor plan without the need for complex pocket door construction. This system is designed for various use cases, such as concealing massive storage arrays, creating flexible home office boundaries, or opening up a large living area into a kitchen or dining space. By moving the entire "wall" in one direction, you create a wide, unobstructed passage that is ideal for high-traffic zones or spaces where a center-split biparting design would be aesthetically or functionally impractical.

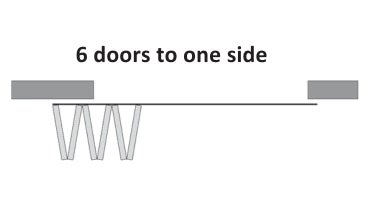

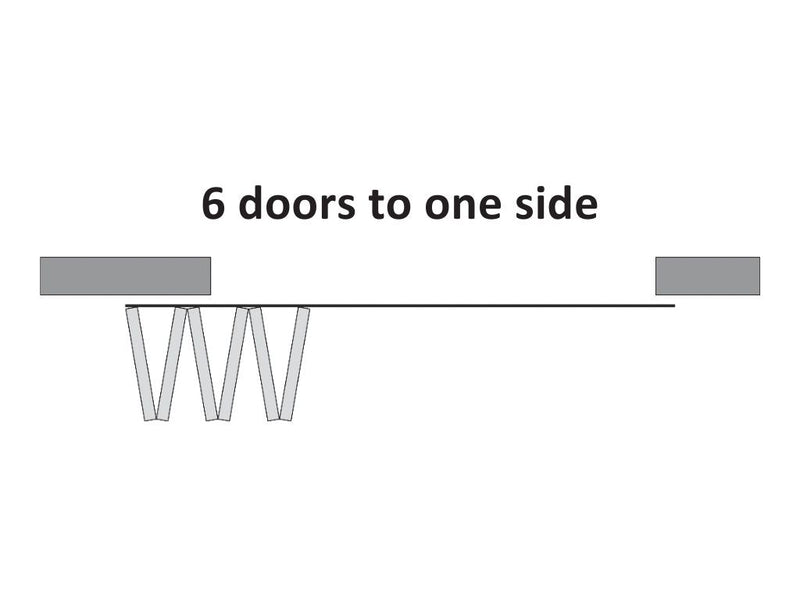

For a 6-door one-way setup, the "stack width"—the total depth the panels occupy inside the opening when fully retracted—is determined by the diameter of the rollers. In this configuration, all six panels are hinged together to fold and stack at a single side of the opening, creating a substantial stack that requires careful planning for your space.

The space the stack occupies depends on the hardware selected:

• 2-1/2" Diameter Wheels: These rollers create a total stack width of 15 inches at one side of your opening.
• 2-3/4" Diameter Wheels: These larger rollers result in a total stack width of 18 inches at one side of your opening.

Understanding these exact measurements is essential for the successful integration of a large-scale folding system into your room layout. This system is designed for various use cases, particularly for wide spans where you want to clear the entire opening to one side. Because the panels fold perpendicular to the track, they require minimal runway on the adjacent walls, making this an ideal choice for expansive openings where wall space is only available on one end or where architectural features prevent a center-split design.

To find the correct panel width for a 6-door one-way system, you must first determine your Total Door Width based on your desired installation style. Since this is an external mount hardware system, the doors must be sized to provide either adequate coverage of the frame or to ensure the panels stack completely out of the way when opened.

Step 1: Determine Your Total Door Width

Choose the solution that best fits your space:

• Minimum Coverage Solution: Best for basic privacy and a slim profile. Take your total opening width and add 2 inches. This provides a 1-inch overlap on both the folding side and the strike side of the opening.
• Fully Clear Opening Solution: Best for maximizing your walkthrough space. You must add 16 inches to your total opening width. This accounts for the 15-inch door stack and a 1-inch overlap on the strike side to ensure the opening is fully cleared when the doors are retracted.

Step 2: Calculate Individual Panel Width

Once you have determined your Total Door Width from Step 1, divide that number by six to find the exact width required for each of the six individual panels.

Calculation Examples (For a 90-inch opening):

• Minimum Coverage: 90" + 2" = 92" Total Door Width. You need six 15.33-inch panels.
• Fully Clear Opening: 90" + 16" = 106" Total Door Width. You need six 17.66-inch panels.

Step 3: Match Your Track Length

For a professional, flush-fit finish, your track length must exactly match your Total Door Width. Following the examples above, you would cut your track to exactly 92 inches for minimum coverage or 106 inches for a fully clear opening. This ensures the hardware aligns perfectly with the edge of your doors when closed, preventing any unsightly track overhang or alignment issues.

Yes, because this is an external mount system that carries the full weight of the doors from the top, you must have a solid mounting surface. You either need solid blocking installed inside the wall or an external header board (ledger board) mounted to the studs.

• Weight Distribution: A header board or internal blocking ensures the weight of the doors is distributed evenly across multiple studs rather than putting stress on a single point.
• Installation Flexibility: Using a header board provides a continuous solid surface, allowing you the flexibility to place your track exactly where it needs to be without being restricted by the specific locations of your wall studs.
• Structural Integrity: This setup prevents the track from sagging over time, ensuring your bifold system continues to glide smoothly and remains perfectly aligned.

Our kits are designed for various use cases to accommodate different door materials:

• Standard Kit: Supports up to 375 lbs total (62.5 lbs per panel).
• Heavy Duty Kit: Supports up to 1200 lbs total (200 lbs per panel).

Each kit is a complete hardware solution:

• Pre-drilled professional-grade steel track
• Four high-density rollers (one fixed pivot, three sliding guides)
• Bottom pivot assembly
• Hinges to join the panels
• All necessary mounting bolts

Headroom is the distance from the top of the door to the ceiling.

• Standard Kits: Require 5 to 6 inches of clearance.
• Heavy Duty Kits: Require 6 inches of clearance. This space is vital for the track and the pivot mechanism to operate without obstruction.

No. Our kits are completely trackless across the floor, providing a seamless, trip-free transition between rooms. However, the system does require a bottom pivot, which is a small, discreet anchor that mounts to the floor or the wall jamb to stabilize the folding motion.

We offer a range of architectural-grade finishes designed to complement any interior style. Each component is finished with a high-durability powder coating to ensure long-lasting resistance against scratches and daily wear.

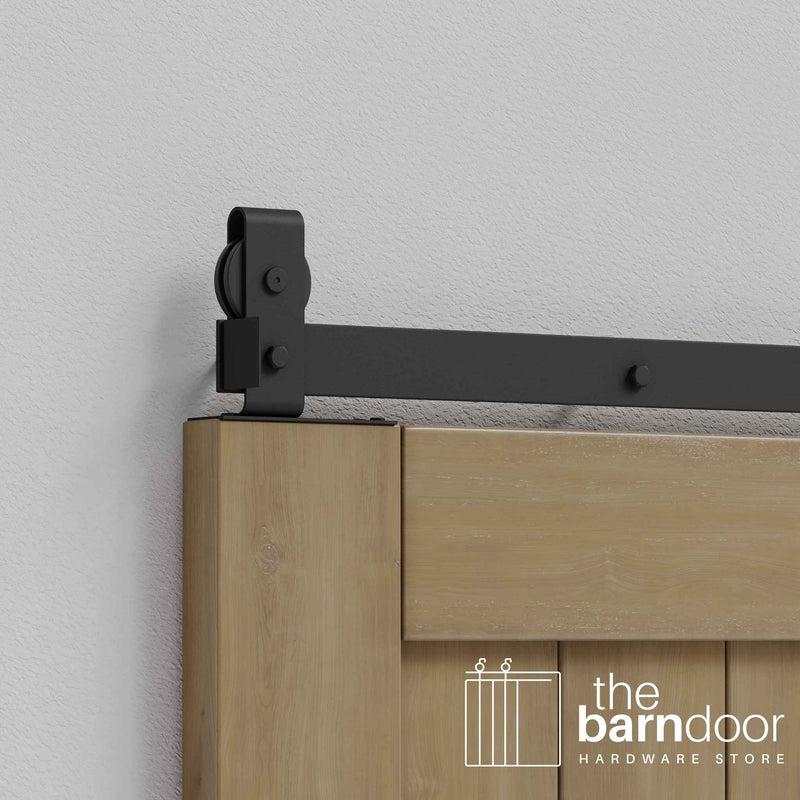

• Matte Black: Our signature sleek, non-reflective finish. It provides a bold, modern look that pairs perfectly with almost any door color or decor style.
• Silver Metallic: A clean, professional finish similar to brushed nickel. It offers a sophisticated sheen that matches modern stainless steel appliances and contemporary fixtures.
• Architectural Bronze: A rich, deep finish similar to oil-rubbed bronze. It offers a timeless, high-end look that complements traditional, transitional, and rustic designs.

Yes. Our hardware is highly adjustable and engineered to support a wide range of door profiles, from 1-1/4" up to 2-1/4" thick. To ensure the smoothest operation, we offer two performance tiers based on your door's dimensions:

• Regular Duty Kits: Designed for standard, lightweight interior doors. These kits are optimized for door thicknesses between 1-1/4" and 1-3/8" and feature high-grade nylon rollers for a quiet, fluid glide.
• Heavy Duty Kits: Engineered for substantial solid-wood or custom panels. These kits feature reinforced steel rollers and can support doors up to 2-1/4" thick, providing maximum durability and stability for heavier stacks.

Pro Tip: If your doors are thicker than 2-1/4", we can still help! For specialized projects, please [fill out our custom quote form or email us directly so we can spec out a hardware solution that ensures your doors fold without binding.

The system is stabilized by a bottom pivot point and a top track guide. This keeps the panels in a controlled "V" shape as they fold, preventing the doors from swinging out into the room or hitting nearby furniture.

Yes, our high-quality steel tracks are designed to be easily customized for any project. While they can be trimmed on-site, we also provide professional custom options to ensure a perfect fit for your unique dimensions.

• DIY Trimming: You can easily cut the track using a hacksaw or a metal-cutting blade. For a 31-inch opening, you require a minimum 33-inch track to achieve the necessary 1-inch overlap on each side.
• The Flush-Fit Rule: Regardless of your opening size, your final track length must exactly match your total combined door width. If you purchased a 36-inch kit for a smaller opening, simply trim the rail to align perfectly with your panels for a clean, custom look.
• Custom Track Lengths: If you prefer a precision-cut solution without the manual labor, we offer custom track lengths. Simply fill out our custom quote form or email us directly with your measurements, and we will provide a tailored hardware solution for your project.

Yes. We’ve engineered our bifold systems to provide a smooth, "whisper-quiet" glide that feels as high-end as it looks. However, the sound profile of your kit depends on which weight class you choose:

• Standard Kits (375 lbs): These kits use high-density nylon or Delrin wheels with lubricated precision ball bearings. These materials are naturally dampening, making them the quietest option—perfect for bedrooms, nurseries, or home offices where silent operation is a priority.
• Heavy Duty Kits (1200 lbs): To support massive weight loads, these kits feature solid steel wheels. While steel is incredibly durable and allows for an effortless glide, it does produce a subtle, rhythmic "metallic" sound as the wheels move along the steel track. Many customers find this sound satisfyingly industrial and "substantial," signaling the high-quality strength of the system.

Yes. The kit is fully reversible. During installation, you can choose to place the fixed pivot on either the left or the right side of the opening, allowing the doors to stack in whichever direction best suits your room’s layout.
