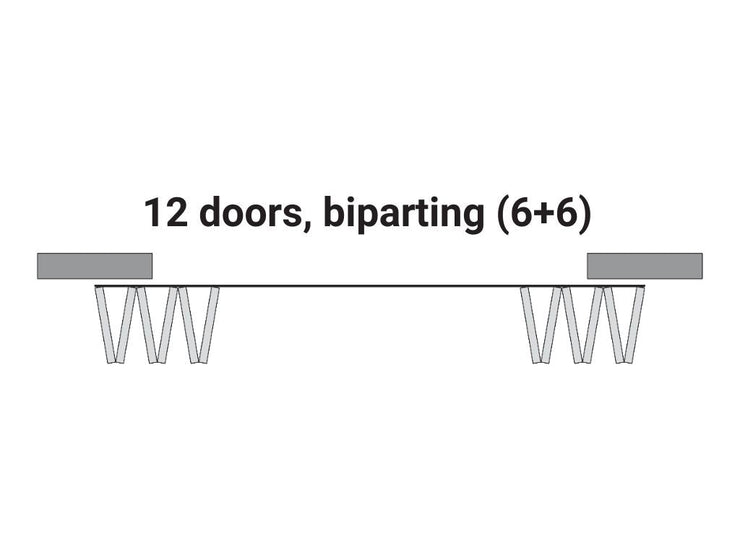

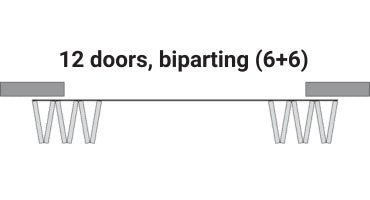

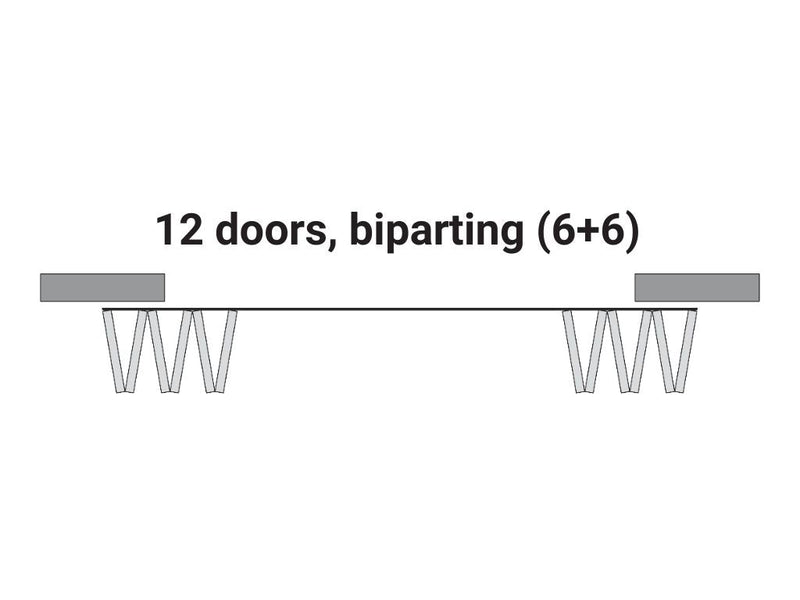

A 12-door biparting bifold kit is a premier architectural solution engineered to manage massive spans and grand openings through a sophisticated twelve-panel configuration. In this specific layout, six interconnected doors are hinged together to fold toward the left while the other six doors fold toward the right, meeting precisely in the center when fully closed. This system is designed for various use cases, such as creating flexible conference room partitions, concealing large-scale residential storage, or serving as a disappearing wall between indoor and outdoor living spaces. By splitting the total width into two six-door stacks, the hardware significantly reduces the protrusion into the room compared to a single-direction system of the same size, allowing for a more balanced aesthetic and improved traffic flow. This hardware utilizes robust top tracks and high-precision pivot assemblies to support the weight and movement of a twelve-panel array, ensuring that even a massive "folding wall" remains easy to operate and perfectly aligned.The result is an expansive, high-performance door system that provides nearly total access to the opening while maintaining the sleek, space-saving profile characteristic of bifold technology.

The 12-door biparting bifold system is the premier choice for grand-scale architectural openings and expansive commercial or residential partitions where a high-end, symmetrical look is required. This configuration is most effective for covering massive spans, such as dividing a large conference room, separating a main living area from an indoor-outdoor patio space, or concealing an entire wall of cabinetry. By utilizing twelve panels that split in the center—six folding to the left and six to the right—this system requires minimal "runway" on either side of the opening compared to a traditional sliding wall, making it suitable for spaces where adjacent wall returns are limited. This system is designed for various use cases where maintaining a balanced protrusion into the room is critical, as splitting the panels into two six-door stacks ensures that the "stack depth" is kept manageable on both sides of the entryway. Choosing a 12-door biparting setup provides a dramatic, professional aesthetic while ensuring that even an opening of significant width can be accessed effortlessly and closed with precision.

For a 12-door biparting setup, the "stack width"—the total depth the panels occupy inside the opening when fully retracted—is determined by the diameter of the rollers. In this symmetrical configuration, the doors are split into two groups of six, with each group folding and stacking at opposite sides of the opening.

The space occupied by the stacks on each side depends on the hardware selected:

• 2-1/2" Diameter Wheels: These rollers create a stack width of 15 inches on the left and 15 inches on the right.
• 2-3/4" Diameter Wheels: These larger rollers result in a stack width of 18 inches on the left and 18 inches on the right.

Understanding these exact measurements is essential for the successful integration of an expansive biparting system into your room layout. This system is designed for various use cases, specifically for massive spans where you want to maintain a balanced look while clearing the center of a grand opening. Because the panels fold perpendicular to the track, they require minimal runway on the adjacent walls, making this the premier choice for wide architectural spans where traditional sliding doors would require an impractical amount of wall space. Splitting the stack into two six-door groups ensures that the protrusion into the room is kept manageable even for the largest openings.

To find the correct panel width for a 12-door biparting system, you must first determine your Total Door Width based on your desired installation style. Because this grand-scale configuration uses two separate stacks of six panels each, your calculations must account for the substantial stacking depth on both sides to ensure a perfect center-meet.

Step 1: Determine Your Total Door Width

Choose the solution that best fits your architectural needs:

• Minimum Coverage Solution: Best for basic privacy and a slim profile. Take your total opening width and add 2 inches. This provides a 1-inch overlap on both the far-left and far-right sides of the opening.
• Fully Clear Opening Solution: Best for maximizing your walkthrough space. You must add 30 inches to your total opening width. This accounts for the 15-inch door stack on the left and the 15-inch door stack on the right, ensuring all 12 panels retract completely outside the frame.

Step 2: Calculate Individual Panel Width

Once you have determined your Total Door Width from Step 1, divide that number by 12 to find the exact width required for each of the twelve individual panels.

Calculation Examples (For a 180-inch opening):

• Minimum Coverage: 180" + 2" = 182" Total Door Width. You need twelve 15.16-inch panels.
• Fully Clear Opening: 180" + 30" = 210" Total Door Width. You need twelve 17.5-inch panels.

Step 3: Match Your Track Length

For a professional, flush-fit finish, your track length must exactly match your Total Door Width. Following the examples above, you would cut your track to exactly 182 inches for minimum coverage or 210 inches for a fully clear opening. This ensures the hardware aligns perfectly with the edge of your doors when closed, with no unsightly track overhang.

Yes, because this is an external mount system that carries the full weight of the doors from the top, you must have a solid mounting surface. You either need solid blocking installed inside the wall or an external header board (ledger board) mounted to the studs.

• Weight Distribution: A header board or internal blocking ensures the weight of the doors is distributed evenly across multiple studs rather than putting stress on a single point.
• Installation Flexibility: Using a header board provides a continuous solid surface, allowing you the flexibility to place your track exactly where it needs to be without being restricted by the specific locations of your wall studs.
• Structural Integrity: This setup prevents the track from sagging over time, ensuring your bifold system continues to glide smoothly and remains perfectly aligned.

Our kits are designed for various use cases to accommodate different door materials:

• Standard Kit: Supports up to 750 lbs total (62.5 lbs per panel).
• Heavy Duty Kit: Supports up to 2400 lbs total (200 lbs per panel).

Each kit is a complete hardware solution:

• Pre-drilled professional-grade steel track
• Eight high-density rollers (two fixed pivots, six sliding guides)
• Two bottom pivot assemblies
• Hinges to join the panels
• All necessary mounting bolts

Headroom is the distance from the top of the door to the ceiling.

• Standard Kits: Require 5 to 6 inches of clearance.
• Heavy Duty Kits: Require 6 inches of clearance. This space is vital for the track and the pivot mechanism to operate without obstruction.

No. Our kits are completely trackless across the floor, providing a seamless, trip-free transition between rooms. However, the system does require a bottom pivot, which is a small, discreet anchor that mounts to the floor or the wall jamb to stabilize the folding motion.

We offer a range of architectural-grade finishes designed to complement any interior style. Each component is finished with a high-durability powder coating to ensure long-lasting resistance against scratches and daily wear.

• Matte Black: Our signature sleek, non-reflective finish. It provides a bold, modern look that pairs perfectly with almost any door color or decor style.
• Silver Metallic: A clean, professional finish similar to brushed nickel. It offers a sophisticated sheen that matches modern stainless steel appliances and contemporary fixtures.
• Architectural Bronze: A rich, deep finish similar to oil-rubbed bronze. It offers a timeless, high-end look that complements traditional, transitional, and rustic designs.

Yes. Our hardware is highly adjustable and engineered to support a wide range of door profiles, from 1-1/4" up to 2-1/4" thick. To ensure the smoothest operation, we offer two performance tiers based on your door's dimensions:

• Regular Duty Kits: Designed for standard, lightweight interior doors. These kits are optimized for door thicknesses between 1-1/4" and 1-3/8" and feature high-grade nylon rollers for a quiet, fluid glide.
• Heavy Duty Kits: Engineered for substantial solid-wood or custom panels. These kits feature reinforced steel rollers and can support doors up to 2-1/4" thick, providing maximum durability and stability for heavier stacks.

Pro Tip: If your doors are thicker than 2-1/4", we can still help! For specialized projects, please [fill out our custom quote form or email us directly so we can spec out a hardware solution that ensures your doors fold without binding.

The system is stabilized by a bottom pivot point and a top track guide. This keeps the panels in a controlled "V" shape as they fold, preventing the doors from swinging out into the room or hitting nearby furniture.

Yes, our high-quality steel tracks are designed to be easily customized for any project. While they can be trimmed on-site, we also provide professional custom options to ensure a perfect fit for your unique dimensions.

• DIY Trimming: You can easily cut the track using a hacksaw or a metal-cutting blade. For a 31-inch opening, you require a minimum 33-inch track to achieve the necessary 1-inch overlap on each side.
• The Flush-Fit Rule: Regardless of your opening size, your final track length must exactly match your total combined door width. If you purchased a 36-inch kit for a smaller opening, simply trim the rail to align perfectly with your panels for a clean, custom look.
• Custom Track Lengths: If you prefer a precision-cut solution without the manual labor, we offer custom track lengths. Simply fill out our custom quote form or email us directly with your measurements, and we will provide a tailored hardware solution for your project.

Yes. We’ve engineered our bifold systems to provide a smooth, "whisper-quiet" glide that feels as high-end as it looks. However, the sound profile of your kit depends on which weight class you choose:

• Standard Kits (750 lbs): These kits use high-density nylon or Delrin wheels with lubricated precision ball bearings. These materials are naturally dampening, making them the quietest option—perfect for bedrooms, nurseries, or home offices where silent operation is a priority.
• Heavy Duty Kits (2400 lbs): To support massive weight loads, these kits feature solid steel wheels. While steel is incredibly durable and allows for an effortless glide, it does produce a subtle, rhythmic "metallic" sound as the wheels move along the steel track. Many customers find this sound satisfyingly industrial and "substantial," signaling the high-quality strength of the system.

Yes, when using our 12-door biparting kit, the panels are designed to meet perfectly flush in the center of your opening. This professional-grade alignment is achieved through the use of precision-engineered hardware that ensures both six-door stacks travel along the same plane and converge seamlessly.
