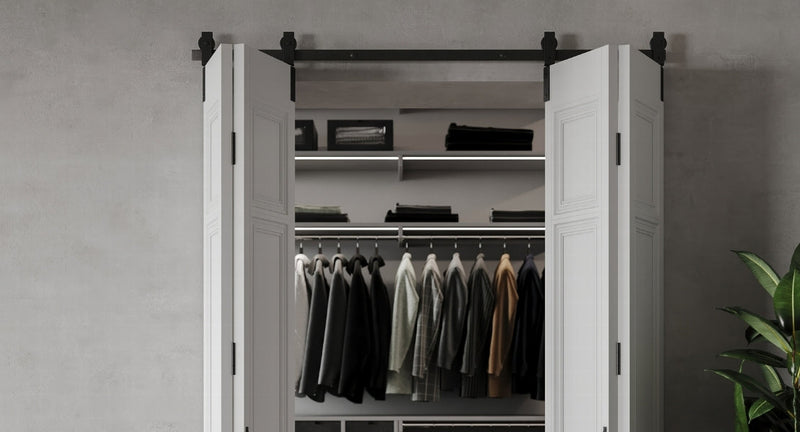

A 4-door biparting bifold kit is designed for wide openings where you want two sets of folding doors. Two panels fold to the left and two panels fold to the right, meeting in the center when closed. This provides a dramatic "French door" aesthetic with the space-saving benefits of a folding system.

The 4-door biparting bifold system is the ideal choice for wide openings where you need to maximize access without sacrificing wall space for a traditional sliding door. This configuration is frequently used for double-wide closets, master bedroom entrances, or laundry stations where the opening spans roughly five to eight feet. Because the doors split in the center and fold toward opposite sides, they require minimal "runway" on the adjacent walls, making them perfect for rooms with light switches, furniture, or architectural corners located right next to the door frame. This system is designed for various use cases where a balanced, symmetrical look is preferred, providing a professional and high-end aesthetic that mimics the feel of French doors but with a significantly smaller footprint. It is particularly effective in hallways or tight rooms where a single large folding stack would block traffic, as splitting the panels into two smaller stacks maintains a clearer path for movement.

For a 4-door biparting setup, the "stack width"—the amount of space the doors occupy inside your opening when fully retracted—is determined specifically by the diameter of the rollers used in your kit. Because this configuration splits in the middle, you will have two separate stacks of doors, one on the left and one on the right.

The space each stack takes up depends on your wheel size:

• 2-1/2" Diameter Wheels: These rollers result in a stack width of 5 inches on each side of your opening.
• 2-3/4" Diameter Wheels: These larger rollers result in a stack width of 6 inches on each side of your opening.

This precise measurement is essential for calculating your total walkthrough clearance, as you simply subtract the combined stack width from your total opening width to determine the remaining usable space. This system is designed for various use cases where maximizing access is a priority, and because the doors fold perpendicular to the track, they require minimal "runway" on the adjacent walls compared to traditional sliding doors.

To find the correct panel width for a 4-door biparting system, you must first determine your Total Door Width based on your desired installation style. Because our hardware is an external mount system, the doors are designed to provide the specific level of coverage or clearance required for your architectural needs.

Step 1: Determine Your Total Door Width

Choose the solution that best fits your space:

• Minimum Coverage Solution: Best for basic privacy and a slim profile. Take your total opening width and add 4 inches. This provides a 2-inch overlap on both the left and right sides of the opening.
• Fully Clear Opening Solution: Best for maximizing your walkthrough space. You must add 10 inches to your total opening width. This accounts for 5 inches of door fold on the left and 5 inches on the right, ensuring the panels clear the frame entirely.

Step 2: Calculate Individual Panel Width

Once you have your Total Door Width from Step 1, divide that number by four to find the exact width required for each of the four individual panels.

Calculation Examples (For a 60-inch opening):

• Minimum Coverage: 60" + 4" = 64" Total Door Width. You need four 16-inch panels.
• Fully Clear Opening: 60" + 10" = 70" Total Door Width. You need four 17.5-inch panels.

Step 3: Match Your Track Length

For a professional, flush-fit finish, your track length must exactly match your Total Door Width. Following the examples above, you would cut your track to exactly 64 inches for minimum coverage or 70 inches for a fully clear opening. This ensures the hardware aligns perfectly with the edge of your doors when closed, with no unsightly overhang.

Yes, because this is an external mount system that carries the full weight of the doors from the top, you must have a solid mounting surface. You either need solid blocking installed inside the wall or an external header board (ledger board) mounted to the studs.

• Weight Distribution: A header board or internal blocking ensures the weight of the doors is distributed evenly across multiple studs rather than putting stress on a single point.
• Installation Flexibility: Using a header board provides a continuous solid surface, allowing you the flexibility to place your track exactly where it needs to be without being restricted by the specific locations of your wall studs.
• Structural Integrity: This setup prevents the track from sagging over time, ensuring your bifold system continues to glide smoothly and remains perfectly aligned.

Our kits are designed for various use cases to accommodate different door materials:

• Standard Kit: Supports up to 250 lbs total (62.5 lbs per panel).
• Heavy Duty Kit: Supports up to 800 lbs total (200 lbs per panel).

Each kit is a complete hardware solution:

• Pre-drilled professional-grade steel track
• Four high-density rollers (two fixed pivots, two sliding guides)
• Two bottom pivot assemblies
• Hinges to join the panels
• All necessary mounting bolts

Headroom is the distance from the top of the door to the ceiling.

• Standard Kits: Require 5 to 6 inches of clearance.
• Heavy Duty Kits: Require 6 inches of clearance. This space is vital for the track and the pivot mechanism to operate without obstruction.

No. Our kits are completely trackless across the floor, providing a seamless, trip-free transition between rooms. However, the system does require a bottom pivot, which is a small, discreet anchor that mounts to the floor or the wall jamb to stabilize the folding motion.

We offer a range of architectural-grade finishes designed to complement any interior style. Each component is finished with a high-durability powder coating to ensure long-lasting resistance against scratches and daily wear.

• Matte Black: Our signature sleek, non-reflective finish. It provides a bold, modern look that pairs perfectly with almost any door color or decor style.
• Silver Metallic: A clean, professional finish similar to brushed nickel. It offers a sophisticated sheen that matches modern stainless steel appliances and contemporary fixtures.
• Architectural Bronze: A rich, deep finish similar to oil-rubbed bronze. It offers a timeless, high-end look that complements traditional, transitional, and rustic designs.

Yes. Our hardware is highly adjustable and engineered to support a wide range of door profiles, from 1-1/4" up to 2-1/4" thick. To ensure the smoothest operation, we offer two performance tiers based on your door's dimensions:

• Regular Duty Kits: Designed for standard, lightweight interior doors. These kits are optimized for door thicknesses between 1-1/4" and 1-3/8" and feature high-grade nylon rollers for a quiet, fluid glide.
• Heavy Duty Kits: Engineered for substantial solid-wood or custom panels. These kits feature reinforced steel rollers and can support doors up to 2-1/4" thick, providing maximum durability and stability for heavier stacks.

Pro Tip: If your doors are thicker than 2-1/4", we can still help! For specialized projects, please [fill out our custom quote form or email us directly so we can spec out a hardware solution that ensures your doors fold without binding.

The system is stabilized by a bottom pivot point and a top track guide. This keeps the panels in a controlled "V" shape as they fold, preventing the doors from swinging out into the room or hitting nearby furniture.

Yes, our high-quality steel tracks are designed to be easily customized for any project. While they can be trimmed on-site, we also provide professional custom options to ensure a perfect fit for your unique dimensions.

• DIY Trimming: You can easily cut the track using a hacksaw or a metal-cutting blade. For a 31-inch opening, you require a minimum 35-inch track to achieve the necessary 2-inch overlap on each side.
• The Flush-Fit Rule: Regardless of your opening size, your final track length must exactly match your total combined door width. If you purchased a 36-inch kit for a smaller opening, simply trim the rail to align perfectly with your panels for a clean, custom look.
• Custom Track Lengths: If you prefer a precision-cut solution without the manual labor, we offer custom track lengths. Simply fill out our custom quote form or email us directly with your measurements, and we will provide a tailored hardware solution for your project.

Yes. We’ve engineered our bifold systems to provide a smooth, "whisper-quiet" glide that feels as high-end as it looks. However, the sound profile of your kit depends on which weight class you choose:

• Standard Kits (250 lbs): These kits use high-density nylon or Delrin wheels with lubricated precision ball bearings. These materials are naturally dampening, making them the quietest option—perfect for bedrooms, nurseries, or home offices where silent operation is a priority.
• Heavy Duty Kits (800 lbs): To support massive weight loads, these kits feature solid steel wheels. While steel is incredibly durable and allows for an effortless glide, it does produce a subtle, rhythmic "metallic" sound as the wheels move along the steel track. Many customers find this sound satisfyingly industrial and "substantial," signaling the high-quality strength of the system.

Yes, when using our 4-door biparting kit, the panels are designed to meet perfectly flush in the center of your opening. This professional-grade alignment is achieved through the use of precision-engineered hardware that ensures both two-door stacks travel along the same plane and converge seamlessly.
