Double Bypass Barn Door Hardware: Ultimate 2025 Guide

Looking for premium double bypass barn door hardware? This comprehensive guide explains what it is, when to use it, its components, installation basics, customization, heavy-duty solutions, and buying tips. We supply professionally curated bypass barn door hardware kits (hardware only) with free shipping across the continental United States. We do not offer installation services, giving you the freedom to use your preferred local installer.

What We'll Cover

• What Is Double Bypass Barn Door Hardware?
• Why Choose a Double Bypass vs Single Track
• Core Components of Bypass Barn Door Hardware Kits
• How Double Track Bypass Sliding Barn Door Hardware Works
• Benefits of Bypass Barn Door Systems (Functional + Design)
• Best Use Cases: Closets, Pantries, Offices & More
• Space-Saving Barn Door Hardware Strategies
• Heavy Duty Bypass Barn Door Hardware: When You Need It
• Overlapping & Telescoping Barn Door Hardware Explained
• Custom Bypass Barn Door Hardware Options
• Interior Bypass Barn Door Hardware Design Styles
• How to Install Double Bypass Barn Door Hardware (Step-by-Step)
• Common Installation Mistakes & Fixes
• Sizing & Overlap Calculations (Practical Guidance)
• Material & Finish Selection (Tracks, Rollers, Doors)
• Noise, Smoothness & Soft-Close Upgrades
• Maintenance, Care & Longevity Tips
• Where to Buy Custom Bypass Barn Door Hardware (Supply-Only Model)
• Sustainability & Responsible Sourcing Considerations
• Our Offering: Supply Only + Free Continental US Shipping
• FAQ
• Buyer’s Checklist Before Ordering
• Final Thoughts

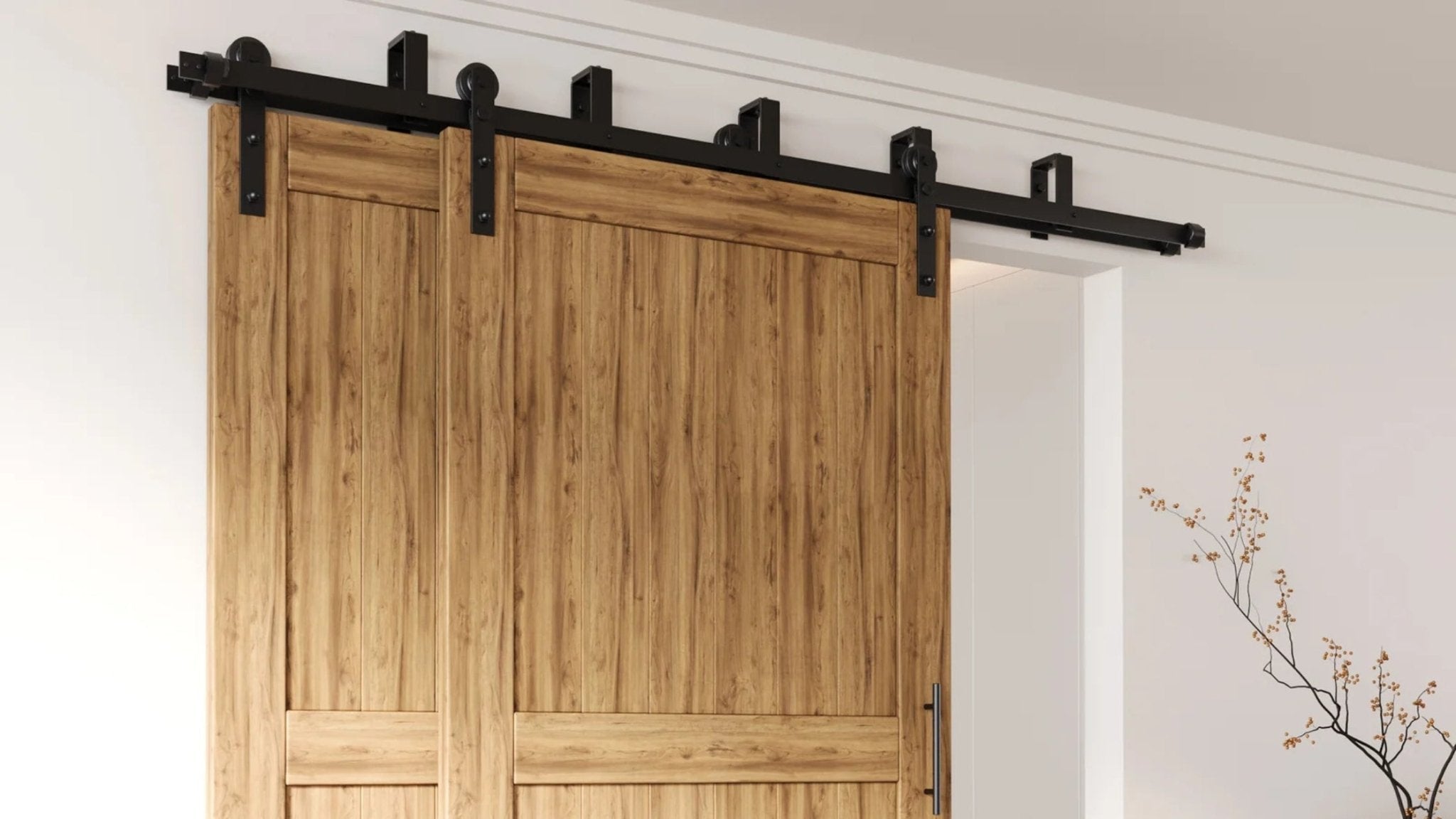

What Is Double Bypass Barn Door Hardware?

Double bypass barn door hardware is a two-track sliding door system that allows two (or more) doors to glide past each other in front of the same opening. Unlike a single-track sliding barn door that requires full wall clearance to one side, a barn door hardware double bypass configuration splits the movement using double track bypass sliding barn door hardware, so panels “overlap” instead of clearing completely out of the way.

In simple terms: It’s a multi-door sliding system where each door rides its own track, one in front, one behind, creating a layered, space-efficient solution. This design is ideal for closets, laundry areas, wall-length storage, entertainment centers, or any opening where side clearance is limited.

Why Choose a Double Bypass vs Single Track

A standard single sliding door works if you have enough lateral wall space. A double bypass system is superior when:

• The opening is wider than a single door panel.
• Wall space on both sides is constrained.
• You want flexible partial access.
• You prefer an overlapping barn door hardware visual aesthetic.
• You plan to expand from 2 to 3–4 panels later (modular scalability).

Result: Maximum functional coverage with minimal spatial sacrifice.

Core Components of Bypass Barn Door Hardware Kits

High-quality bypass barn door hardware kits typically include:

• Dual Tracks (rear + front, pre-drilled or cut-to-length)
• Bypass Standoff Brackets (set correct projection/spacing)
• Roller Hangers (one pair per door; bearings or nylon-wheel types)
• End Stops (prevent over-travel)
• Anti-Jump Blocks (safety retention)
• Floor Guides (multi-channel or T-guide)
• Fasteners (lag screws, anchors)
• Optional Soft-Close Dampers
• Track Connectors (for spans longer than 7ft 6in)

Better kits (including heavy-duty bypass barn door hardware) disclose per-door weight ratings and provide adjustability for reveals and alignment.

How Double Track Bypass Sliding Barn Door Hardware Works

The rear door(s) ride on the track closest to the wall. The front door(s) ride on a second parallel track mounted forward using bracket offsets. This engineered spacing allows full motion without collision. In two-door setups, each panel can stack over the other half of the opening. In advanced three or four-door multi-door sliding systems, panels can sequence in layers, offering dynamic coverage.

Benefits of Bypass Barn Door Systems (Functional + Design)

Key advantages of bypass barn door hardware configurations:

1. Space Efficiency: A premier space-saving barn door hardware solution where swing clearance or lateral wall real estate is limited.
2. Versatile Access: Open one side while keeping the other closed—ideal for segmented storage.
3. Scalable Width: Add panels and connectors for wide wardrobes or utility walls.
4. Visual Depth: The overlapping barn door hardware look adds architectural layering.
5. Cleaner Sight Lines: Conceal cluttered portions of the closet or shelving.
6. Lower Structural Impact: Less invasive than pocket doors; no cavity framing required.
7. Accessibility: Smooth gliding operation suits aging-in-place and universal design.
8. Finish Flexibility: Mix materials (e.g., glass front door + wood rear door).
9. Upgradable: Retrofit soft-close or guide improvements later.
10. Commercial Adaptability: Retail fitting rooms, hospitality storage, co-working offices.

Best Use Cases: Closets, Pantries, Offices & More

Popular scenarios for interior bypass barn door hardware:

• Bedroom closets (wide spans, segmented wardrobe zones)
• Laundry alcoves housing stacked appliances
• Kitchen pantries with multi-section shelving
• Media cabinets (conceal + reveal screens or equipment)
• Home office partitioning (visual privacy without hinged intrusion)
• Mudroom cubbies or storage lockers
• Multi-panel gallery feature walls
• Shared kids’ storage or playroom sectional concealment

Particularly, bypass barn door hardware for closets minimizes floor disruption while enabling selective access.

Space-Saving Barn Door Hardware Strategies

Maximize efficiency with these tactics:

• Use low-profile roller brackets to reduce forward projection.
• Select slightly wider-than-half doors to ensure purposeful overlap.
• Recess floor guides into hardwood or tile for flush transitions.
• Align track height to allow minimal floor clearance (typically 1/2"–1").
• Integrate mirrored or light-toned doors to expand perceived depth.
• Consider ceiling mounting when wall studs are irregular or the opening extends into a corner.

Heavy Duty Bypass Barn Door Hardware: When You Need It

Choose heavy-duty bypass barn door hardware when:

• Each door exceeds ~120 lbs (solid hardwood, MDF core, metal-clad).
• Door height is 8 ft or taller (increased leverage).
• You need 3–4 panel configurations (compounded load).
• Commercial use demands high cycle durability.

Indicators of true heavy-duty quality:

• Solid steel tracks (thickness ≥ 3/16")
• Sealed-bearing steel rollers (not just molded nylon)
• Published test data or certified weight ratings
• Multi-point bracket anchoring (torsion-resistant)
• Availability of compatible industrial-grade soft-close units

Overlapping & Telescoping Barn Door Hardware Explained

1. Overlapping: Standard double bypass barn door hardware where doors move independently and overlap visually.
2. Telescoping: A specialized telescoping barn door hardware mechanism where moving one panel mechanically pulls another via linkage or hidden carriers (useful for synchronized reveals).

Telescoping systems shine in conference rooms or high-end residential features but cost more and require precise installation.

Custom Bypass Barn Door Hardware Options

Custom bypass barn door hardware empowers tailored performance and aesthetics:

• Made-to-length tracks reduce seams.
• Specialty powder coat finishes (matte black, bronze, gold, white, silver metallic).
• Designer rollers (minimalist disc, spoked, wagon wheel, horseshoe).
• Concealed fastener fascia covers for cleaner lines.
• Integrated soft-close on both ends (dual damped).
• Multi-door expansion kits (adding third or fourth panel).
• Specialty guides for thick or glass doors.
• Custom tracks also reduce racking by eliminating unnecessary joints.

Interior Bypass Barn Door Hardware Design Styles

Style pairings:

• Modern Minimal: Slim shaker or flat panels + matte black or brushed stainless hardware.
• Rustic Farmhouse: Reclaimed wood doors + spoked wheel rollers.
• Industrial Loft: Raw steel track + charred or dark-stained planks.
• Japandi / Scandinavian: Pale oak + white powder coated track.
• Transitional: Painted MDF shaker + brushed nickel hardware.
• Contemporary Luxe: Slab doors with integrated handles + satin brass accents.
• Hybrid Glass: Rear frosted panel + front reed glass for layered translucence.

How to Install Double Bypass Barn Door Hardware (Step-by-Step)

If you’re researching “how to install double bypass barn door hardware,” here is a generalized procedure (note: we supply hardware only and advise hiring a qualified installer).

Tools: Level (4 ft), drill/driver, stud finder, tape measure, square, ladder, socket set, pencil/tape, shims.

Steps:

1. Assess Structure: Verify studs or install a continuous header board to distribute load.
2. Measure & Plan Overlap: Each door typically 52–60% of opening width for full coverage.
3. Mark Track Height: Door height + clearance (usually 1/2"–1") + hanger offset. Snap a level line.
4. Mount Rear Track: Lag into studs/header. Ensure dead-level alignment.
5. Install Bypass Brackets: Set forward projection (enough for door thickness + roller clearance).
6. Mount Front Track: Parallel to rear; measure spacing at multiple points.
7. Prepare Doors: Install hangers precisely; confirm vertical plumb.
8. Hang Rear Door(s): Set onto rear track; test smooth rolling.
9. Hang Front Door(s): Add front panels; check for friction or interference.
10. Add Stops: Position to prevent door wheels from striking bracket ends.
11. Install Anti-Jump Blocks: Safety measure to prevent derailing.
12. Add Floor Guides: Use double-fin or multi-slot guides corresponding to kerfs in door bottoms.
13. Optional Soft-Close: Mount dampers inside track ends; engage trigger plates on door hangers.
14. Final Adjustments: Align reveals, verify overlap coverage, tighten hardware.
15. Clean & Test: Roll each door repeatedly to confirm consistent glide.

Pro Tips:

• Pre-drill hardwood headers to prevent splitting.
• Use painter’s tape to mark hole positions before committing.
• For long spans, use track connector plates; ensure flush mating surfaces.

 Common Installation Mistakes & Fixes

Sizing & Overlap Calculations (Practical Guidance)

Guideline for two-door bypass:

• Door Width = Opening Width × 0.55–0.60 (ensures central overlap without excessive bulk).
• Track Length: Usually ~2 × single door width (some choose opening width × 2 for symmetry).
• Overlap Margin: Target 2"–4" beyond center line to eliminate light gaps.
• Clearance Above Door: 1/2"–1" floor gap (account for rugs or thresholds).

Three or Four Door Systems:

• Total door widths combined exceed opening width by 140–180% to maintain overlapping coverage sequences.

Material & Finish Selection (Tracks, Rollers, Doors)

Hardware Materials:

• Carbon Steel: Strong, commonly powder-coated.
• Stainless Steel: Corrosion resistance (coastal or humid zones).
• Aluminum: Lightweight, suitable for mid-duty residential.

Roller Wheel Types:

• Nylon: Quiet, good for standard residential loads.
• Steel Bearing with Poly Tread: Durable and smooth for heavy-duty.
• Exposed Steel/Spoked: Statement industrial aesthetics.

Door Materials:

• Solid Wood (oak, alder, pine) for character and substance.
• Engineered MDF (paint-grade uniformity).
• Veneer Composite (cost-effective modern).
• Glass (frosted, reeded, clear) for light diffusion.
• Acoustic Core Panels for office privacy.

Finish Pairings:

• Matte Black + Natural White Oak (modern organic).
• Brushed Nickel + Painted Shaker (transitional).
• Raw Steel + Reclaimed Barn Plank (industrial rustic).
• Satin Brass + Dark Walnut (Lux Contemporary).

Noise, Smoothness & Soft-Close Upgrades

Enhancements:

• Soft-Close Dampers: Prevent slamming; choose models rated for panel mass.
• Precision Bearings: Reduce rolling friction and chatter.
• Dampening Strips: Installed on the back of doors to buffer contact.
• Quality Floor Guides: Prevent lateral oscillation that causes noise.

Maintenance for Silence:

• Keep tracks debris-free (vacuum quarterly).
• Do not lubricate nylon wheels (they self-lubricate); use dry silicone for metal-on-metal only if the manufacturer allows.

Maintenance, Care & Longevity Tips

Quarterly:

• Inspect fasteners for loosening.
• Wipe dust from track surfaces.

Annually:

• Check the hanger bolt tension.
• Replace worn soft-close cartridges if the door fails to catch.

Environmental Considerations:

• In humid climates, choose sealed finishes, and avoid raw steel unless intentionally patina’d.
• Maintain consistent interior humidity to reduce door warping (especially solid wood).

Where to Buy Custom Bypass Barn Door Hardware (Supply-Only Model)

If you’re searching “where to buy custom bypass barn door hardware,” evaluate:

• Weight rating transparency.
• Availability of custom-cut tracks.
• Support responsiveness for pre-purchase specification.
• Replacement part accessibility (rollers, stops, dampers).
• Shipping terms (look for bypass barn door hardware free shipping policies).

We operate as a dedicated hardware supplier—offering curated kits with free shipping across the continental US. Because we are supply-only, you retain control over installation labor quality and cost.

Sustainability & Responsible Sourcing Considerations

Eco-Friendly Approaches:

• Choose FSC-certified wood doors or reclaimed slabs.
• Use powder coating (low VOC) over solvent paint.
• Opt for durable bearings for longer lifecycle usage (fewer replacements).
• Reuse packaging where possible (many kits ship with recyclable fillers).
• Sustainability enhances brand narrative and long-term value.

Our Offering: Supply Only + Free Continental US Shipping

We specialize in supplying double bypass barn door hardware and related configuration components—no installation services. This approach enables:

• Faster nationwide fulfillment.
• Competitive pricing (reduced overhead).
• Flexibility: You select your preferred local installer or finish carpenter.

What We Provide:

• Standard and custom double-track bypass sliding barn door hardware kits.
• Heavy-duty packages for large-format or solid-core panels.
• Custom length tracks, finish upgrades, and multi-door expansion.
• Floor guide options (flush, recessed, multi-channel).

What We Do Not Provide:

• On-site measurement or installation labor.
• Door slab fabrication (unless listed separately).
• Electrical integration (for automation).

Free Shipping:

• All qualifying bypass barn door hardware kits ship free within the continental United States. Extreme lengths or special freight exceptions, if any, are clearly noted before checkout.

Need help deciding? We can guide you on specifications (door width, overlap, weight rating, accessory selection) before you place an order.

FAQ

Q1: What is double bypass barn door hardware?

A dual-track system allows two or more sliding doors to overlap while covering a wide opening without needing full wall clearance.

Q2: How to install double bypass barn door hardware?

Secure a level rear track into structural backing, add offset brackets and a front track, hang rear then front doors, install stops, anti-jumps, and floor guides, then fine-tune alignment.

Q3: What are the benefits of bypass barn door systems?

Space efficiency, modular scalability, improved aesthetic layering, partial access, reduced swing clearance, and flexible multi-panel configurations.

Q4: Is bypass barn door hardware for closets a good choice?

Yes—ideal for wide closets where hinged or bi-fold doors intrude into the room.

Q5: What are double-track barn door hardware solutions?

Systems that use two parallel tracks with standoff brackets enabling overlapping door motion, covering broad openings with minimal side clearance.

Q6: Where to buy custom bypass barn door hardware?

From specialized suppliers (like us) offering custom lengths, finish upgrades, and expansion kits—ensure clear weight ratings and parts availability.

Q7: What is telescoping barn door hardware?

A mechanism linking door motion so moving one panel drives another—used for synchronized, premium openings.

Q8: Do you offer installation services?

No. We are supply-only. You hire the installer of your choice.

Q9: Do you ship nationwide?

We provide bypass barn door hardware free shipping to the continental United States. Contact us for other regions.

Q10: Can I retrofit existing doors into a double bypass?

Yes, if door widths and height allow proper overlap and structural support exists for dual tracks.

Q11: Do I need floor guides?

Absolutely—guides prevent lateral sway and maintain smooth tracked motion.

Q12: What makes hardware “heavy duty”?

Wider tracks, higher certified weight ratings, sealed bearings, robust bracket geometry, and durable finishes.

Q13: Can I add soft-close later?

Often yes—ensure you select compatible dampers sized for door mass.

Q14: How do I calculate door overlap?

Aim for each door to be slightly wider than half the opening so the center seam is fully concealed (typically 2"–4" overlap margin).

Q15: Do glass or metal doors need special hardware?

Yes—confirm roller clamp compatibility and weight support; use appropriate floor guide style (edge or channel).

Buyer’s Checklist Before Ordering

Confirm the following:

• Opening width & height (finished dimensions)
• Door slab thickness & weight (each)
• Desired number of panels (2 / 3 / 4)
• Overlap margin needed (center concealment)
• Track length (standard or custom cut)
• Weight rating ≥ heaviest door
• Finish choice aligned with interior design
• Need soft-close? (Yes/No)
• Floor type (for guide selection)
• Structural backing or header present
• Lead time vs project schedule
• Supply-only acknowledgment (installer lined up)

Final Thoughts

A well-specified double bypass barn door hardware system merges form and function: it reclaims space, enhances access, and elevates interior design through layered movement. Whether you need standard kits or custom bypass barn door hardware, investing in quality components—proper track alignment, reliable rollers, and appropriate weight ratings—pays off with years of smooth, quiet performance.

We’re here as your supply partner: curated hardware, transparent specifications, and free shipping throughout the continental US, without bundling installation. If you’d like a spec template, installer vetting checklist, or product selection guidance, just ask.
