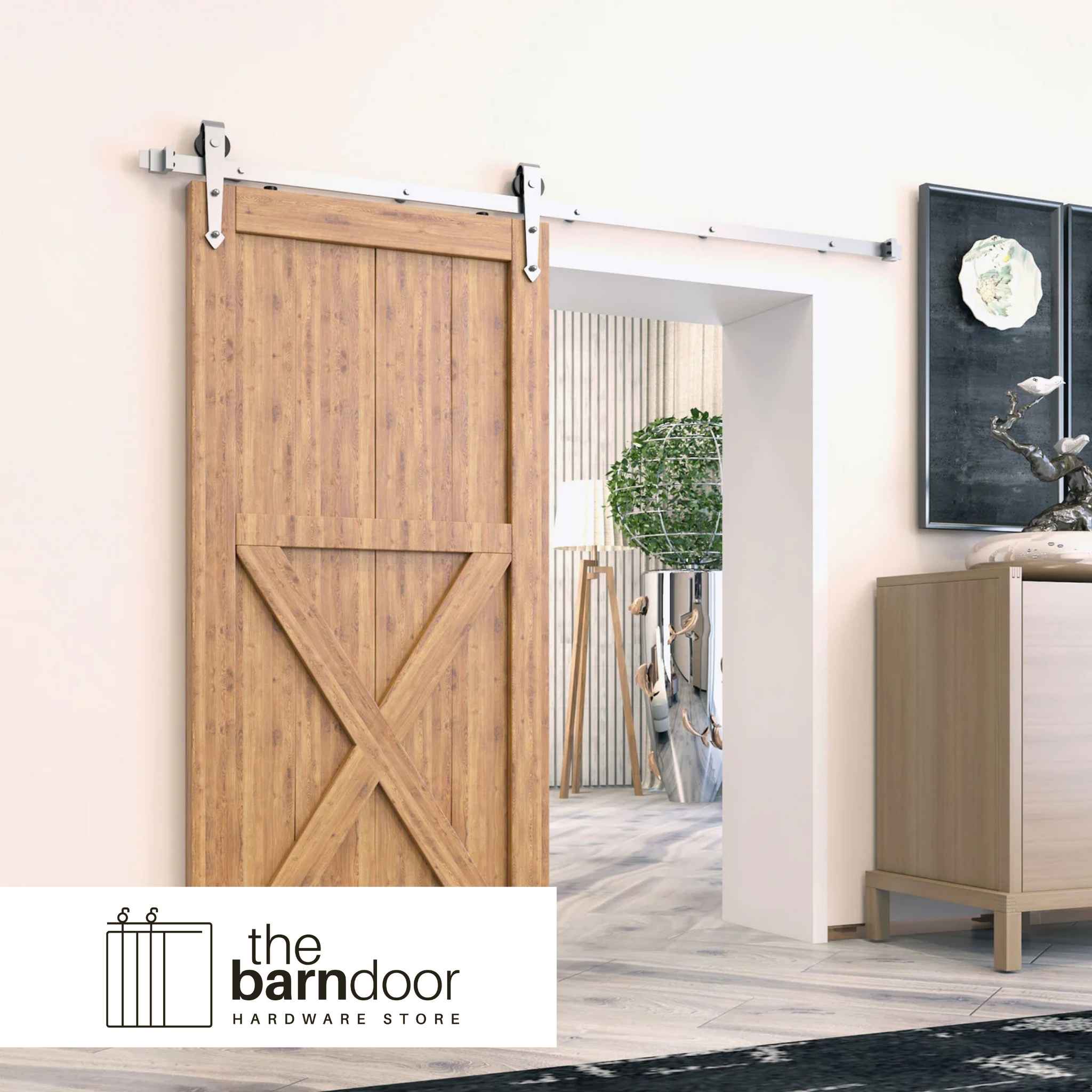

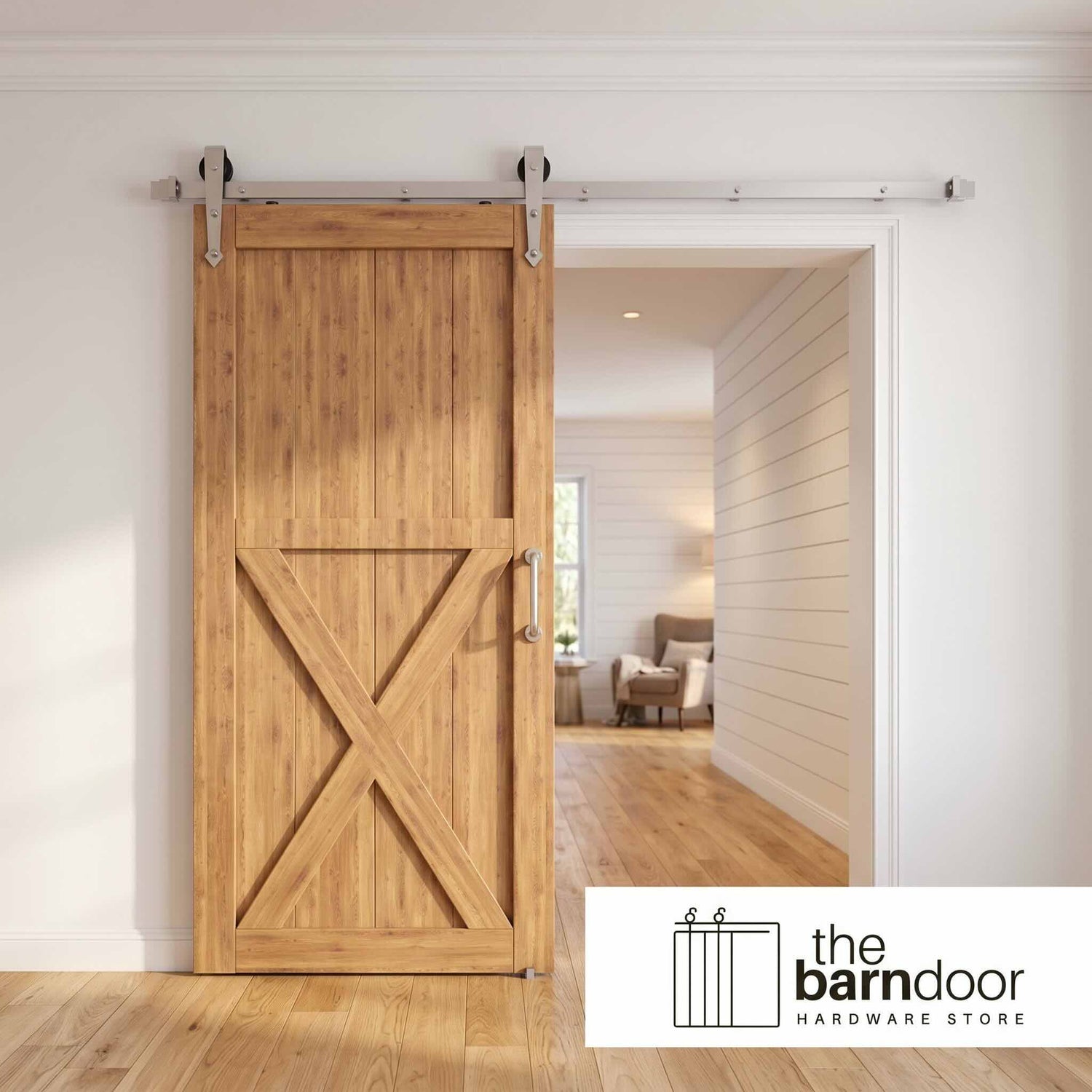

Arrow Brushed Nickel Single Track Barn Door Hardware Kit

Total system weight capacity: 220 lbs. For a single door, the door must weigh under 220 lbs. For biparting, both doors combined must stay under 220 lbs. Over 220 lbs? See heavy duty hardware.

Door thickness: 1-3/8 in to 1-3/4 in. Outside this range? See heavy duty hardware.

Wall clearance beside opening: Must equal full door width on the slide side. Limited clearance? See bypass or bifold hardware.

Wall backing: Solid backing above the opening is required for track mounting: a 1×6 hardwood header board or solid wood blocking in the wall. Either one alone is enough. If there is no existing header or backing in the wall, we recommend installing a minimum 1×6 hardwood board (3/4 in thick × 5-1/2 in wide) that extends past the length of the track to the next stud or structural support point on each side. No solid backing and can't add a header board or blocking? See ceiling mount hardware.

Ceiling clearance above door: 6 in required. Less clearance? See straight strap (5 in) or straight top mount (5 in).

Door width: Your door must be wider than the rough opening. For standard rooms plan for 2 in of wall overlap on each side — opening + 4 in. For bedrooms and bathrooms, 3 in per side gives better privacy — opening + 6 in. Minimum functional overlap is 1/2 in per side. See our measuring guide for full sizing formulas.

Door height: Measure from finished floor to the top of the rough opening and add 1 in. The extra inch covers the top of the opening while leaving 1/2 to 1 in of clearance at the bottom for the door to slide without dragging. If you have thick carpet, check that clearance is adequate along the full travel path before ordering.

This kit's track is punched on 16″ centers so the holes land on studs, and it has no bolt at the end of the track. On most single-door openings that makes no practical difference. It starts to matter on biparting pairs, on long runs, and on doors over about 100 lb, where the steel past the last hole can deflect enough to see. We wrote up the measurements rather than asking you to take our word for it: when the end bolt matters and when it doesn't.

Brand: Quick Ship — ships from stock in 2–3 business days

Finish: Brushed Nickel

Track dimensions: 1-1/2 in wide × 1/4 in thick flat track

Wheels: Nylon — quiet, smooth operation. Steel wheel upgrade available — shop steel wheels

Wheel diameter: 2-3/4 in

Weight capacity: 220 lbs total system

Door thickness: 1-3/8 in to 1-3/4 in

Configurations: Single door or biparting (two doors on one track)

Finishes available: Black, brushed nickel

Soft close: Available as an add-on

Handles: Not included — order separately from our handles collection

For the full pre-order checklist see our measuring guide. For track length formulas see our track length guide.

Hardware for 1 Door:

• Flat track

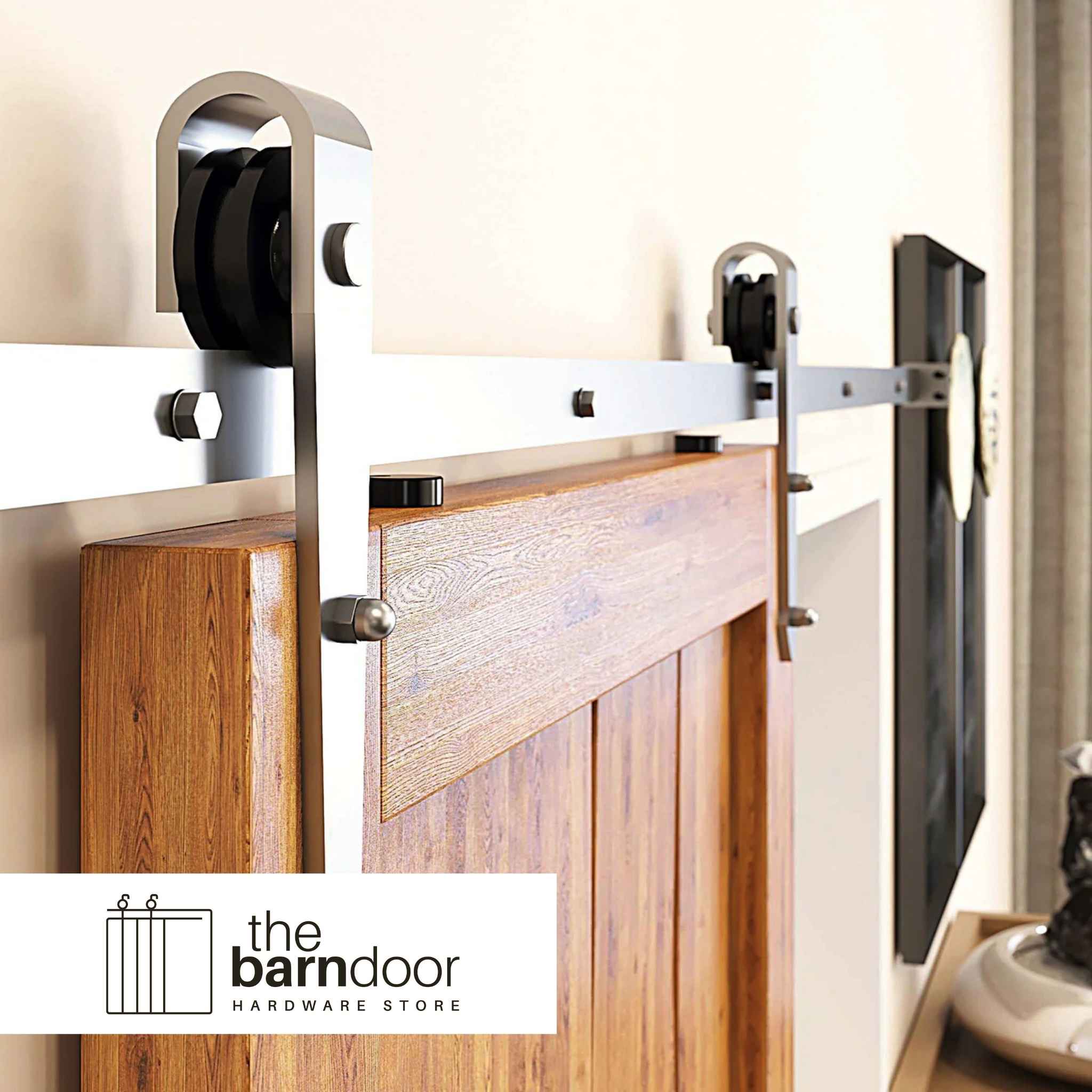

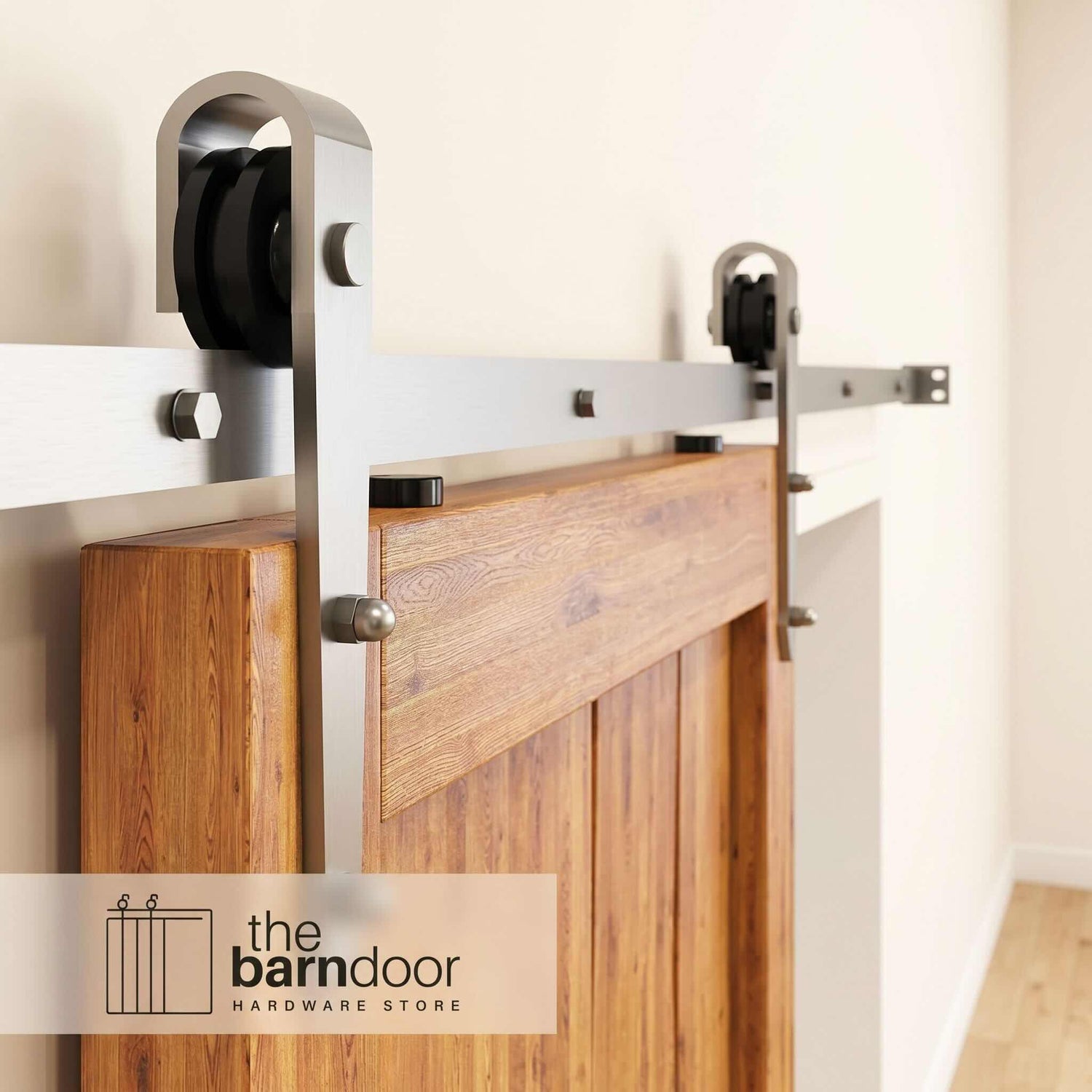

• 1 arrow hanger/roller set (2 rollers) — each hanger attaches to the door face with 2 screws
• Hex bolt set
• 2 anti-jump disks
• 1 floor guide
• 2 door stoppers
• Hex wrench
• 4 rubber hole covers (for track ends)
• Spacers, lag bolts, and washers (quantities vary by track length — correct quantities included based on your selection)

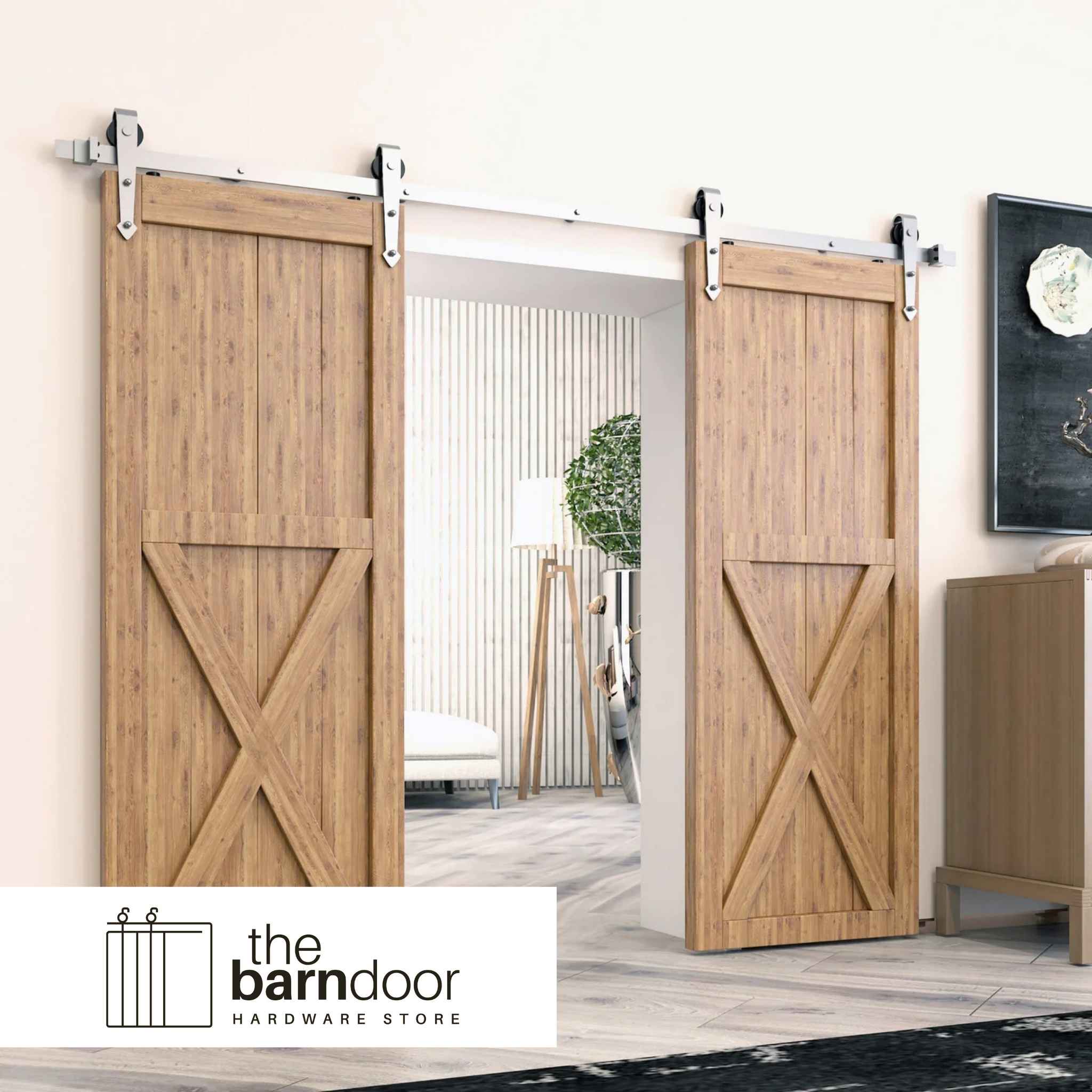

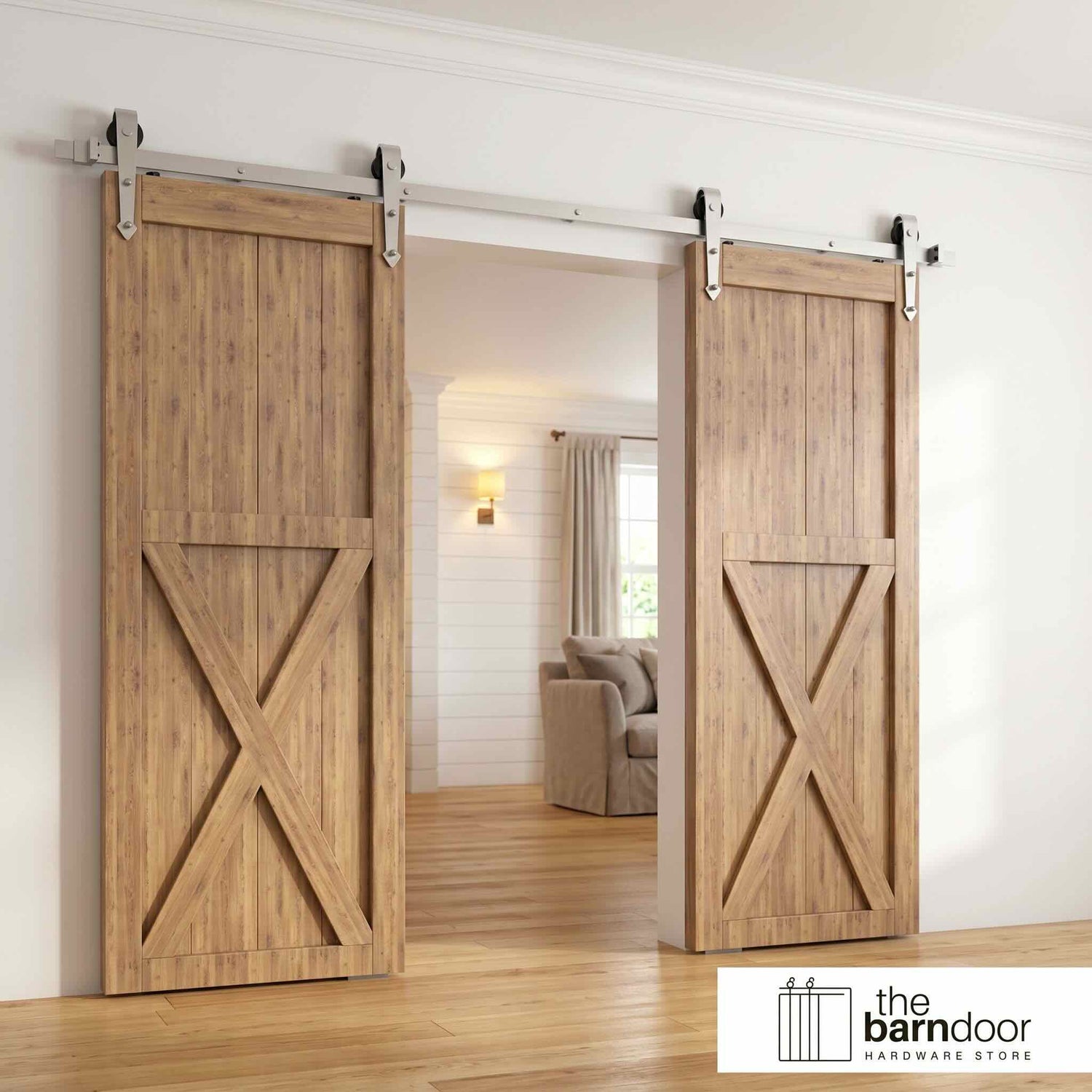

Hardware for 2 Doors (biparting): Same as above plus 1 additional hanger/roller set (2 more rollers, 4 total), 1 additional floor guide, 2 additional anti-jump disks, and 2 additional door stoppers.

Tracks over 7 ft 6 in ship in multiple pieces with a junction plate included. Handles and a latch are not included — add them before checkout to avoid a second shipment.

The included floor guide is floor-mounted. If you have finished hardwood, tile, or LVP you can't drill into, you'll need a wall-mounted floor guide instead — browse our floor guides collection.

Hardware kits don't include handles or a latch — plan for these before checkout to avoid a second shipment:

Handle: For the room-facing side of the door — browse our handles collection

Flush pull: For the wall-facing side if the door is operated from both sides — browse our flush pulls collection

Latch: Keeps the door closed deliberately — browse our latches collection

Steel wheels: For doors over 150 lbs or if you prefer the metal wheel look — shop steel wheels

Wall-mounted floor guide: If you have finished hardwood, tile, or LVP you can't drill into — browse our floor guides collection

The track must be at least 2× the door width for the door to fully clear the opening. Measure the door panel — not the rough opening.

Single door: 2× door width — e.g. 36 in door → 6 ft track minimum

Biparting (2 doors): 2× combined door width — e.g. two 30 in doors → 10 ft track minimum

For biparting: add both door widths together first, then double the combined total. Ordering a track that's too short is the most common mistake. When in doubt, order the next size up.

Tracks over 7 ft 6 in ship in multiple pieces with a junction plate included. Quick Ship hardware is available in the listed track lengths only — if you need a custom length, Goldberg Brothers hardware supports custom sizing at any length.
