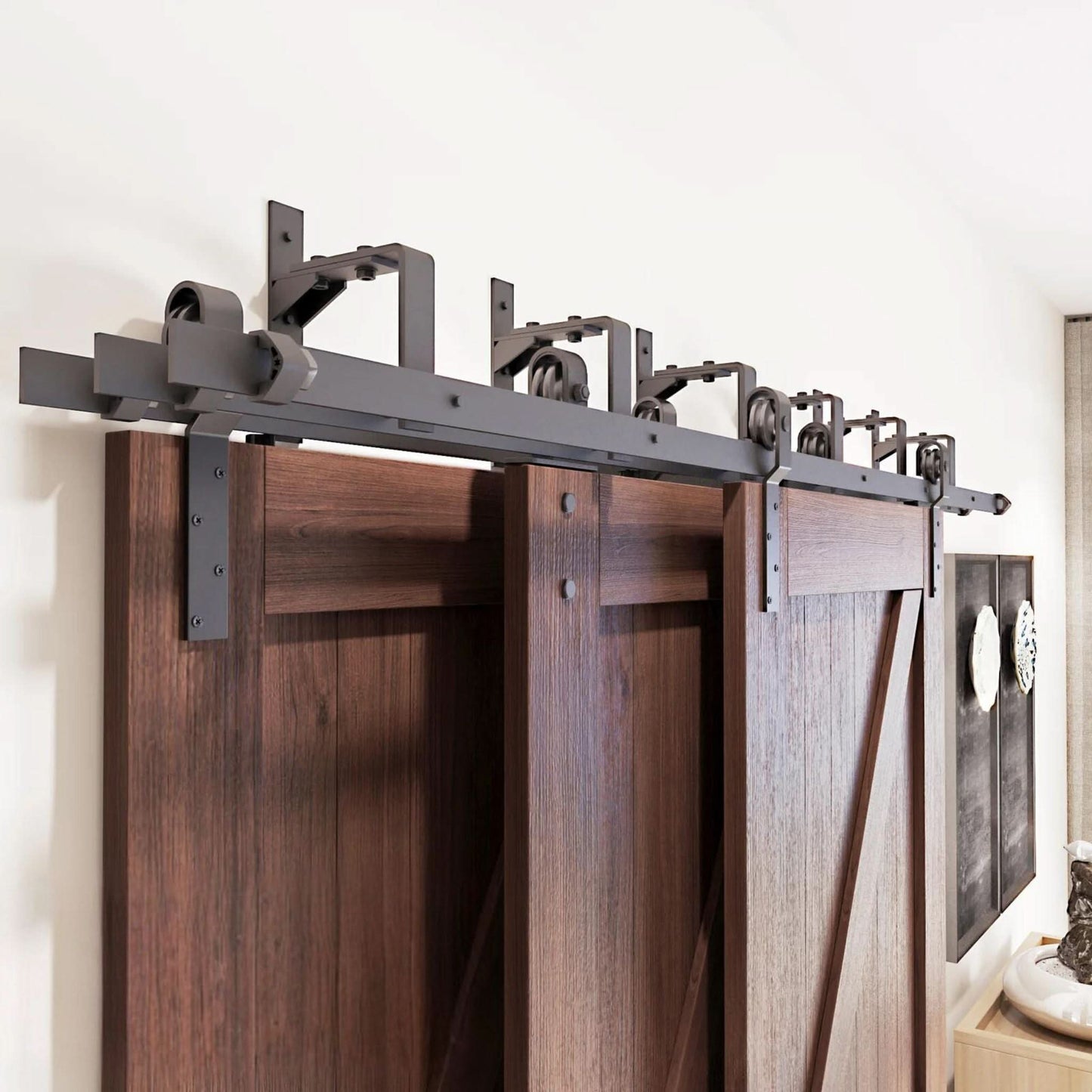

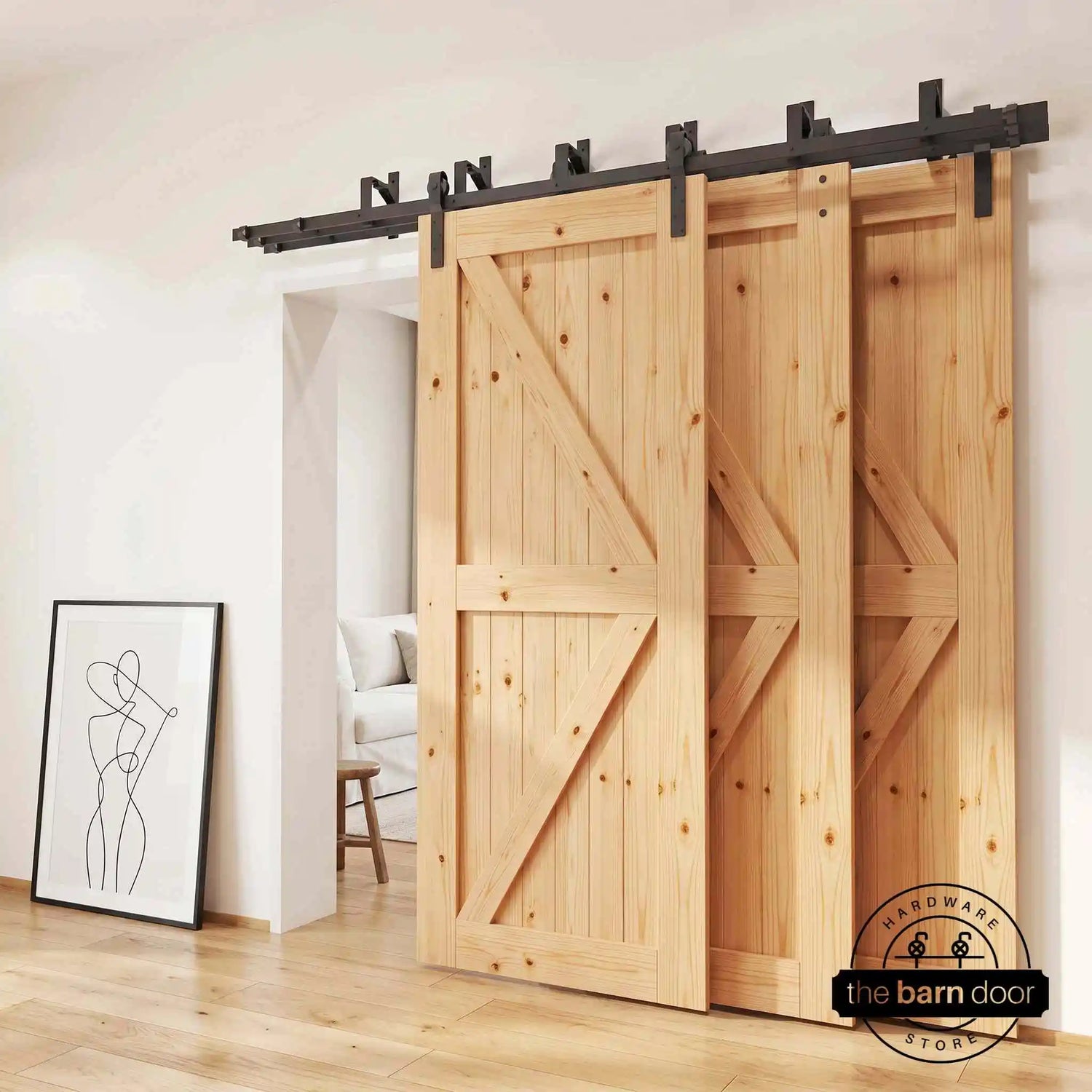

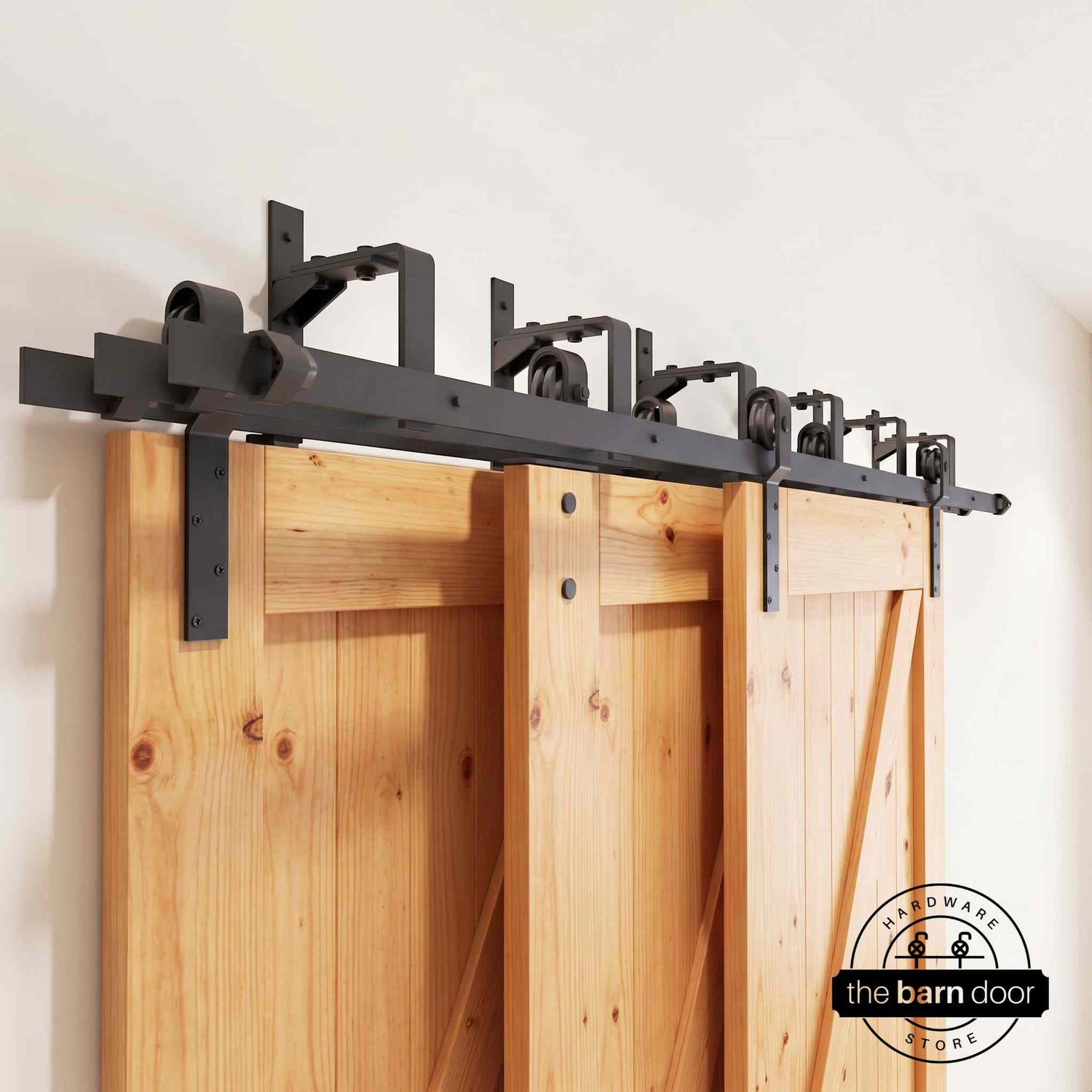

J-Strap Triple Track Bypass Barn Door Hardware Kit | Matte Black

Door weight: 220 lbs total system across all three doors combined.

Door width: For three equal-width panels: each door = (opening + 8 in) ÷ 3. This accounts for a recommended 2 in of overlap between each adjacent door pair (2 junctions × 2 in = 4 in) and 2 in of wall overlap on each outer door (2 sides × 2 in = 4 in). Example: 60 in opening → (60 + 8) ÷ 3 = 68 ÷ 3 = 22-2/3 in per door. See the track length section below for pass-through and clear opening formulas.

Door height: Opening height + 1 in. Leaves 1/2 to 1 in of floor clearance. Check clearance is adequate along the full travel path, especially with carpet.

Door thickness: 1-1/4 in to 1-3/8 in.

Ceiling clearance above door: 10 in required between the top of the door and the ceiling. This is higher than single or double bypass because the bracketry that supports the second and third tracks extends further up the wall.

No flush closure: Triple bypass — like all bypass configurations — cannot achieve a flush center seal. The door layers sit at different depths. If flush closure is a requirement, bypass is not the right configuration.

Wall header: A solid header above the opening is required for track mounting. If there is no existing header or backing in the wall, we recommend installing a minimum 1×6 hardwood board (3/4 in thick × 5-1/2 in wide) that extends past the length of the track to the next stud or structural support point on each side. No solid header and cannot install one? See ceiling mount hardware.

Brand: House value line — quick ship

Lead time: Ships in 2–3 business days

Finish: Matte black

Weight capacity: 220 lbs total system

Door thickness: 1-1/4 in to 1-3/8 in

Door count: 3 panels on 3 independent tracks

Track width: 1-1/2 in

Track thickness: 1/4 in

Ceiling clearance: 10 in above door

Track lengths available: 4 ft · 4 ft 6 in · 5 ft · 5 ft 6 in · 6 ft · 6 ft 7 in · 7 ft · 7 ft 6 in · 8 ft · 9 ft · 10 ft · 11 ft · 12 ft · 13 ft · 14 ft · 15 ft · 16 ft · 18 ft · 20 ft

Tracks over 7 ft 6 in: Ship in multiple pieces with junction plates included

Floor guide: Floor-mounted guide included per door

Soft close: Not included — available separately and retrofittable

Warranty: Limited lifetime warranty

For Goldberg Brothers triple bypass — heavier doors, thicker panels, or all 17 finishes — email us for a custom quote.

Hardware quantities vary by track length — check the included instruction sheet before installation.

• Flat tracks (3) — one per door layer, in your selected length
• Inverted hanger/roller assemblies (2 sets, 4 hangers total) — for front and back door panels, mount to front face of door; includes anti-jump system, floor guides, door stoppers, hex bolt sets, rubber hole covers
• Flush hanger/roller assembly (1 set, 2 hangers) — for middle door panel, mounts to back face of door; includes hanger screws, anti-jump pads, floor guides, door stoppers
• Triple bypass bracket set — spacer connector, track connectors, bracket connectors, brackets, lag bolts; spaces the three tracks at the correct depths
• Junction plate (1) — included for tracks over 7 ft 6 in
• Hex wrenches

A pull handle, flush pull, latch, and soft close are not included — add them before ordering to avoid a second shipment.

No pull handle, flush pull, latch, or soft close is included. Each door panel needs its own pull handle:

Pull handles: One per door panel — browse our barn door handles

Soft close: Sold separately, retrofittable — browse our accessories

Continuous floor guide: Recommended for full clear opening setups — browse our floor guides

Latch: Keeps the door closed deliberately — browse our latches collection

Flush pull: For the wall-facing side — browse our flush pulls collection

Triple bypass track length depends on one decision: do you need pass-through access, or do you want the entire opening fully cleared?

Pass-through (partial access)

Doors slide to one side but don't fully clear the opening. The track needs to be slightly wider than the opening, accounting for your desired door overlap on each side when closed.

Track = opening + door overlap each side. Example: 68 in opening + 2 in overlap each side = 72 in → select 6 ft 7 in track.

Clear opening (fully unobstructed access)

All three doors stack fully to one side. Use the individual door panel width — not the rough opening — for this calculation:

3 doors: 4× door width. Example: three 36 in panels → 4 × 36 = 144 in → select 12 ft track.

For a partial stack somewhere between pass-through and full clear, email us with your opening width and target clearance and we'll calculate the right length. Non-standard track lengths are priced the same as the next standard size up.

Floor guide note

For full clear opening setups, we recommend upgrading from the included floor-mounted point guides to a continuous floor guide — a routed aluminum channel embedded in the floor that keeps each door's bottom edge constrained across its full travel distance. The tradeoff: the continuous guide requires permanently routing a slot in your flooring. If that's not an option, the included point guides work, but managing smooth door travel across a long distance requires careful setup. See our floor guides collection for options.
