Stainless Steel Glass Barn Door Hardware

Glass panel thickness: 3/8 in to 1/2 in. Outside this range? Email us before ordering.

Glass panel holes: Holes are required in the glass at each roller mounting point. Confirm your glass panel supplier can pre-drill to Goldberg Brothers specifications before ordering. Email us for hole specifications.

Door weight: Up to 400 lbs per door for all roller configurations.

Wall clearance beside opening: Must equal full door width on the slide side. Limited clearance? See bypass hardware.

Ceiling clearance above door: 5-1/2 in required for all stainless steel styles. Measure from the top of your glass panel to the ceiling before ordering.

Wall header: Solid header or header board required above the opening. No solid wall surface above the opening? This kit is not available in a ceiling mount configuration — email us to discuss alternatives.

Trim clearance kit: Available as an add-on if casing or trim surrounds the opening — add at the product level before checkout.

Door width: Your door must be wider than the rough opening. For standard rooms plan for 2 in of wall overlap on each side — opening + 4 in. For bedrooms and bathrooms, 3 in per side gives better privacy — opening + 6 in. Minimum functional overlap is 1/2 in per side. See our measuring guide for full sizing formulas.

Door height: Measure from finished floor to the top of the rough opening and add 1 in. The extra inch covers the top of the opening while leaving 1/2 to 1 in of clearance at the bottom for the door to slide without dragging. If you have thick carpet, check that clearance is adequate along the full travel path before ordering.

Brand: Goldberg Brothers — made to order in the USA

Lead time: 14–21 business days

Glass panel thickness: 3/8 in to 1/2 in

Weight capacity: 400 lbs per door

Track dimensions: 2 in wide × 3/16 in thick

Ceiling clearance above door: 5-1/2 in

Wall offset: 3/8 in

Finishes: Raw stainless, matte black texture, black

Configurations: Single sliding (Hardware for 1 door) / Biparting (Hardware for 2 doors)

Soft close: Not available for glass door configurations. Flush pulls and latches for wood doors are not compatible with glass panels. Handles require a Goldberg Brothers adapter — see the FAQ below.

Warranty: Limited lifetime warranty

For the full pre-order checklist, see our measuring guide. For track length formulas, see our track length guide.

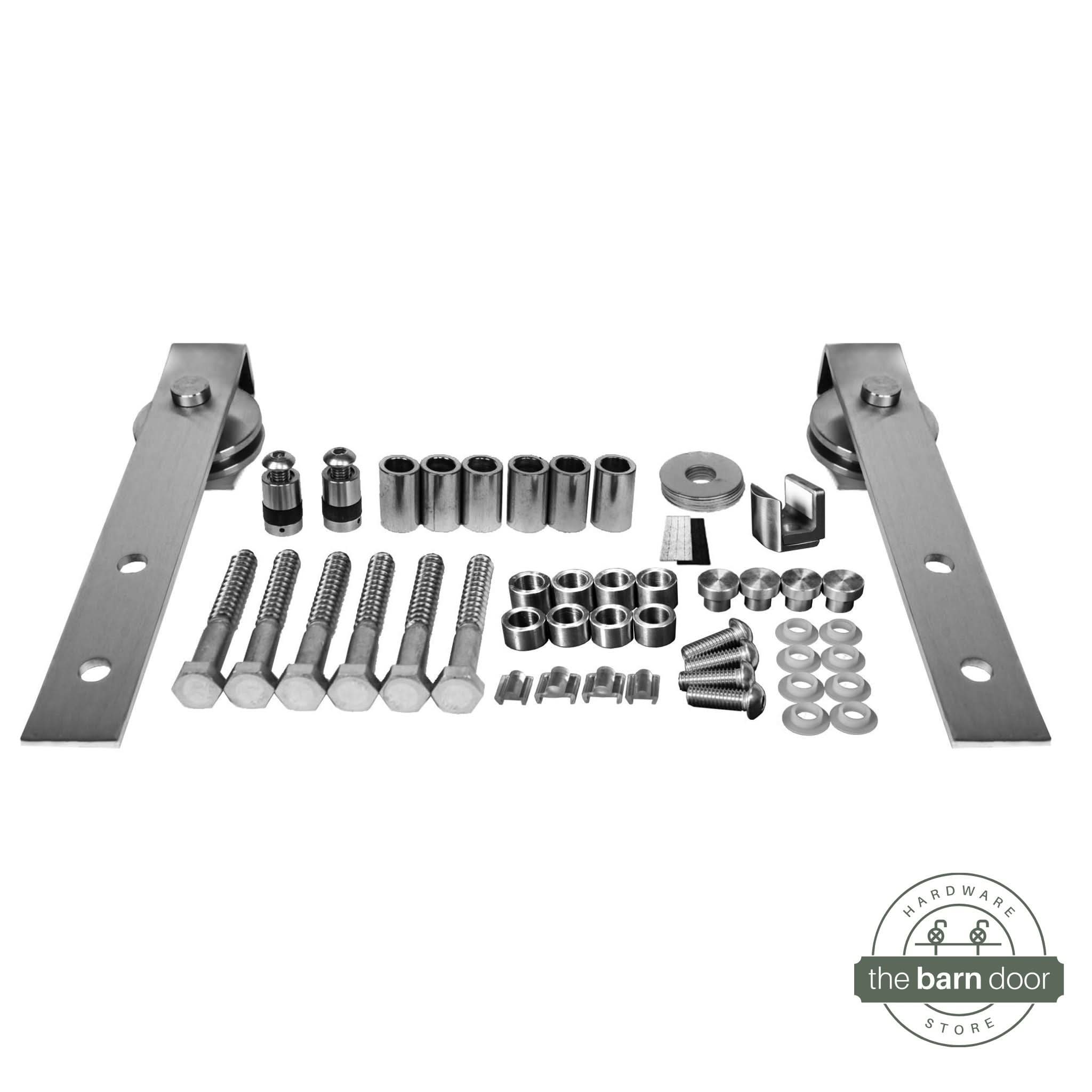

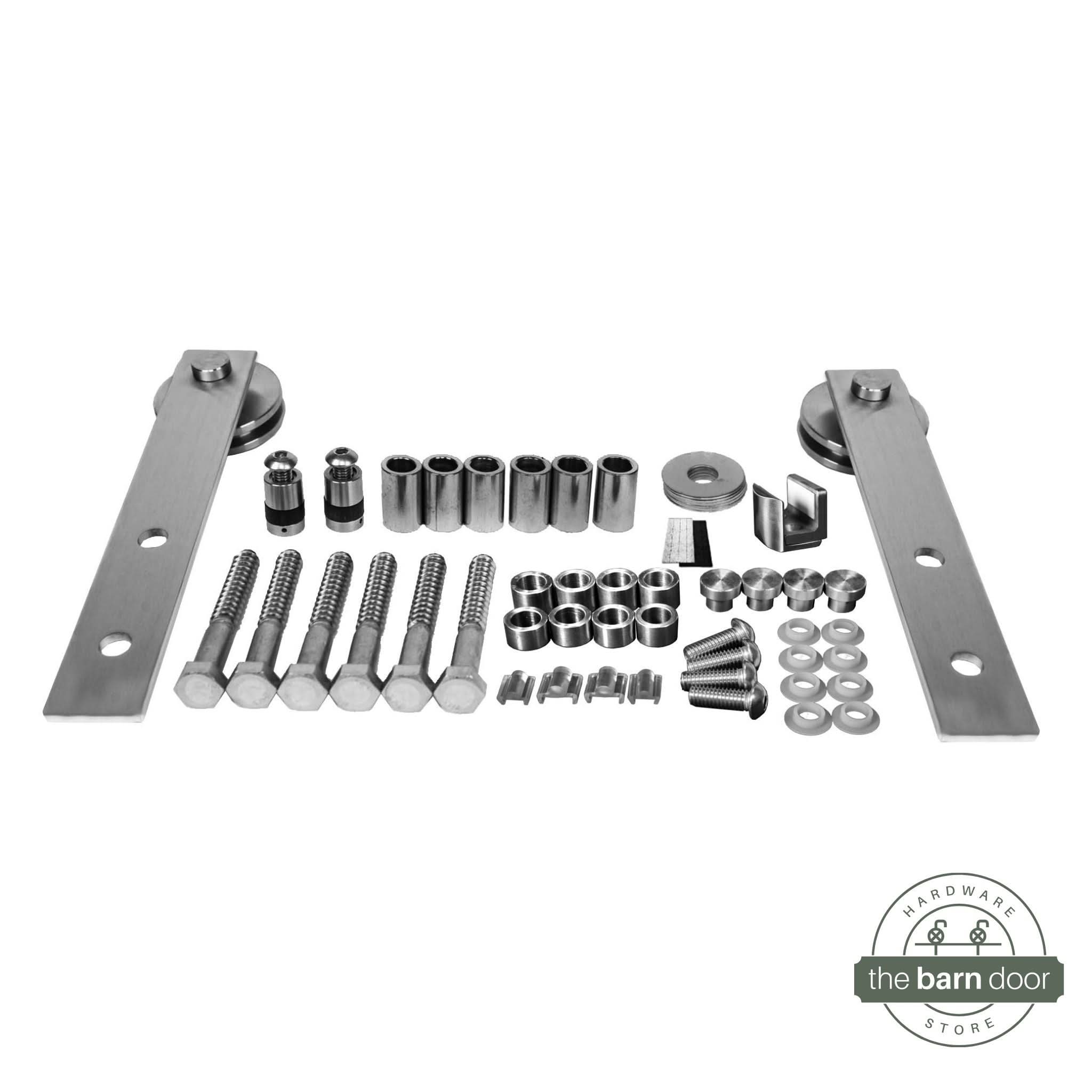

• Stainless steel track (2 in × 3/16 in) — custom-cut to your specified length
• Stainless steel strap roller sets — mounts to front face of glass panel
• Glass mounting hardware — bolts sized for 3/8 to 1/2 in glass panels (holes must be pre-drilled by glass supplier)
• Wall mounting brackets, bolts, and spacers
• 2 track stops per roller set (biparting includes center stop)
• 1 floor-mounted T guide per door
• Anti-jump safety bumpers
• Installation instructions

Handles and flush pulls are not included — order separately from our handles collection. Latches are not included — browse our locks and latches collection. Trim clearance kit available as add-on — Add at checkout if casing surrounds the opening.

This kit doesn't include handles — plan for these before checkout:

• Handles: Glass door panels require a Goldberg Brothers handle adapter — browse our handles collection for compatible Goldberg Brothers bar pulls and D-pulls, and email us at info@thebarndoorhardwarestore.com to add the adapter to your order.
• Trim clearance kit: Required if casing or trim surrounds the opening — add at the product level before checkout

Note: flush pulls and latches designed for wood doors are not compatible with glass door panels. Soft close is not available for glass door configurations.

Track length must be at least 2× the door width. For a single sliding door: door width = opening + 4 in minimum. For biparting (Hardware for 2 doors): door width per panel = (opening ÷ 2) + 2 in, track length = 2× combined panel width.

Size to the door, not the opening. A 36 in opening with a 40 in glass panel needs an 80 in track minimum — not 72 in. Every track is custom-cut to your specified length at no extra charge over the next standard size.

For the full track length formula reference by configuration, see our track length guide.
