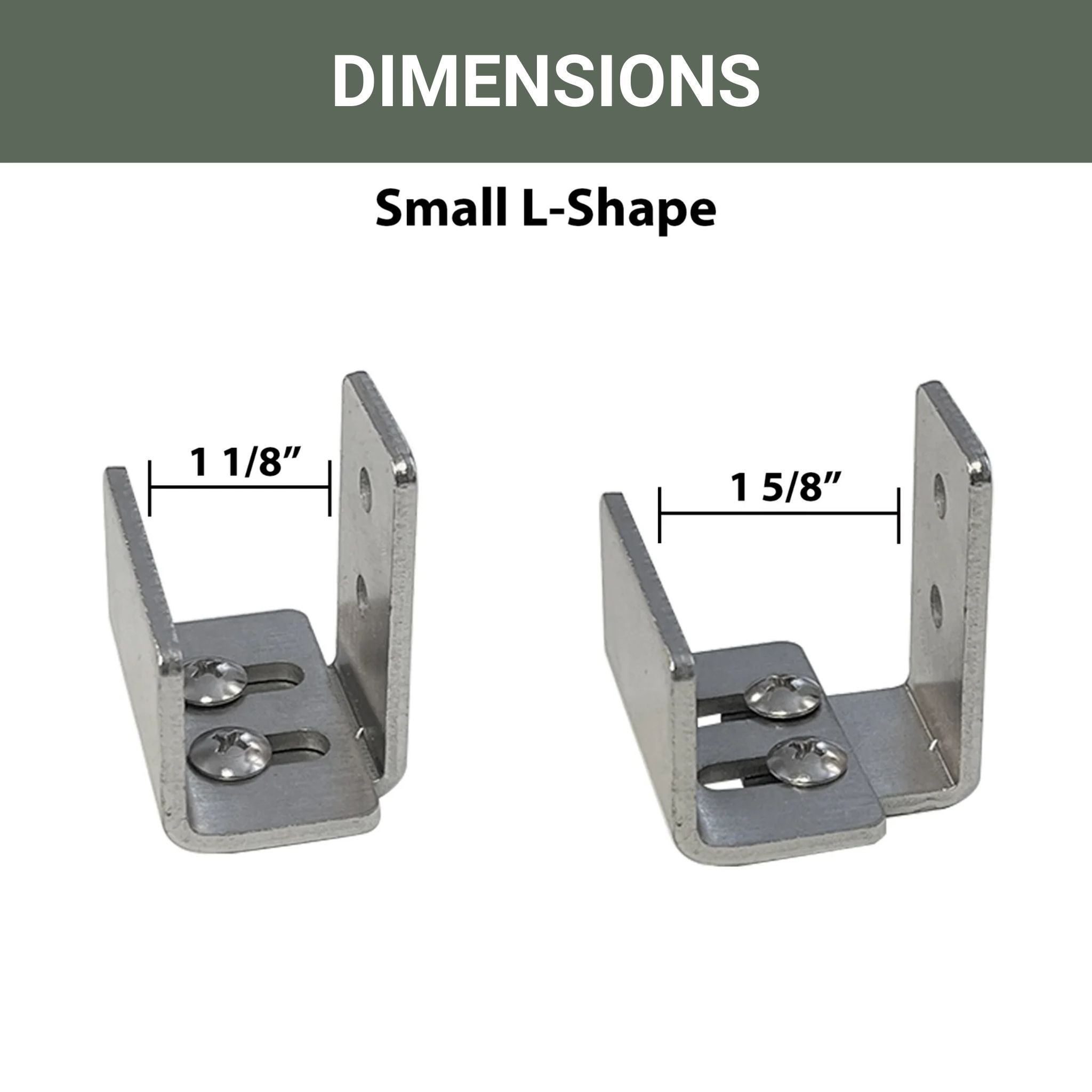

Two small L-shaped metal brackets with dimensions labeled on a white background.

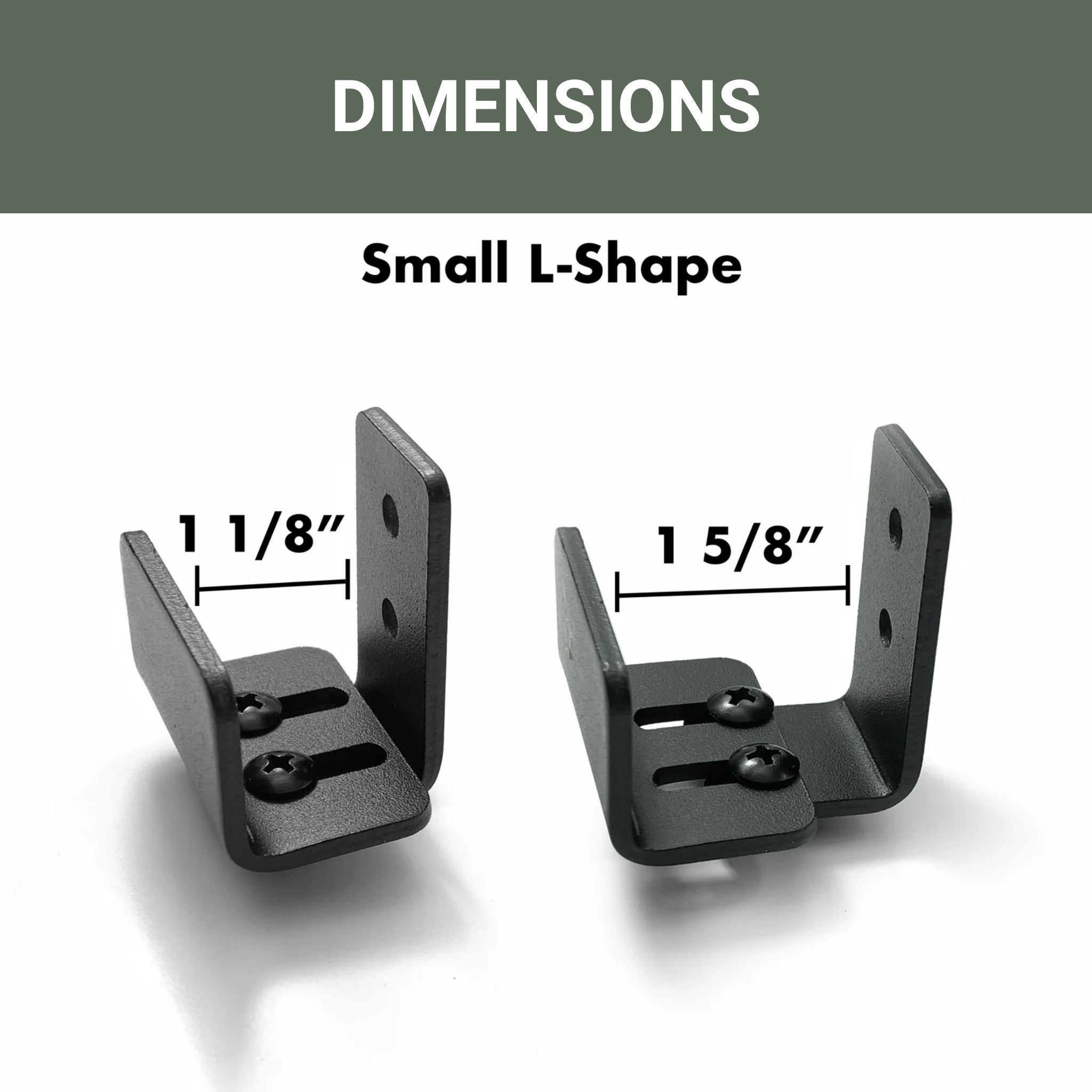

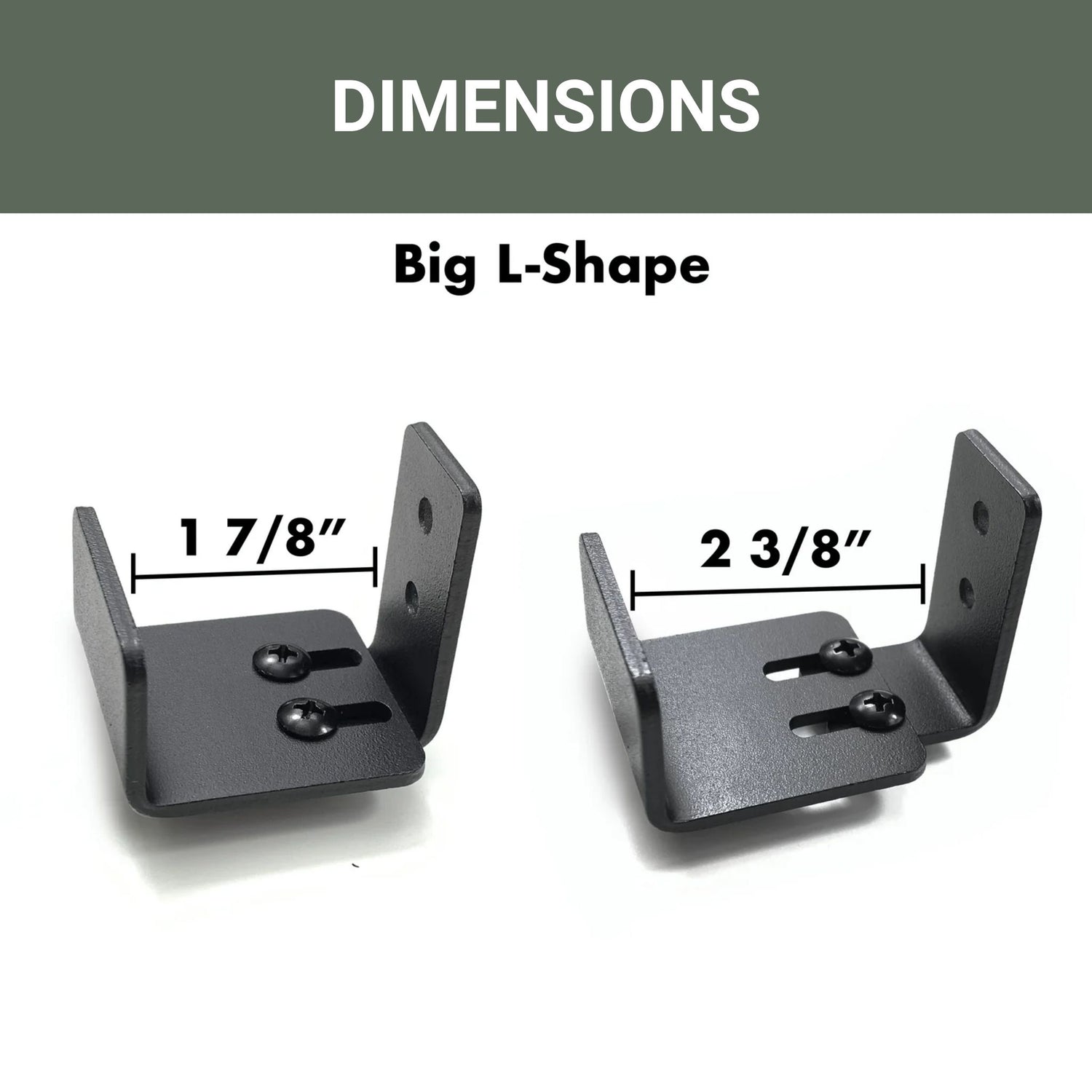

Two L-shaped metal brackets with dimensions labeled on a white background.

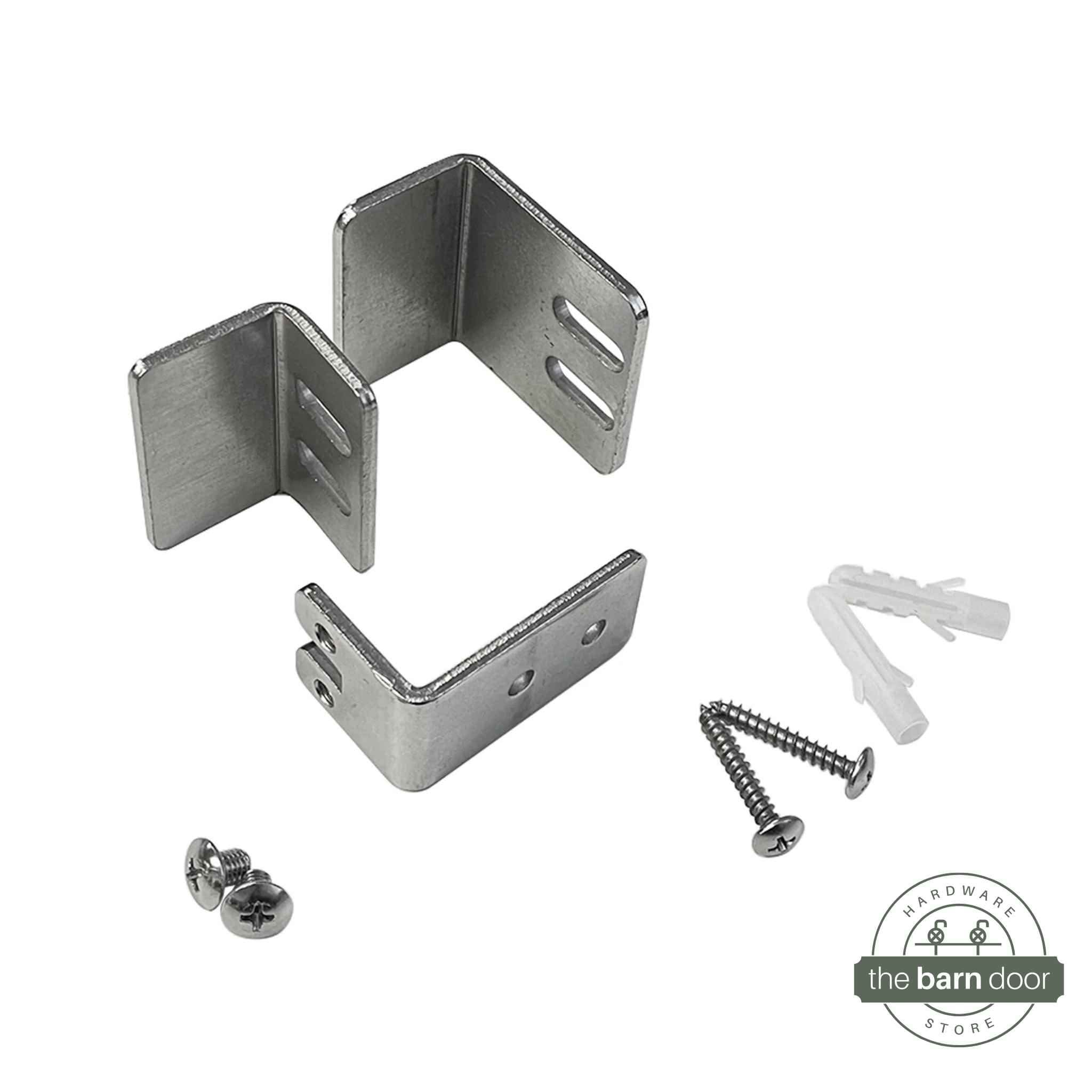

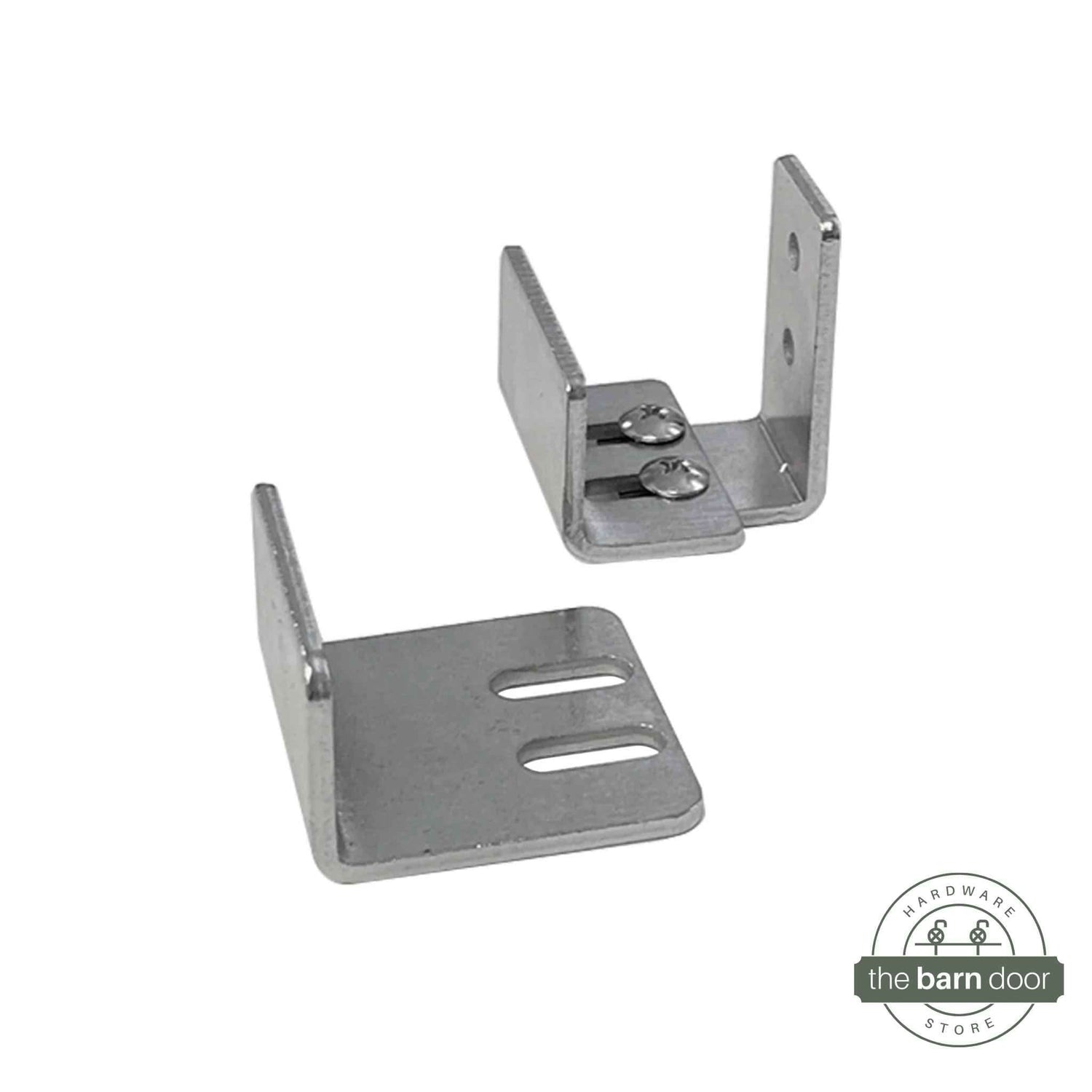

Brushed Nickel U Channel Barn Door Floor Guide

Small L-shaped metal brackets with dimensions labeled on a white background.

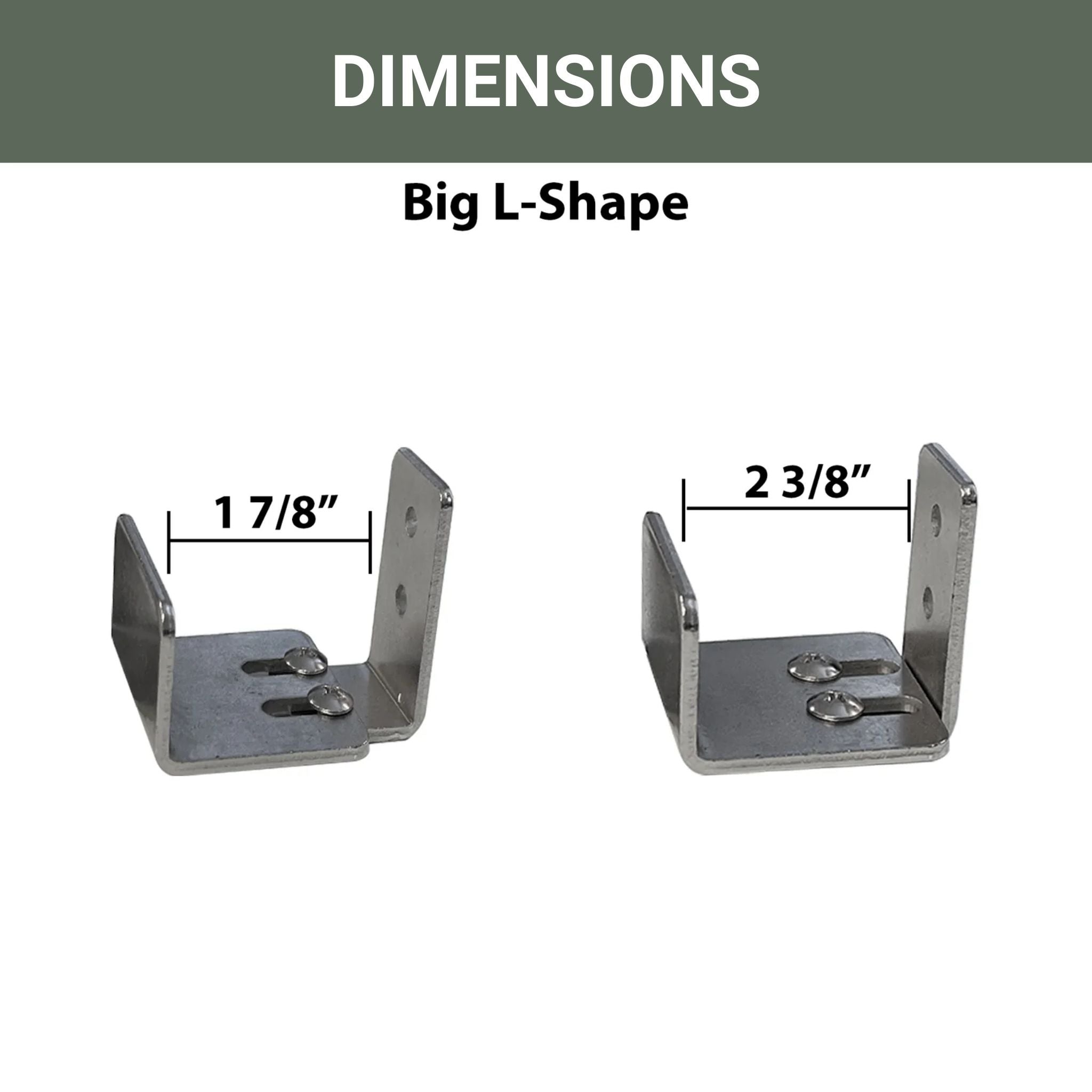

Metal L-shaped bracket with dimensions labeled on a white background

Roll over image to zoom in Click on image to zoom

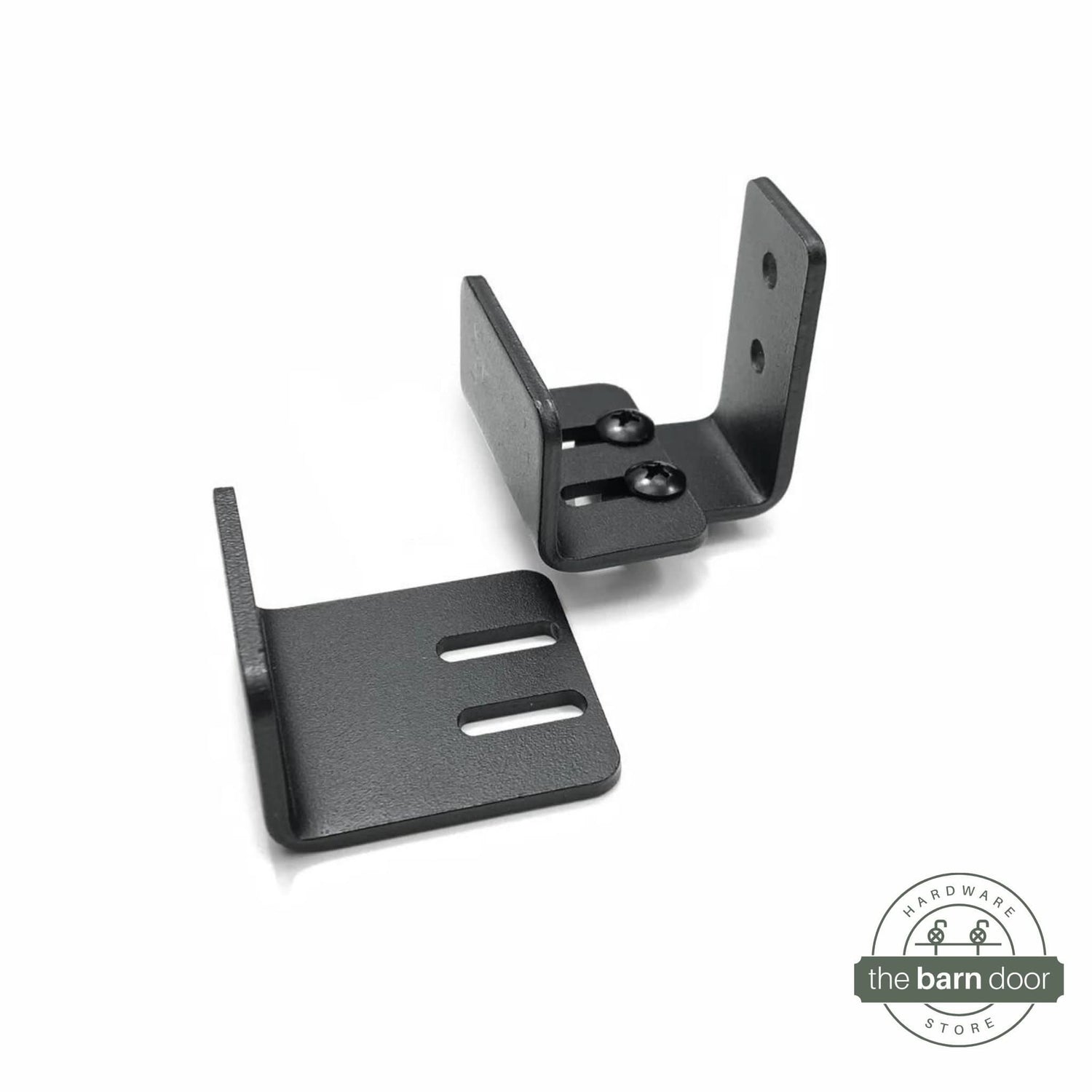

U Channel Wall Mounted Barn Door Guide

Quick Ship

Starts at:

$29.99

Finish: Black Powder Coat

Quantity:

Share this product

The U Channel wall mounted guide is the wall-mounted floor guide for bypass barn door configurations. Unlike bracket-style roller guides that would block an outer bypass door, the U Channel design allows both bypass doors to pass through it freely — the channel wraps around the door edge or rides in a bottom slot, providing guidance without obstructing lateral door travel.

It can be used in two ways: the U-channel flange wraps around the door edge (no slot needed), or the flange rides inside a slot in the door bottom (1/4 in wide × 7/8 in deep). Two L-bracket attachments are included for doors up to 2-1/4 in thick; adjustment slots in the bracket allow fine-tuning to match the door thickness. Compatible with single track and bypass configurations. Available in black powder coat and brushed nickel. Ships in 2–3 business days.

Brand: House value line — quick ship

Lead time: Ships in 2–3 business days

Material: Steel

Finishes available: Black powder coat · Brushed nickel

Mounting: Wall or baseboard — no floor drilling required

Door thickness: Up to 2-1/4 in — two L-bracket attachments included

Slot option: Can be used with a 1/4 in × 7/8 in slot in door bottom, or without a slot (wraps around door edge)

Adjustability: Slots in the L-bracket allow flange position to be adjusted to door thickness

Compatible with: Single track and bypass configurations

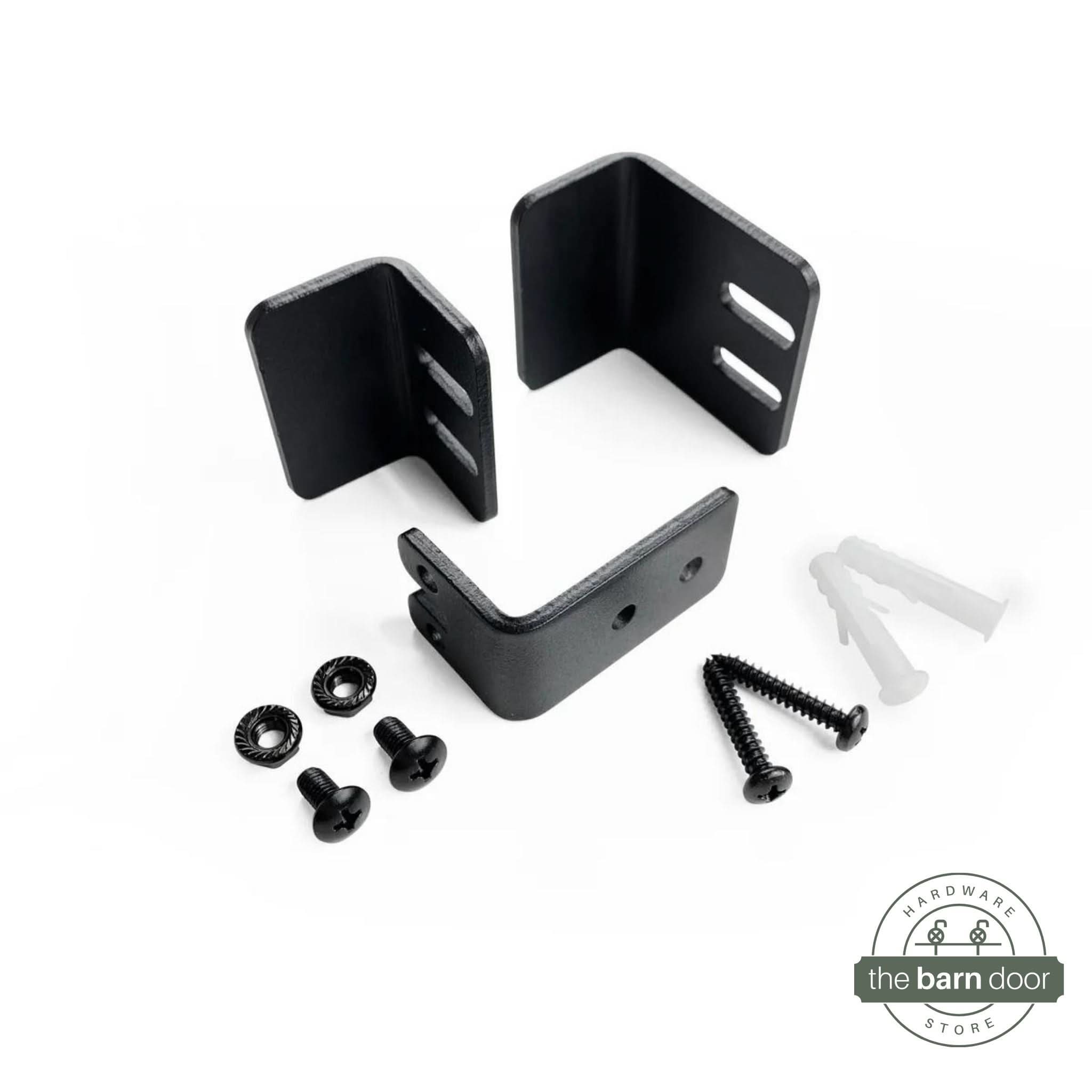

U channel guide (1)
L-bracket attachments (2) — for different door thicknesses up to 2-1/4 in
Mounting hardware

Our Simple 3-Step Process

1) Select Your Hardware

Customize your configuration

2) Shipped Quickly

Your hardware kit typically ships in 2-3 business day.

3) Install with Confidence

Your purchase is backed by a limited lifetime warranty.

Common Questions

Why does bypass need a different guide than single track?

In a bypass setup, the outer door travels past the inner door's position. A bracket-style roller guide mounted to the wall would block the outer door's travel path. The U Channel design allows both doors to pass through it — the channel guides whichever door is passing without obstructing the other. Standard wall-mounted roller guides are not compatible with bypass.

Does the door need a slot in the bottom?

No — this guide can be used either way. When used without a slot, the U-channel flange wraps around the door's bottom edge. When used with a slot, the flange rides inside the slot instead. The slotted configuration provides more positive guidance; the unslotted configuration works with any door as-is.

How do I adjust it for my door thickness?

Two L-bracket attachments are included — one for thinner doors and one for thicker doors up to 2-1/4 in. Select the bracket that fits your door thickness, then use the adjustment slots in the bracket to fine-tune the flange position until the guide sits correctly against the door edge. No tools beyond a screwdriver are required.
