Felt-Lined Barn Door Roller Floor Guide

Roll over image to zoom in Click on image to zoom

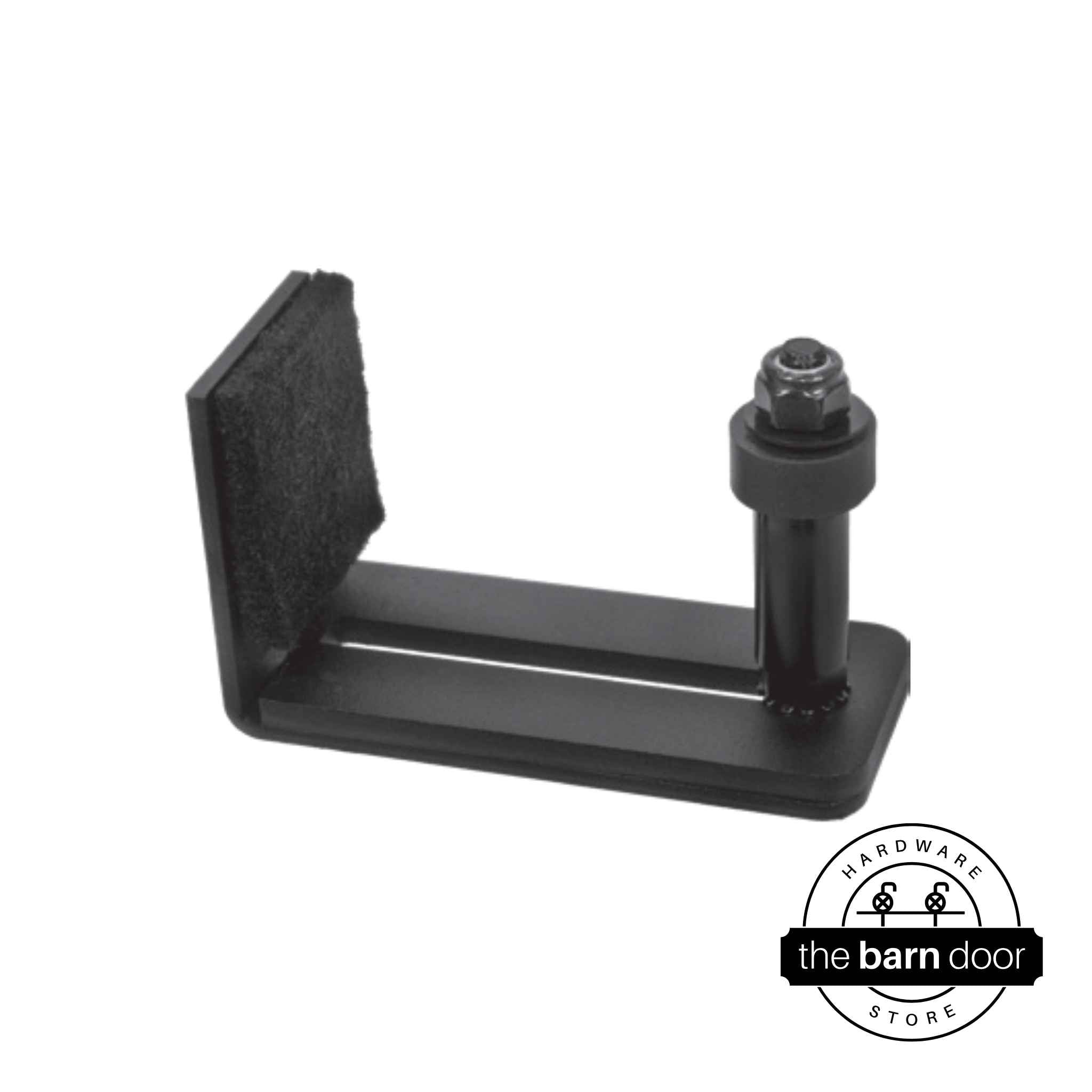

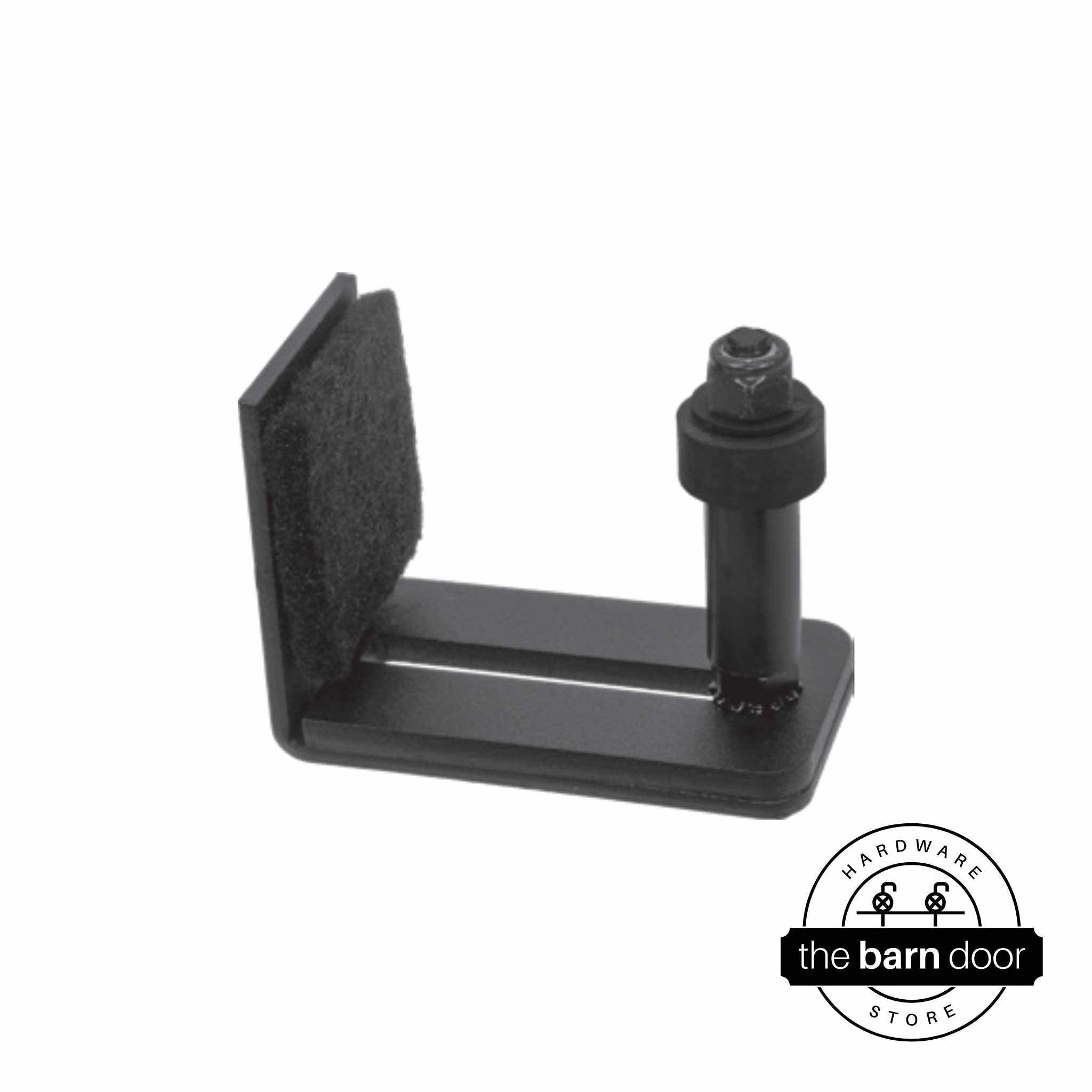

The felt-lined roller guide mounts to the wall or baseboard — no floor drilling required — and guides the bottom of the door using a single 3/4 in nylon roller with a rubber band and an adhesive-backed felt pad. The roller and felt work together: the roller handles contact when the door swings toward the wall, and the felt pad provides a soft buffer that prevents scratching. The door doesn't need a slot in its bottom edge.

Available in two door thickness configurations: standard for 1-1/4 to 1-3/4 in doors, and extended for 1-1/4 to 2-1/4 in doors. Both are matte black texture powder coat. Made by Goldberg Brothers — a higher quality build than the HVL equivalent, with a shorter bracket that reduces tripping potential. For the HVL version, see the wall mounted barn door guide. Made to order in Colorado. Ships in 10–15 business days.

Brand: Goldberg Brothers — made to order in Colorado, USA

Lead time: 10–15 business days

Material: Laser-cut steel

Finish: Matte black texture powder coat

Mounting: Wall or baseboard — no floor drilling required

Door slot required: No

Roller: Single 3/4 in nylon roller with rubber band

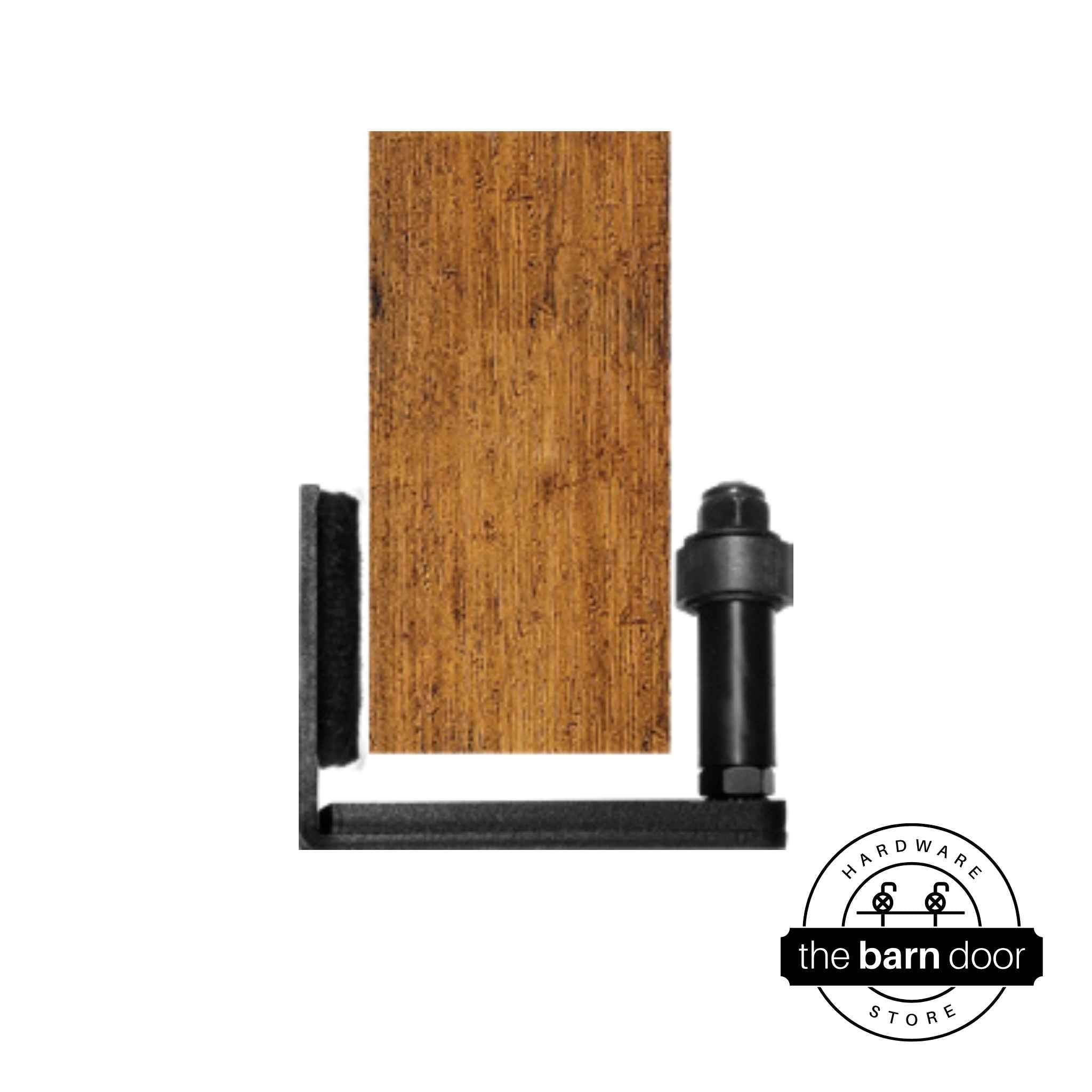

Standard configuration: Door thickness 1-1/4 to 1-3/4 in · 3 in bracket

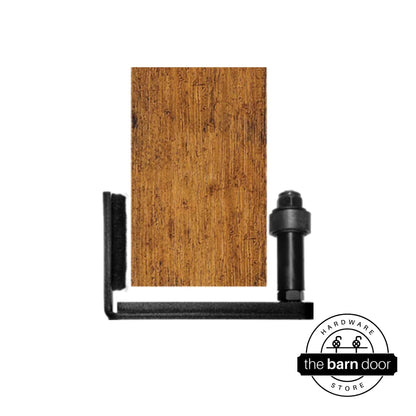

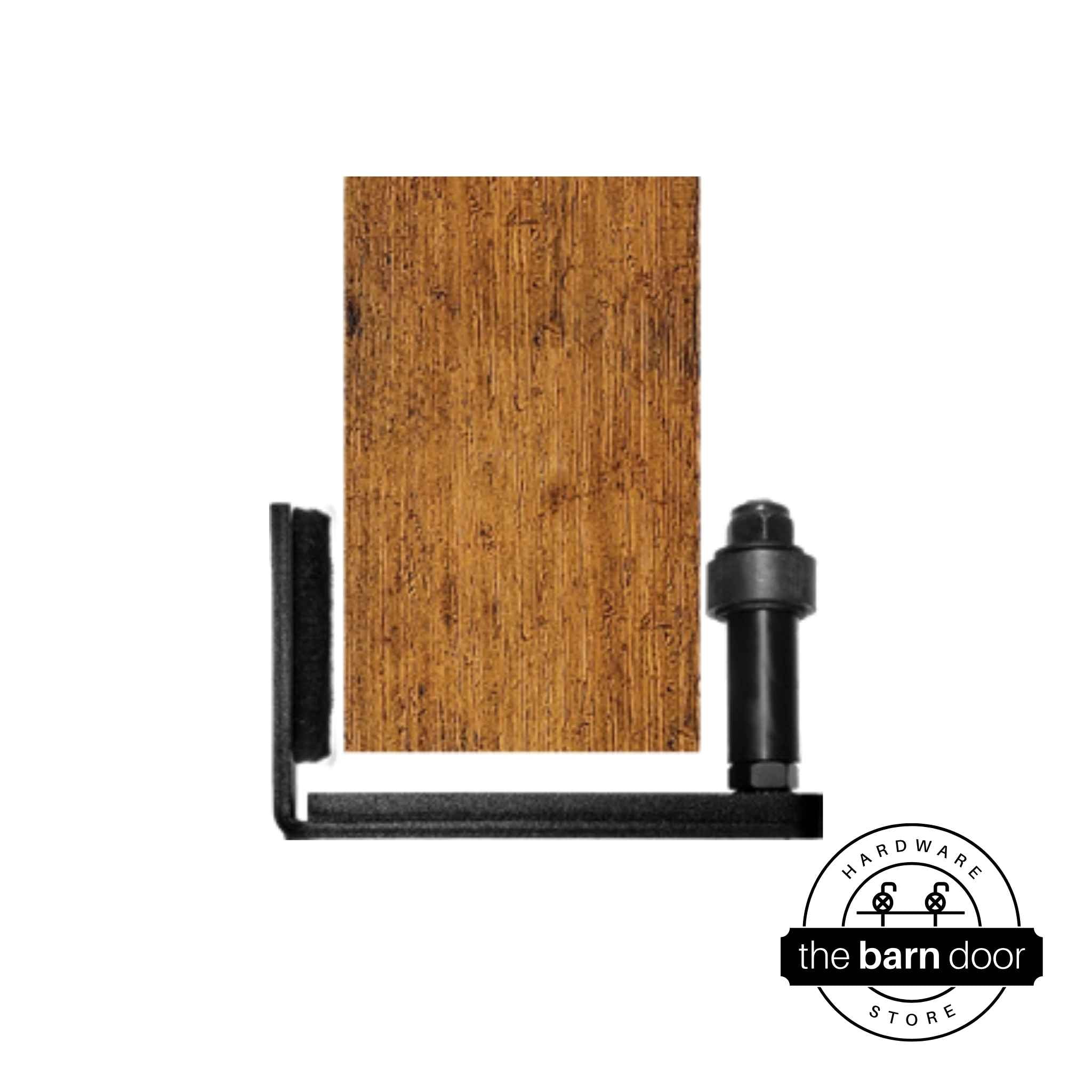

Extended configuration: Door thickness 1-1/4 to 2-1/4 in · 3-1/2 in bracket

Bracket dimensions: 3 in or 3-1/2 in × 2 in × 1-1/2 in

Required wall-to-door clearance: Standard — no minimum · Extended — check fit for larger doors

Includes: Adhesive-backed felt pad

Not compatible with: Bypass configurations

L-bracket (1) — laser-cut steel, matte black texture
3/4 in nylon roller with rubber band (1)
Adhesive-backed felt pad (1)
Mounting hardware

How It Works

1) Select Your Item

Choose your finish and quantity

2) Shipped in 10-15 days

Each item is made to order in the U.S. and shipped in 10-15 days

3) Install with Confidence

U.S. made barn door hardware with a limited lifetime warranty

Common Questions

Why choose this over a floor-mounted T-guide?

Two reasons: you can't or don't want to drill into your floor, or your door doesn't have a slot in the bottom edge. Wall-mounted roller guides attach to the baseboard or wall and don't require any floor penetration — ideal for finished hardwood, tile, or LVP. They also don't require a slot in the door, so any door works regardless of how its bottom edge is finished.

What does the felt pad do?

The adhesive-backed felt pad mounts on the bracket and provides a soft buffer between the bracket and the door. During normal operation the door may contact the roller, the felt, or neither — all of these are normal. If the door seems too wobbly, the roller can be repositioned closer. The felt prevents any metal-on-door contact that could scratch the door face.

Which thickness configuration should I choose?

Select based on your door's actual thickness. If your door is 1-1/4 to 1-3/4 in thick, choose the standard version. If it's between 1-3/4 and 2-1/4 in, choose the extended version. The extended version uses a longer bracket — slightly more prominent — to accommodate the wider door.
