By Evan Christensen · Owner, The Barn Door Hardware Store
Published October 25, 2025 · Updated April 2026
Evan has owned and operated The Barn Door Hardware Store since 2016. Hidden roller hardware comes up most often with customers who want a barn door that reads as a floating panel — no visible hardware on the door face. He and the team are available 7 days a week at info@thebarndoorhardwarestore.com.

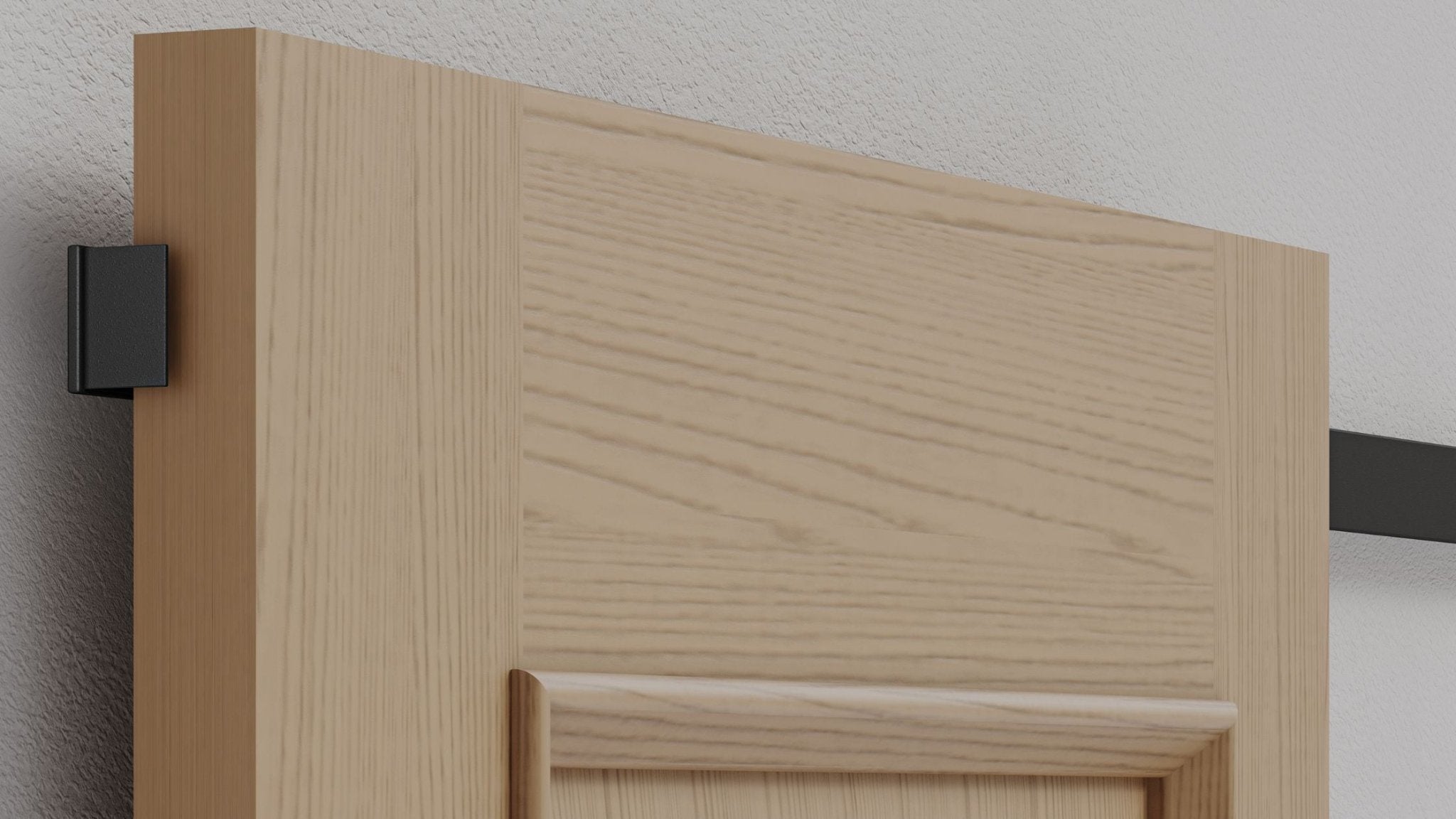

Hidden roller barn door hardware conceals the entire roller assembly behind the door — not just the wheel, but the full roller mechanism. From the front, all you see is the door panel. The track is mounted above the opening as usual, but the hardware attaches to the back face of the door, keeping every moving part out of sight.
It's a purely aesthetic choice — there is no functional advantage over standard hardware other than appearance. If you want a barn door that reads as a floating panel with no visible hardware on the door face, hidden roller is the right configuration. If the look of the hardware doesn't matter to you, standard hardware is simpler and more cost-effective.
How this differs from "magic" hidden door systems
There's a category of hidden door hardware online that promises a truly invisible door — the hardware mounts inside a pocket routed into the door itself, with one connection point at the top and one at the bottom. These systems look striking in photos. In practice, they have a significant structural problem: with only two widely spaced single-point connections — one at the top, one at the bottom — the door is inherently unstable. These doors tend to sag over time, and because the mounting points are inside a routed pocket, adjustment is difficult.
Our hidden roller hardware works differently. The roller assembly mounts to the back face of the door and runs on a standard track above the opening — the same track geometry as all of our other hardware. That track has two roller contact points, so as long as the track is level, the door stays level. There's no routed pocket required, no bottom pin to wear out, and no single point of structural failure.
The tradeoff is that our hidden roller is not truly invisible — the track itself is visible above the door, and the track stops are visible. What's hidden is the roller assembly and all hardware on the door face. If you need a system where the track itself disappears, our hidden roller is not that product. But if you want the door face to be completely hardware-free with a structurally sound, reliable system behind it, this is the right solution.
What to know before ordering
Clearance above the opening
Hidden roller hardware requires 4-3/8 in of clearance above the rough opening — more than standard hardware. This is the most common installation constraint. If your opening extends close to the ceiling, measure carefully before ordering. Standard hardware requires approximately 2 in of clearance; hidden roller requires significantly more due to the roller assembly geometry.
The benefit of this clearance: the door can be sized to sit very close to the ceiling when closed, minimizing the visible gap at the top of the door.
Wall offset
Hidden roller hardware holds the door 1 in off the wall — compared to 3/8 in for standard hardware. This larger offset is required to accommodate the concealed roller assembly behind the door. It means the door sits further from the wall than a standard sliding barn door, which is worth knowing if you're installing in a tight hallway or beside trim or molding.
No soft close
Soft close is not available for hidden roller configurations. If end-of-travel noise control is important for your installation — particularly for bedroom or bathroom doors — consider whether standard hardware with soft close is a better fit than hidden roller without it.
Acoustics — hidden roller is not an improvement
A common assumption is that a door that appears more sealed will also be quieter. That's not accurate for hidden roller hardware. The 1 in wall offset creates a larger air gap around the door perimeter than standard hardware's 3/8 in — meaning hidden roller hardware transmits more sound, not less. If sound reduction is a priority, standard hardware with pile weatherstrip is a better solution. See our barn door soundproofing guide for detail.
Capacity options
Hidden roller hardware is available in two configurations. Because the roller assembly is concealed, there are no decorative hanger style options — the only choice is capacity.
| Configuration | Capacity | How it differs |
|---|---|---|
| Standard hidden roller | 125 lbs per door | 2 rollers on the track per door |
| Heavy duty hidden roller | 250 lbs per door | 4 rollers on the track per door |
Choose based on your door weight. For weight estimation by door material, see our barn door weight guide. If you're unsure which capacity applies to your door, email us before ordering — it's a straightforward question to answer once we know the door material and dimensions.
Browse the hidden roller barn door hardware collection.
Is hidden roller the right choice for your installation?
| Choose hidden roller if... | Choose standard hardware if... |
|---|---|
| You want no visible hardware on the door face | You want soft close |
| You have 4-3/8 in clearance above the opening | You have less than 4-3/8 in above the opening |
| The 1 in wall offset works in your space | Sound reduction is a priority |
| A floating panel aesthetic is the goal | The look of the hardware doesn't matter to you |
If you're between the two and want a second opinion, email us at info@thebarndoorhardwarestore.com with your opening dimensions, ceiling height, and what you're trying to achieve. We'll tell you which configuration makes more sense for your specific situation.
Ready to order or have questions first?
Browse the hidden roller hardware collection for standard and heavy duty options. If you want to confirm the clearance requirement works for your opening before ordering, email us at info@thebarndoorhardwarestore.com with your opening height and ceiling height — we'll tell you whether hidden roller is feasible in your space. Available 7 days a week.
