Classic Double Barn Door Kit | Brushed Nickel Hardware

Door width per panel: Measure your rough opening width. For a standard room, add 4 in then divide by 2 — this gives the width for each door panel (2 in of overlap per side, 1 in per door at the center). For a bedroom or bathroom, add 6 in then divide by 2 (3 in overlap per side). Select the door width closest to that result. Example: 48 in opening, standard room → (48 + 4) ÷ 2 = 26 in per panel.

Door height: Select 80 in or 84 in. The door should be at least 1 in taller than the opening — more is fine — to leave adequate floor clearance. On carpet or uneven floors, confirm there is enough clearance for both doors to slide without dragging.

Track length: Determined automatically by the door width you select — see the sizing reference below. One shared track spans the full opening with enough length for both doors to slide clear.

Ceiling clearance: The clearance required between the top of each door panel and the ceiling depends on your roller type. Straight Strap and Straight Top Mount require 5 in; J-Strap, Arrow, and Diamond require 6 in; Spoke Wheel requires 8 in. Measure this gap before selecting a roller style.

Wall header: A solid header above the opening is required for track mounting. If there is no existing header or backing in the wall, install a minimum 1×6 hardwood board (3/4 in thick × 5-1/2 in wide) that extends past the length of the track to the next stud or structural support point on each side. No solid header and cannot install one? See ceiling mount hardware.

Wall clearance: In a biparting setup, each door slides to the side of the opening. You need at least as much clear wall space on each side as the width of one door panel — confirm there are no switches, outlets, or trim obstructions on either side.

Door material: Solid pine — ships flat for customer assembly

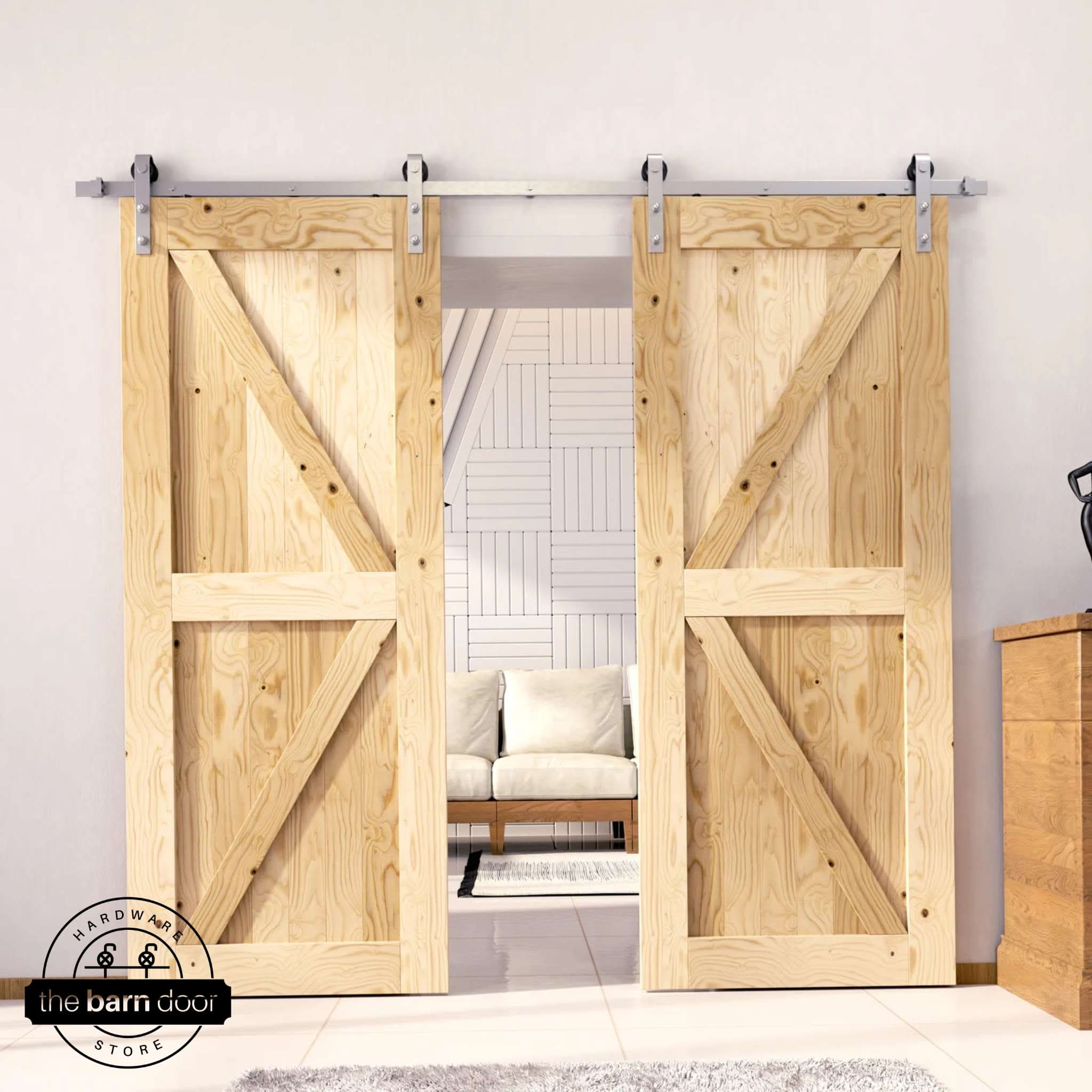

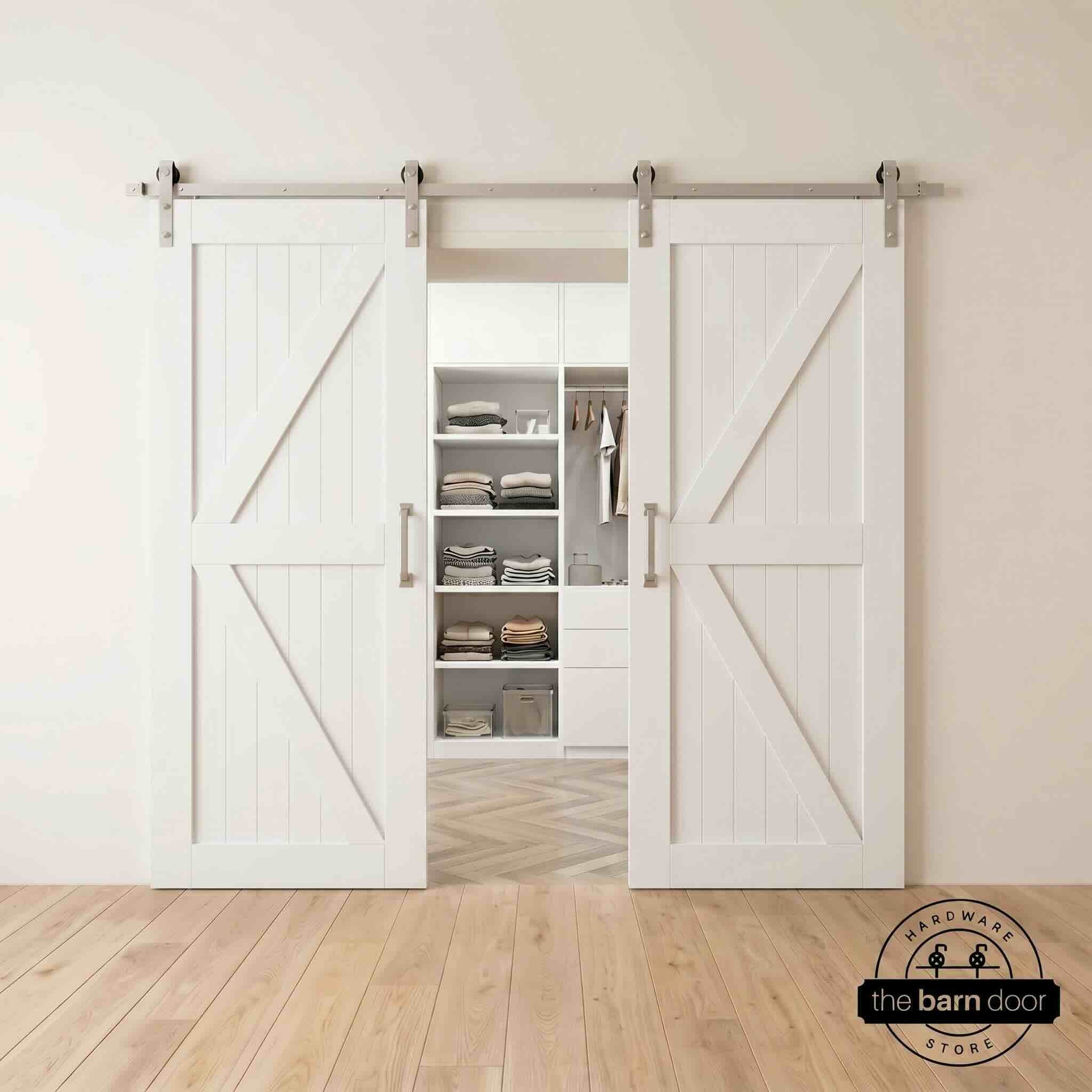

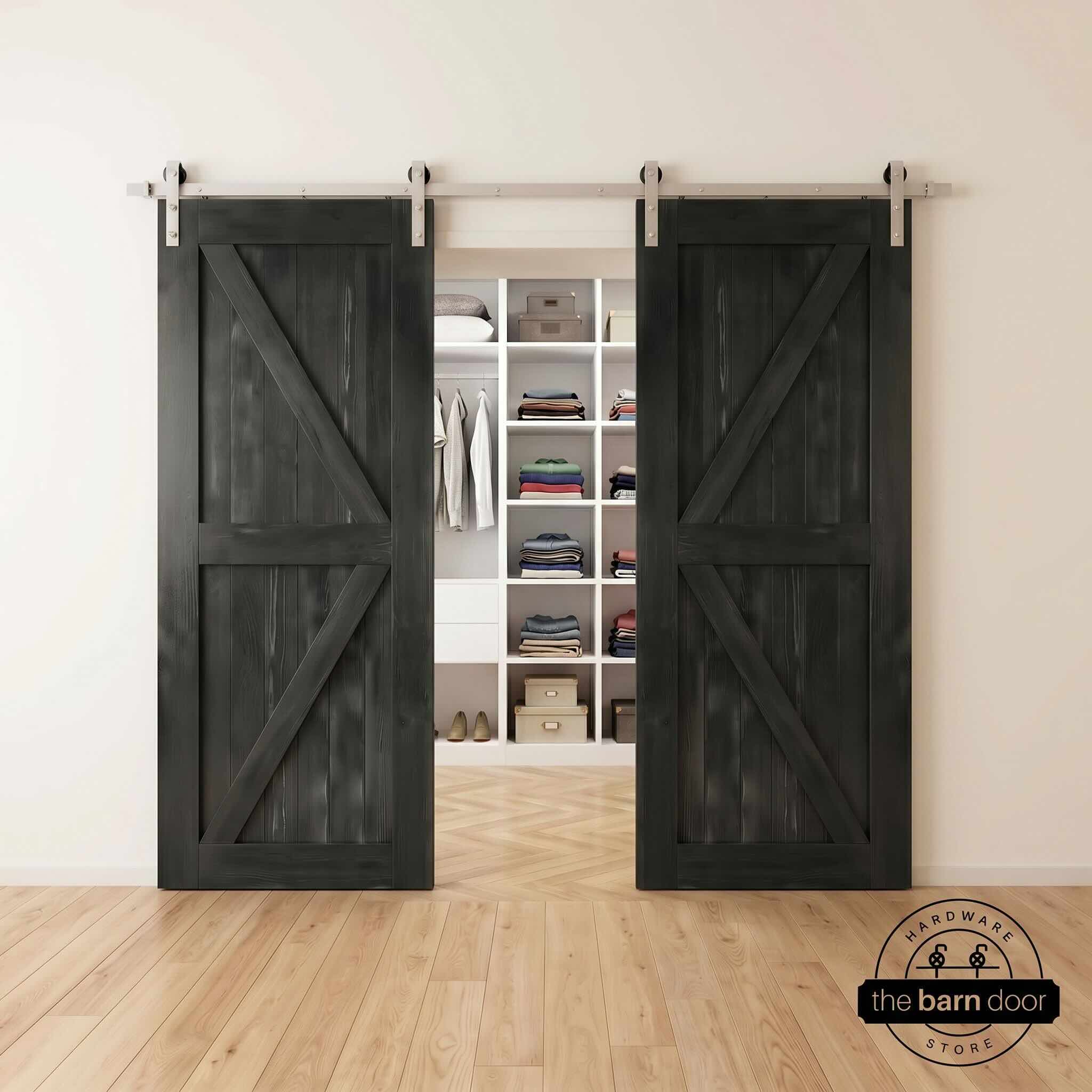

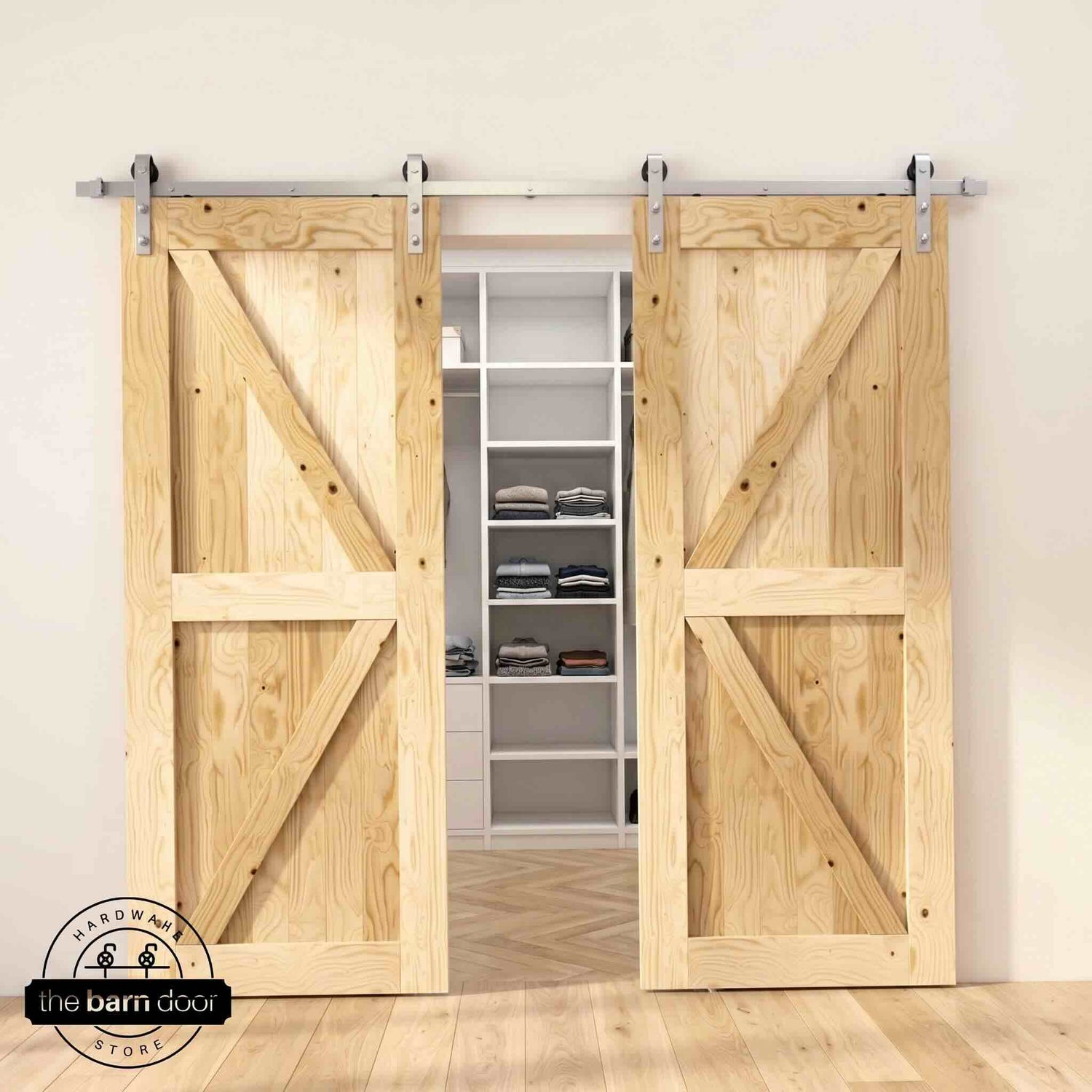

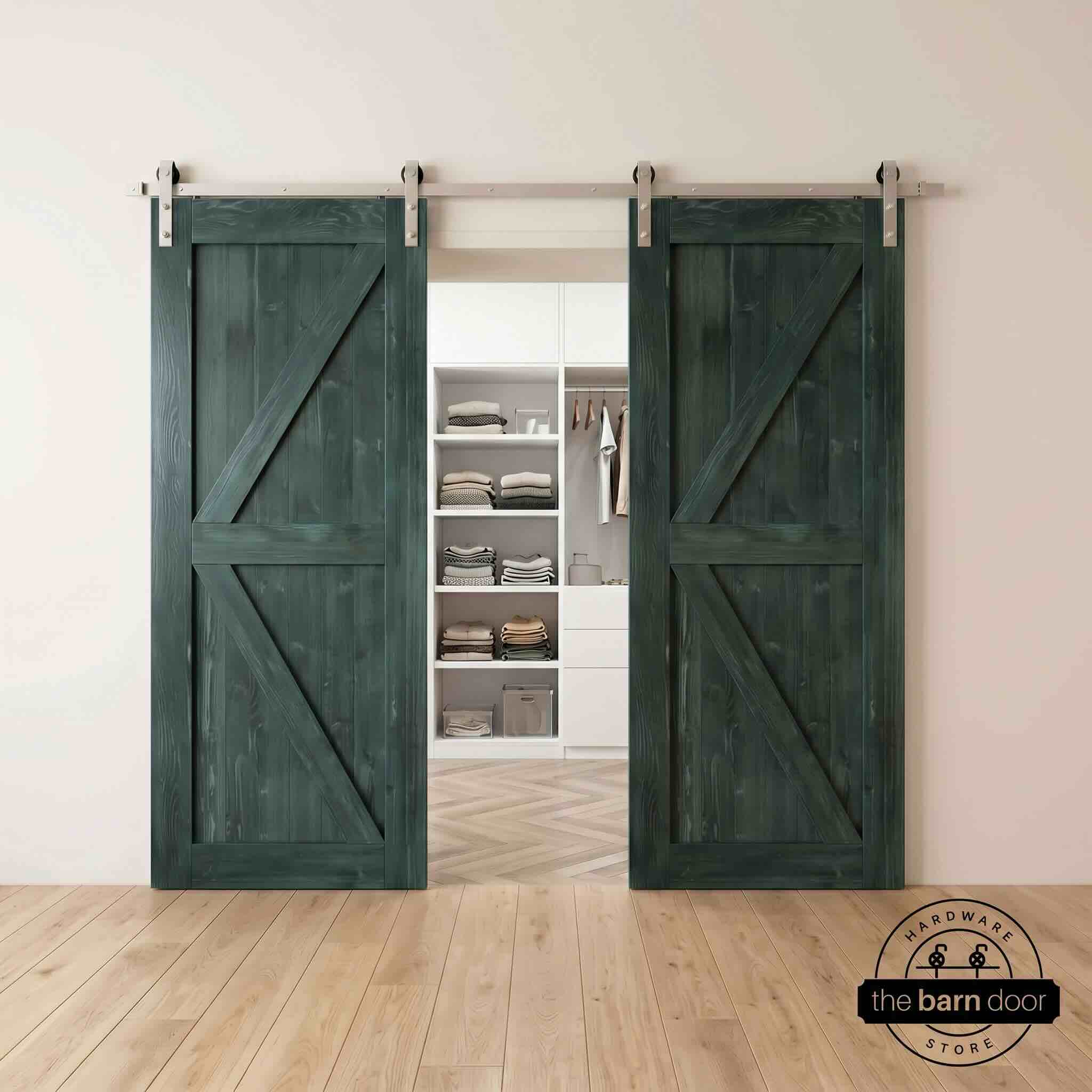

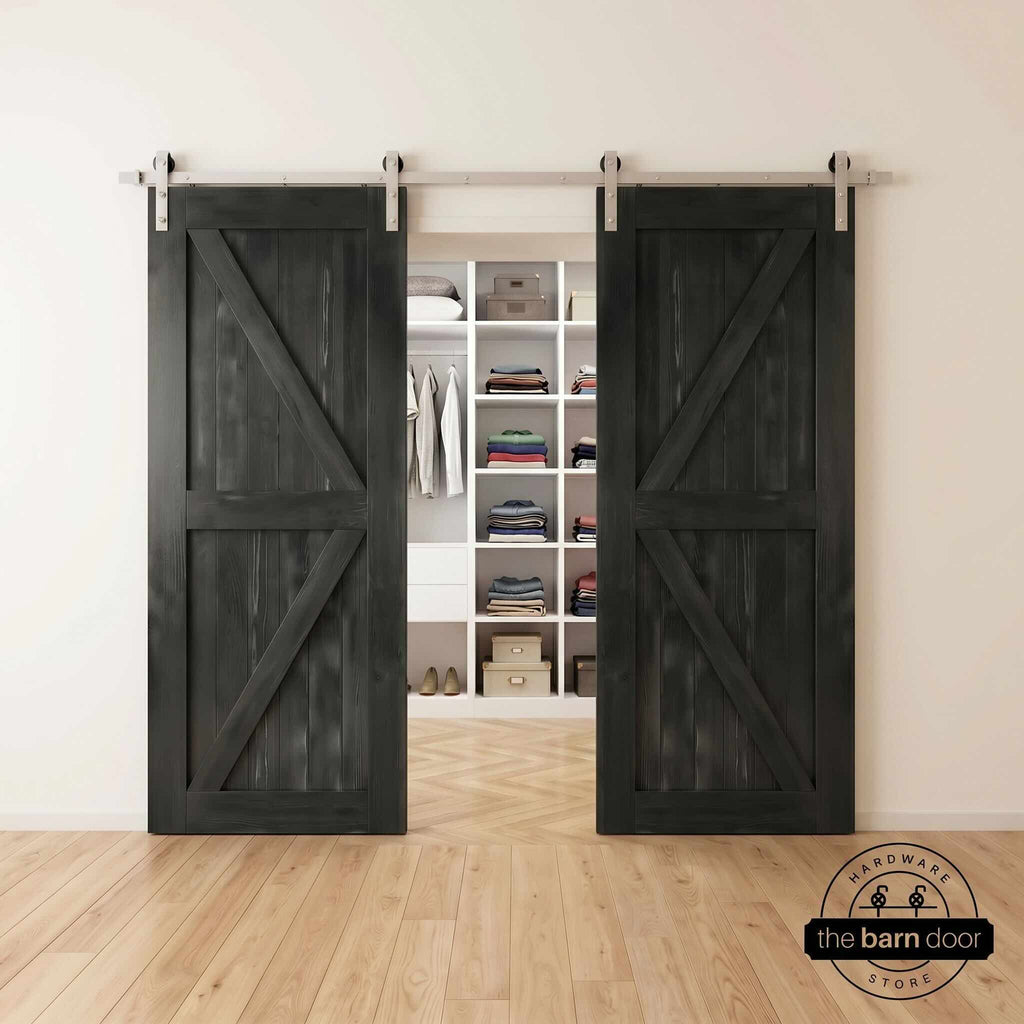

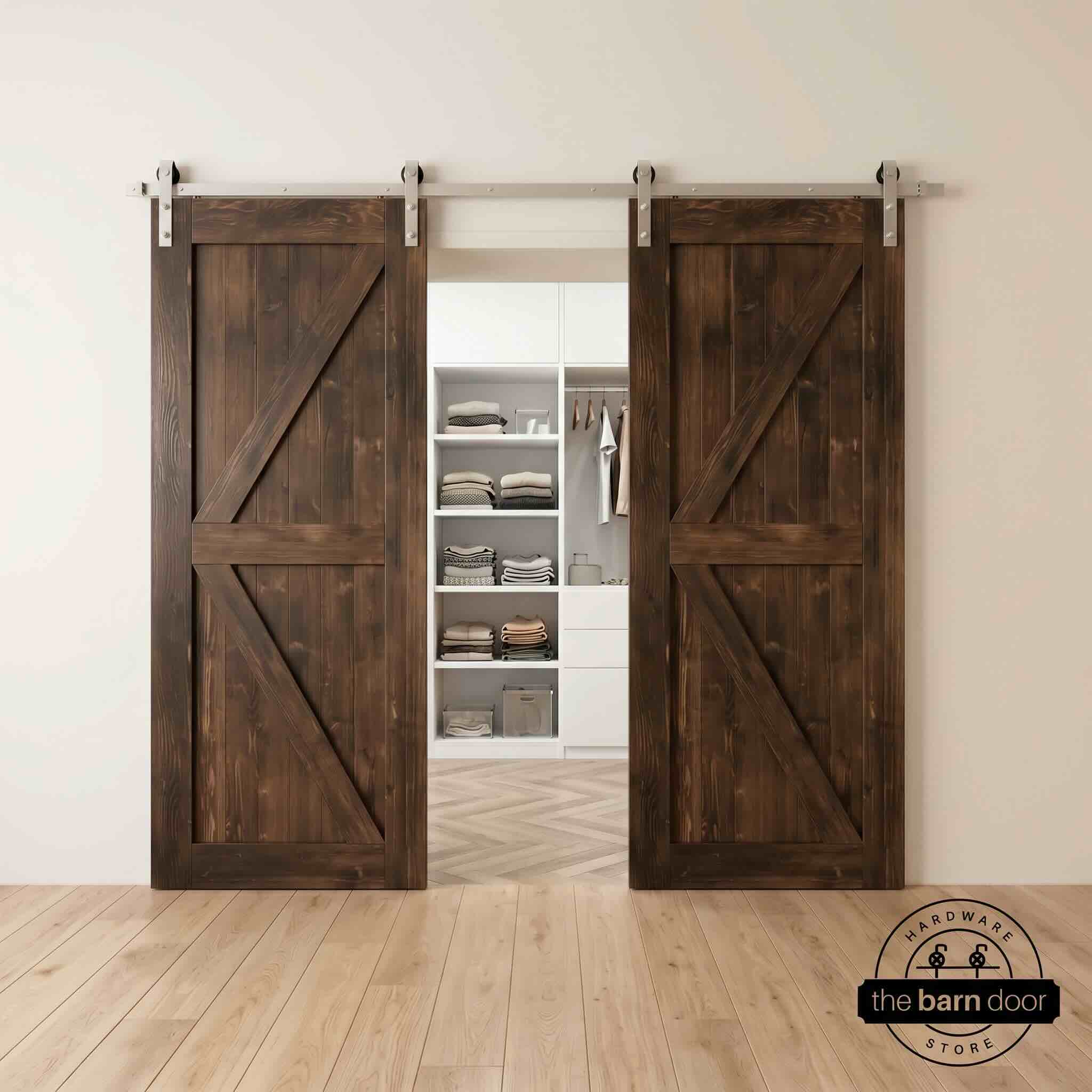

Configuration: 2-door biparting — doors slide from opposite sides and meet in the middle on one shared track

Heights available: 80 in · 84 in (per panel)

Widths available: 22 · 24 · 26 · 28 · 30 · 32 · 34 · 36 · 38 · 40 · 42 · 44 · 46 · 48 · 54 in (per panel)

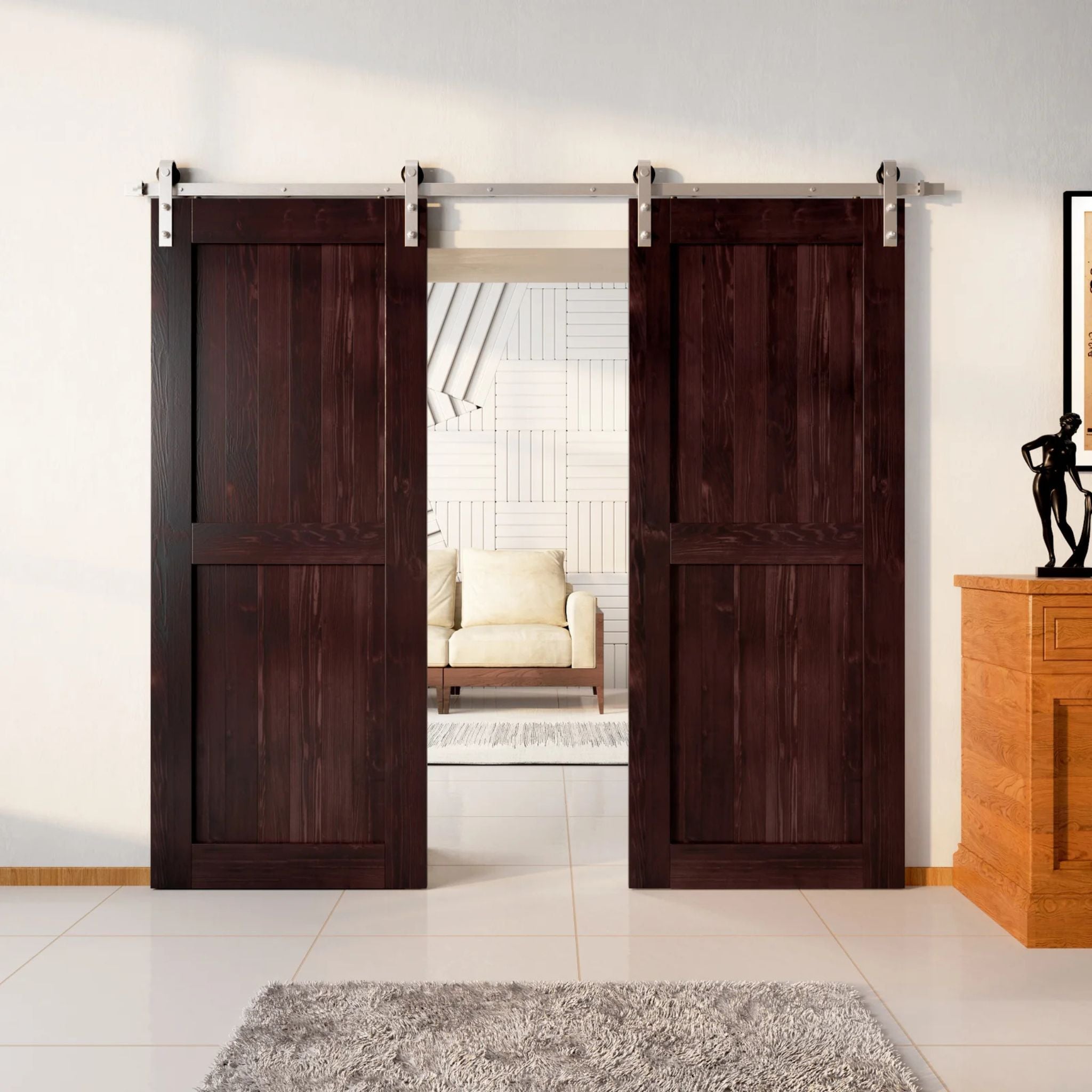

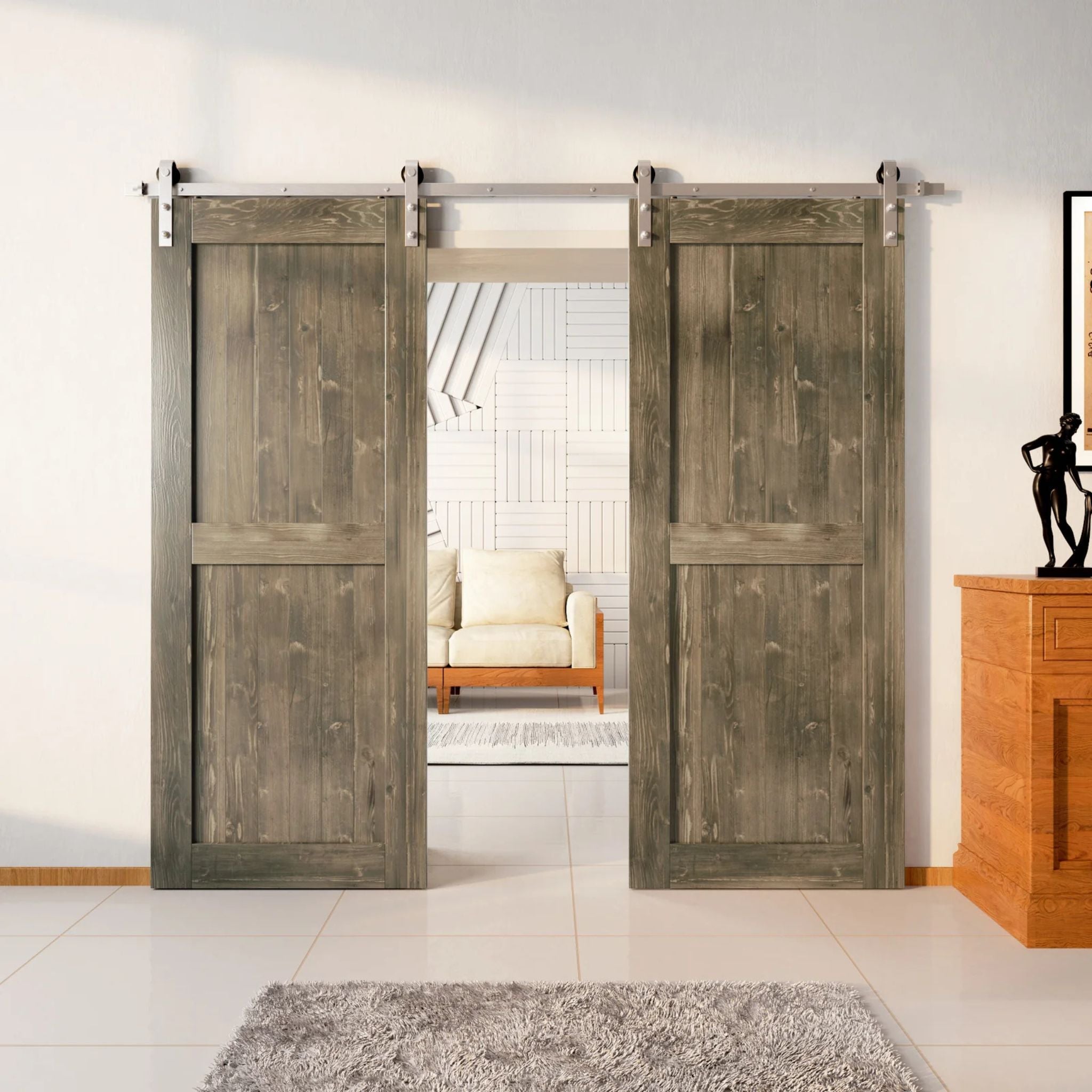

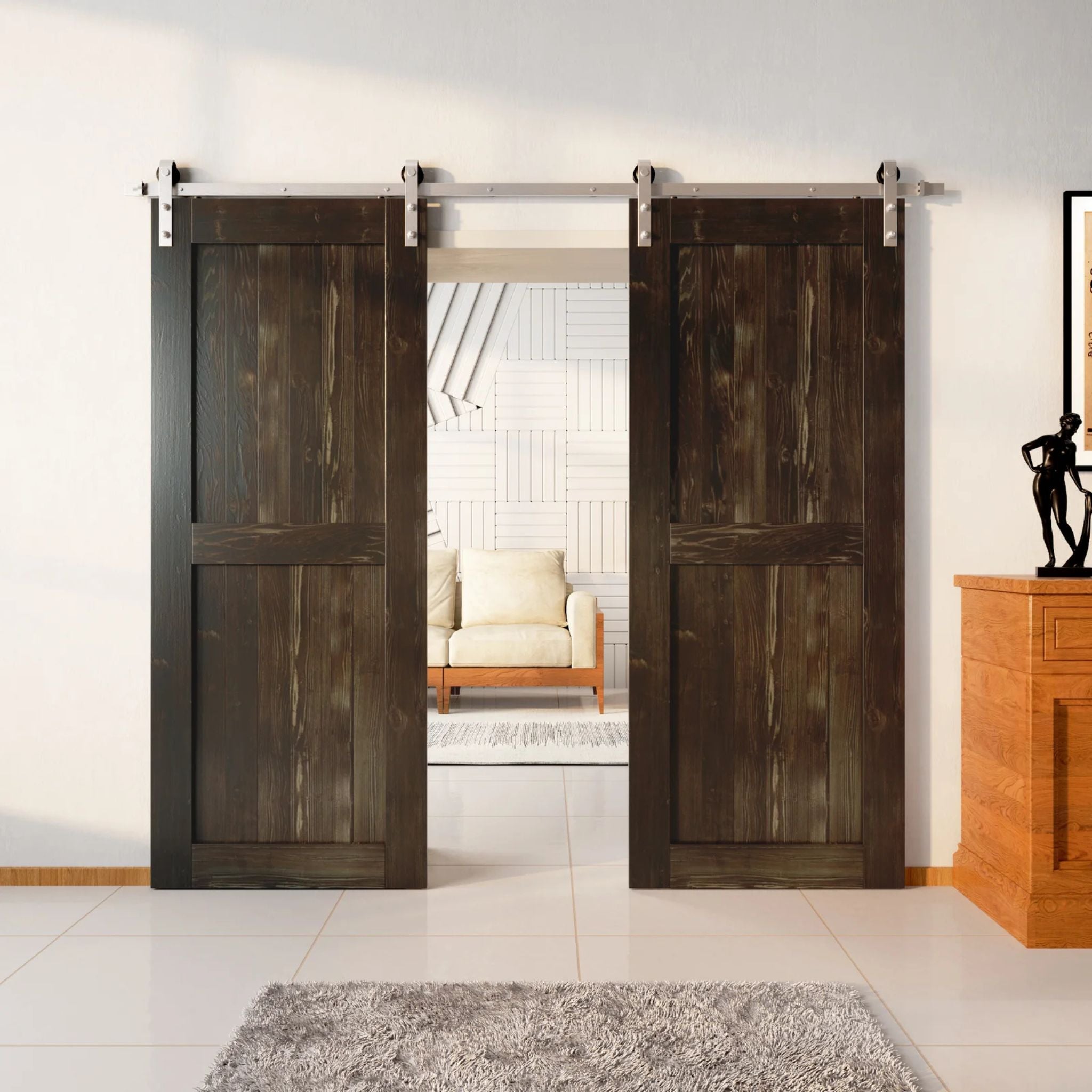

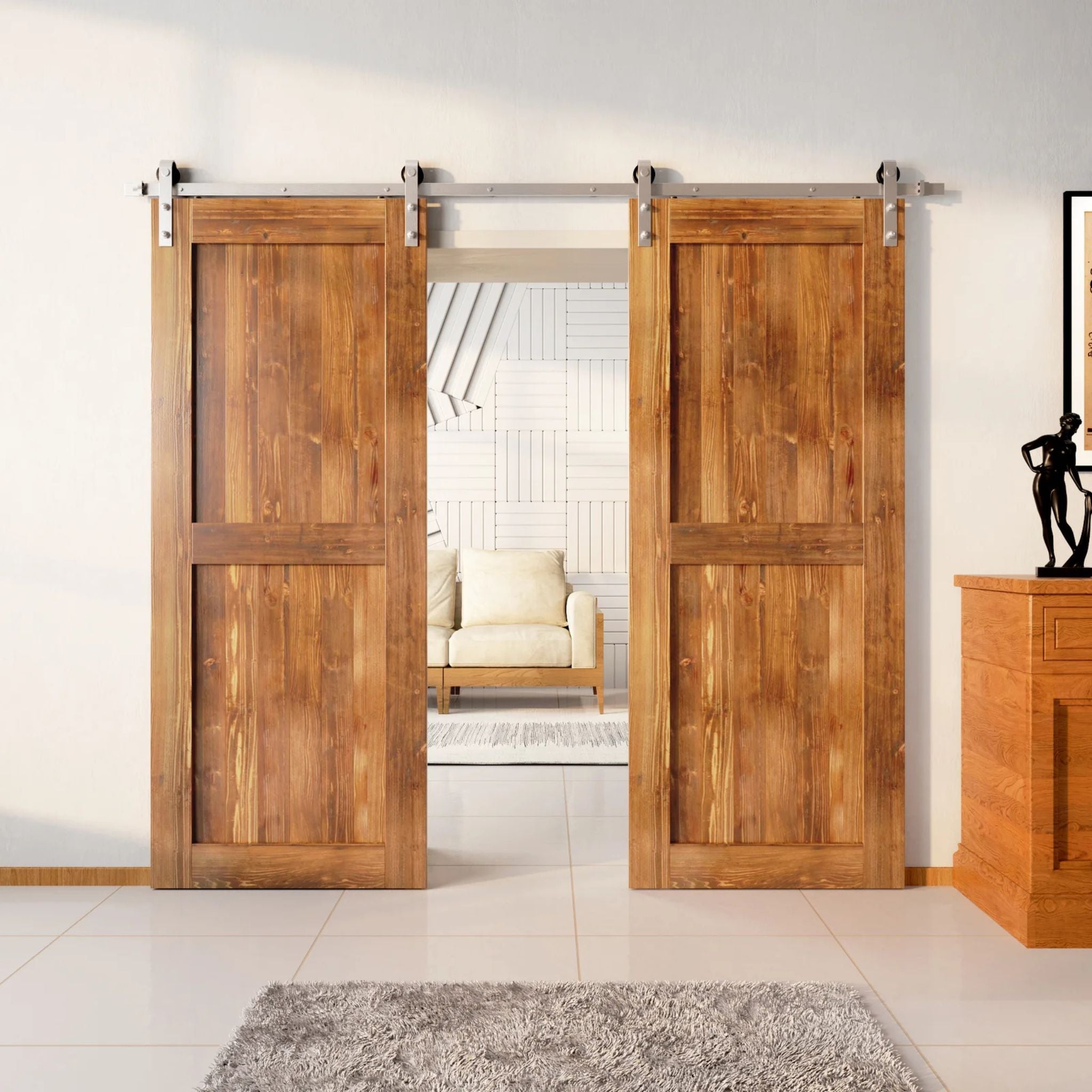

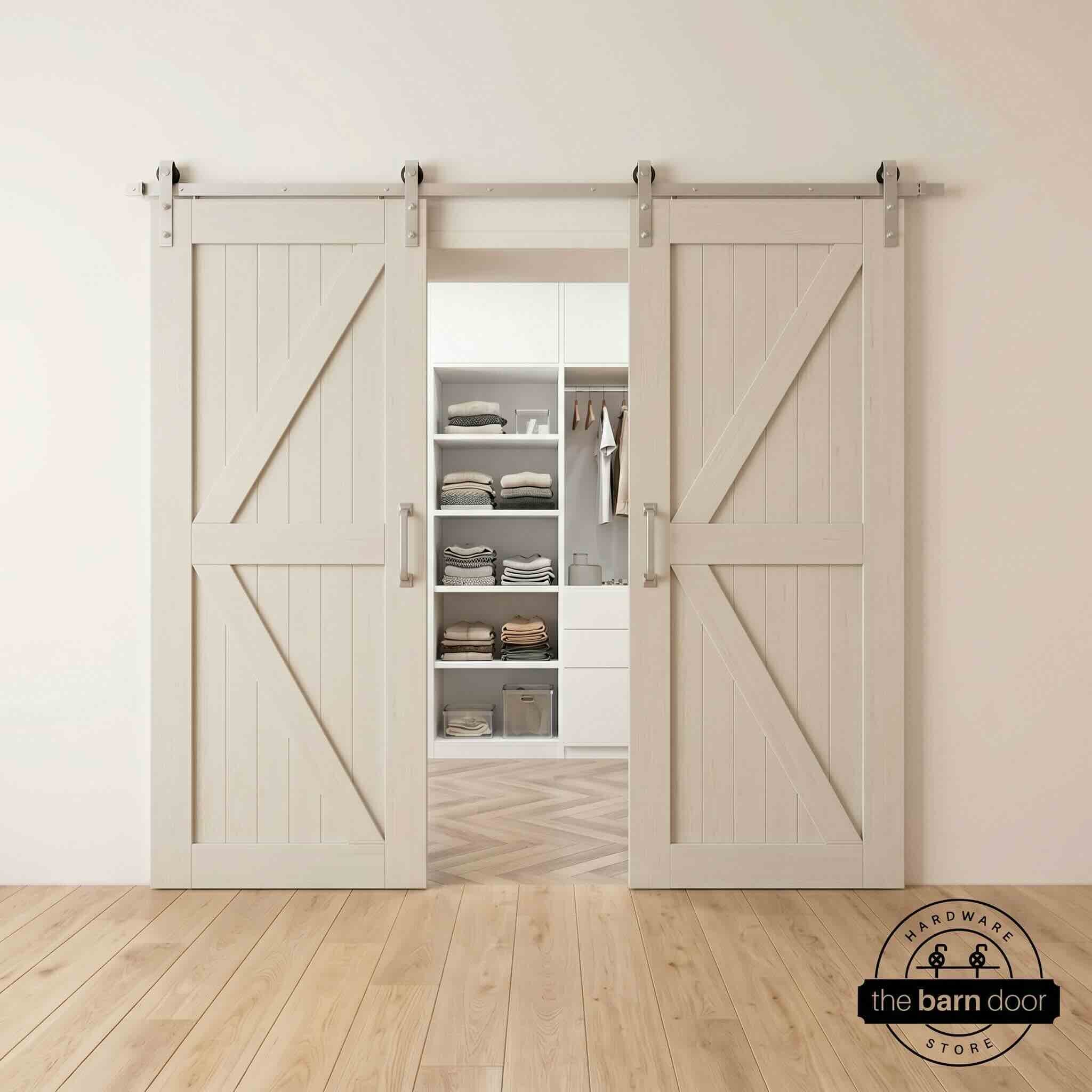

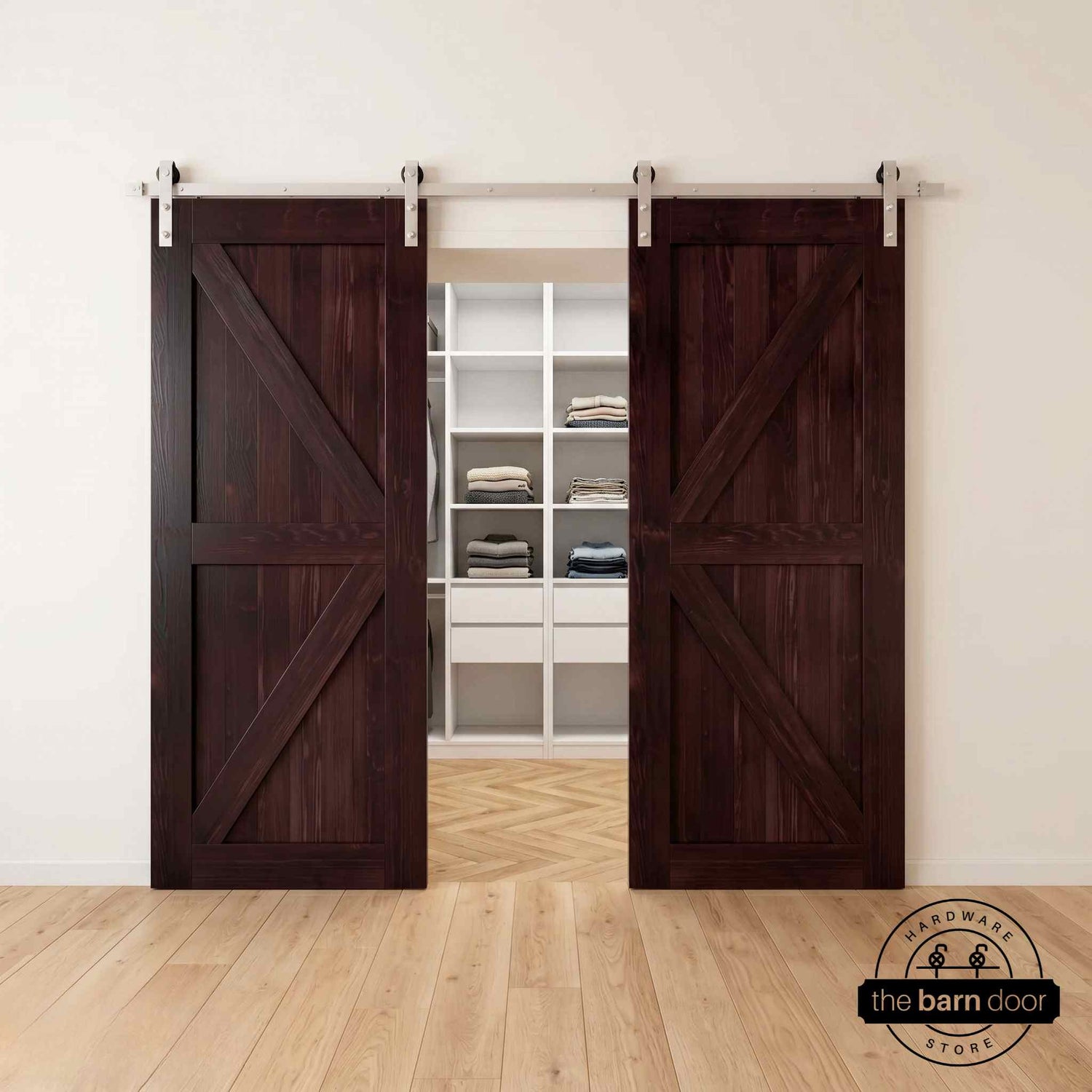

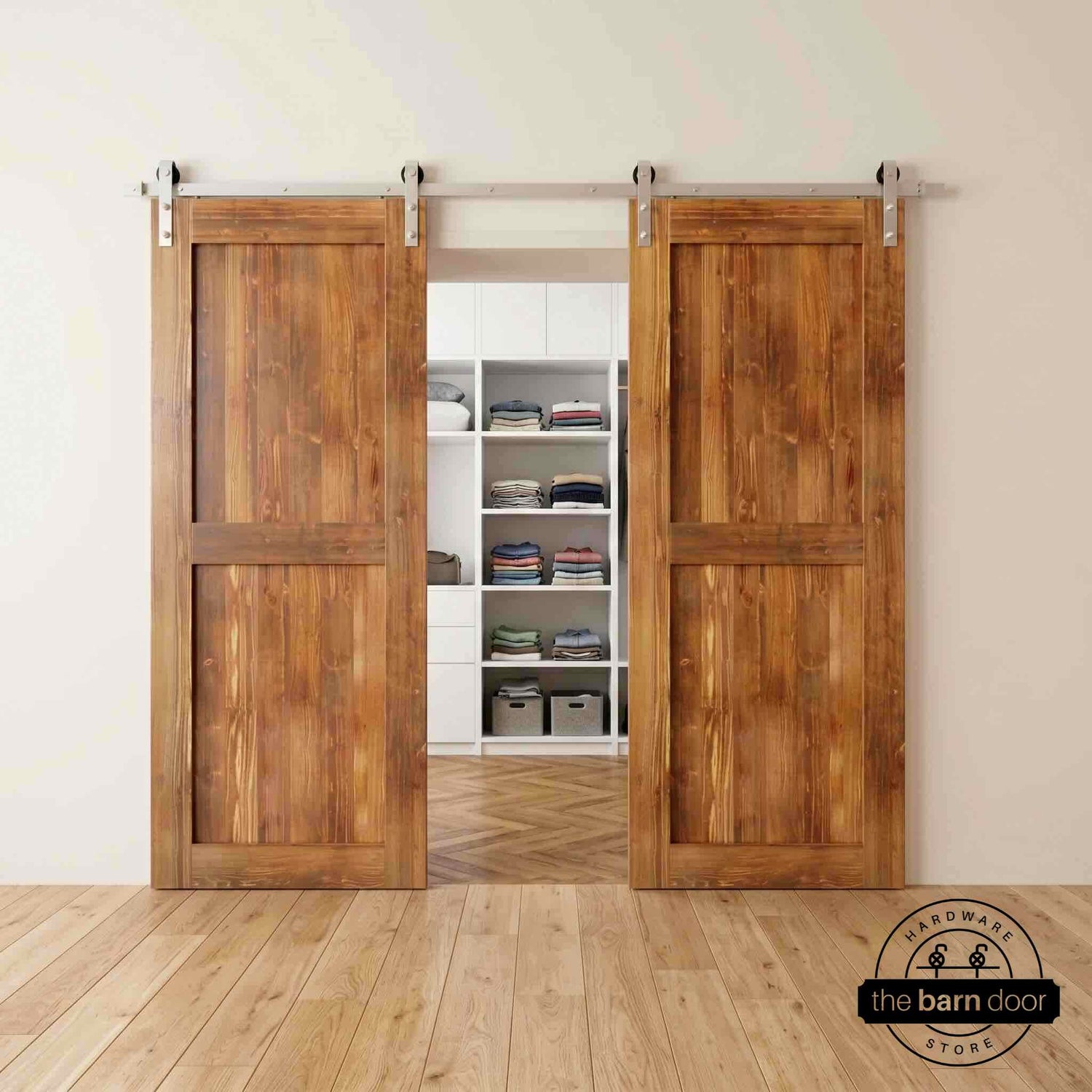

Stain options: Early American · Black · Ebony · Classic Gray · Navy · Red Mahogany · Royal Pine · Dark Walnut · Tinsmith Gray · White · Unfinished

Hardware finish: Brushed Nickel only

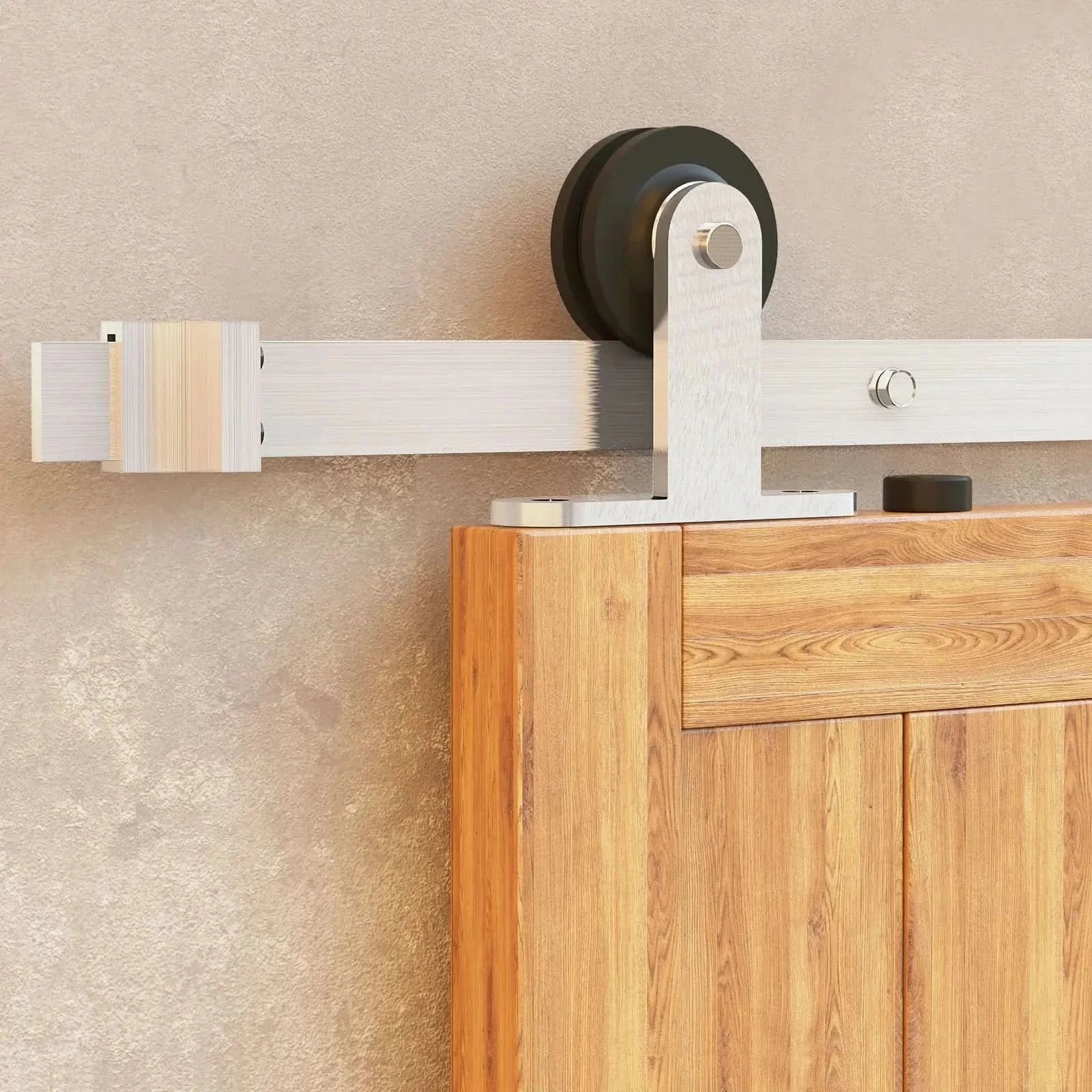

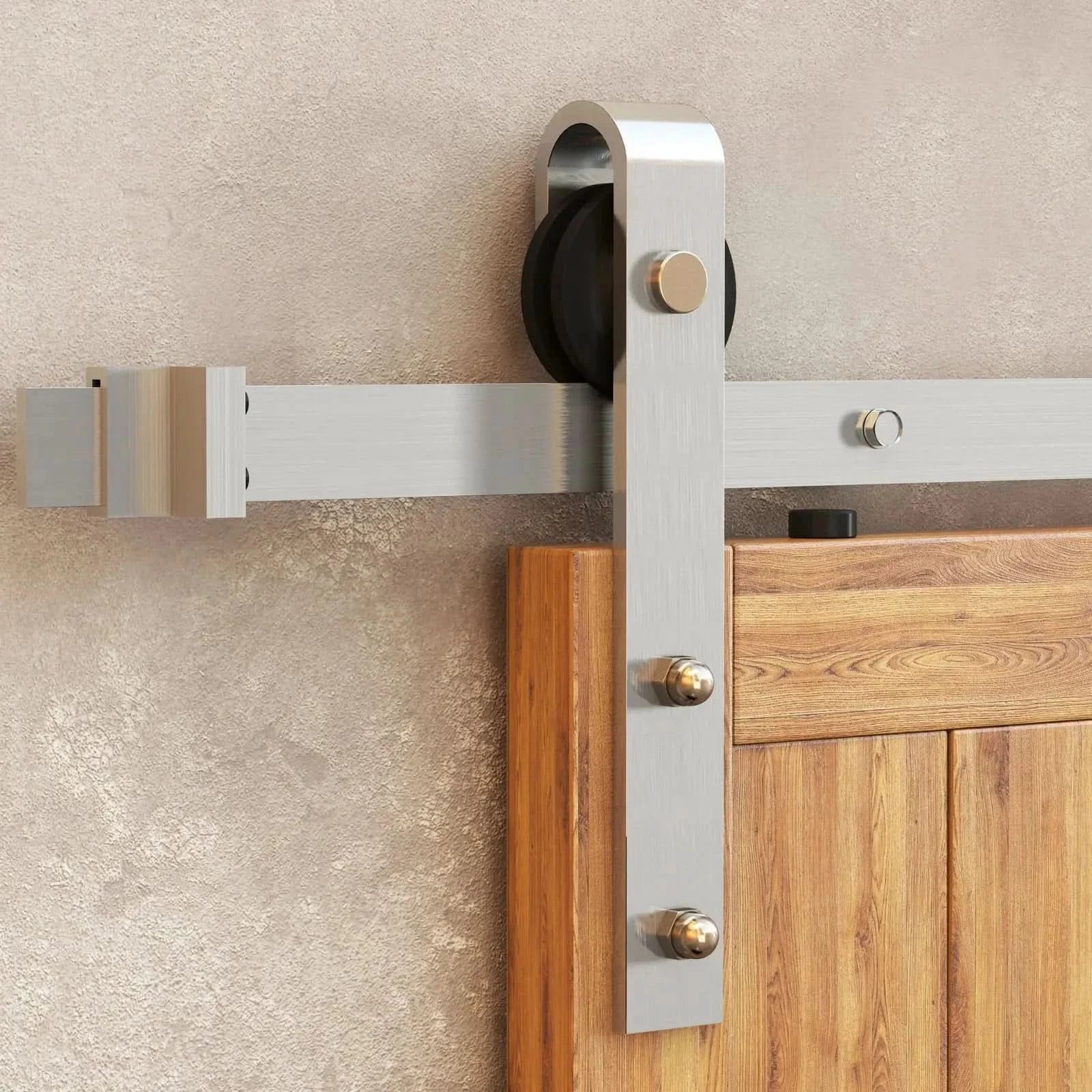

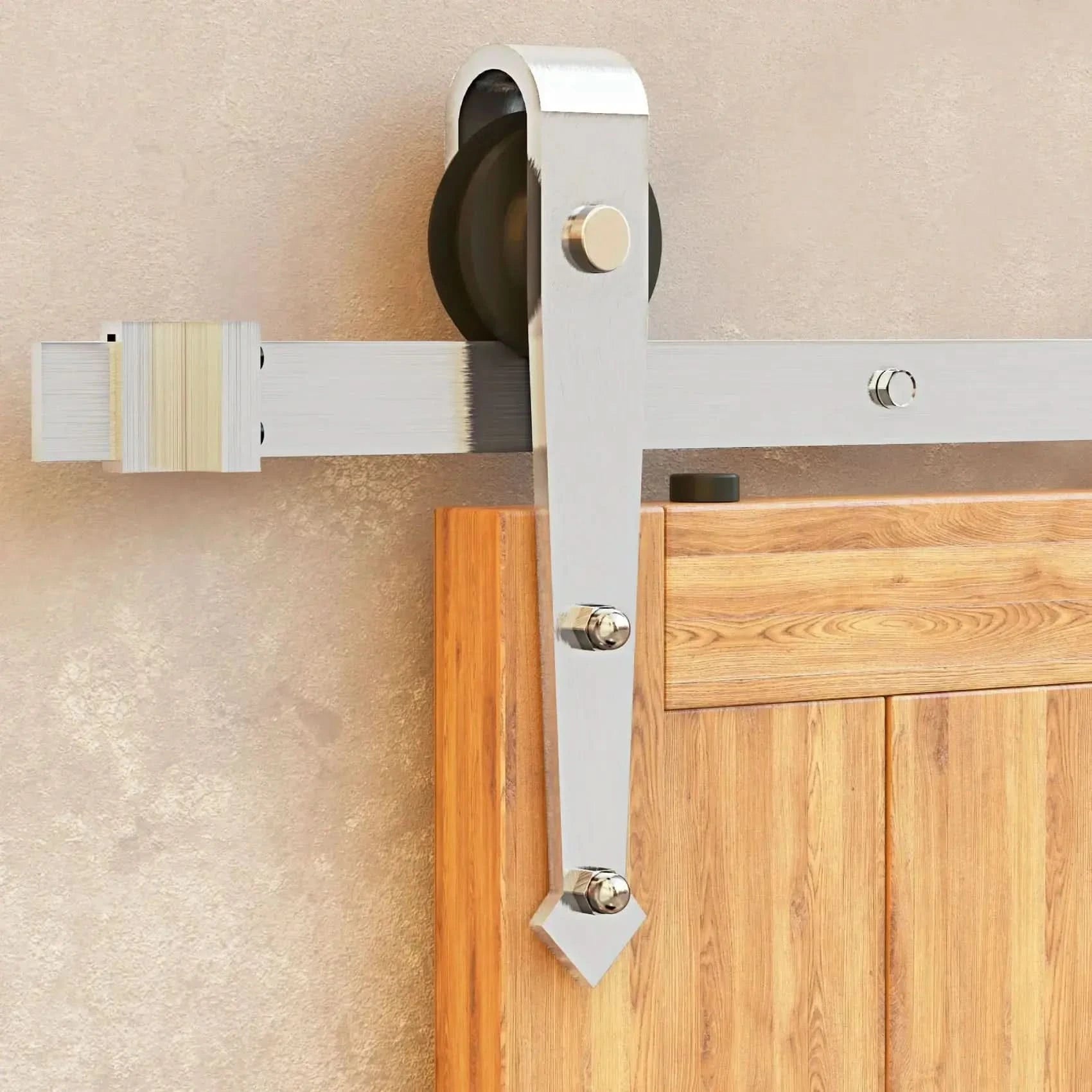

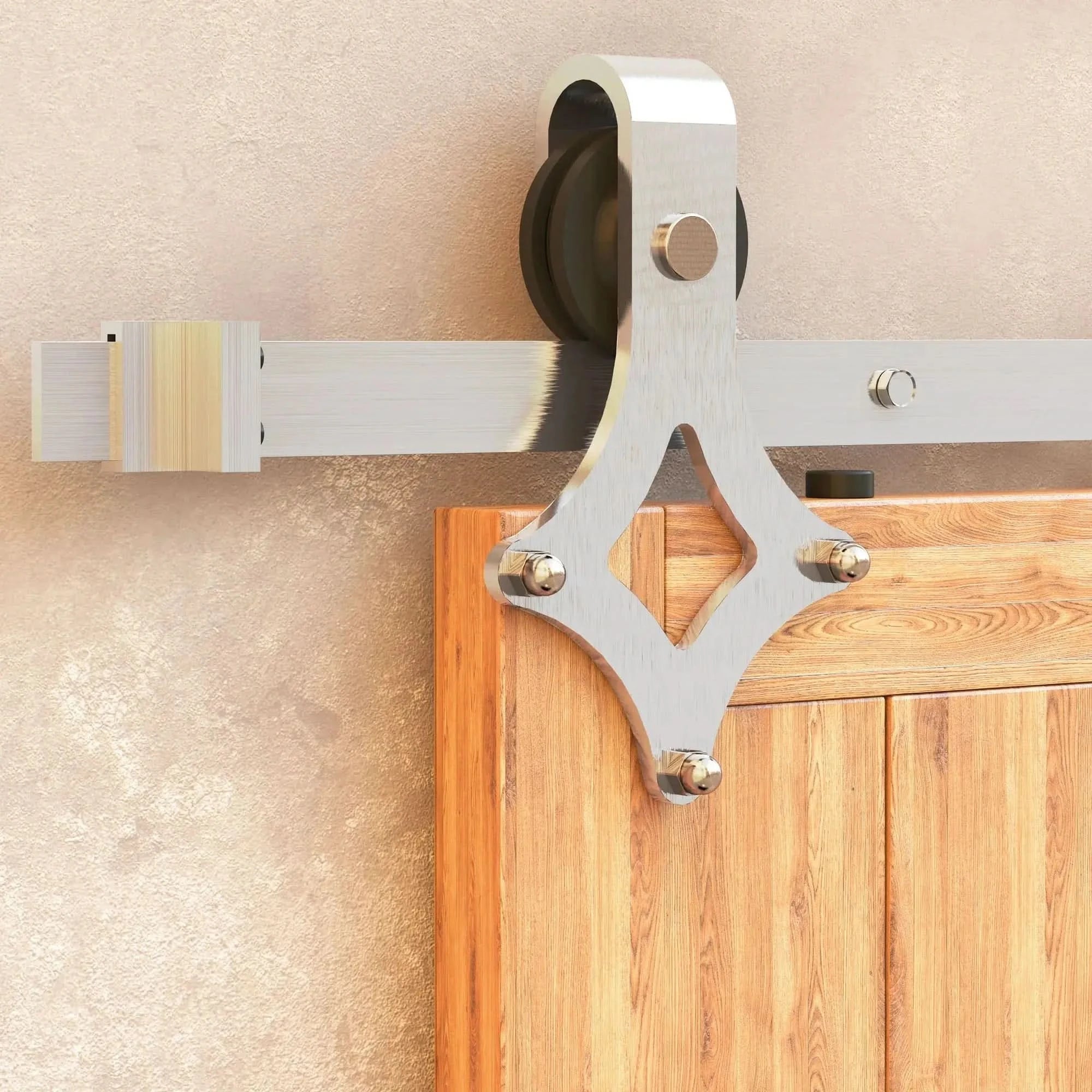

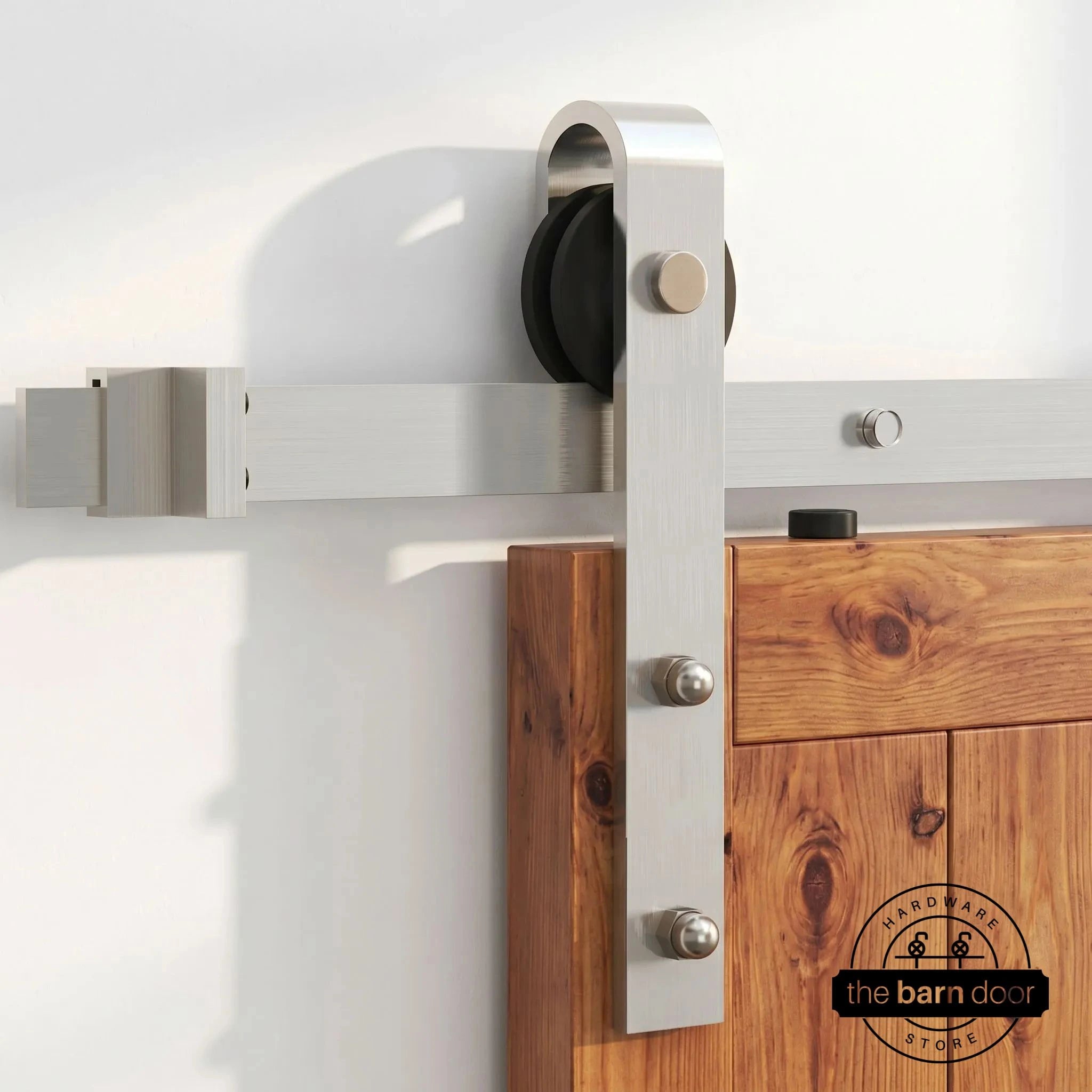

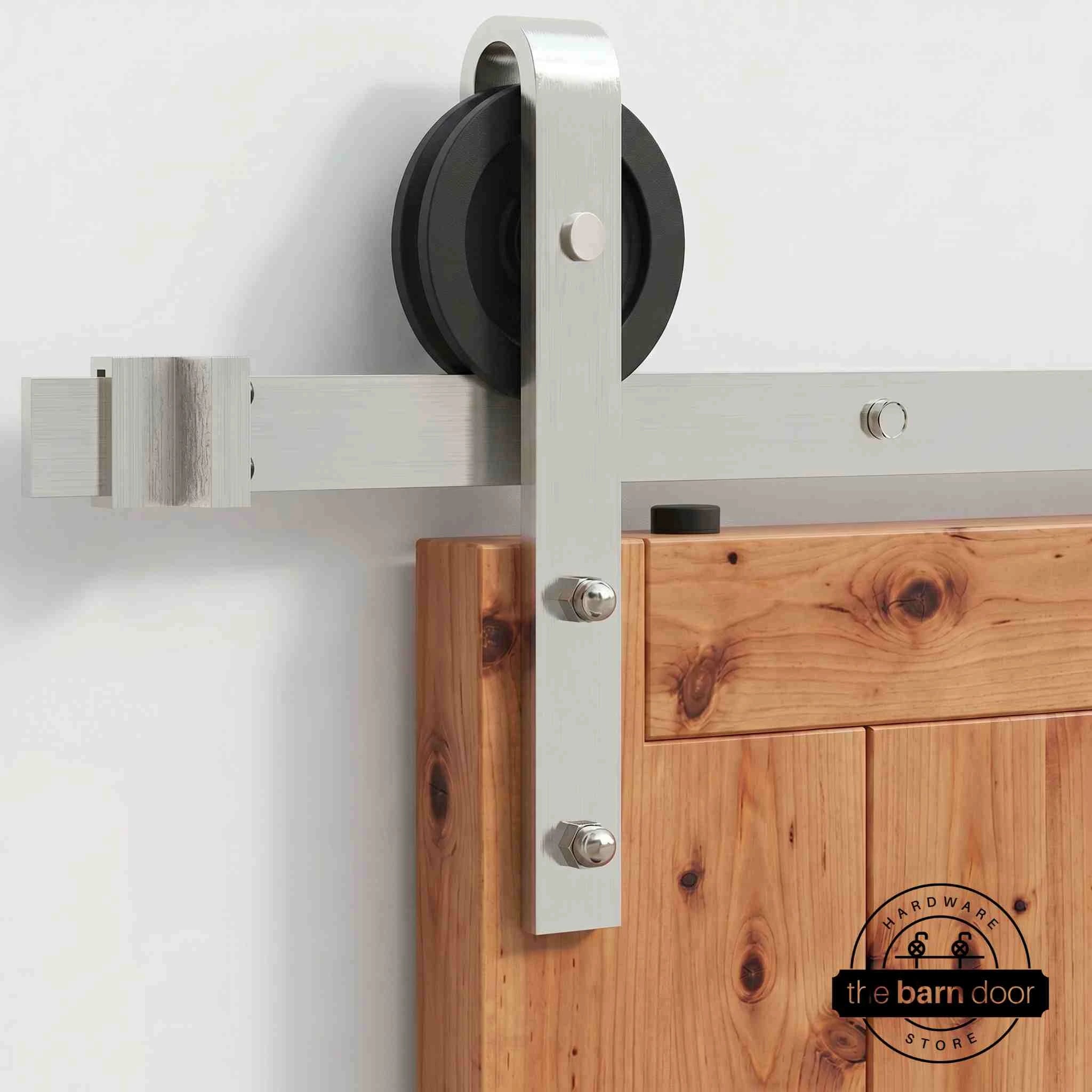

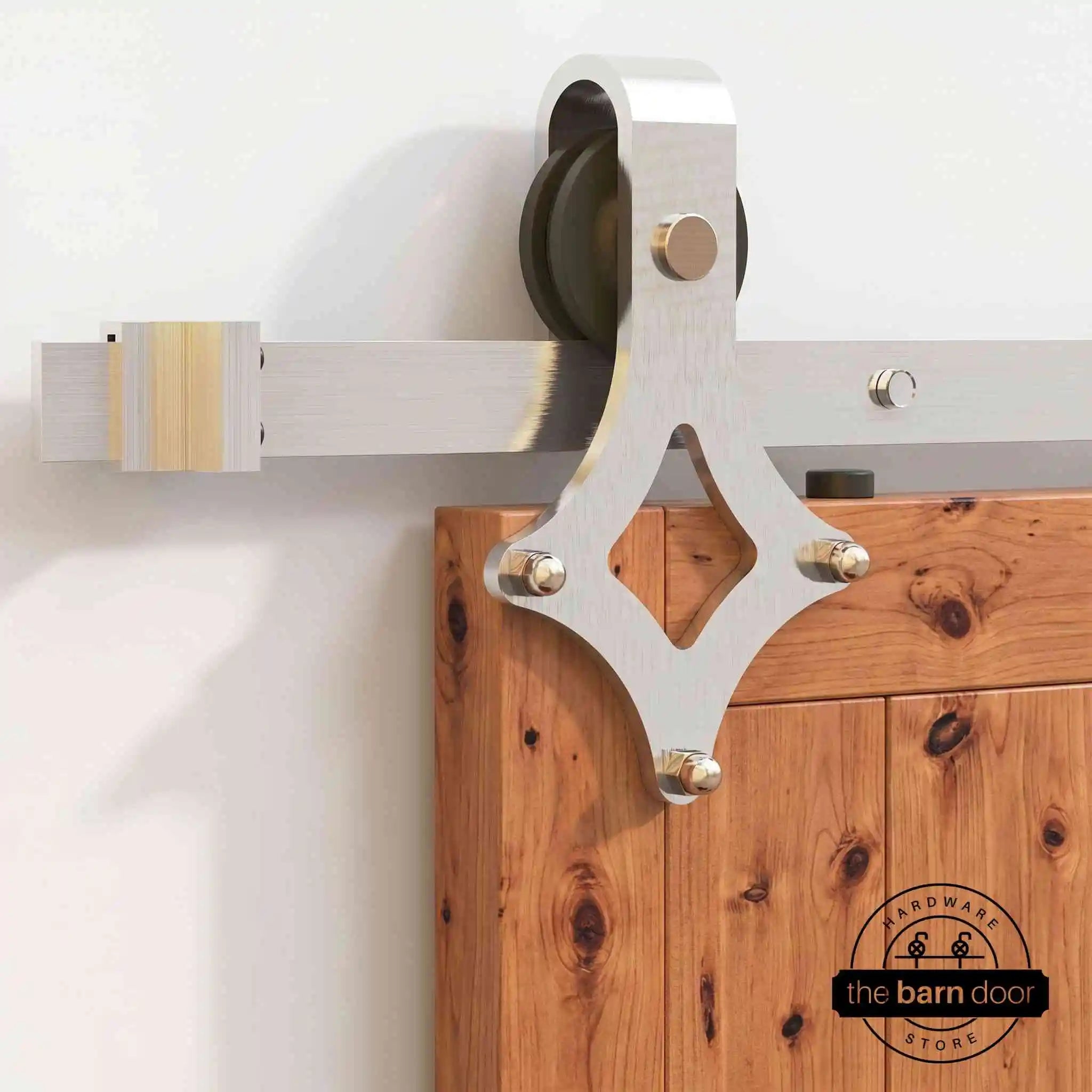

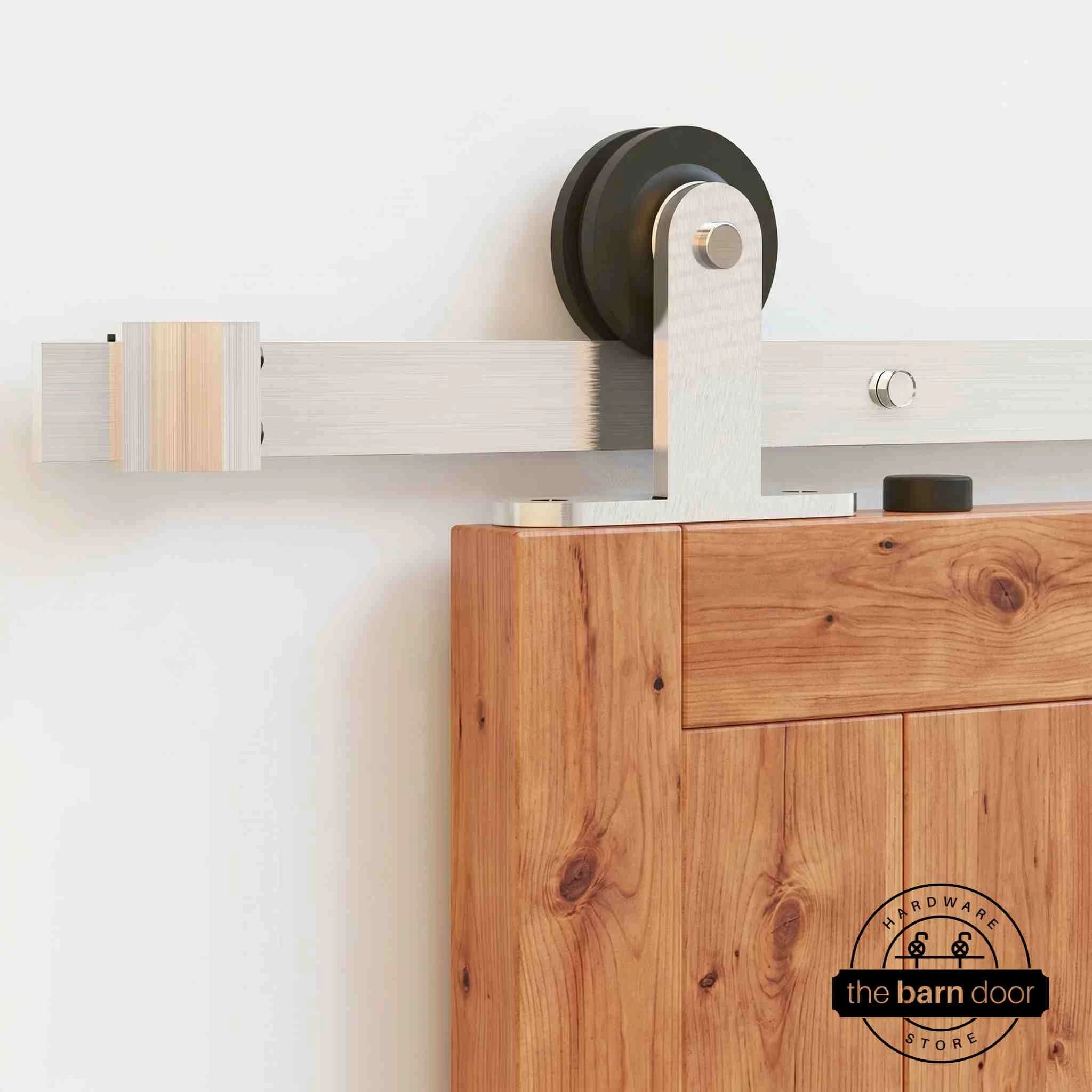

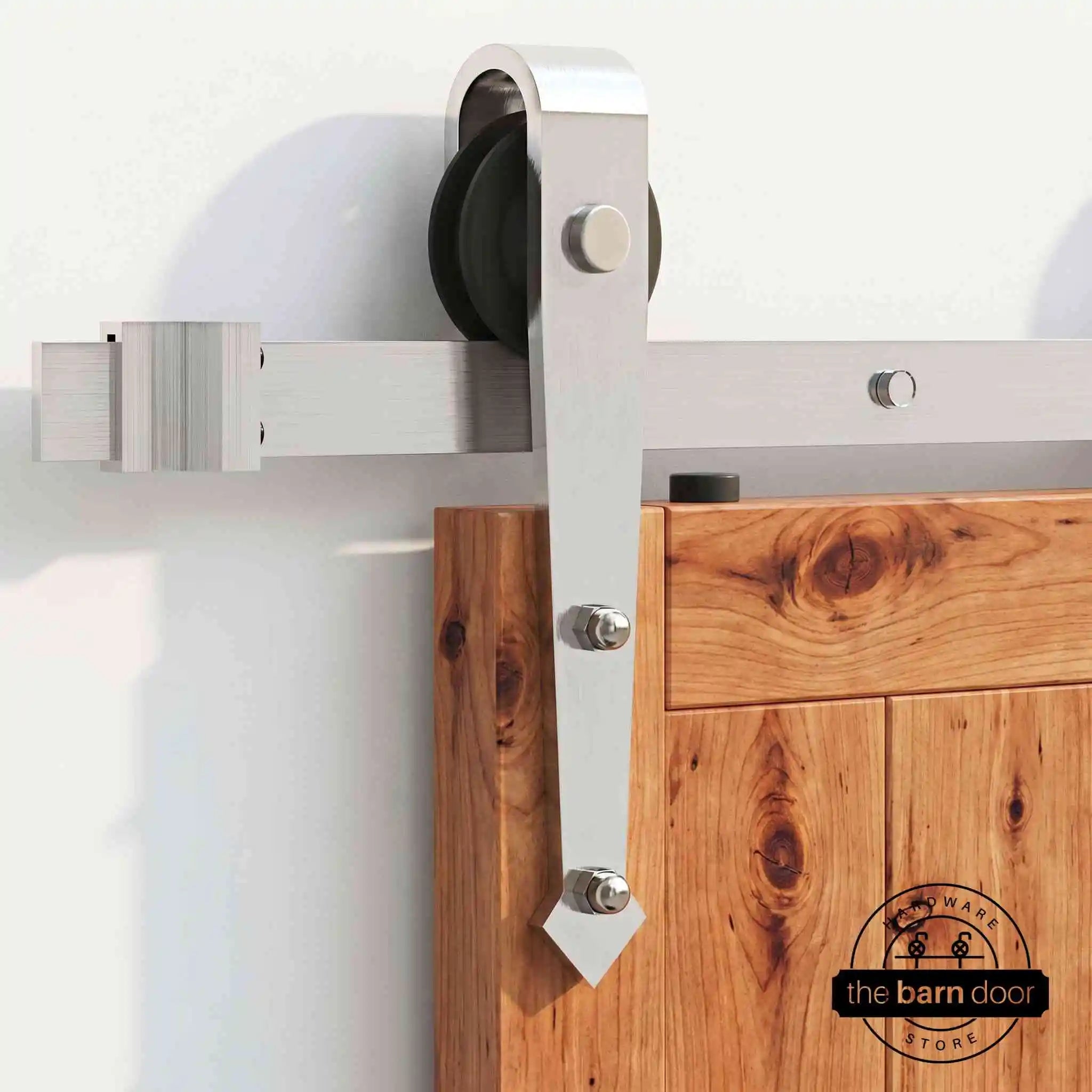

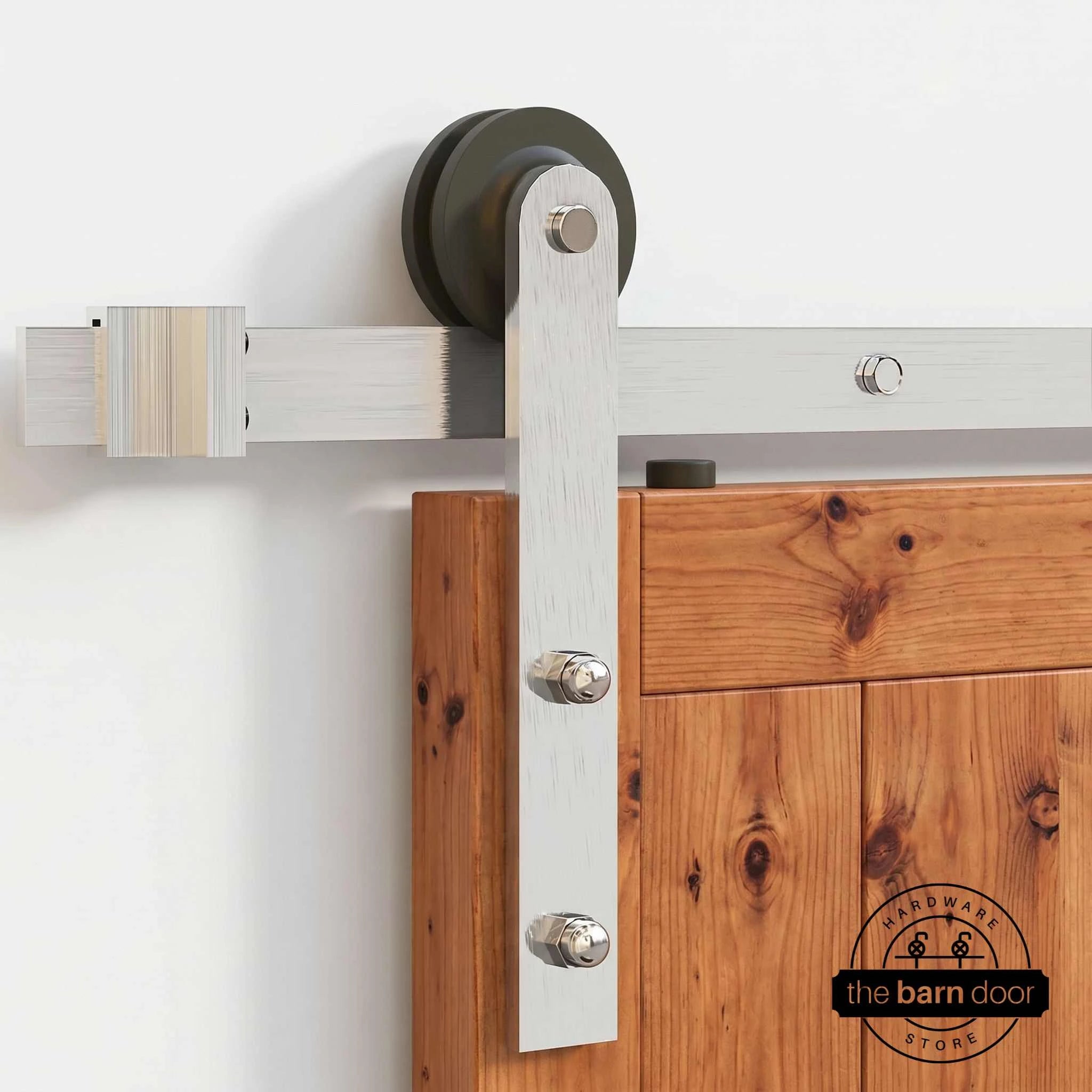

Roller type: Select from 6 HVL roller styles — J-Strap (6 in ceiling clearance) · Straight Strap (5 in) · Spoke Wheel (8 in) · Straight Top Mount (5 in) · Arrow (6 in) · Diamond (6 in)

Lead time: Unfinished — 2–3 business days · Stained — 7–8 business days

Shipping: Both doors and all hardware ship together in one delivery

Door components (×2 — one set per door panel)

• Solid pine vertical planks and horizontal rails — all boards needed to assemble each door panel
• Assembly hardware — dowels, foam dowels, short screws, and long screws

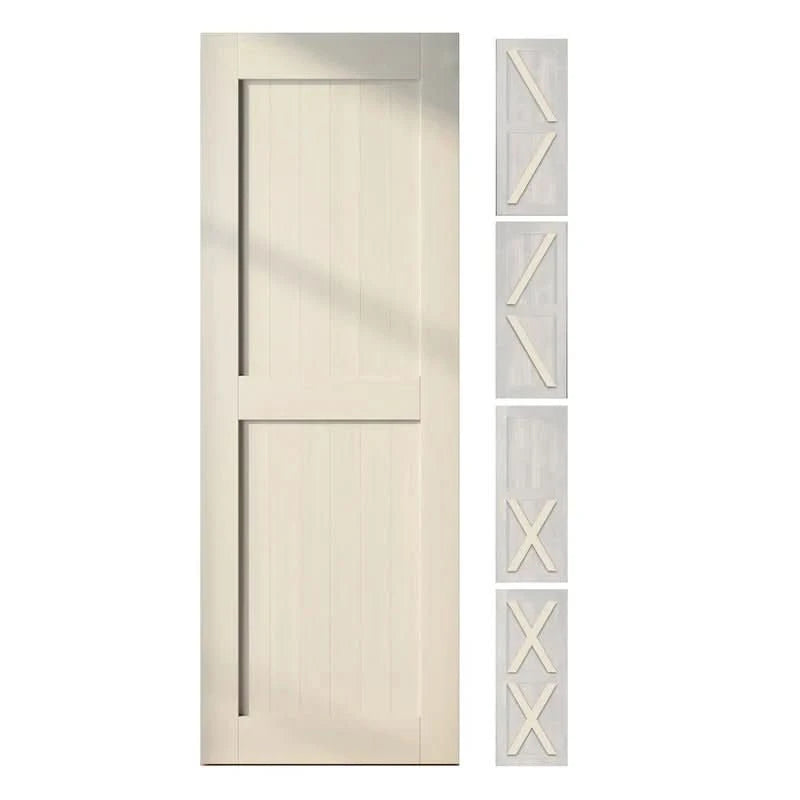

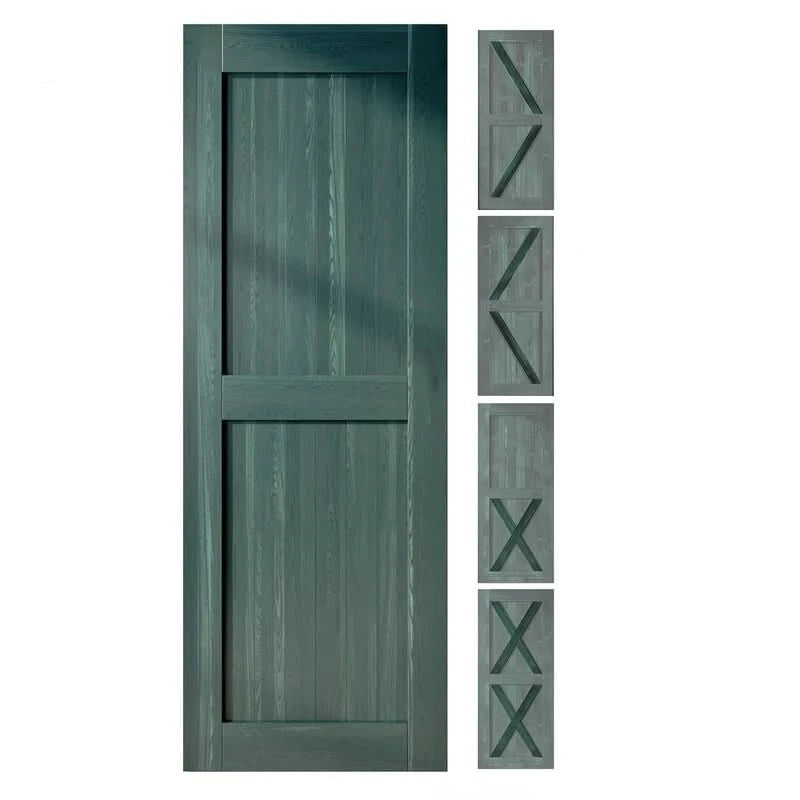

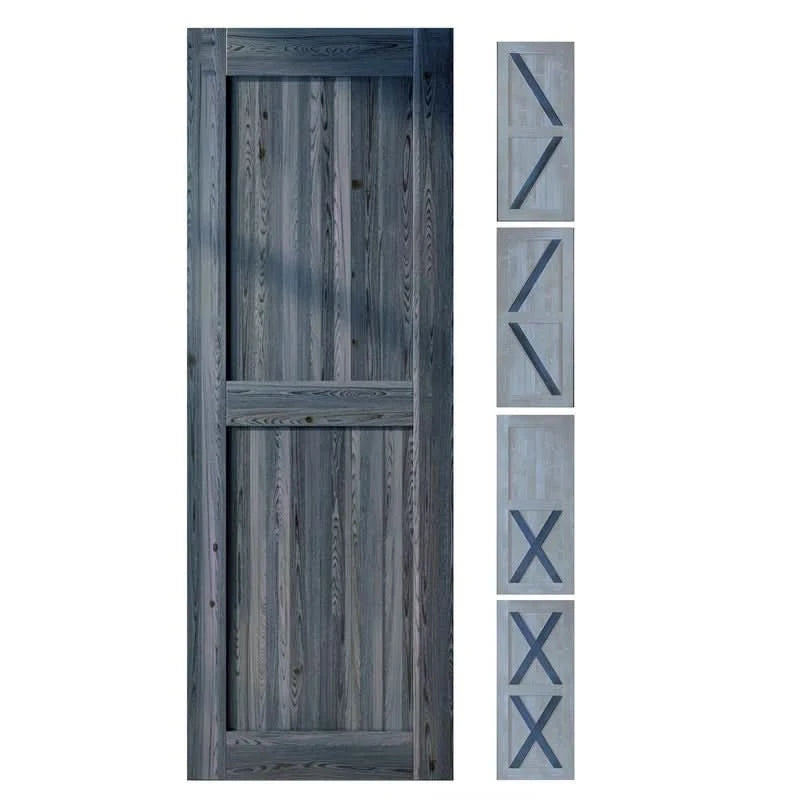

• Decorative diagonal panels — included with both doors; optional to install. Lets you choose between a plain panel door, single X, Z pattern, or arrow design on each panel.

Sliding hardware

• Hanger/roller sets (2) — one per door panel, in your selected roller style
• Flat track(s) — single shared track; quantity of sections based on door width
• Anti-jump disks (4)
• Door stoppers (4)
• Hex bolt set, spacer set, hex wrench
• Rubber hole covers (4) — for ends of track
• Junction plate — included when track length requires two sections

Also included (×2 — one set per door panel)

• 12 in round pull and flush handle sets — brushed nickel, face-mounted flush pull (no routing required)
• U-channel wall-mounted floor guides — attach to baseboard, no floor drilling required
• Soft-close mechanisms — slow each door at the end of travel in both directions

Tools needed for door assembly: rubber mallet, drill or Phillips screwdriver, flathead screwdriver.

Door Stain — Select your finish from the color swatches. Unfinished ships in 2–3 days and arrives ready to stain on your own timeline. All other options are pre-stained and ship in 7–8 business days.

Door Width — Select the width for each door panel based on your opening measurement. Use the formula: opening width + 4 in (standard room) or + 6 in (bedroom/bathroom), then divide by 2. See the sizing reference below to confirm the track length that ships with your selection.

Door Height — Select 80 in or 84 in based on your opening height.

Roller Style — Select your preferred HVL roller style from the available options. All roller styles are brushed nickel. Not sure which to choose? See our barn door rollers collection for comparisons, or email us at info@thebarndoorhardwarestore.com.

Add 4 in to your rough opening width (standard rooms) or 6 in (bedrooms and bathrooms), then divide by 2 to get the width for each door panel. Select the available size closest to that result — both panels are the same width. The track length ships automatically based on your selection.

The minimum per-panel door width is 2 in wider than half your opening (1 in per side), though this barely covers the jamb and isn't ideal for most installations. We recommend at least 4 in added to the total opening before dividing by 2 for standard rooms (2 in per side), and 6 in added for bedrooms and bathrooms (3 in per side). The sizing reference table shows the absolute maximum opening each panel width can cover at the 1 in per side minimum — use those figures as a ceiling, not a target. Track lengths run from 8 ft (22 in panels) up to 20 ft (54 in panels).

For the complete panel width, maximum opening, and track length reference chart, see our Classic Double sizing table.

If you need a wider opening than two 54 in panels can cover, email us at info@thebarndoorhardwarestore.com — we can advise on alternative configurations.
