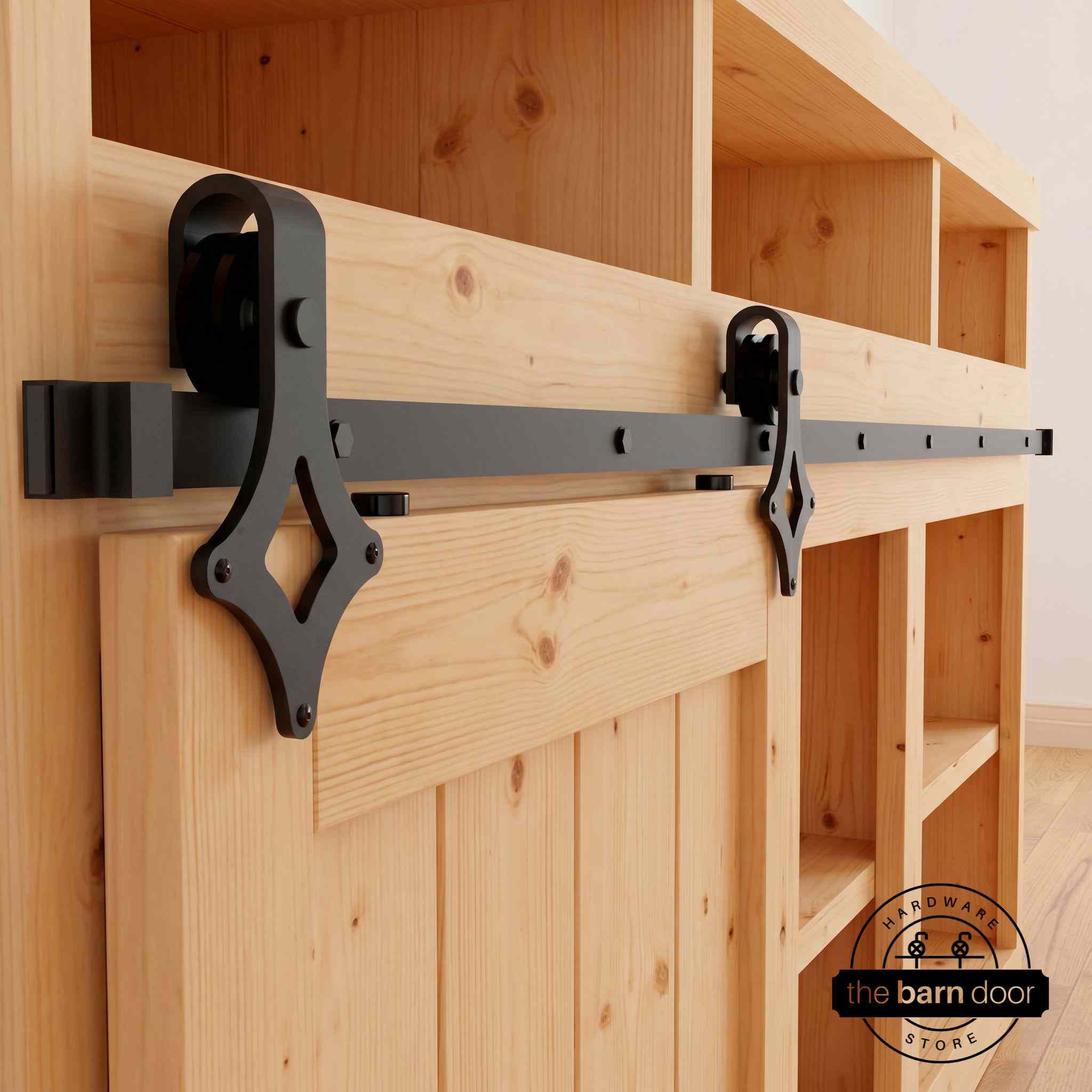

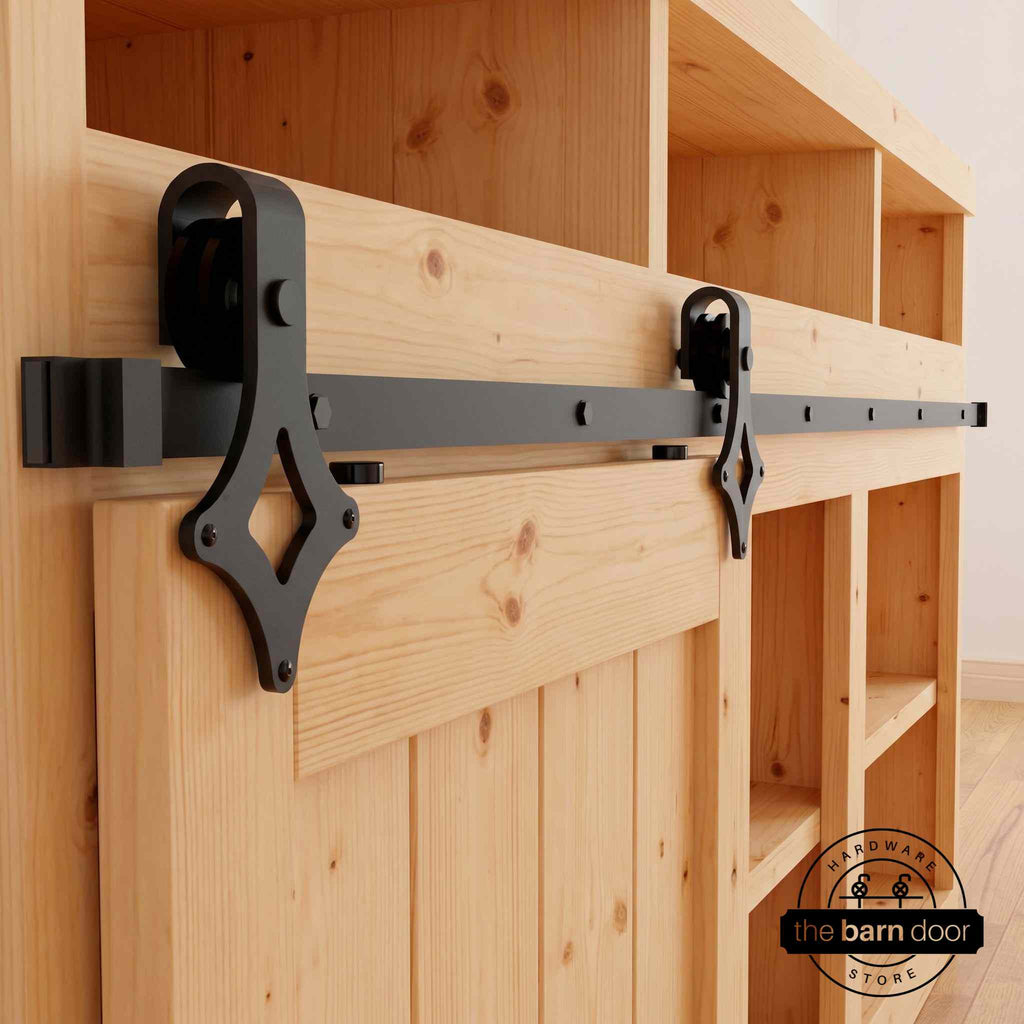

Diamond Mount cabinet barn door hardware kit in matte black with a single track, shown installed on a small wooden cabinet door.
Diamond Mount cabinet barn door hardware kit in matte black with a single track, shown installed on a small wooden cabinet door.
An instructional diagram titled 'How to Calculate Single Door Track Length'. The primary formula shown is: Track Length = 2 x Door Width. Additional formulas are provided to determine door size: Door Width = Opening Width + (2 x Molding Width, or 4 inches if no molding). Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch.
An instructional diagram showing a closed barn door and titled 'How to Calculate Single Door Track Length'. The primary formula is: Track Length = 2 x Door Width. Additional formulas for door size are: Door Width = Opening Width + (2 x Molding Width, or 4 inches if no molding). Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch.
Instructional diagram: 'How to Calculate Double Door Biparting Track Length'. The main formula is: Track Length = 4 x Door Width. To find the size for each of the two doors, the formulas are: Door Width = [Opening Width + (2 x Molding Width, or 4 inches if no molding)] / 2. The Door Height formula is: Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch.
Instructional diagram showing a pair of closed biparting doors, titled 'How to Calculate Double Door Biparting Track Length'. The main formula is: Track Length = 4 x Door Width. To find the size for each door, the formulas are: Door Width = [Opening Width + (2 x Molding Width, or 4 inches if no molding)] / 2. The Door Height formula is: Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch.
Roll over image to zoom in Click on image to zoom
Diamond Mount cabinet barn door hardware kit in matte black with a single track, shown installed on a small wooden cabinet door.Diamond Mount cabinet barn door hardware kit in matte black with a single track, shown installed on a small wooden cabinet door.An instructional diagram titled 'How to Calculate Single Door Track Length'. The primary formula shown is: Track Length = 2 x Door Width. Additional formulas are provided to determine door size: Door Width = Opening Width + (2 x Molding Width, or 4 inches if no molding). Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch.An instructional diagram showing a closed barn door and titled 'How to Calculate Single Door Track Length'. The primary formula is: Track Length = 2 x Door Width. Additional formulas for door size are: Door Width = Opening Width + (2 x Molding Width, or 4 inches if no molding). Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch.Instructional diagram: 'How to Calculate Double Door Biparting Track Length'. The main formula is: Track Length = 4 x Door Width. To find the size for each of the two doors, the formulas are: Door Width = [Opening Width + (2 x Molding Width, or 4 inches if no molding)] / 2. The Door Height formula is: Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch.Instructional diagram showing a pair of closed biparting doors, titled 'How to Calculate Double Door Biparting Track Length'. The main formula is: Track Length = 4 x Door Width. To find the size for each door, the formulas are: Door Width = [Opening Width + (2 x Molding Width, or 4 inches if no molding)] / 2. The Door Height formula is: Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch.

Diamond Cabinet Barn Door Hardware Kit | Matte Black

Quick Ship
Starts at:
$94.99

Description

Confirm your fit

Specifications

What's in the kit

Complete your order

Choosing the right track length

Our Simple 3-Step Process

1) Select Your Barn Door Hardware
Choose your track length, add soft-close if desired, and customize your configuration.
2) Shipped Quickly
Your hardware kit typically ships in 2-3 business day.
3) Install with Confidence
Your purchase is backed by a limited lifetime warranty.

Common Questions

The diamond hanger is a house value line product, available in the two standard quick-ship finishes — and in this case matte black only. If you need the diamond aesthetic in brushed nickel or any of the 17 Goldberg Brothers powder coat finishes, email us at info@thebarndoorhardwarestore.com — we may be able to advise on alternatives or special orders.

The floor-mounted T-guide installs directly below the door panel. A small slot in the bottom edge of the door slides over the T-guide, keeping the door tracking straight and preventing it from swinging away from the wall. It is compatible with all door thicknesses in the supported range (1/2 to 1-1/4 in) and does not require adjustment. Installation requires two small screws into the floor. If you have finished flooring you'd prefer not to drill into, see our wall-mounted floor guides as an alternative.

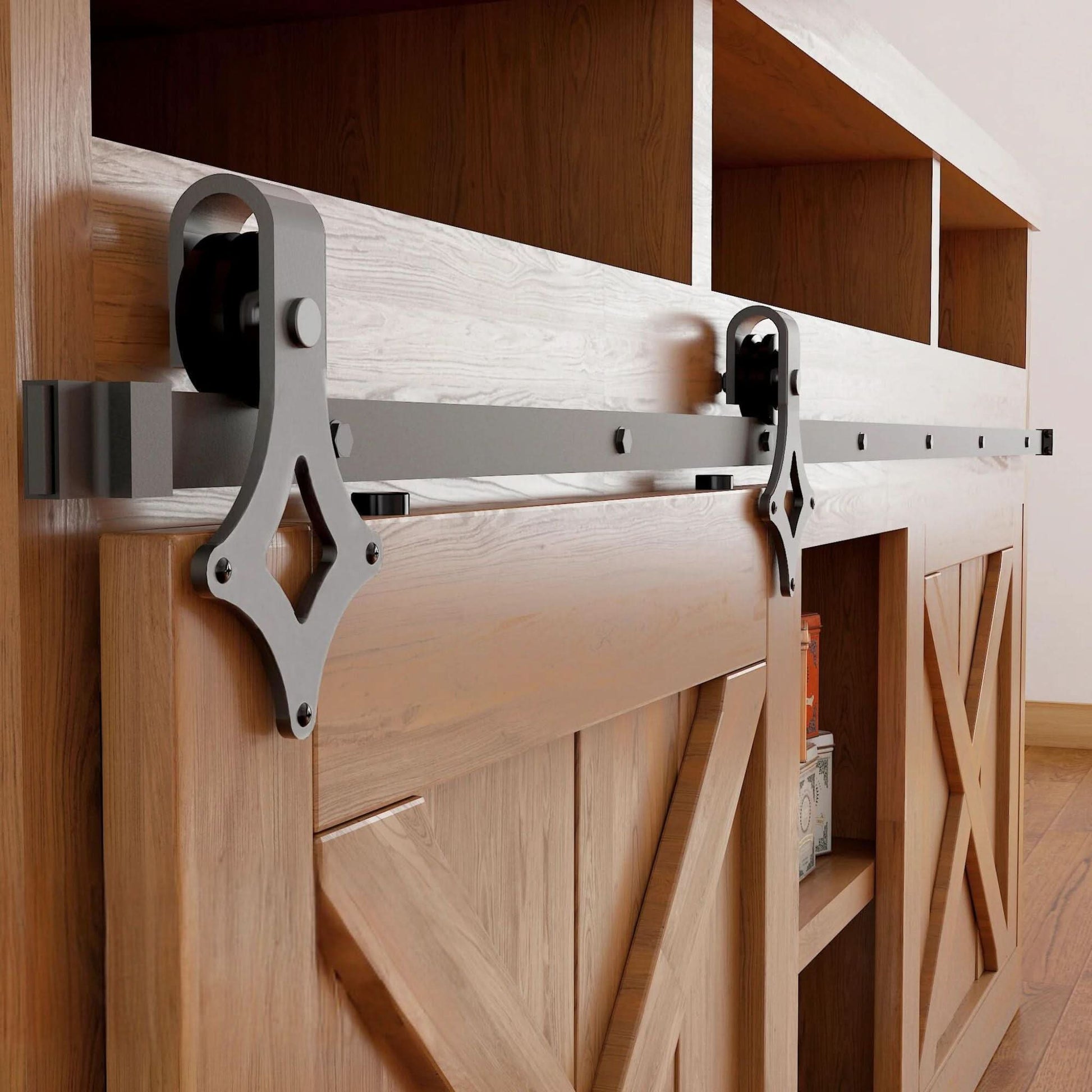

All five styles — J-strap, straight strap, J top mount, arrow, and diamond — use the same track system, the same 50 lb capacity, and the same installation process. The difference is purely the hanger shape visible above and on the door. The diamond hanger has a distinctly geometric diamond-shaped strap on the door face, making it the most decorative option in the lineup. It's a good fit for cabinet installations where the hardware is meant to be noticed rather than disappear into the background.

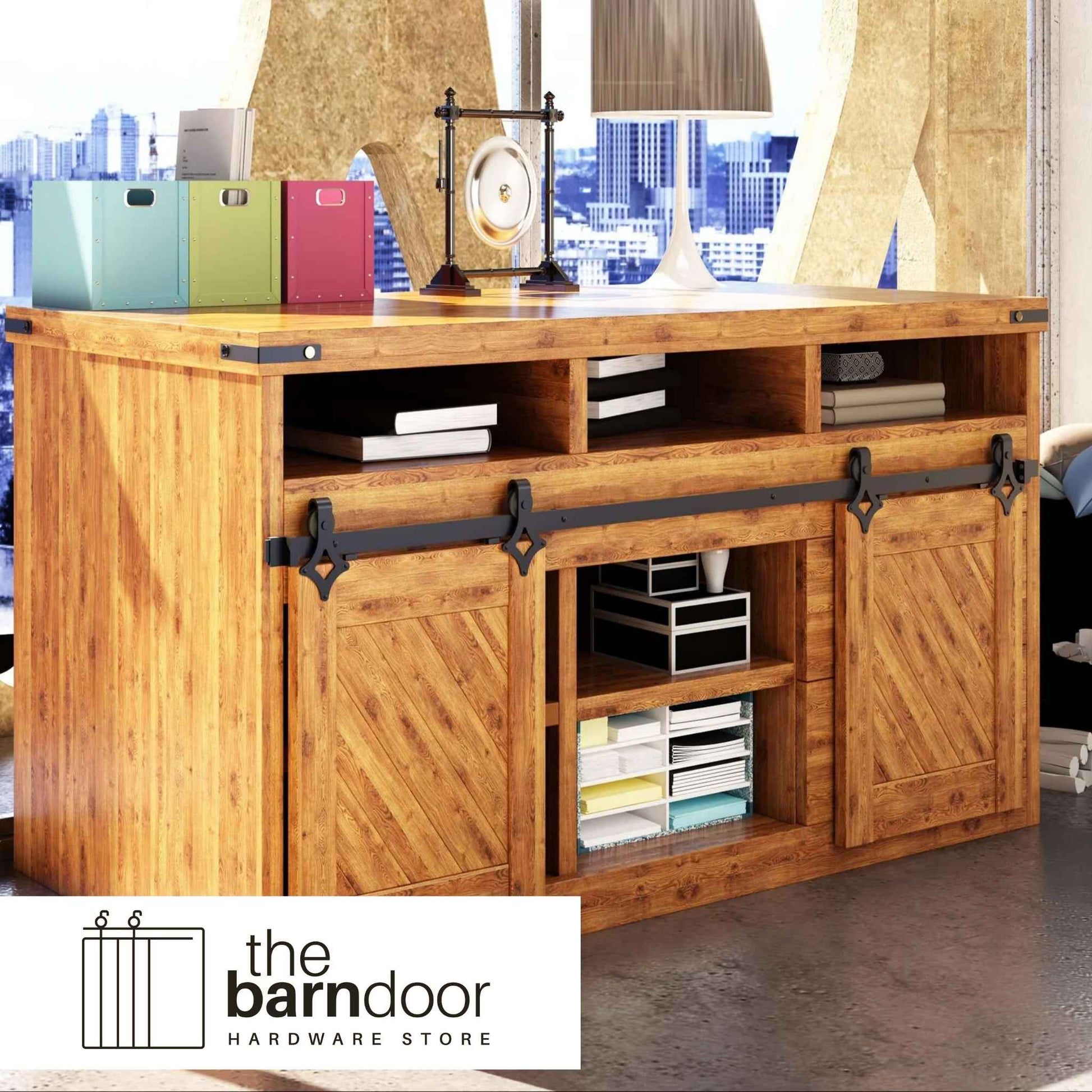

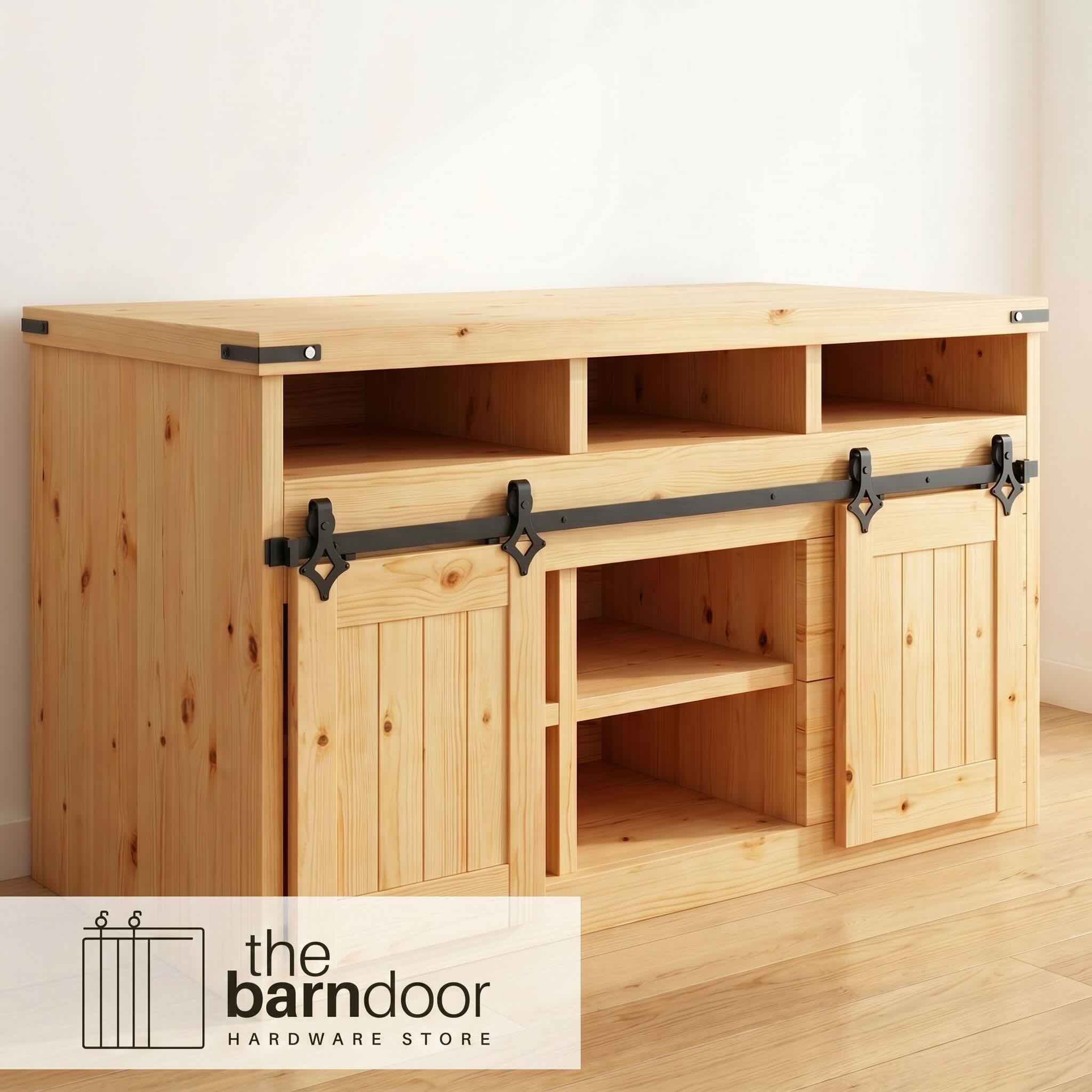

The 2-door option includes hardware for two panels that share one track and split from the center — each panel slides to one side when open. Select "Hardware for 2 Cabinet Doors." The track length must be double the combined width of both panels.

No — this kit is designed for cabinet doors and small panels. The 50 lb total system capacity and 1-1/4 in maximum door thickness rule out most standard interior doors. For full-size applications, see our standard barn door hardware kits.

Questions before ordering?

Email us at info@thebarndoorhardwarestore.com with your door dimensions, door weight, and opening width — we'll confirm the right track length and configuration. Available 7 days a week.

Email Us!

info@thebarndoorhardwarestore.com

Shipping Policy Installation Guide
