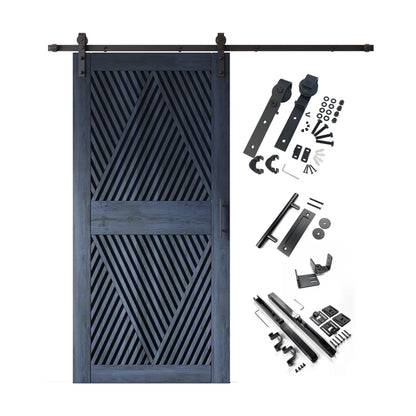

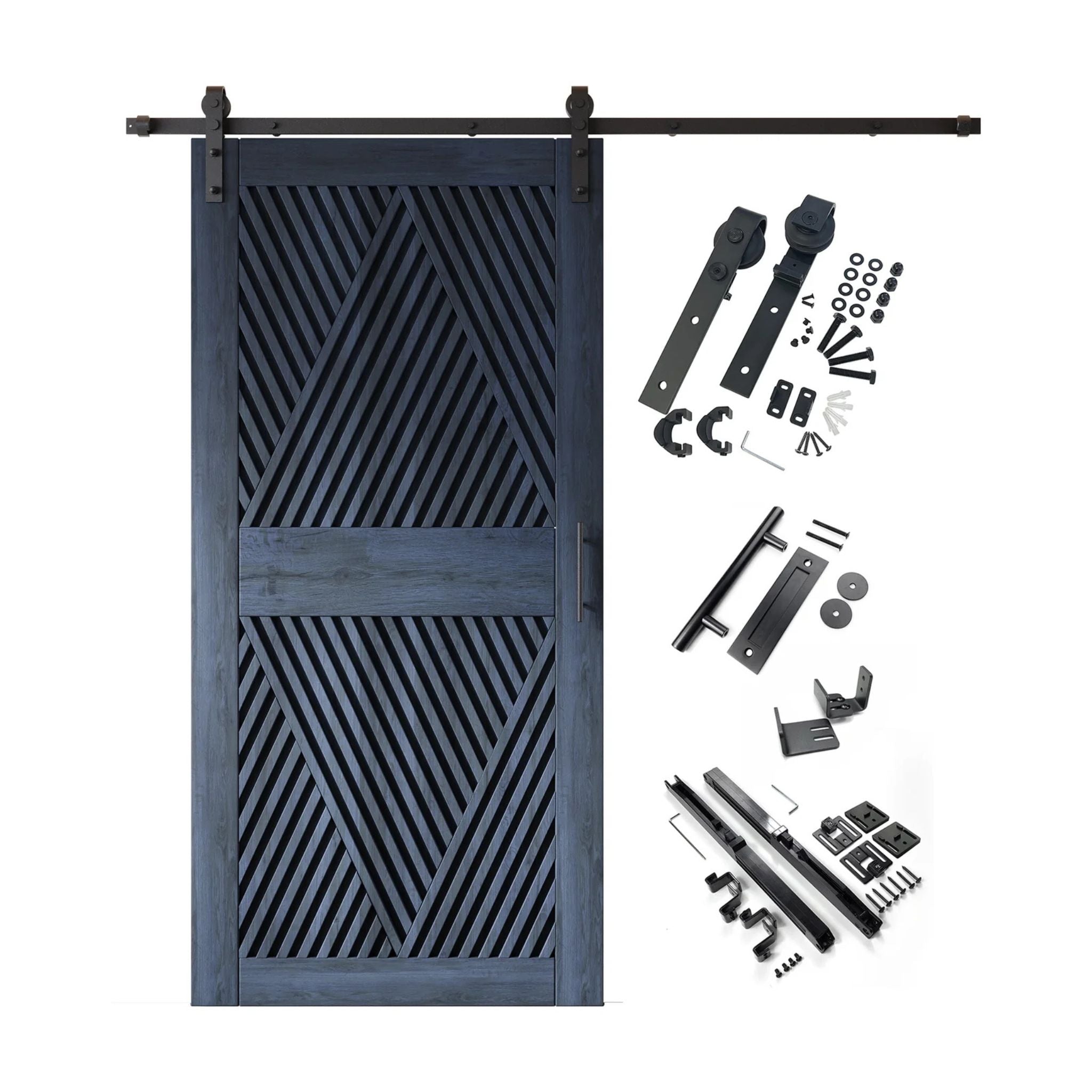

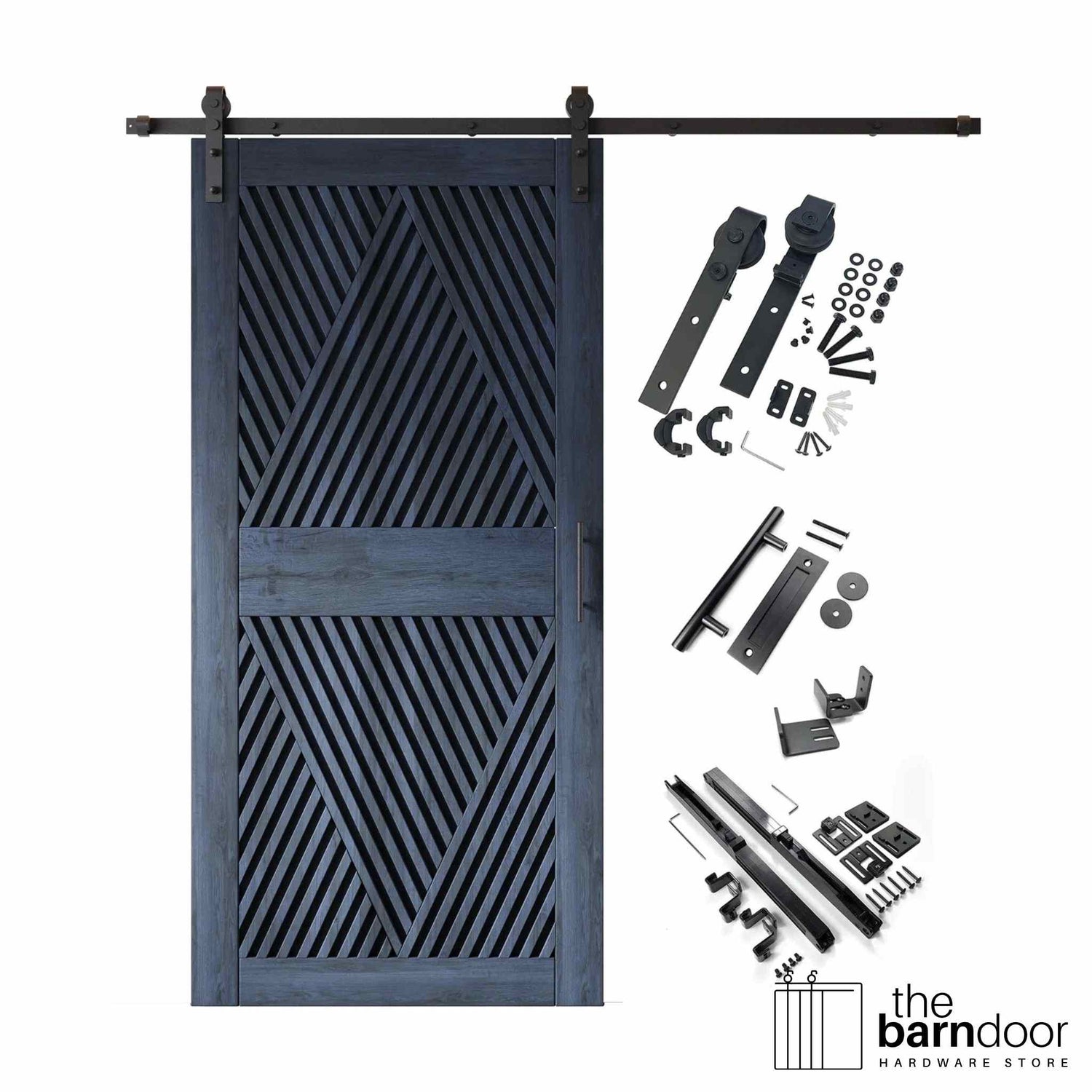

A complete barn door hardware kit featuring a striking navy blue barn door with an intricate, open diamond slat pattern, black sliding track, rollers, handle, and all mounting components displayed next to the door.

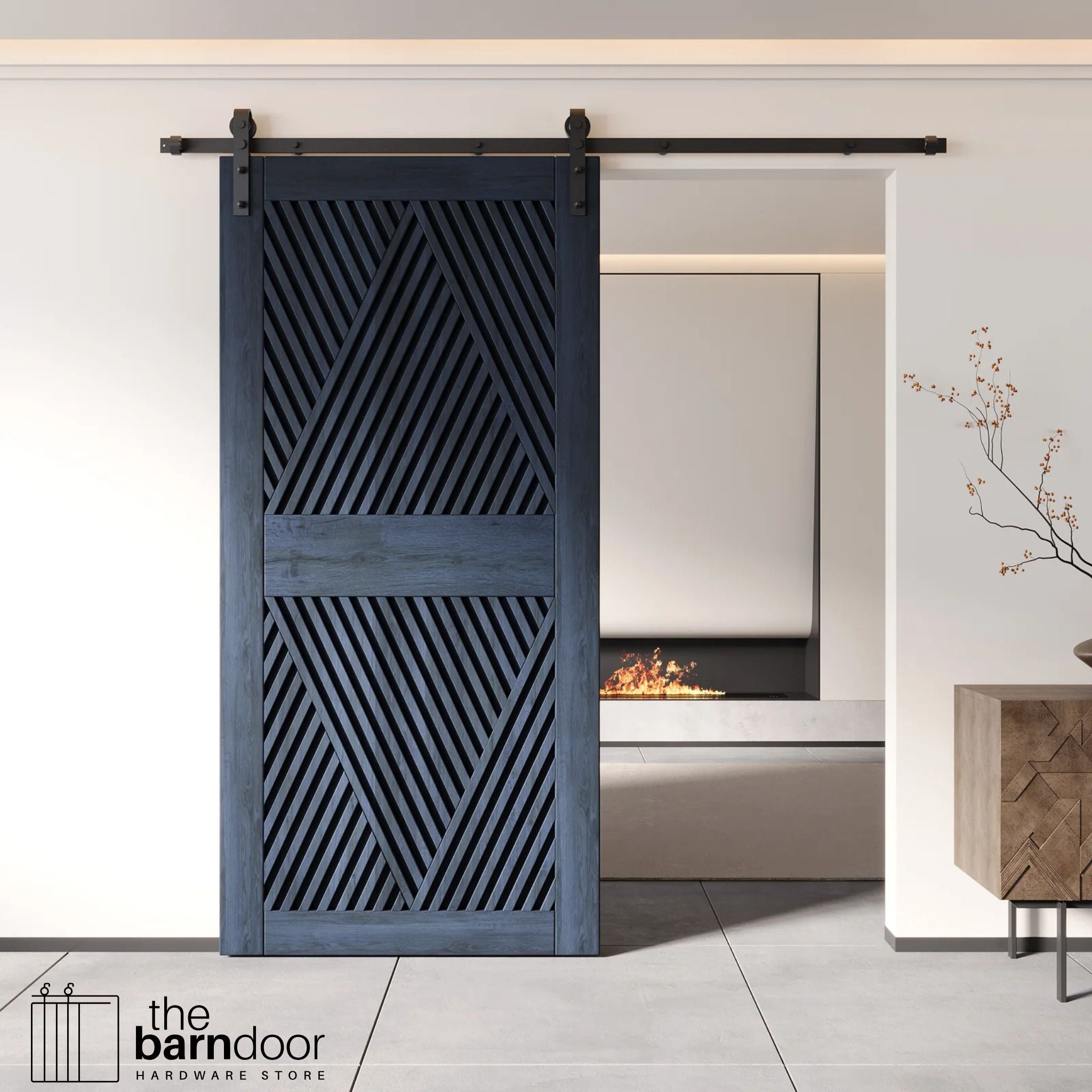

A modern navy barn door with an intricate geometric diamond pattern installed on a black track in a contemporary living space with a fireplace.

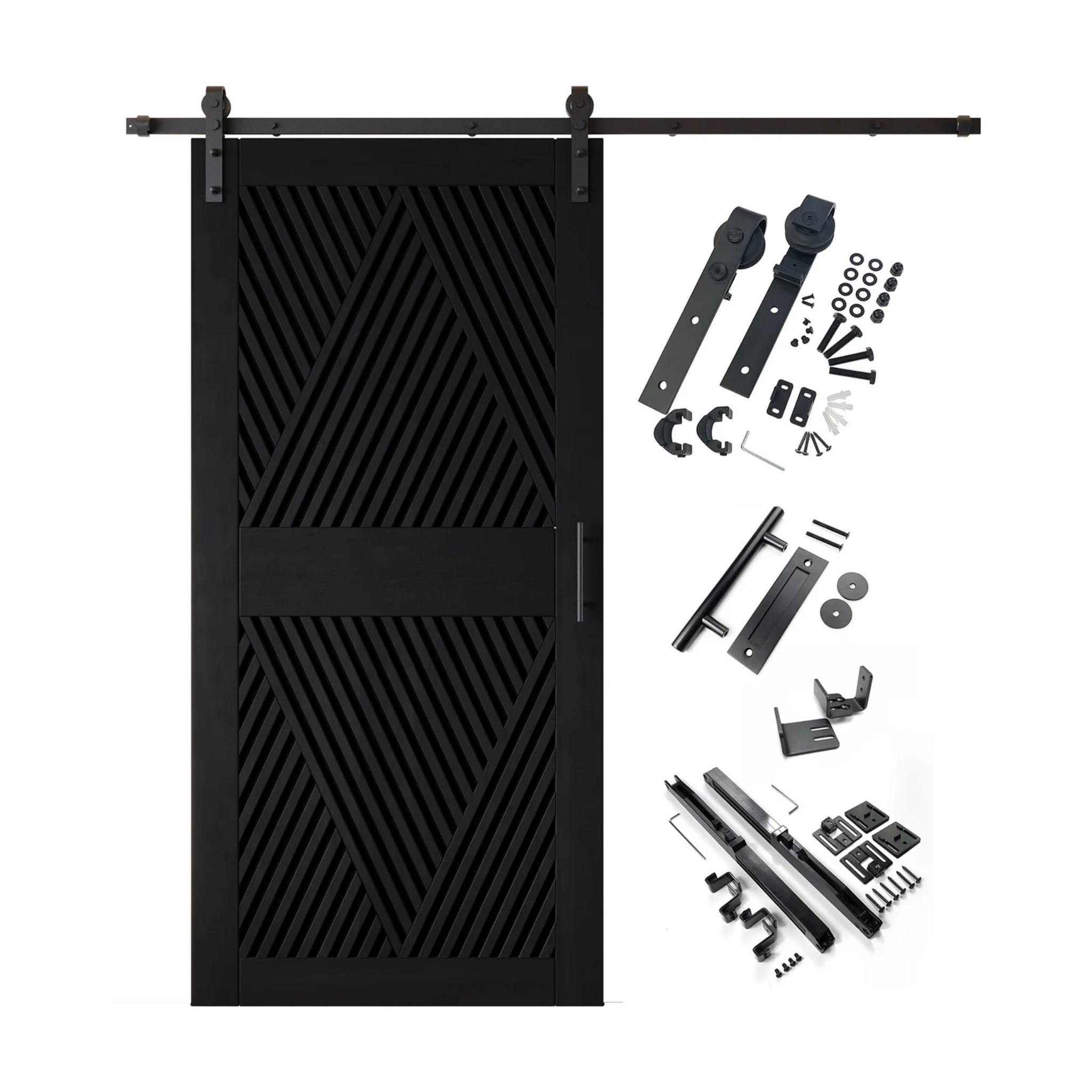

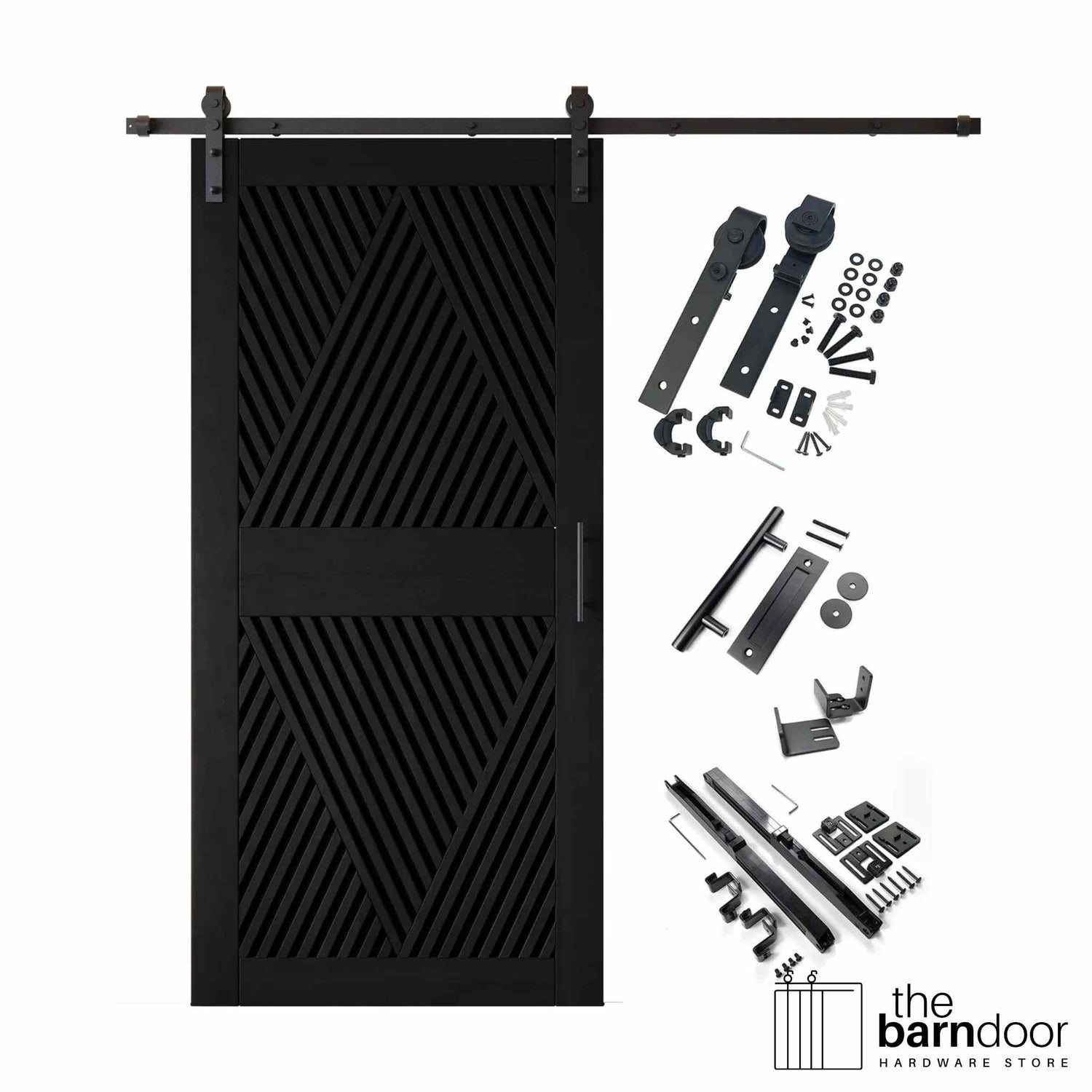

A complete barn door hardware kit featuring a striking black barn door with an intricate, open diamond slat pattern, black sliding track, rollers, handle, and all mounting components displayed next to the door.

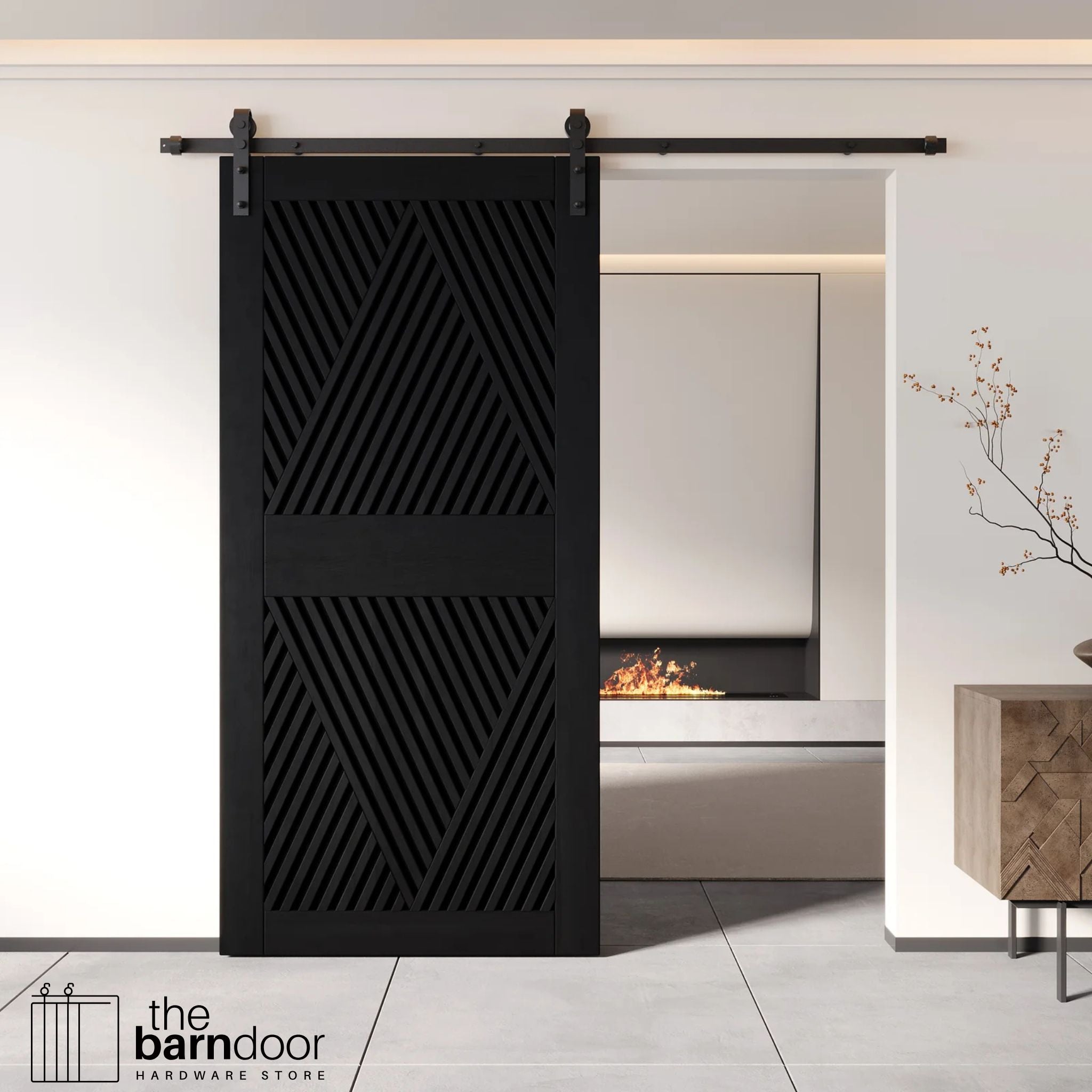

A modern black barn door with an intricate geometric diamond pattern installed on a black track in a contemporary living space with a fireplace.

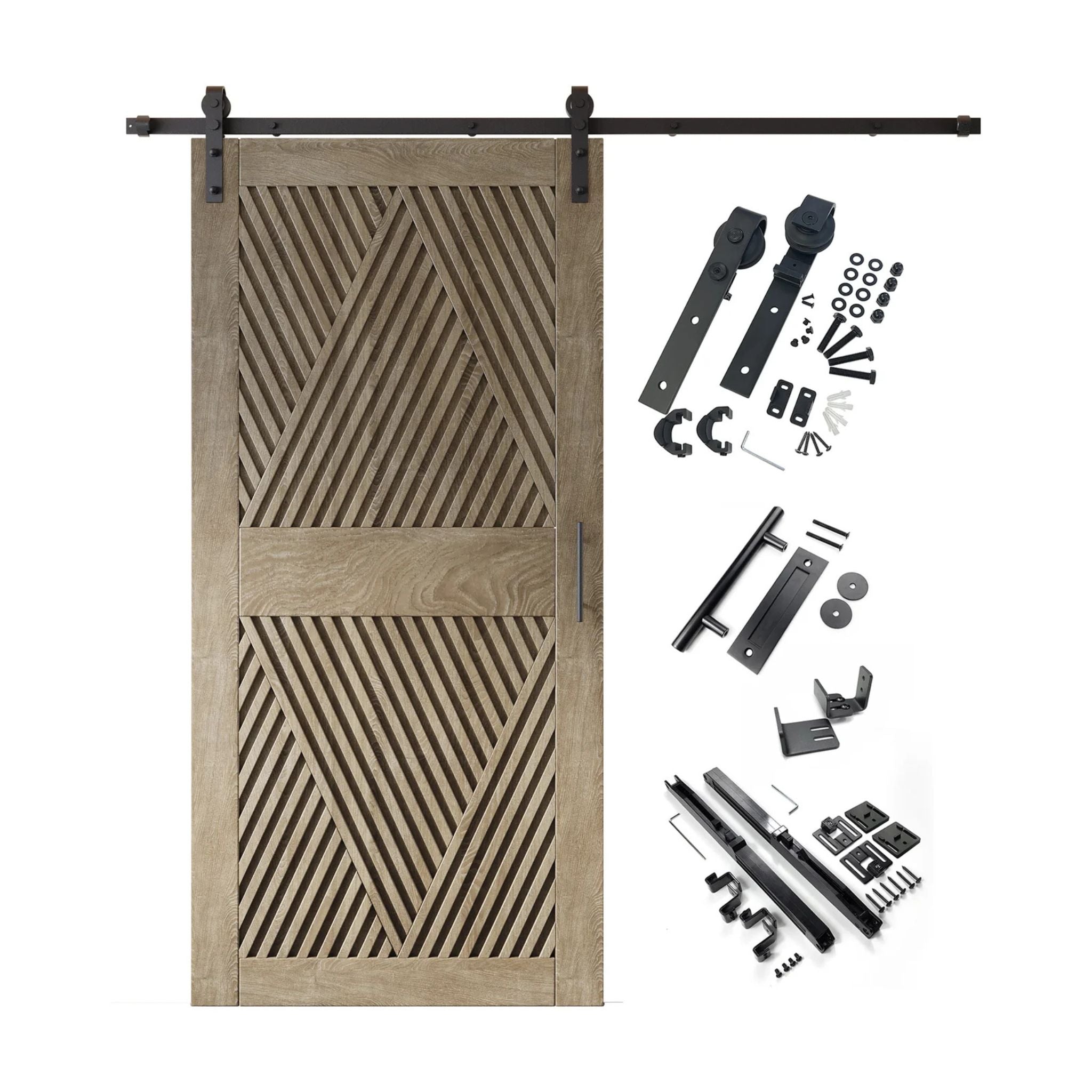

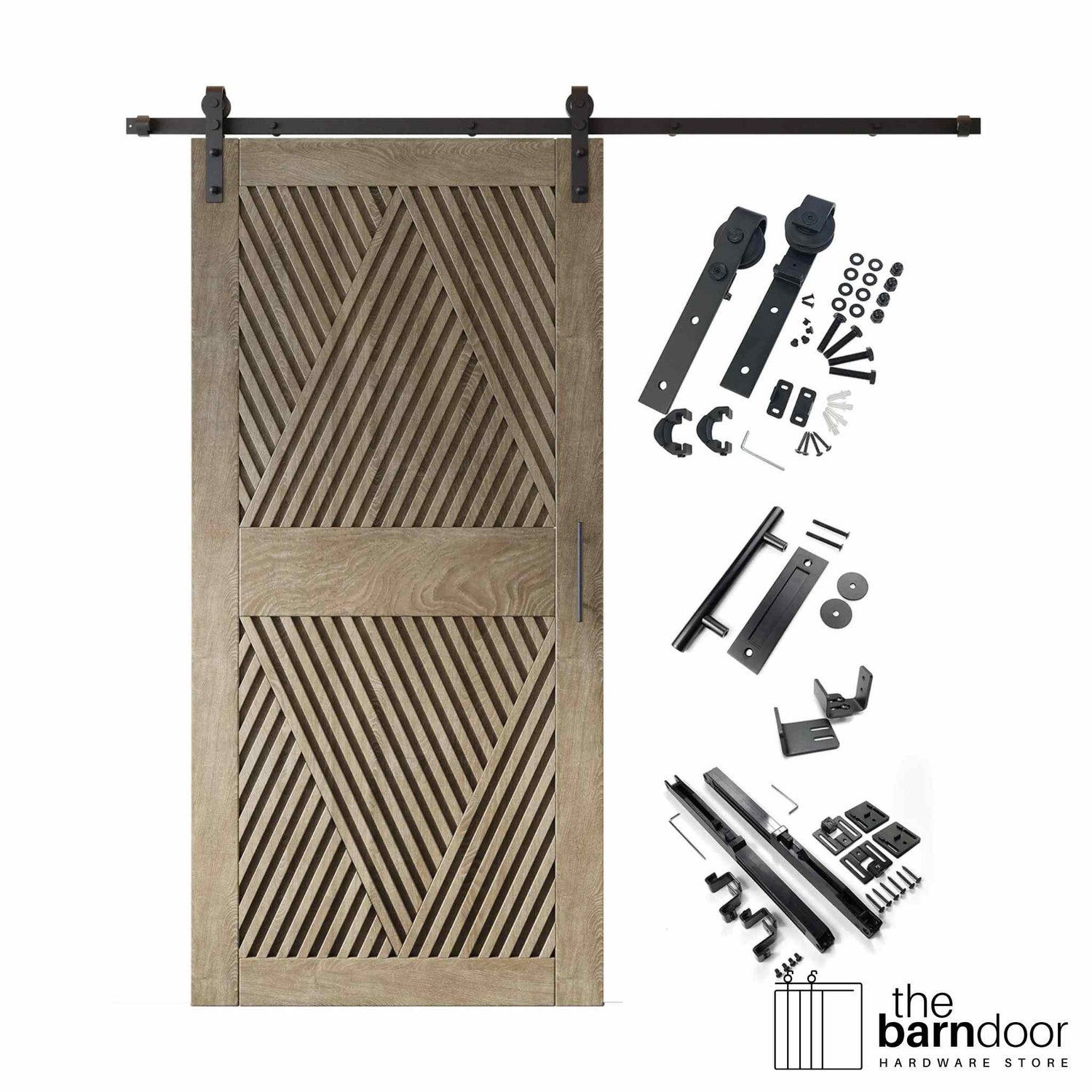

A complete barn door hardware kit featuring a striking classic gray barn door with an intricate, open diamond slat pattern, black sliding track, rollers, handle, and all mounting components displayed next to the door.

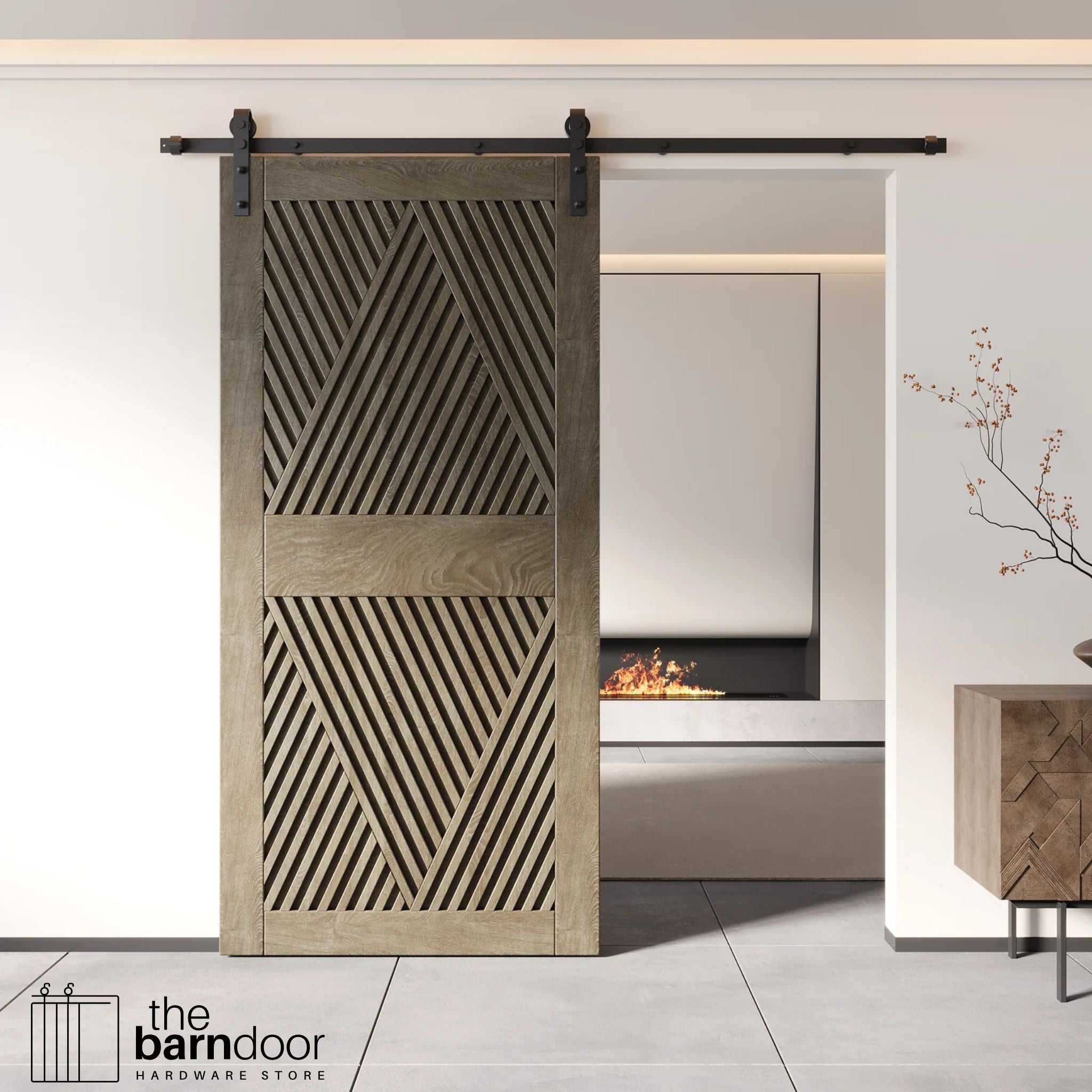

A modern classic gray barn door with an intricate geometric diamond pattern installed on a black track in a contemporary living space with a fireplace.

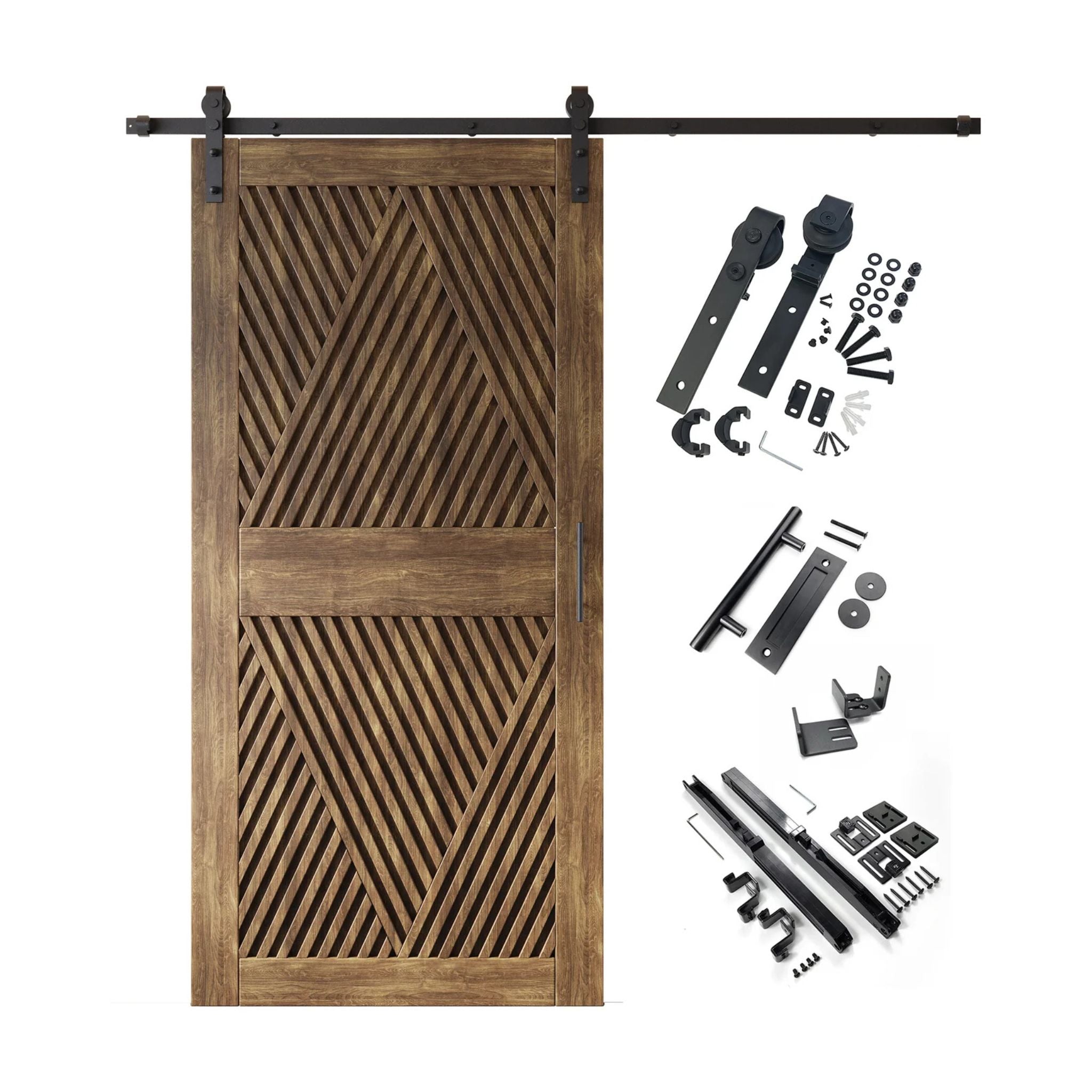

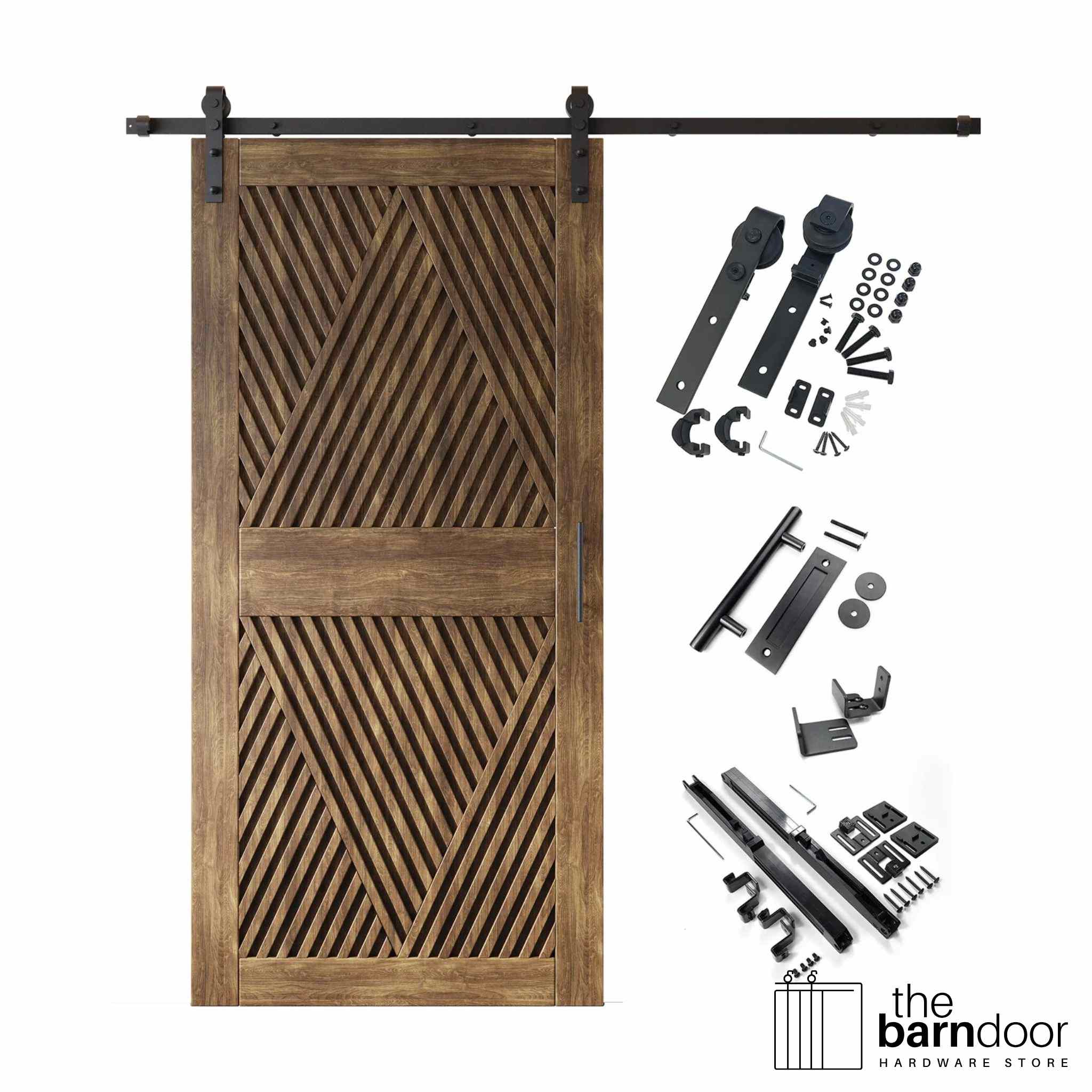

A complete barn door hardware kit featuring a striking dark walnut barn door with an intricate, open diamond slat pattern, black sliding track, rollers, handle, and all mounting components displayed next to the door.

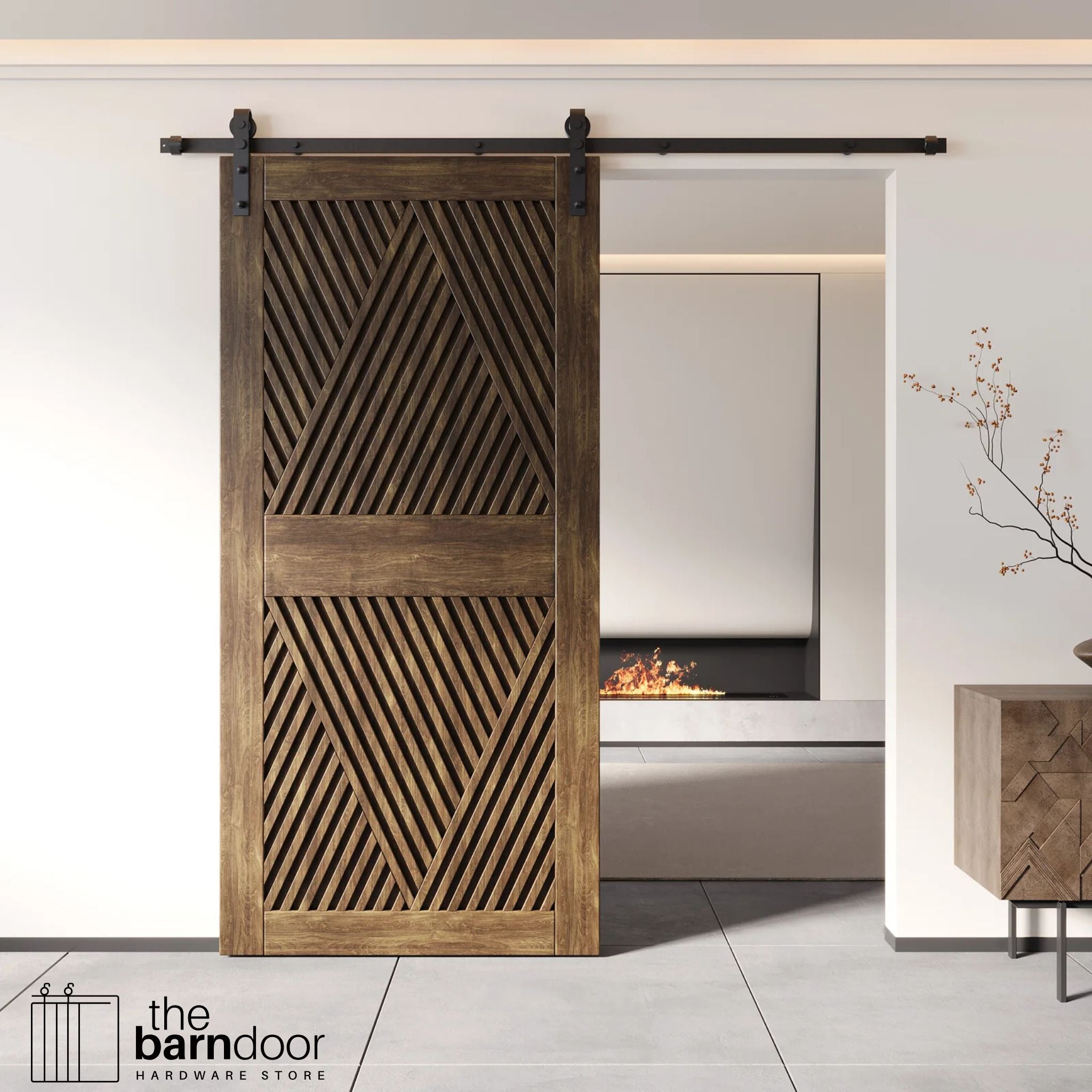

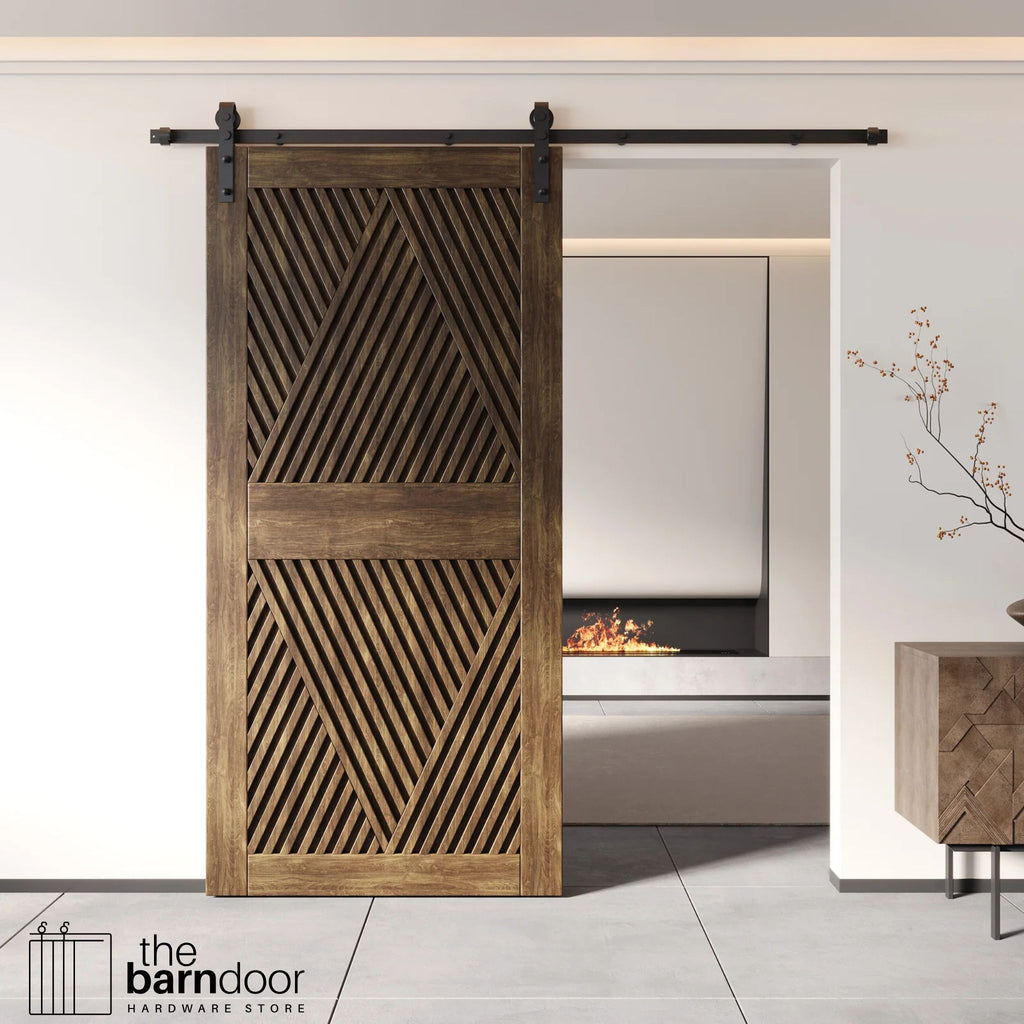

A modern dark walnut barn door with an intricate geometric diamond pattern installed on a black track in a contemporary living space with a fireplace.

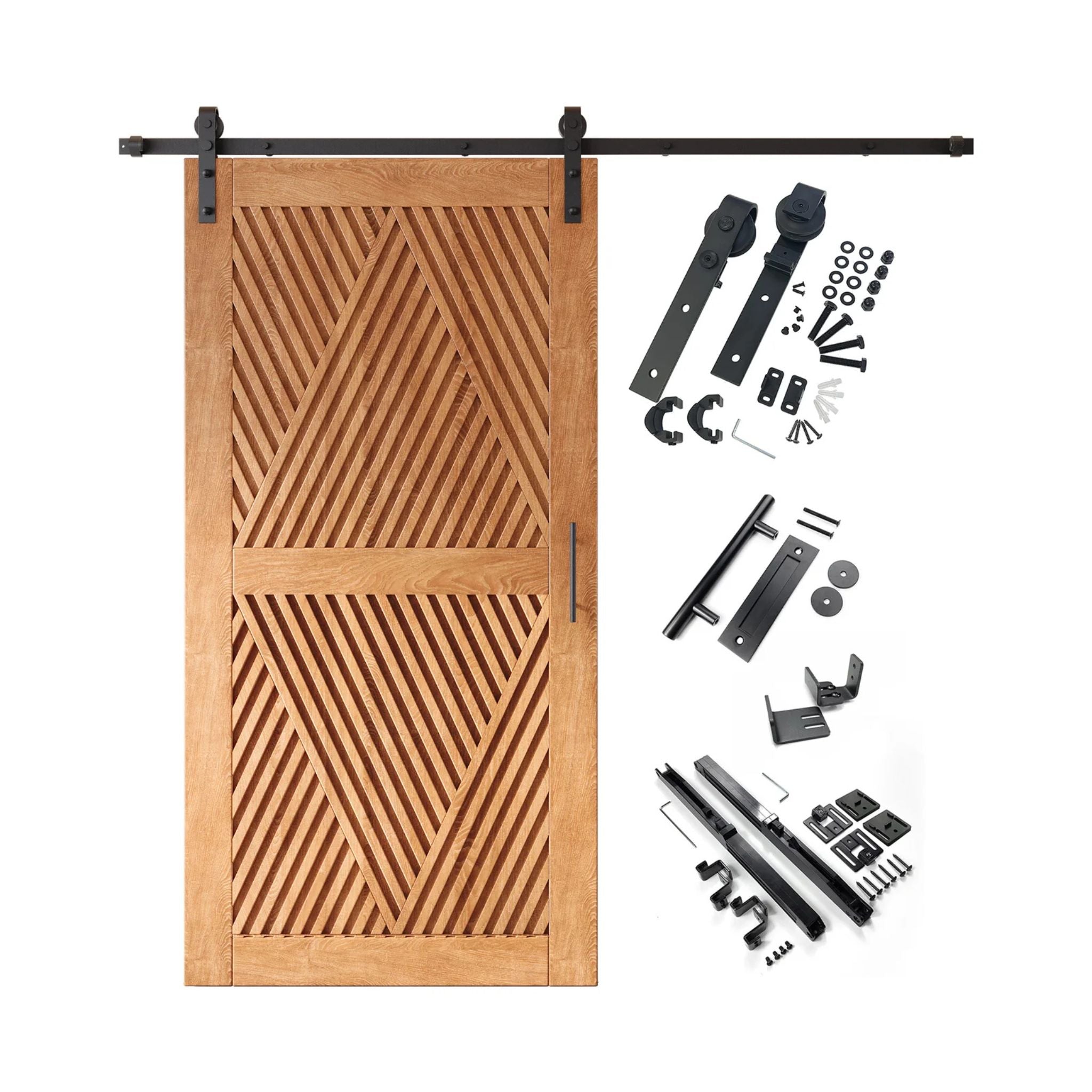

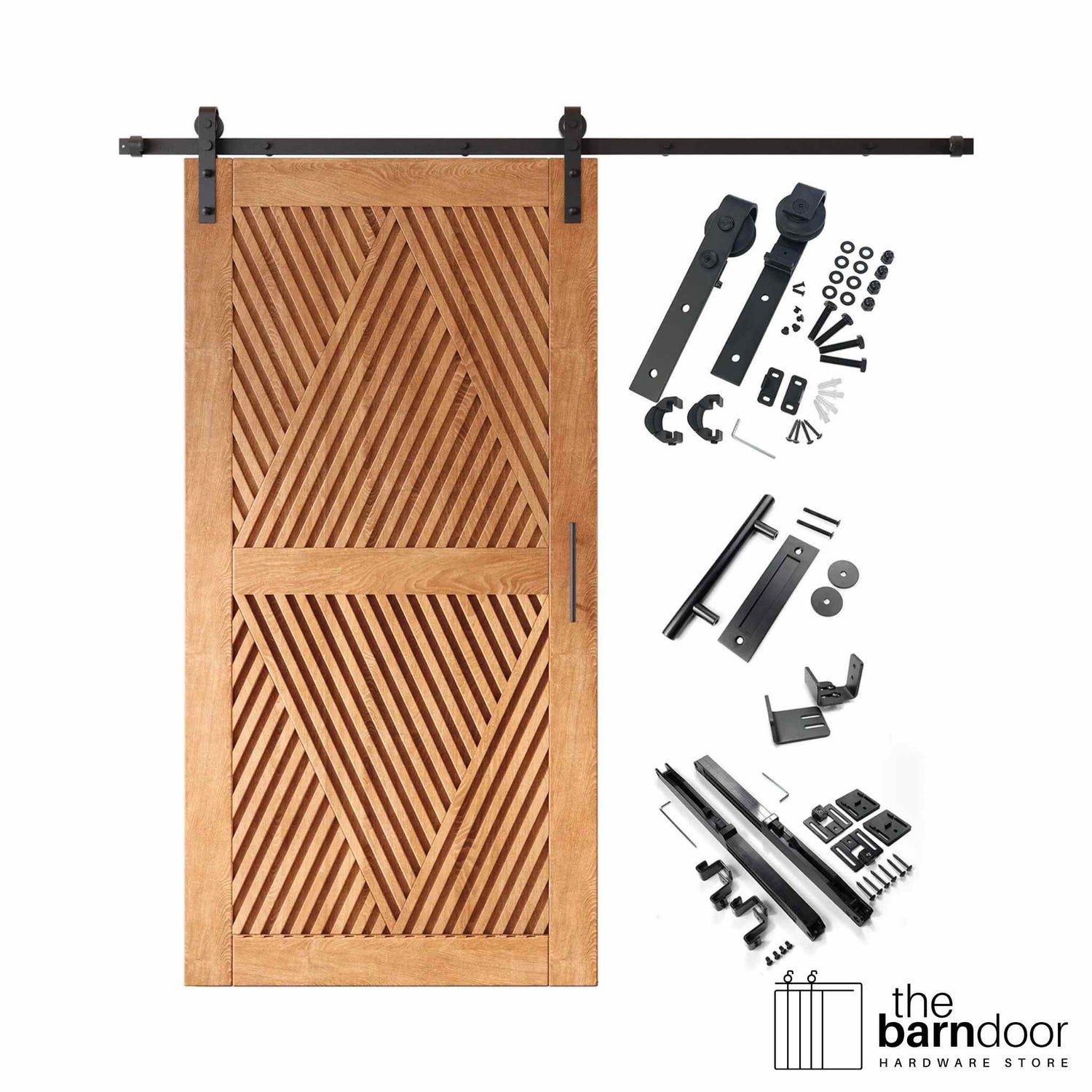

A complete barn door hardware kit featuring a striking early American barn door with an intricate, open diamond slat pattern, black sliding track, rollers, handle, and all mounting components displayed next to the door.

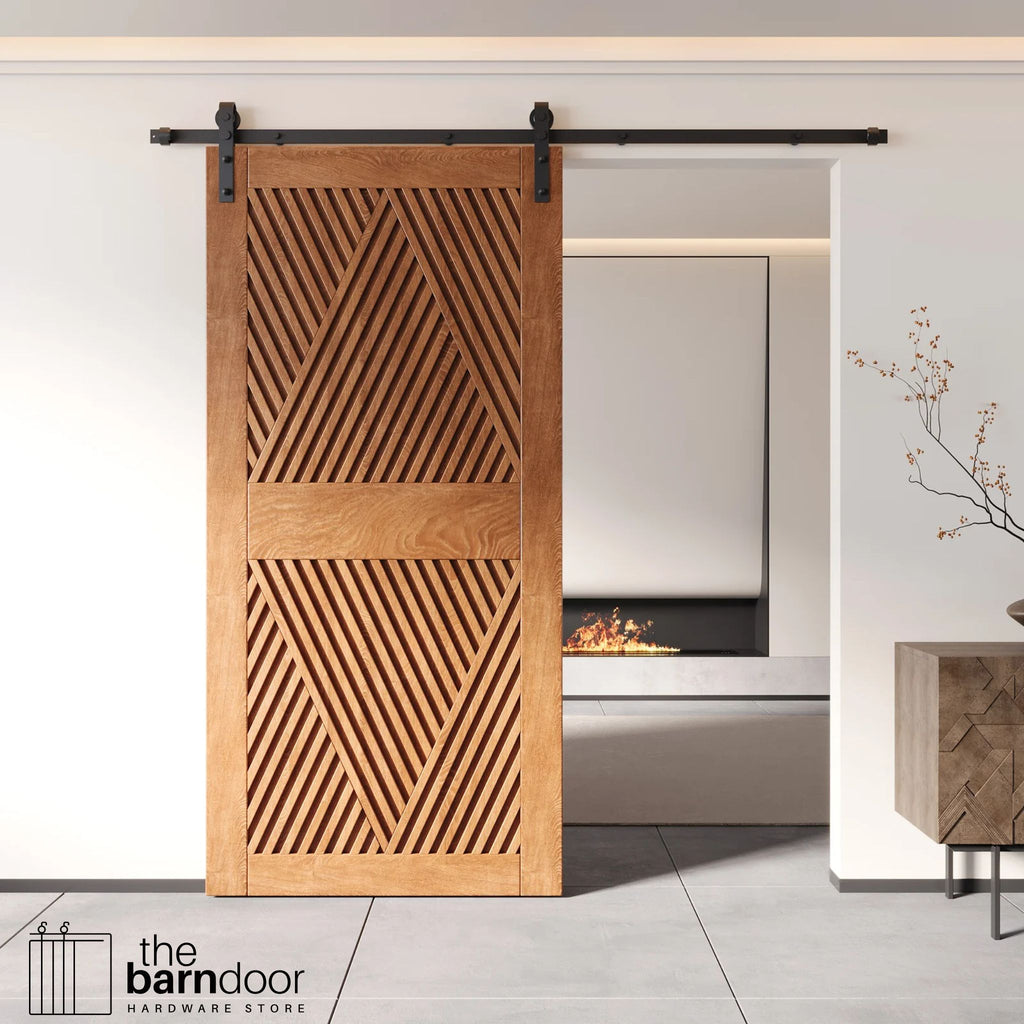

A modern Early American barn door with an intricate geometric diamond pattern installed on a black track in a contemporary living space with a fireplace.

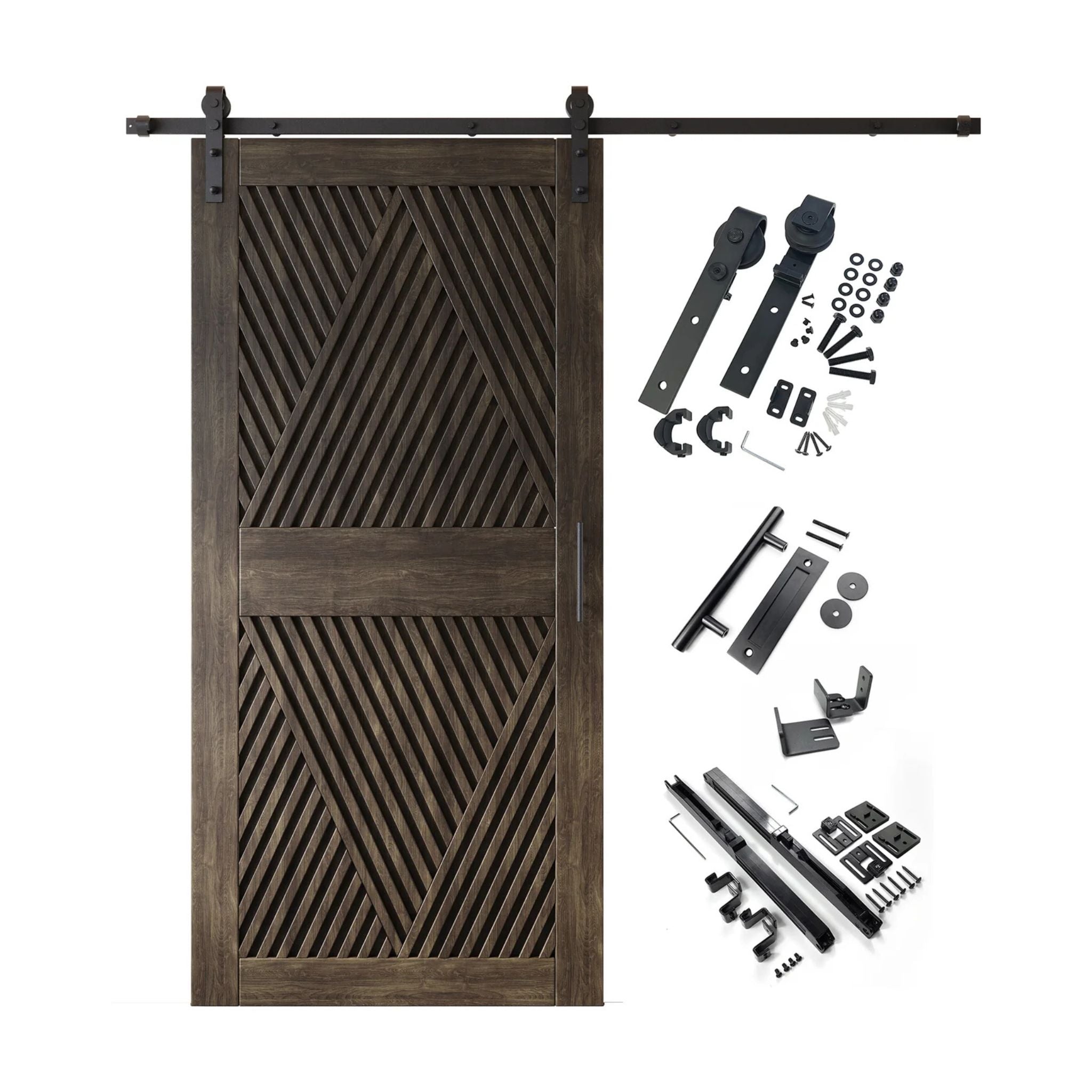

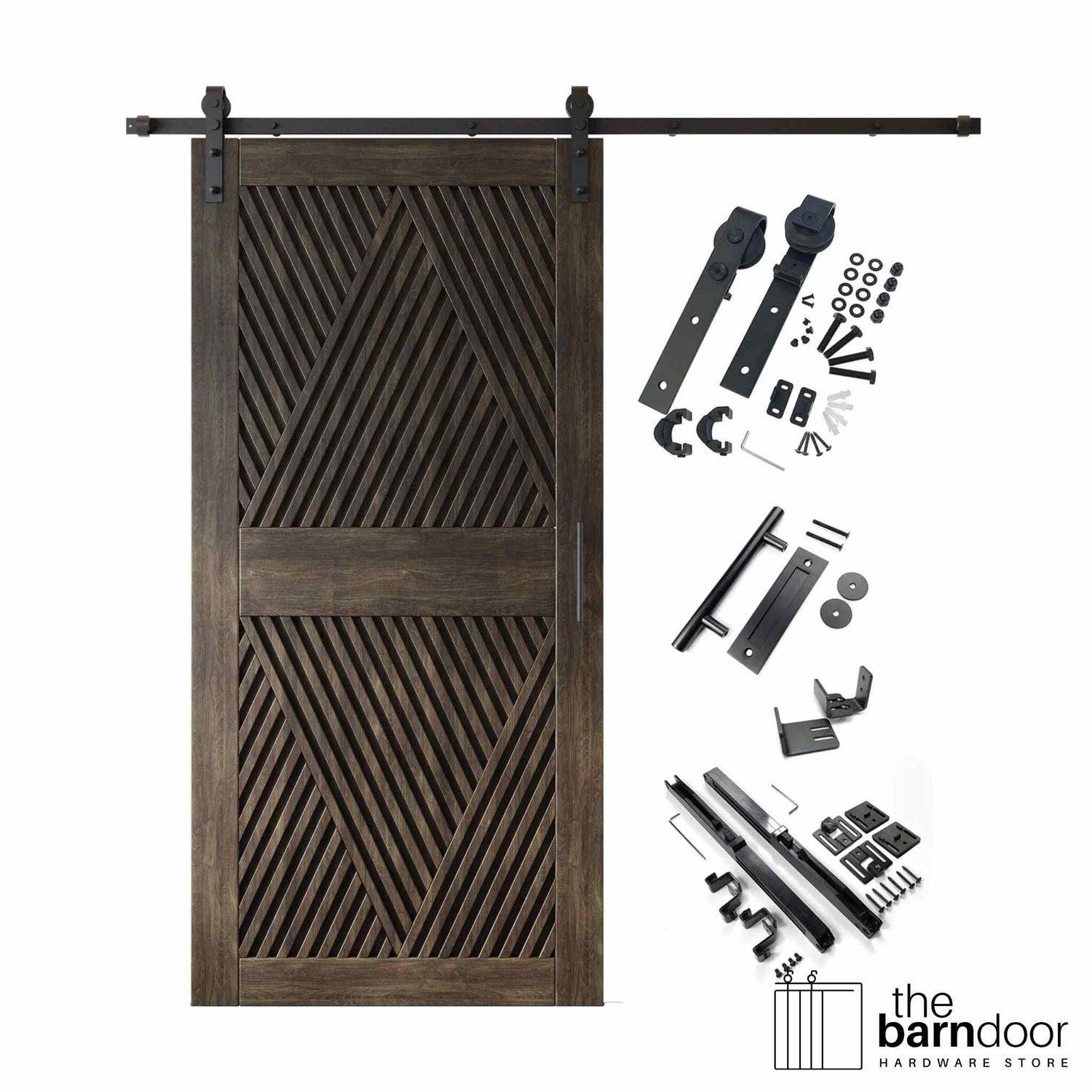

A complete barn door hardware kit featuring a striking ebony barn door with an intricate, open diamond slat pattern, black sliding track, rollers, handle, and all mounting components displayed next to the door.

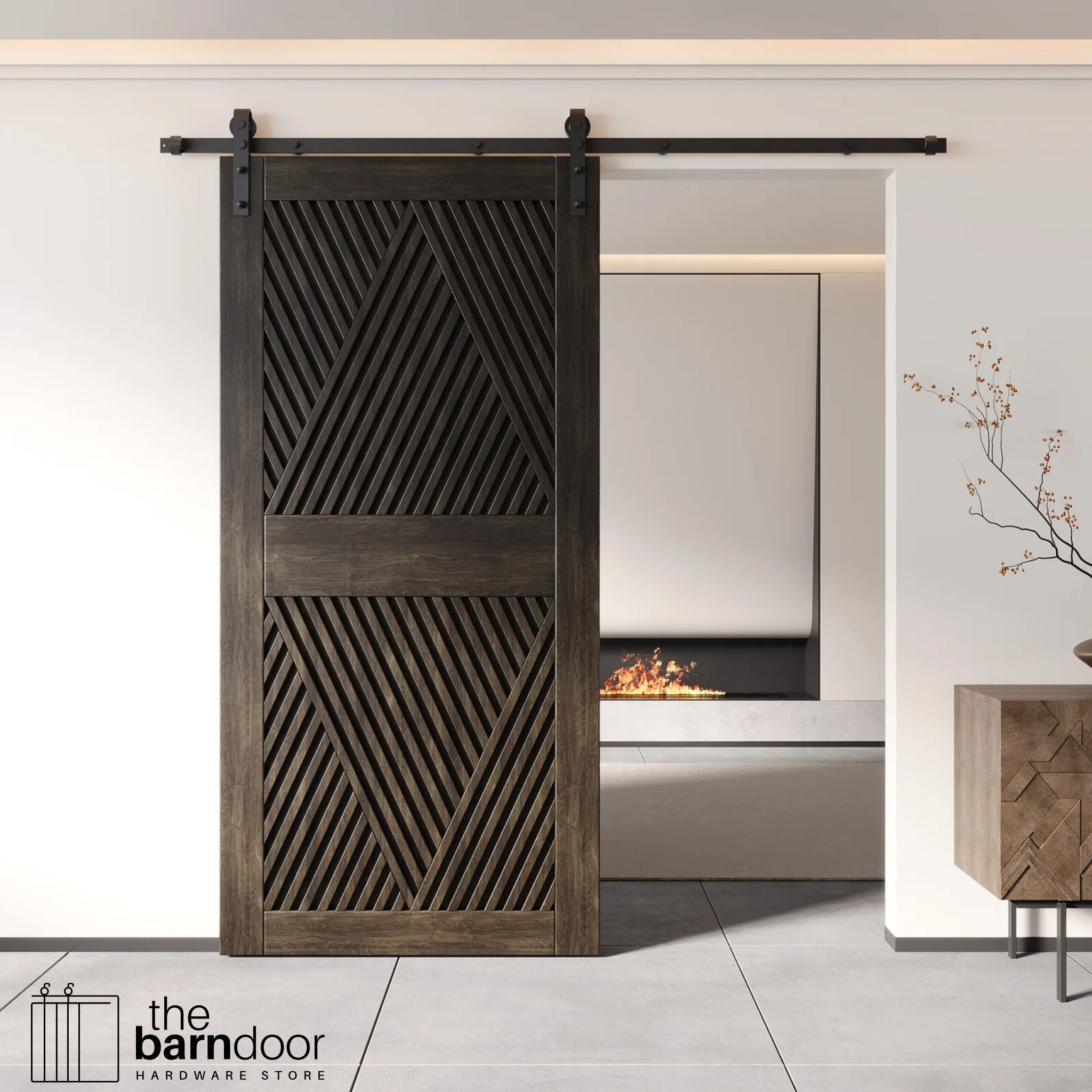

A modern ebony barn door with an intricate geometric diamond pattern installed on a black track in a contemporary living space with a fireplace.

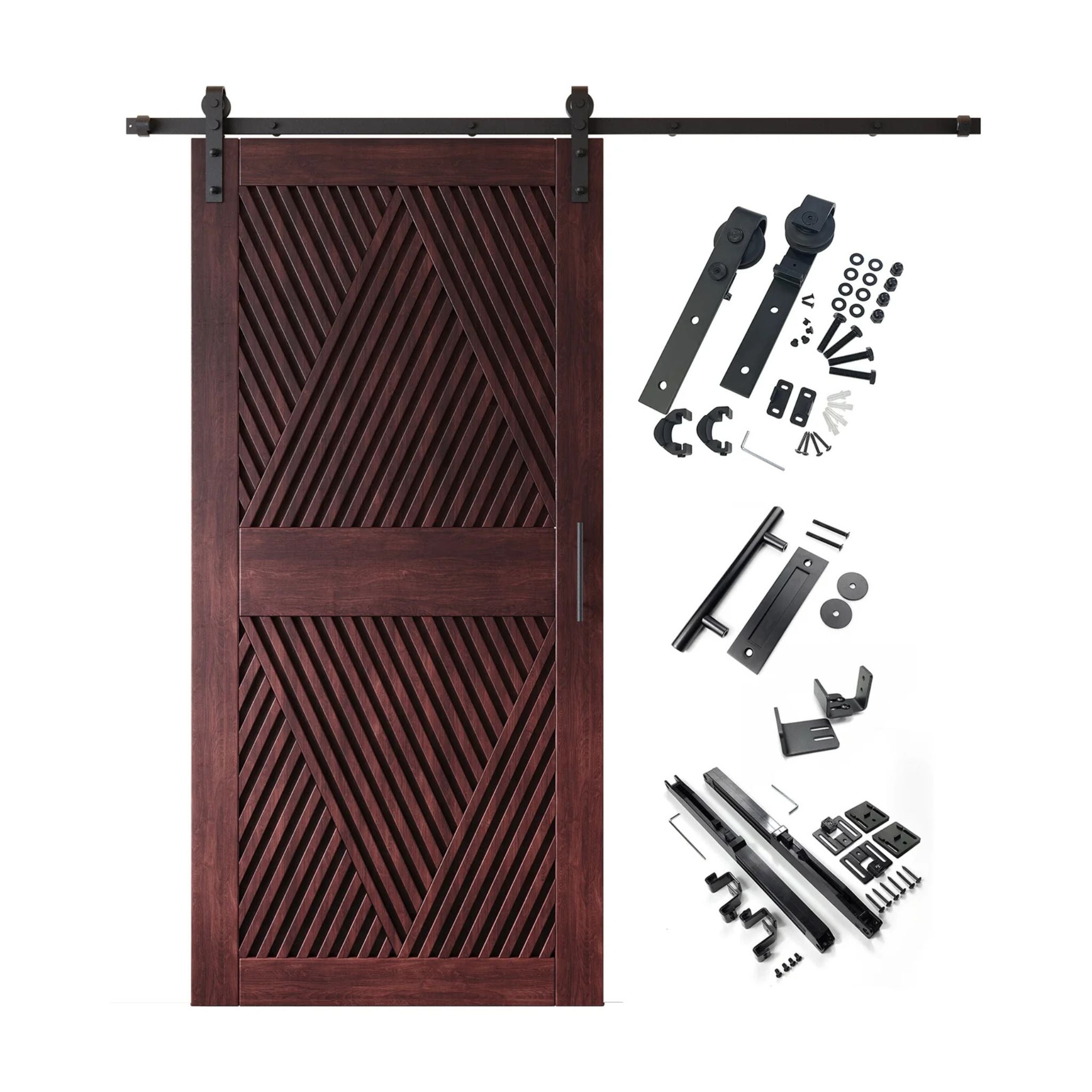

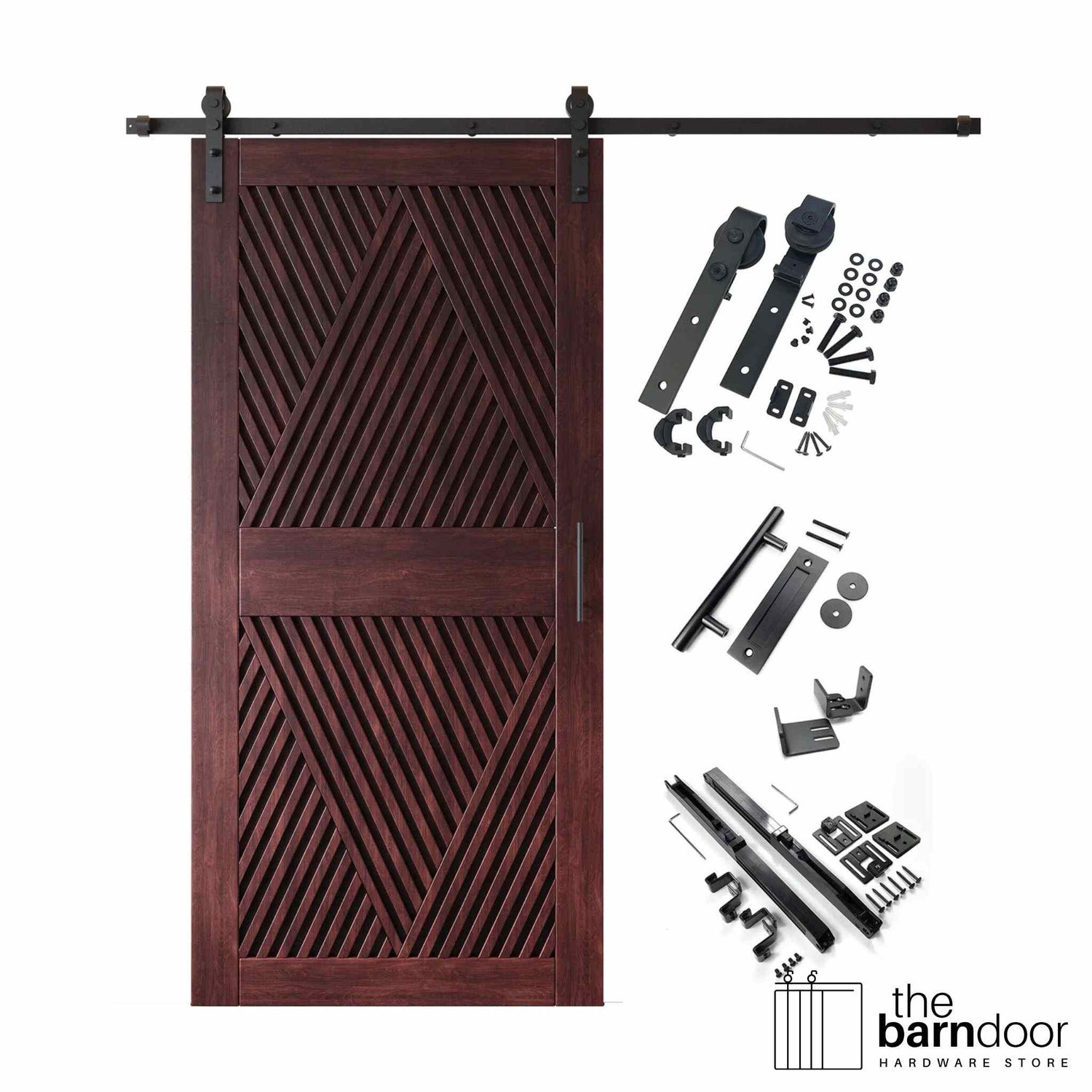

A complete barn door hardware kit featuring a striking red mahogany barn door with an intricate, open diamond slat pattern, black sliding track, rollers, handle, and all mounting components displayed next to the door.

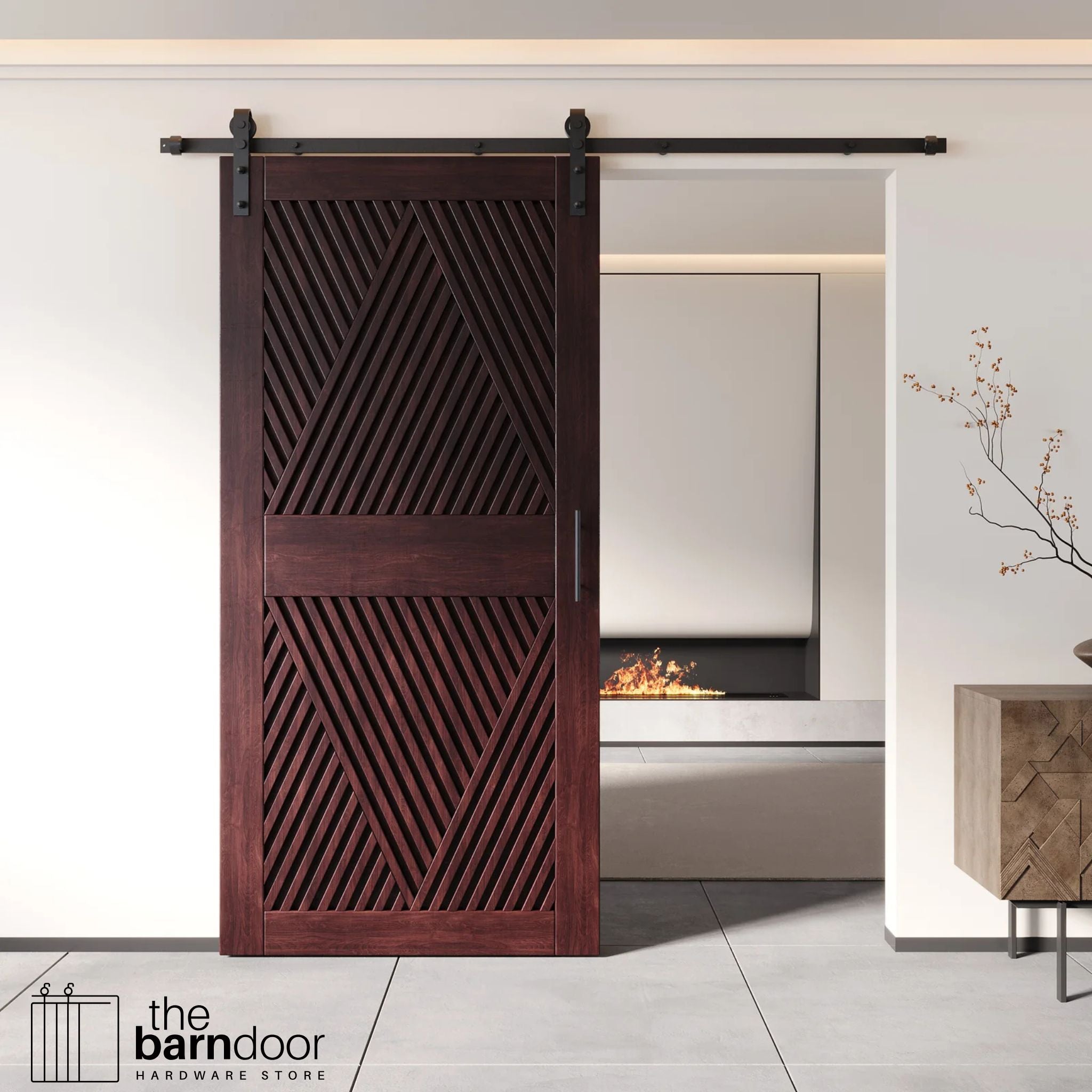

A modern red mahogany barn door with an intricate geometric diamond pattern installed on a black track in a contemporary living space with a fireplace.

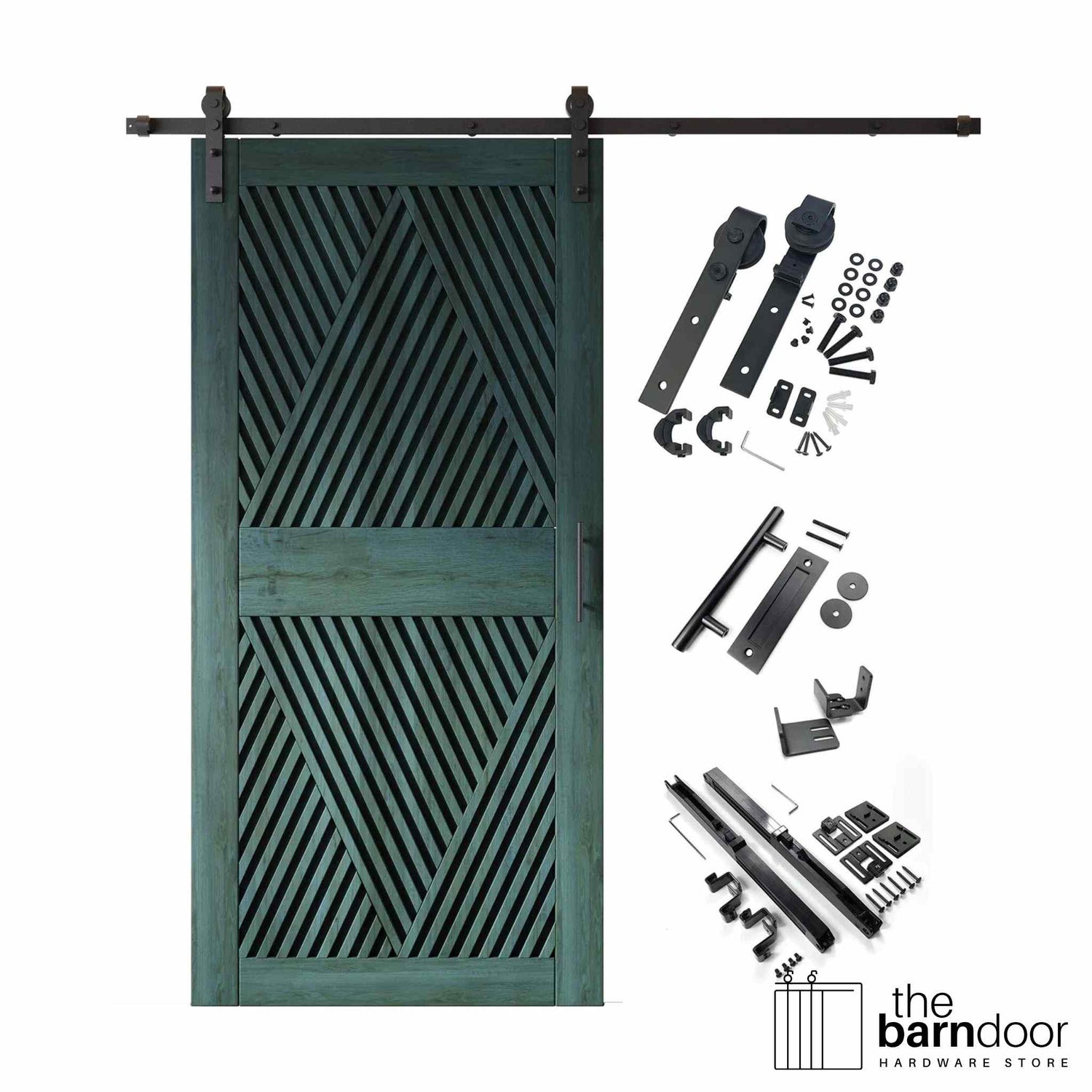

A complete barn door hardware kit featuring a striking royal pine barn door with an intricate, open diamond slat pattern, black sliding track, rollers, handle, and all mounting components displayed next to the door.

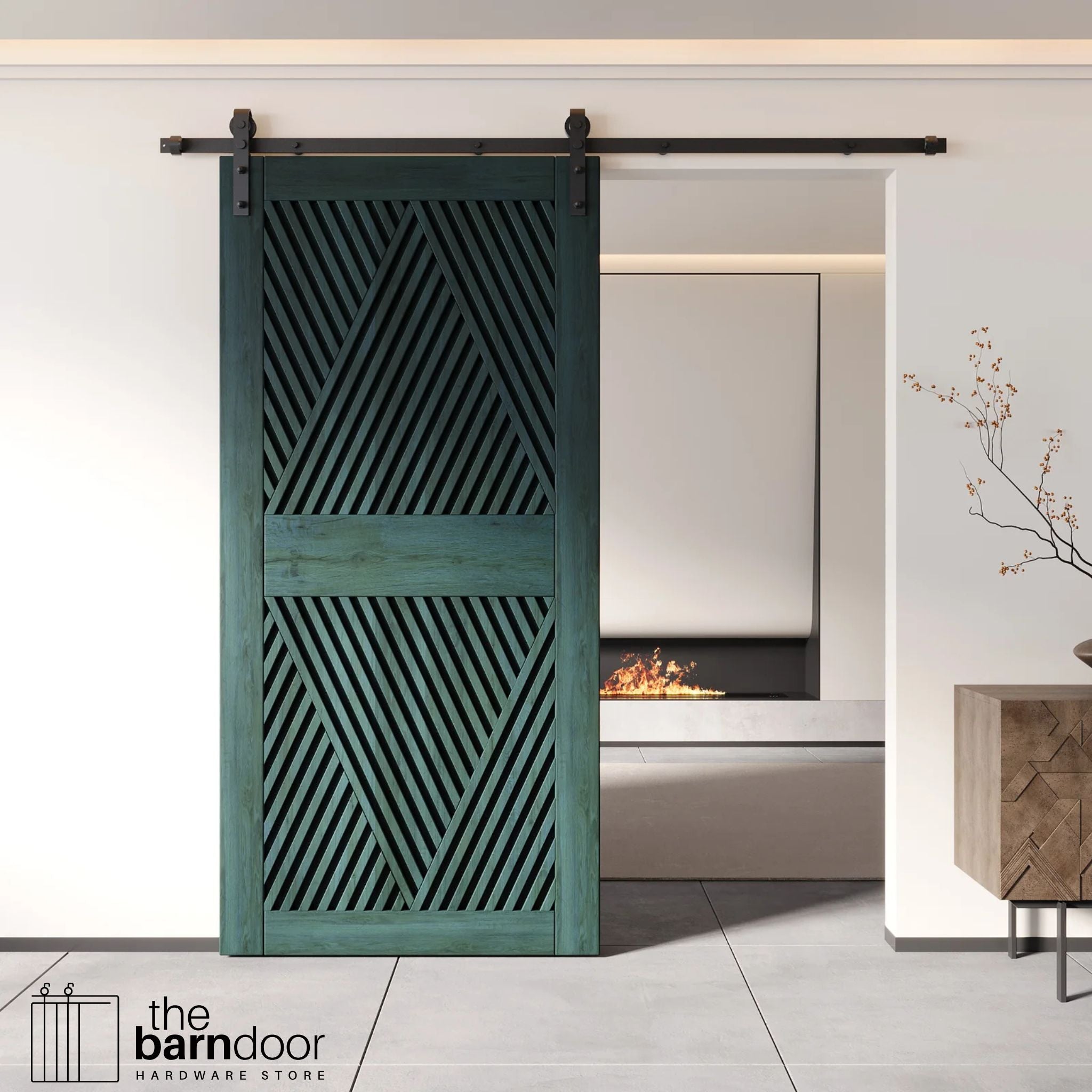

A modern royal pine barn door with an intricate geometric diamond pattern installed on a black track in a contemporary living space with a fireplace.

Infographic showing the Diamond Design door features, including easy tongue and groove assembly, and decorative paneling on both the front and back of the door.

Four interchangeable, unassembled pine wood panels with slatted diamond designs, illustrating the ability to DIY and customize the final pattern by flipping the panels.

Roll over image to zoom in Click on image to zoom

Diamond Pattern Barn Door Kit | Black Hardware

Quick Ship

Starts at:

$974.99

Door Stain: Early American

Quantity:

Share this product

A quick, honest note before you order: barn door kits cost roughly three times the price of a hardware-only kit because the door ships with everything. If you have a door in mind already, or if a local lumber yard can supply panels that better match your space, buying the hardware separately is almost always the better value. We say this to every customer who asks.

That said — if you want a complete, ready-to-hang package, the diamond pattern single kit delivers it in one shipment. The door is solid pine with diagonal cross-hatch panels running across the face — a diamond-pattern design that creates a bold, lattice-style surface texture. The panels can be flipped during assembly to create one of four different arrangements, so decide which pattern you want before you start building. The kit also includes a full black hardware kit with your choice of roller style, a 12 in pull and flush handle set, a wall-mounted floor guide, and a soft-close mechanism.

Available in 8 stain options — no unfinished option on this style. All options ship in 8-10 business days. Door and hardware ship together in one delivery.

Door width: Measure your rough opening width. For a standard room, add 4 in (2 in overlap each side). For a bedroom or bathroom, add 6 in (3 in each side). Select the door width closest to that result from the available sizes. The largest kit door is 50 in wide — for openings wider than 46 in, a double door kit may be a better fit.

Door height: Select 80 in or 84 in. The door should be at least 1 in taller than the opening — more is fine — to leave adequate floor clearance. On carpet or uneven floors, confirm there is enough clearance for the door to slide without dragging.

Ceiling clearance: The clearance required between the top of the door and the ceiling depends on your roller type. Straight Strap and Straight Top Mount require 5 in; J-Strap, Arrow, and Diamond require 6 in; Spoke Wheel requires 8 in. Measure this gap before selecting a roller style.

Track length: Determined automatically by the door width you select — see the sizing reference below. The track ships with the kit.

Wall header: A solid header above the opening is required for track mounting. If there is no existing header or backing in the wall, install a minimum 1×6 hardwood board (3/4 in thick × 5-1/2 in wide) that extends past the length of the track to the next stud or structural support point on each side. No solid header and cannot install one? See ceiling mount hardware.

Wall clearance: The door slides to the side of the opening. You need at least as much clear wall space beside the opening as the door is wide — confirm there are no light switches, outlets, or trim obstructions in the path.

Door material: Solid pine — ships flat for customer assembly

Door design: Diagonal diamond/cross-hatch panel pattern — 4 arrangement options by flipping the panels during assembly

Heights available: 80 in · 84 in

Widths available: 26 · 30 · 32 · 36 · 40 · 42 · 48 · 50 in

Stain options: Early American · Black · Ebony · Classic Gray · Navy · Red Mahogany · Royal Pine · Dark Walnut

Hardware finish: Black only

Configuration: Single sliding door — not for bypass or bifold

Unfinished option: Not available for this door style

Roller type: Select from 6 HVL roller styles — J-Strap (6 in ceiling clearance) · Straight Strap (5 in) · Spoke Wheel (8 in) · Straight Top Mount (5 in) · Arrow (6 in) · Diamond (6 in)

Lead time: 8–10 business days for all options

Shipping: Door and hardware ship together in one delivery

Door components

Solid pine vertical planks (A) × 2
Horizontal rails (B1, B2, B3) × 1 each — B2 varies by door height (80 in and 84 in use different pieces)
Diamond pattern panels (C) × 2 — the core design element. Flip the panels to create one of four arrangements before assembling. Choose your pattern before you start.
Dowels (E) × 10
Long screws (F) × 10

Sliding hardware

Hanger/roller set (1) — in your selected roller style
Flat track(s) — quantity based on door width; see sizing reference
Anti-jump disks (2)
Door stoppers (2)
Hex bolt set, spacer set, hex wrench
Rubber hole covers (4) — for ends of track
Junction plate — included when track length requires two sections

Also included

12 in round pull and flush handle set — black, face-mounted flush pull (no routing required)
U-channel wall-mounted floor guide — attaches to baseboard, no floor drilling required
Soft-close mechanism — black; slows the door at the end of travel in both directions

Tools needed for door assembly: drill or Phillips screwdriver, rubber mallet. A trigger clamp is optional but helpful for holding panels in position during assembly.

Door Stain — Select your finish from the color swatches. All options are pre-stained and ship in 8–10 business days.

Door Width — Select your door width based on your opening measurement. See the sizing reference below to confirm the track length that will ship with your selected width.

Door Height — Select 80 in or 84 in based on your opening height.

Roller Style — Select your preferred HVL roller style from the available options. All roller styles are black. Not sure which to choose? See our barn door rollers collection for comparisons, or email us at info@thebarndoorhardwarestore.com.

Start with your rough opening width. The minimum door width is 2 in wider than your opening (1 in per side), though this barely covers the jamb frame and isn't ideal for most installations. We recommend at least 4 in wider for standard rooms (2 in per side) and 6 in wider for bedrooms and bathrooms (3 in per side). Select the door width closest to that result from the available sizes. The track length ships automatically with your kit based on the door width you select.

The sizing reference table shows the absolute maximum opening each door can cover at the 1 in per side minimum — use those figures as a ceiling, not a target. Track lengths run from 4 ft 6 in (26 in door) up to 9 ft (48 and 50 in doors).

For the complete door width, maximum opening, and track length reference chart, see our single door kit sizing table.

If your opening is wider than 46 in and you need a door larger than 50 in, a double door biparting kit is likely the better fit.

How It Works

Common Questions

Does the door come assembled or do I need to build it?

The door ships flat — individual boards packaged separately. You assemble the door panel using the included dowels and screws before hanging it. One important step: decide which of the four diamond panel arrangements you want before you start assembling, since the C panels need to be oriented correctly from the beginning. Assembly requires a drill or Phillips screwdriver and a rubber mallet; a trigger clamp is optional but helpful for holding panels while fasteners set. Plan for 1–2 hours for door assembly before installation.

Why isn't there an unfinished option for this door style?

The diamond pattern door's C panels are pre-finished as part of the door design — an unfinished option isn't available on this style. If you need an unfinished door to apply your own stain or paint, the Classic Single,Slanted Single, or Fishbone Single kits all offer an unfinished option.

How does the diamond pattern differ from the fishbone and slanted designs?

All three use flippable C panels that create 4 design variations. The slanted panels run at a single diagonal angle — bold, graphic lines. The fishbone panels are V-shaped — herringbone arrangements where diagonals meet at a point. The diamond pattern panels use two diagonal directions simultaneously — the lines cross each other to form a lattice or diamond grid across the door face. The diamond design has the most visual density of the three; the slanted is the most minimal.

Can I use this kit for a bedroom or bathroom door?

Yes — add the 6 in overlap (3 in each side) when selecting your door width to ensure adequate coverage for privacy. Barn doors don't seal like hinged doors — there will be a small gap at the edges — so if sound isolation is a primary concern, a hinged door is the more effective choice. For privacy (not soundproofing), a barn door with proper overlap works well.

What if I want hardware only and will source my own door?

We'd almost always recommend that approach for anyone who can source panels locally — it's significantly better value. See our hardware kits collection for single-door options, or email us at info@thebarndoorhardwarestore.com and we can help you pick the right kit.

Email Us!

info@thebarndoorhardwarestore.com

Shipping Policy Installation Guide

Why Thousands Choose The Barn Door Hardware Store

Not all barn door hardware is built the same. Here’s how we compare.

Door Width	Maximum Opening Width	Track Length
26in	24in	4ft 6in
30in	28in	5ft 6in
32in	30in	5ft 6in
36in	34in	6ft 7in
40in	38in	7ft
42in	40in	7ft 6in
48in	46in	9ft
50in	48in	9ft

Roller Type	Height Above Door	Roller Thickness	Roller Width	Roller Height	Wheel Diameter	Door Clearance
J-Strap	5-1/8	2-1/2	1-9/16	11-1/2	2-3/4	7/8
Straight Strap	4-1/2	2-3/8	1-9/16	10-3/4	2-3/4	7/8
Spoke Wheel	7-7/16	1-7/16	1-9/16	13-1/2	4-3/4	7/8
Straight Top Mount	5	2	5-5/16	4-5/8	2-3/4	7/8
Arrow	5-1/8	2-1/2	1-9/16	11-1/2	2-3/4	7/8
Diamond	5-1/8	2-1/2	5-7/8	9-5/8	2-3/4	7/8
