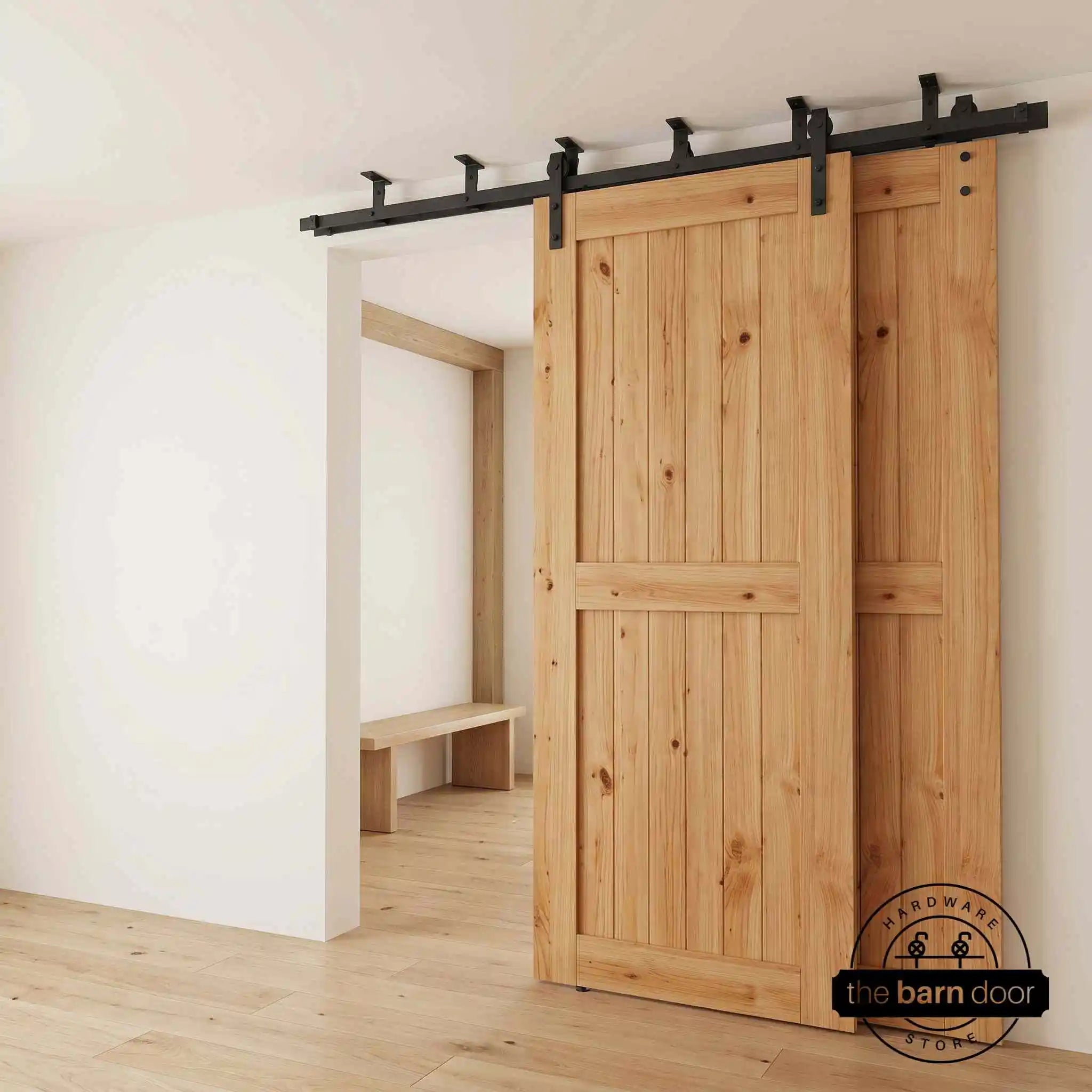

Double Bypass Ceiling Mounted Barn Door Hardware Kit | Matte Black

Door weight: 220 lbs total system combined across both doors.

Door thickness: 1-3/8 in to 1-3/4 in. Note: wall-mounted double bypass supports up to 2 in — if your doors are between 1-3/4 and 2 in thick, see our wall-mounted double bypass kits if wall mounting is possible.

Ceiling clearance — must be exactly 6 in: The top of your door must sit exactly 6 in below the ceiling where the track mounts. Not approximately — exactly. The ceiling mount bracket is a fixed-depth piece designed for this specific distance. If the clearance at your opening is anything other than 6 in, this hardware will not work correctly. Measure carefully before ordering.

Door gap when closed: A minimum 2 in gap between the two closed doors is recommended. The doors sit on separate tracks and can be positioned independently — there is no mandatory overlap.

Ceiling backing required: The track mounts to the ceiling and requires a solid backing — ceiling joists or a blocking board installed between joists. If the joists don't run in the direction you need, or aren't located where the track will sit, install a minimum 1×6 hardwood board (3/4 in thick × 5-1/2 in wide) between joists that spans the full track length to a joist on each side.

Door width: Each door must cover half the opening plus wall overlap on the outer edge, plus account for the 2 in gap at center. For standard rooms: each door = (opening + 6 in) ÷ 2. Example: 60 in opening → (60 + 6) ÷ 2 = 33 in per door. See the track length section below.

Door height: Opening height + 1 in. Leaves approximately 1/2 to 1 in of floor clearance. Check along the full travel path, especially with carpet or uneven floors.

Brand: House value line — quick ship

Lead time: Ships in 2–3 business days

Finish: Matte black

Weight capacity: 220 lbs total system

Door thickness: 1-3/8 in to 1-3/4 in

Track width: 1-1/2 in

Track thickness: 1/4 in

Ceiling clearance required: Exactly 6 in between top of door and ceiling

Door gap when closed: Minimum 2 in recommended between doors

Track lengths available: 4 ft · 4 ft 6 in · 5 ft · 5 ft 6 in · 6 ft · 6 ft 7 in · 7 ft · 7 ft 6 in · 8 ft · 9 ft · 10 ft · 11 ft · 12 ft · 13 ft · 14 ft · 15 ft · 16 ft · 18 ft · 20 ft

Tracks over 7 ft 6 in: Ship in multiple pieces with junction plates — check hardware checklist in kit

Floor guide: Floor-mounted guide included per door

Soft close: Not included — available separately and retrofittable

Warranty: Limited lifetime warranty

Ceiling mount hardware is house value line only — Goldberg Brothers does not offer a ceiling mount configuration. If your project requires heavier doors or thicker panels than this kit supports, email us at info@thebarndoorhardwarestore.com and we'll advise on whether any alternative works for your opening.

Hardware quantities vary by track length — check the included instruction sheet before installation.

Hanger/Roller Sets (×2 — one per door):

• Hanger/roller (2 per set, 4 total)
• Hex bolt set (4 per set)
• Anti-jump system (2 per set)
• Floor guide (1 per set, 2 total) — floor-mounted
• Door stoppers (2 per set)
• Hex wrench (1 per set)
• Rubber hole covers (4 per set) — for track ends

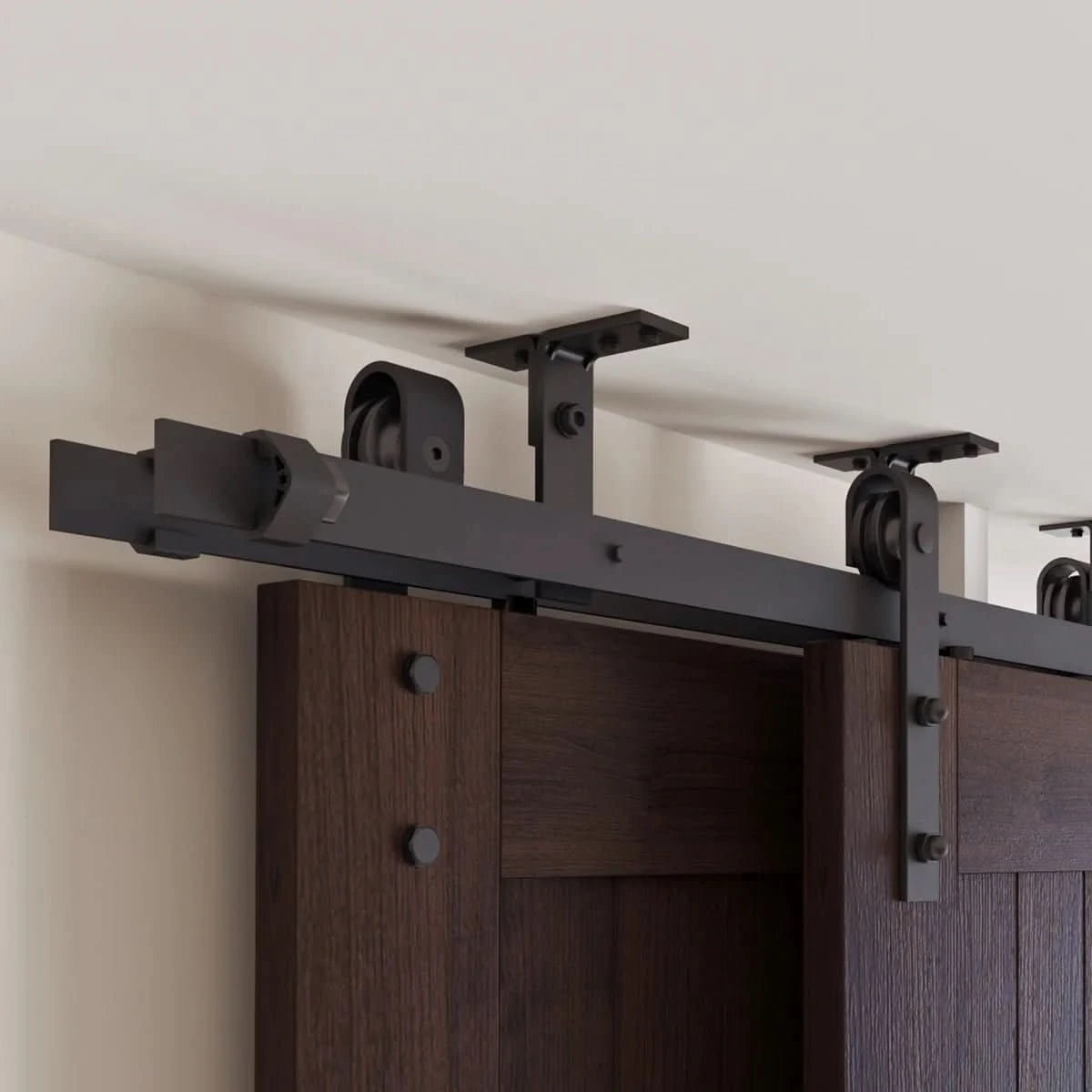

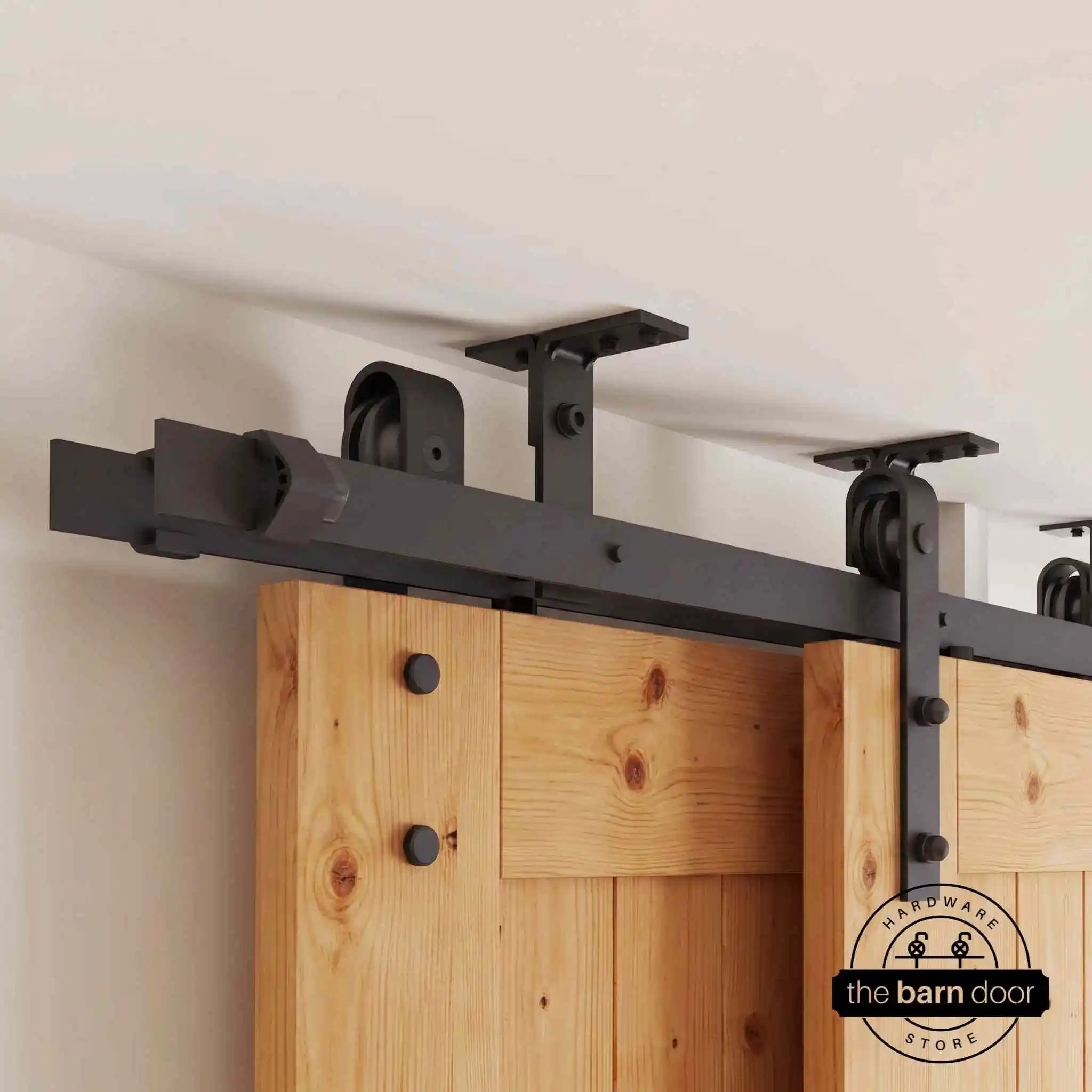

Ceiling Mount Bracket Set: Long bracket (1), lag bolts (2), track connector (1) — mounts the inner track to the ceiling

Ceiling Mount Bypass Bracket Set: Short bracket (1), bracket connector (1), spacer connector (1), track connector (1), lag bolt (1) — positions the outer track at the correct depth relative to the inner track

Shared: Flat tracks (2) in your selected length · junction plates if needed (check hardware checklist) · spacers, lag bolts, and washers (quantities vary by track length)

The included floor guides are floor-mounted. If you have finished hardwood, tile, or LVP you can't drill into, a wall-mounted floor guide is an alternative — browse our floor guides collection.

A pull handle, flush pull, latch, and soft close are not included — add them before ordering to avoid a second shipment.

No pull handle, flush pull, latch, or soft close is included. Each door needs its own pull handle:

Pull handles: One per door — browse our barn door handles

Soft close: Sold separately, retrofittable — browse our accessories

Latch: Keeps the door closed deliberately — browse our latches collection

Flush pull: For the wall-facing side — browse our flush pulls collection

Ceiling mount double bypass track length follows the same logic as wall-mounted double bypass. Both tracks are always the same length. The decision is whether you need pass-through access or a fully clear opening.

Pass-through (partial access)

Slide one door to one side for access to roughly half the opening. The track must be at least the opening width plus your planned door overhang outside the opening on each side.

Example: 60 in opening + 2 in overhang each side = 64 in → select 5 ft 6 in (66 in) track.

Clear opening (fully unobstructed access)

Both doors retract completely to one or both sides. Use the door panel width — not the rough opening:

2 doors: 3× door width — e.g. two 33 in doors → 3 × 33 = 99 in → select 9 ft track.

Tracks over 7 ft 6 in ship in multiple pieces with junction plates included. House value line hardware is available in the listed track lengths only — no custom sizing.
