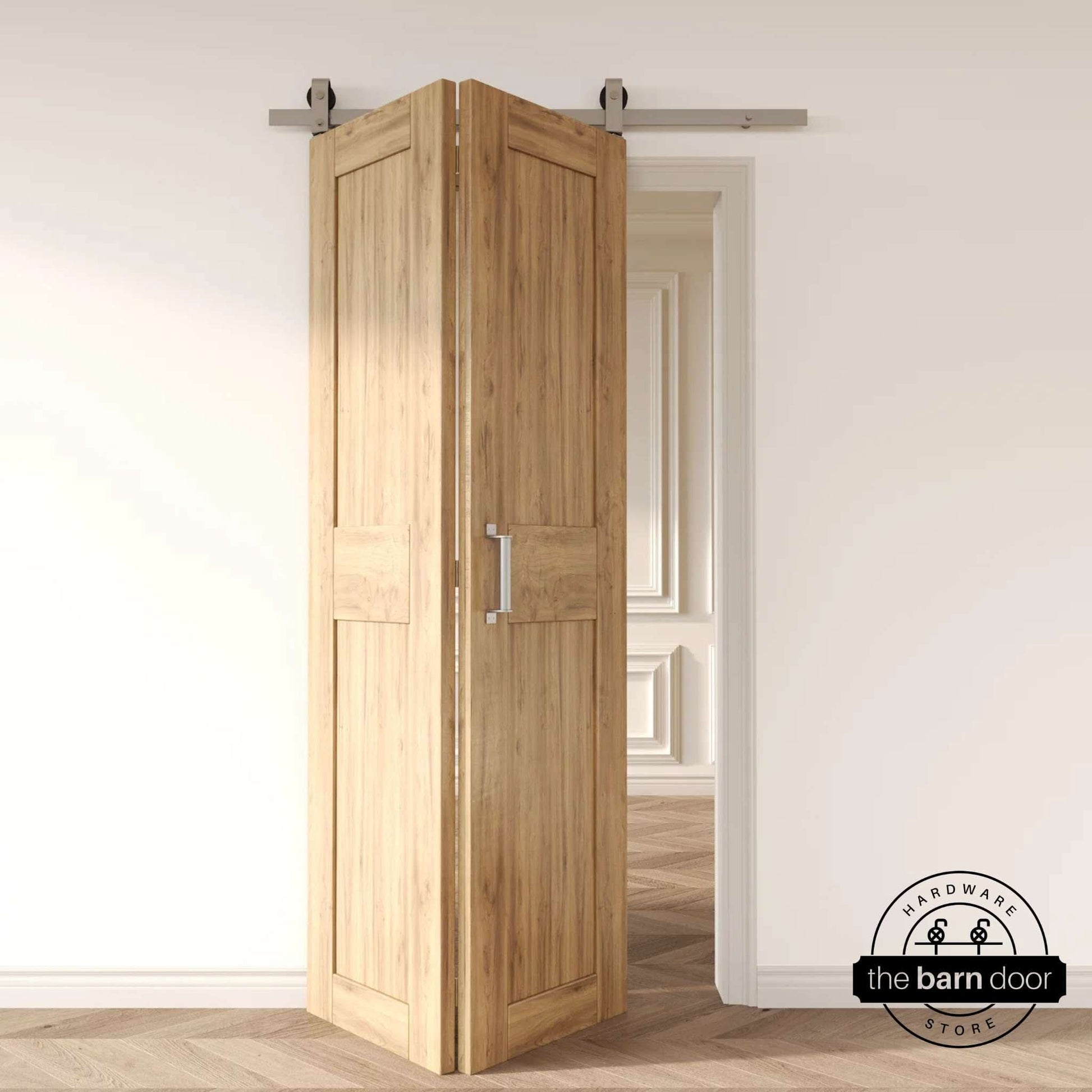

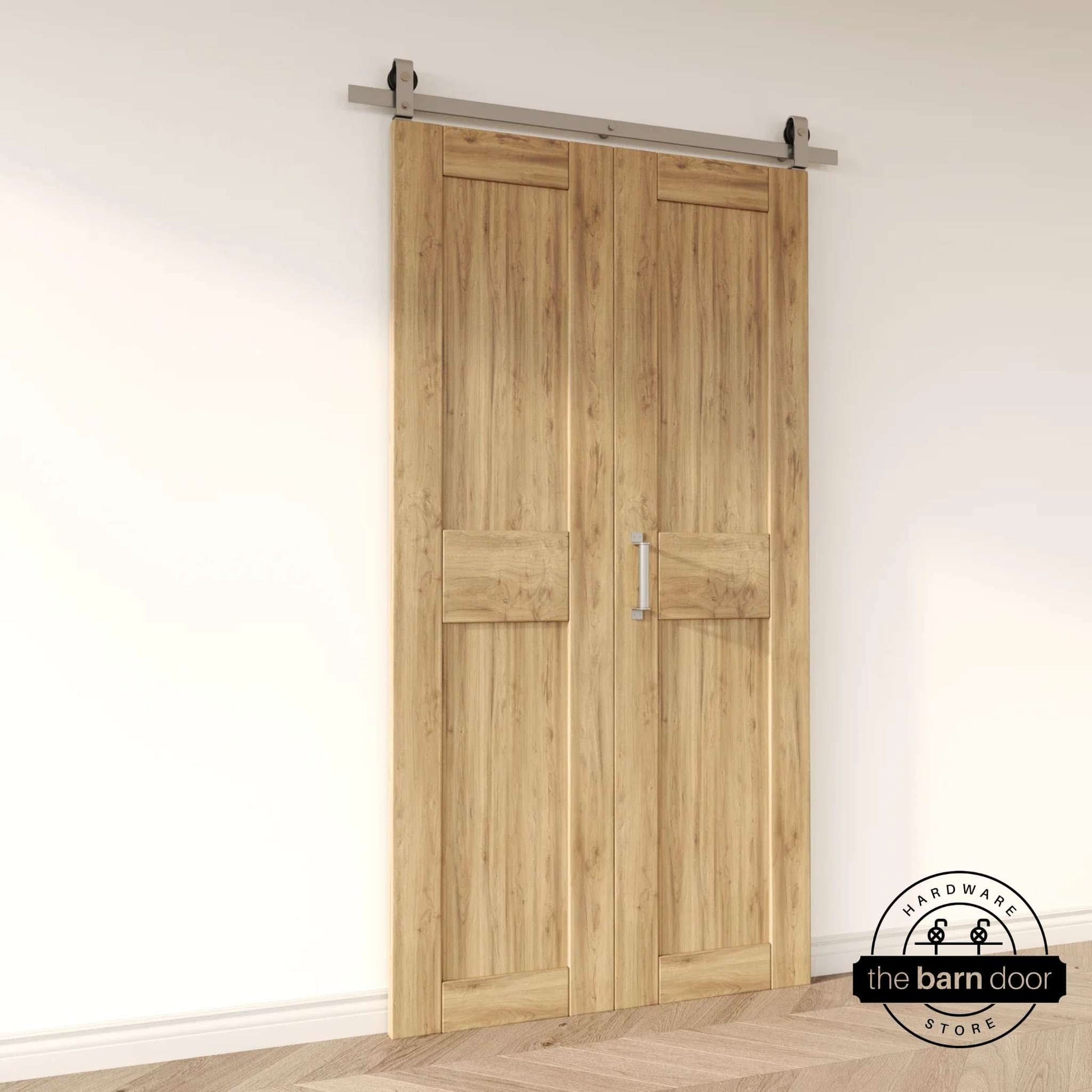

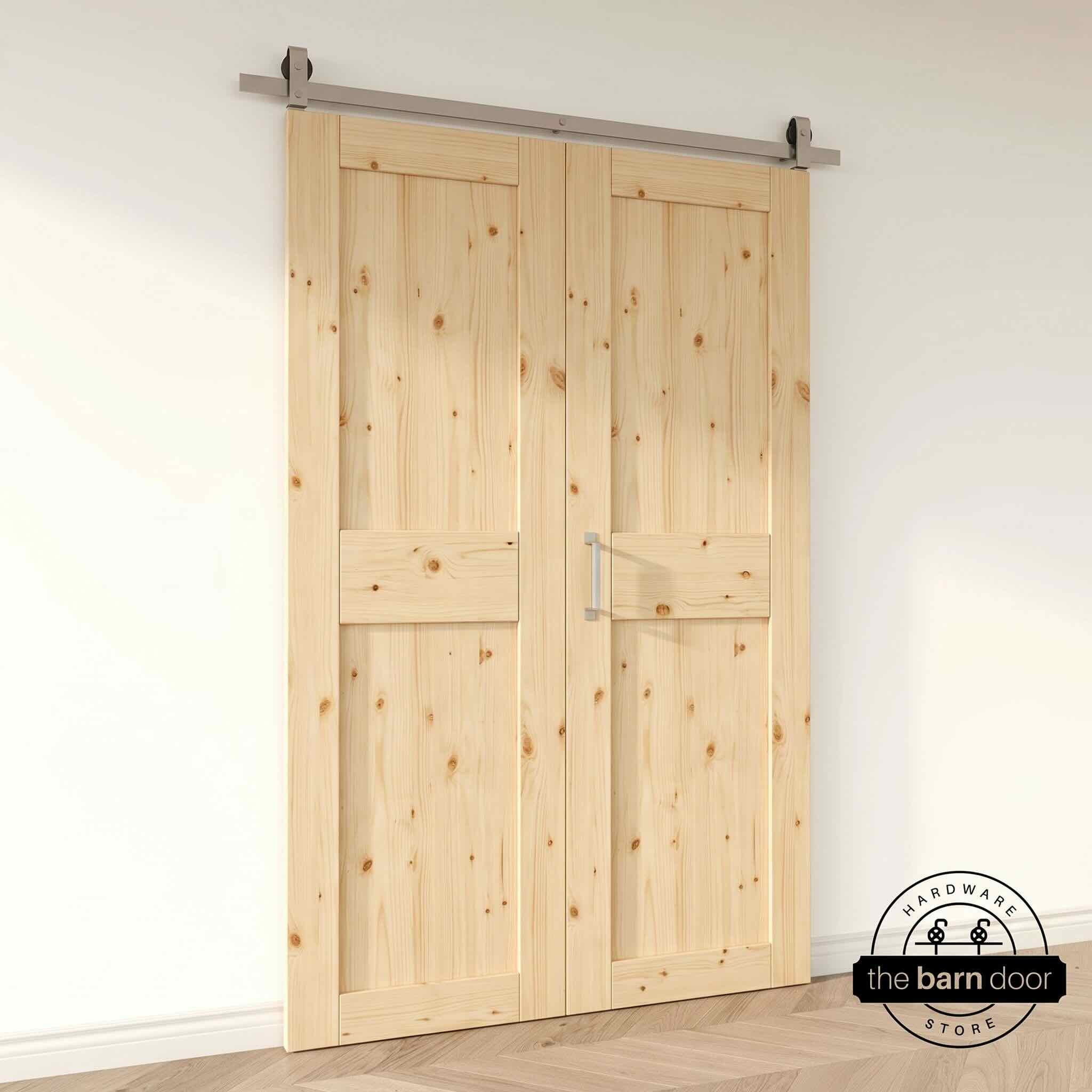

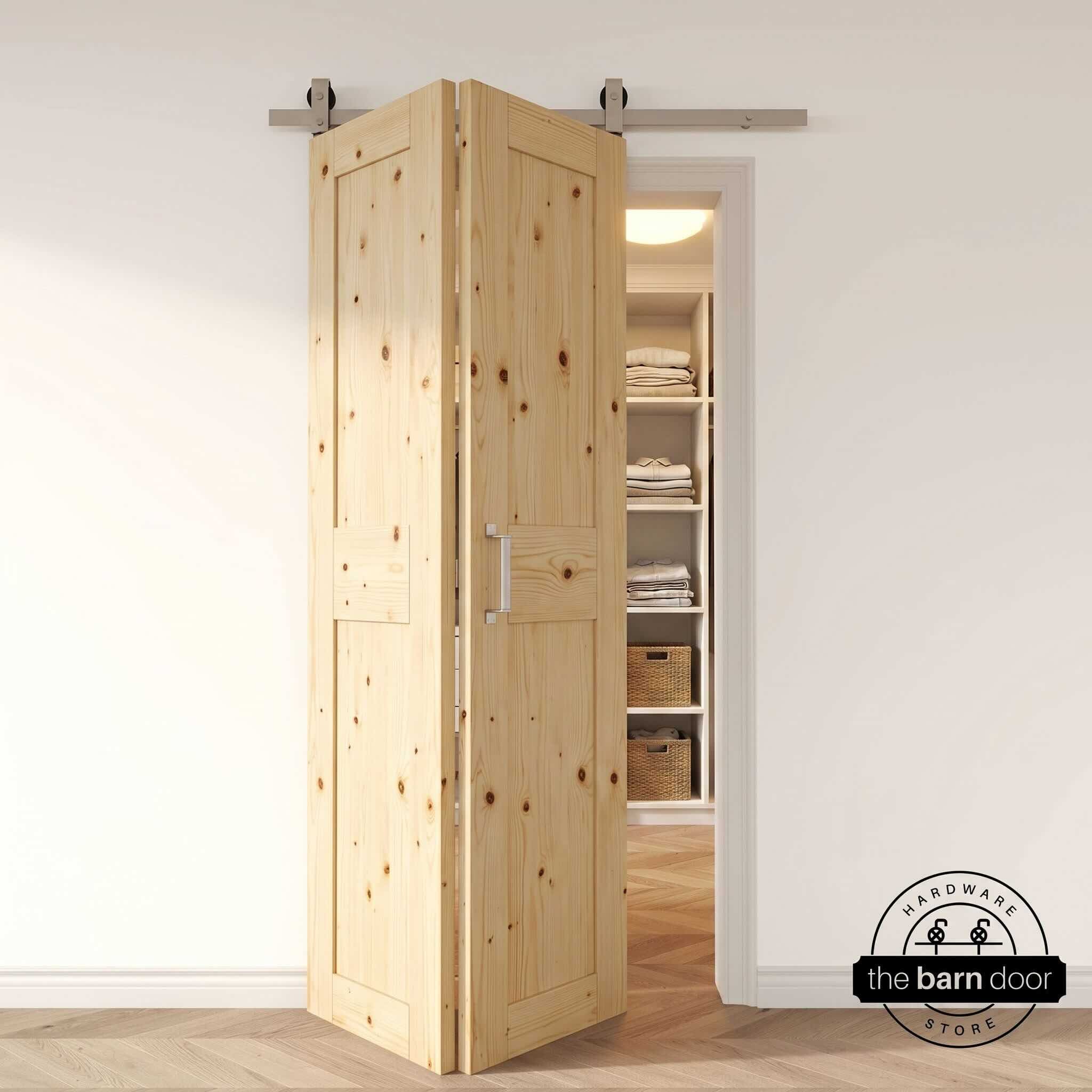

J Top Mount Bifold Barn Door Hardware | Brushed Nickel | 2 Door Kit

Panel weight: Up to 90 lbs per panel · 220 lbs total system. For heavier panels see our Goldberg Brothers J top mount bifold kit.

Panel width: Sized based on how much coverage you need over the opening — see the panel sizing section below for formulas and worked examples.

Panel height: Opening height + 1 in.

Panel thickness: 1 in to 2 in.

Ceiling clearance above door: 7 in required between the top of the door panels and the ceiling.

Wall clearance on stack side: For a fully clear opening, 6 in of clear wall is needed on the stack side — two panels fold into just 6 in of depth. A minimum 1/2 in clearance is also required between the end of the track and any adjacent wall on the pivot side — this allows the pivot-side panel to rotate freely during operation.

Wall header: A solid header above the opening is required for track mounting. If there is no existing header or backing in the wall, we recommend installing a minimum 1×6 hardwood board (3/4 in thick × 5-1/2 in wide) that extends past the length of the track to the next stud or structural support point on each side. Ceiling mount is not compatible with bifold hardware.

Lead time: Ships in 2–3 business days

Finish: Brushed nickel

Weight capacity: 90 lbs per panel · 220 lbs total system

Panel thickness: 1 in to 2 in

Ceiling clearance: 7 in above door panels

Pivot type: Floor-mounted bottom pivot and locator (included)

Track lengths available: 48 in · 54 in · 60 in · 66 in

Pull handle: Not included — see barn door handles

Soft close: Not available for bifold hardware

Ceiling mount: Not compatible with bifold hardware

For bifold-specific sizing formulas see our bifold measuring guide. For general pre-order measurements see our measuring guide.

• Flat track (1) — in your selected length
• J top mount hangers/rollers (2) — fixed and loose, both attach to the top edge of the door panel via wood screws
• Anchors (4) and screws (4) for top-edge hanger attachment
• Fixed roller lock bracket (1) — keeps the fixed hanger from traveling along the track
• Door hinges (3)
• Floor-mounted bottom pivot and locator (1)
• Lag bolts · spacers · washers for track mounting
• Hex wrenches (3)

The fixed hanger attaches to the top edge of the pivot-side panel. The loose hanger attaches to the top edge of the non-pivot panel and travels freely along the track as the doors fold open. No hardware mounts to either door face.

A pull handle, latch, and flush pull are not included — add them before ordering to avoid a second shipment. Soft close is not compatible with bifold hardware.

No pull handle, latch, or flush pull is included with this kit:

Pull handle: For opening and closing the door — browse our barn door handles

Latch: Keeps the door closed deliberately — browse our latches collection

Flush pull: For the wall-facing side if the door is operated from both sides — browse our flush pulls collection

Bifold sizing is based on total panel width — the combined width of both door panels — not the rough opening. Select the track length closest to your total panel width, rounding up to the next available size if needed. For a full walkthrough see our bifold measuring guide.

Minimum coverage (doors close over the opening with a small overlap on each side):
Total panel width = opening + 3 in · Each panel = (opening + 3 in) ÷ 2
Example: 36 in opening → total = 39 in → each panel = 19.5 in, round up to 20 in → select 48 in track

Fully clear — symmetrical (recommended) (equal overlap on both sides):
Total panel width = opening + 12 in · Each panel = (opening + 12 in) ÷ 2
Example: 36 in opening → total = 48 in → each panel = 24 in → select 48 in track

Available track lengths: 48 in · 54 in · 60 in · 66 in. If your total panel width exceeds 66 in, see our Goldberg Brothers J top mount bifold kit for custom sizing.
