By Evan Christensen · Owner, The Barn Door Hardware Store
Published May 2026
Evan has owned and operated The Barn Door Hardware Store since 2016. Bifold sizing questions are among the most common pre-order inquiries he handles — the calculations are meaningfully different from standard sliding hardware, and customers who don't know this often order the wrong track length. He and the team are available 7 days a week at info@thebarndoorhardwarestore.com.
Measuring for bifold barn door hardware is not the same as measuring for standard sliding hardware. The two most common mistakes: customers sizing the track to their rough opening width instead of their total panel width, and customers not accounting for wall overlap when calculating panel sizes. Both lead to a track that's too short to clear the opening or doors that don't cover it properly.
This guide covers every measurement you need before ordering — opening width, panel sizing, panel height, ceiling clearance, and wall clearance on the pivot side — across all configurations: 2-door one-way, 4-door one-way, 6-door one-way, 4-door biparting, 8-door biparting, and 12-door biparting.

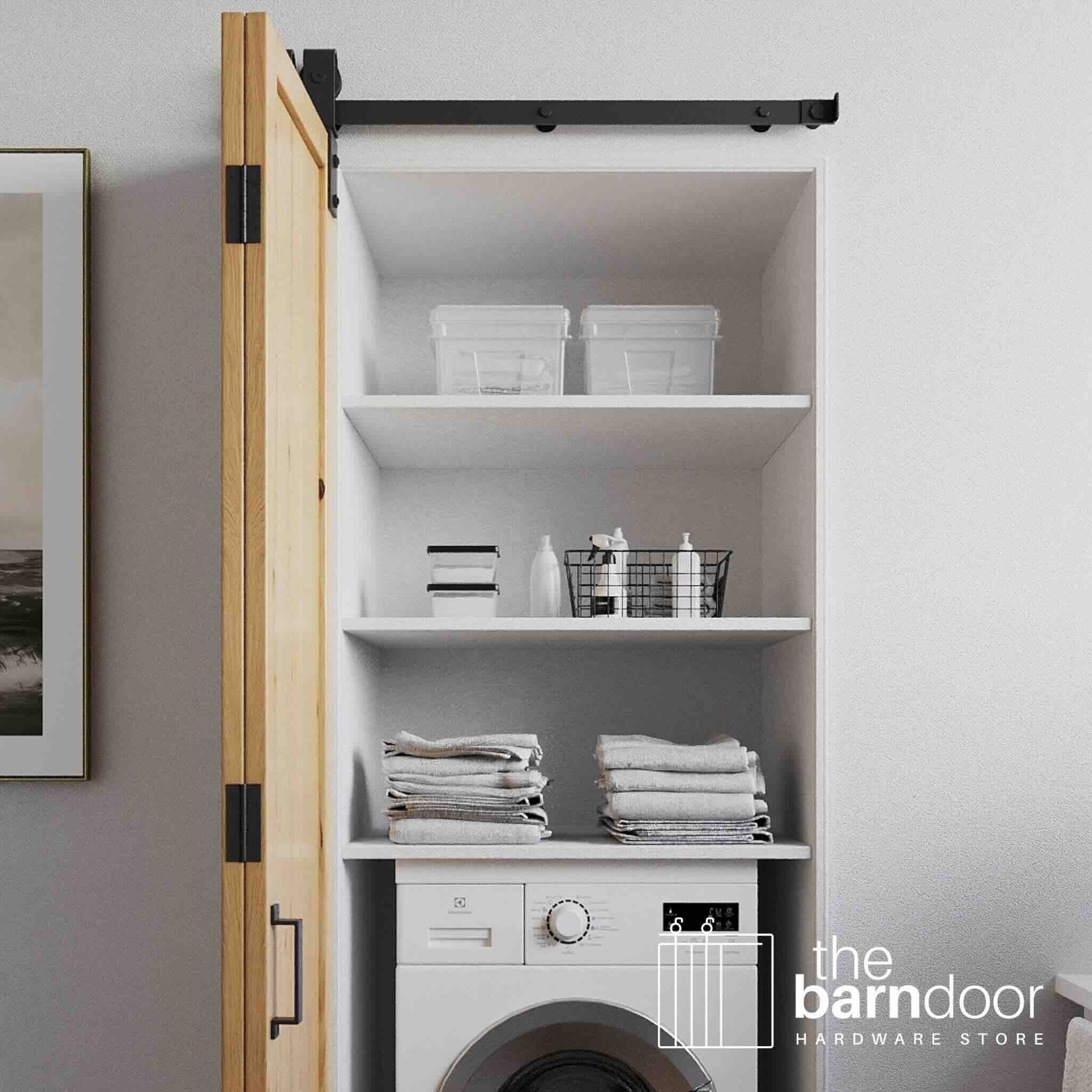

How bifold barn door hardware works
Bifold panels fold accordion-style along an overhead track rather than sliding flat along the wall. One panel is fixed at the pivot — it attaches to a pivot assembly at the wall and doesn't travel along the track. The other panel hangs from a roller that rides the track freely. When you open the door, the loose panel pivots and folds against the fixed panel, stacking both panels beside the opening.
Because the panels fold rather than slide, the clearance you need beside the opening is far less than with a standard slider. Goldberg Brothers hardware folds two panels into just 5 in of depth — 5 in per 2-panel fold. A 2-door bifold only needs 5 in of clear wall on the stack side for a fully clear opening, regardless of panel width. That's the core reason to choose bifold: when wall space beside the opening is limited and a standard sliding door can't retract fully out of the way.
If you have enough wall clearance for a standard sliding door, standard sliding hardware is simpler to install and operate. Bifold is the right choice specifically when that clearance is constrained — closets, pantries, laundry rooms, and bathroom installations are the most common applications. Browse our full bifold barn door hardware collection.
One-way vs. biparting — decide this first
Before sizing anything, decide where the doors will stack when open. This determines your configuration.
One-way: All panels fold and stack to one side. The right choice when wall clearance only exists on one side of the opening. Available in 2-door, 4-door, and 6-door configurations.
Biparting: Panels fold from the center, with half stacking to each side. The right choice when clearance exists on both sides and you want a symmetrical look when open. Available in 4-door, 8-door, and 12-door configurations.
How much wall clearance you actually need: Goldberg Brothers bifold hardware stacks two panels into just 5 in of depth — 5 in per 2-panel fold. A 2-door one-way or one side of a 4-door biparting needs only 5 in of clear wall. A 4-door one-way or one side of an 8-door biparting needs 10 in. A 6-door one-way or one side of a 12-door biparting needs 15 in. This is far less than the panel width — meaning bifold is practical in spaces where a standard sliding door would need 24–48 in of wall clearance.
| Configuration | How it works | Wall clearance needed | Hanger styles |
|---|---|---|---|
| 2-door one-way | Both panels stack to one side | 5 in stack side (one 2-panel fold) | J-strap or J top mount |
| 4-door one-way | All 4 panels stack to one side | 10 in stack side (two 2-panel folds) | J top mount only |
| 6-door one-way | All 6 panels stack to one side | 15 in stack side (three 2-panel folds) | J top mount only |
| 4-door biparting | 2 panels stack to each side | 5 in each side (per 2-panel fold) | J-strap or J top mount |
| 8-door biparting | 4 panels stack to each side | 10 in each side (two 2-panel folds) | J top mount only |
| 12-door biparting | 6 panels stack to each side | 15 in each side (three 2-panel folds) | J top mount only |
Why J top mount is required for multi-panel one-way and large biparting
In any configuration where more than two panels stack together, only J top mount hardware is compatible. The reason is the stack itself: J-strap hardware mounts to the front face of the door panel, and in a tight multi-panel stack those front-face roller assemblies obstruct the panels from folding cleanly against each other — and can scratch adjacent panels. J top mount hardware mounts to the top edge of the panel, keeping both door faces completely clear so panels can stack tightly without interference.
An 8-door biparting kit is effectively two 4-door one-way kits — one stacking to each side. A 12-door biparting is effectively two 6-door one-way kits. Since both the 4-door and 6-door one-way require J top mount, the 8-door and 12-door biparting follow the same rule. For 2-door one-way and 4-door biparting setups, J-strap is available since stacking depth is limited to two panels.
The symmetry question for one-way setups
If you're using a one-way configuration, decide before ordering whether you want the installation to look symmetrical over the opening when the doors are closed. A symmetrical one-way setup uses equal panel widths on both sides of the opening center — even though all panels stack to one side. This requires more total panel coverage and a longer track, but it reads as intentional rather than offset. Decide before you size your panels — it's difficult to adjust after the fact.
Measurement 1: rough opening width
Measure the rough opening — the actual wall opening, not any trim or casing around it. Take the measurement at the top, middle, and bottom of the opening and use the widest figure. This is your starting point for all panel sizing calculations.
Bifold hardware is external-mount. The track mounts above the opening on the wall and the panels hang in front of it. You're sizing the panels to cover the opening from the outside, not to fit within it.
Measurement 2: panel width
Panel width is calculated from the total coverage you need over the opening — which is always more than the opening width because the panels overlap the wall on each side. Total panel width is the combined width of all door panels, and track length equals total panel width.
2-door one-way panel sizing
Minimum coverage (doors close over opening; stacked doors partially occupy opening when open):
Total panel width = opening + 3 in · Each panel = (opening + 3 in) ÷ 2
Example: 36 in opening → total = 39 in → each panel = 19.5 in, round up to 20 in
Fully clear — asymmetrical (doors clear but overlap more on pivot side):
Total panel width = opening + 6 in · Each panel = (opening + 6 in) ÷ 2
Example: 36 in opening → total = 42 in → each panel = 21 in
Fully clear — symmetrical (recommended) (equal overlap both sides):
Total panel width = opening + 10 in · Each panel = (opening + 10 in) ÷ 2
Example: 36 in opening → total = 46 in → each panel = 23 in
4-door one-way panel sizing
All four panels stack to one side. The total coverage formulas are the same as 2-door one-way — the difference is dividing across four panels instead of two. J top mount hardware only.
Minimum coverage: Total = opening + 3 in · Each panel = (opening + 3 in) ÷ 4
Example: 60 in opening → total = 63 in → each panel = 15.75 in, round up to 16 in
Fully clear — symmetrical: Total = opening + 20 in · Each panel = (opening + 20 in) ÷ 4
Example: 60 in opening → total = 80 in → each panel = 20 in
6-door one-way panel sizing
All six panels stack to one side. Same coverage formulas, divided across six panels. J top mount hardware only.
Minimum coverage: Total = opening + 3 in · Each panel = (opening + 3 in) ÷ 6
Example: 90 in opening → total = 93 in → each panel = 15.5 in, round up to 16 in
Fully clear — symmetrical: Total = opening + 30 in · Each panel = (opening + 30 in) ÷ 6
Example: 90 in opening → total = 120 in → each panel = 20 in
4-door biparting panel sizing
Panels fold from the center — two panels stack to each side. J-strap or J top mount hardware.
Minimum coverage: Total = opening + 4 in · Each panel = (opening + 4 in) ÷ 4
Example: 60 in opening → total = 64 in → each panel = 16 in
Fully clear: Total = opening + 10 in · Each panel = (opening + 10 in) ÷ 4
Example: 60 in opening → total = 70 in → each panel = 17.5 in, round up to 18 in
8-door biparting and 12-door biparting panel sizing
These larger biparting configurations work as two mirrored one-way stacks — an 8-door biparting is effectively two 4-door one-way kits; a 12-door biparting is effectively two 6-door one-way kits. J top mount hardware only. Available in both Goldberg Brothers standard duty and heavy duty. The minimum coverage formula is the same as 4-door biparting (opening + 4 in), but the fully clear formula scales with the number of panels.
8-door biparting (4 panels per side):
Fully clear: Total = opening + 20 in · Each panel = (opening + 20 in) ÷ 8
Example: 120 in opening → total = 140 in → each panel = 17.5 in, round up to 18 in
12-door biparting (6 panels per side):
Fully clear: Total = opening + 30 in · Each panel = (opening + 30 in) ÷ 12
Example: 180 in opening → total = 210 in → each panel = 17.5 in, round up to 18 in
For 8-door and 12-door configurations email us at info@thebarndoorhardwarestore.com before ordering — we'll confirm panel sizing, track span, and whether a split track is needed.
Panel width summary
| Configuration | Hanger styles | Min total coverage | Fully clear total | Each panel (fully clear) |
|---|---|---|---|---|
| 2-door one-way | J-strap or J top mount | Opening + 3 in | Opening + 10 in | (Opening + 10 in) ÷ 2 |
| 4-door one-way | J top mount only | Opening + 3 in | Opening + 20 in | (Opening + 20 in) ÷ 4 |
| 6-door one-way | J top mount only | Opening + 3 in | Opening + 30 in | (Opening + 30 in) ÷ 6 |
| 4-door biparting | J-strap or J top mount | Opening + 4 in | Opening + 10 in | (Opening + 10 in) ÷ 4 |
| 8-door biparting | J top mount only | Opening + 4 in | Opening + 20 in | (Opening + 20 in) ÷ 8 |
| 12-door biparting | J top mount only | Opening + 4 in | Opening + 30 in | (Opening + 30 in) ÷ 12 |
Panel width limits by hardware tier
| Hardware tier | Max panel width | Max weight per panel |
|---|---|---|
| Goldberg Brothers standard duty | 24 in | 62.5 lbs |
| Goldberg Brothers heavy duty | 48 in | 200 lbs |
| House value line | — | 90 lbs |
If your calculated panel width exceeds the standard duty maximum, use heavy duty hardware — or split the opening across more panels in a larger configuration.
Measurement 3: panel height
Measure from the finished floor to the top of the rough opening and add 1 in. The bottom pivot assembly is adjustable during installation, leaving a floor gap of 5/8 to 1-1/4 in.
Example: 80 in opening height → 81 in panel height
If you have carpet, check that the floor gap accommodates the pile height along the full path of the panels. Standard 5/8 to 1-1/4 in works for most carpet; thick pile may need a bit more clearance to prevent drag.
| Hardware tier | Maximum panel height |
|---|---|
| Goldberg Brothers standard duty | 84 in |
| Goldberg Brothers heavy duty | 108 in |
| House value line | — |
Measurement 4: ceiling clearance
Measure from the top of the door panels to the ceiling. Required clearance varies by hardware tier:
| Hardware tier | Ceiling clearance required |
|---|---|
| Goldberg Brothers standard duty | 5-1/2 in above door panels |
| Goldberg Brothers heavy duty | 6-1/2 in above door panels |
| House value line | 7 in above door panels |
If ceiling clearance is a constraint, standard duty hardware requires the least at 5-1/2 in. Ceiling mount is not compatible with bifold hardware — a solid wall header is required in all cases.
Measurement 5: wall clearance on the pivot side
The end of the track must be at least 1/2 in away from any adjacent wall, trim, or obstruction on the pivot side. The pivot assembly mounts at the base of that wall, and the pivot-side panel needs this clearance to rotate freely.
Measure from the edge of the opening to whatever is next on the wall in the pivot direction — a baseboard, casing, corner, or built-in. As long as there's at least 1/2 in of clear wall, you're fine. If the opening runs directly to a corner with no clearance at all, email us before ordering.
Note that the 1/2 in minimum refers to the pivot side only. On the stack side (where panels fold and collect), you need enough depth for the folded panels — 5 in per 2-panel fold. See the stacking depth figures in the one-way vs biparting section above.
Track length = total panel width
Once you've calculated your total panel width, that number is your track length. The track runs the full span of the panels from the pivot end to the non-pivot end.
Goldberg Brothers tracks are custom-cut to your specified length. If the size you need isn't listed, email us at info@thebarndoorhardwarestore.com — custom lengths are priced the same as the next standard size.
House value line tracks are available in listed lengths only. If your required total panel width falls between listed lengths, round up to the next available size.
For 8-door and 12-door biparting configurations, very wide spans may require two track segments joined end-to-end with a connecting plate — included in the kit for tracks over 96 in. Email us before ordering these configurations.
The header requirement
A solid header above the opening is required for track mounting — the same as all wall-mounted barn door hardware. If there's no existing header or structural backing, install a minimum 1×6 hardwood board (3/4 in thick × 5-1/2 in wide) that extends past the track length to the next stud on each side.
Unlike standard sliding hardware, ceiling mount is not a compatible alternative for bifold systems. If there's no header and one can't be installed, bifold hardware is not the right configuration for that opening.
The most common bifold sizing mistakes
Sizing the track to the rough opening. The most common mistake. Track length equals total panel width — always larger than the opening. For a 36 in opening with symmetrical clear sizing, the track is 46 in, not 36 in.
Not accounting for wall overlap in panel sizing. Calculating panel width as opening ÷ number of panels gives panels that don't cover the opening properly. Always start with the total coverage formula, then divide.
Choosing one-way without planning for symmetry. If the doors look offset over the opening when closed, it's because panel widths weren't sized for symmetrical coverage. Decide before ordering.
Choosing J-strap for a 4-door or larger one-way stack. J-strap hardware mounts to the door face — in multi-panel stacks this obstructs tight folding and can scratch adjacent panels. J top mount is required for 4-door one-way, 6-door one-way, 8-door biparting, and 12-door biparting.
Not confirming ceiling clearance before choosing a hardware tier. Heavy duty requires 6-1/2 in vs 5-1/2 in for standard duty. Measure before committing to a tier.
Forgetting the pivot side wall clearance. The track end needs at least 1/2 in from any obstruction on the pivot side. Check this before ordering.
Quick reference — all bifold measurements
| Measurement | Formula / requirement |
|---|---|
| Opening width | Measure at top, middle, bottom — use widest figure |
| 2-door one-way panel width (clear, sym.) | (Opening + 10 in) ÷ 2 per panel |
| 4-door one-way panel width (clear, sym.) | (Opening + 20 in) ÷ 4 per panel |
| 6-door one-way panel width (clear, sym.) | (Opening + 30 in) ÷ 6 per panel |
| 4-door biparting panel width (fully clear) | (Opening + 10 in) ÷ 4 per panel |
| 8-door biparting panel width (fully clear) | (Opening + 20 in) ÷ 8 per panel |
| 12-door biparting panel width (fully clear) | (Opening + 30 in) ÷ 12 per panel |
| Panel height | Opening height + 1 in |
| Track length | = Total panel width (all panels combined) |
| Ceiling clearance — GB standard | 5-1/2 in above door panels |
| Ceiling clearance — GB heavy duty | 6-1/2 in above door panels |
| Ceiling clearance — HVL | 7 in above door panels |
| Pivot side wall clearance (track end) | Min 1/2 in from track end to obstruction |
| Stack side clearance — 2-door / 4-door biparting side | 5 in per 2-panel fold (5 in for 1 fold, 10 in for 2 folds, 15 in for 3 folds) |
| Floor gap | 5/8 to 1-1/4 in — adjustable at pivot during installation |
Not sure your measurements are right?
Email us at info@thebarndoorhardwarestore.com with your rough opening width, opening height, ceiling clearance, wall clearance on each side, and whether you're planning one-way or biparting — we'll work through the panel sizing and confirm the right track length before anything ships. Available 7 days a week.
