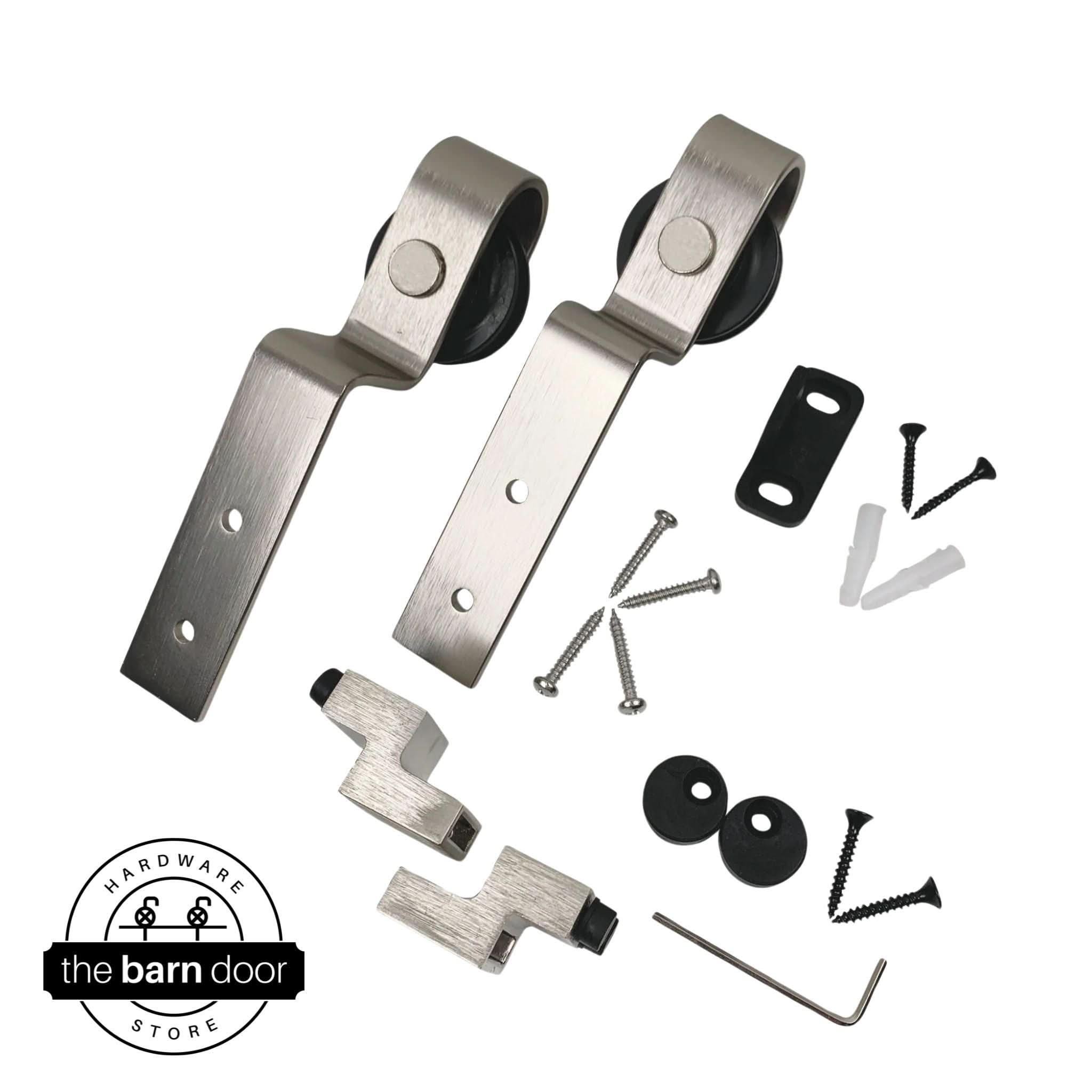

Brushed Nickel Classic Bypass Mini Cabinet Barn Door Rollers

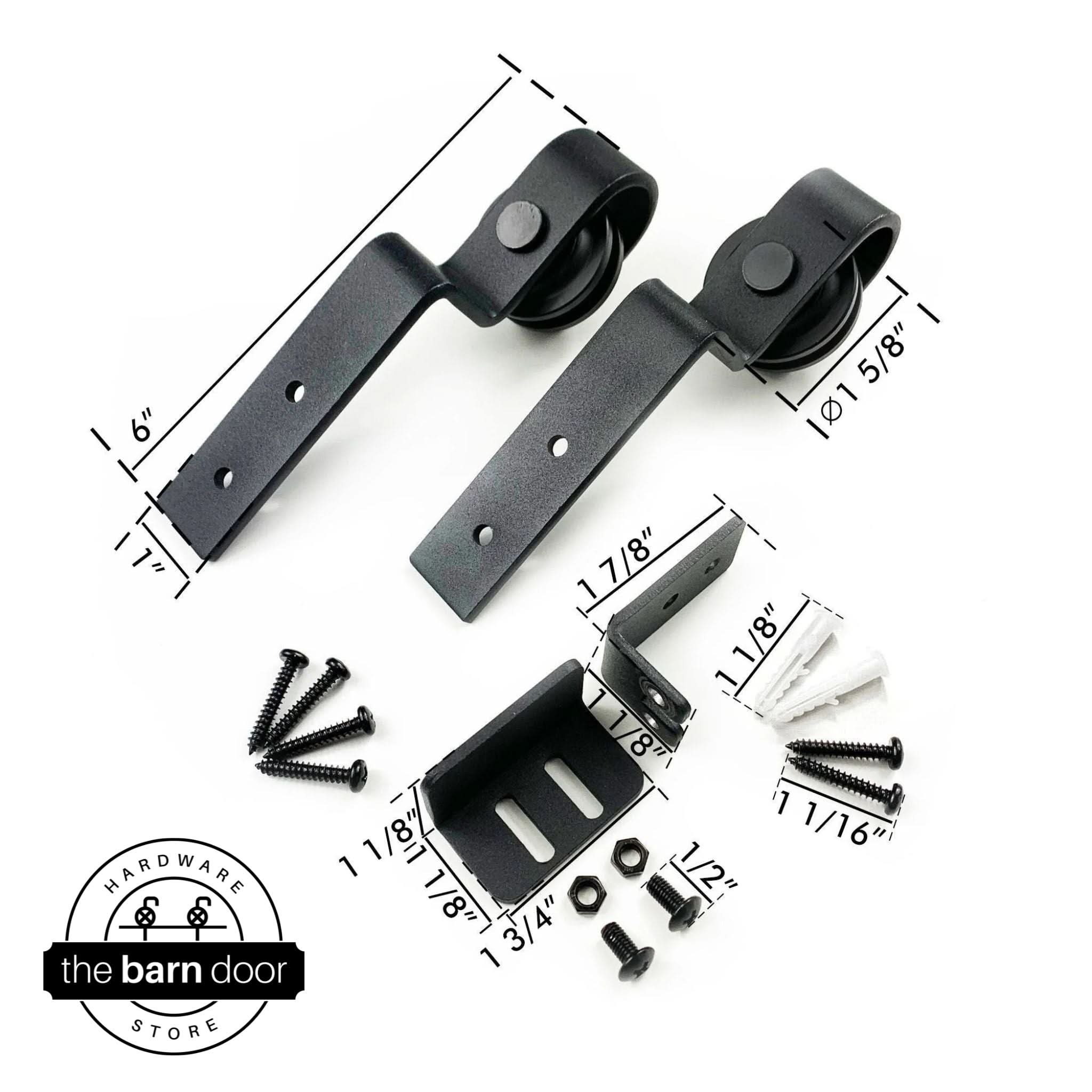

Black Classic Bypass Mini Cabinet Barn Door Rollers

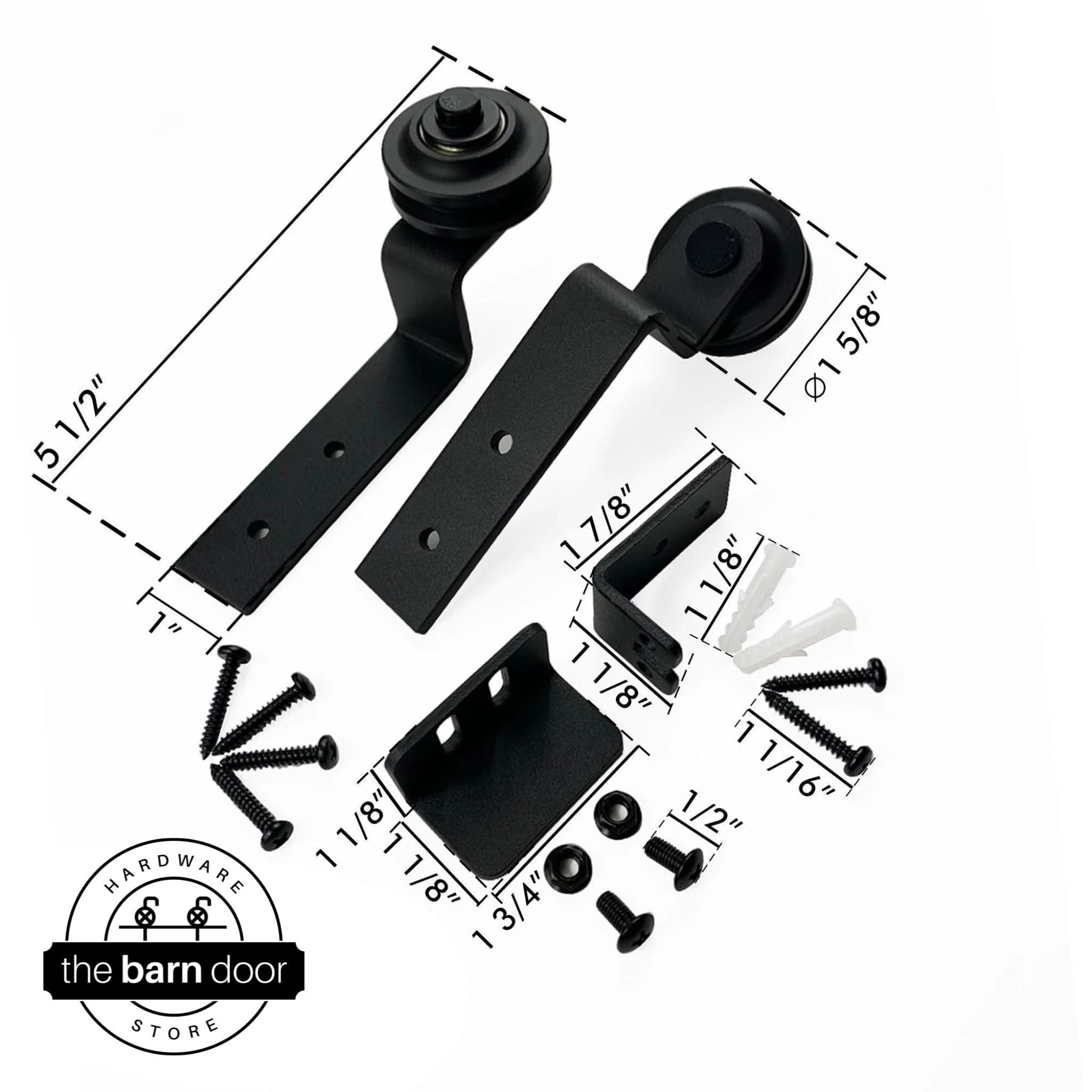

Black Straight Bypass Mini Cabinet Barn Door Rollers

Roll over image to zoom in Click on image to zoom

Mini Cabinet Bypass Barn Door Rollers

Quick Ship

Starts at:

$49.99

Roller Type: J-Strap

Finish: Black Powder Coat

Quantity:

Share this product

Scaled-down bent hanger and roller set for mini cabinet bypass sliding applications — for setups where two small cabinet panels share the same wall space and one slides in front of the other. The bent hanger design is specific to bypass hardware and not interchangeable with standard mini cabinet rollers.

Styles available: J-Strap (Black and Brushed Nickel) · Straight (Black only)

Price: $49.99 all variants

Compatible with: HVL single bypass cabinet kits (bent roller position)

Door thickness: 1/2 to 1-1/8 in

Clearance above door: 4 in

Track dimensions: 3/16 in thick × 1 in tall

Lead time: Quick ship — 2–3 business days

Mini Bent Steel Hanger/Roller assembly × 2
Hanger/Roller Screws × 4
U-channel wall-mounted floor guide × 1 — attaches to baseboard, no floor drilling

Note: anti-jump disks and door stoppers are not included in this bypass set.

Our Simple 3-Step Process

1) Select Your Hardware

Customize your configuration

2) Shipped Quickly

Your hardware kit typically ships in 2-3 business day.

3) Install with Confidence

Your purchase is backed by a limited lifetime warranty.

Common Questions

When do I need bypass rollers instead of standard cabinet rollers?

You need bypass rollers when two cabinet panels need to slide on the same wall and one must pass in front of the other. If your cabinet has a single sliding panel, standard mini cabinet rollers are the right choice.

Why is Straight only available in black?

The Straight style is produced in black only for the mini cabinet bypass line. J-Strap is available in both finishes if you need brushed nickel.

Are anti-jump disks included?

No — cabinet doors are light enough that jumping off the track is not a meaningful risk. Anti-jump disks are primarily needed for heavier full-size doors where momentum and weight create a real chance of the door lifting off the track. At cabinet door weights, that risk is minimal and the disks aren't necessary.
