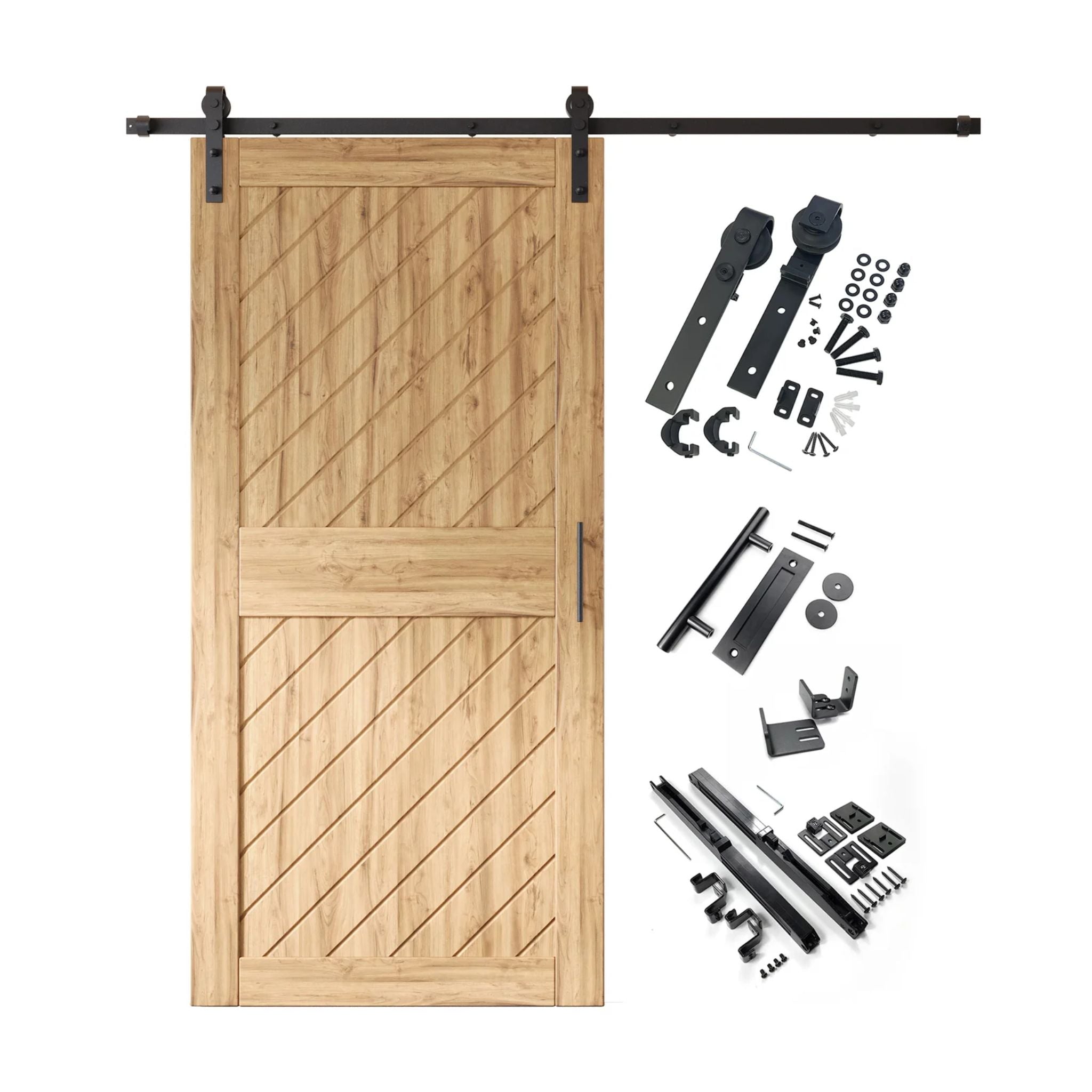

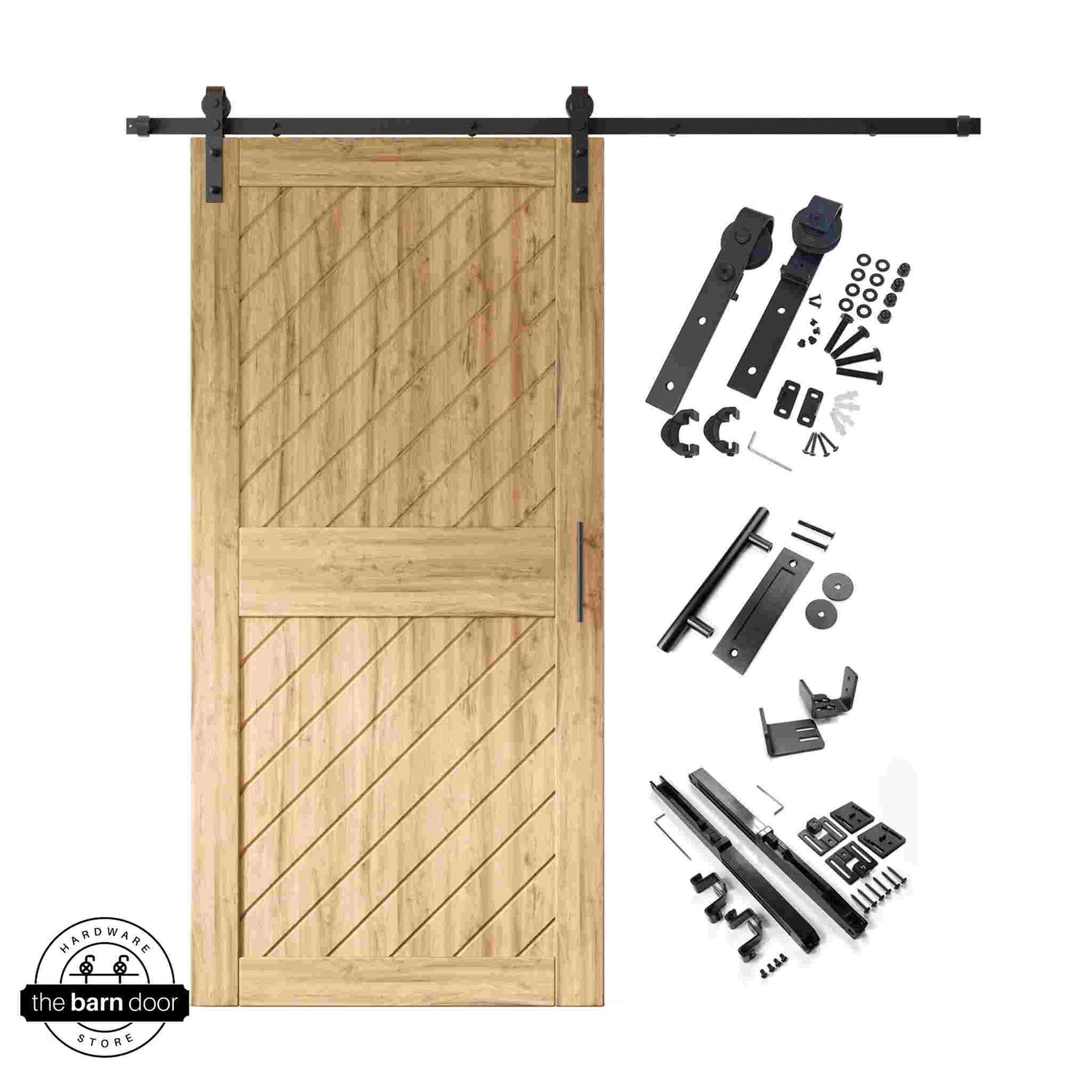

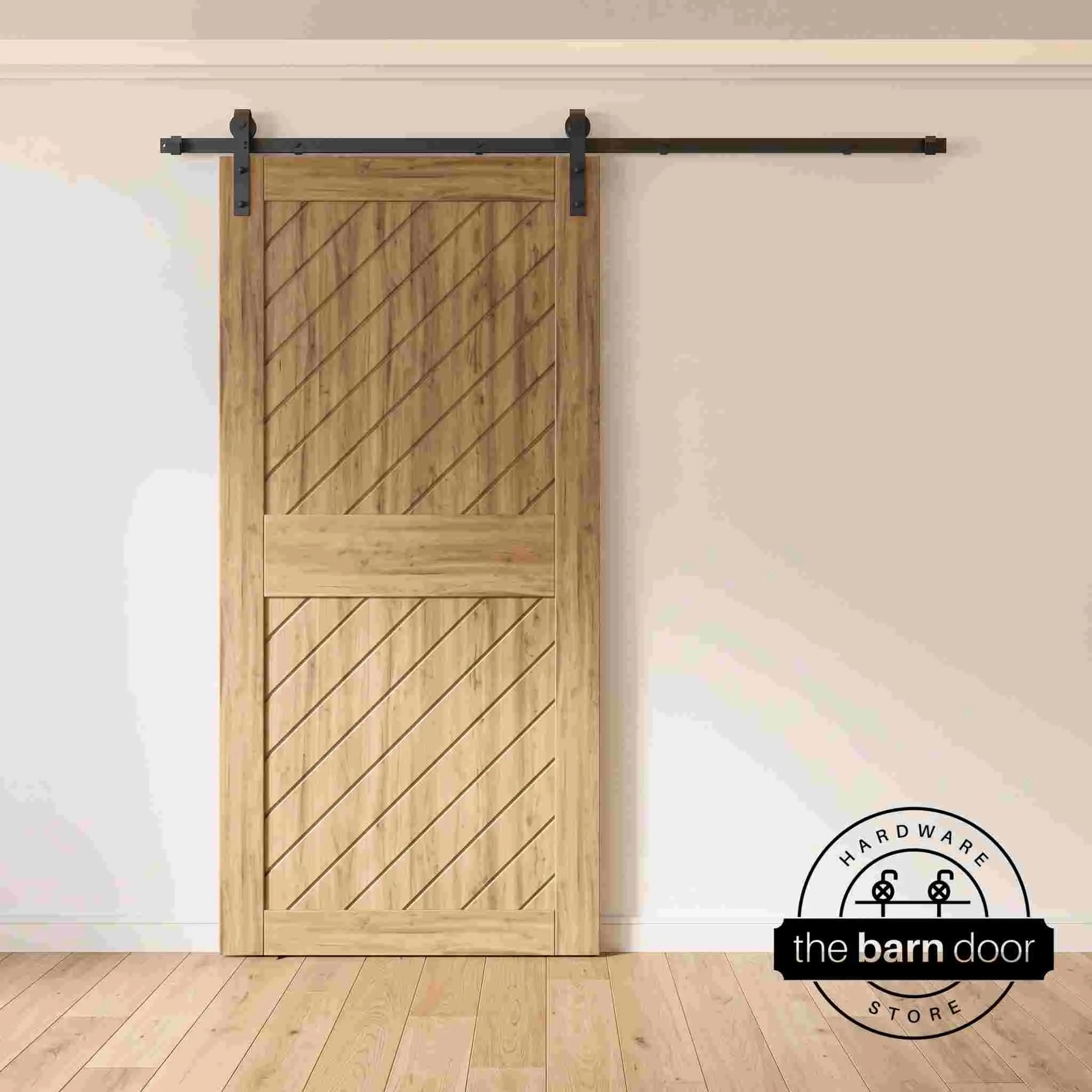

Unfinished barn door kit with slanted wooden door and hardware components on a white background

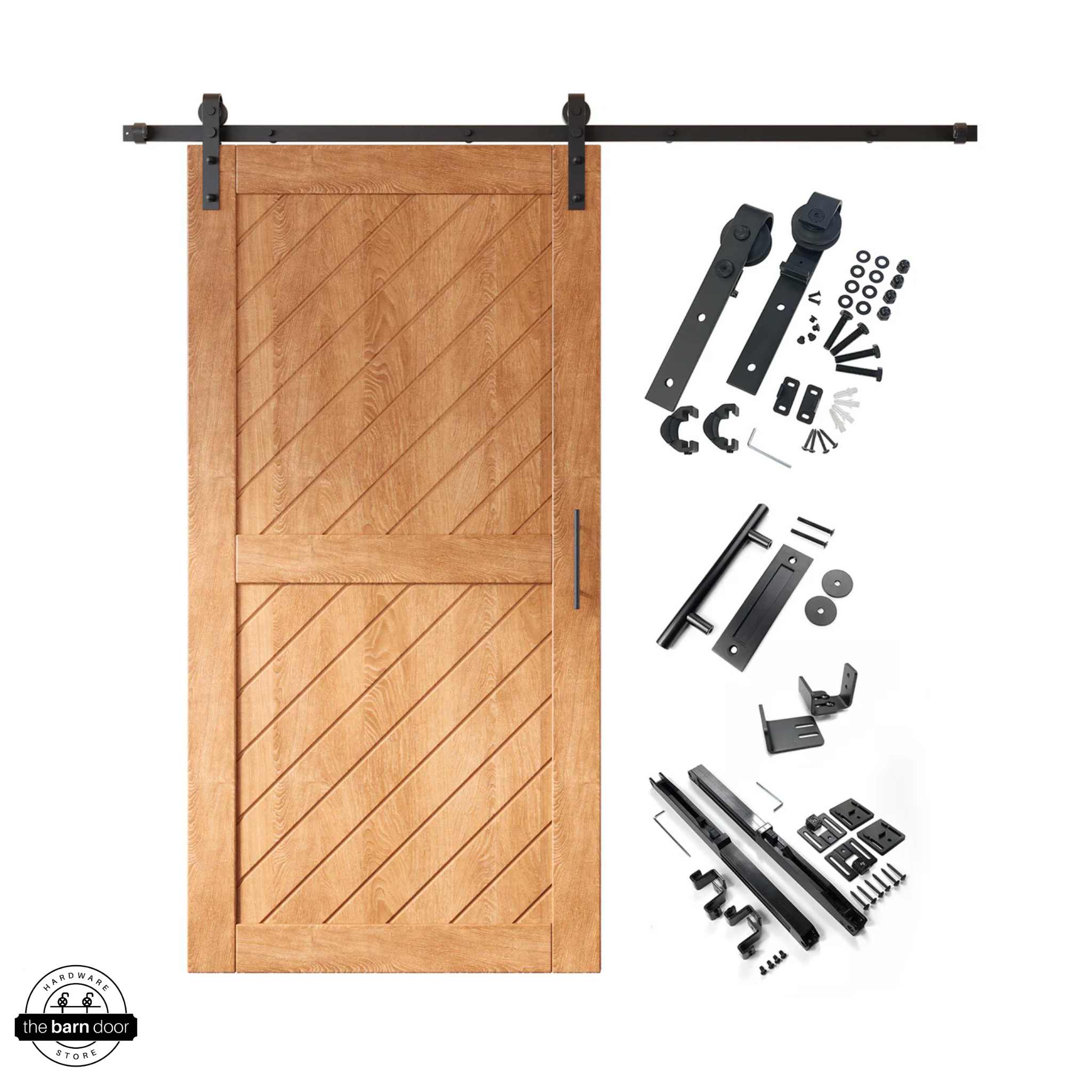

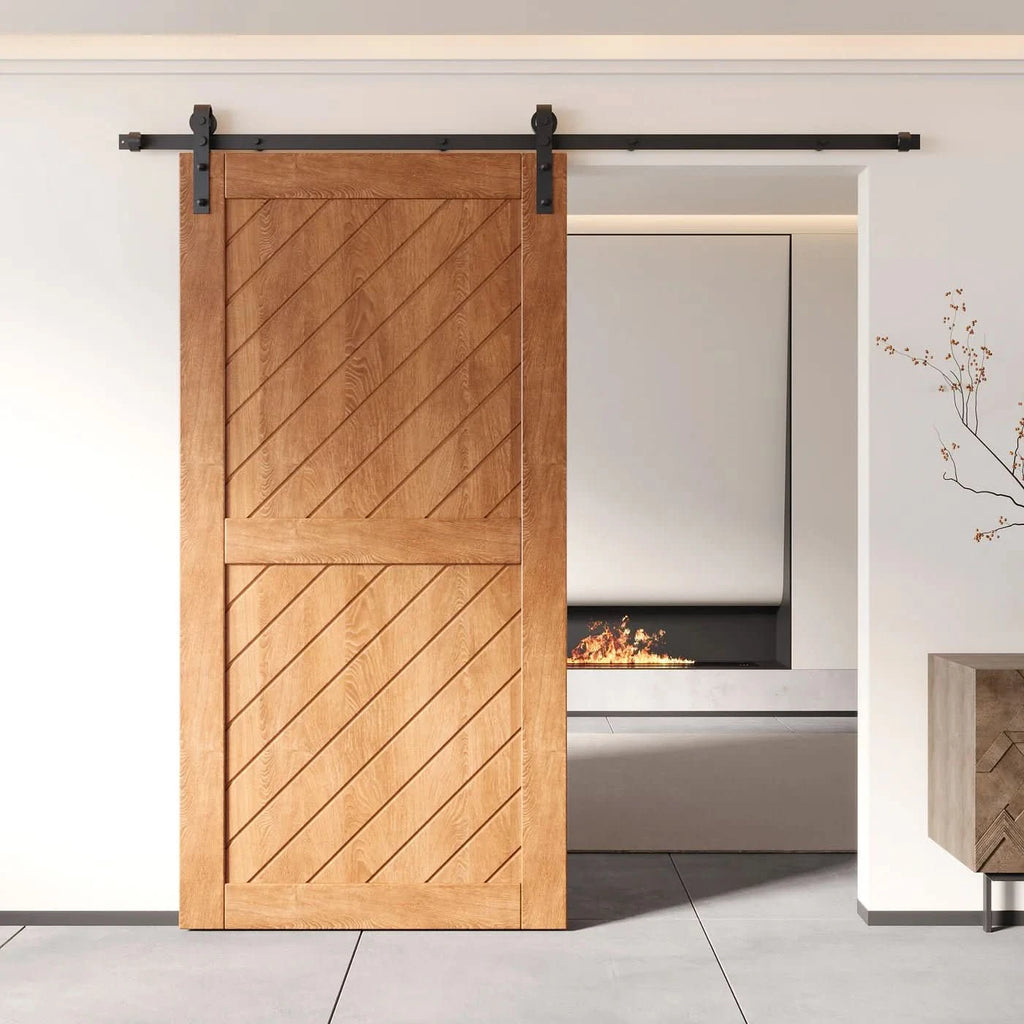

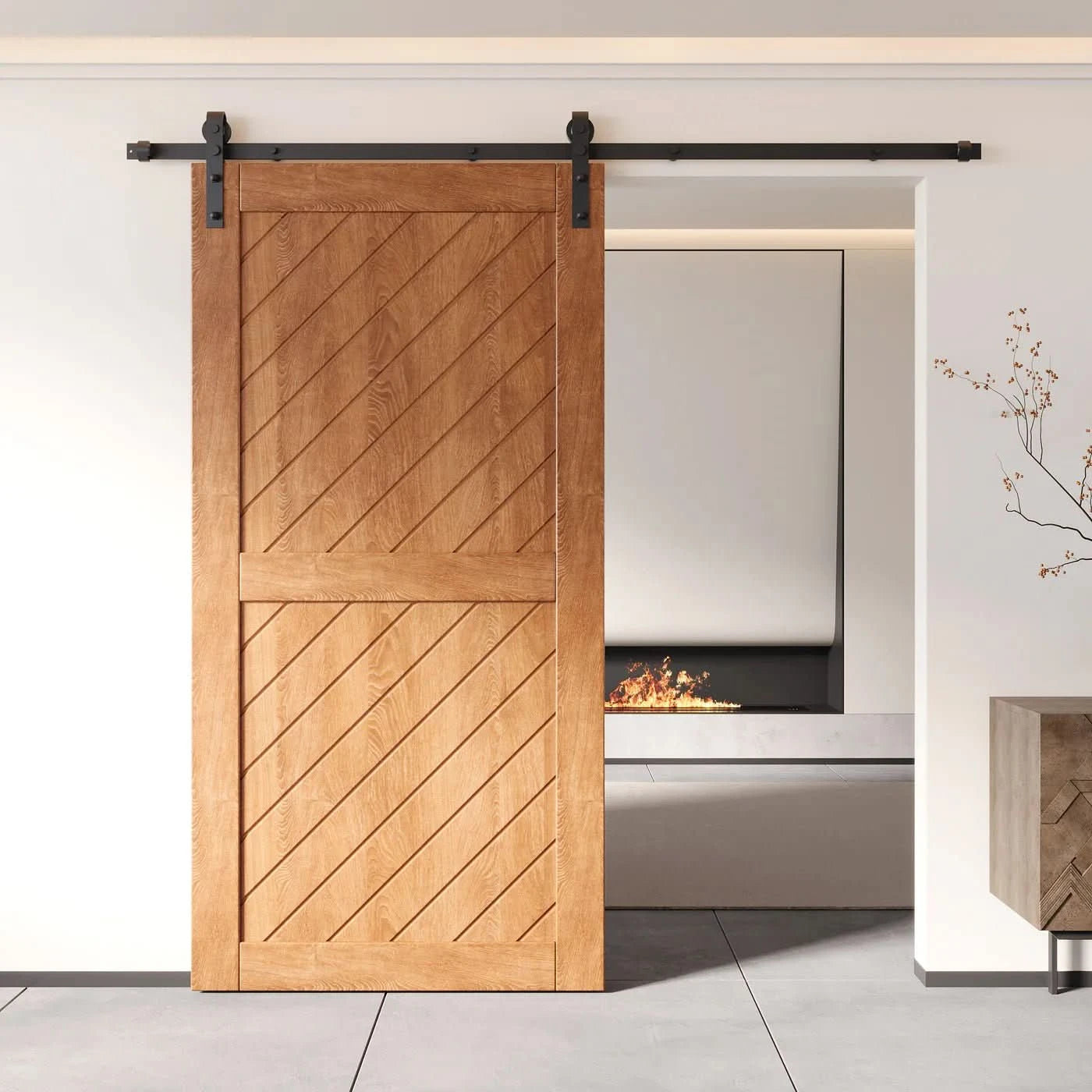

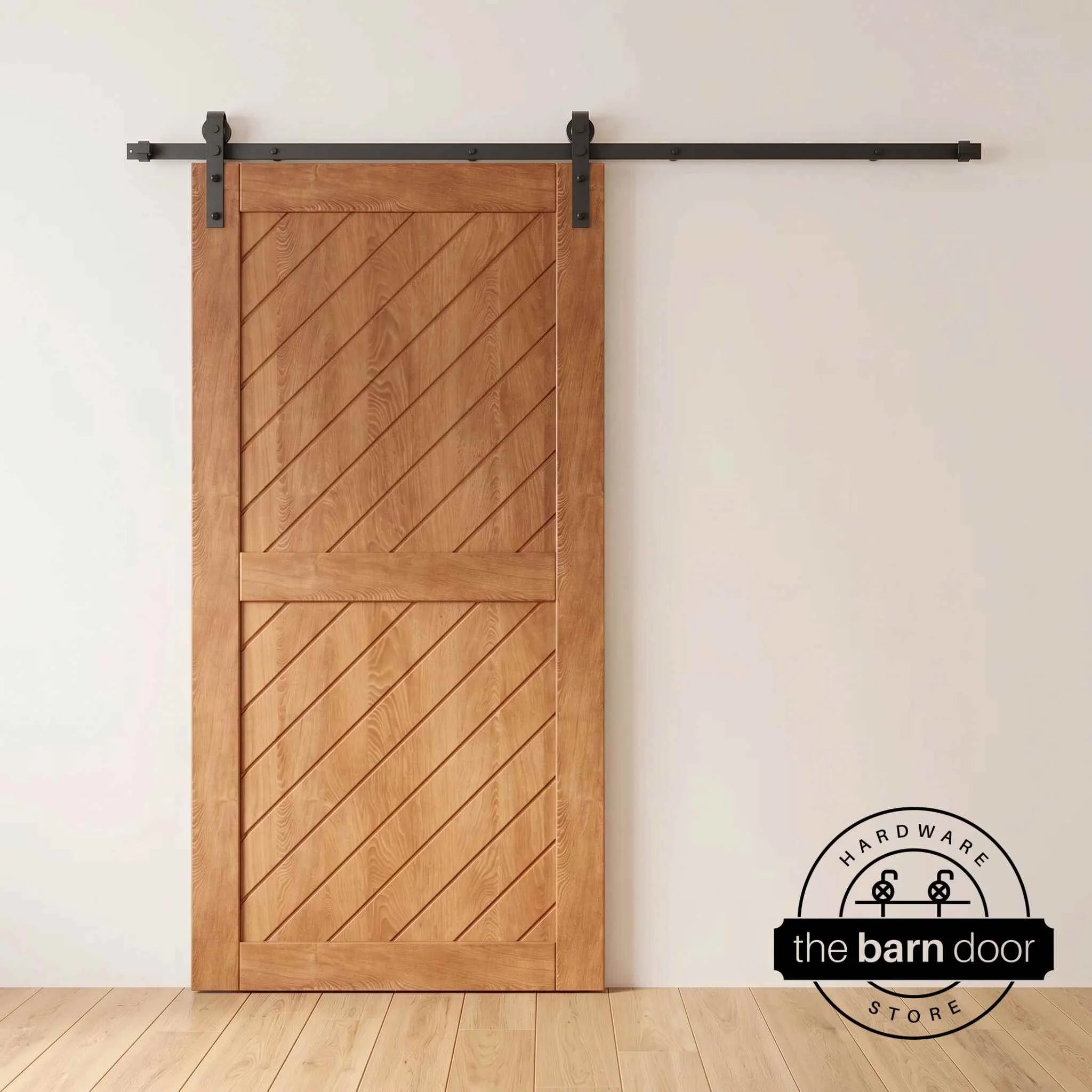

Early American Slanted Classic Single Track Barn Door Kit

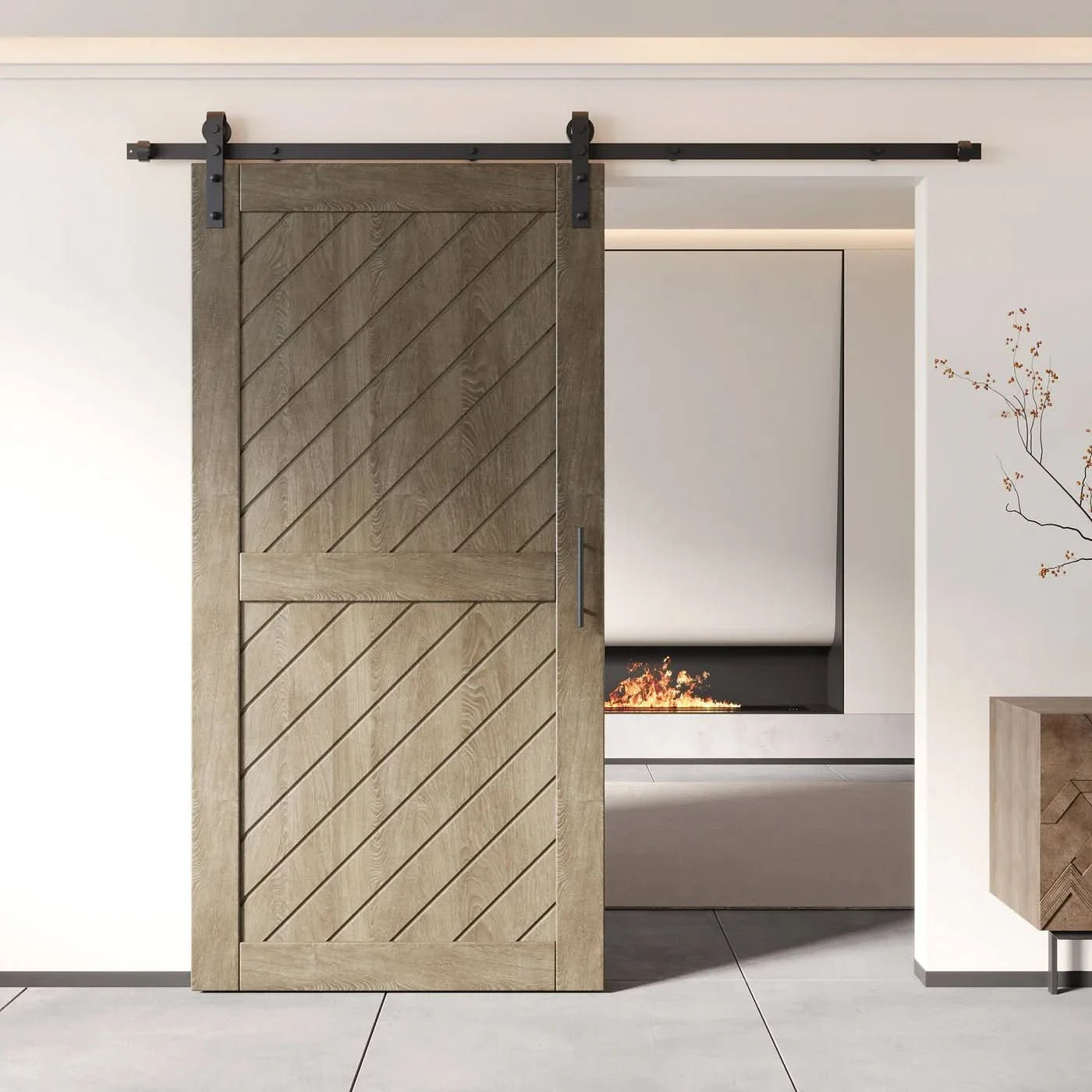

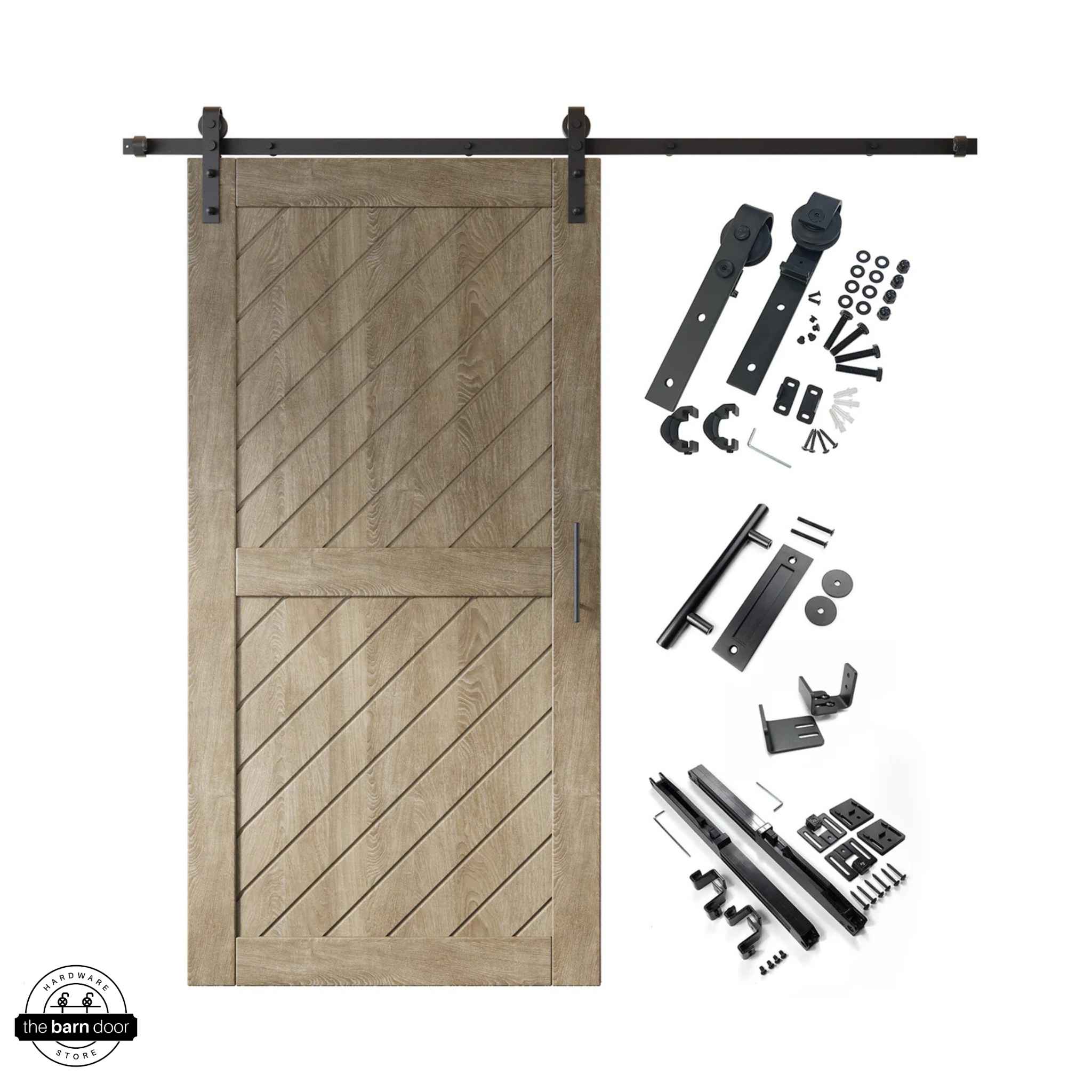

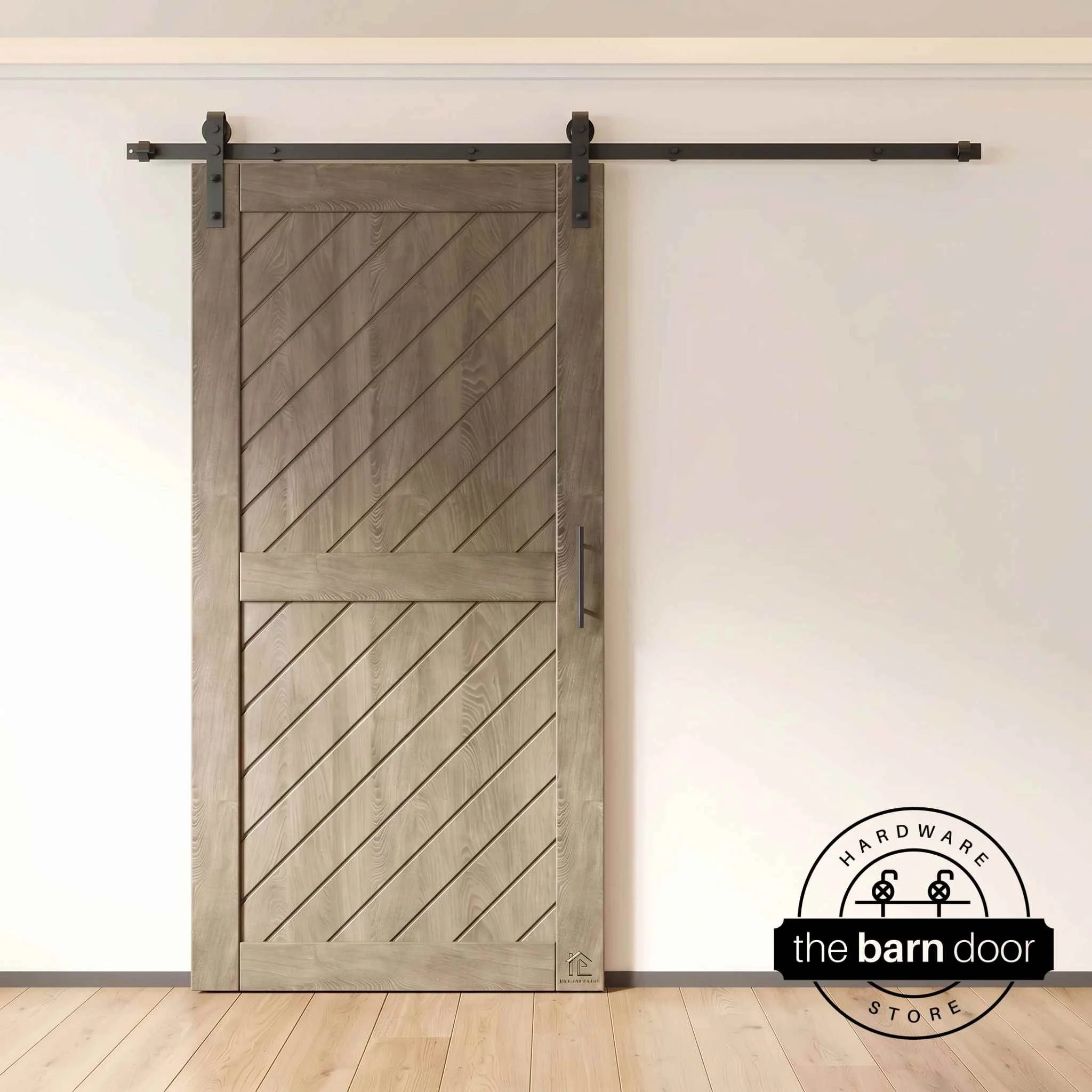

Classic Gray Slanted Classic Single Track Barn Door Kit

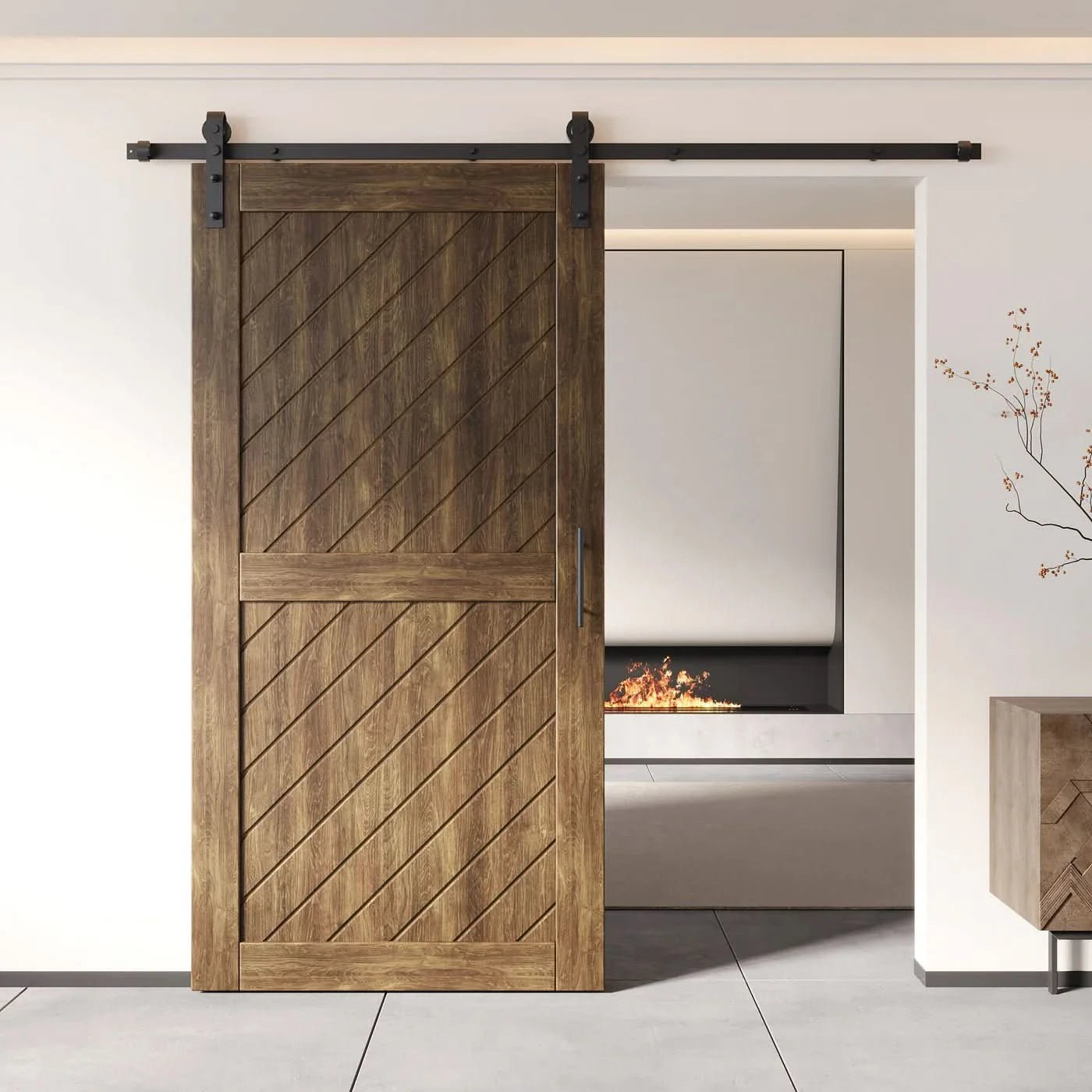

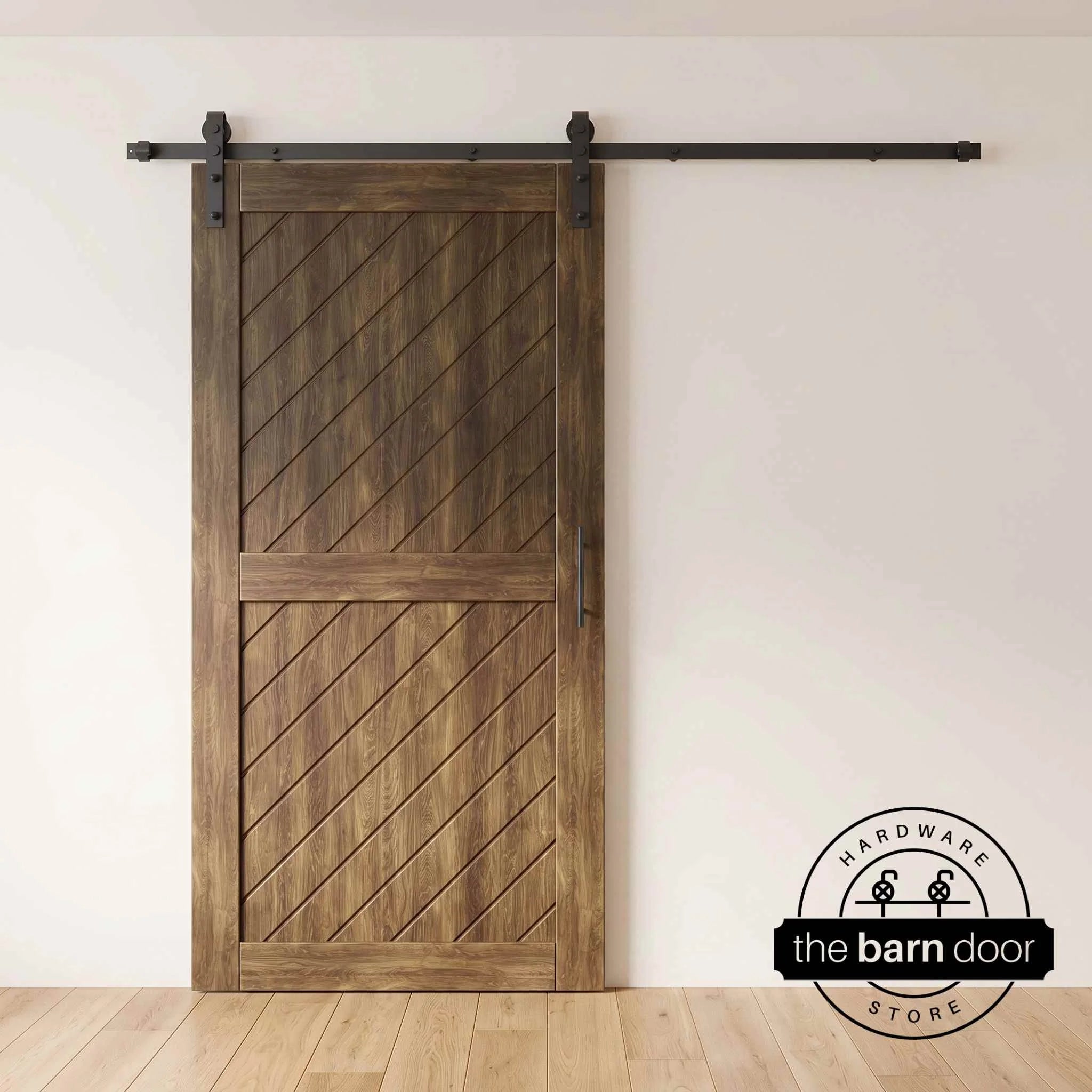

Dark Walnut Slanted Classic Single Track Barn Door Kit

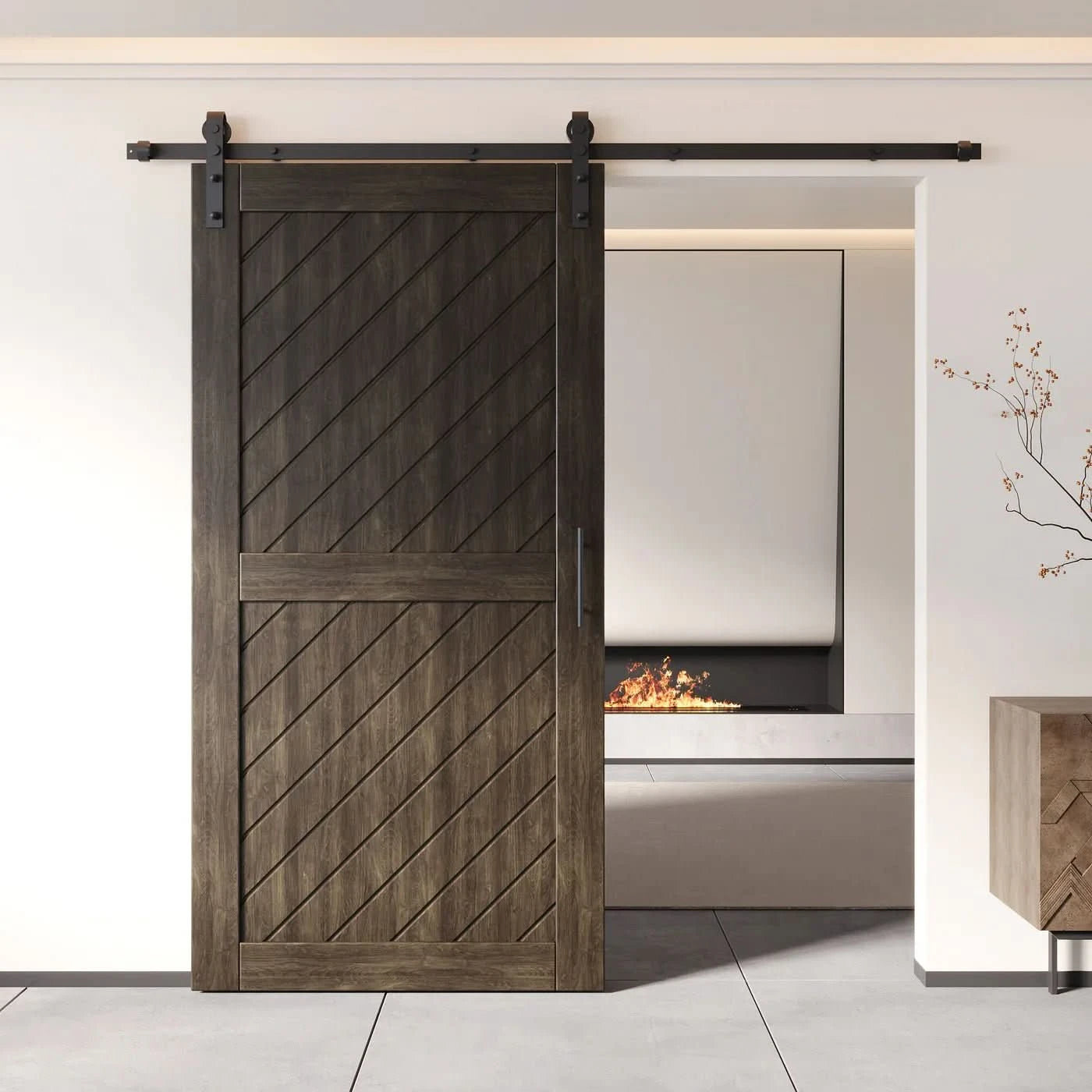

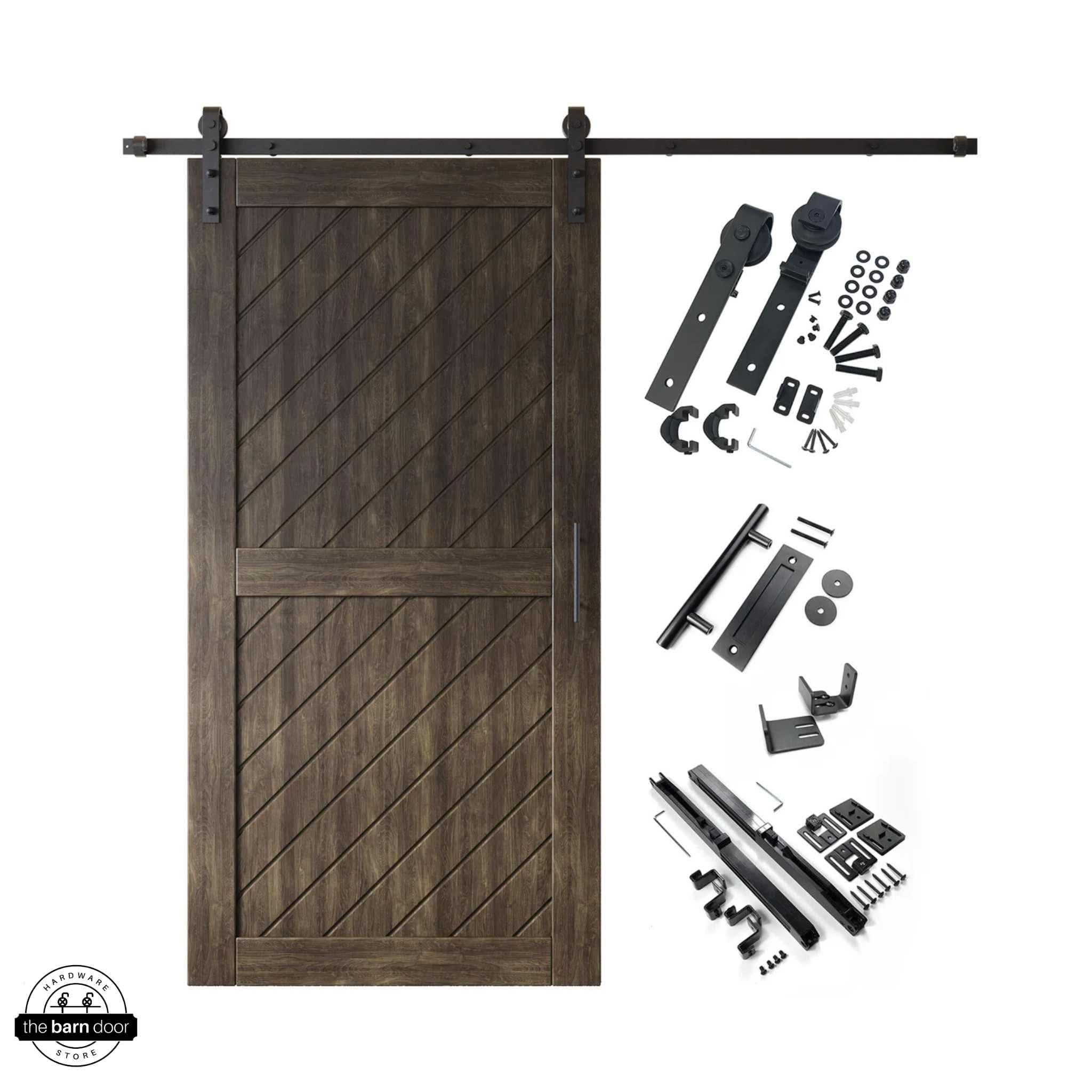

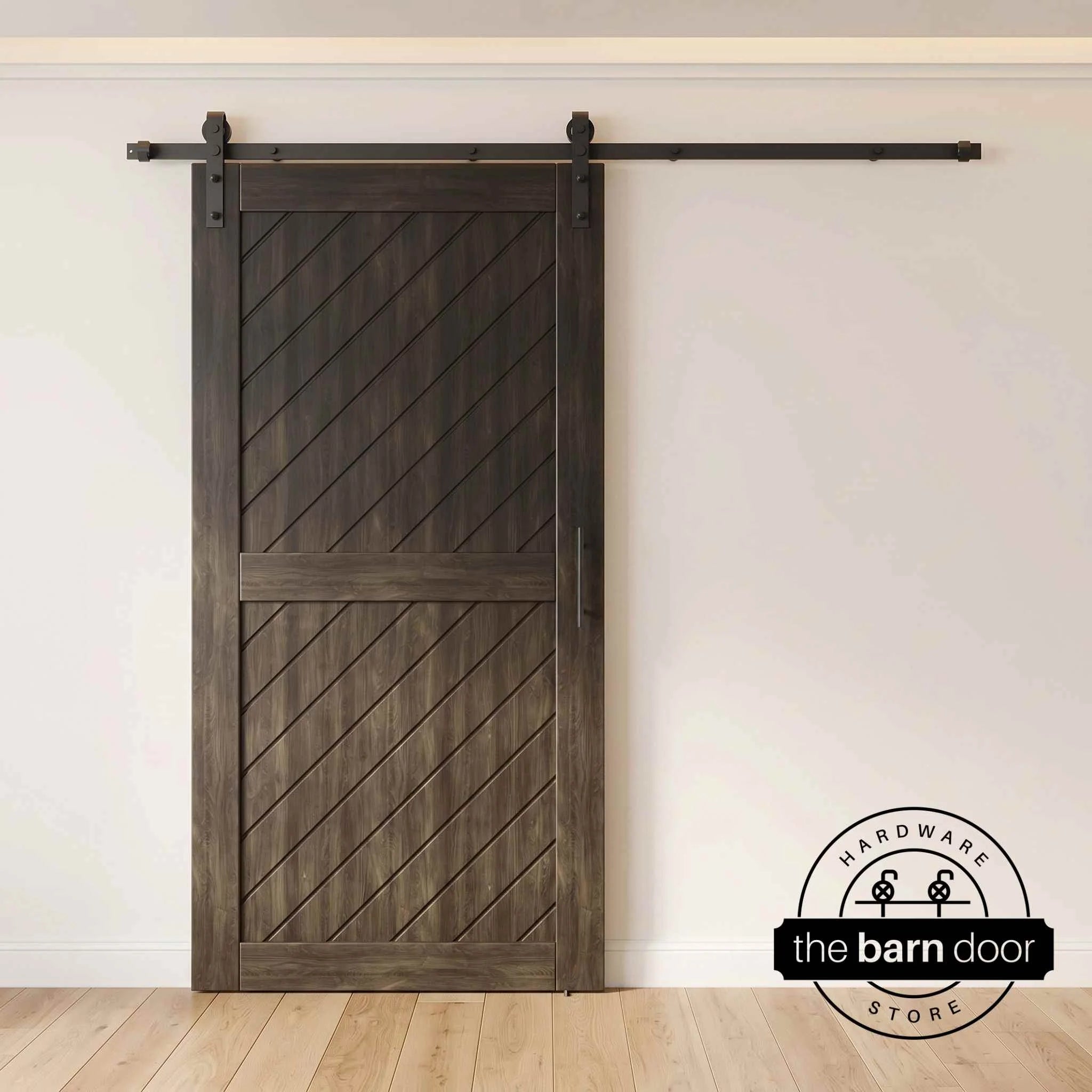

Ebony Slanted Classic Single Track Barn Door Kit

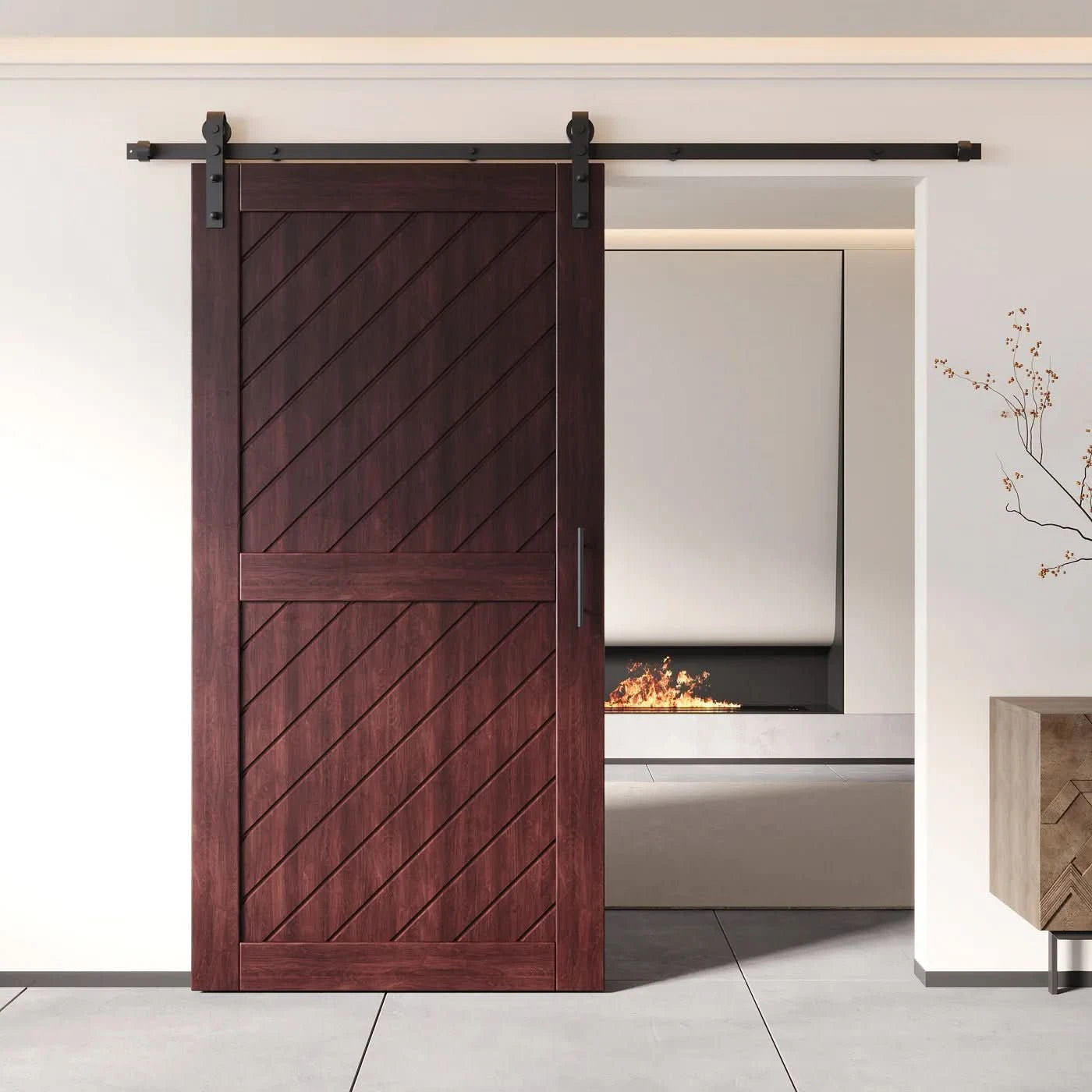

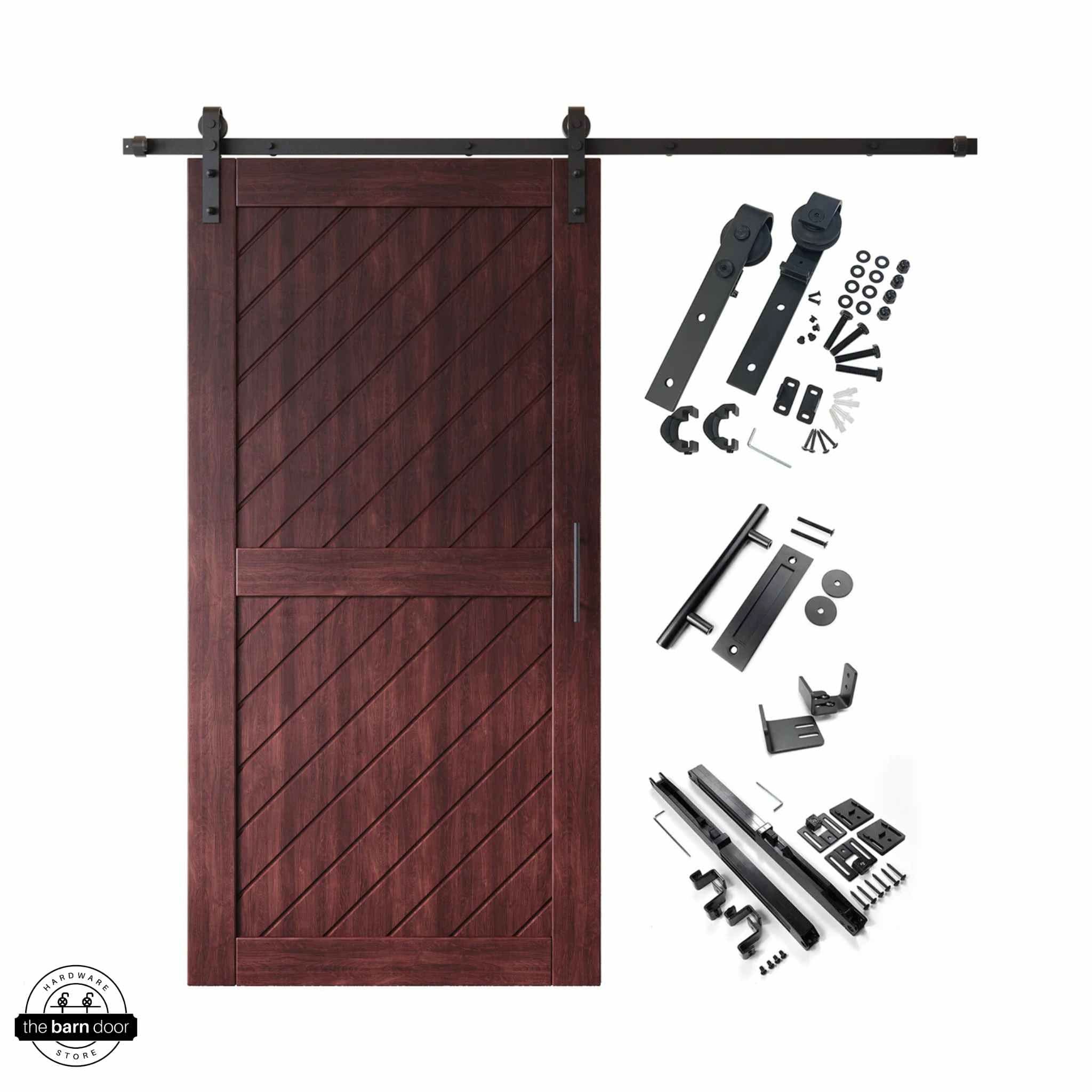

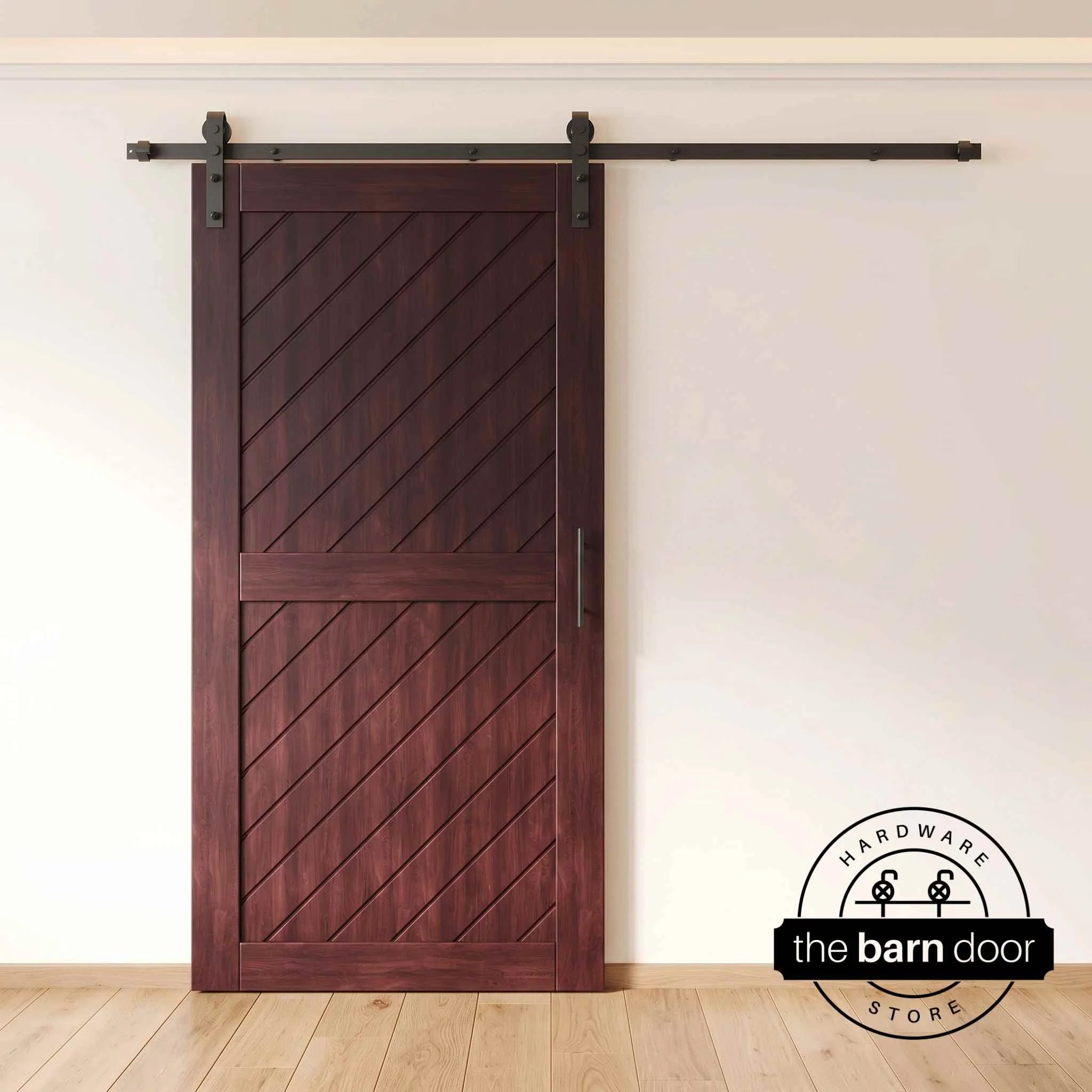

Red Mahogany Slanted Classic Single Track Barn Door Kit

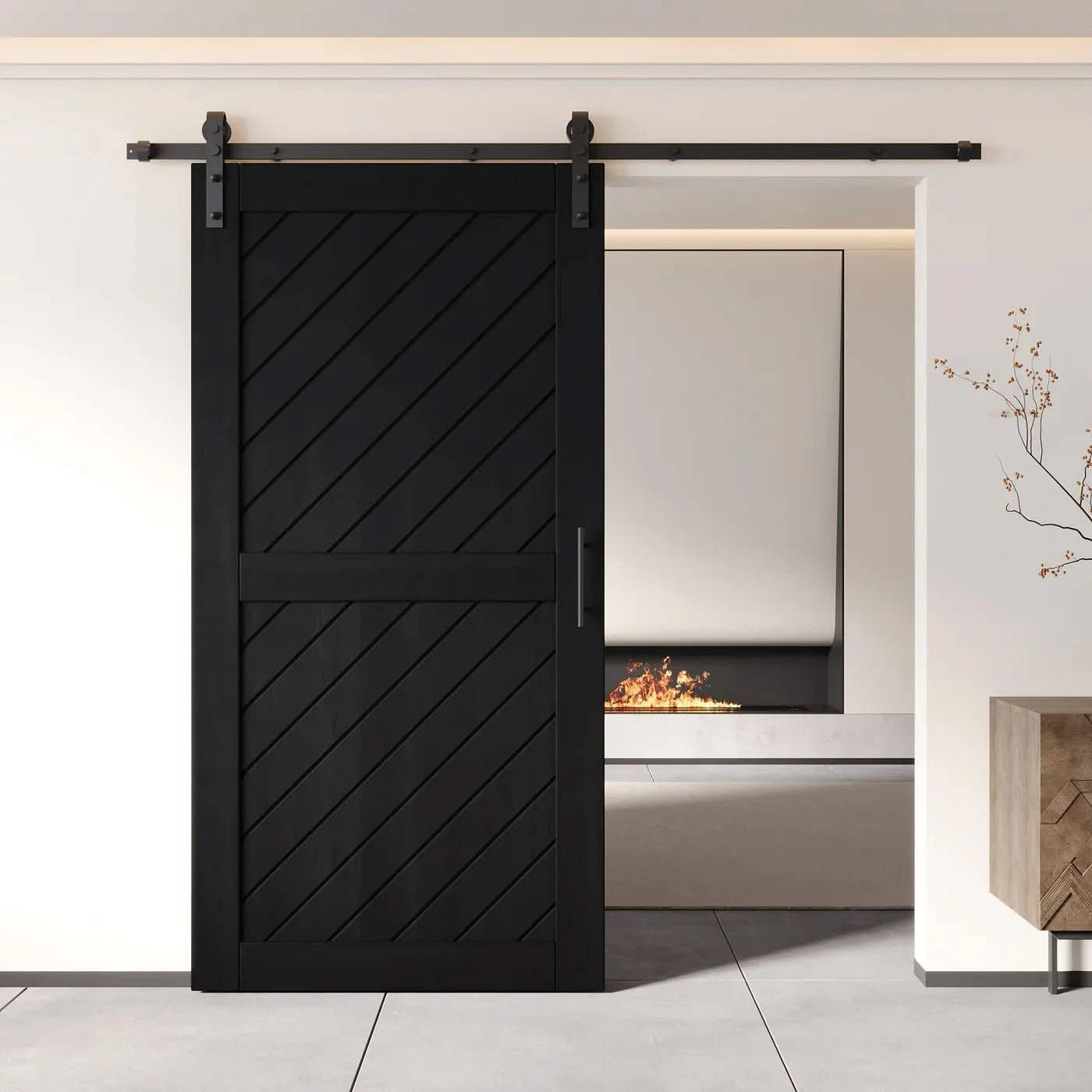

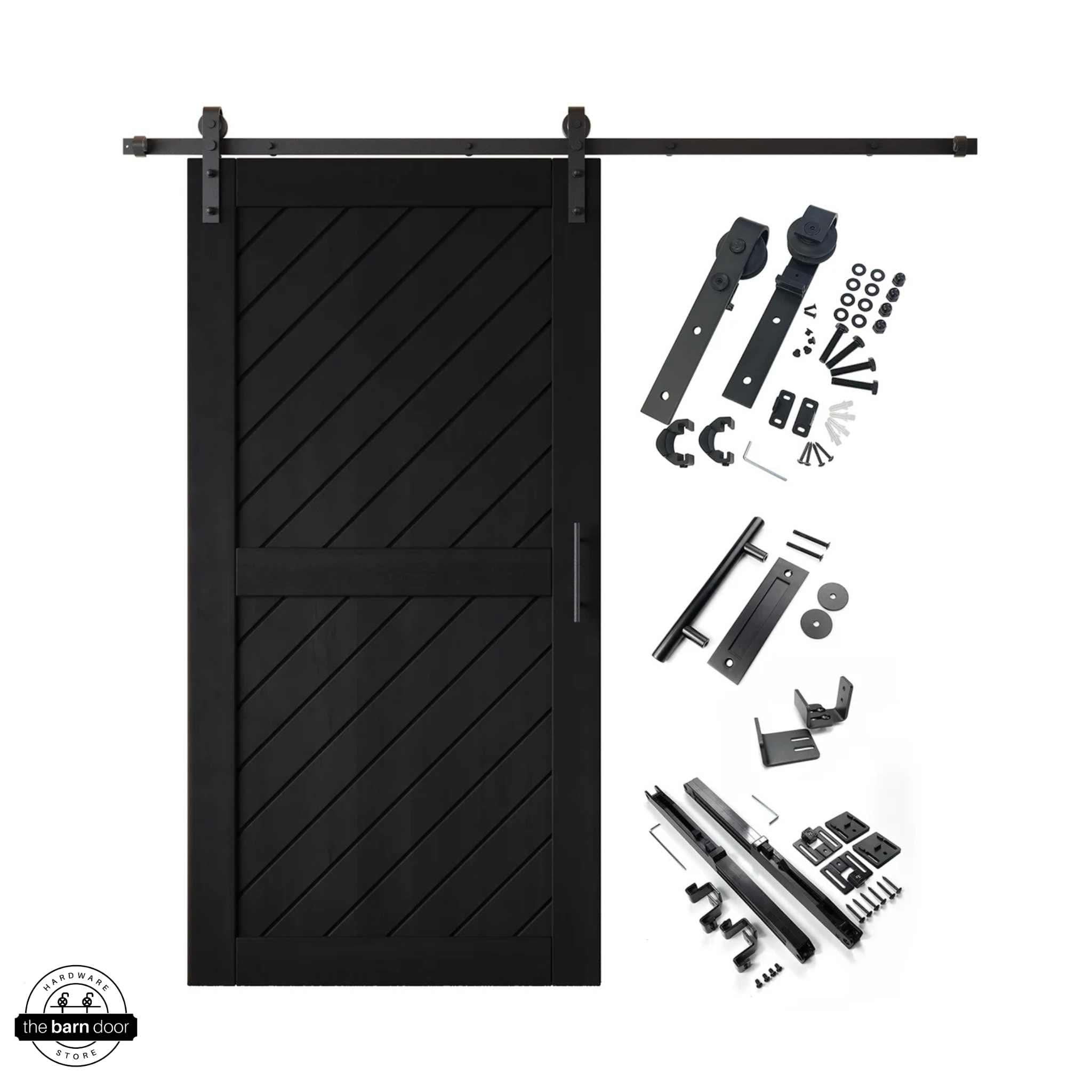

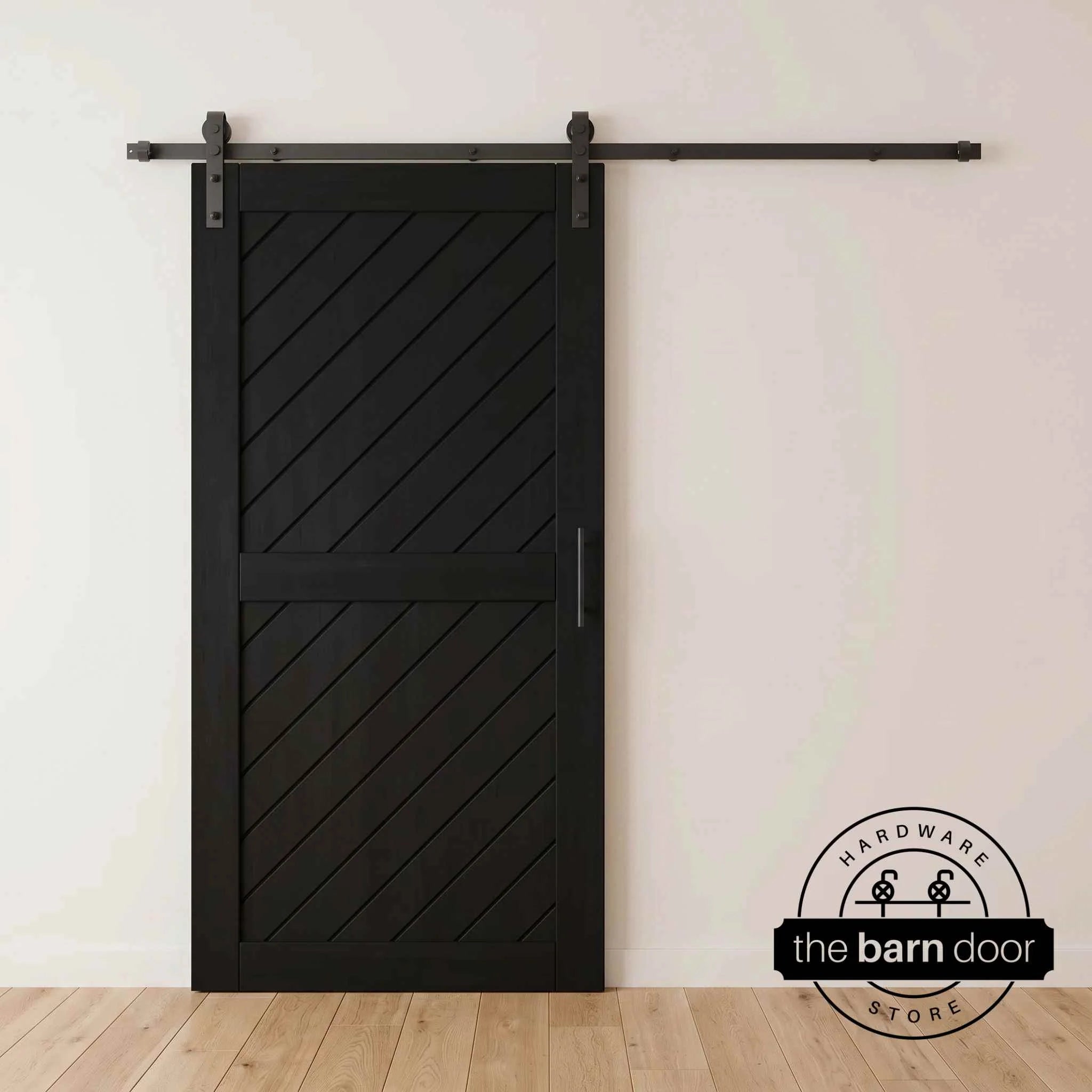

Black Slanted Classic Single Track Barn Door Kit

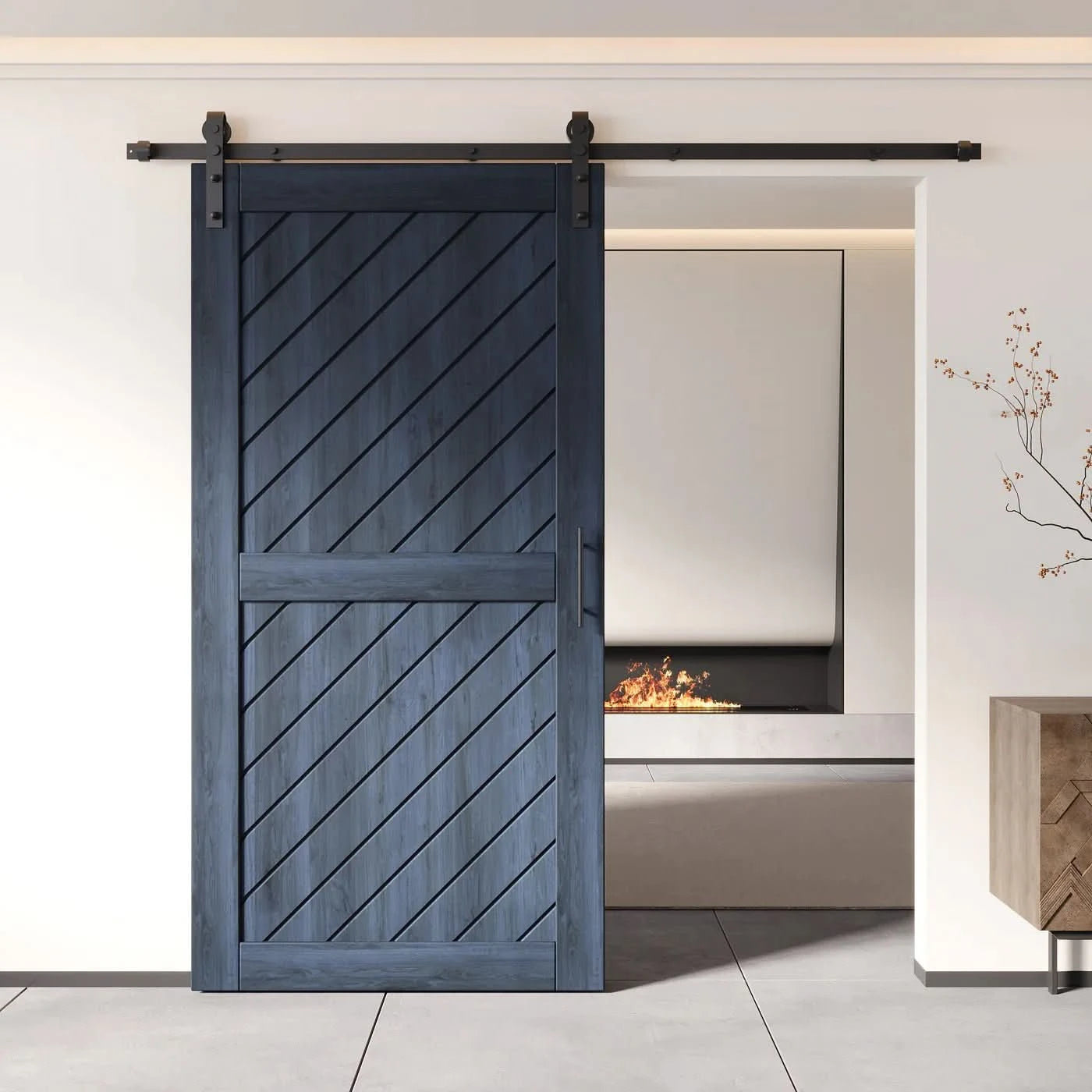

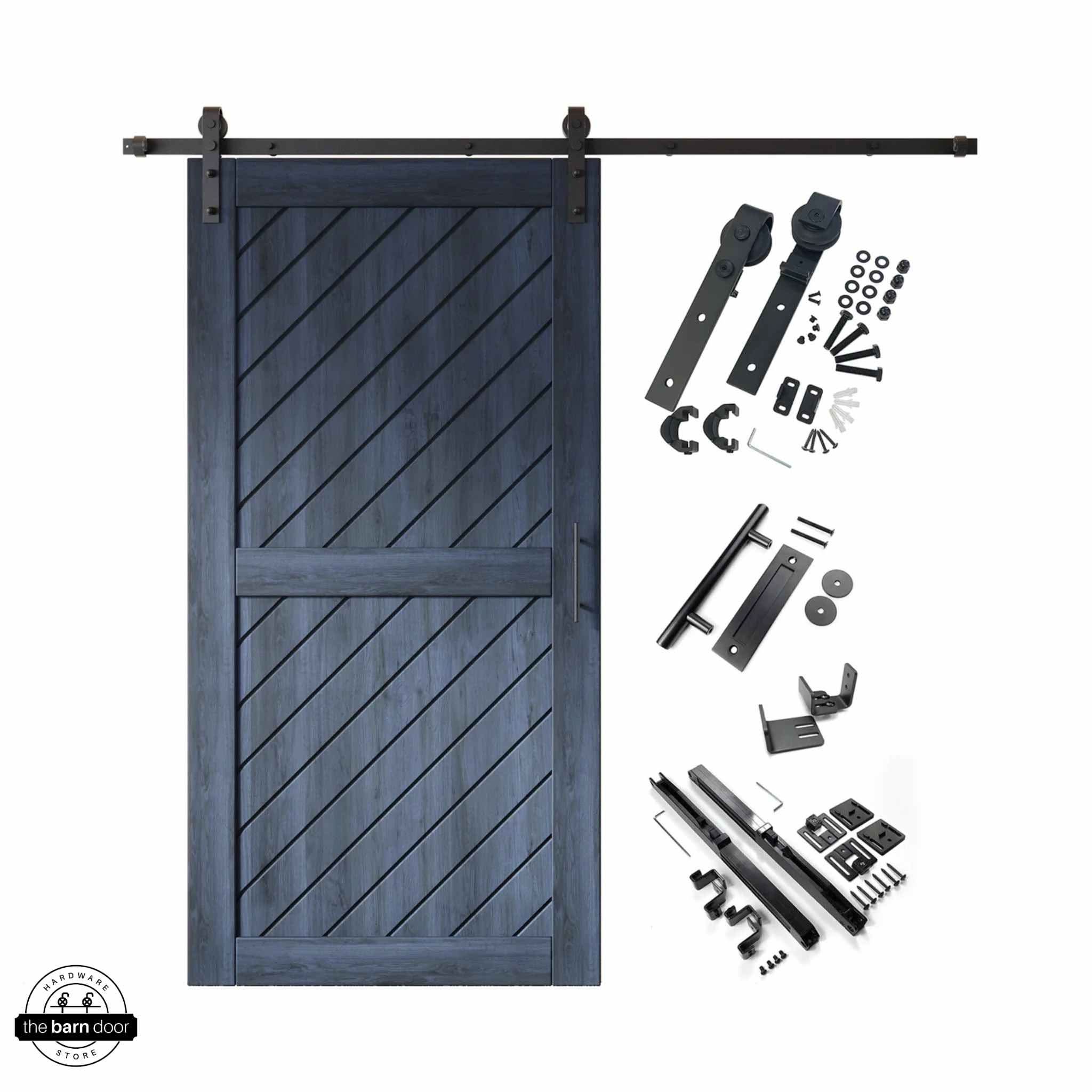

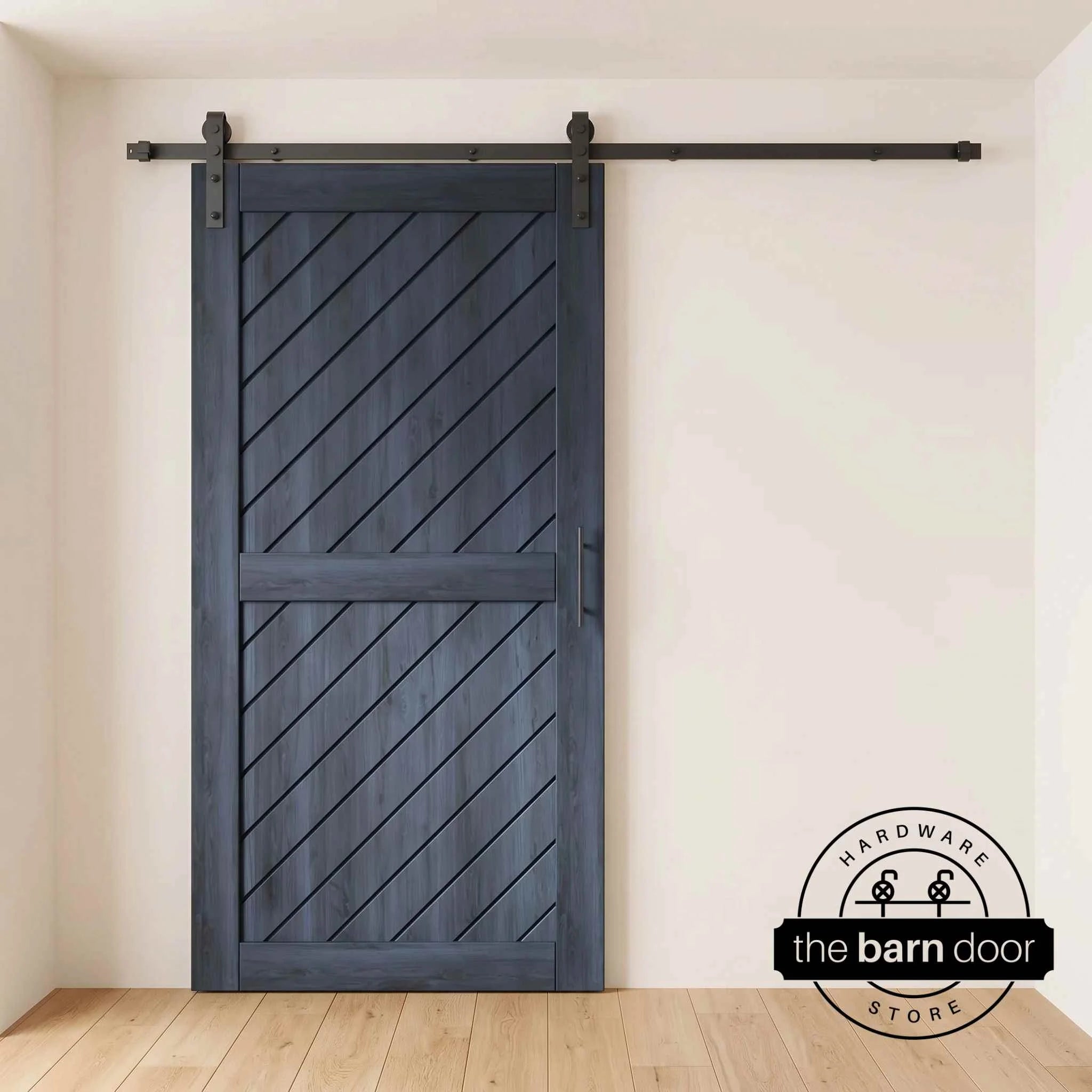

Navy Slanted Classic Single Track Barn Door Kit

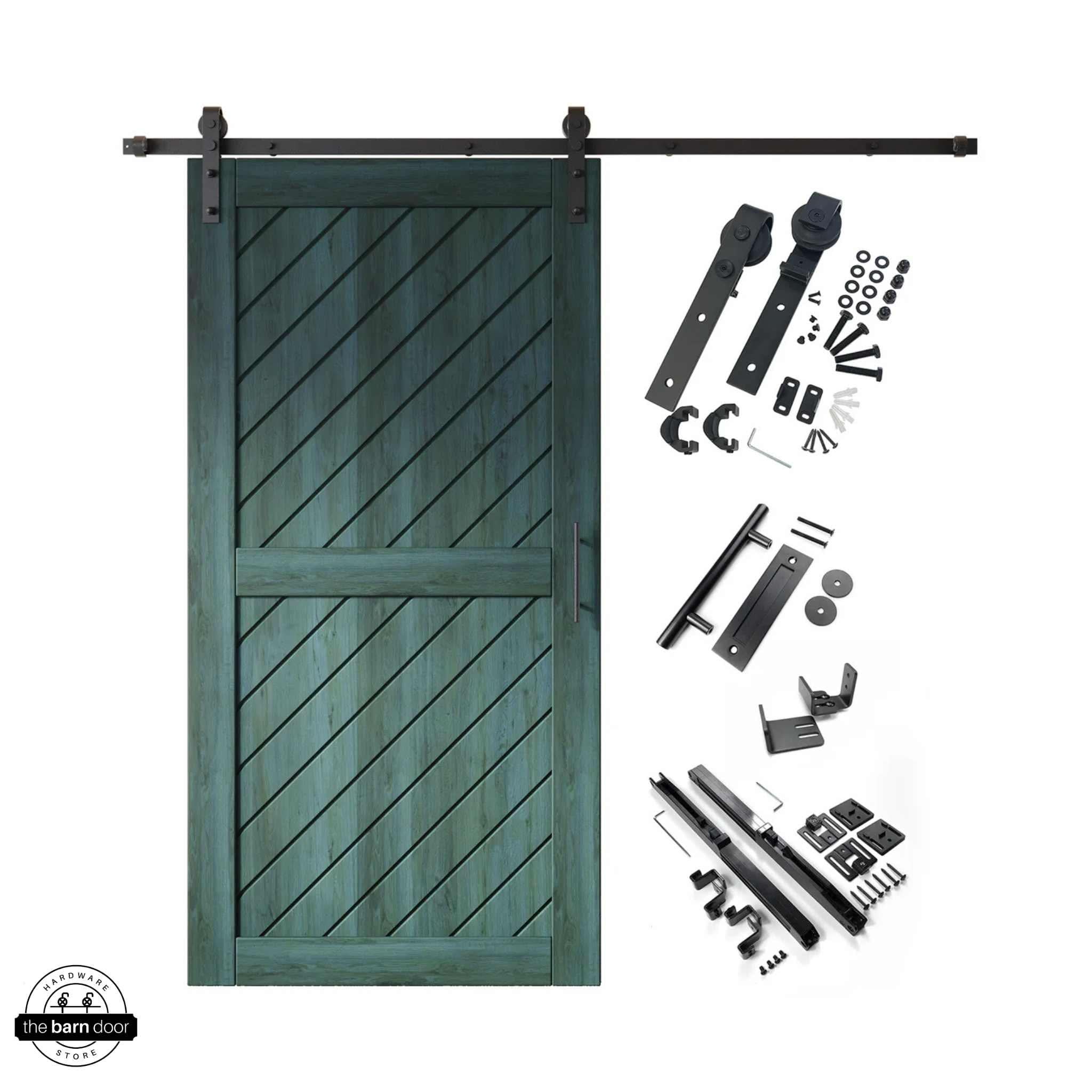

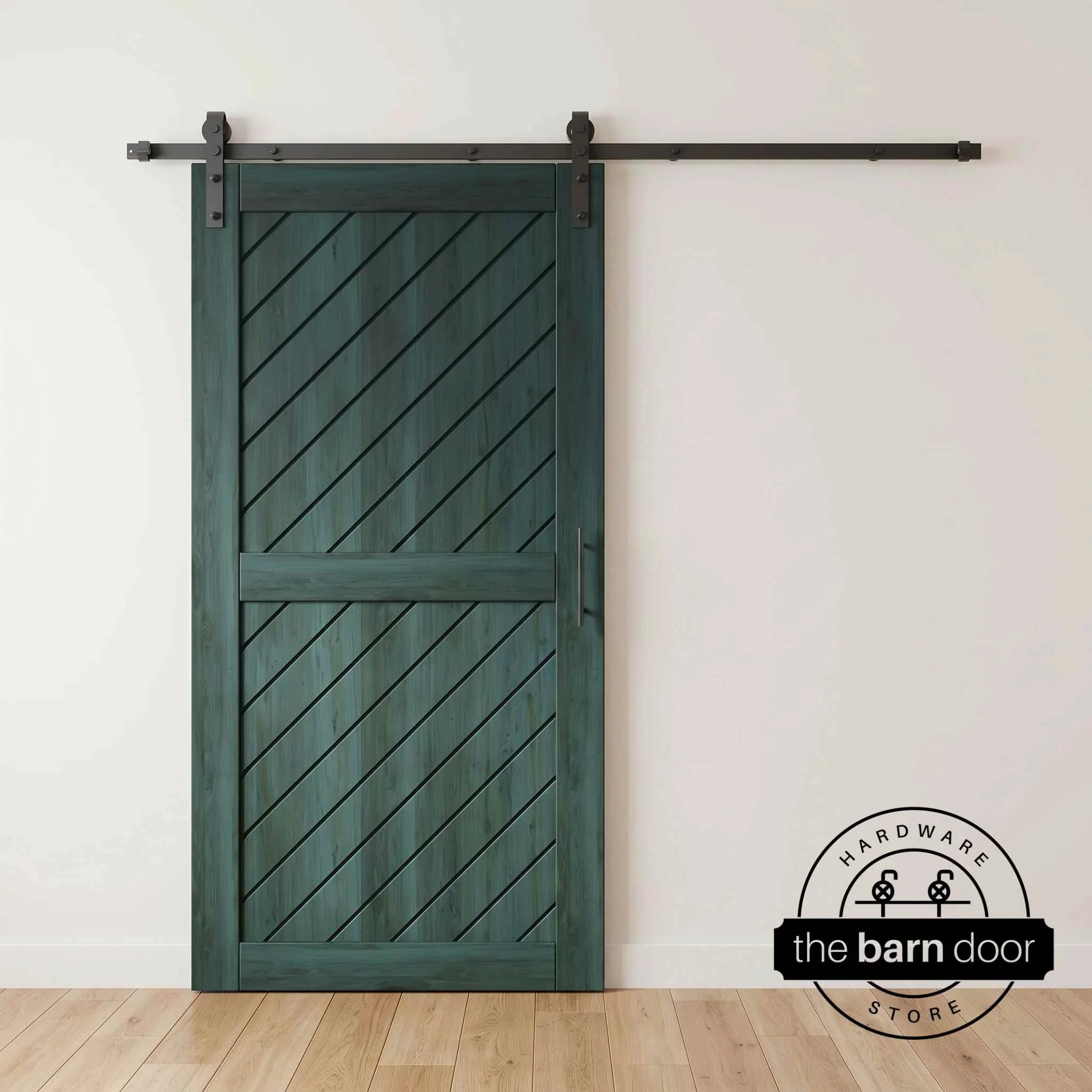

Royal Pine Slanted Classic Single Track Barn Door Kit

Roll over image to zoom in Click on image to zoom

Slanted Single Barn Door Kit | Black Hardware

Quick Ship

Starts at:

$739.99

Door Stain: Unfinished

Quantity:

Share this product

A quick, honest note before you order: barn door kits cost roughly three times the price of a hardware-only kit because the door ships with everything. If you have a door in mind already, or if a local lumber yard can supply panels that better match your space, buying the hardware separately is almost always the better value. We say this to every customer who asks.

That said — if you want a complete, ready-to-hang package, the slanted single kit delivers it in one shipment. The door is solid pine with large diagonal panels running across the face — a bolder, more graphic profile than a classic flat-plank design. The diagonal panels can be flipped during assembly to create one of four patterns: a single diagonal direction, a chevron, opposing diagonals, or a mixed arrangement. Decide which pattern you want before assembling. It ships flat for assembly, then hangs on a full black hardware kit with your choice of roller style. The kit also includes a 12 in pull and flush handle set, a wall-mounted floor guide, and a soft-close mechanism. Everything is black hardware.

Available in 9 stain options plus unfinished. Unfinished ships in 3-5 business days. Stained options add 5 business days (8-10 total). Door and hardware ship together in one delivery.

Door width: Measure your rough opening width. For a standard room, add 4 in (2 in overlap each side). For a bedroom or bathroom, add 6 in (3 in each side). Select the door width closest to that result from the available sizes. The largest kit door is 50 in wide — for openings wider than 46 in, a double door kit may be a better fit.

Door height: Select 80 in or 84 in. The door should be at least 1 in taller than the opening — more is fine — to leave adequate floor clearance. On carpet or uneven floors, confirm there is enough clearance for the door to slide without dragging.

Track length: Determined automatically by the door width you select — see the sizing reference below. The track ships with the kit.

Ceiling clearance: The clearance required between the top of the door and the ceiling depends on your roller type. Straight Strap and Straight Top Mount require 5 in; J-Strap, Arrow, and Diamond require 6 in; Spoke Wheel requires 8 in. Measure this gap before selecting a roller style.

Wall header: A solid header above the opening is required for track mounting. If there is no existing header or backing in the wall, install a minimum 1×6 hardwood board (3/4 in thick × 5-1/2 in wide) that extends past the length of the track to the next stud or structural support point on each side. No solid header and cannot install one? See ceiling mount hardware.

Wall clearance: The door slides to the side of the opening. You need at least as much clear wall space beside the opening as the door is wide — confirm there are no light switches, outlets, or trim obstructions in the path.

Door material: Solid pine — ships flat for customer assembly

Door design: Diagonal slanted brace pattern across door face

Heights available: 80 in · 84 in

Widths available: 26 · 30 · 32 · 36 · 40 · 42 · 48 · 50 in

Stain options: Early American · Black · Ebony · Classic Gray · Navy · Red Mahogany · Royal Pine · Dark Walnut · Unfinished

Hardware finish: Black only

Configuration: Single sliding door — not for bypass or bifold

Roller type: Select from 6 HVL roller styles — J-Strap (6 in ceiling clearance) · Straight Strap (5 in) · Spoke Wheel (8 in) · Straight Top Mount (5 in) · Arrow (6 in) · Diamond (6 in)

Lead time: Unfinished — 3–5 business days · Stained — 8–10 business days

Shipping: Door and hardware ship together in one delivery

Door components

Solid pine vertical planks (A) × 2
Horizontal rails (B1, B2, B3) × 1 each — B2 varies by door height (80 in and 84 in use different pieces)

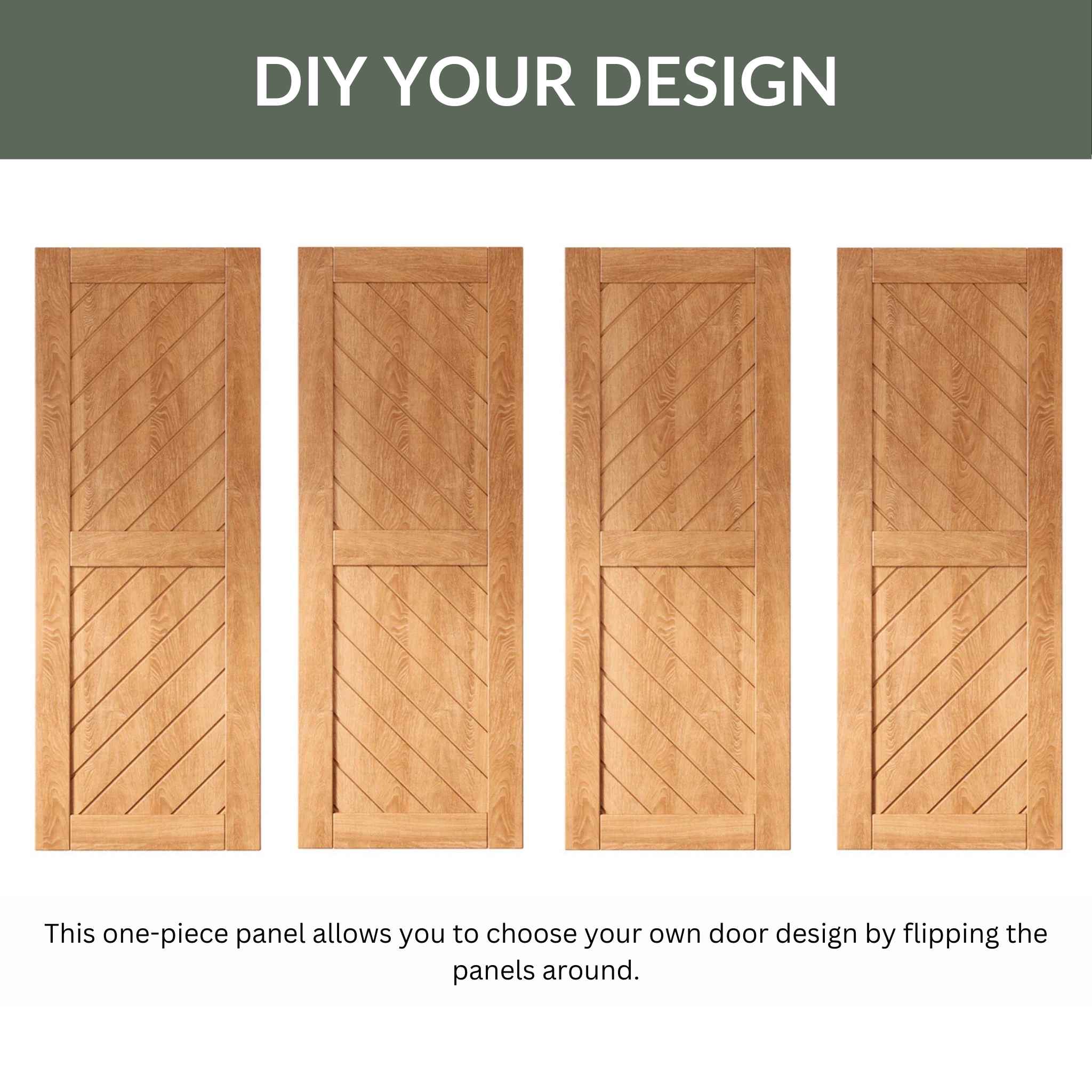

Diagonal slanted panels (C) × 2 — these are the core design element and are always installed. Flip them to create one of four patterns: single diagonal (A1), chevron (A2), opposing diagonals (A3), or mixed pattern (A4). Choose your design before assembling.
Dowels (E) × 10
Long screws (F) × 10

Sliding hardware

Hanger/roller set (1) — in your selected roller style
Flat track(s) — quantity based on door width; see sizing reference
Anti-jump disks (2)
Door stoppers (2)
Hex bolt set, spacer set, hex wrench
Rubber hole covers (4) — for ends of track
Junction plate — included when track length requires two sections

Also included

12 in round pull and flush handle set — black, face-mounted flush pull (no routing required)
U-channel wall-mounted floor guide — attaches to baseboard, no floor drilling required
Soft-close mechanism — black; slows the door at the end of travel in both directions

Tools needed for door assembly: drill or Phillips screwdriver, rubber mallet. A trigger clamp is optional but helpful for holding panels in position during assembly.

Door Stain — Select your finish from the color swatches. Unfinished ships in 3–5 days and arrives ready to stain on your own timeline. All other options are pre-stained and ship in 8–10 business days.

Door Width — Select your door width based on your opening measurement. See the sizing reference below to confirm the track length that will ship with your selected width.

Door Height — Select 80 in or 84 in based on your opening height.

Roller Style — Select your preferred HVL roller style from the available options. All roller styles are black. Not sure which to choose? See our barn door rollers collection for comparisons, or email us at info@thebarndoorhardwarestore.com.

Start with your rough opening width. Add 4 in for standard rooms (2 in each side) or 6 in for bedrooms and bathrooms (3 in each side). Select the door width closest to that result from the available sizes. The track length ships automatically with your kit based on the door width you select.

The minimum door width is 2 in wider than your opening (1 in per side), though this barely covers the jamb frame and isn't ideal for most installations. We recommend at least 4 in wider for standard rooms (2 in per side) and 6 in wider for bedrooms and bathrooms (3 in per side). The sizing reference table shows the absolute maximum opening each door can cover at the 1 in per side minimum — use those figures as a ceiling, not a target. Track lengths run from 4 ft 6 in (26 in door) up to 9 ft (48 and 50 in doors).

For the complete door width, maximum opening, and track length reference chart, see our single door kit sizing table.

If your opening is wider than 46 in and you need a door larger than 50 in, a double door biparting kit is likely the better fit.

How It Works

Common Questions

Does the door come assembled or do I need to build it?

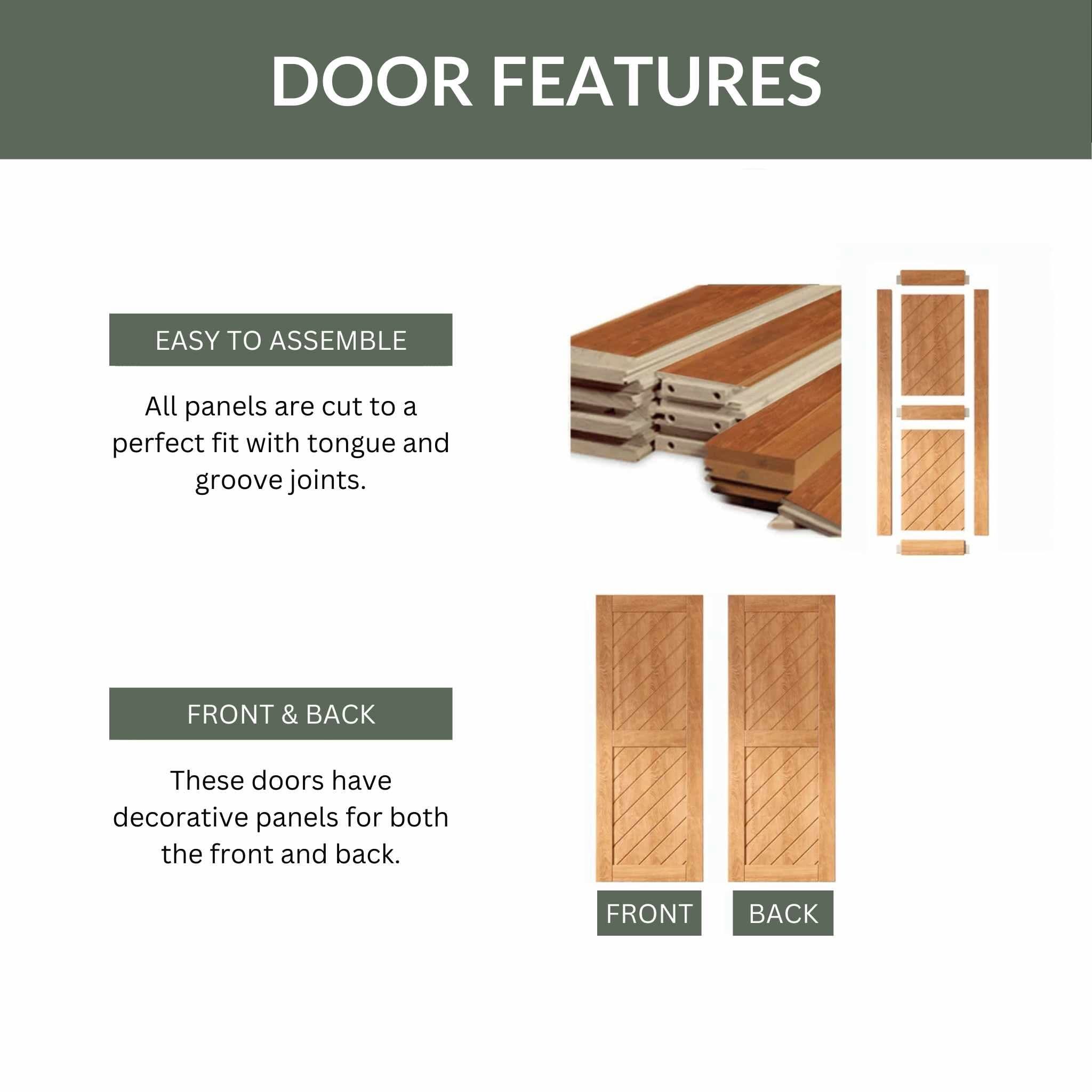

The door ships flat — individual boards packaged separately. You assemble the door panel using the included dowels and screws before hanging it. One important step: decide which of the four diagonal panel patterns you want (single diagonal, chevron, opposing diagonals, or mixed) before you start assembling, since the C panels need to be oriented correctly from the beginning. Assembly requires a drill or Phillips screwdriver and a rubber mallet; a trigger clamp is optional but helpful for holding panels while fasteners set. Plan for 1–2 hours for door assembly before installation.

What's the difference between Unfinished and the stained options?

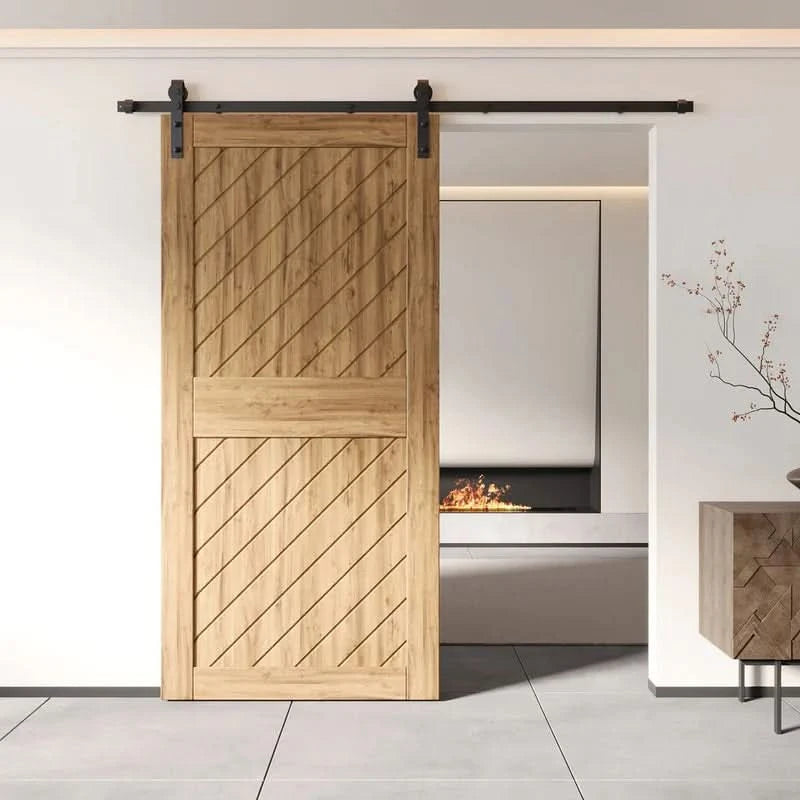

Unfinished means the solid pine boards arrive raw — no stain applied. This is the right choice if you want to apply your own stain color, match an existing wood finish precisely, or paint the door a color not in the lineup. Unfinished kits ship in 3–5 business days. Stained kits take 8–10 business days total.

How does this door design differ from the classic barn door style?

The classic barn door uses flat vertical planks with a horizontal mid-rail — a clean, traditional profile. The slanted design adds diagonal brace panels running across the face of the door, creating a more graphic, modern look. The structural construction is the same solid pine; the difference is purely in the visual pattern created by the brace panels on the door face.

Can I use this kit for a bedroom or bathroom door?

Yes — add the 6 in overlap (3 in each side) when selecting your door width to ensure adequate coverage for privacy. Barn doors don't seal like hinged doors — there will be a small gap at the edges — so if sound isolation is a primary concern, a hinged door is the more effective choice. For privacy (not soundproofing), a barn door with proper overlap works well.

What if I want hardware only and will source my own door?

We'd almost always recommend that approach for anyone who can source panels locally — it's significantly better value. See our hardware kits collection for single-door options, or email us at info@thebarndoorhardwarestore.com and we can help you pick the right kit for your door.

Email Us!

info@thebarndoorhardwarestore.com

Shipping Policy Installation Guide

Why Thousands Choose The Barn Door Hardware Store

Not all barn door hardware is built the same. Here’s how we compare.

Door Width	Maximum Opening Width	Track Length
26in	24in	4ft 6in
30in	28in	5ft 6in
32in	30in	5ft 6in
36in	34in	6ft 7in
40in	38in	7ft
42in	40in	7ft 6in
48in	46in	9ft
50in	48in	9ft

Roller Type	Height Above Door	Roller Thickness	Roller Width	Roller Height	Wheel Diameter	Door Clearance
J-Strap	5-1/8	2-1/2	1-9/16	11-1/2	2-3/4	7/8
Straight Strap	4-1/2	2-3/8	1-9/16	10-3/4	2-3/4	7/8
Spoke Wheel	7-7/16	1-7/16	1-9/16	13-1/2	4-3/4	7/8
Straight Top Mount	5	2	5-5/16	4-5/8	2-3/4	7/8
Arrow	5-1/8	2-1/2	1-9/16	11-1/2	2-3/4	7/8
Diamond	5-1/8	2-1/2	5-7/8	9-5/8	2-3/4	7/8
