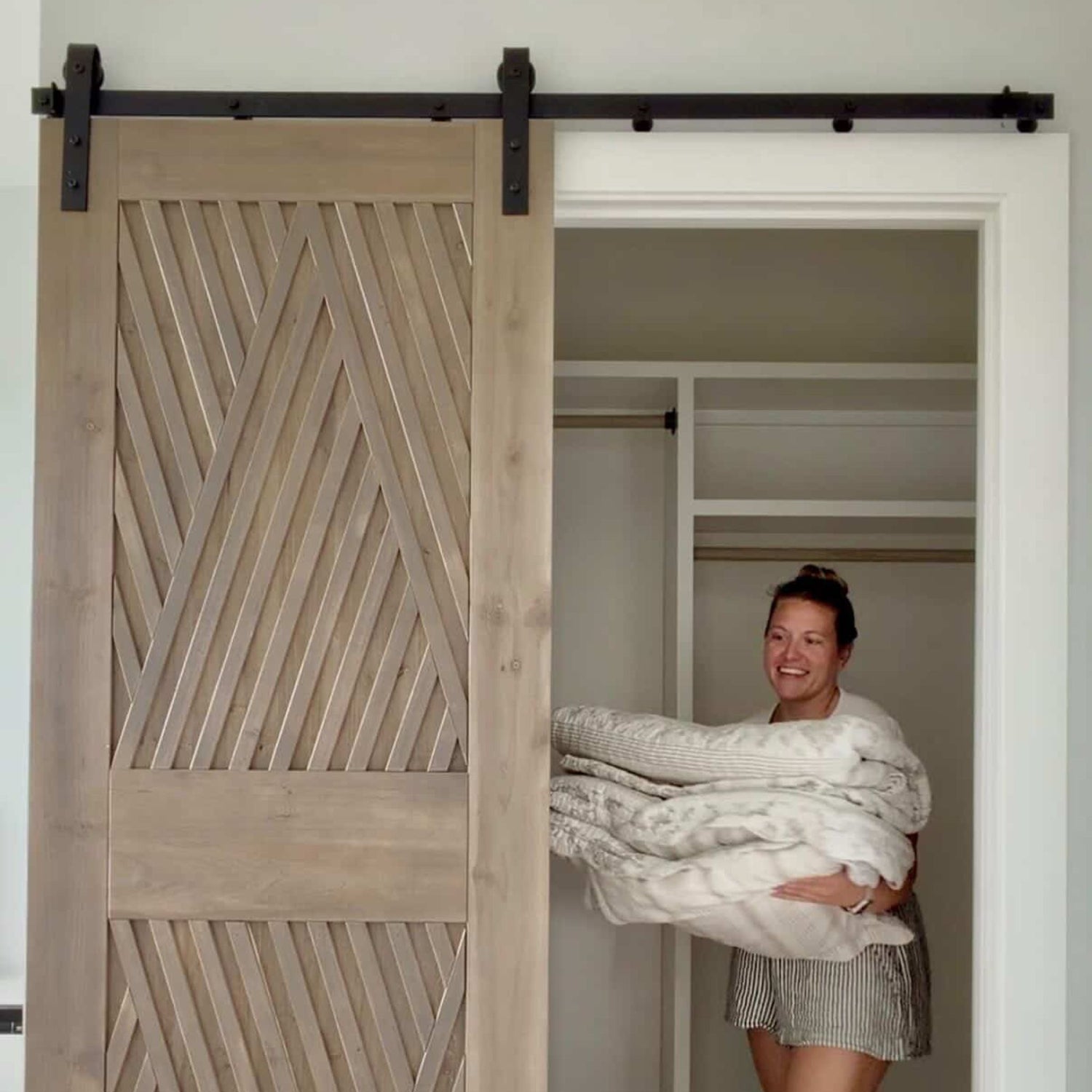

Woman holding blankets in a room with a wooden sliding door

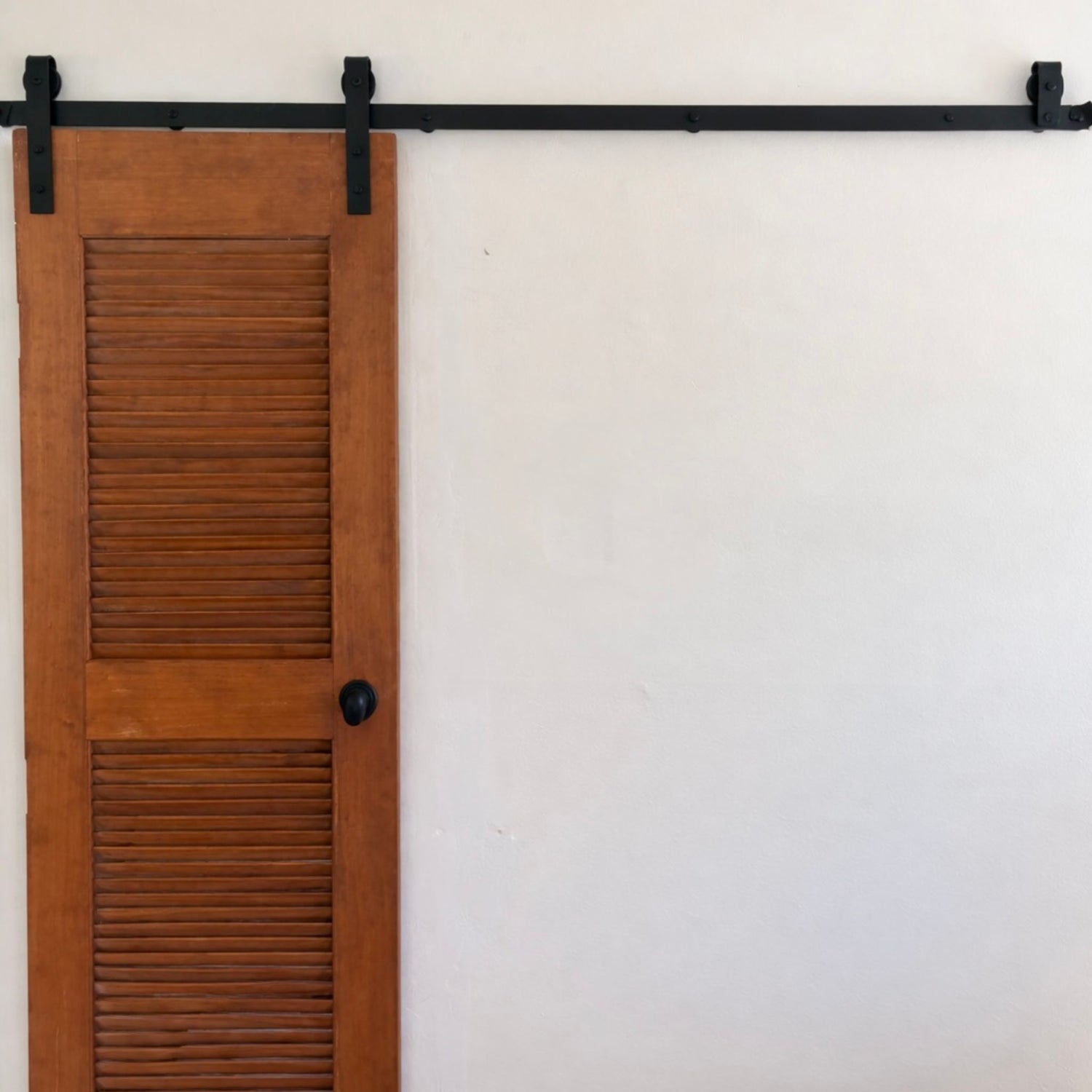

Wooden shutter door with black hardware on a white wall

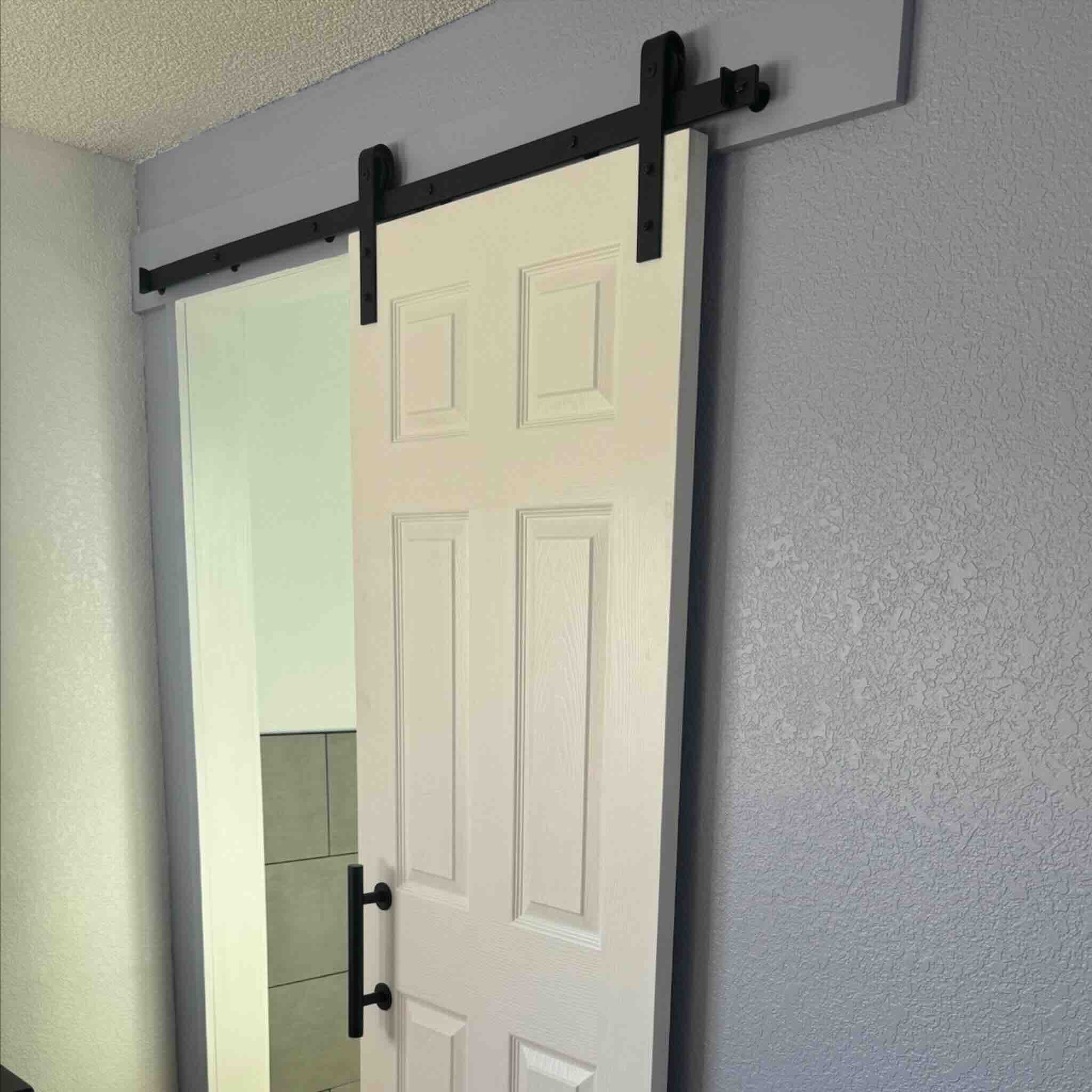

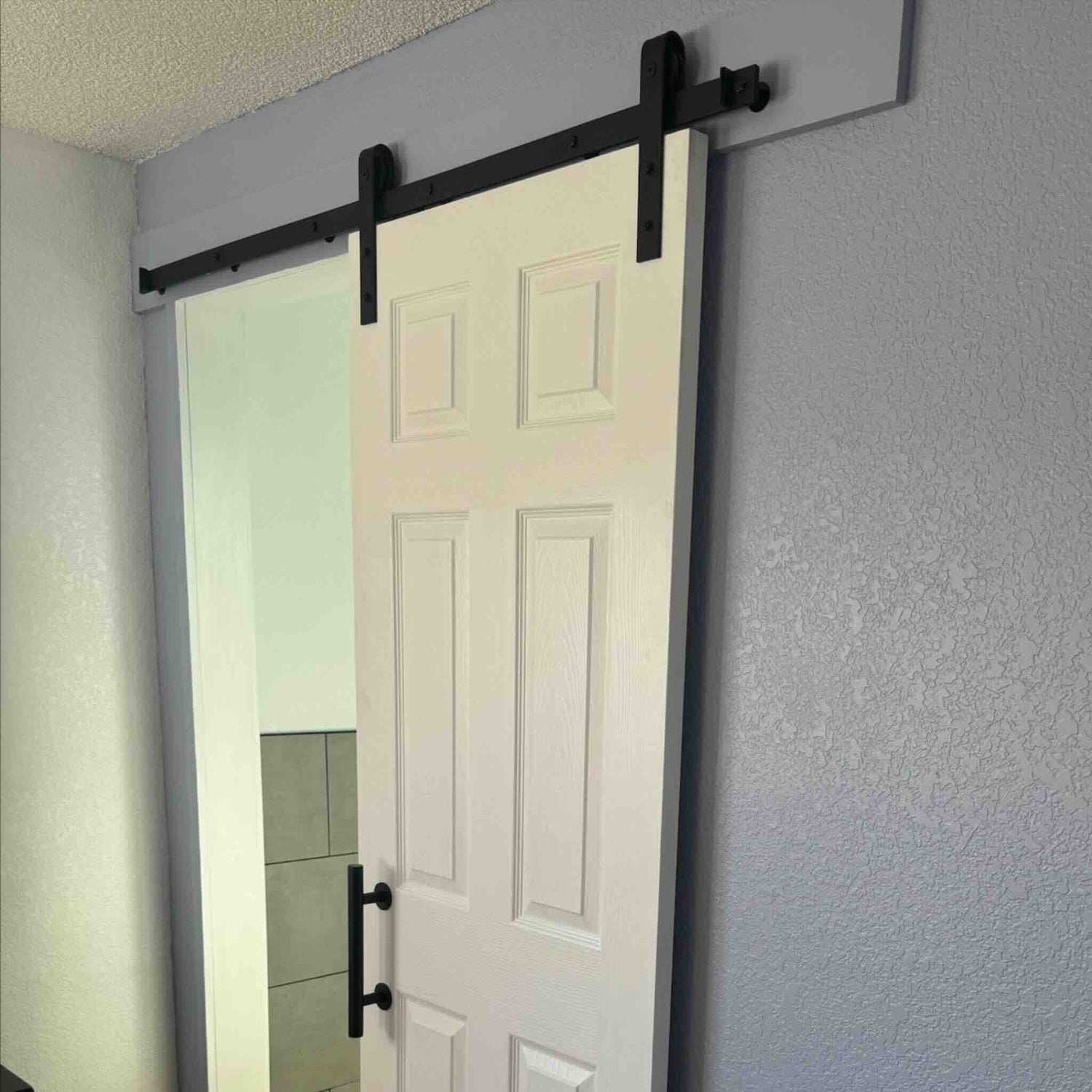

White sliding door with black hardware in a room with light gray walls.

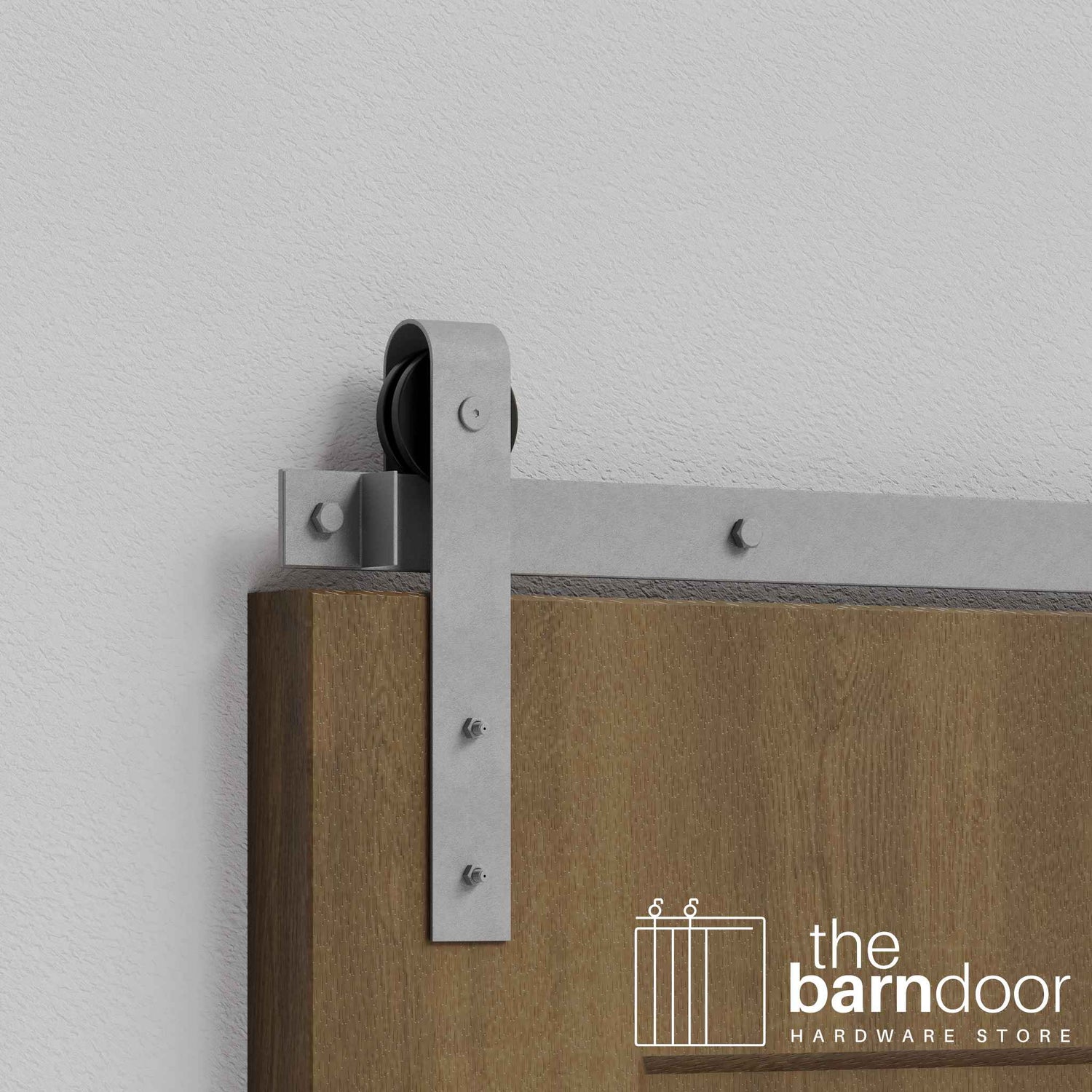

Close-up of Silver Metallic J-Strap Single Track barn door hardware installed on a wooden door panel.

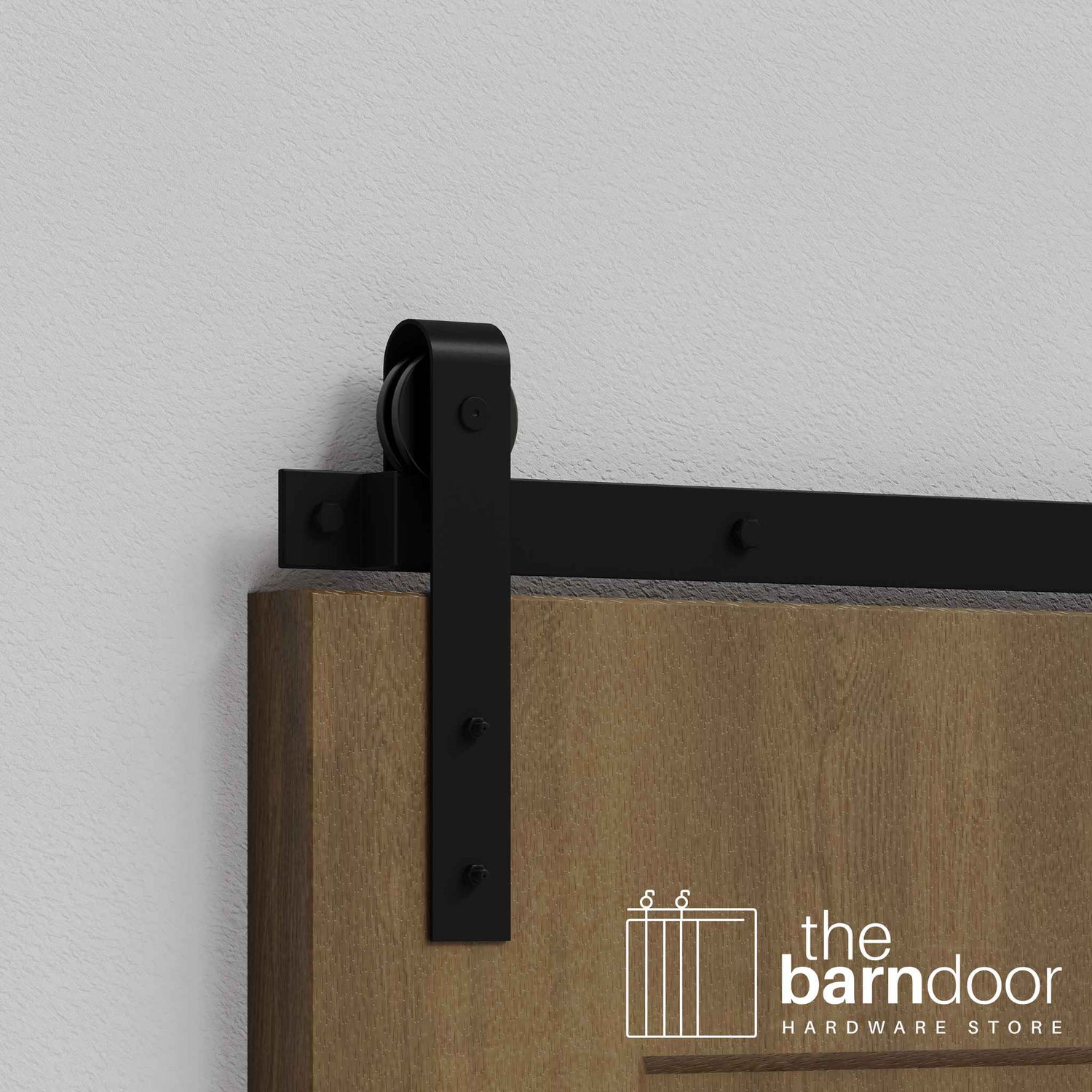

Close-up of Black J-Strap Single Track barn door hardware installed on a wooden door panel.

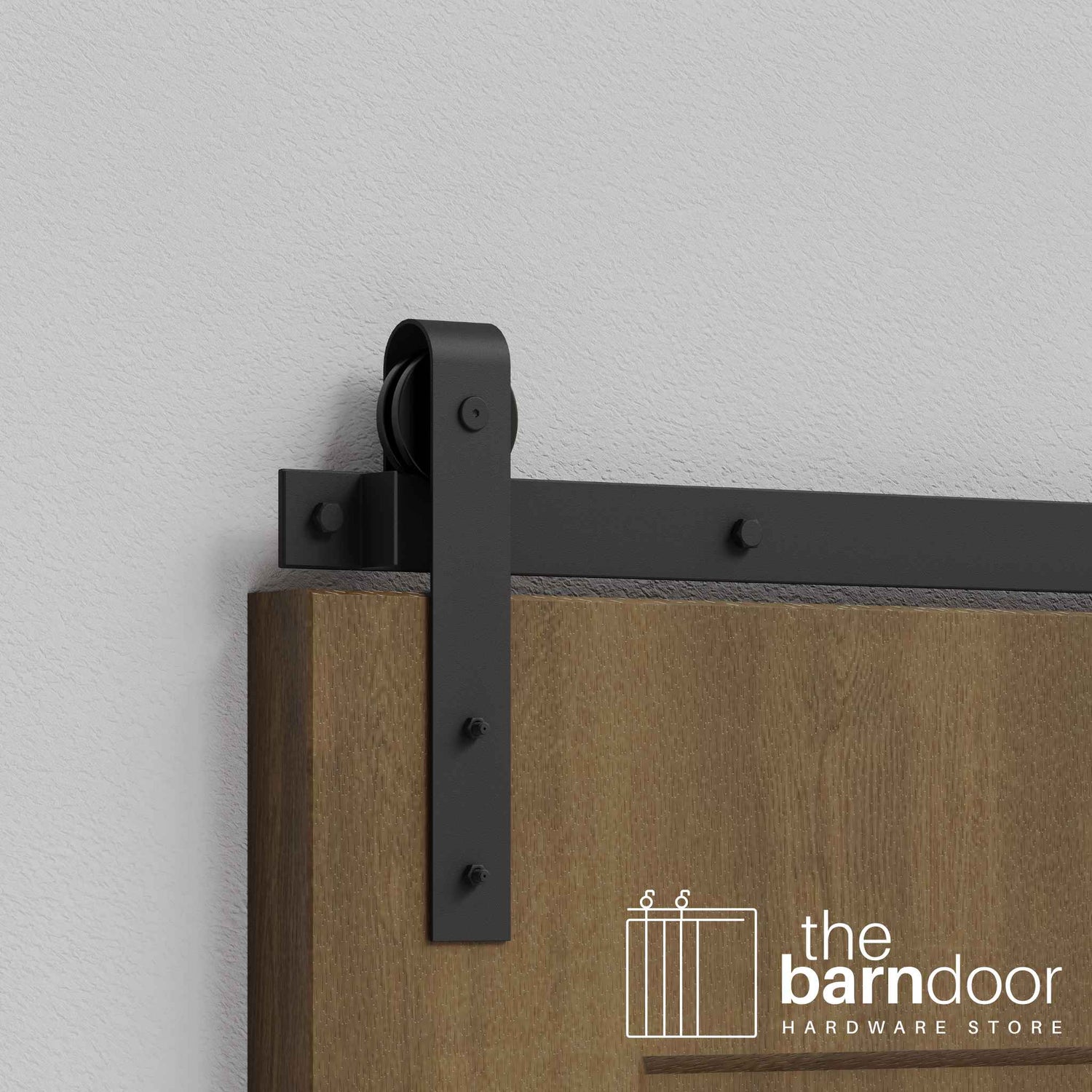

Close-up of Matte Black J-Strap Single Track barn door hardware installed on a wooden door panel.

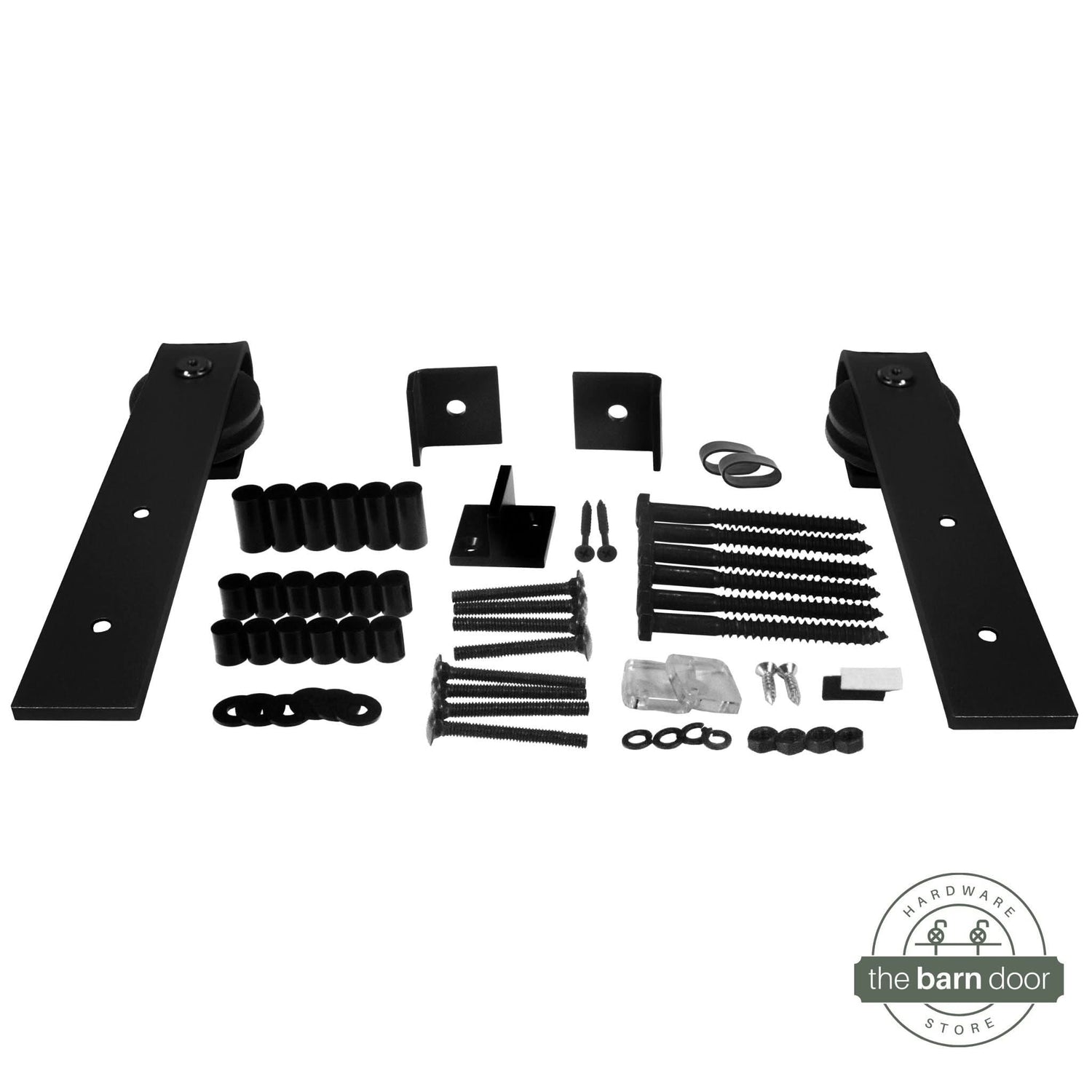

A studio shot of J-Strap Single Track barn door hardware components in Matte Black.

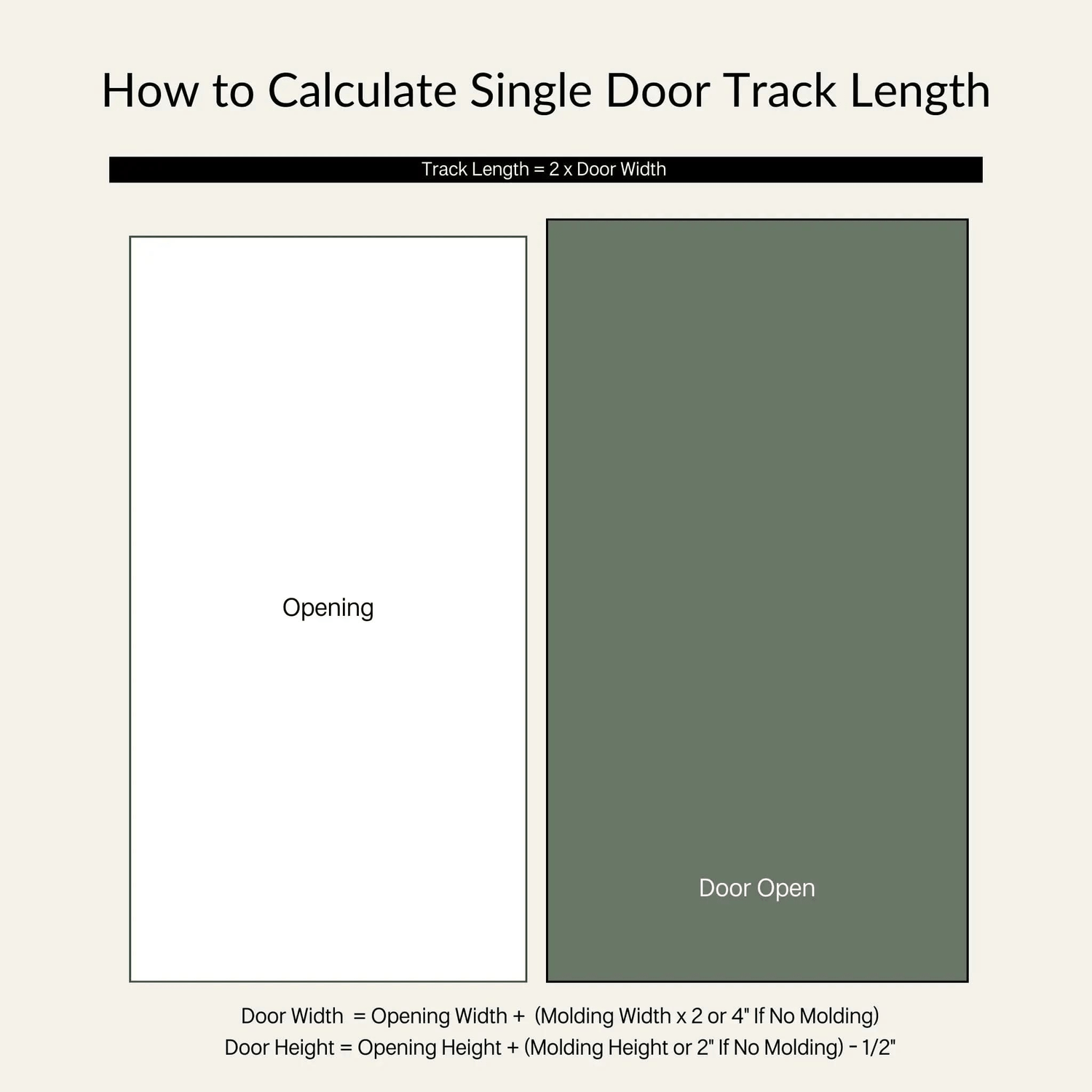

An instructional diagram titled 'How to Calculate Single Door Track Length'. The primary formula shown is: Track Length = 2 x Door Width. Additional formulas are provided to determine door size: Door Width = Opening Width + (2 x Molding Width, or 4 inches if no molding). Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch.

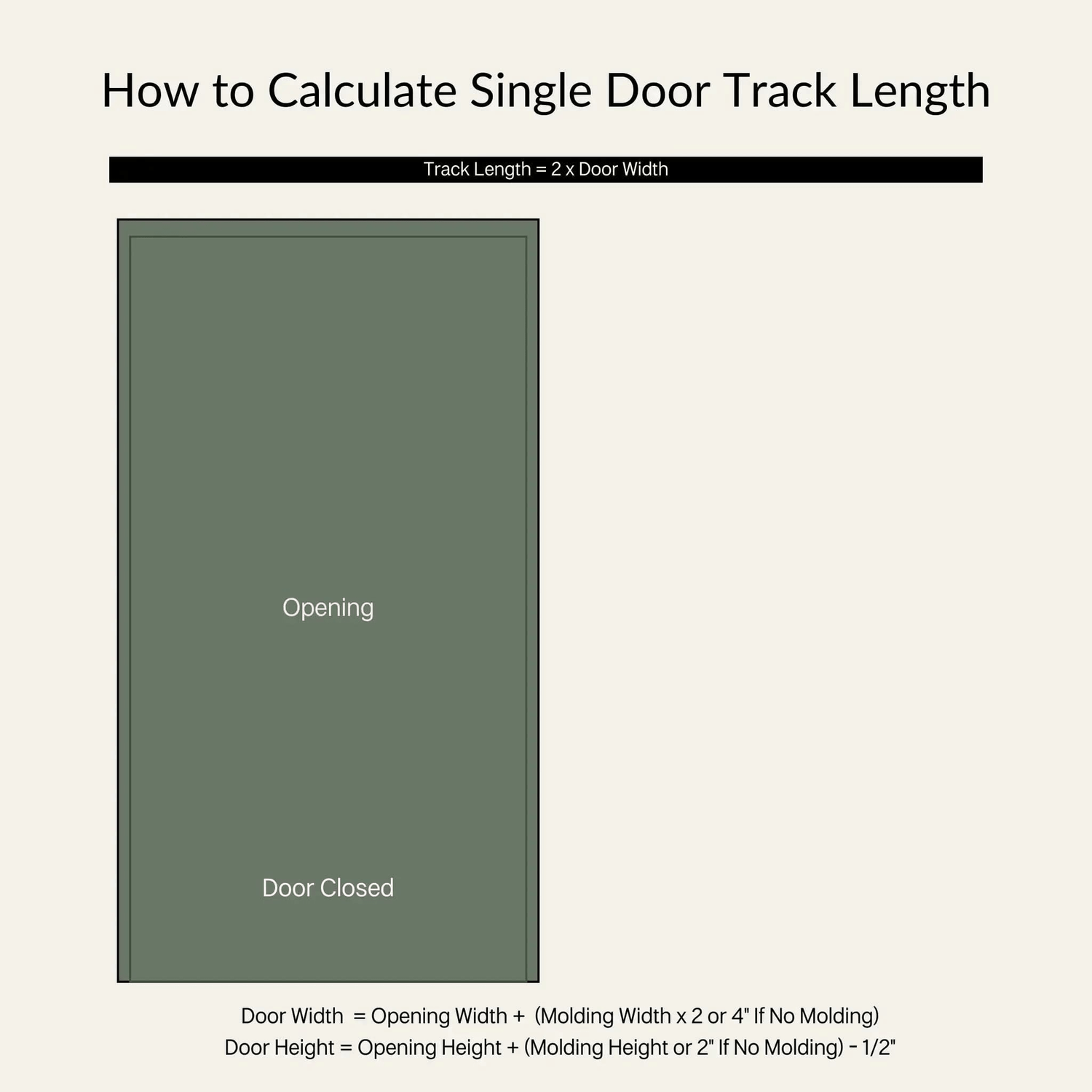

An instructional diagram showing a closed barn door and titled 'How to Calculate Single Door Track Length'. The primary formula is: Track Length = 2 x Door Width. Additional formulas for door size are: Door Width = Opening Width + (2 x Molding Width, or 4 inches if no molding). Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch.

Instructional diagram: 'How to Calculate Double Door Biparting Track Length'. The main formula is: Track Length = 4 x Door Width. To find the size for each of the two doors, the formulas are: Door Width = [Opening Width + (2 x Molding Width, or 4 inches if no molding)] / 2. The Door Height formula is: Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch.

Instructional diagram showing a pair of closed biparting doors, titled 'How to Calculate Double Door Biparting Track Length'. The main formula is: Track Length = 4 x Door Width. To find the size for each door, the formulas are: Door Width = [Opening Width + (2 x Molding Width, or 4 inches if no molding)] / 2. The Door Height formula is: Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch.

Roll over image to zoom in Click on image to zoom

Video of Liz installing J-Strap barn door hardware

Video of the install process for J-Strap Single Track Barn Door Hardware Kit

Classic J-Strap Barn Door Hardware Kit

Goldberg Brothers

Starts at:

$218.50

Finish: Matte Black Texture

Door Hardware: Hardware for 1 Door

Track Length: 4ft

Quantity:

Share this product

The J-strap is the most popular barn door hanger style we carry — and the one most people picture when they think of barn door hardware. The curved strap attaches to the front face of the door and cradles the roller that rides along the track. It's a clean, functional design that works in farmhouse, modern farmhouse, and contemporary spaces without leaning too rustic.

This kit is Goldberg Brothers standard duty hardware — made to order in the USA to your specified track length and finish. Tighter engineering tolerances, better bearings, and a powder coat that holds up noticeably better over time than comparable hardware at this price point. We've stocked Goldberg since 2016 and they consistently produce the fewest warranty claims and customer callbacks of any brand we carry. Made to order with a 10–15 day lead time before shipping. Backed by a limited lifetime warranty.

If your door is over 200 lbs or thicker than 1‑3/4 in, this is not the right kit — see our heavy duty hardware instead.

Door weight: Up to 200 lbs. Over 200 lbs? See heavy duty hardware.

Door thickness: 1‑3/8 in to 1‑3/4 in. Outside this range? See heavy duty hardware.

Wall clearance beside opening: Must equal full door width on the slide side. Limited clearance? See bypass or bifold hardware.

Wall header: A solid header above the opening is required for track mounting. If there is no existing header or backing in the wall, we recommend installing a minimum 1×6 hardwood board (3/4 in thick × 5-1/2 in wide) that extends past the length of the track to the next stud or structural support point on each side. No solid header and cannot install one? See ceiling mount hardware.

Ceiling clearance above door: 4-1/2 in required. Less clearance? See straight strap or horseshoe hardware (4 in).

Door width: Your door must be wider than the rough opening. For standard rooms plan for 2 in of wall overlap on each side — opening + 4 in. For bedrooms and bathrooms, 3 in per side gives better privacy — opening + 6 in. Minimum functional overlap is 1/2 in per side. See our measuring guide for full sizing formulas.

Door height: Measure from finished floor to the top of the rough opening and add 1 in. The extra inch covers the top of the opening while leaving 1/2 to 1 in of clearance at the bottom for the door to slide without dragging. If you have thick carpet, check that clearance is adequate along the full travel path before ordering.

Brand: Goldberg Brothers — made to order in the USA

Lead time: 10–15 days

Track dimensions: 1‑1/2 in wide × 3/16 in thick

Wheels: Delrin — quiet, smooth operation, rated to 200 lbs

Weight capacity: 200 lbs per door

Door thickness: 1‑3/8 in to 1‑3/4 in

Configurations: Single door or biparting (two-door)

Finishes: Matte black, black, arch bronze, silver metallic

Soft close: Available as add-on — can also be retrofitted after install

Handles: Not included — order separately from barn door handles

Warranty: Limited lifetime warranty

For the full pre-order checklist, see our measuring guide. For track length formulas, see our track length guide.

Custom-cut steel track (1‑1/2 in × 3/16 in)
J-strap roller sets with Delrin wheels
Wall mounting brackets, bolts, and spacers
2 track stops per roller set
1 floor-mounted T guide per door
Anti-jump safety bumpers
Installation instructions

Tracks over 7'6" ship in multiple sections with junction plates included. The connection is not visible once installed. Handles and soft close are not included — add them separately before checkout if needed.

The included floor guide is floor-mounted and requires screws into the floor. If you have finished hardwood, tile, or LVP, you'll need a wall-mounted floor guide instead — it does the same job without drilling into the floor.

For installation, mount into solid blocking or a header board — at minimum a 1×6 hardwood — to distribute the door's weight across multiple studs and ensure a secure long-term mount. Step-by-step install guides are available for every kit.

Hardware kits don't include handles or a latch — plan for these before checkout to avoid a second shipment:

Handles: Bar pull or D-pull for the room-facing side — browse our handles collection
Flush pull: For the wall-facing side if the door needs to be operated from both sides — browse our flush pulls collection
Latch: Keeps the door closed deliberately — browse our locks and latches collection
Wall-mounted floor guide: If you have finished hardwood, tile, or LVP you can't drill into — browse our floor guides collection

The track must be at least 2× the door width for the door to fully clear the opening. Measure the door panel — not the rough opening.

Single door: 2× door width — e.g. 36 in door → 72 in track

Biparting (2 doors): 2× combined door width — e.g. two 36 in doors → 144 in track

For biparting: add both door widths together first, then double the combined total. Every track is custom-cut to your specification. If the length you need isn't listed, request a custom quote — non-standard lengths are priced the same as the next standard size up.

This is a made-to-order product. Custom track lengths cannot be returned. Confirm your measurement before submitting your order.

Our Simple 3-Step Process

Real Home, Real Install: Matte Black J-Strap in a Guest Bedroom

Interior creator @lizrogersxoxo walked through her full J-Strap barn door hardware install for her guest bedroom refresh — and she didn't skip a single step. Watch her attach the hangers, mount and level the track, and land that satisfying final slide that tells you everything is perfectly aligned.

Reclaimed Door Meets J-Strap Hardware — Here's How They Did It

@the_couchman_crew paired our matte black J-Strap hardware with a reclaimed wood door. Watch them hang the hangers, get the door up on the track, and land that smooth final slide on a door with real character and weight to it.

Common Questions

How does the J-strap attach to the door?

The J-strap mounts to the front face of the door — you'll see the strap and roller from the front. The curved strap wraps over the roller, which rides along the top of the track. No routing or back-face mounting required.

My door is over 200 lbs — can I still use a J-strap?

Yes, but not this kit. Goldberg Brothers makes a heavy duty J-strap rated to 400 lbs with a wider 2 in track and steel wheels built for heavier loads. See our heavy duty hardware collection.

Is soft close worth adding?

For bedroom doors, bathroom doors, doors on shared walls, or any high-traffic door in a home with kids — yes. For a pantry or utility door that gets light use, it's optional. Soft close can be added before checkout or retrofitted after installation if you change your mind later.

Do I need a header board?

Yes. Mount into either solid blocking inside the wall or an external header board — at minimum a 1×6 hardwood spanning the full track length. This distributes the door's weight across multiple studs rather than concentrating it at a single point, and gives you flexibility to position the track exactly where you need it.

What if my door is thicker than 1‑3/4 in?

This kit accommodates doors from 1‑3/8 in to 1‑3/4 in. For doors up to 2‑1/4 in thick, see our heavy duty hardware. If you're working with something outside that range, email us before ordering.

Email Us!

info@thebarndoorhardwarestore.com

Shipping Policy Installation Guide

Why Thousands Choose The Barn Door Hardware Store

Not all barn door hardware is built the same. Here’s how we compare.

J-Strap Roller Measurements
Height Above Door	4-1/2 inches
Roller Thickness	1-1/2 inches
Roller Width	1-1/2 inches
Roller Height	10 inches
Wheel Diameter	2-1/2 inches
Track Width	1-1/2 inches
Track Thickness	3/16 inches
Door Weight Capacity	200 lbs
Minimum Door Thickness	1-3/8 inches
Maximum Door Thickness	1-3/4 inches
Door to Track Spacing	3/8 inches

Roller Type	Height Above Door	Roller Thickness	Roller Width	Roller Height	Wheel Diameter
Straight Strap	4	1-1/4	1-1/2	9-1/2	2-1/2
Top Mount Straight Strap	4	1-1/2	3-1/2	4	2-1/2
J-Strap	4-1/2	1-1/2	1-1/2	10	2-1/2
Top Mount J-Strap	4-1/2	1-1/2	3-1/2	4-1/2	2-1/2
Horseshoe	3-15/16	1-1/4	6	8-3/4	2-1/2

Roller Type	Track Width	Track Thickness	Door Weight Capacity	Minimum Door Thickness	Maximum Door Thickness	Door to Track Spacing
Straight Strap	1-1/2	3/16	125 lbs	1-3/8	1-3/4	3/8
Top Mount Straight Strap	1-1/2	3/16	75 lbs	1-3/8	1-3/4	3/8
J-Strap	1-1/2	3/16	200 lbs	1-3/8	1-3/4	3/8
Top Mount J-Strap	1-1/2	3/16	100 lbs	1-3/8	1-3/4	3/8
Horseshoe	1-1/2	3/16	250 lbs	1-3/8	1-3/4	3/8
