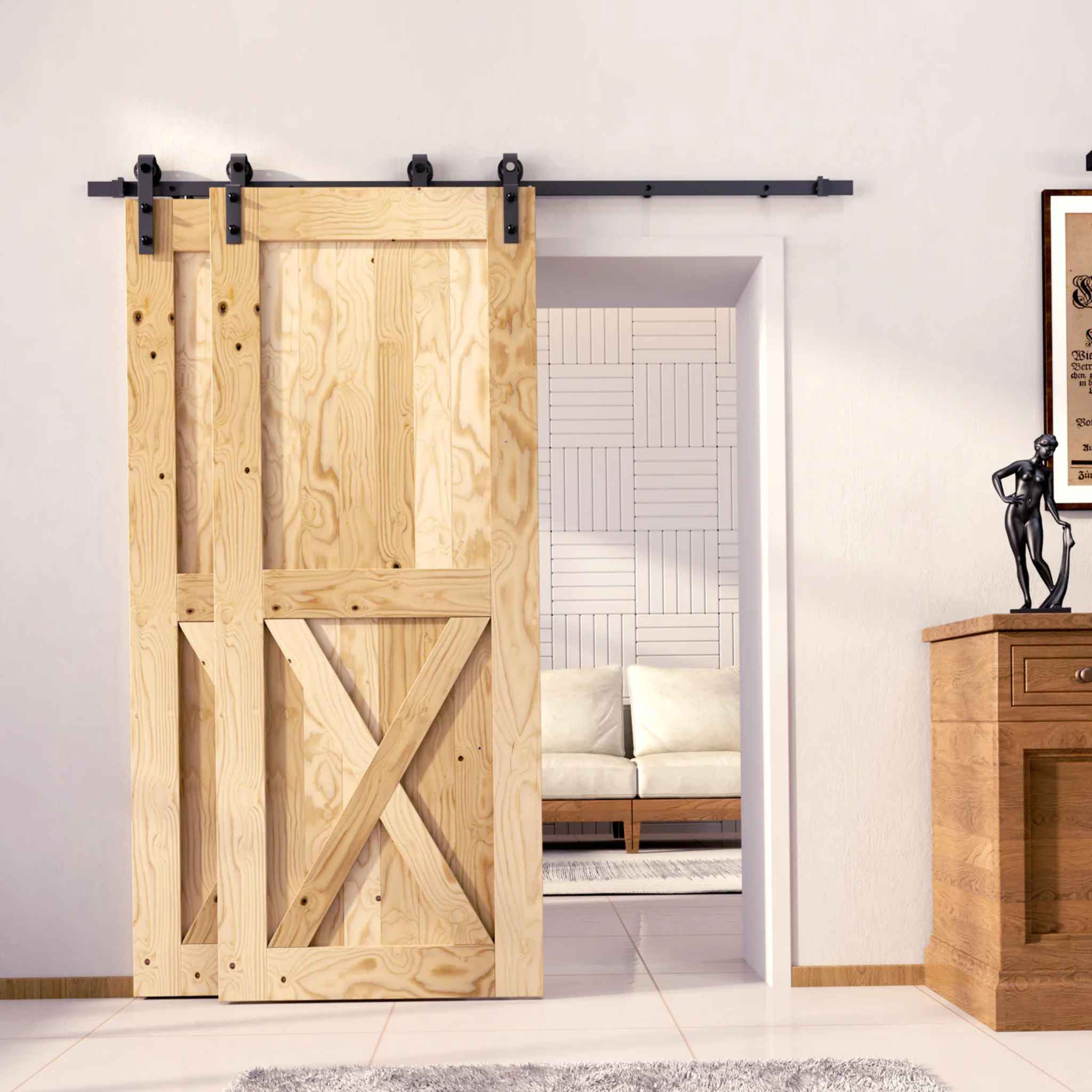

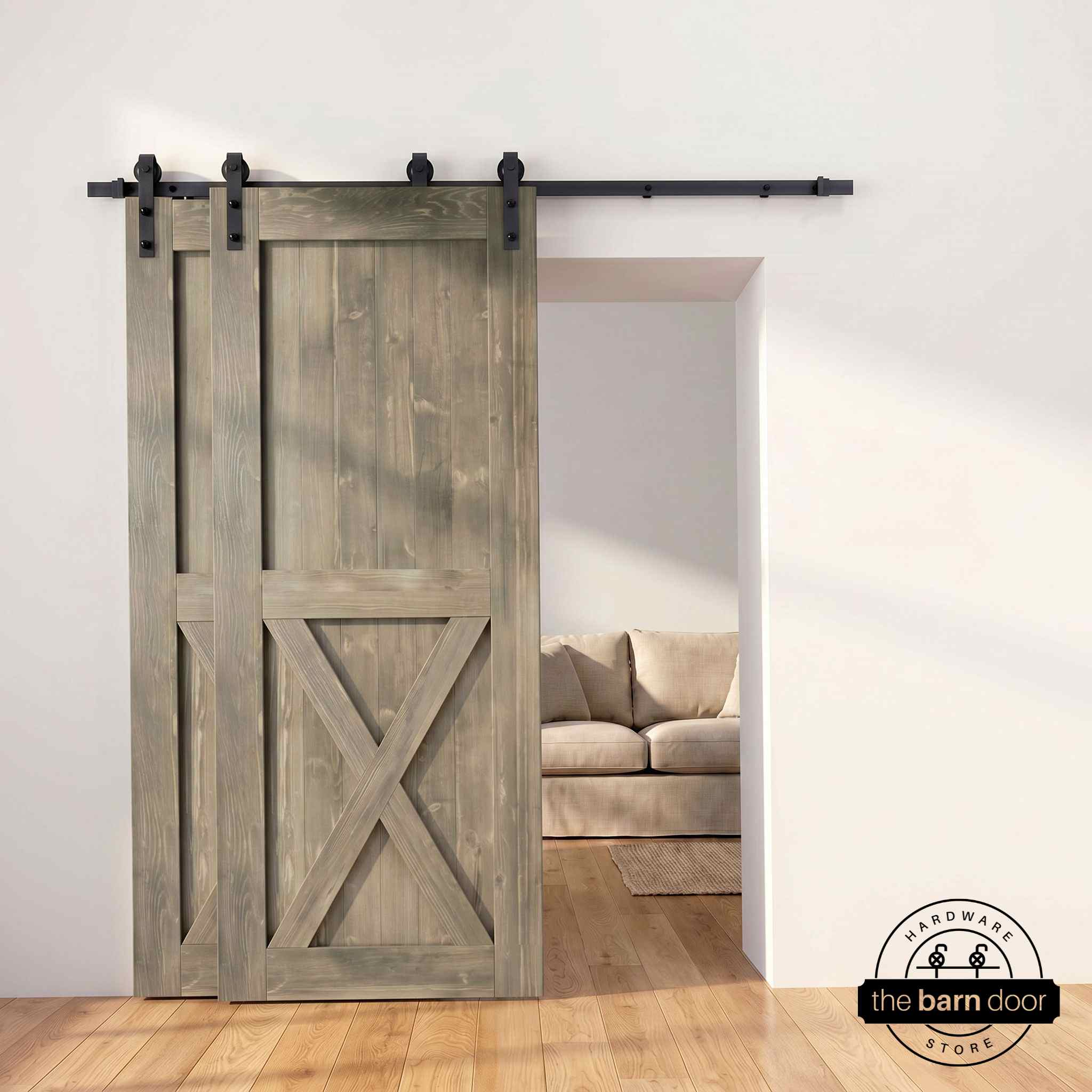

Classic Single Bypass 2 Door Barn Door Kit | Black Hardware

Door width per panel: Single bypass sizing depends on your roller type because each roller has a mandatory door overlap — the minimum the two doors must physically overlap each other. For J-Strap or Straight Strap (6 in mandatory overlap): normal = (opening + 10 in) ÷ 2 · extra privacy = (opening + 12 in) ÷ 2. For Spoke Wheel (9 in mandatory overlap): normal = (opening + 13 in) ÷ 2 · extra privacy = (opening + 15 in) ÷ 2. Select your roller type first, then calculate. Example: 48 in opening with J-Strap, normal → (48 + 10) ÷ 2 = 29 in → select 30 in.

Door height: Select 80 in or 84 in. The door should be at least 1 in taller than the opening — more is fine — to leave adequate floor clearance. On carpet or uneven floors, confirm there is enough clearance for both doors to slide without dragging.

Ceiling clearance: Clearance required between the top of the door and the ceiling depends on your roller type. Straight Strap requires 5 in; J-Strap requires 6 in; Spoke Wheel requires 8 in. Measure this gap before selecting a roller style.

Track length: Determined automatically by the door width you select — see the sizing reference below. One shared track ships with the kit.

Wall header: A solid header above the opening is required for track mounting. If there is no existing header or backing in the wall, install a minimum 1×6 hardwood board (3/4 in thick × 5-1/2 in wide) that extends past the length of the track to the next stud or structural support point on each side. No solid header and cannot install one? See ceiling mount hardware.

Wall clearance: Because this is a pass-through configuration, the doors don't need to fully clear the opening. The only wall clearance required on each side is the door's overlap onto the frame — 2 in for a standard setup or 3 in for extra privacy. Confirm there are no switches, outlets, or trim that would prevent the door from sitting flush at those overlap points.

Door material: Solid pine — ships flat for customer assembly

Configuration: 2-door single bypass — two doors on one shared track, pass-through only

Heights available: 80 in · 84 in (per panel)

Widths available: 22 · 24 · 26 · 28 · 30 · 32 · 34 · 36 · 38 · 40 · 42 · 44 · 46 · 48 · 54 in (per panel)

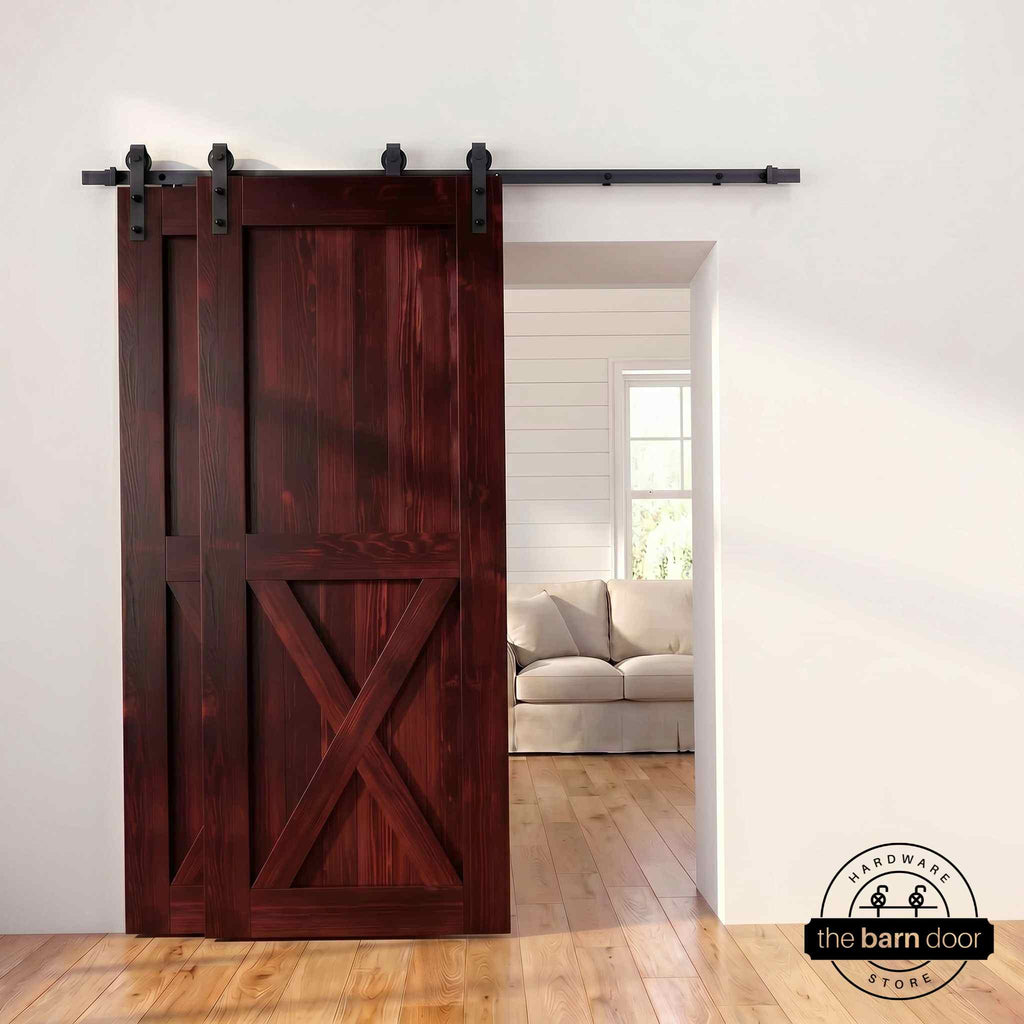

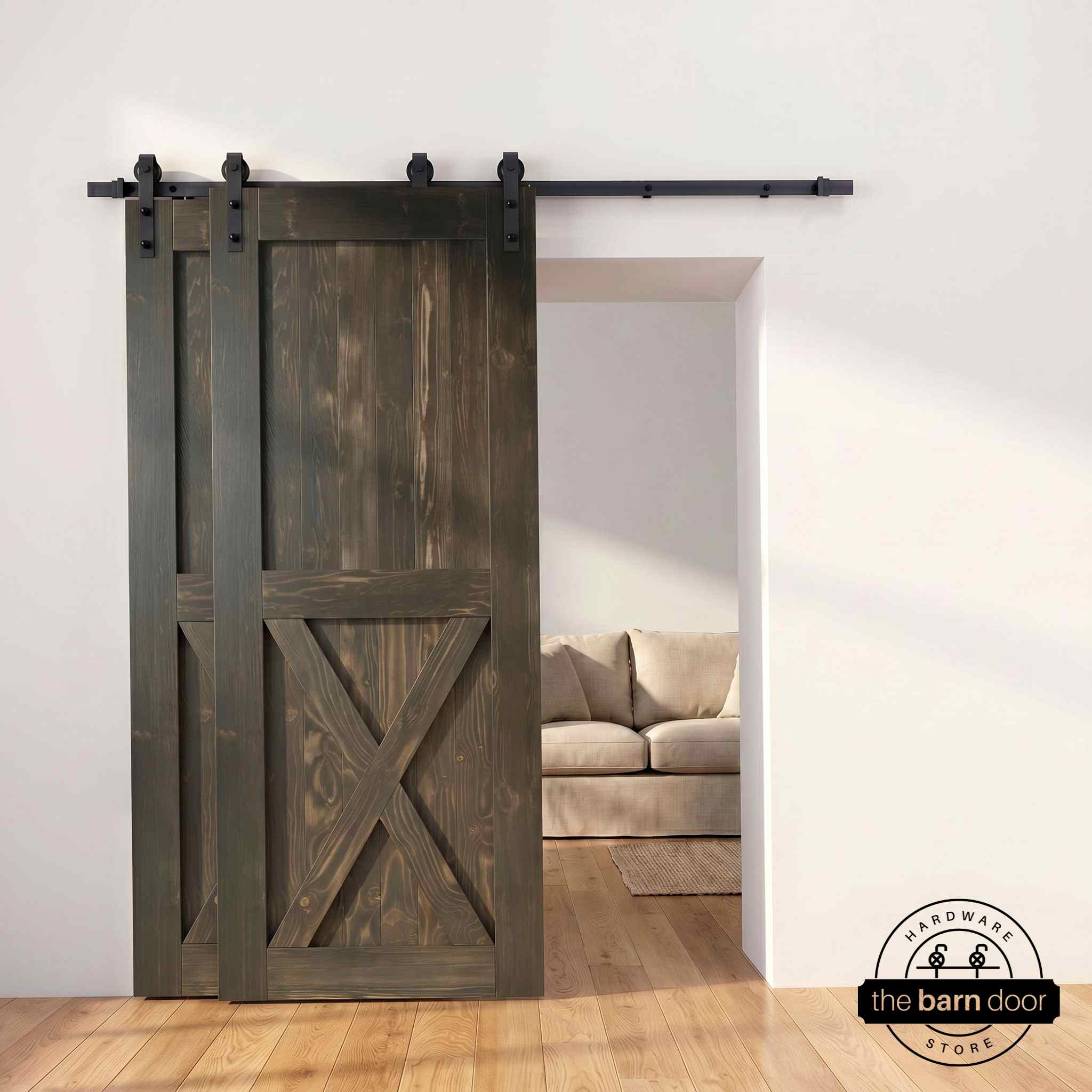

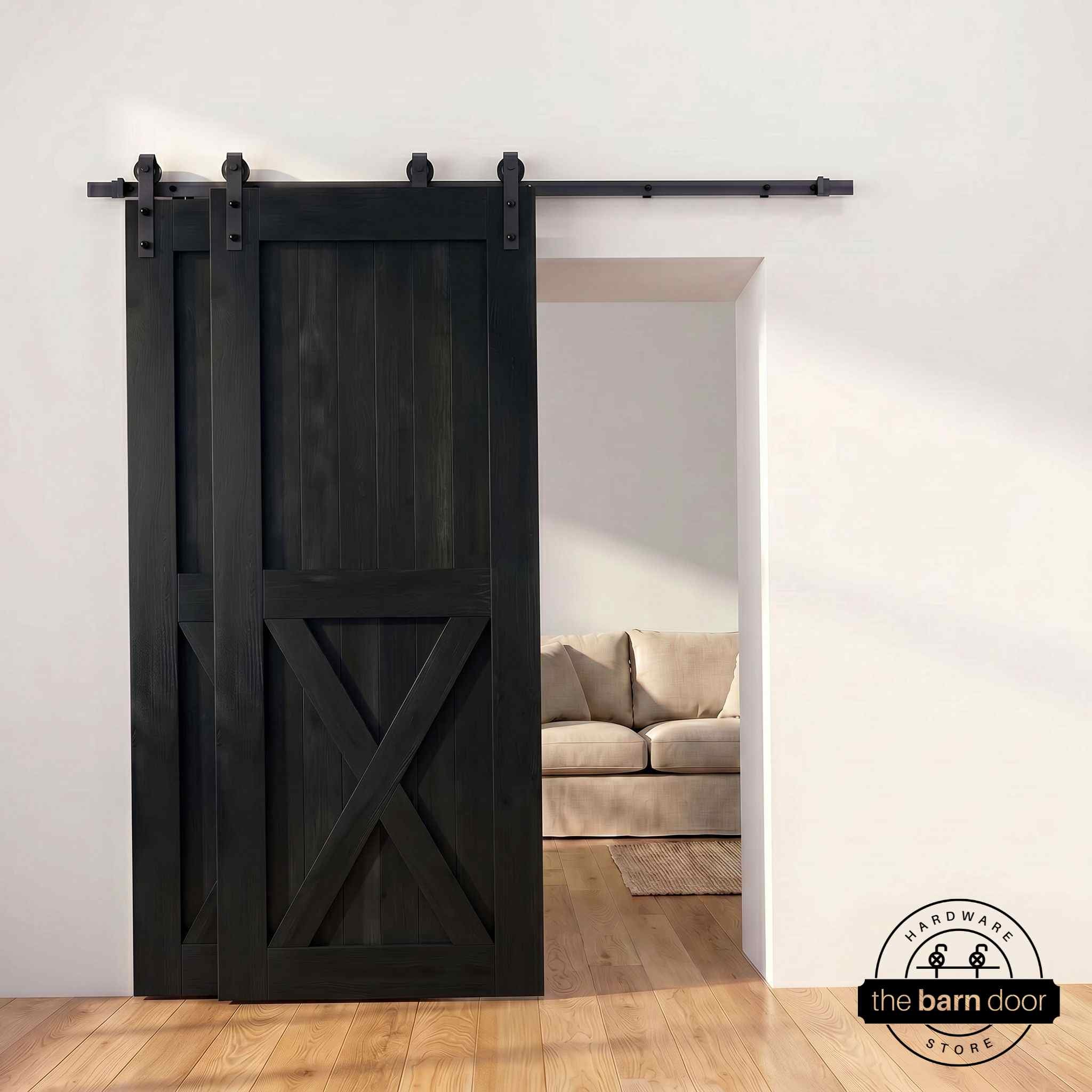

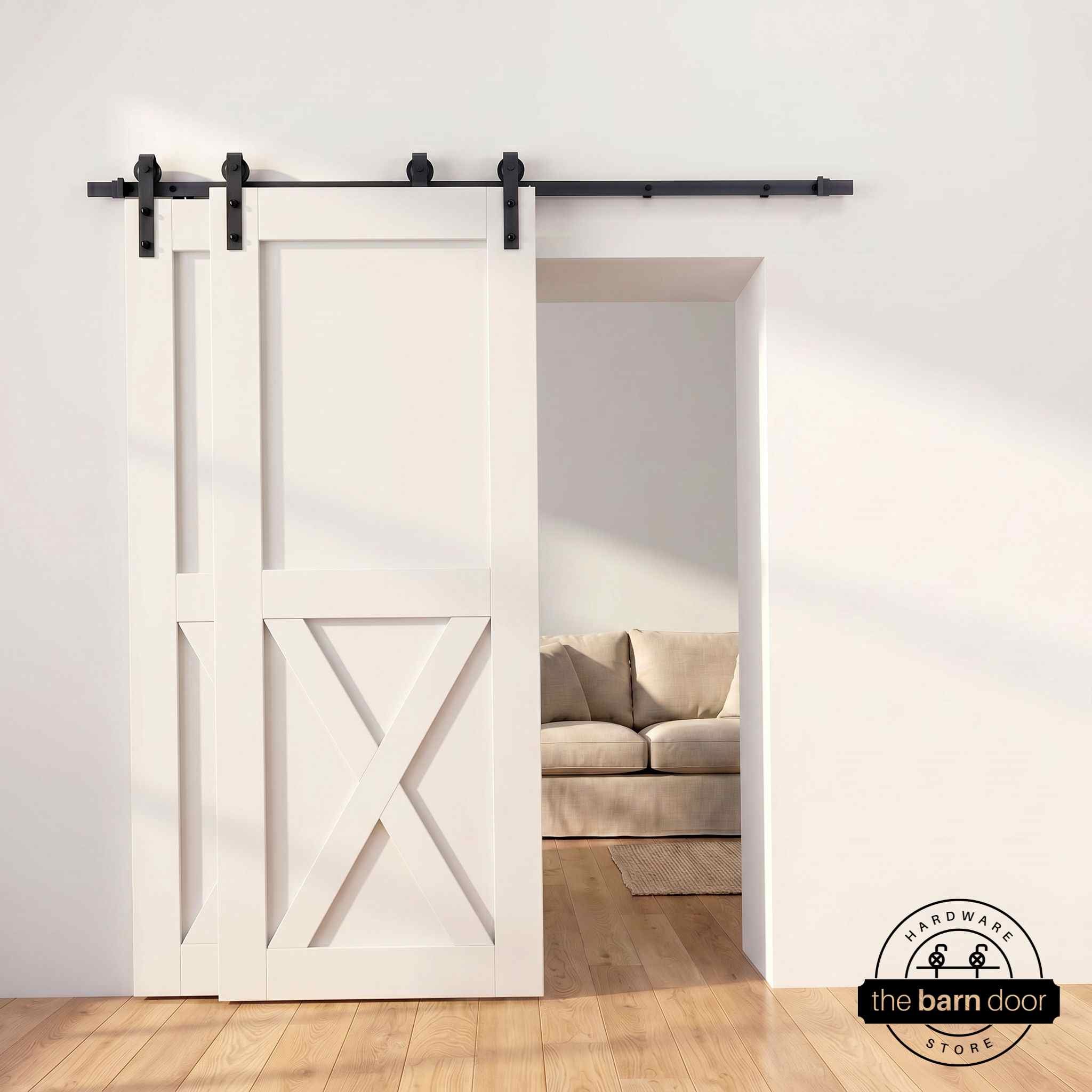

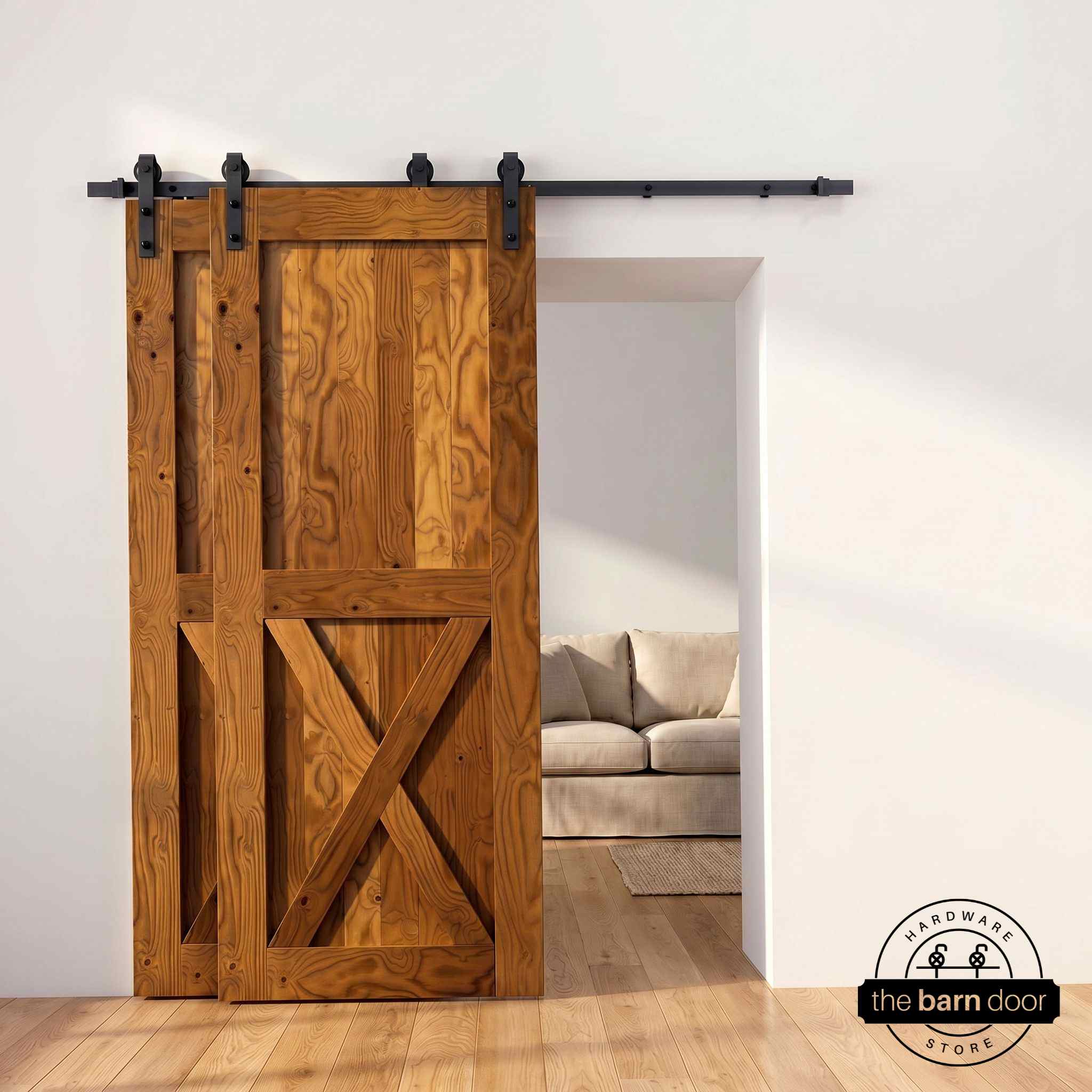

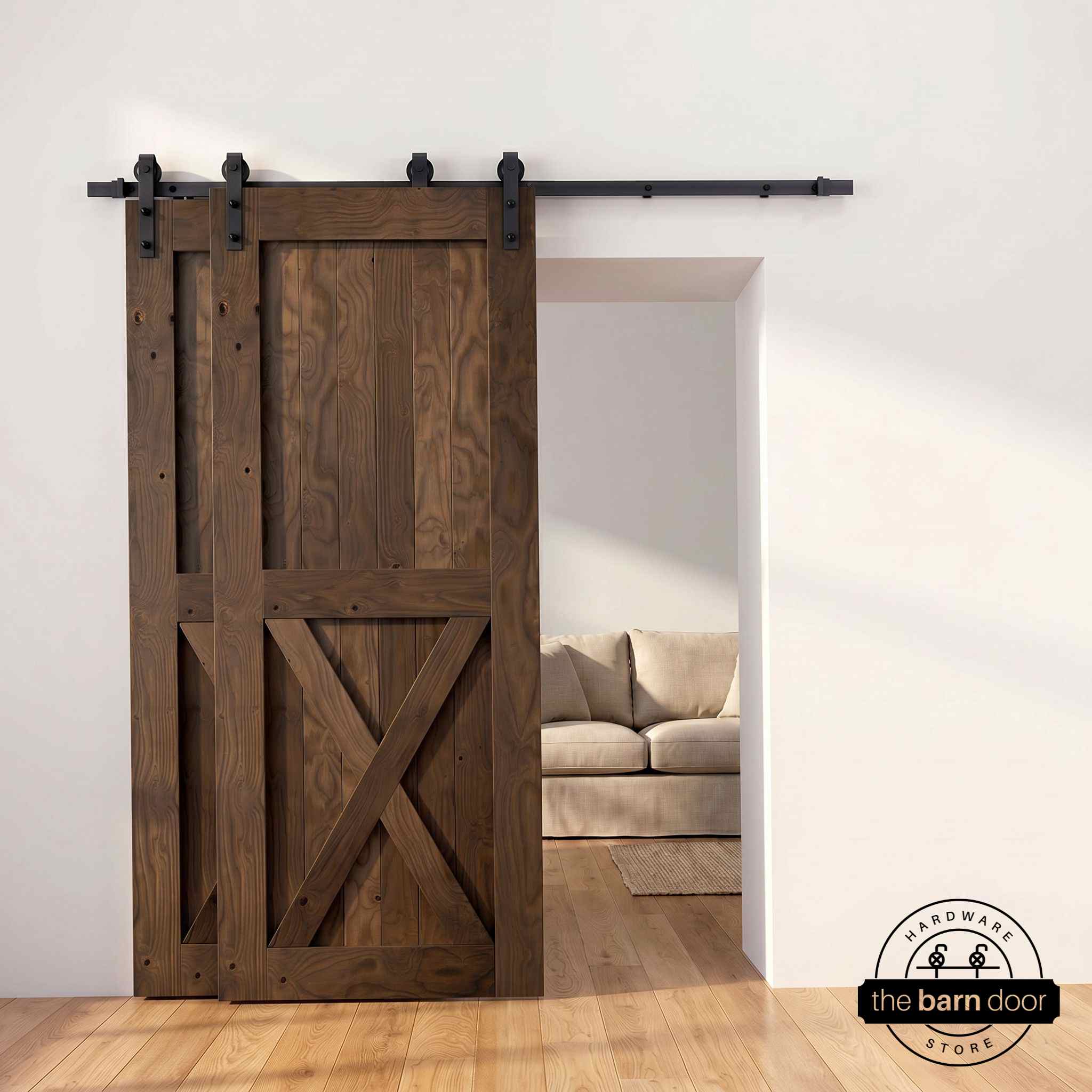

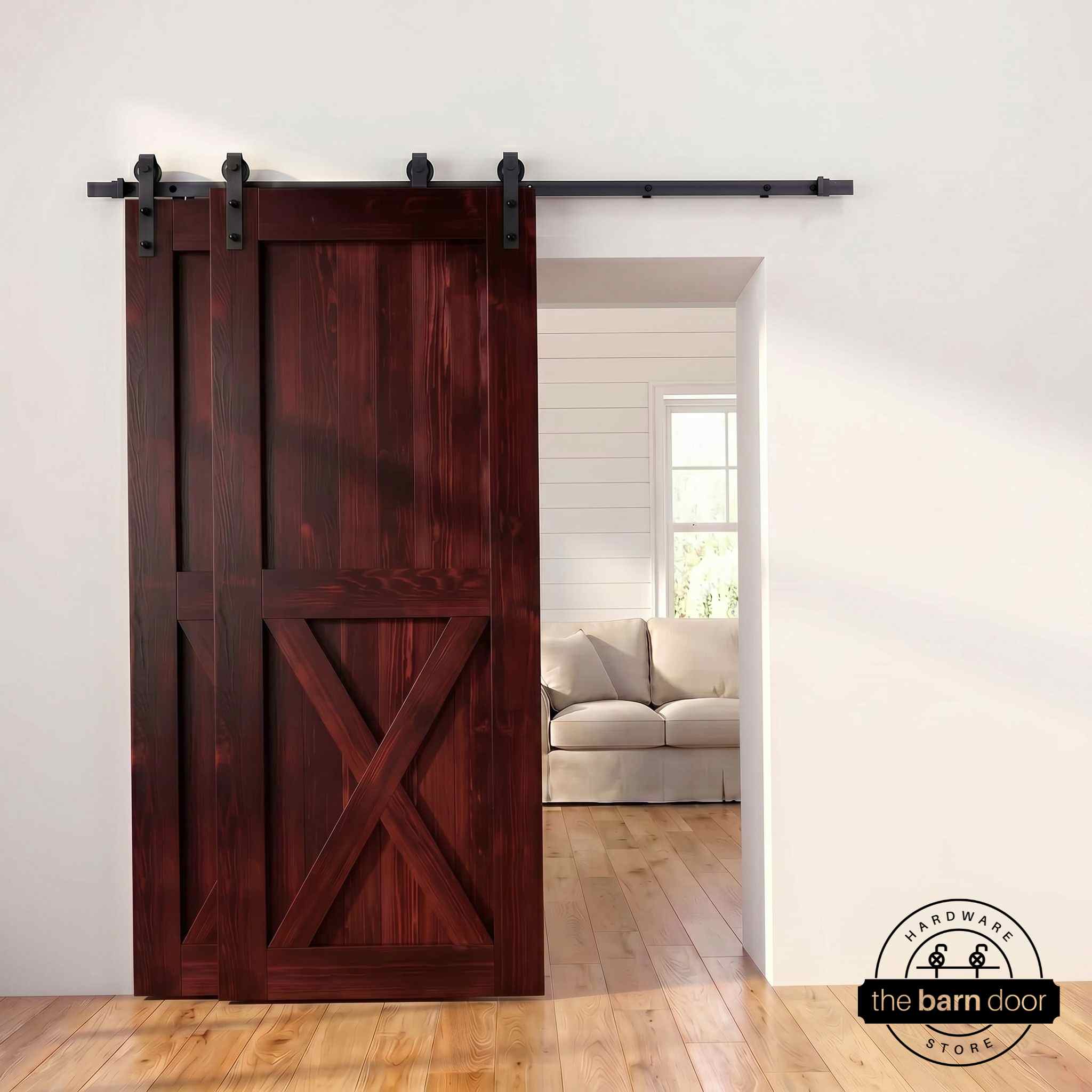

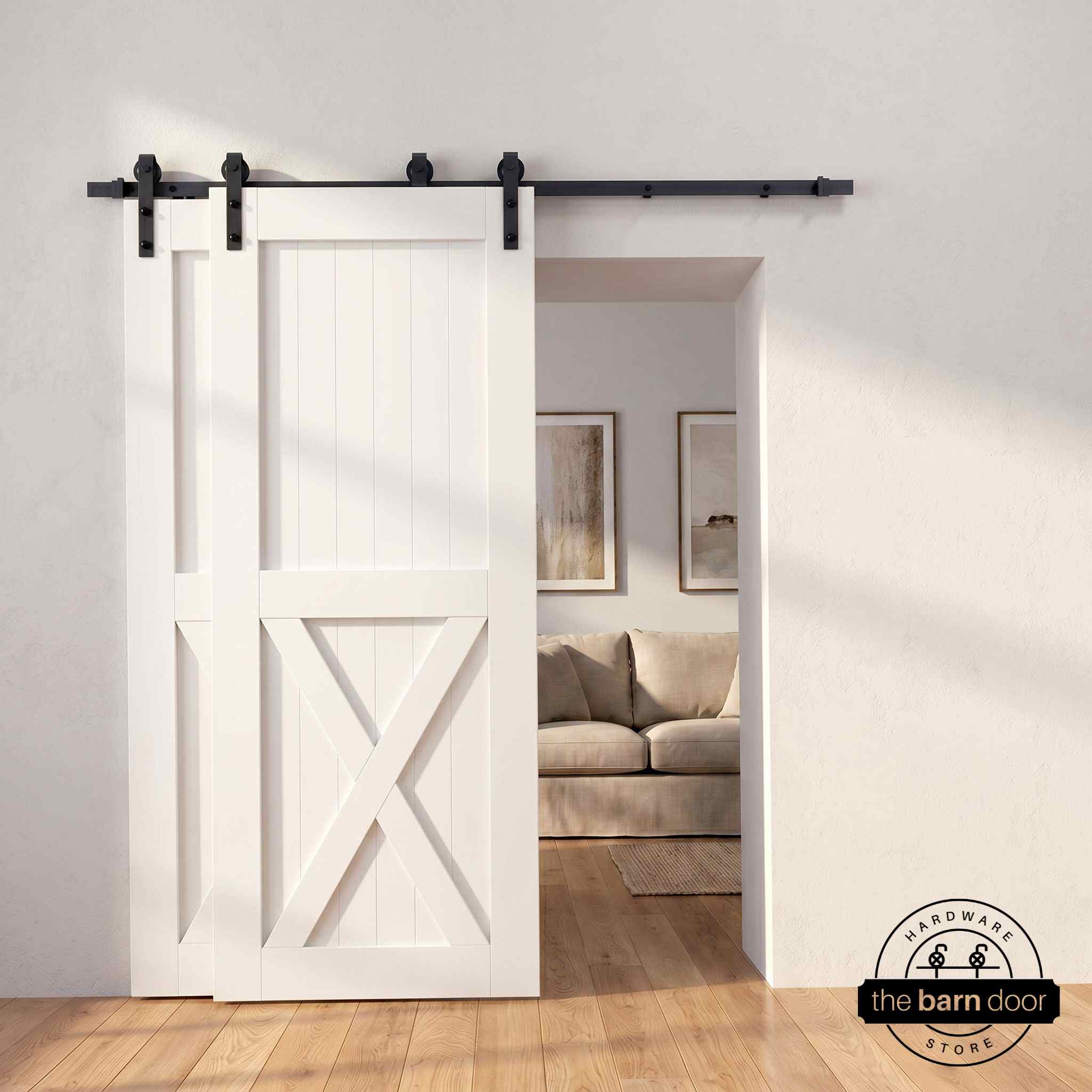

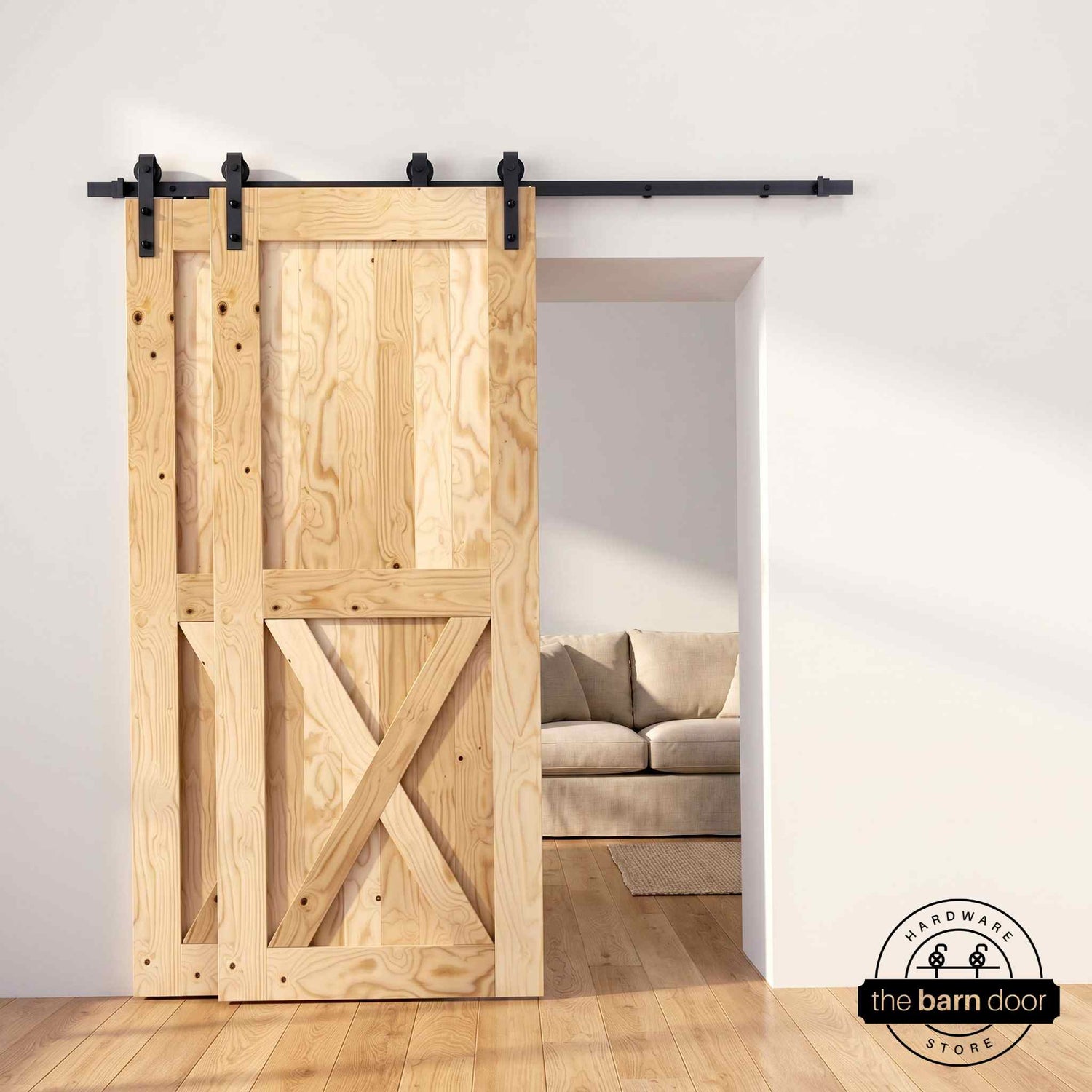

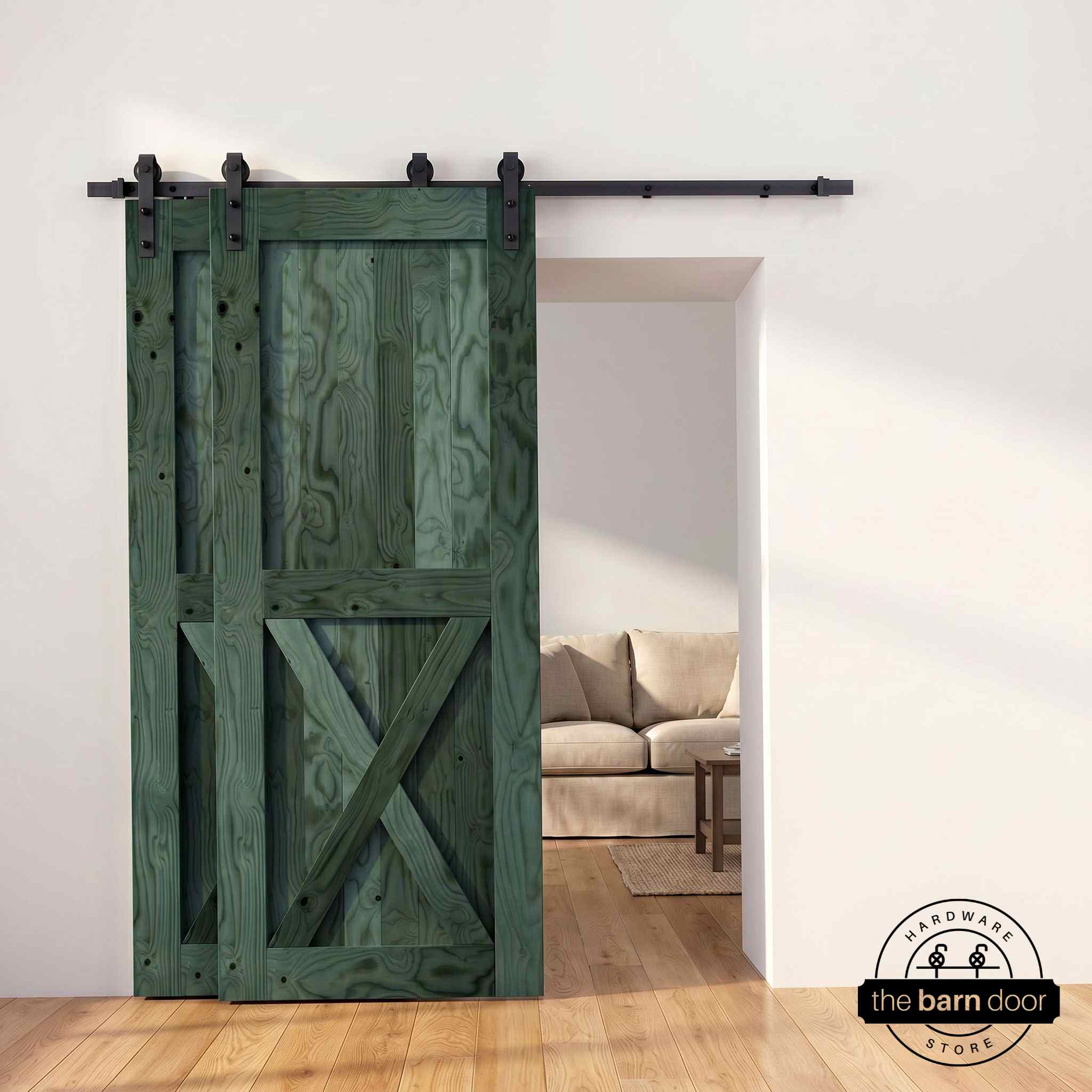

Stain options: Early American · Black · Ebony · Classic Gray · Navy · Red Mahogany · Royal Pine · Dark Walnut · Tinsmith Gray · White · Unfinished

Hardware finish: Black only

Roller type: Select from 3 HVL roller styles available for single bypass:

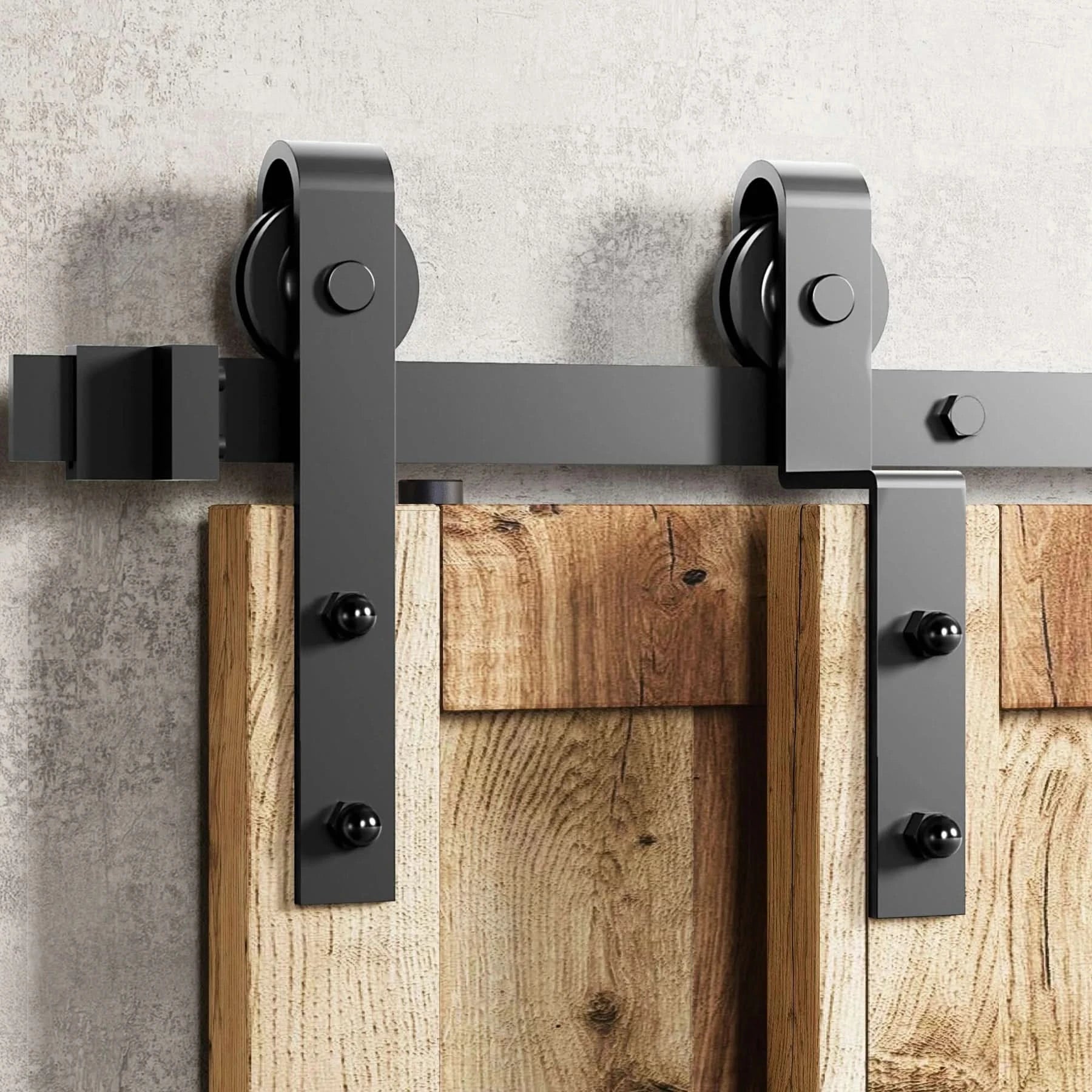

• J-Strap — 6 in ceiling clearance · 220 lbs capacity · door thickness 1-3/8 to 1-3/4 in · 6 in door overlap

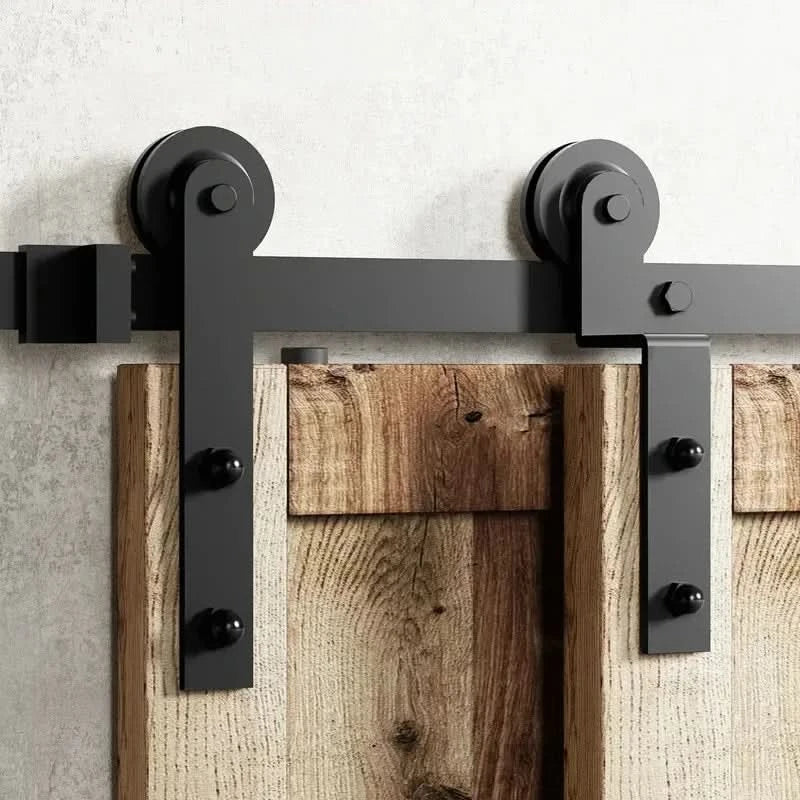

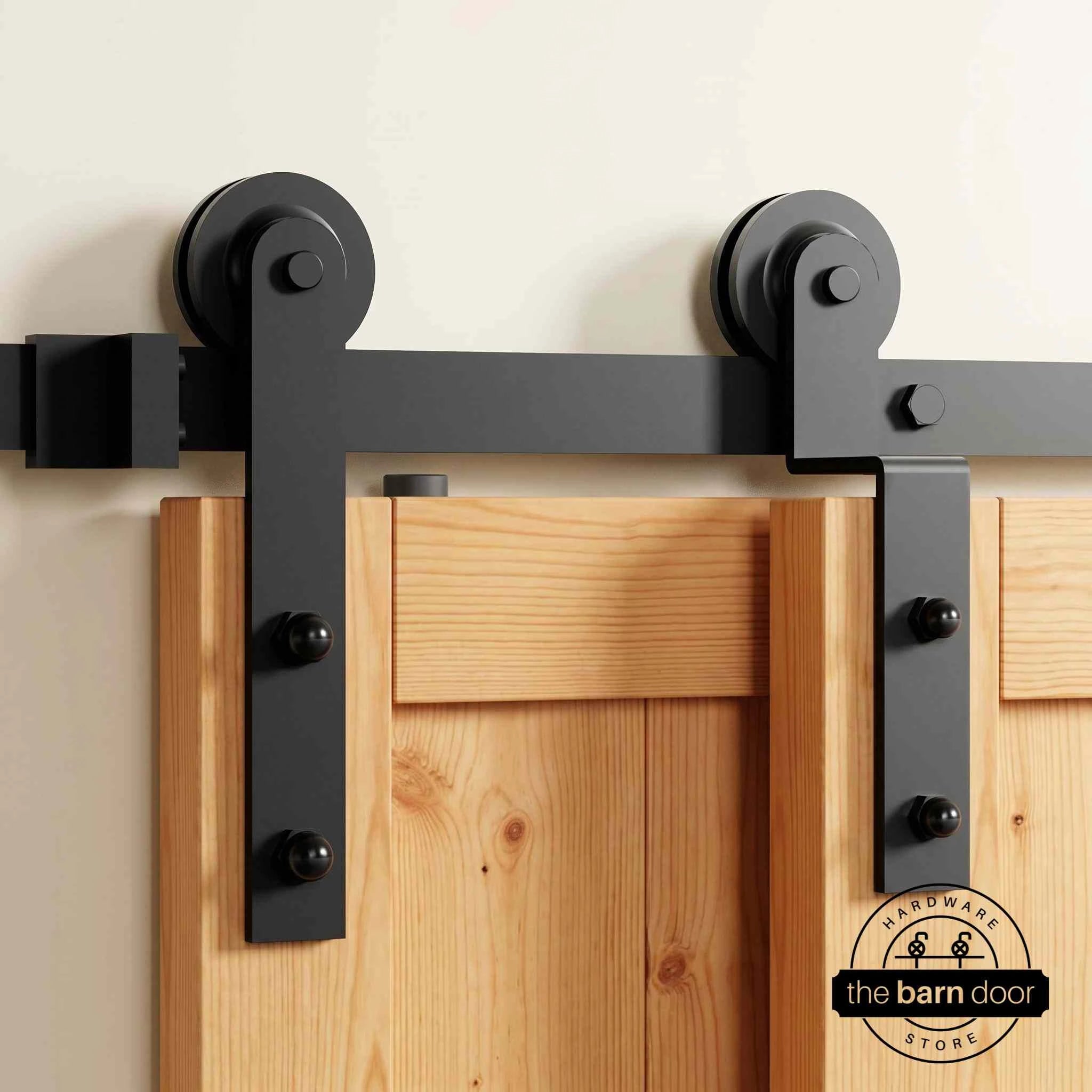

• Straight Strap — 5 in ceiling clearance · 220 lbs capacity · door thickness 1-3/8 to 1-3/4 in · 6 in door overlap

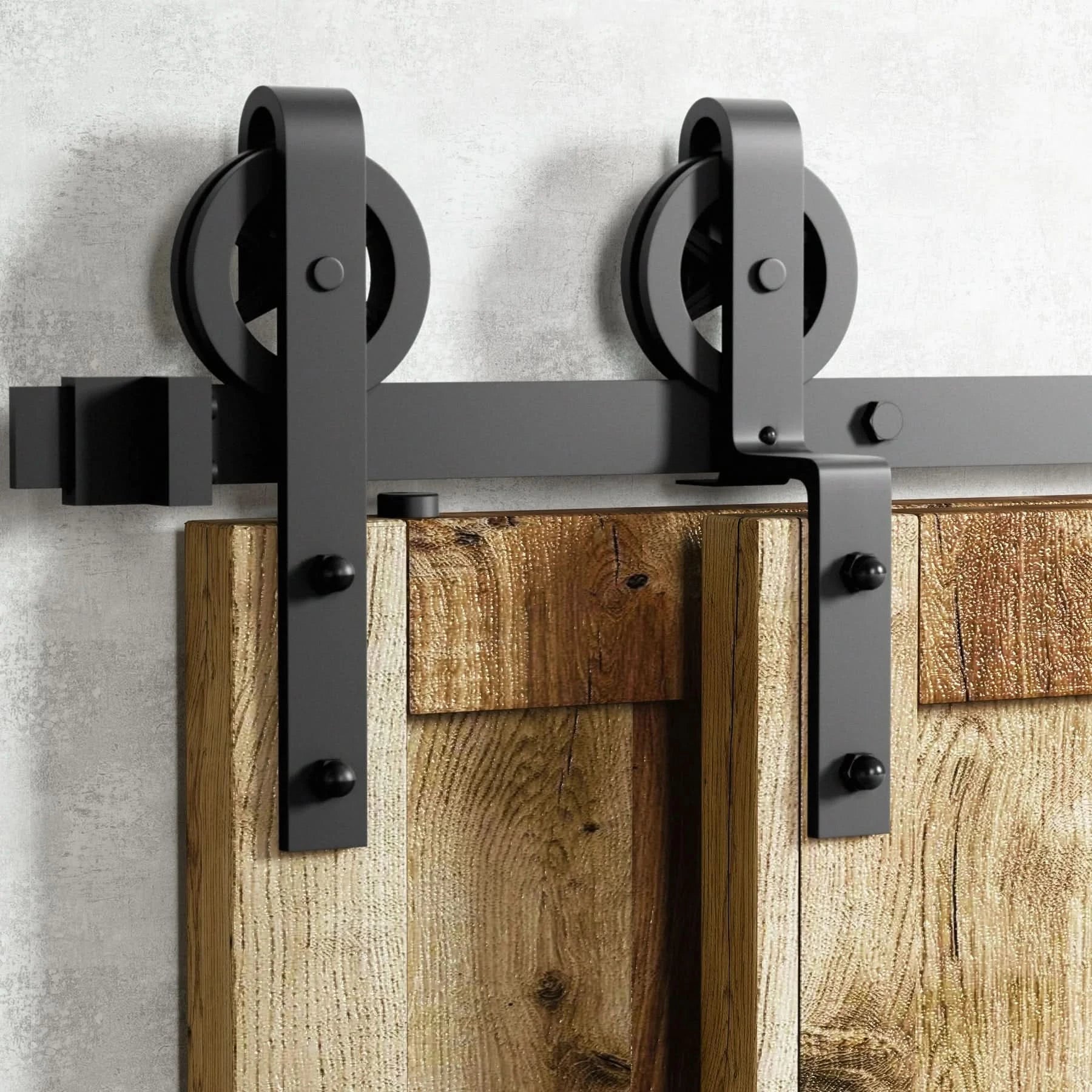

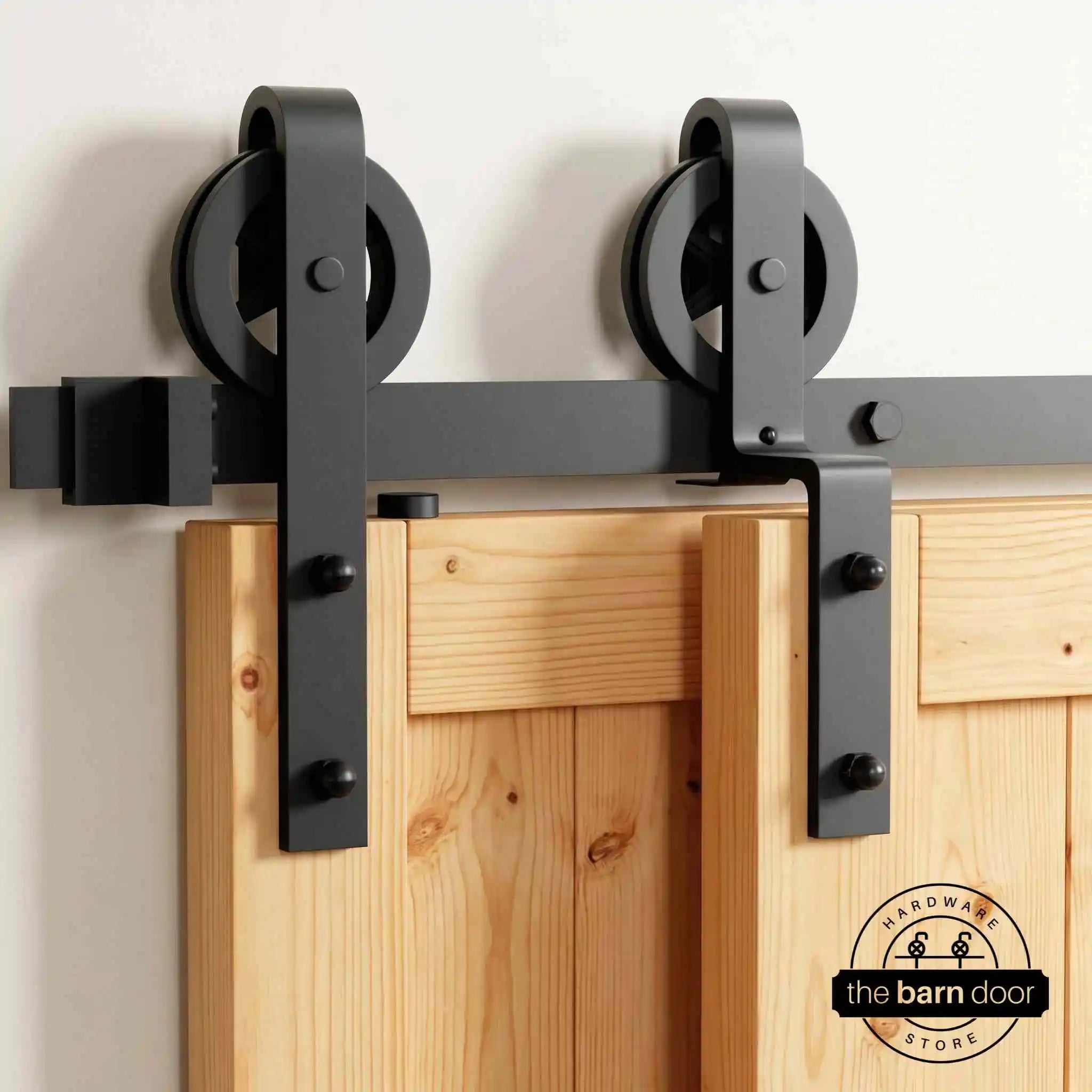

• Spoke Wheel — 8 in ceiling clearance · 220 lbs capacity · door thickness 1-3/8 to 1-3/4 in · 9 in door overlap

Lead time: Unfinished — 2–3 business days · Stained — 7–8 business days

Shipping: Both doors and all hardware ship together in one delivery

Door components (×2 — one set per door panel)

• Solid pine vertical planks and horizontal rails — all boards needed to assemble each door panel
• Assembly hardware — dowels, foam dowels, short screws, and long screws
• Decorative diagonal panels — included with both doors; optional to install. Creates plain, X, Z, or arrow pattern on each panel.

Bypass hardware — front door (bent hanger)

• Bent hanger/roller set (2) — offsets the front door from the back door on the shared track
• Hex bolt set (4)
• L-shape anti-jump system (2)
• U-channel wall-mounted floor guide (1) — compatible with bypass; attaches to baseboard, no floor drilling

Bypass hardware — back door (standard hanger)

• Standard hanger/roller set (2) — in your selected roller style
• Hex bolt set (4)
• Anti-jump system (2)
• Door stoppers (2), hex wrench (1)
• Double clip floor-mounted floor guide (1) — plastic clips, no slot required, won't scratch door

Track and mounting

• Flat track(s) — quantity based on door width per the hardware checklist
• Spacer set — spacer (1), lag bolt (1), washer (1)
• Junction plate — included when track length requires multiple sections
• Rubber hole covers (4) — for ends of track

Not included: Pull handles and flush pulls are sold separately — see our barn door handles collection. Note: soft close is not compatible with single bypass hardware.

Tools needed for door assembly: rubber mallet, drill or Phillips screwdriver, flathead screwdriver.

Door Stain — Select your finish from the color swatches. Unfinished ships in 2–3 days and arrives ready to stain on your own timeline. Both panels come in the same stain. All other options are pre-stained and ship in 7–8 business days.

Door Width — Select the width per panel based on your roller type and opening. J-Strap or Straight Strap: (opening + 10 in) ÷ 2 normal, (opening + 12 in) ÷ 2 extra privacy. Spoke Wheel: (opening + 13 in) ÷ 2 normal, (opening + 15 in) ÷ 2 extra privacy. See the sizing reference below to confirm the track length that ships with your selection.

Door Height — Select 80 in or 84 in based on your opening height.

Roller Style — Select from 3 available HVL roller styles for single bypass (J-Strap, Straight Strap, or Spoke Wheel). Pay attention to the ceiling clearance for each option listed in Specifications above. Not sure which to choose? See our barn door rollers collection or email us at info@thebarndoorhardwarestore.com.

Single bypass door width depends on your roller type because each roller has a mandatory minimum overlap between the two doors. Calculate your target door width, then select the closest available size.

J-Strap or Straight Strap (6 in mandatory door overlap): normal coverage = (opening + 10 in) ÷ 2 · extra privacy = (opening + 12 in) ÷ 2

Spoke Wheel (9 in mandatory door overlap): normal coverage = (opening + 13 in) ÷ 2 · extra privacy = (opening + 15 in) ÷ 2

Both panels are the same width. The sizing reference table shows the absolute maximum opening each door width can cover — use those figures as a ceiling, not a target. Track lengths ship automatically with the kit based on your door width selection.

For the complete door width, maximum opening, and track length reference chart, see our Classic Single Bypass sizing table.
