Pine Wood Patterned DIY Barn Door | 80"-84" x 26"-50"

Quick Ship

Starts at:

$854.99

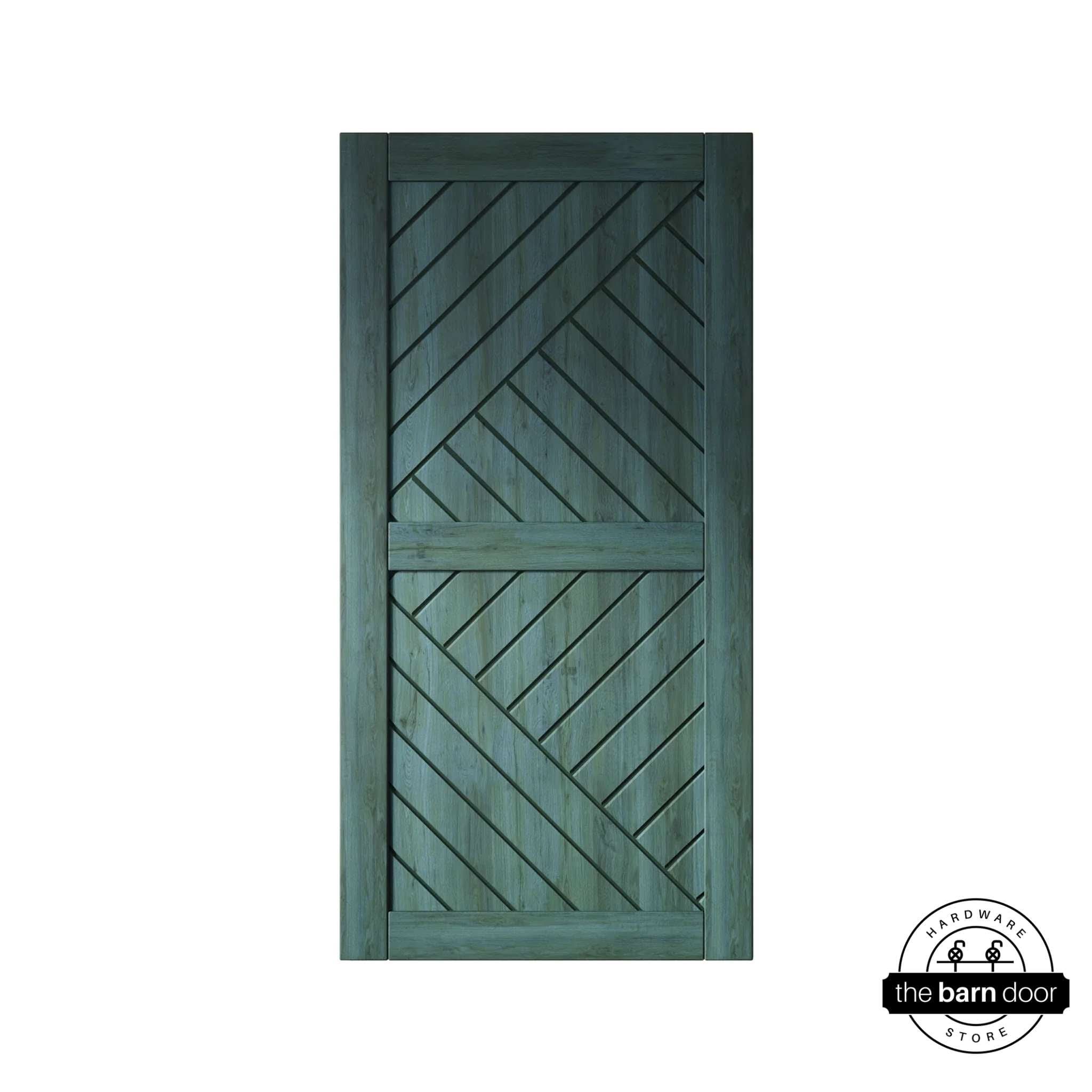

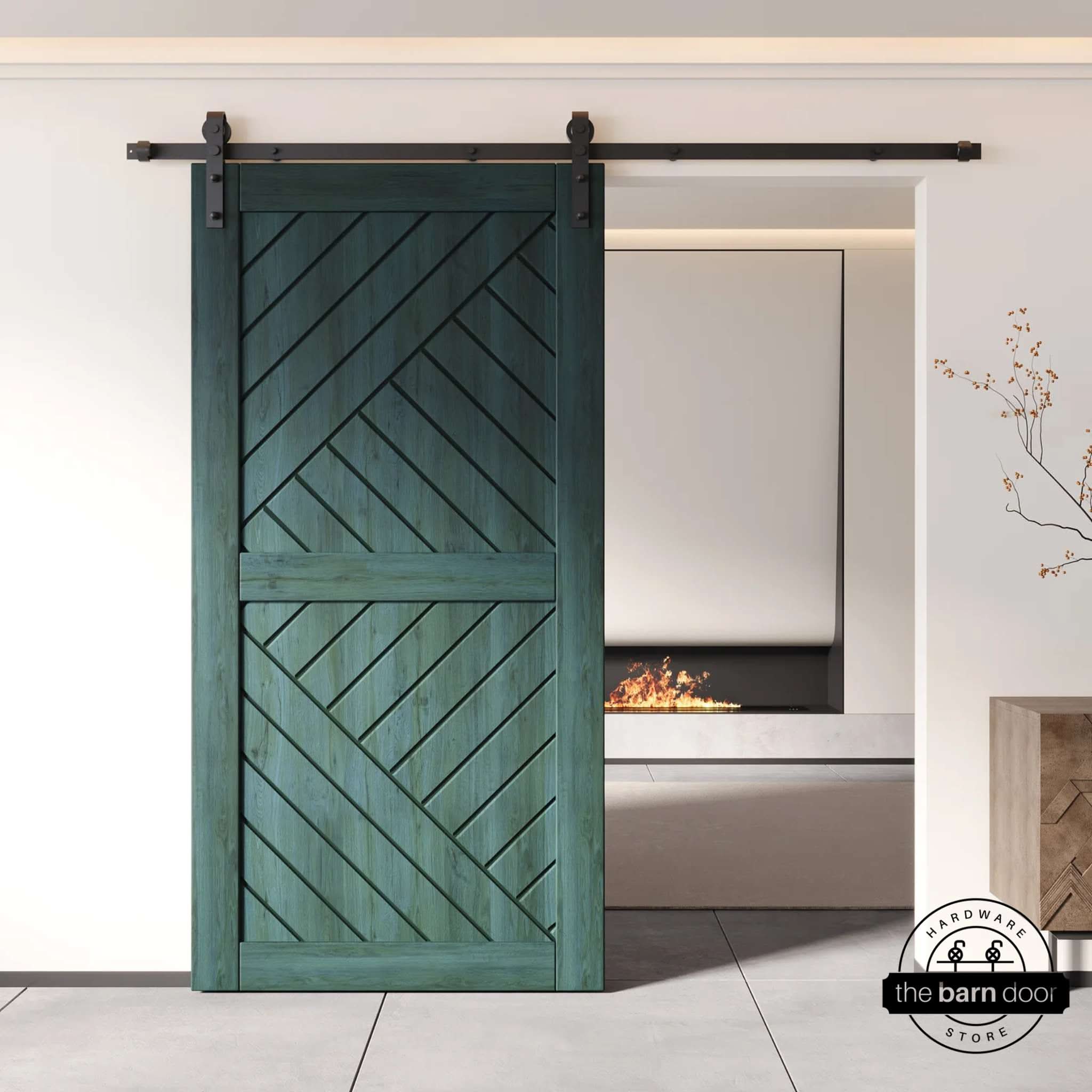

Stain: Royal Pine

Quantity:

Share this product

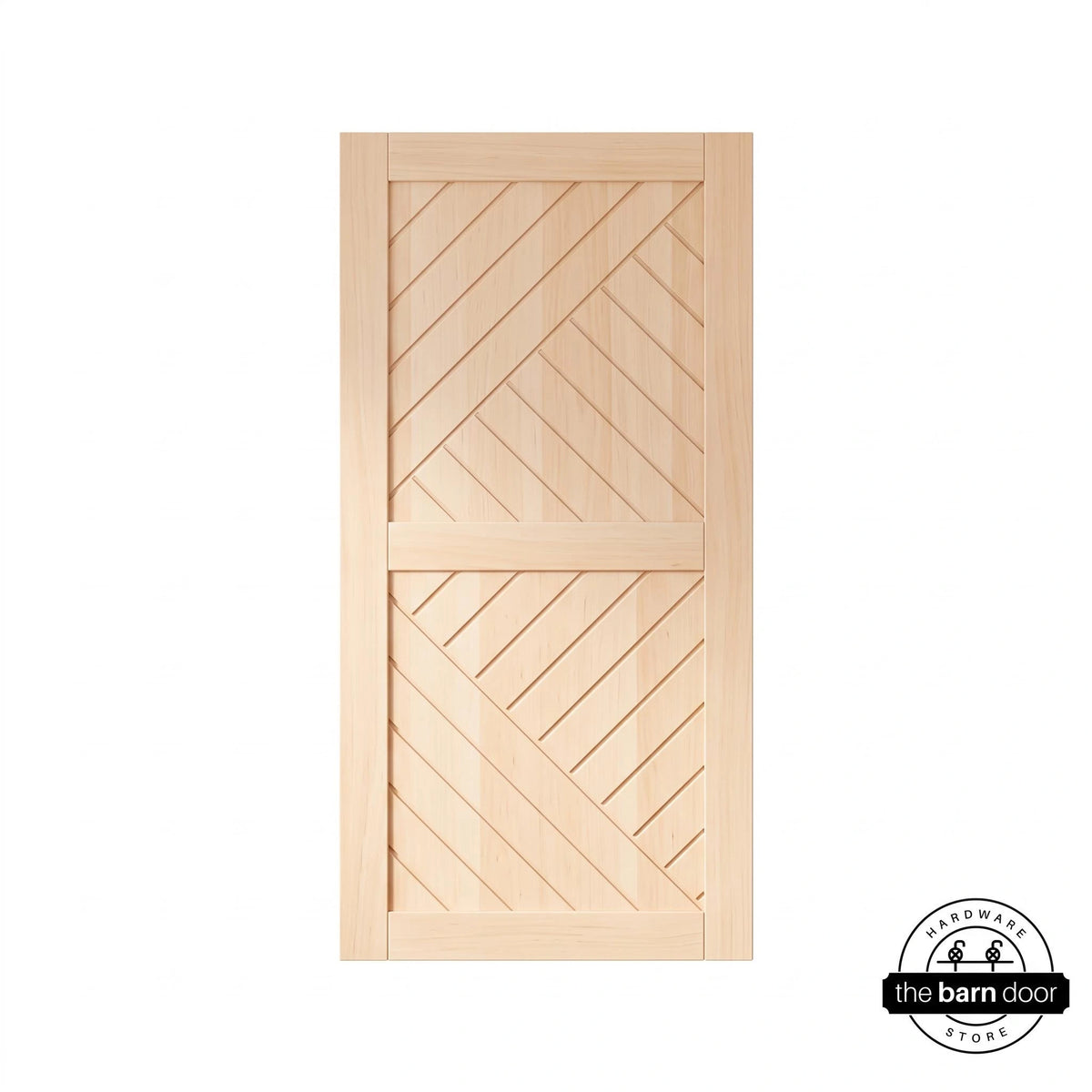

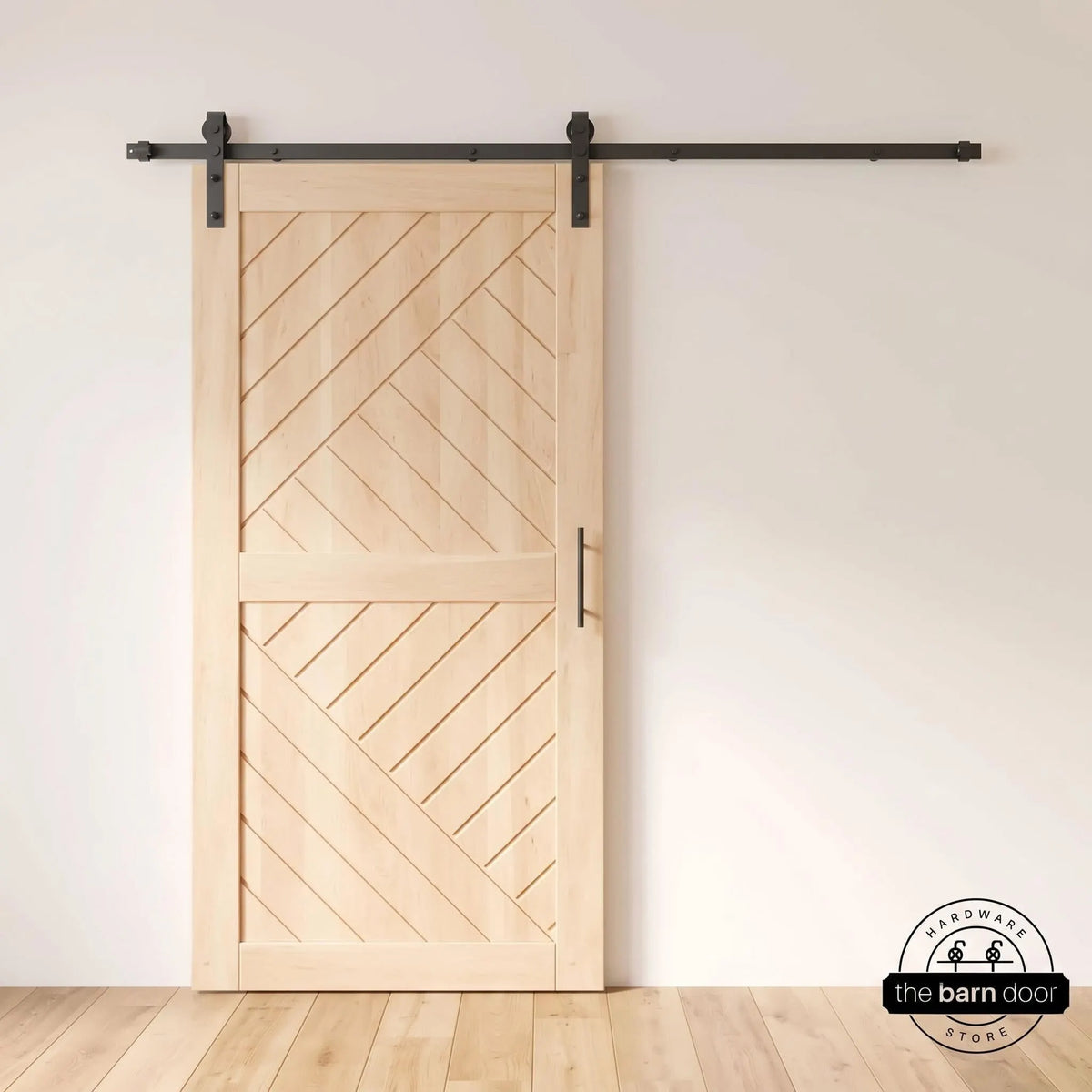

Solid pine barn door with diagonal stripe panels running across the face — a denser, more complex surface pattern than either the slanted or fishbone designs. The two C panels can be flipped during assembly to create one of 16 different arrangements, more design flexibility than any other door style in this lineup. The same door can produce a wide range of looks from symmetrical to opposing to alternating configurations depending on how you orient and combine the pieces. Decide on your arrangement before you start assembling — orienting the panels correctly from the beginning is significantly easier than adjusting after the fact. Hardware is not included. See our hardware kits collection for compatible options, or our barn door kits collection if you want a complete door-and-hardware package.

Available in 8 widths from 26 to 50 in and two heights (80 and 84 in). An unfinished option is not available for this door style — all 8 finishes are pre-applied stains, and all ship in 8–10 business days. If you need an unfinished door to apply your own finish, see the fishbone or slanted doors, which both offer an unfinished option.

Door width: Measure your rough opening width. For a standard room, add 4 in (2 in overlap each side). For a bedroom or bathroom, add 6 in (3 in each side). The minimum is opening + 1 in (1/2 in per side) — this barely covers the jamb and isn't recommended. Select the width closest to your result. The largest door is 50 in wide — for openings wider than 46 in, a biparting double-door setup often works better in practice.

Door height: Select 80 or 84 in based on your ceiling height and opening. The door should be at least 1 in taller than the opening — more is fine — to leave adequate floor clearance. A 96 in option is not available for this door style.

Door thickness: 1-3/8 in. Compatible with standard HVL single-track and bypass hardware and Goldberg Brothers standard duty hardware. Confirm minimum and maximum thickness requirements on your chosen hardware before ordering.

Material: Solid pine — ships flat for customer assembly

Design: Diagonal stripe panels — 16 arrangement options by flipping C panels during assembly

Heights available: 80 in · 84 in

Widths available: 26 · 30 · 32 · 36 · 40 · 42 · 48 · 50 in

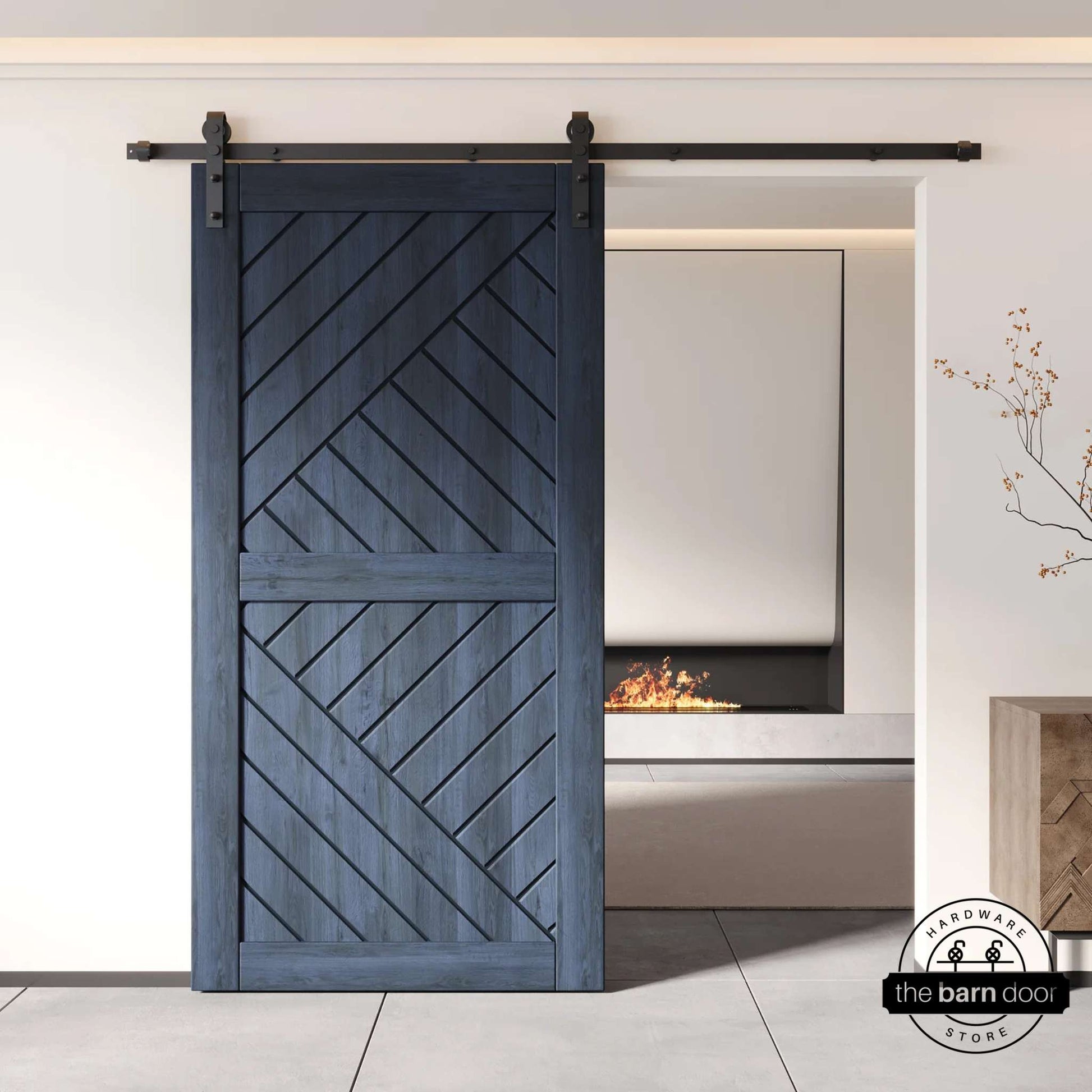

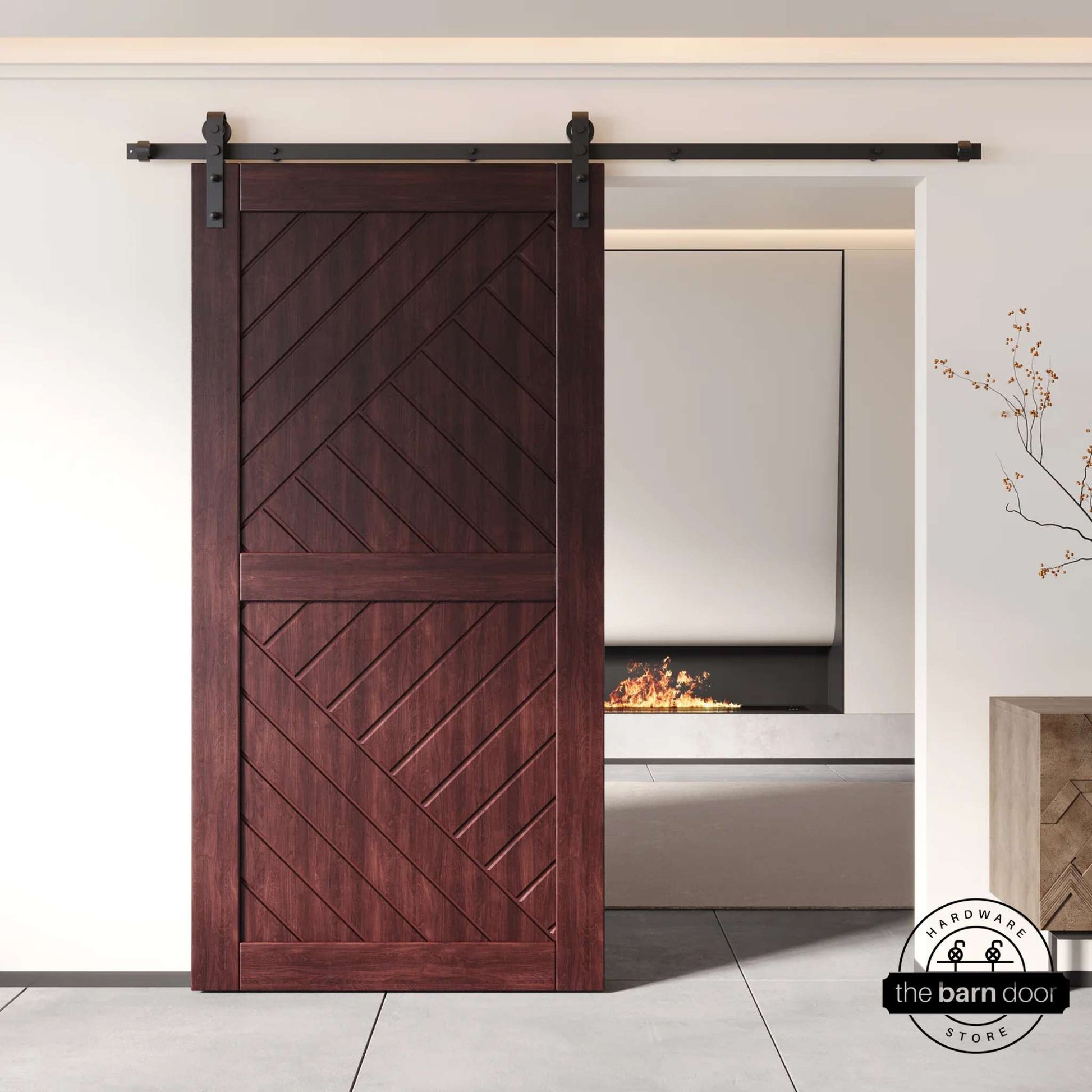

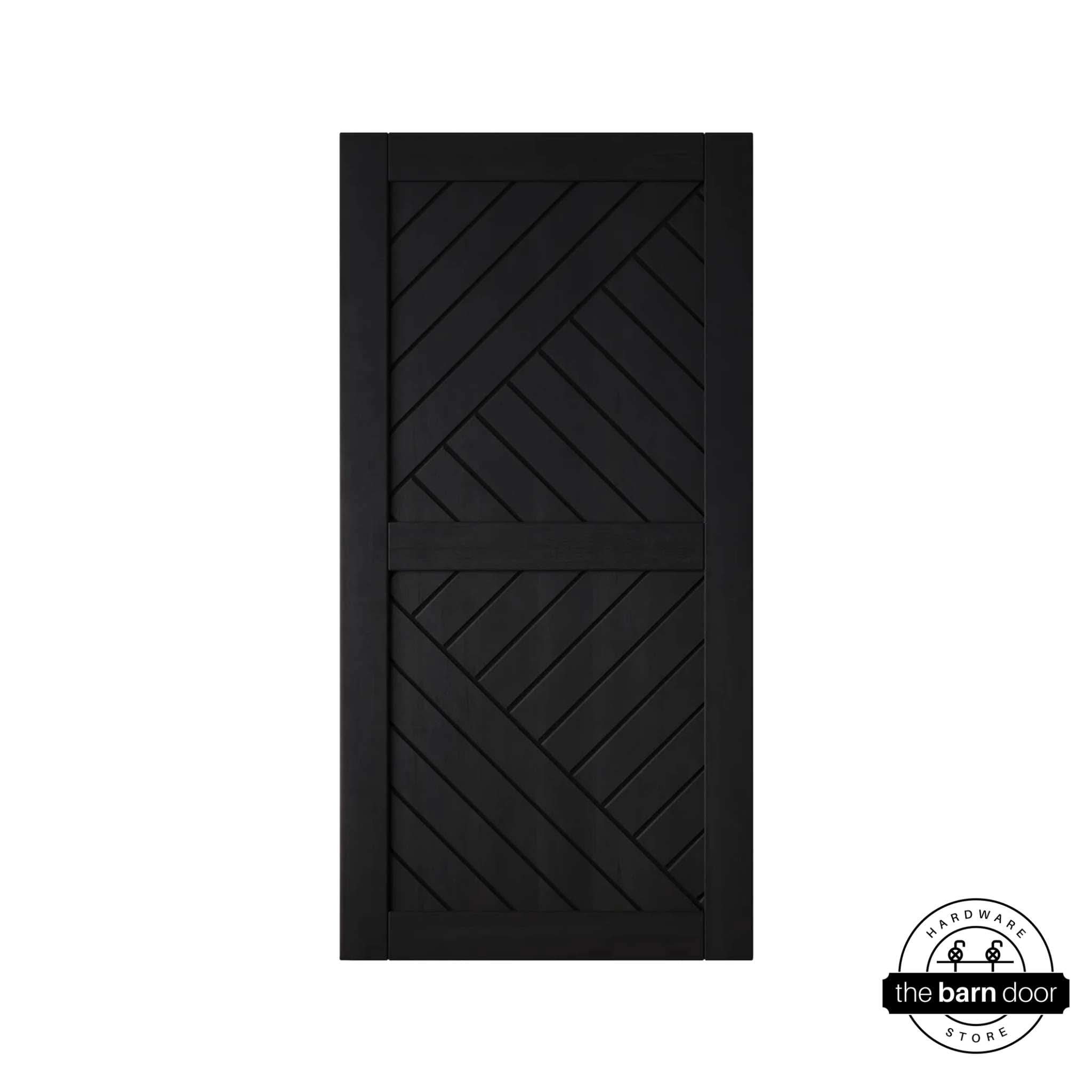

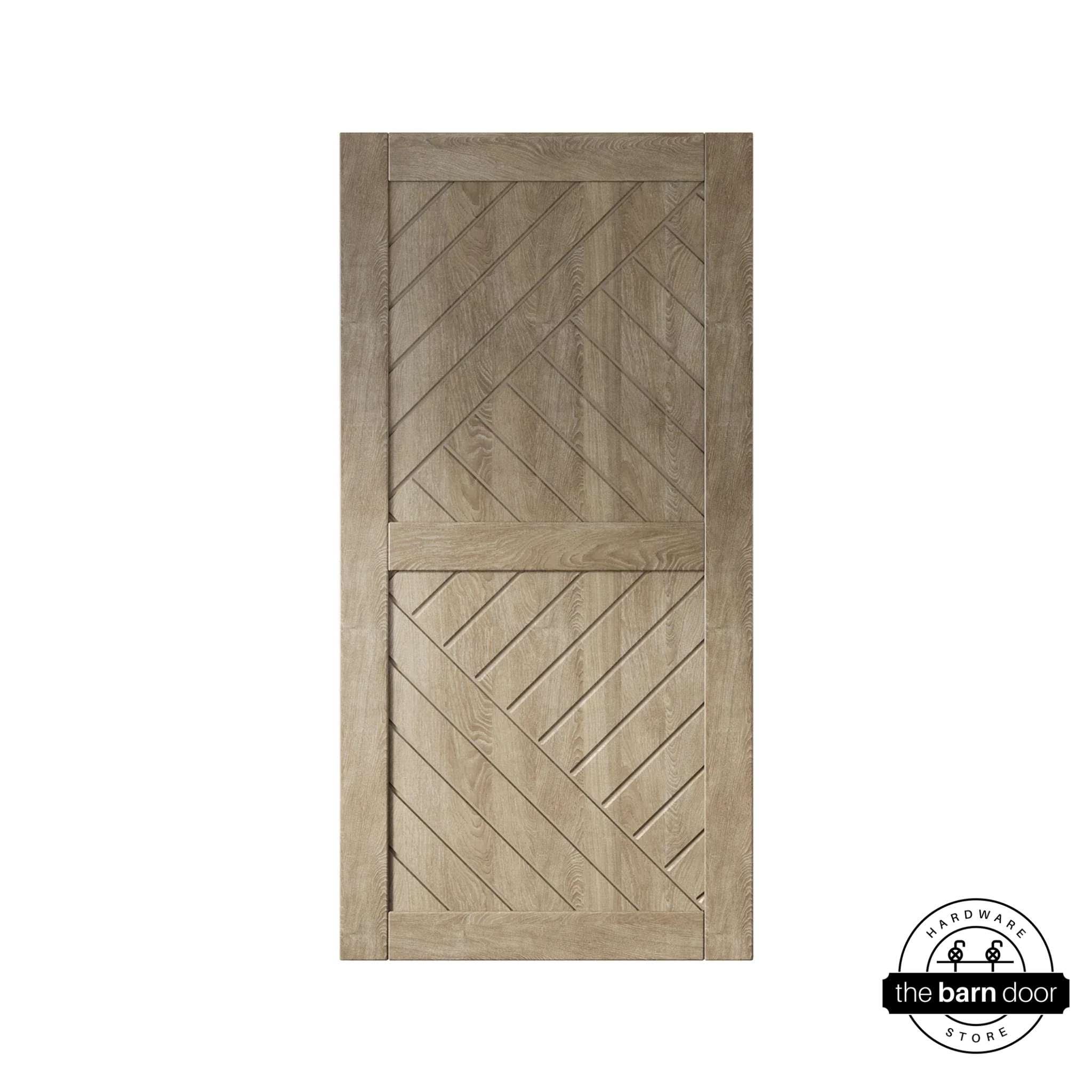

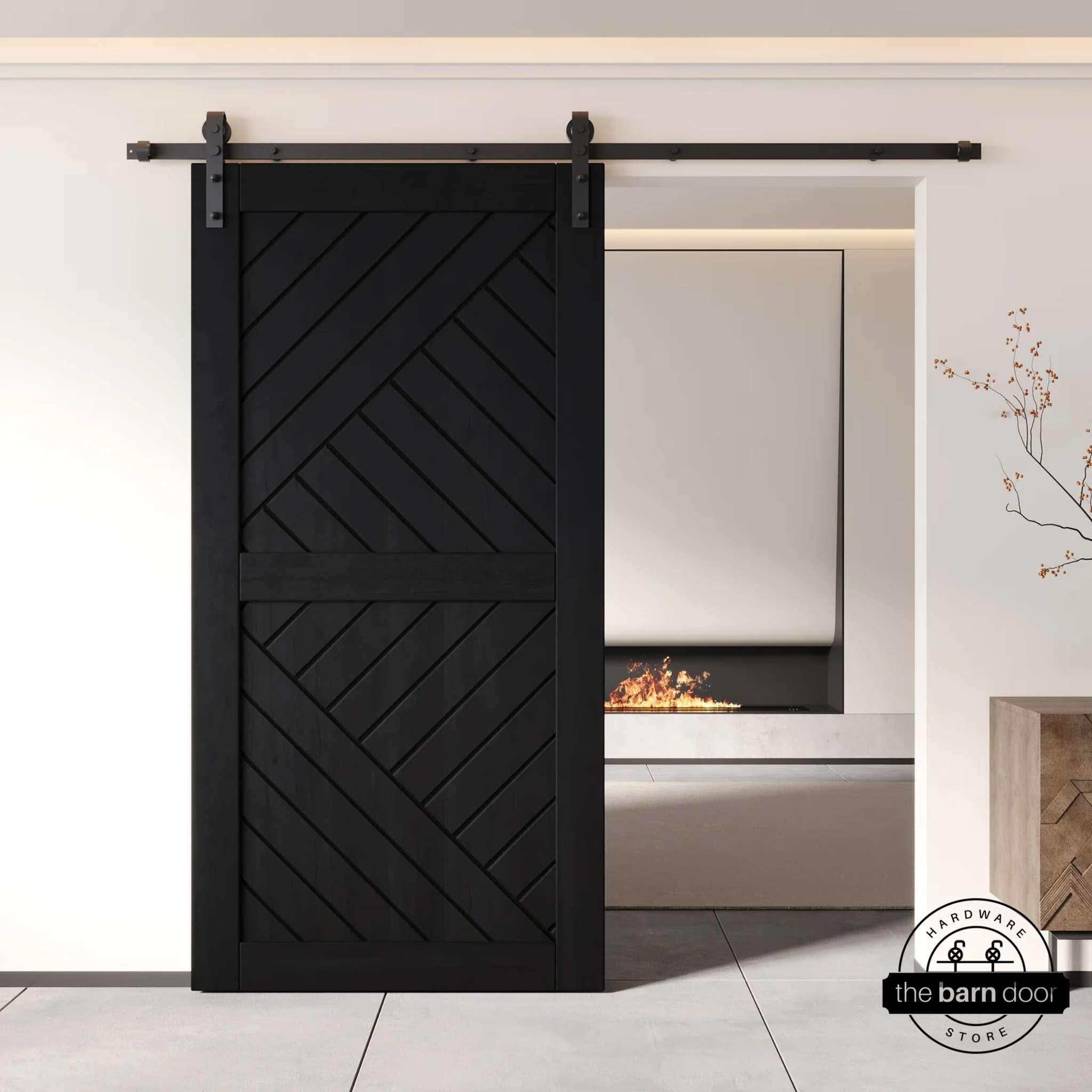

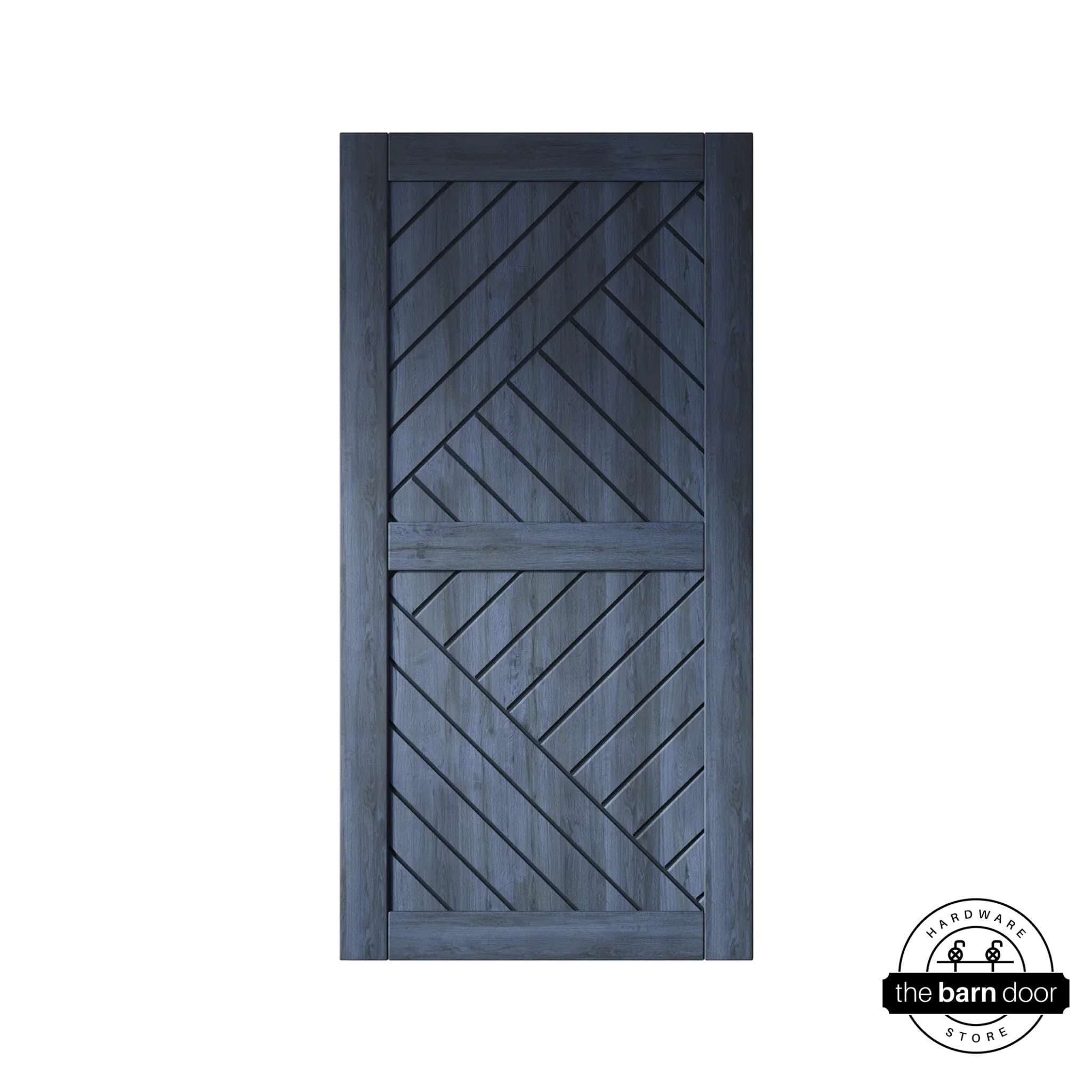

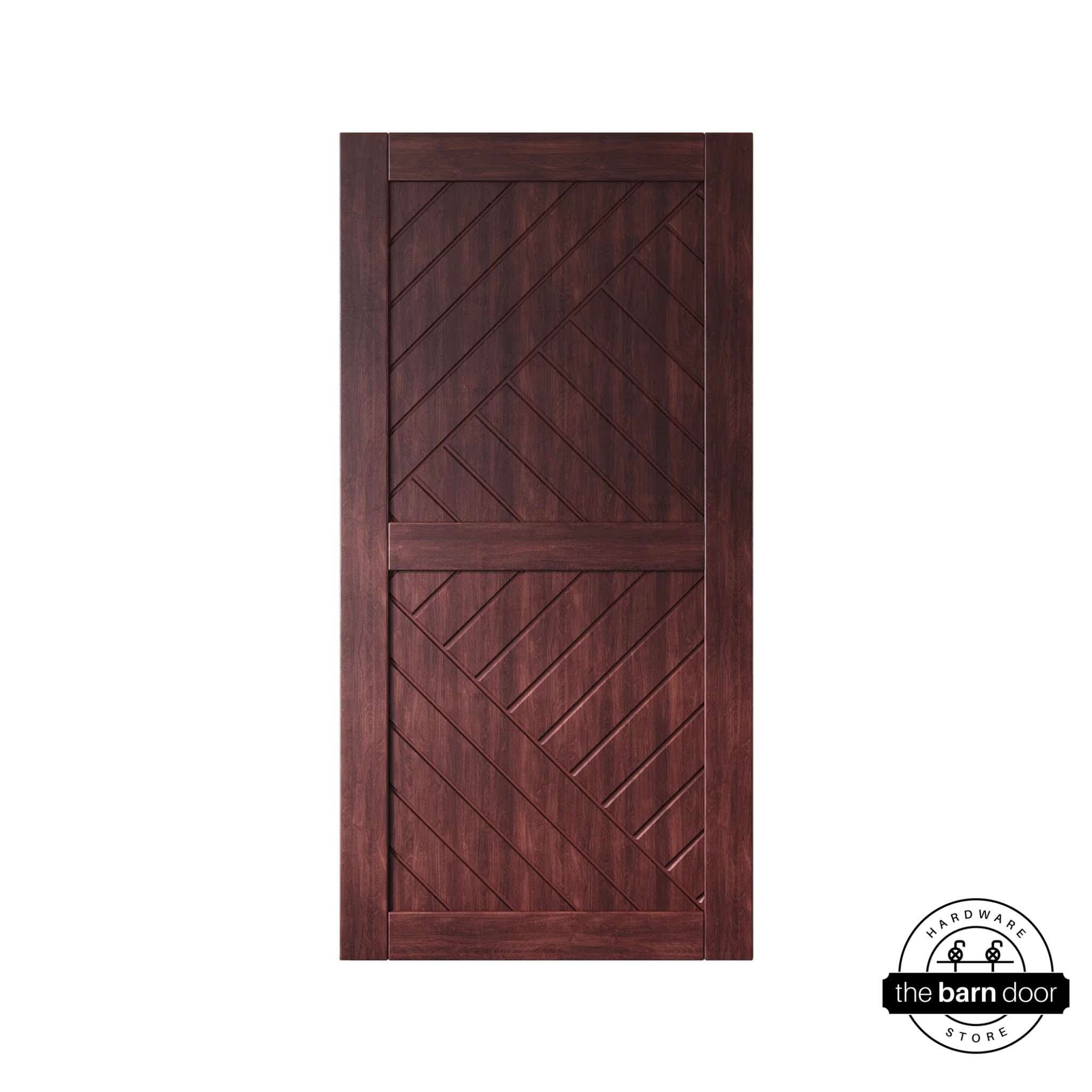

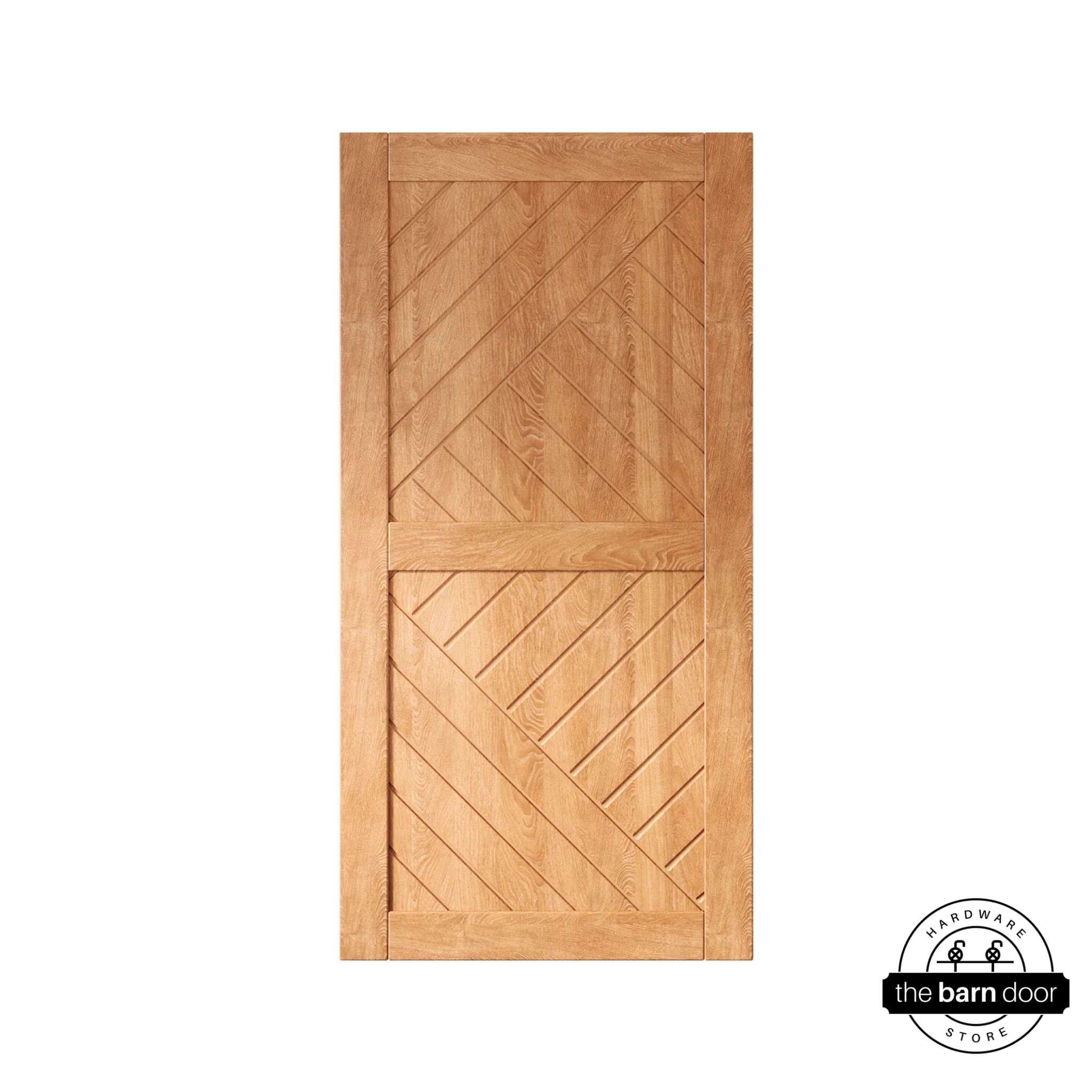

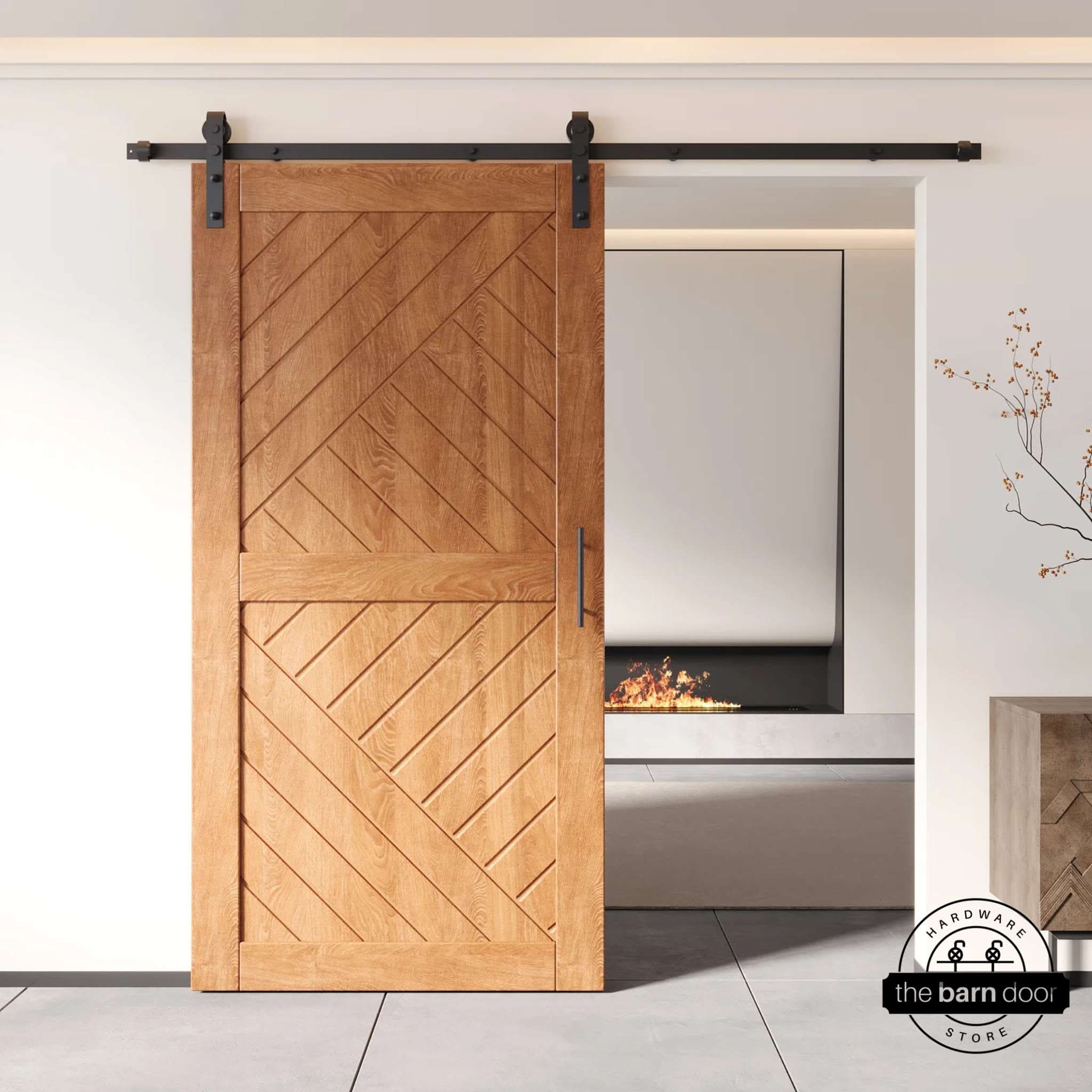

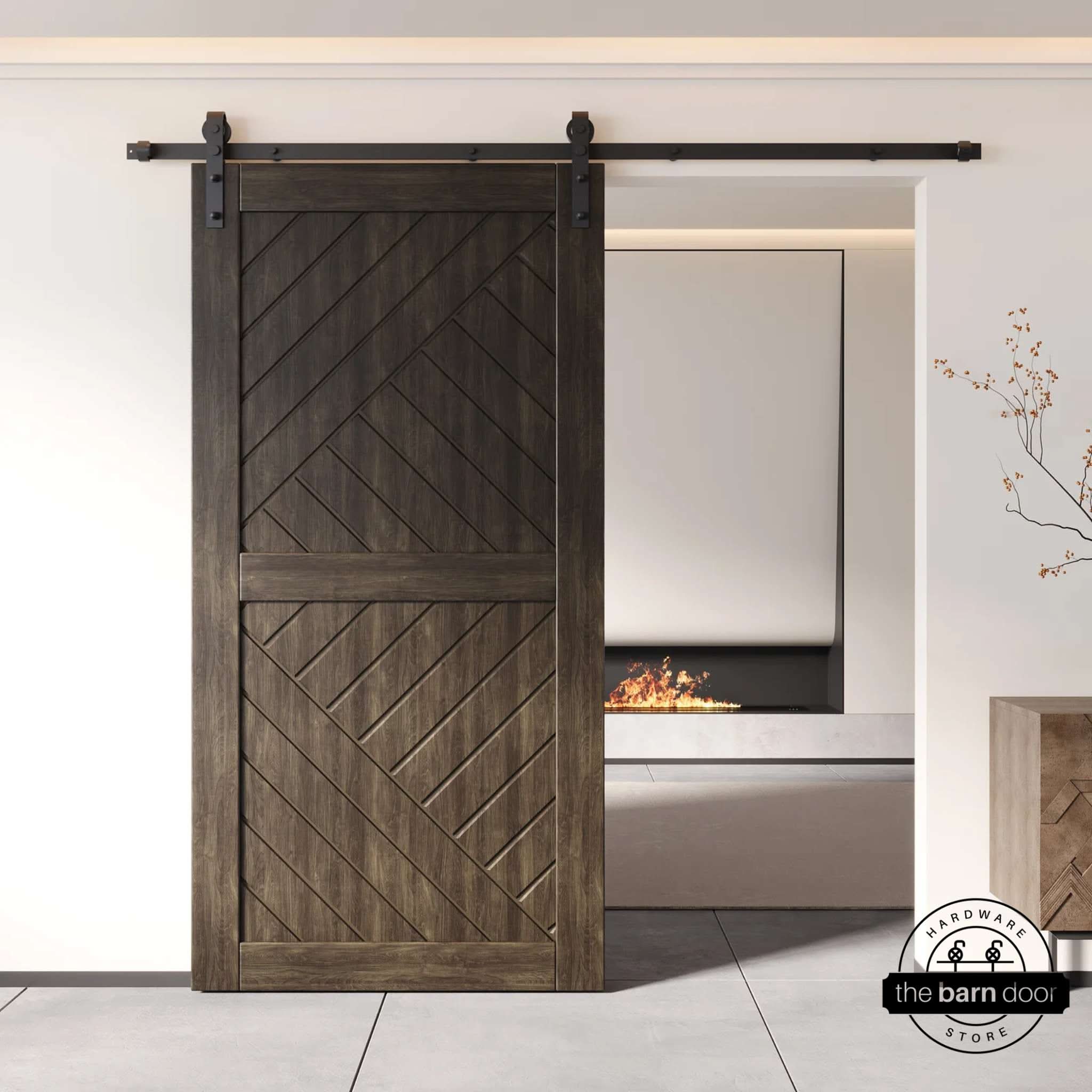

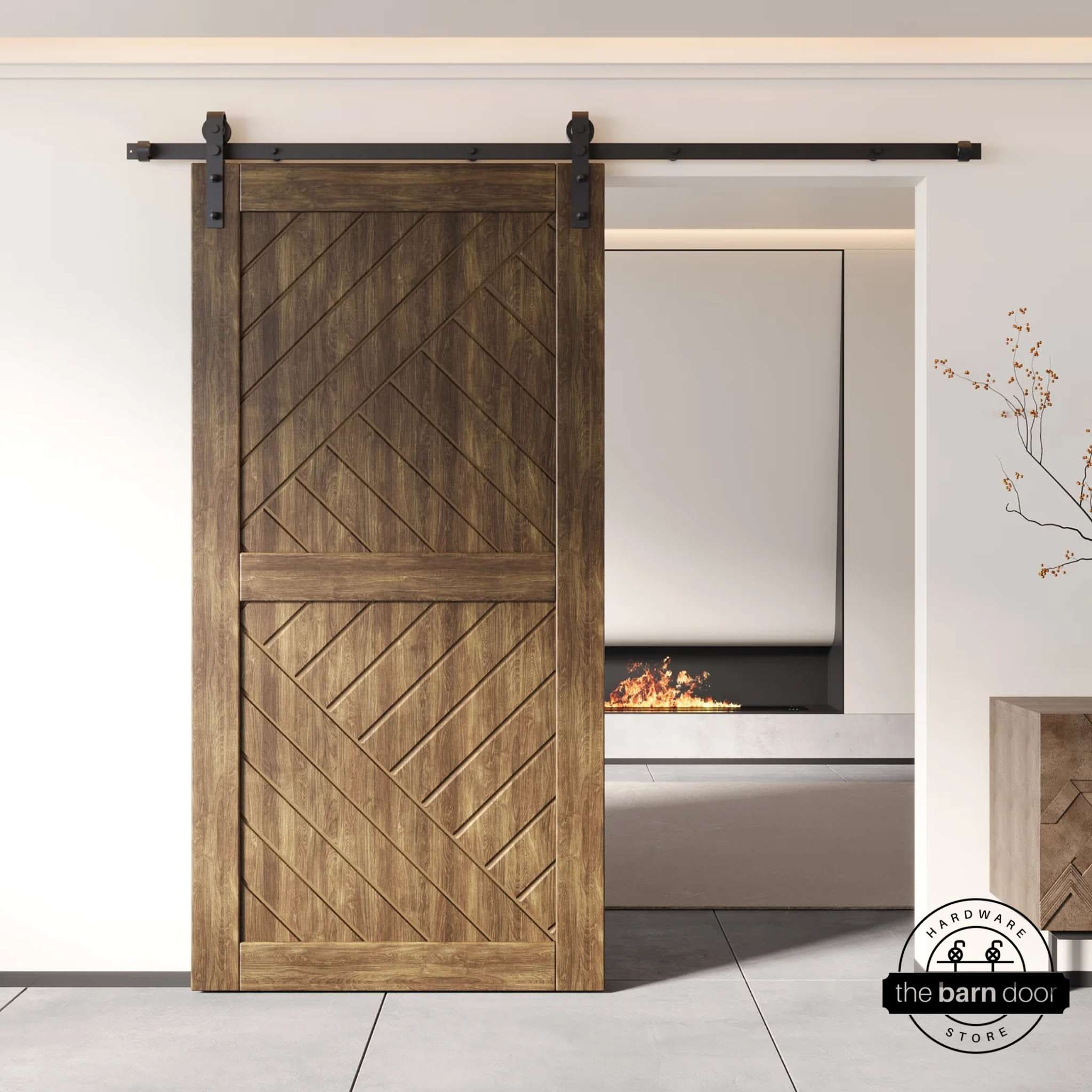

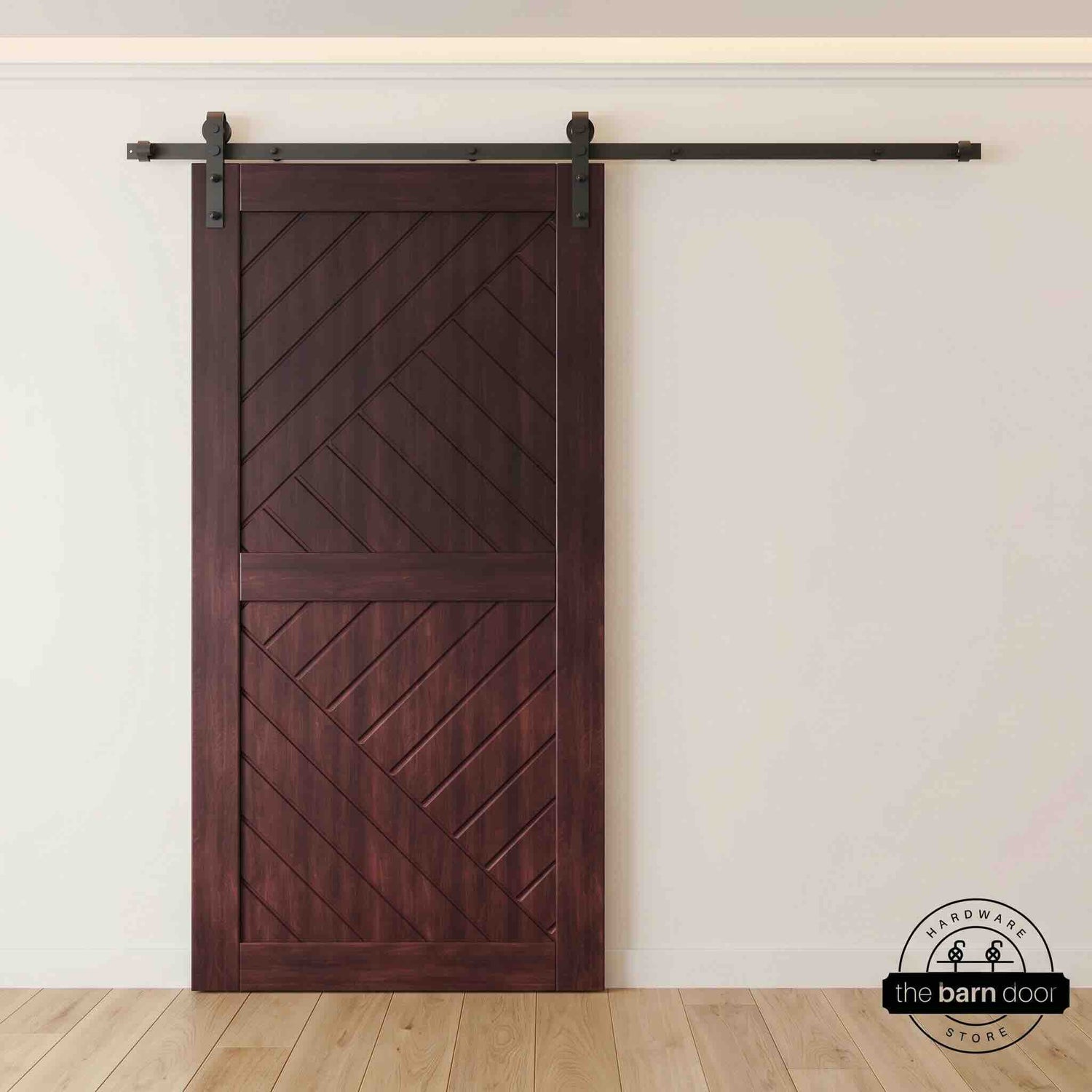

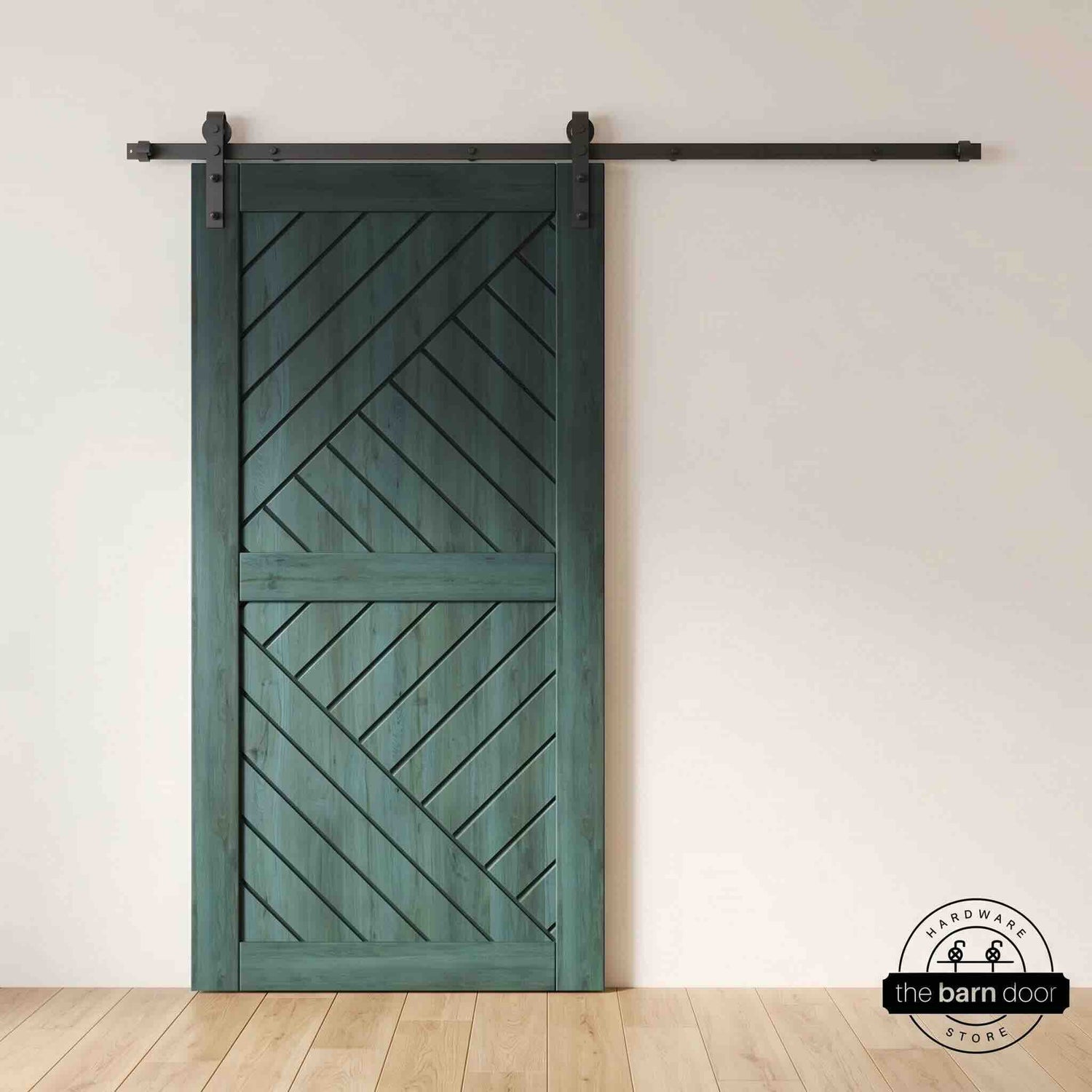

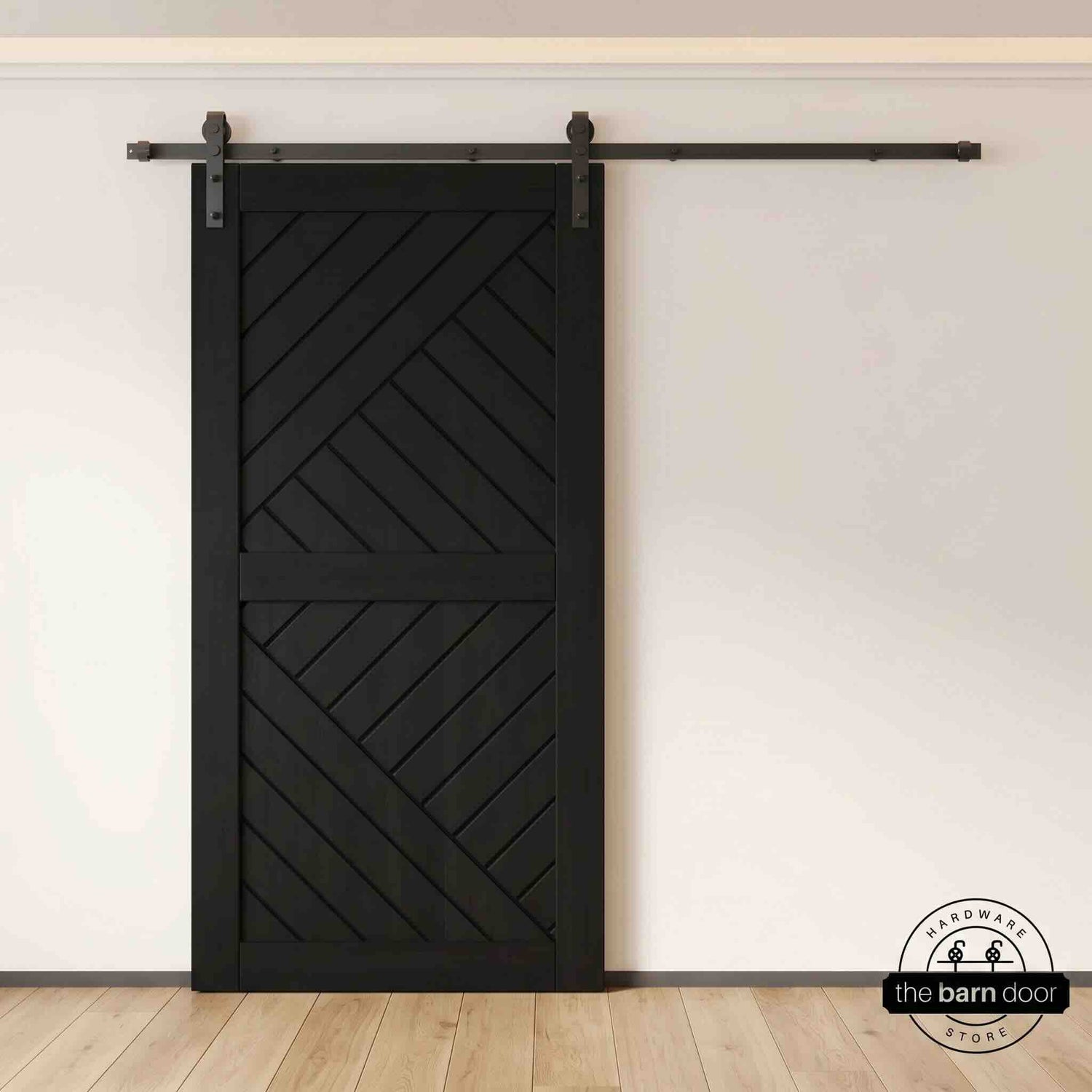

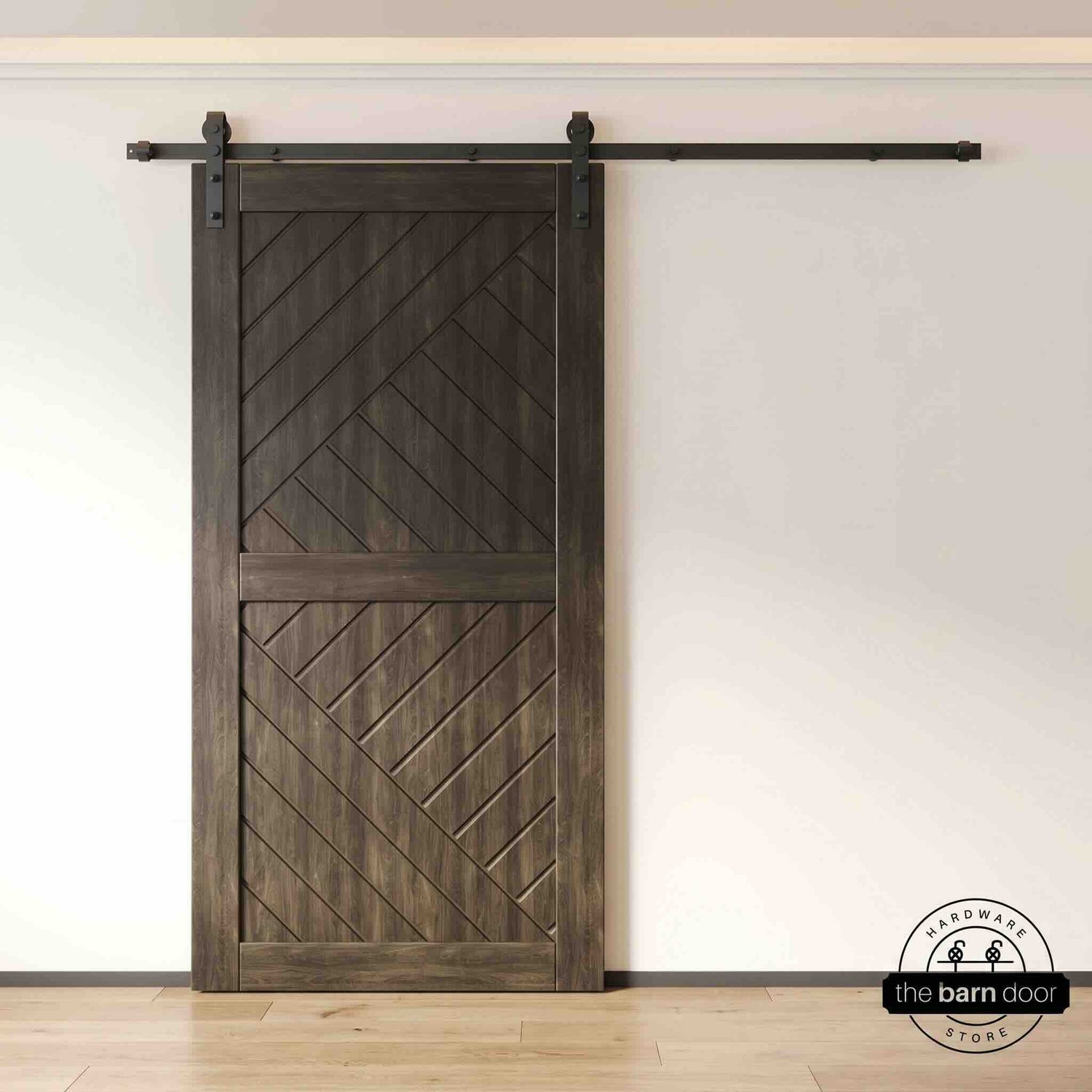

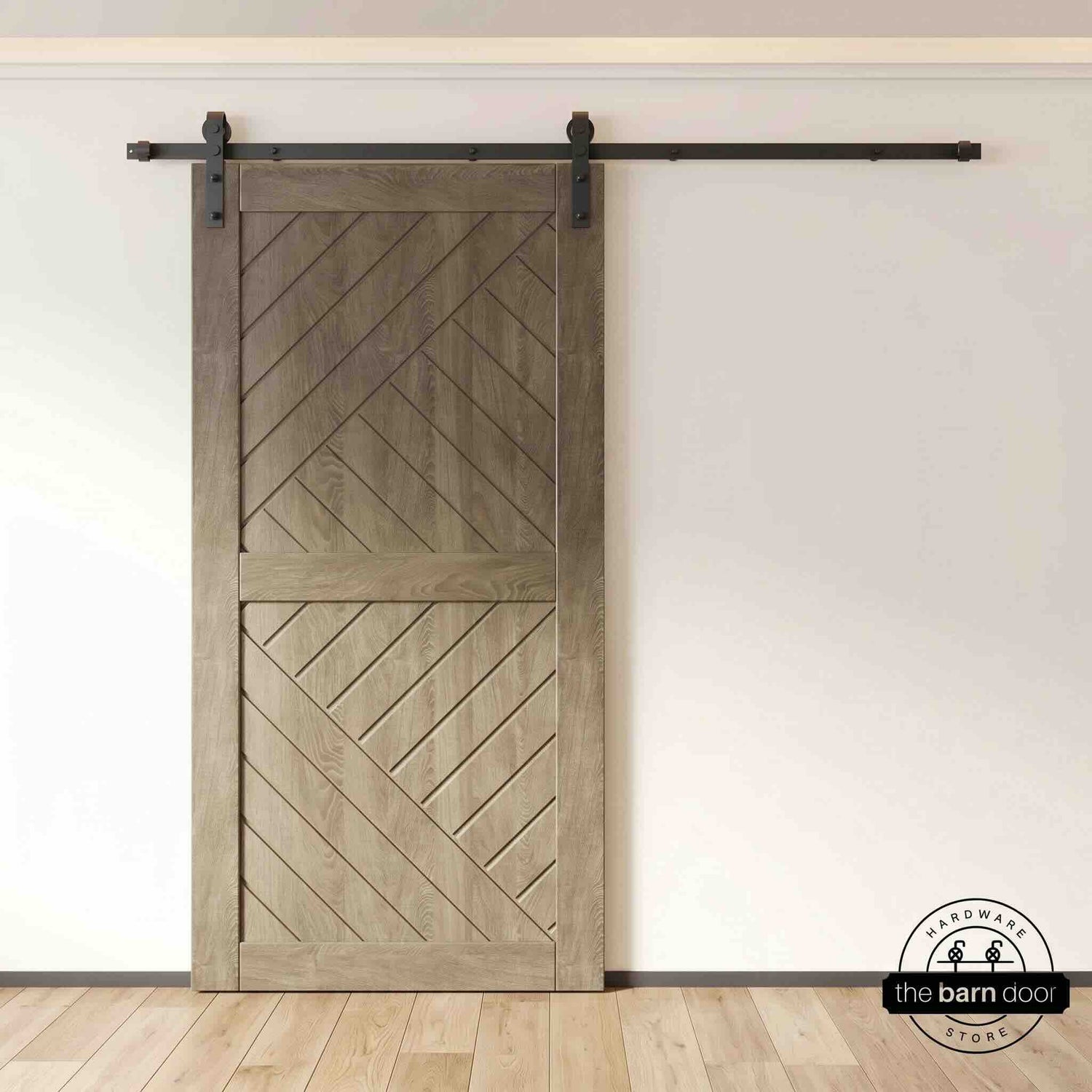

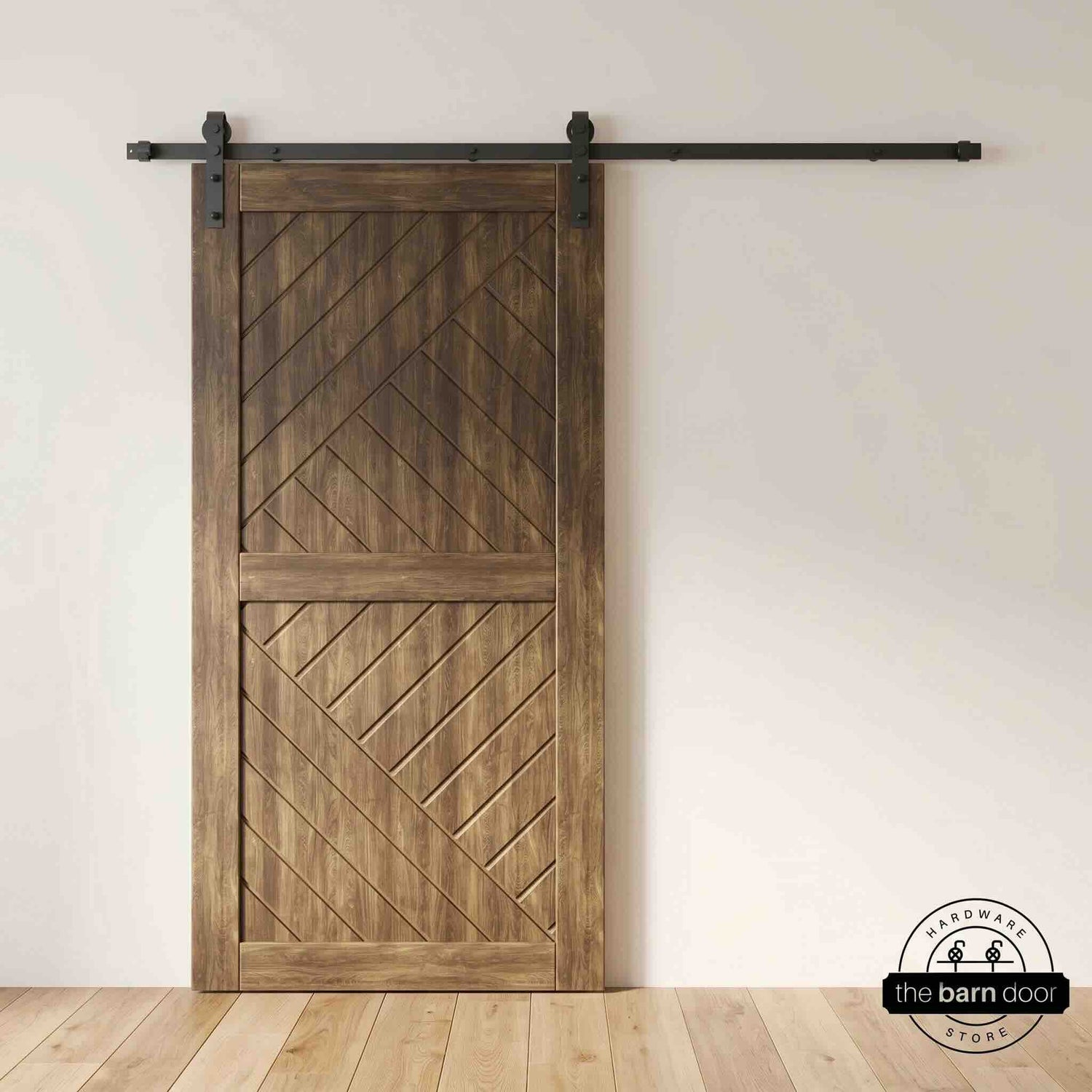

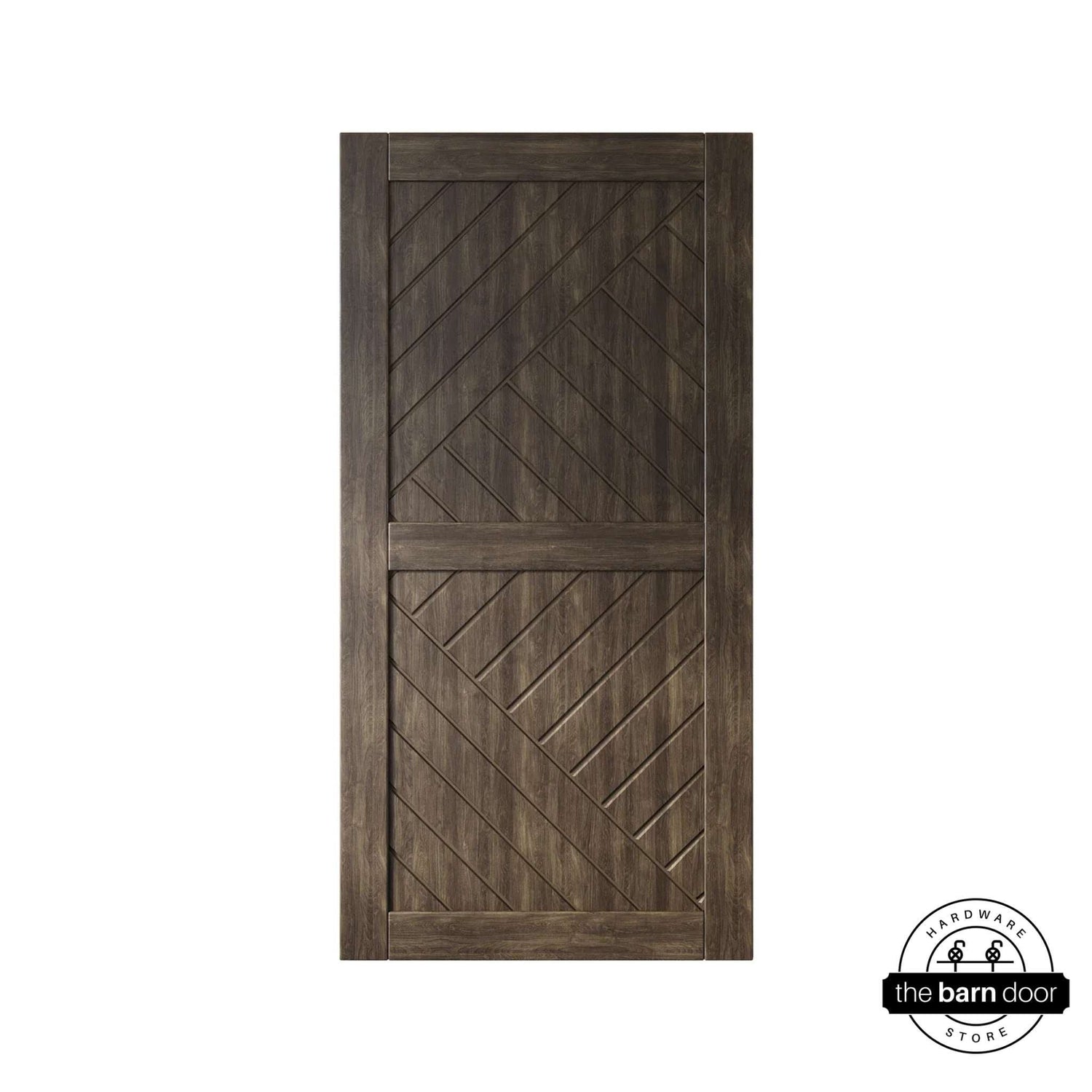

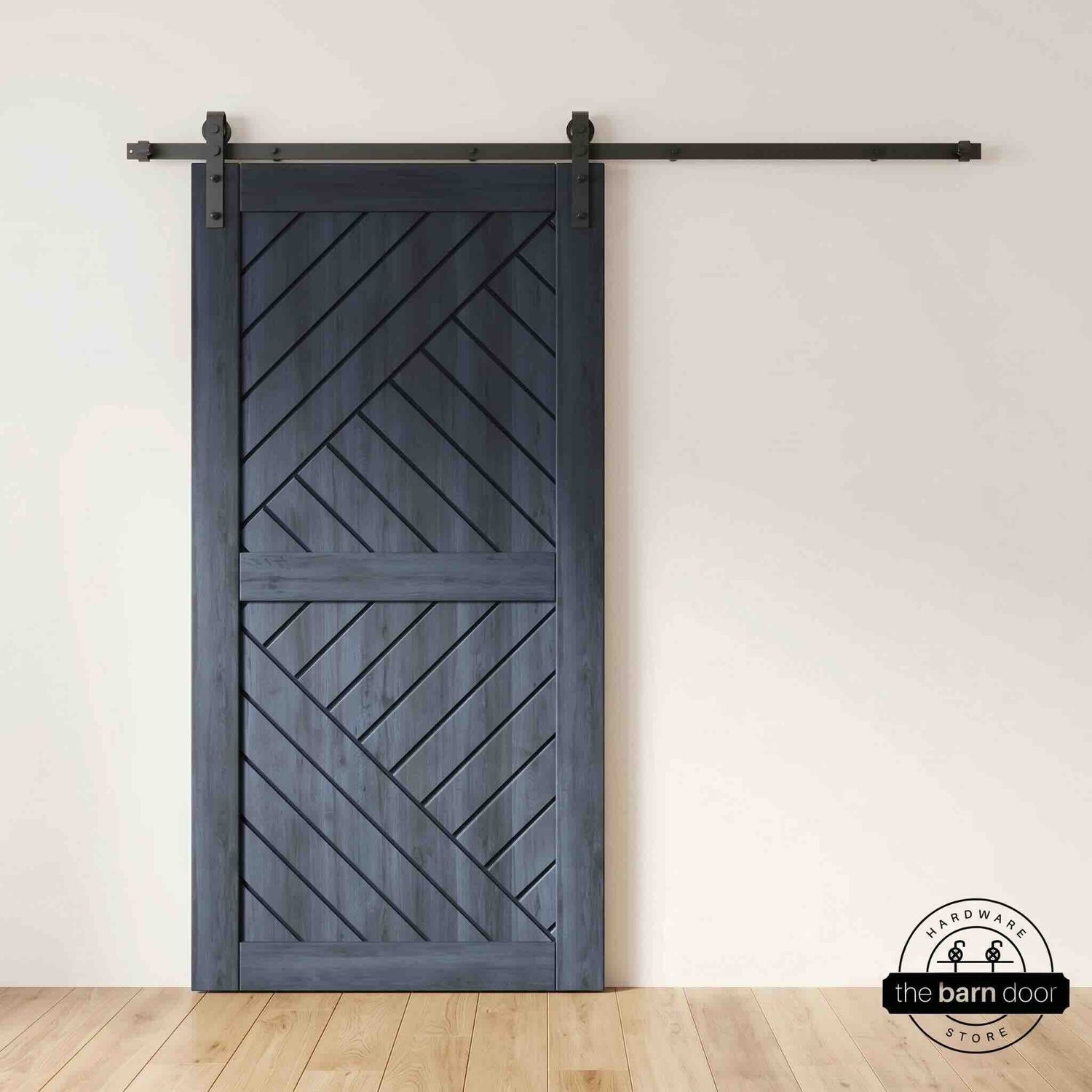

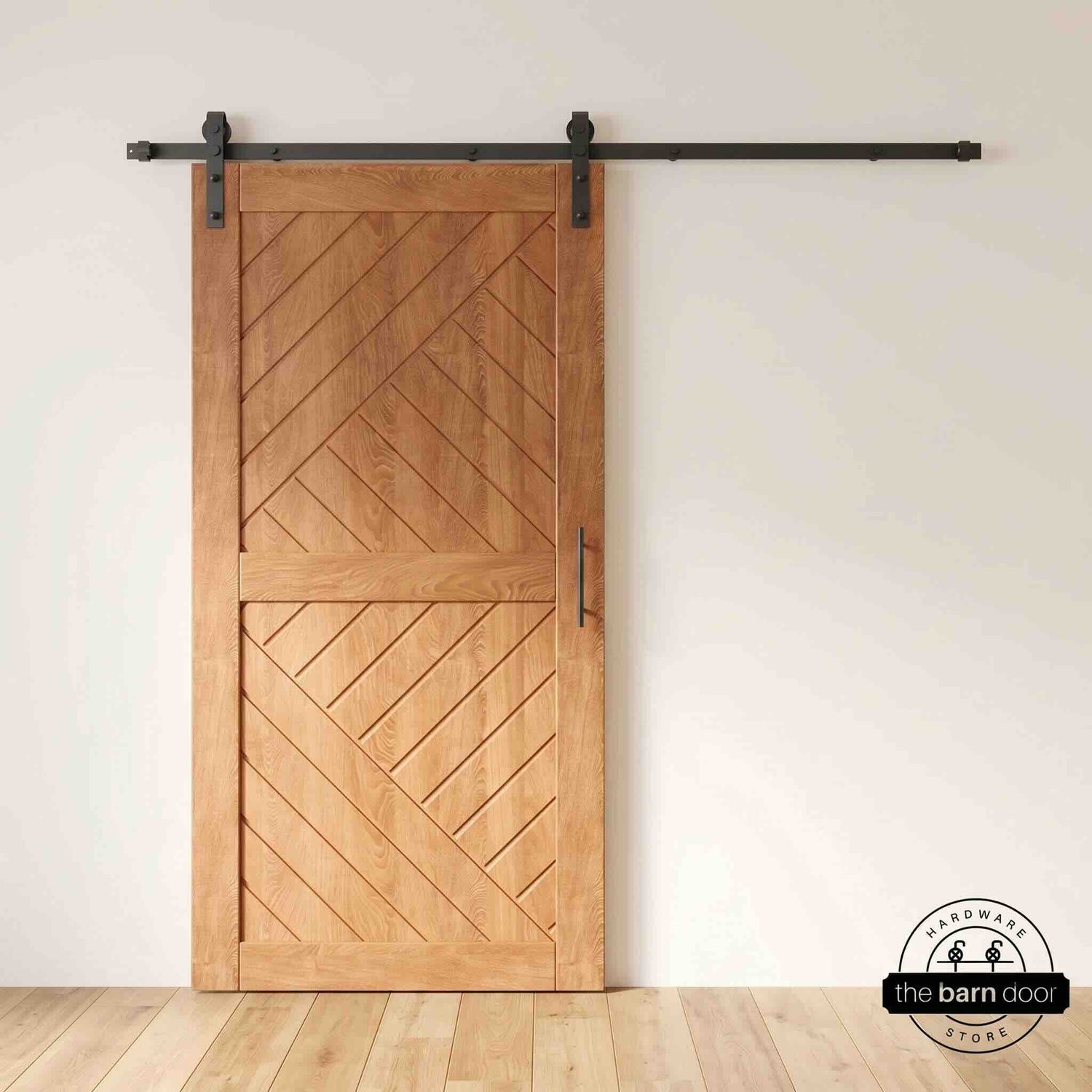

Finish options: Early American · Classic Gray · Dark Walnut · Ebony · Navy · Red Mahogany · Royal Pine · Black

Door thickness: 1-3/8 in

Door weight: 46 lbs (26 in) to 68 lbs (50 in). See the full weight chart for all sizes.

Hardware: Not included — see compatible hardware below

Lead time: 8–10 business days for all options (no unfinished option available)

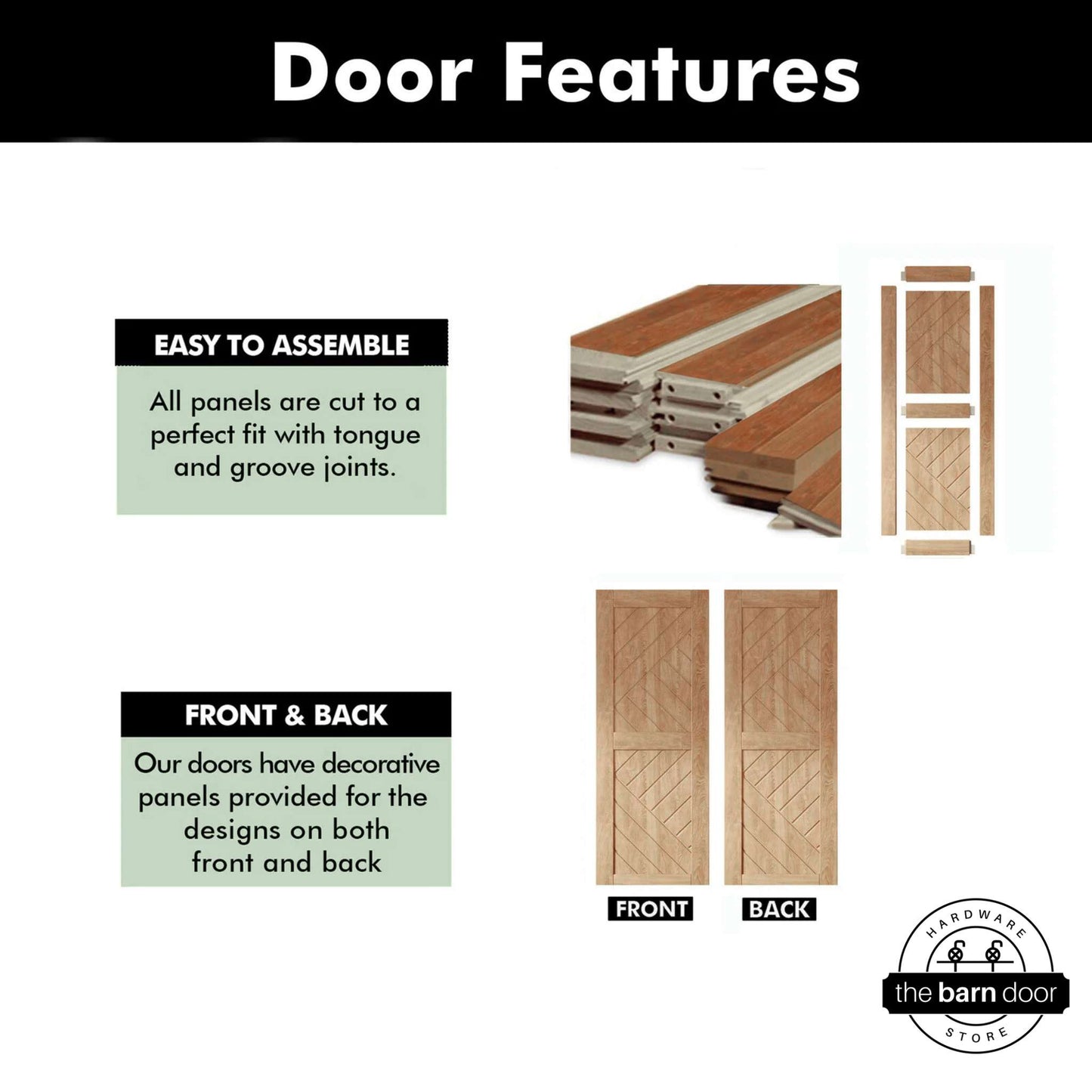

Solid pine vertical stiles (A) × 2
Horizontal rails (B1, B2, B3) × 1 each — B2 varies by door height (80 in and 84 in use different pieces)
Diagonal stripe panels (C) × 2 — the core design element. Flip these panels before assembling to choose one of 16 possible arrangements. Choose first, then build.
Dowels (E) × 10 · Long screws (F) × 10

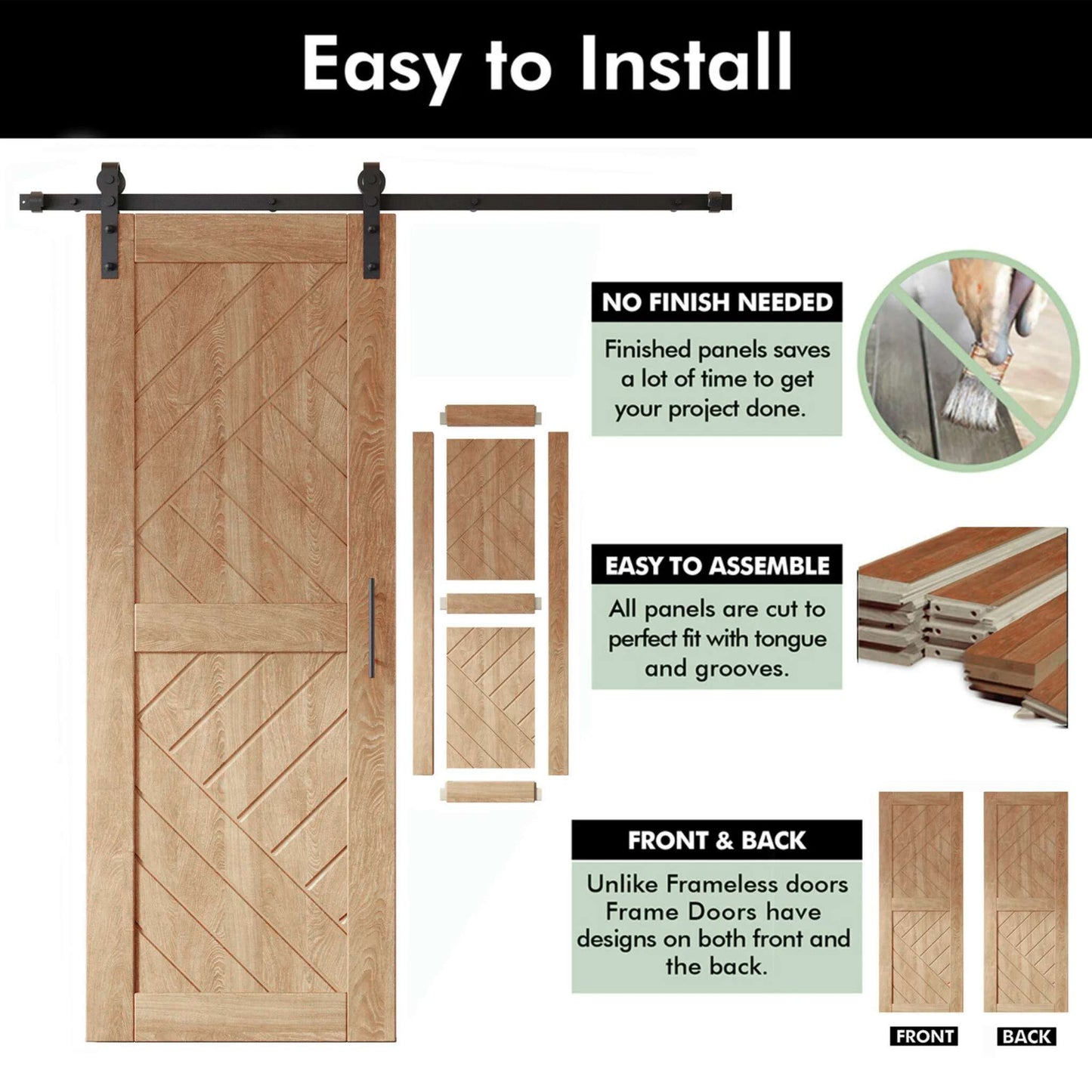

Tools needed: drill or Phillips screwdriver, rubber mallet. A trigger clamp is optional but helpful for holding the C panels in position while fasteners set. Assembly typically takes 1–2 hours. Hardware — track, rollers, floor guide, and handle — is not included.

At 1-3/8 in thick and 46–68 lbs depending on size, this door works with the full range of standard single-track and bypass hardware. All sizes are well within standard hardware weight capacity.

Standard single sliding door: See our single track hardware kits collection. Compatible with all HVL roller styles and Goldberg Brothers standard duty kits in a wide range of finishes.

Bypass configuration: See our bypass hardware kits collection for single and double bypass options.

Not sure which hardware is right? Email us at info@thebarndoorhardwarestore.com before ordering — we can confirm compatibility and match the right kit to your door and opening.

How It Works

Common Questions

How wide should my door be?

Add 4 in to your rough opening width for a standard room (2 in overlap each side) or 6 in for a bedroom or bathroom (3 in each side). Select the closest available width. For openings requiring a door wider than 50 in, consider a biparting setup with two patterned panels — it distributes the visual weight more evenly across a wide opening and requires less wall clearance on the slide side.

Do I need to choose my panel arrangement before assembling?

Yes — this is the most important step and the one most customers skip. The two C panels need to be oriented correctly before the door frame is assembled around them. There are 16 possible arrangements depending on how you flip each panel — significantly more than the slanted or fishbone doors. Look at all four options first, decide which one you want, then build. Trying to reorient the panels after assembly requires disassembly.

How does the patterned design differ from the fishbone and slanted doors?

All three use flippable C panels, but they differ in the number of arrangements and visual character. The slanted door offers 4 designs with a single diagonal direction — bold and graphic. The fishbone door offers 4 chevron designs with more surface texture. The patterned door offers 16 arrangements — the diagonal stripe panels have a more complex cut that produces a denser lattice-style surface and far more design combinations. If maximum pattern flexibility matters, the patterned door is the obvious choice; if you want a cleaner, simpler look, the slanted or fishbone may suit better.

Why isn't there an unfinished option for this door style?

An unfinished option isn't available for the patterned door. If you need an unfinished door to apply your own stain or paint finish, the fishbone or slanted doors both offer an unfinished option at a lower base price.

What hardware do I need, and is it sold separately?

Yes — this product is the door panel only. You'll need a separate hardware kit including the track, rollers, floor guide, and handle. See our hardware kits collection for the full range, or email us at info@thebarndoorhardwarestore.com and we can help you match the right kit to this door.

Email Us!

info@thebarndoorhardwarestore.com

Shipping Policy Installation Guide

Why Thousands Choose The Barn Door Hardware Store

Not all barn door hardware is built the same. Here’s how we compare.

Width	Weight
26-in	46lbs
30-in	51lbs
32-in	52lbs
36-in	55lbs
40-in	58lbs
42-in	60lbs
48-in	65lbs
50-in	68lbs
