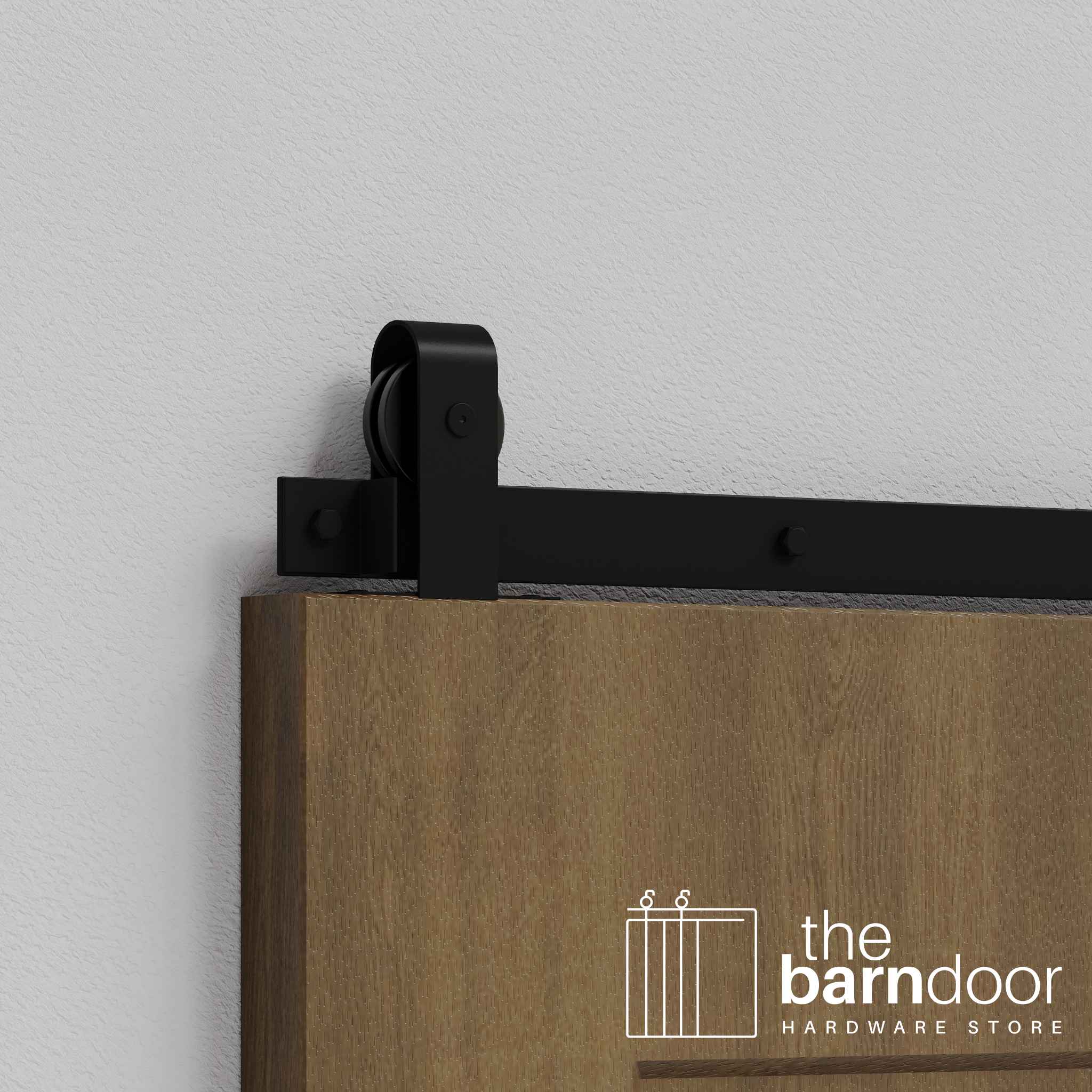

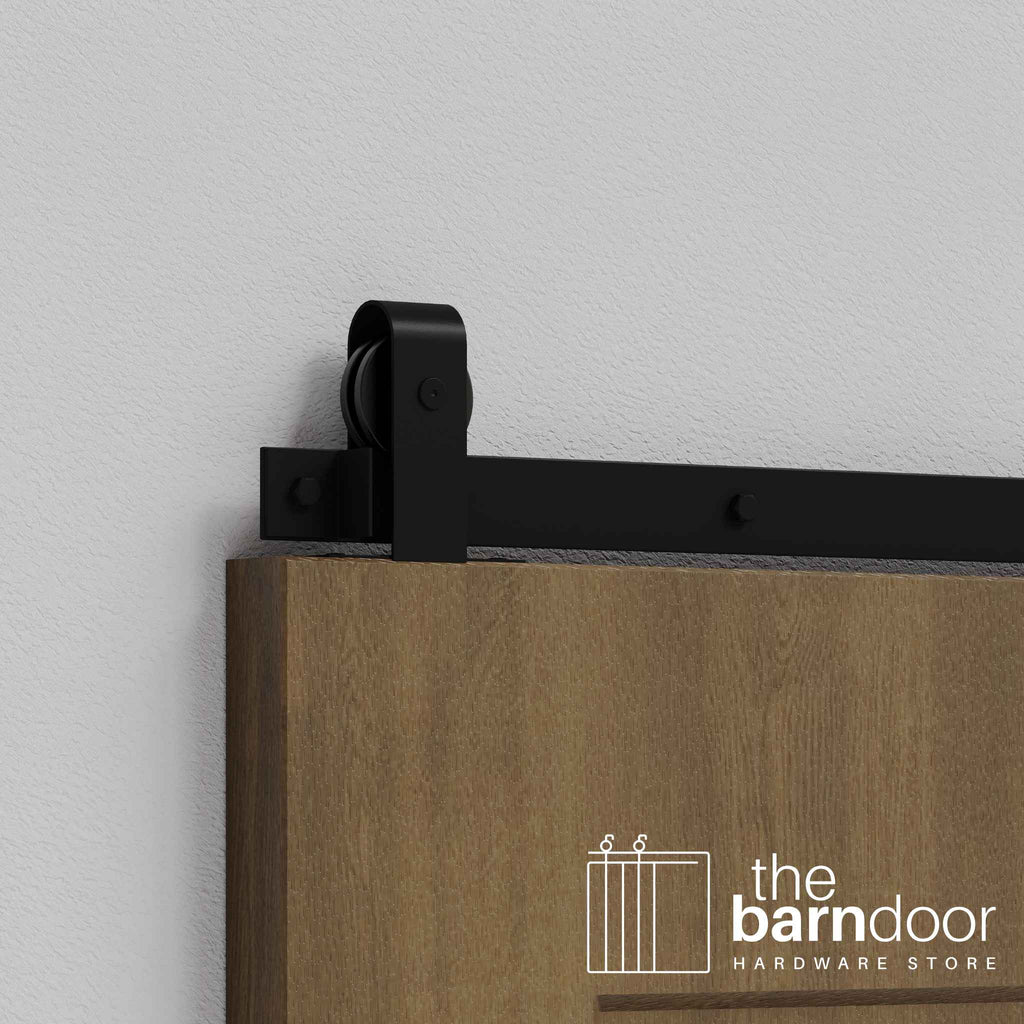

Close-up of Black J Top Mount Single Track barn door hardware installed on a wooden door panel.

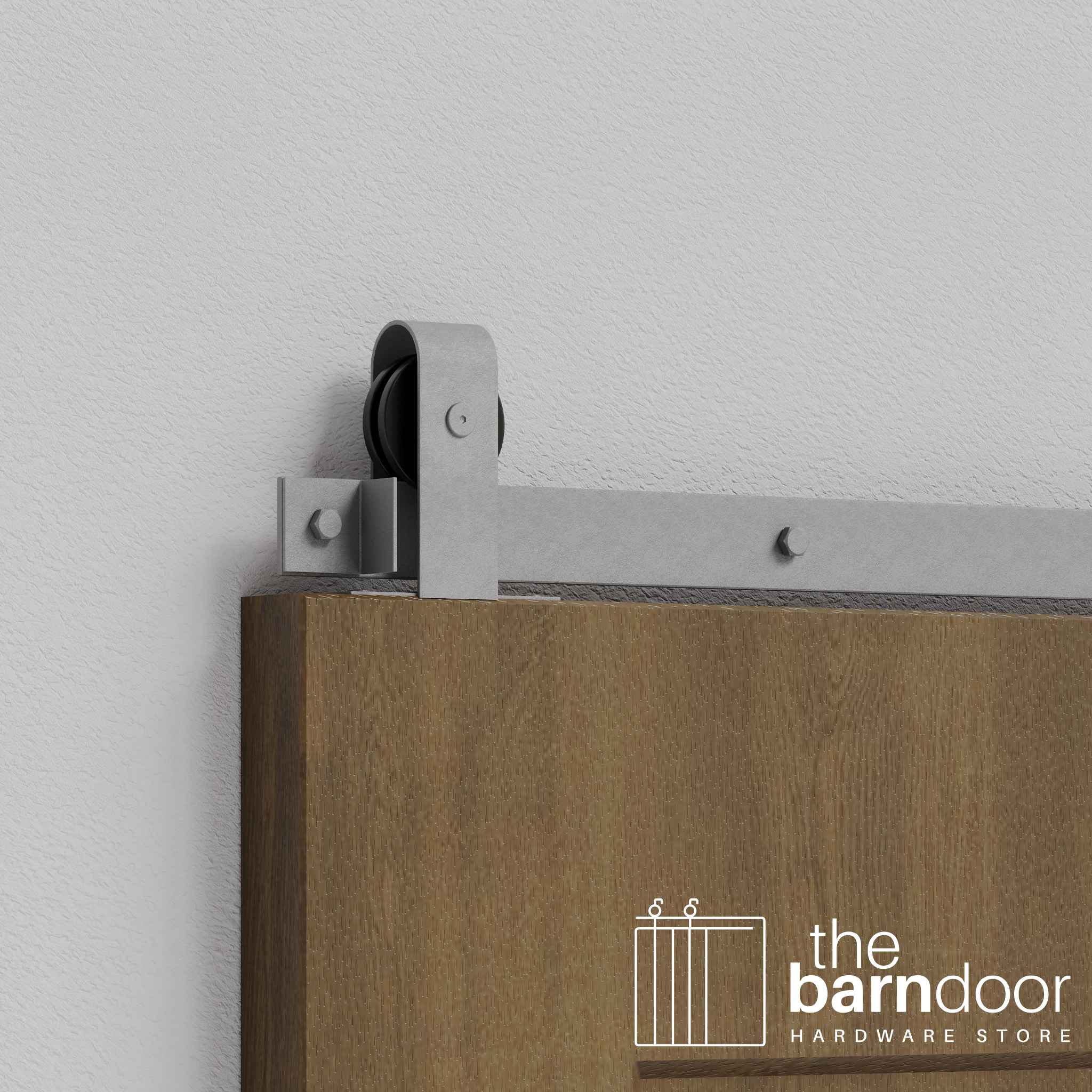

Close-up of Silver Metallic J Top Mount Single Track barn door hardware installed on a wooden door panel.

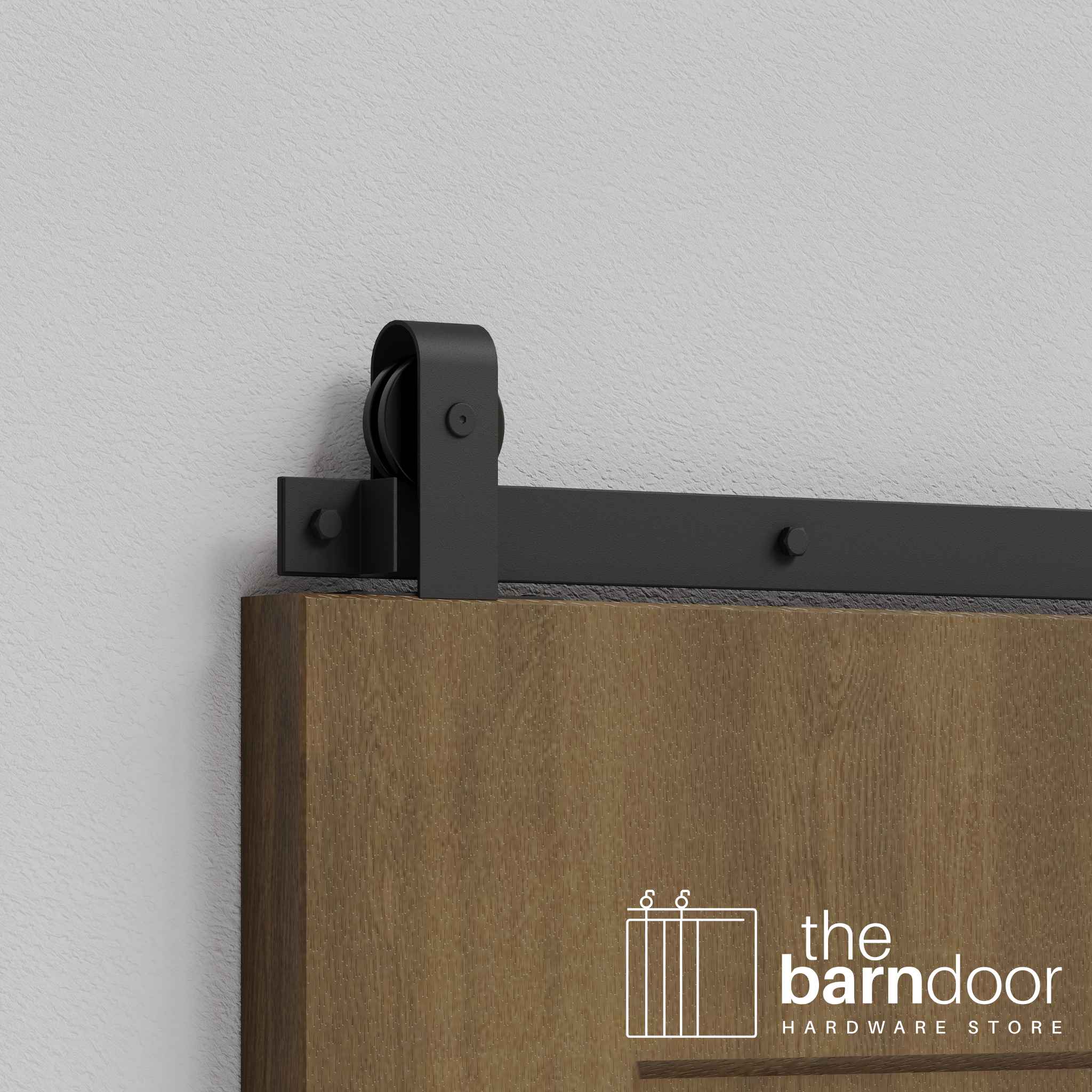

Close-up of Matte Black J Top Mount Single Track barn door hardware installed on a wooden door panel.

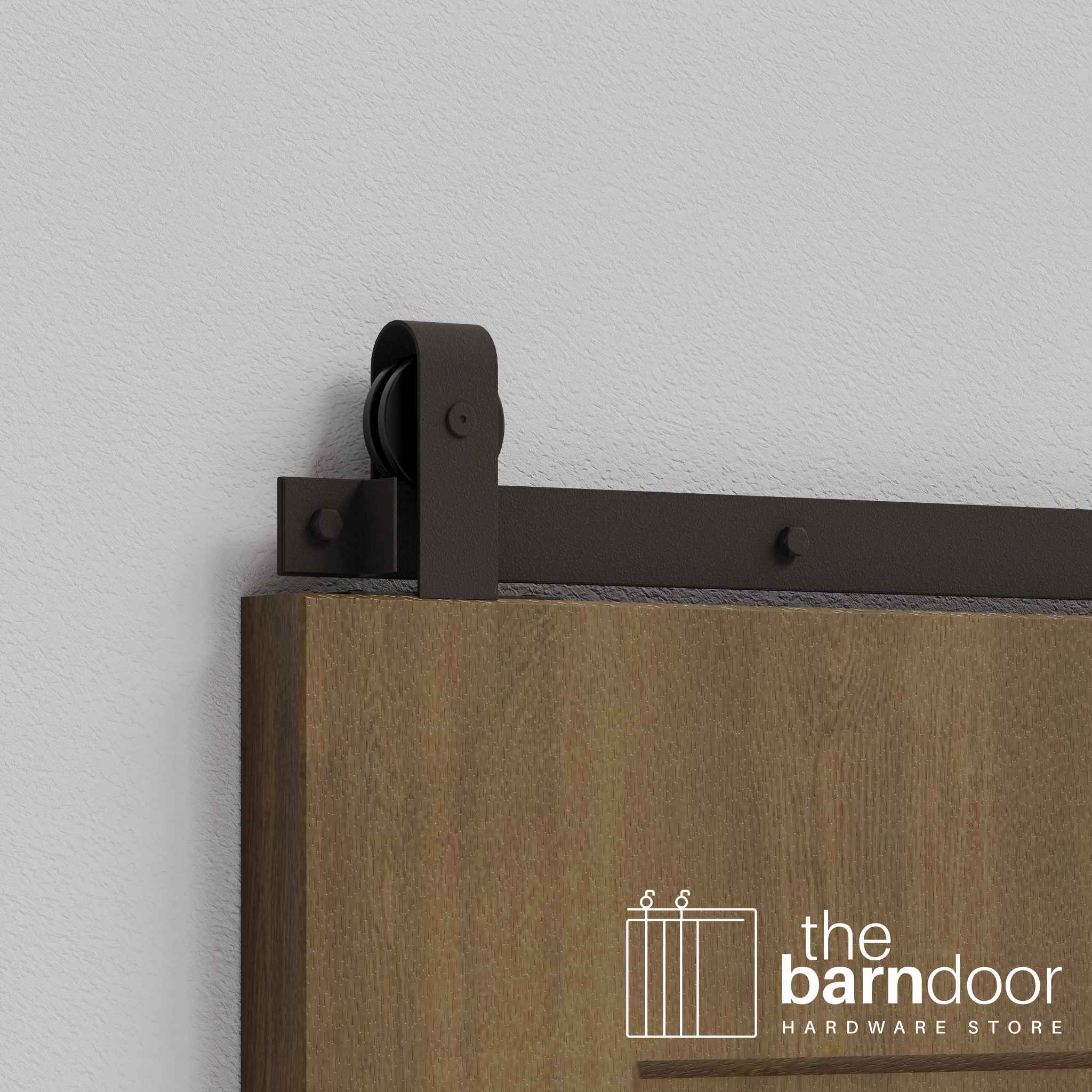

Close-up of Arch Bronze J Top Mount Single Track barn door hardware installed on a wooden door panel.

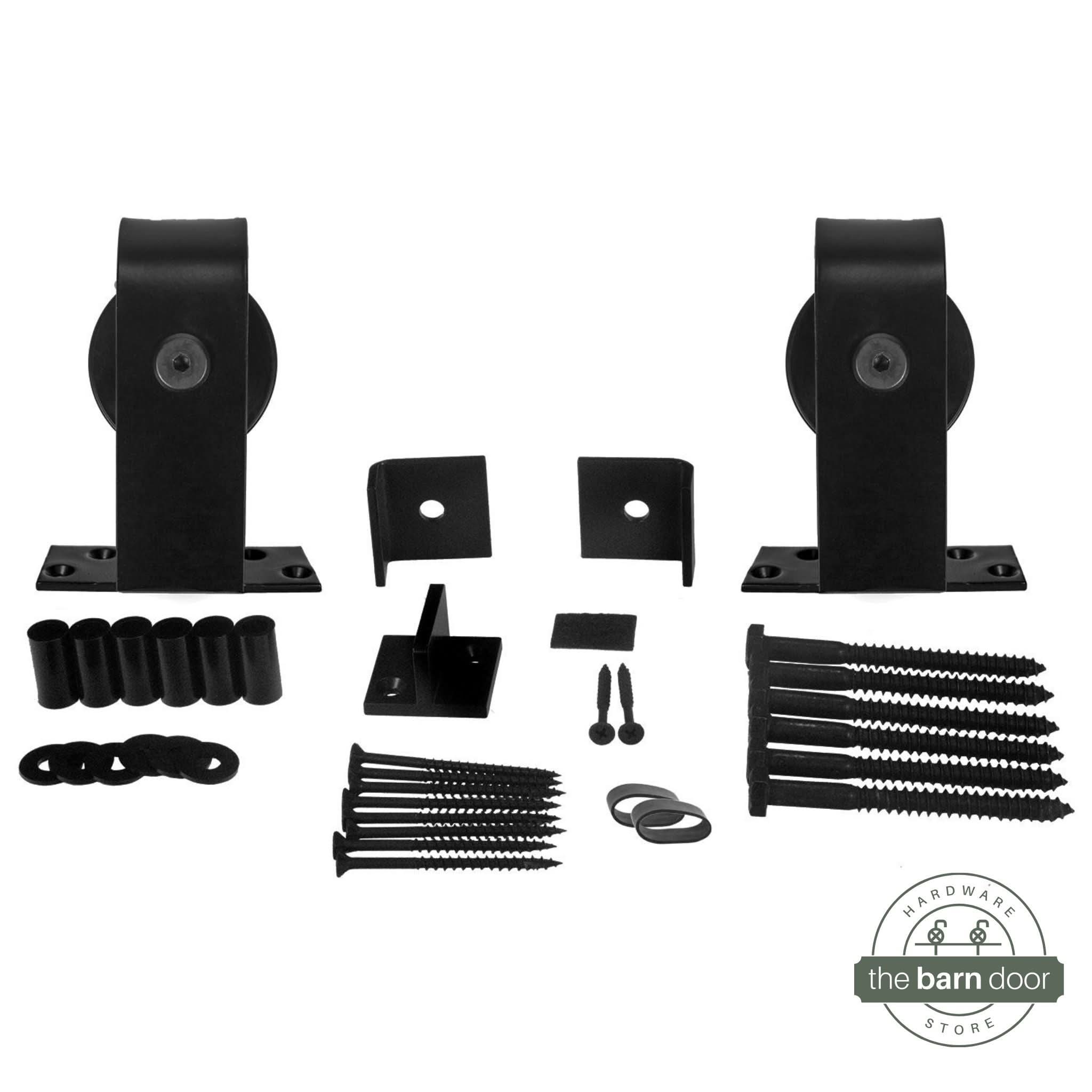

A studio shot of Black J Top Mount Single Track barn door hardware components.

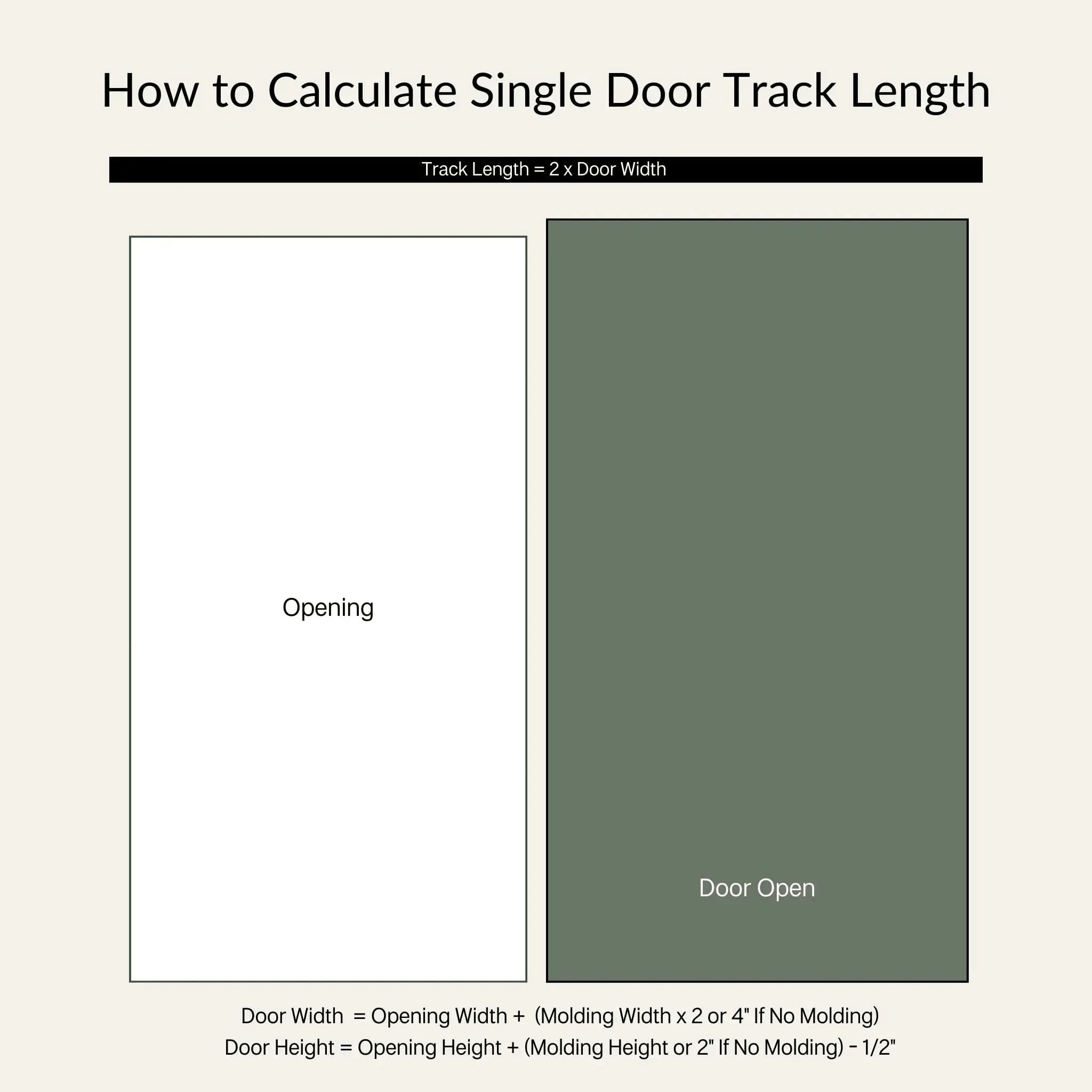

An instructional diagram titled 'How to Calculate Single Door Track Length'. The primary formula shown is: Track Length = 2 x Door Width. Additional formulas are provided to determine door size: Door Width = Opening Width + (2 x Molding Width, or 4 inches if no molding). Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch.

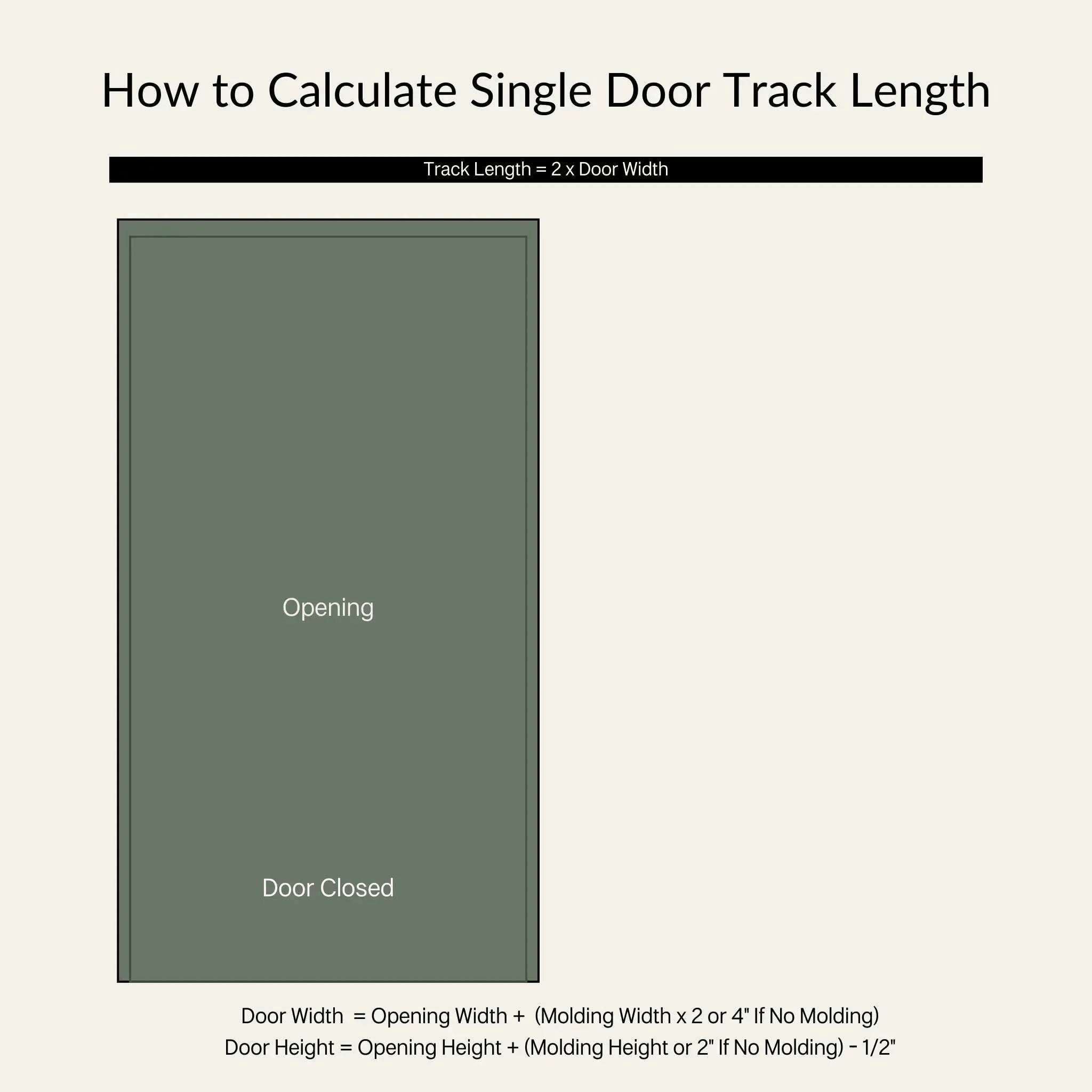

An instructional diagram showing a closed barn door and titled 'How to Calculate Single Door Track Length'. The primary formula is: Track Length = 2 x Door Width. Additional formulas for door size are: Door Width = Opening Width + (2 x Molding Width, or 4 inches if no molding). Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch.
Instructional diagram: 'How to Calculate Double Door Biparting Track Length'. The main formula is: Track Length = 4 x Door Width. To find the size for each of the two doors, the formulas are: Door Width = [Opening Width + (2 x Molding Width, or 4 inches if no molding)] / 2. The Door Height formula is: Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch.
Instructional diagram showing a pair of closed biparting doors, titled 'How to Calculate Double Door Biparting Track Length'. The main formula is: Track Length = 4 x Door Width. To find the size for each door, the formulas are: Door Width = [Opening Width + (2 x Molding Width, or 4 inches if no molding)] / 2. The Door Height formula is: Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch.
Roll over image to zoom in Click on image to zoom
Close-up of Black J Top Mount Single Track barn door hardware installed on a wooden door panel.Close-up of Silver Metallic J Top Mount Single Track barn door hardware installed on a wooden door panel.Close-up of Matte Black J Top Mount Single Track barn door hardware installed on a wooden door panel.Close-up of Arch Bronze J Top Mount Single Track barn door hardware installed on a wooden door panel.A studio shot of Black J Top Mount Single Track barn door hardware components.An instructional diagram titled 'How to Calculate Single Door Track Length'. The primary formula shown is: Track Length = 2 x Door Width. Additional formulas are provided to determine door size: Door Width = Opening Width + (2 x Molding Width, or 4 inches if no molding). Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch.An instructional diagram showing a closed barn door and titled 'How to Calculate Single Door Track Length'. The primary formula is: Track Length = 2 x Door Width. Additional formulas for door size are: Door Width = Opening Width + (2 x Molding Width, or 4 inches if no molding). Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch.Instructional diagram: 'How to Calculate Double Door Biparting Track Length'. The main formula is: Track Length = 4 x Door Width. To find the size for each of the two doors, the formulas are: Door Width = [Opening Width + (2 x Molding Width, or 4 inches if no molding)] / 2. The Door Height formula is: Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch.Instructional diagram showing a pair of closed biparting doors, titled 'How to Calculate Double Door Biparting Track Length'. The main formula is: Track Length = 4 x Door Width. To find the size for each door, the formulas are: Door Width = [Opening Width + (2 x Molding Width, or 4 inches if no molding)] / 2. The Door Height formula is: Door Height = Opening Height + (Molding Height, or 2 inches if no molding) - 1/2 inch. Video showing how to install a Goldberg Brothers barn door.

Modern J Top Mount Barn Door Hardware Kit

Goldberg Brothers
Starts at:
$218.50
Finish: Matte Black Texture

Description

Confirm your fit

Specifications

What's in the kit

Choosing the right track length

Our Simple 3-Step Process

1) Select Your Hardware
Choose your finish, door thickness, track length, quantity, and optional add-ons
2) Custom Made
Each hardware kit is made to order in the U.S. and shipped in 10-15 days.
3) Install with Confidence
Your US made hardware is backed by a limited lifetime warranty.

Common Questions

The track above the door and the track stops are visible. The hanger hardware — the J-shaped arm and roller assembly — sits above and behind the door panel, out of view from straight-on. From most normal viewing angles, you see the door and the track. No straps on the door face.

Top edge mounting distributes the door's load differently than front face mounting. The geometry of how the hanger transfers force to the track limits the rated capacity to 100 lbs per door in this configuration. It's not a quality issue — it's a mechanical constraint of the mounting position. For doors over 100 lbs that need the top mount style, adding additional rollers is an option — email us for details and pricing.

No. Holes are drilled at installation, not pre-drilled at the factory. Because top mount and face mount hardware use different hole positions, doors ship without pre-drilled hardware holes to avoid putting the wrong holes in the wrong place. The installation instructions walk through hole placement. Your door does come with a pre-cut slot in the bottom edge for the floor guide.

Top mount capacity in both standard and heavy duty configurations is limited by the mounting geometry — it's not simply a matter of upgrading to heavier hardware. If you need more than 100 lbs of capacity with a top mount style, one option is adding additional rollers to distribute the load further. Email us at info@thebarndoorhardwarestore.com with your door weight and dimensions and we'll put together options and pricing for you.

For bedroom doors, bathroom doors, doors on shared walls, or any high-traffic door — yes. For a low-traffic pantry or utility door it's optional. Soft close can be added before checkout or retrofitted after installation if you decide you want it later.

Questions before you order?

Email us at info@thebarndoorhardwarestore.com with your door width, door weight, and the finish you're after. If your door is near or over 100 lbs and you want a top mount style, we'll point you to the right option before anything ships. Available 7 days a week.
