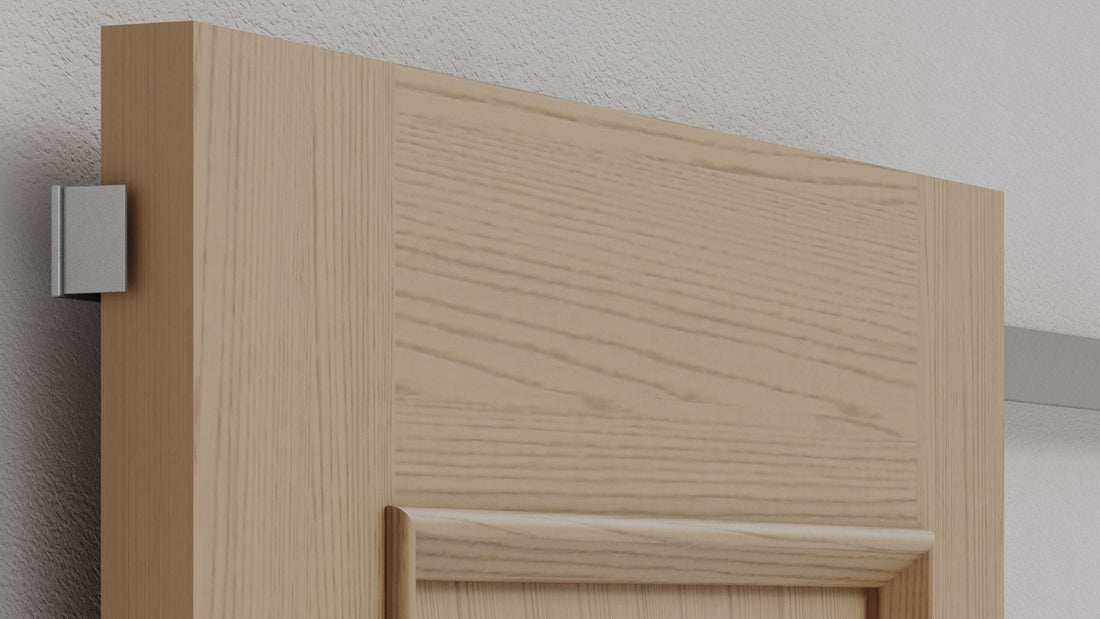

Hidden roller hardware conceals the roller assembly behind the door so it appears to float — no exposed rollers, no hangers, just a clean line where the track would otherwise show.
Concealed & invisible from the front · floating, minimalist profile · modern, seamless look · standard surface mount — no routing.
Hidden roller hardware keeps the rolling mechanism behind the door rather than above and in front of it. The track mounts to the wall at the header the same way standard barn door hardware does, and the roller still rides along the top of the track — but the assembly is positioned behind the door panel, so it's not visible from the front.
The result is a cleaner profile: no visible rollers, no visible hangers. What you still see after installation: the track face, track stops, and mounting hardware. This is surface-mounted hardware — no wall modification, no routing, no changes to the door itself. If you've come across "hidden" barn door systems that require the door to be hollowed out or the wall to be recessed, this is not that.
The typical customer is someone who wants the function of a sliding barn door with a more refined or modern look, or someone who wants the door panel to travel as close to the ceiling as possible. Hidden roller is not a substitute for ceiling-mount hardware — the top of the door still needs at least 4-3/8 in of clearance above the top of the opening for the hardware to fit.
How hidden roller hardware works
The roller assembly attaches to the back of the door. The roller itself still rides along the top of the track — same as standard hardware — but because the assembly is mounted to the door's back face rather than its top edge, it sits behind the door as it slides. The hardware is doing the same mechanical job as a standard kit; it's just positioned so the door panel conceals it from view.
The wall offset — something to know before you order
Because the roller assembly sits behind the door rather than above it, the door hangs approximately 1 in off the wall. Standard sliding hardware sits at about 3/8 in. That extra distance is usually not a problem, but it matters if you're fitting the door into a tight reveal, a narrow hallway, or any situation where the gap between the door face and an adjacent surface is a concern. Measure and account for it before ordering.
Header clearance — the spec most people miss
For the hardware to fit, the top of the door must be at least 4-3/8 in above the top of the rough opening. This is a firm requirement, not a recommendation.
Most customers who run into this discover it after measuring the door and opening without accounting for hardware clearance. If your ceiling is low, if the door is unusually tall relative to the opening, or if you're working with limited space above the header, measure carefully before ordering. Hidden roller hardware gets the mechanism closer to the ceiling than standard hardware does — but it still needs that 4-3/8 in gap to function. It is not a replacement for ceiling-mount hardware.
For all barn door hardware installations, we recommend installing into either solid blocking in the wall or a header board — at minimum a 1×6 hardwood — to ensure a secure mount.
Track length
Track length is the most common ordering mistake with hidden roller kits. The same rule applies as with standard sliding hardware: the track must be at least 2× the door width for a full, unobstructed opening. Measure the door width — not the rough opening.
| Configuration | Formula | Example |
|---|---|---|
| Single door | 2× door width | 36 in door → 72 in track |
| Biparting (2 doors) | 2× combined door width | Two 30 in doors → 120 in track |
For biparting setups, add both door widths together first, then double the result. Two 36 in doors need a 144 in track. Two doors of different widths follow the same math — add them, then double. For the full sizing formula reference, see our track length guide.
Weight capacity and door thickness
| Roller option | Weight capacity | Rollers per door | Best for |
|---|---|---|---|
| Standard duty | 125 lbs per door | 2 | Lighter interior doors — solid core and lighter |
| Heavy duty | 250 lbs per door | 4 | Solid wood and heavier doors |
Door thickness: compatible with any door over 1 in thick. If you're working with an unusually thick door and want to confirm fit before ordering, email us at info@thebarndoorhardwarestore.com.
Note: hidden roller hardware requires 1 in of wall offset — the door sits 1 in away from the wall surface to accommodate the roller assembly behind the door. Confirm you have adequate clearance for this offset before ordering.
Finishes and configurations
Finishes
Hidden roller hardware is Goldberg Brothers only and available in four finishes: matte black, black, arch bronze, and silver metallic. The full 17-finish range is not available for this product. Lead time is 10–15 days — each kit is made to order.
For finish matching with handles: matte black hardware → matte black texture handles; arch bronze → arch bronze handles; silver metallic → silver metallic handles; black → black handles.
Configurations
This collection covers single-door and biparting (two-door) hidden roller setups on a single track. For a more complex configuration — a hidden roller door paired with a standard heavy duty door on adjacent tracks — Goldberg Brothers offers a combo bypass setup. Email us at info@thebarndoorhardwarestore.com for details and we'll put together a quote.
What's included — and what isn't
| Item | Status | Notes |
|---|---|---|
| Track | Included | |
| Hidden roller assembly | Included | Standard (2 rollers) or heavy duty (4 rollers) per door |
| Mounting hardware | Included | |
| Floor guide | Included | Floor-mounted T guide |
| Handles | Not included | See our barn door handles collection |
| Soft close | Not available | Not compatible with hidden roller hardware |
For a full guide to how hidden roller hardware works, how it compares to standard hanging hardware, and whether the concealed look is right for your space, see our hidden roller hardware guide.
Questions before ordering? Email us at info@thebarndoorhardwarestore.com with your door width, weight, and ceiling clearance above the opening — we'll confirm the right roller option and track length. Available 7 days a week.
Watch: Hidden Roller Hardware Install Walkthrough
