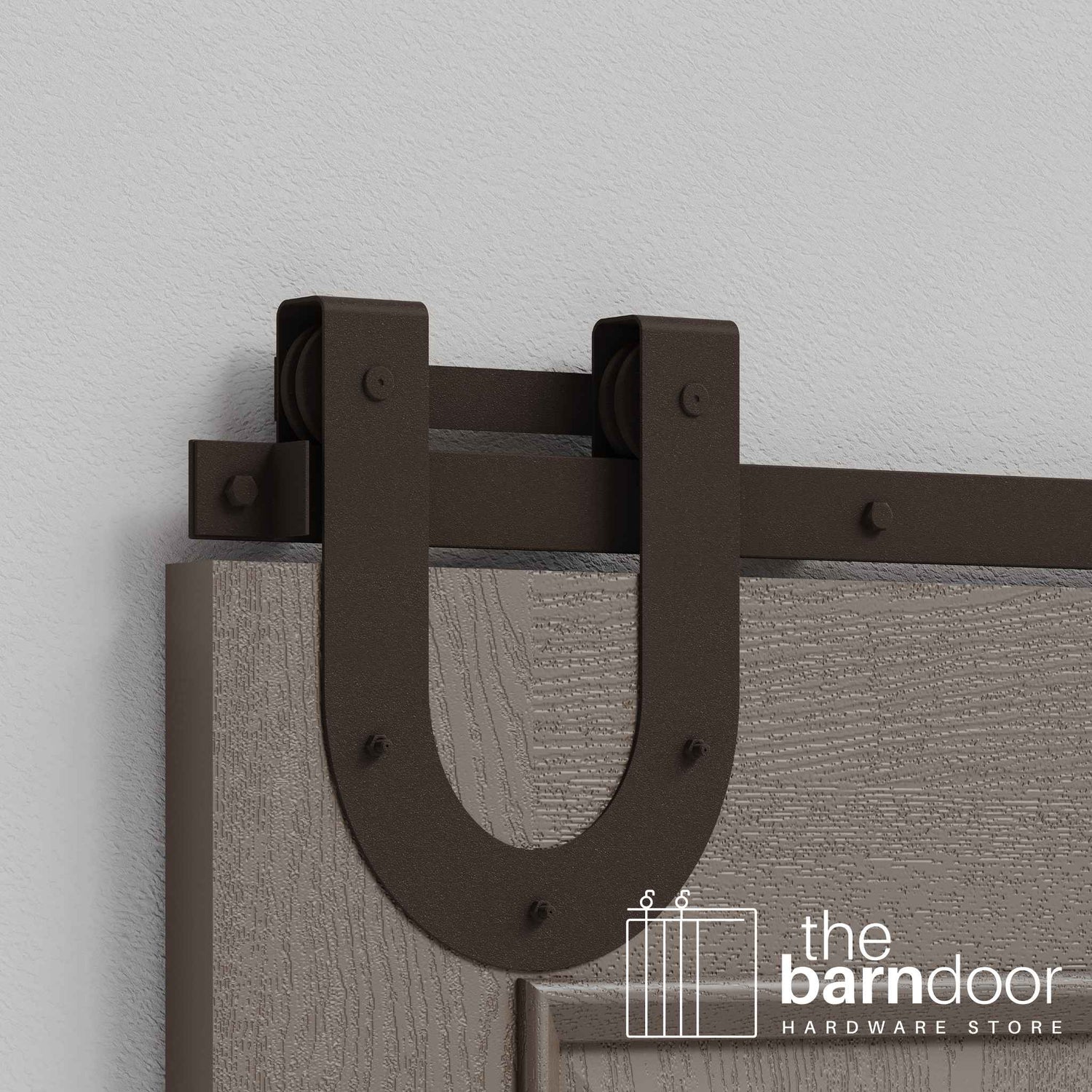

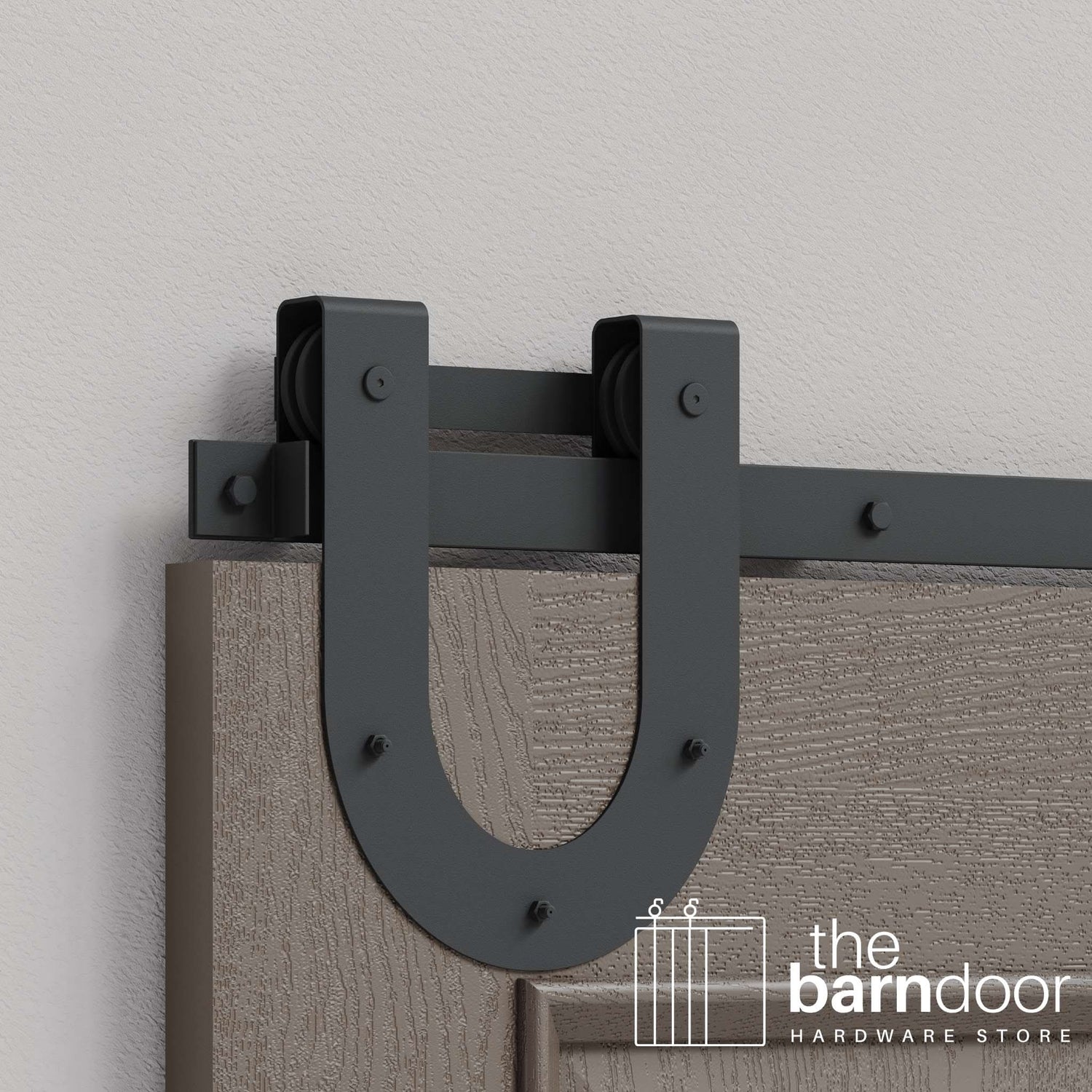

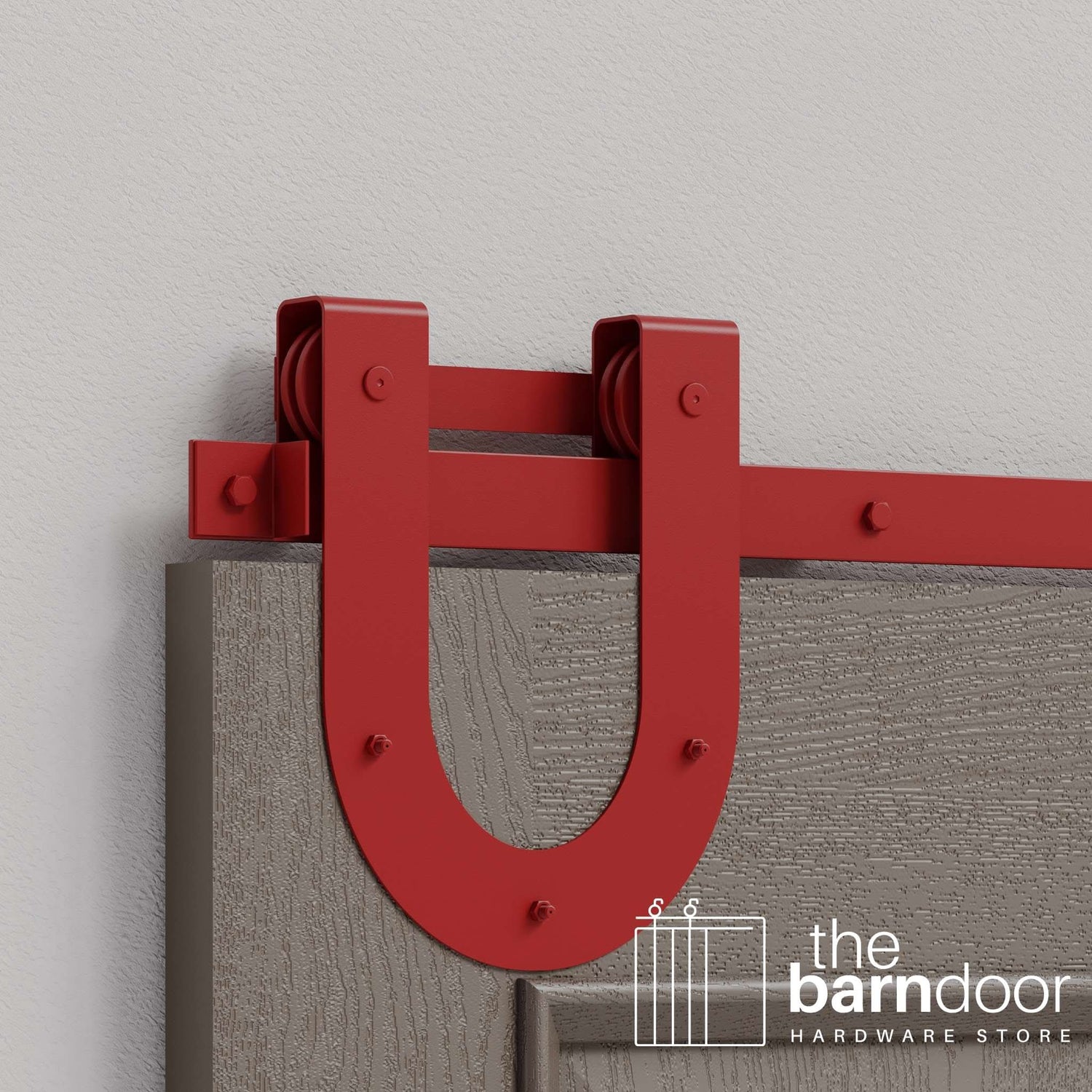

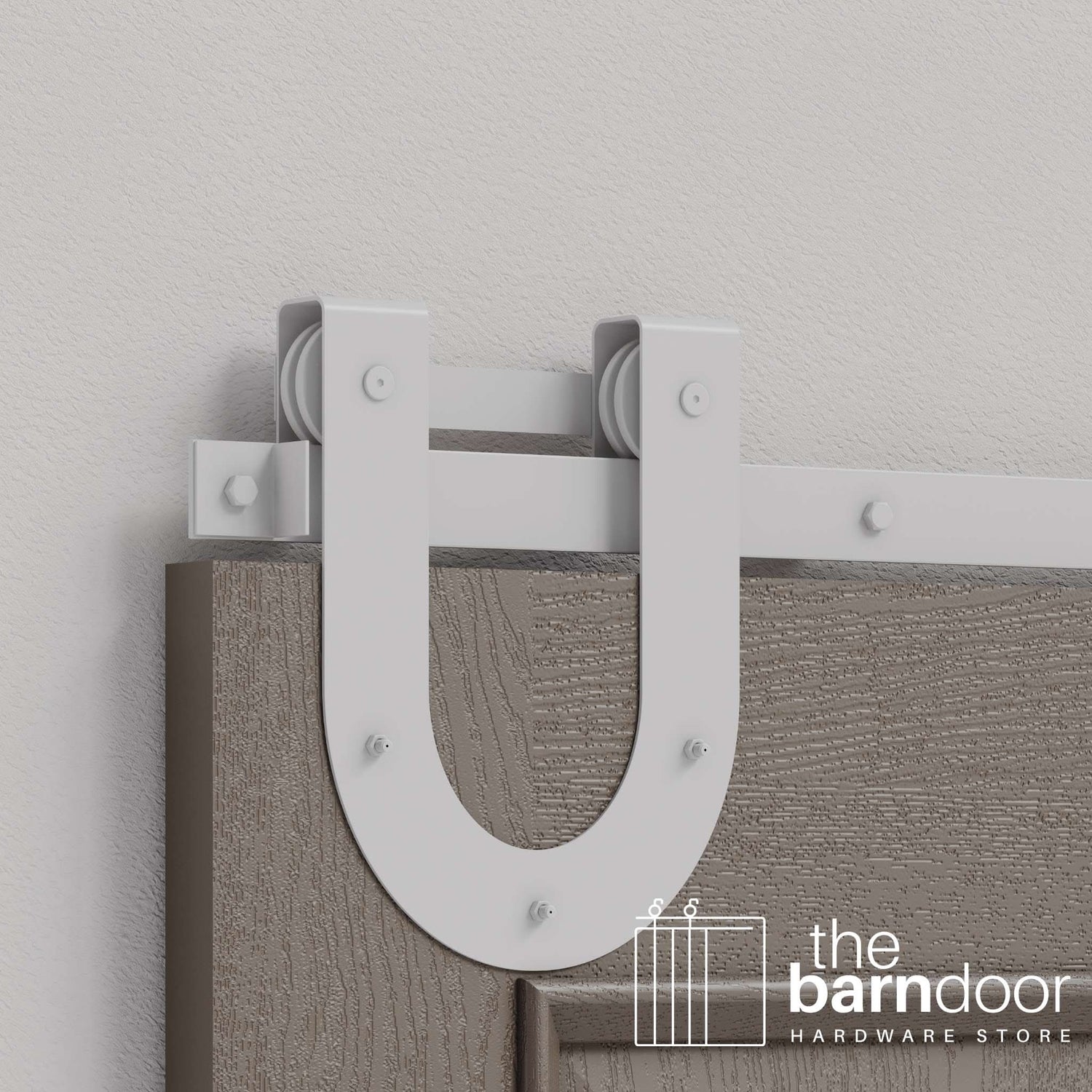

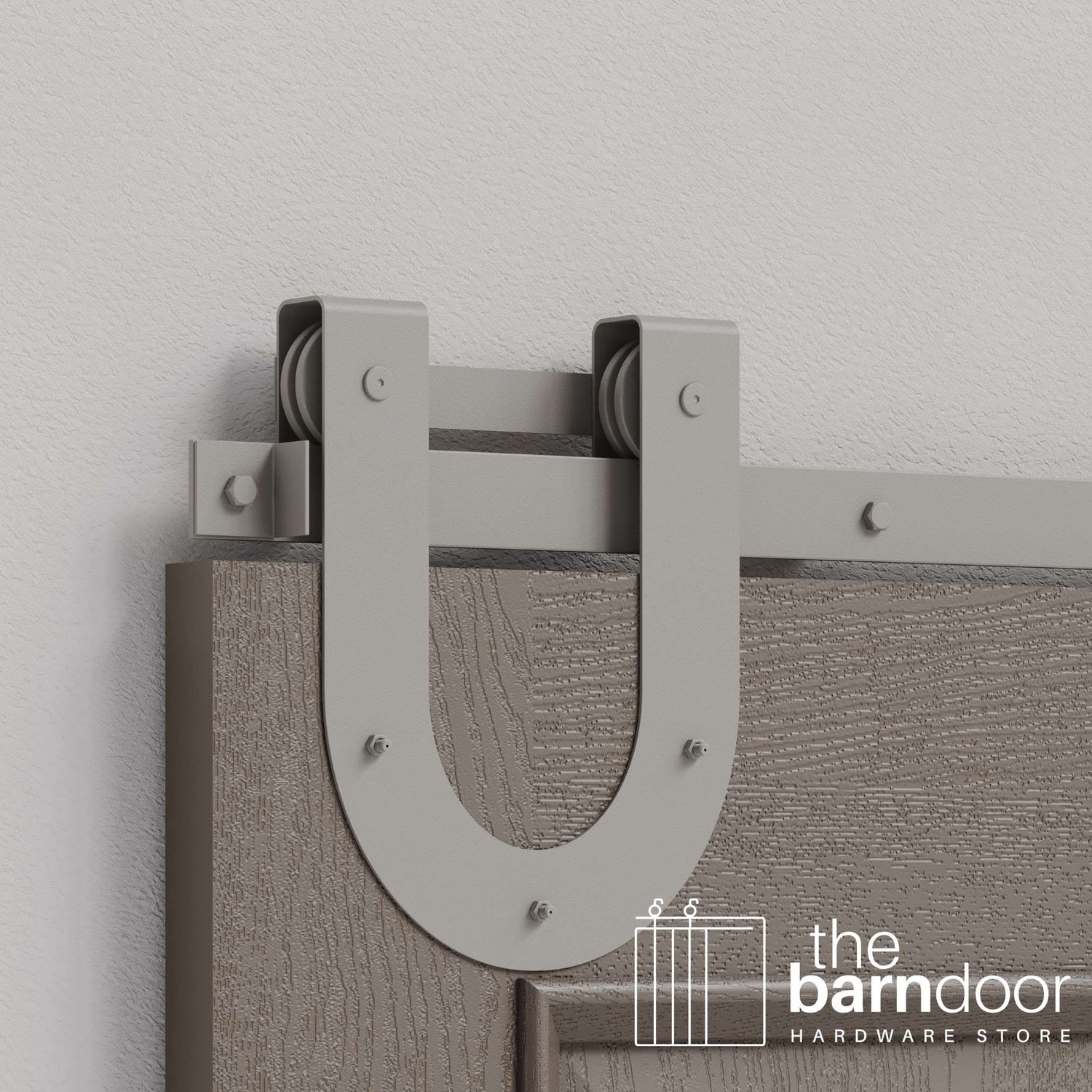

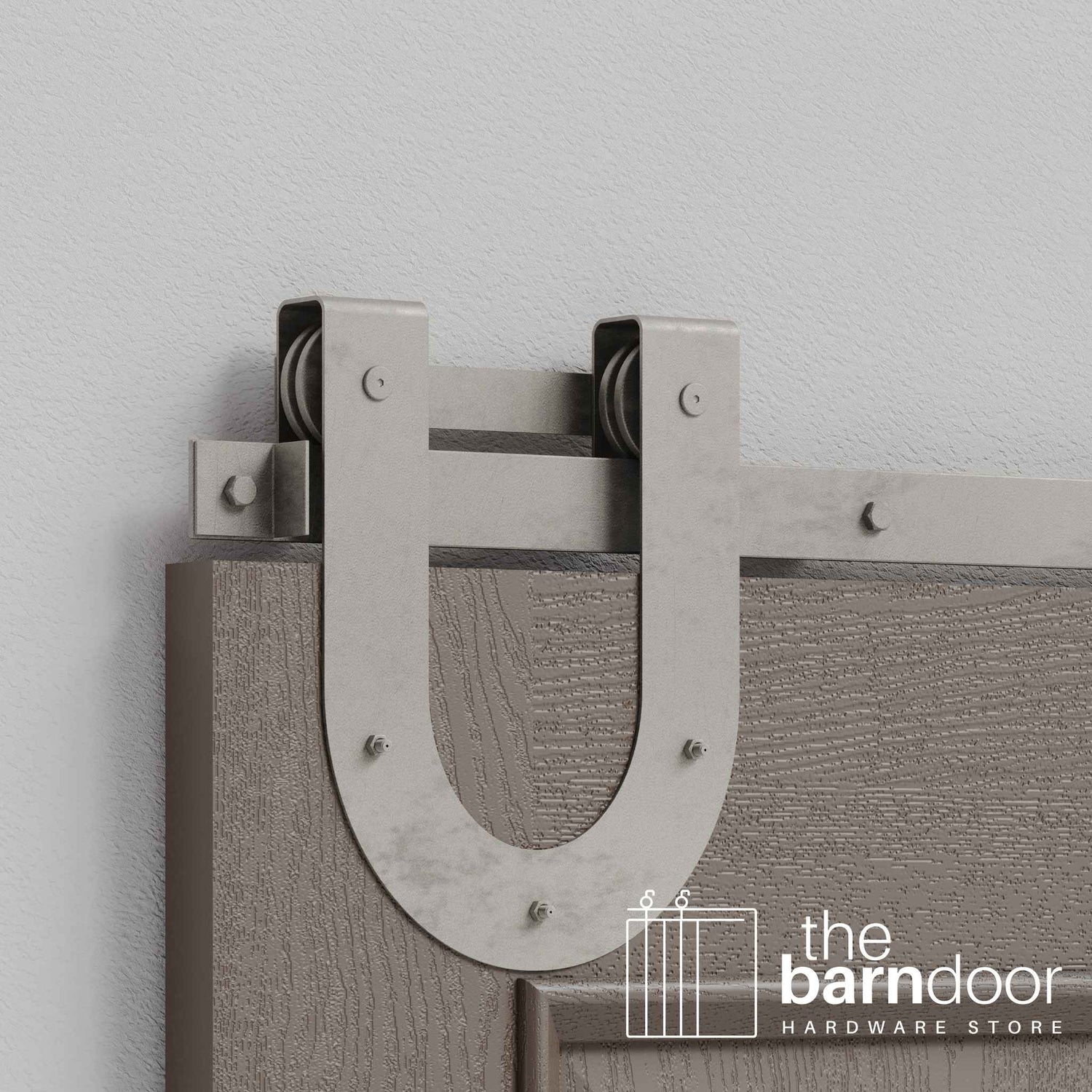

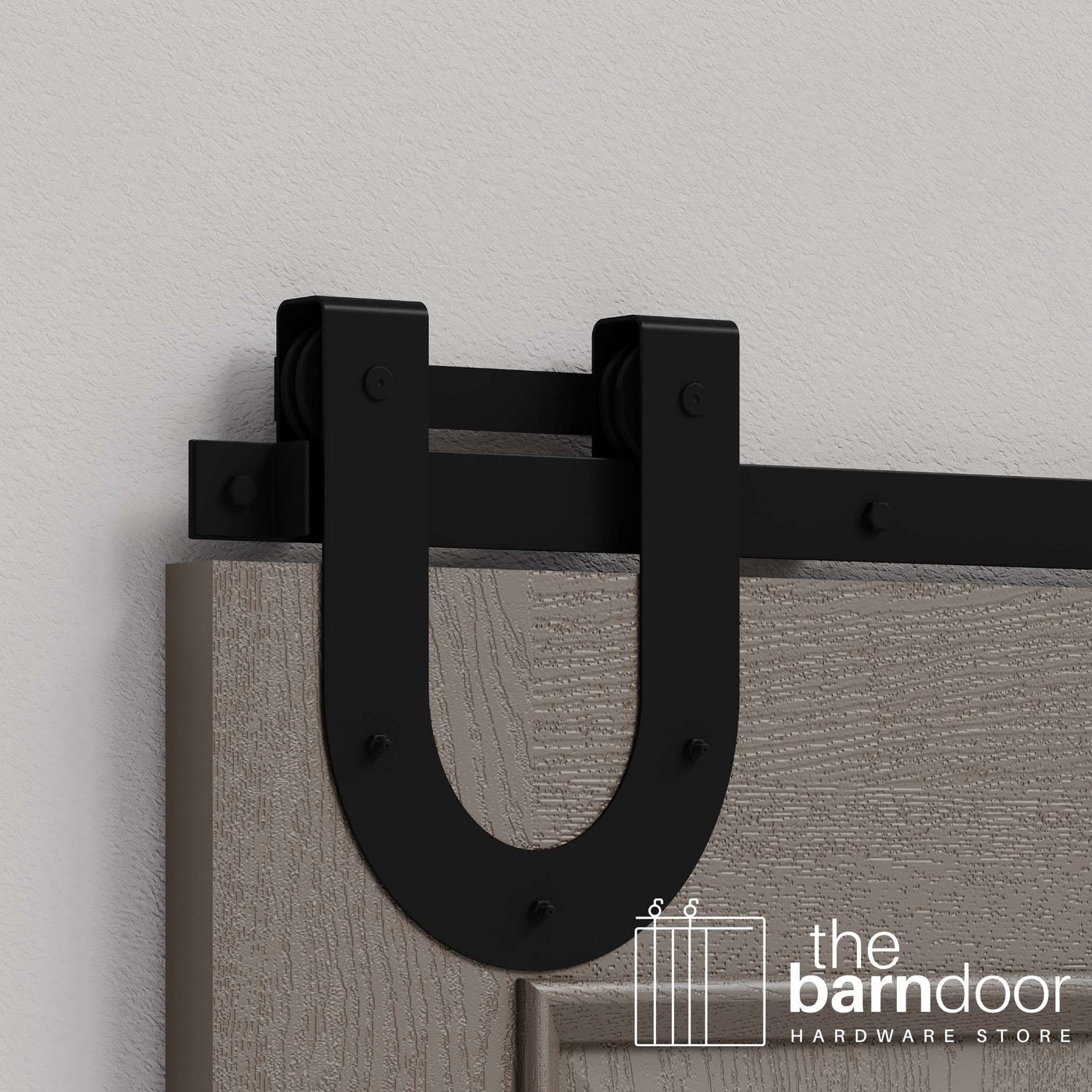

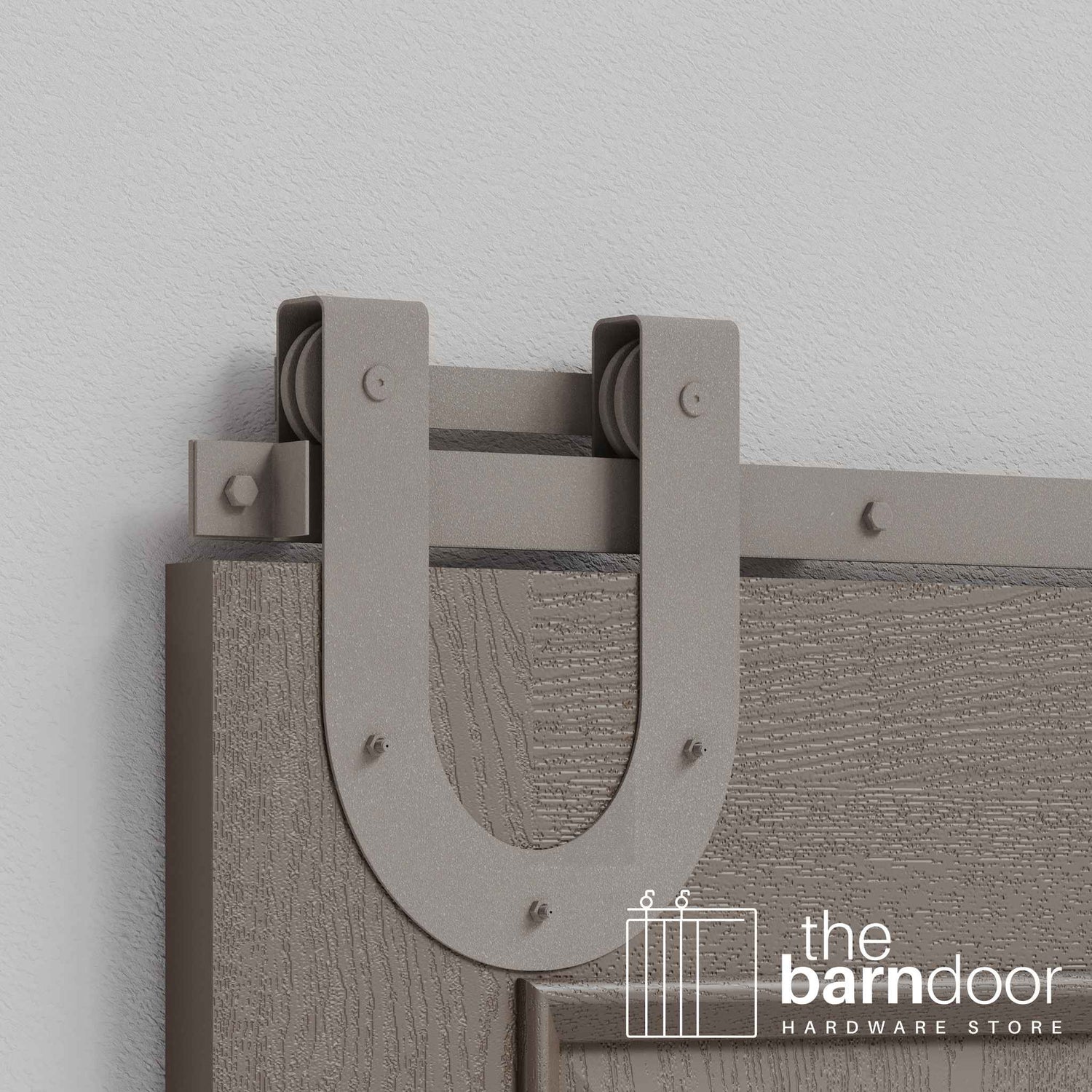

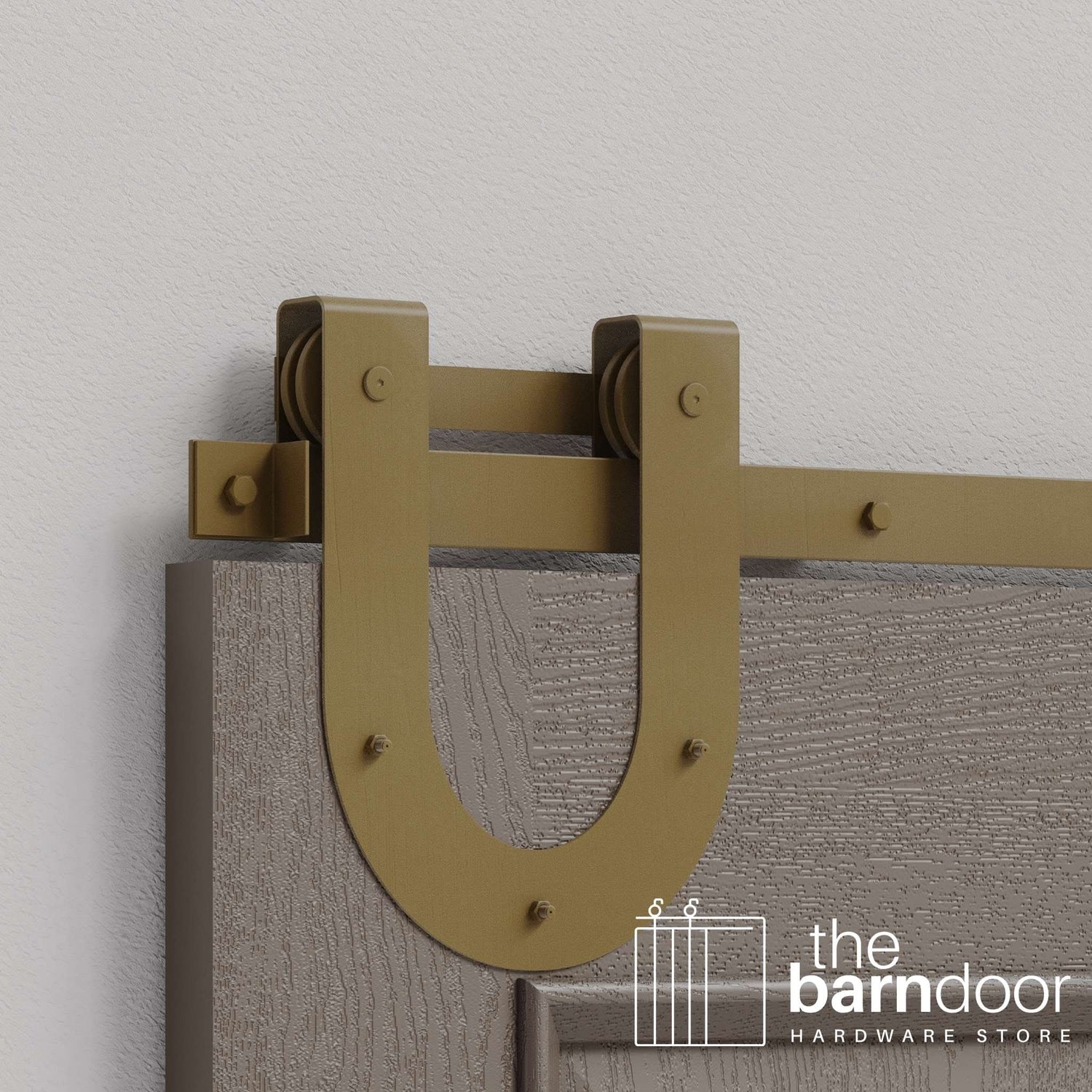

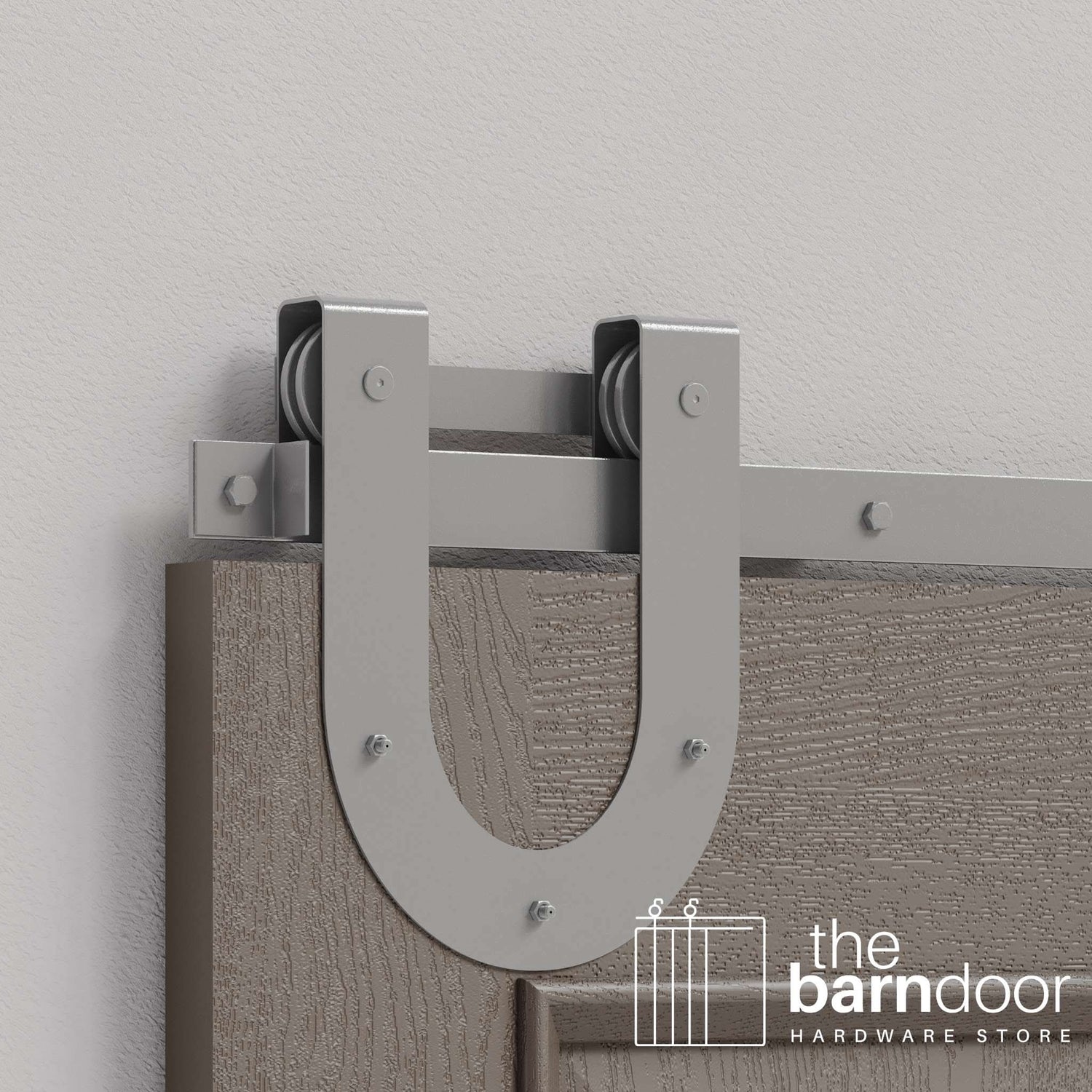

Horseshoe Heavy Duty Sliding Barn Door Hardware Kit

Door weight: Up to 600 lbs. Under 400 lbs? The heavy duty J-strap or flat top strap cover you at the same capacity with a simpler profile. Save the horseshoe for doors that genuinely need it.

Door thickness: 1‑3/8 in to 2‑1/4 in. Outside this range? Email us before ordering.

Wall clearance beside opening: Must equal full door width on the slide side. Limited clearance? See bypass or bifold hardware.

Wall header: A solid header above the opening is required for track mounting. If there is no existing header or backing in the wall, we recommend installing a minimum 1×6 hardwood board (3/4 in thick × 5-1/2 in wide) that extends past the length of the track to the next stud or structural support point on each side. No solid header and cannot install one? See ceiling mount hardware.

Ceiling clearance above door: 5-1/2 in required. Need less clearance? See standard duty horseshoe (4 in).

Door width: Your door must be wider than the rough opening. For standard rooms plan for 2 in of wall overlap on each side — opening + 4 in. For bedrooms and bathrooms, 3 in per side gives better privacy — opening + 6 in. Minimum functional overlap is 1/2 in per side. See our measuring guide for full sizing formulas.

Door height: Measure from finished floor to the top of the rough opening and add 1 in. The extra inch covers the top of the opening while leaving 1/2 to 1 in of clearance at the bottom for the door to slide without dragging. If you have thick carpet, check that clearance is adequate along the full travel path before ordering.

Brand: Goldberg Brothers — made to order in the USA

Lead time: 10–15 days

Track dimensions: 2 in wide × 3/16 in thick

Wheels: Color-matched steel multi-wheel assembly (default) — 600 lbs capacity. Delrin upgrade available — quieter operation, black only, reduces capacity to 400 lbs per door

Weight capacity: 600 lbs per door (steel wheels) / 400 lbs per door (Delrin upgrade)

Door thickness: 1‑3/8 in to 2‑1/4 in

Hanger mount: Front face of door

Configurations: Single door or biparting (two-door)

Finishes: All 17 Goldberg Brothers finishes

Soft close: Available as add-on — can also be retrofitted after install

Handles: Not included — order separately from barn door handles

Warranty: Limited lifetime warranty against defective parts. The finish is a rustic raw or powder-coated steel — minor cosmetic marks and surface patina over time are characteristic, not defects, and aren't covered (stainless excepted). Wear items like felt pads, rubber bumpers, and the soft close mechanism carry a one-year window.

For the full pre-order checklist, see our measuring guide. For track length formulas by configuration, see our track length guide. For doors wider than 60 in, see our extra rollers guide.

• Custom-cut steel track (2 in × 3/16 in)
• Horseshoe hanger sets with color-matched steel multi-wheel assembly
• Wall mounting brackets, bolts, and spacers
• 2 track stops per hanger set
• 1 floor-mounted T guide per door
• 2 anti-jump blocks per door
• Felt pads and rubber bumper bands — finish each track end as a quiet "stay" or a "bumper"
• Installation instructions

Tracks over 7'6" ship in multiple sections with junction plates included. If you have finished hardwood, tile, or LVP, you'll need a wall-mounted floor guide instead of the included floor-mounted guide. If you have casing or trim around the opening, trim clearance kits are available as a separate purchase — contact us for sizing guidance.

At 600 lbs, the header board is not optional — use solid hardwood at minimum 1×6, spanning the full track length and fastened securely into every stud. We recommend emailing us before installation on very heavy doors so we can confirm the mounting approach. Step-by-step install guides are available for every kit.

Heavy duty kits don't include handles, a latch, or a trim clearance kit — plan for these before checkout:

• Handles: Bar pull or D-pull for the room-facing side — browse our handles collection
• Flush pull: For the wall-facing side if the door needs to be operated from both sides — browse our flush pulls collection
• Latch: Keeps the door closed deliberately — browse our latches collection
• Trim clearance kit: Required if casing or trim surrounds the opening — add at the product level before checkout
• Wall-mounted floor guide: If you have finished hardwood, tile, or LVP you can't drill into — browse our floor guides collection

The track must be at least 2× the door width for the door to fully clear the opening. Measure the door panel — not the rough opening.

Single door: 2× door width — e.g. 36 in door → 72 in track

Biparting (2 doors): 2× combined door width — e.g. two 36 in doors → 144 in track

For biparting: add both door widths together first, then double the combined total. Every track is custom-cut to your specification. If the length you need isn't listed, request a custom quote — non-standard lengths are priced the same as the next standard size up.

This is a made-to-order product. Custom track lengths cannot be returned. Confirm your measurement before submitting your order.
