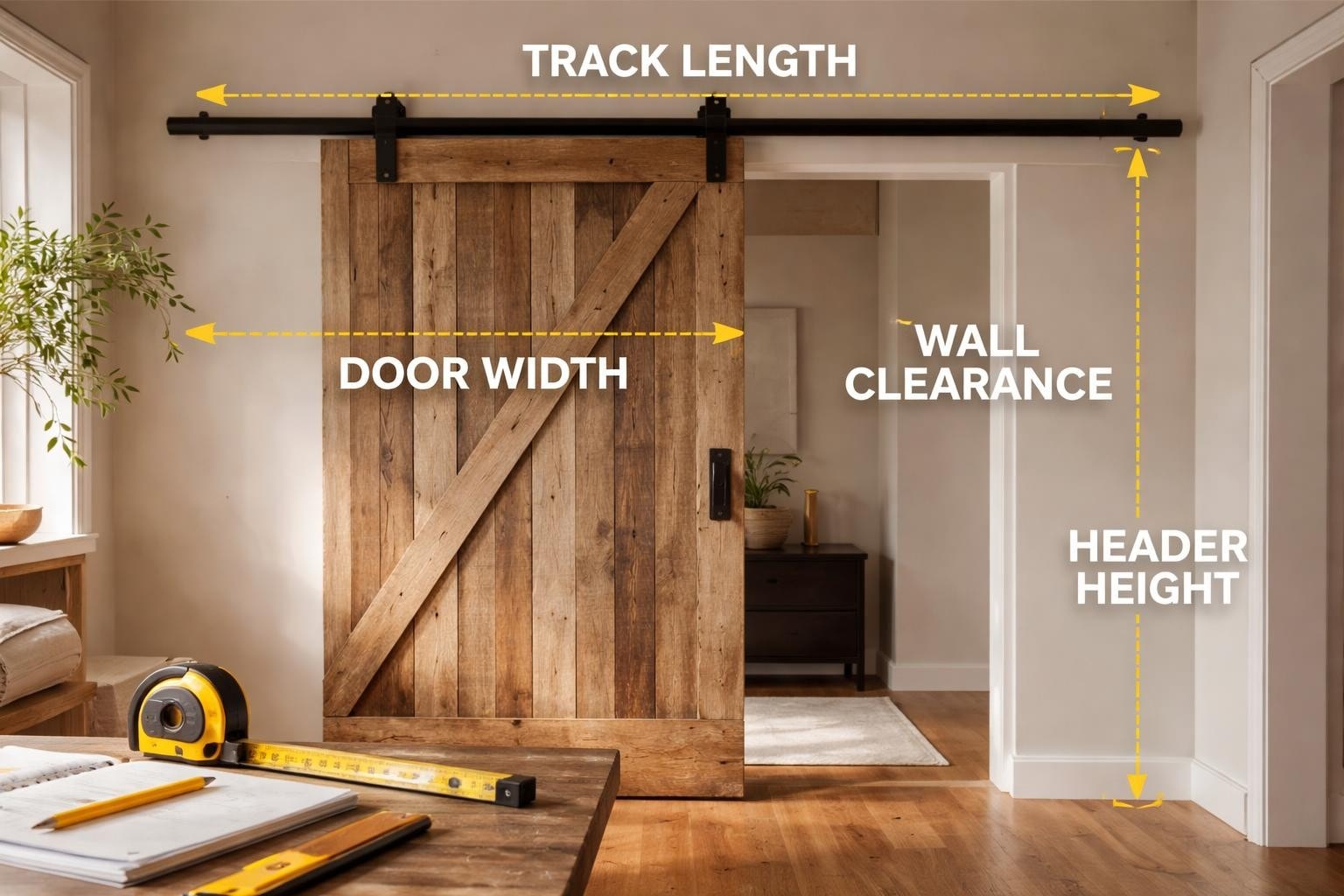

Four measurements determine every barn door hardware order: door width, track length, wall clearance beside the opening, and ceiling clearance above the opening. Get all four right and ordering is straightforward. Miss any one of them and you'll be dealing with a door that doesn't cover the opening, a track too short to let the door slide fully clear, or hardware that doesn't physically fit in your space.
This guide covers each measurement with the correct formulas. For the full sizing breakdown including bypass and bifold configurations, see our barn door dimensions guide and full sizing guide.
Measurement 1: Door width
Measure the rough opening width — the actual wall opening, not any existing trim or casing around it. Take the measurement at the top, middle, and bottom of the opening and use the widest figure.
The door must be wider than the opening to overlap the wall on each side:
| Room type | Overlap per side | Door width formula |
|---|---|---|
| Standard rooms — hallway, pantry, living space | 2 in per side | Opening + 4 in |
| Bedrooms and bathrooms | 3 in per side | Opening + 6 in |
| Minimum functional overlap | 1/2 in per side | Opening + 1 in |
Worked examples:
- 32 in opening, standard room → 36 in door
- 36 in opening, standard room → 40 in door
- 36 in opening, bedroom → 42 in door
This is the starting point for every other measurement — door width determines track length, and wall clearance is measured against door width.
Measurement 2: Door height
Measure from the finished floor to the top of the rough opening. Add 1 in for the door height. The extra inch provides coverage at the top while maintaining 1/2 to 1 in of floor clearance at the bottom for the door to slide without dragging.
- 80 in opening → 81 in door
- 84 in opening → 85 in door
- 96 in opening → 97 in door
If you have carpet, check that the floor clearance is adequate for the pile height. Standard 1/2 to 1 in works for most carpet; thick pile may need a bit more clearance to avoid drag.
Measurement 3: Track length
Track length must be at least 2× the door width. Not 2× the opening. Not door width plus a few inches. The door needs to travel its full width to clear the opening, and the track needs to accommodate the door in both the fully open and fully closed positions at the same time.
Worked examples:
- 36 in opening → 40 in door → 80 in track minimum
- 36 in opening (bedroom) → 42 in door → 84 in track minimum
- 48 in opening → 52 in door → 104 in track minimum
For bypass and bifold configurations, track length formulas are different — see our full sizing guide for those calculations. For track lengths beyond what's listed in our collections, junction plates allow any track length — email us before ordering.
Measurement 4: Wall clearance beside the opening
The door needs clear wall space equal to the full door width on the slide side. Measure from the edge of the opening to whatever is next on the wall in the direction the door will slide — a light switch, outlet, window, corner, built-in, or any other obstruction.
Walk the full path the door will travel and check for anything in the way before ordering. A 40 in door needs 40 in of clear wall. A switch 36 in from the opening edge means the door can only open 36 in — leaving 4 in of the opening still covered.
If clear wall space isn't available on either side, bypass or bifold configurations solve the problem with less lateral clearance required. See our configuration guide for the options.
Measurement 5: Ceiling clearance above the opening
The track mounts above the rough opening and requires clearance between the top of the opening and the ceiling. The amount needed varies by hanger style:
| Hanger style | Clearance needed above rough opening |
|---|---|
| Straight strap, straight top mount, horseshoe (standard duty) | 4 in |
| J-strap, J top mount (standard duty) | 4-1/2 in |
| J-strap, flat top strap, horseshoe and top mounts (heavy duty) | 5-1/2 in |
| Wagon wheel, horseshoe wagon wheel (heavy duty) | 9 in |
| All stainless steel styles | 5-1/2 in |
| Hidden roller | 4-3/8 in |
Measure from the top of the rough opening to the ceiling (or to any crown molding or trim that would block the track). If clearance is tight, straight strap and horseshoe require the least at 4 in for standard duty hardware.
Door thickness and weight
Thickness
Hardware kits are designed for specific door thickness ranges. Confirm your door is within range before ordering:
| Hardware | Door thickness range |
|---|---|
| Standard duty Goldberg Brothers and house value line | 1-3/8 in to 1-3/4 in |
| Heavy duty Goldberg Brothers and stainless | 1-3/8 in to 2-1/4 in |
| Cabinet hardware (Goldberg Brothers) | 3/4 in to 1-1/8 in |
| Cabinet hardware (house value line) | 1/2 in to 1-1/4 in |
Weight
Hardware capacity must meet or exceed door weight — no safety factor multiplier needed. Estimate by material:
- Hollow core: 25–35 lbs
- Solid core: 50–80 lbs
- Solid pine / poplar: 80–120 lbs
- Solid hardwood: 100–150 lbs
- Reclaimed / old-growth: 120–200+ lbs
See our barn door weight guide for more detailed estimates. Use our hardware finder to match door weight to the right kit.
Quick reference — what to measure before ordering
| Measurement | Formula / what to check |
|---|---|
| Door width | Opening + 4 in (standard) / Opening + 6 in (bedroom/bathroom) |
| Door height | Opening height + 1 in |
| Track length | Door width × 2 (size to door, not opening) |
| Wall clearance beside opening | At least door width of clear wall on slide side |
| Ceiling clearance above opening | 4 in (straight strap) to 9 in (wagon wheel) — varies by hanger |
| Door thickness | Must be within hardware's supported range |
| Door weight (estimated) | Hardware capacity must meet or exceed |
| Trim around opening | If yes, trim clearance kit needed (separate purchase) |
| Floor type | If finished floor — wall-mounted floor guide may be needed |
Common measurement mistakes
- Sizing the track to the opening, not the door. The most common ordering mistake. Always 2× the door width.
- Not walking the door's travel path. A switch 36 in from the opening means the door can only open 36 in. Walk the path before ordering.
- Measuring to trim instead of the rough opening. Trim dimensions aren't accurate for hardware ordering. Measure the actual wall opening.
- Assuming walls are perfectly plumb. Take width measurements at the top, middle, and bottom and use the widest figure.
- Not accounting for trim around the opening. If you have casing or trim, a trim clearance kit is required — it's a separate purchase not included in any kit, and covers trim up to 1-1/4 in.
- Forgetting to check ceiling clearance. An opening that runs close to the ceiling may rule out certain hanger styles. Check before choosing hardware.
Want us to check your measurements before ordering?
Email us at info@thebarndoorhardwarestore.com with your opening width and height, the wall clearance available on each side, and the ceiling clearance above the opening. We'll confirm the right door size, track length, and hanger style before anything ships. Available 7 days a week.
