By Evan Christensen · Published April 25, 2026 · Updated April 2026
Evan Christensen is owner of The Barn Door Hardware Store, a family-owned business that has helped over 10,000 customers find the right barn door hardware since 2016. Have a question about your project? Reach us at info@thebarndoorhardwarestore.com — we're available 7 days a week.
Most people asking about custom sliding interior doors don't actually need custom hardware. They need the right combination of standard components that handle their specific situation. We see this weekly: someone assumes they need custom because their door is 42" wide instead of 36", or because their wall has a bulkhead, or because the door weighs 180 pounds. The reality? About 85% of "custom" requests get solved with off-the-shelf hardware configured correctly.
When Standard Hardware Already Solves Your Problem
Your door measures 38" x 84" instead of the standard 36" x 80". That's not a custom situation. We stock hardware kits that accommodate doors from 24" to 48" wide using the same track system. The rollers adjust along the track length. The only calculation you need is track length: door width times two, plus 4–6 inches for overhang.
Standard configurations that handle most "non-standard" situations:
- Track lengths from 4 feet to 16+ feet
- Weight capacities from 150 to 400+ pounds per door
- Door heights up to 10 feet with extended mounting brackets
- Wall clearance options from 1.5" to 6" using spacer blocks
Someone contacted us in March 2026 about a 96" tall door for a basement renovation. They assumed custom. We pointed them to our standard 8-foot track. Total cost difference from a 7-foot setup? About $5 for a longer track.
The hardware doesn't care if your door is reclaimed oak or MDF. It cares about weight, width, and clearance requirements.
Heavy Door Requirements: Not Custom, Just Heavy-Duty
A solid wood door weighing 200 pounds doesn't require custom hardware. It requires hardware rated for that load. Our heavy-duty kits use the same 3/16 in steel as the standard line, but with a 2 in wide track instead of 1-1/2 in. That wider profile, combined with proportionally larger hardware, is what handles doors up to 400 lbs.
| Standard Kit | Heavy-Duty Kit | Difference | |
|---|---|---|---|
| Weight Capacity | 200 lbs | 400 lbs | 2x stronger |
| Track Width | 1-1/2 in | 2 in | 33% wider profile |
| Track Thickness | 3/16 in steel | 3/16 in steel | Same material |
| Starting Price | From $208.50 | From $297.00 | ~$90 difference |
We've seen plenty of heavy doors perform flawlessly on standard hardware when the weight is within spec — and just as many installers over-engineer their purchase when a standard kit would have done the job. The weight capacity rating matters far more than the brand or price point. A 150 lb solid wood door on a properly installed standard kit will outlast a 150 lb door on misapplied heavy-duty hardware every time.
Compare that to actual custom fabrication: 6-week lead time, $800+ for engineered track, and you're still bolting it to the same studs.
Weight Distribution Matters More Than Custom Design
The real issue with heavy doors isn't the hardware strength. It's how the weight transfers to your wall structure. A 200-pound door on an 8-foot track creates significant force at each mounting point — manageable in any wall with proper stud mounting.
Problems happen when installers use drywall anchors or mount into single studs. Proper heavy door installation checklist:
- Locate studs with a quality stud finder (not the magnetic strip type)
- Use minimum 3" lag bolts into stud centers
- Space mounting brackets maximum 24" apart
- Add mid-span support bracket for tracks over 10 feet
- Check level both before and after hanging the door
Wall Configuration Challenges: Spacers and Ceiling Mounts
Your wall has a bulkhead running exactly where the track needs to mount. Or there's crown molding. Or the wall studs are steel instead of wood. None of these require custom hardware. They require alternative mounting approaches.
Wall spacers handle the bulkhead and molding situations. We stock spacers from 1" to 6" depth that bridge the gap between the track and the actual wall surface. The spacers mount to studs, the track mounts to the spacers. You lose some door swing clearance, but you gain a working installation.
Ceiling mount kits solve the problem wall entirely. The track attaches to ceiling joists instead of wall studs — ideal for modern construction where walls might be steel-framed or have complicated electrical runs. You'll need adequate clearance between the top of your door and the ceiling for the hardware assembly to fit correctly; check the product page for the specific clearance requirement before ordering.
A contractor called us about a renovation where the entire wall section was glass and steel framing — zero wood to mount into. A ceiling mount kit was the solution. The track attached to ceiling joists, cleared the door header, and the installation was done in an afternoon.

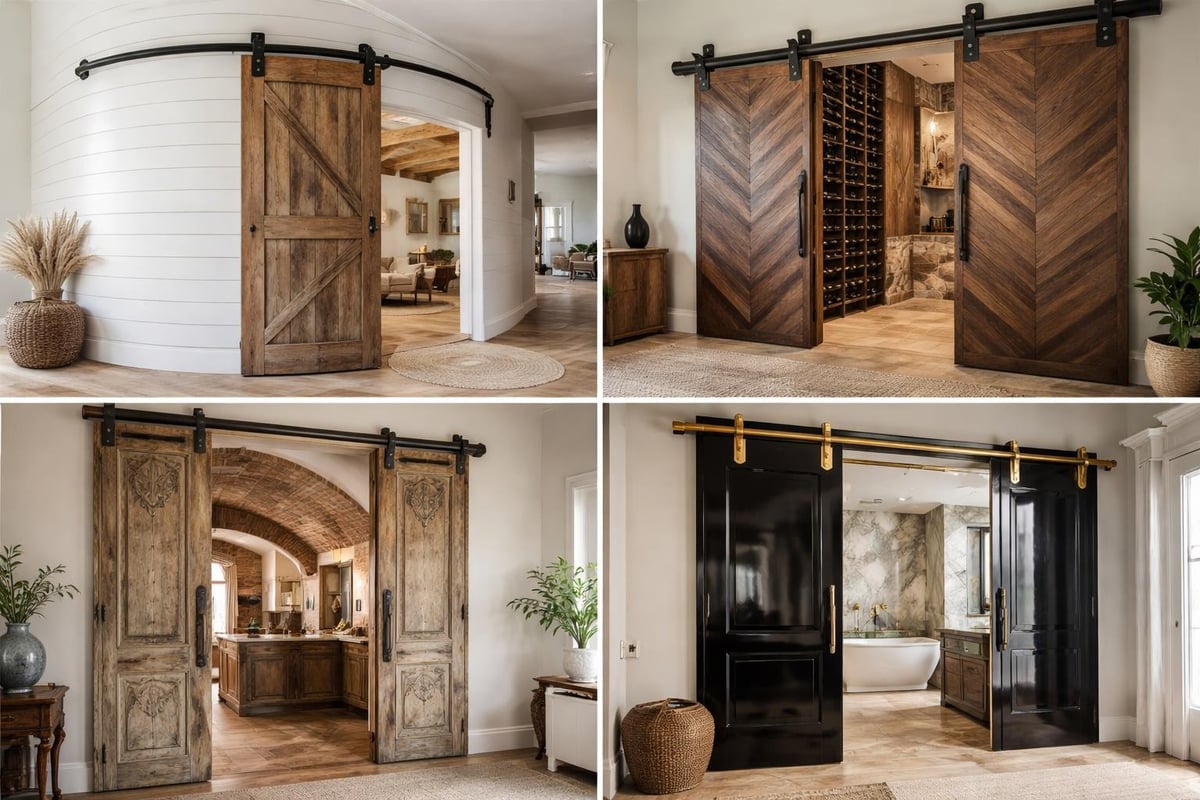

When You Actually Need Custom Hardware
True custom situations are rare but real. Here's when standard configurations won't work:
Curved track applications where the door follows a radius wall. We don't manufacture curved track. Neither do most hardware suppliers. You're looking at specialty fabricators and 8–12 week timelines.
Extreme weight scenarios above 400–600 pounds per door. Think steel security doors or massive live-edge slabs. At that point you need engineered systems with specific load calculations.
Unique aesthetic requirements that demand non-standard finishes. We offer matte black, arch bronze, silver metallic, stainless steel, and 17 Goldberg Brothers finishes total. If you need something outside that range, that's custom territory.
Architectural constraints like mounting to concrete ceilings with no joist access, or installations in historic buildings with preservation requirements. These need engineering analysis and often custom fastening solutions.
For genuinely custom situations, contact us directly. We'll either find a creative standard solution or refer you to fabricators who handle true custom work.
Bypass and Bifold Configurations for Space Constraints
You have a 72" opening and want two doors that slide past each other. That's not custom. That's a bypass system.
Bypass hardware uses two parallel tracks. Each door hangs on its own track and slides independently — each track supports up to 220 lbs. There are two configurations: a Pass-Through System where the doors partially overlap when closed, and a Fully Clear Opening where the doors slide completely off to each side. Your track length calculation depends on which configuration you need.
Bypass vs. traditional single door for opening widths:
- 60" opening: Single 36" door or bypass dual 36" doors
- 72" opening: Single 42" door or bypass dual 42" doors
- 96" opening: Bypass only (single door too wide to be practical)
- 120" opening: Triple track bypass or bifold system
Bifold barn doors solve the problem when you don't have adequate slide space. Two door panels fold at the center and glide along a single overhead track — eliminating the swing radius of a traditional door while providing full access to the opening. We have a two-panel barn door on our own home office that opens and closes constantly throughout the day. Standard hardware, wide opening, no issues. A standard sliding door on the same opening would have needed several feet of clear wall space to slide into — the bifold folds onto itself and needs roughly half that. The standard bifold kit handles doors up to 125 lbs and 1-3/8 in thick; for heavier doors, see the heavy-duty bifold version.

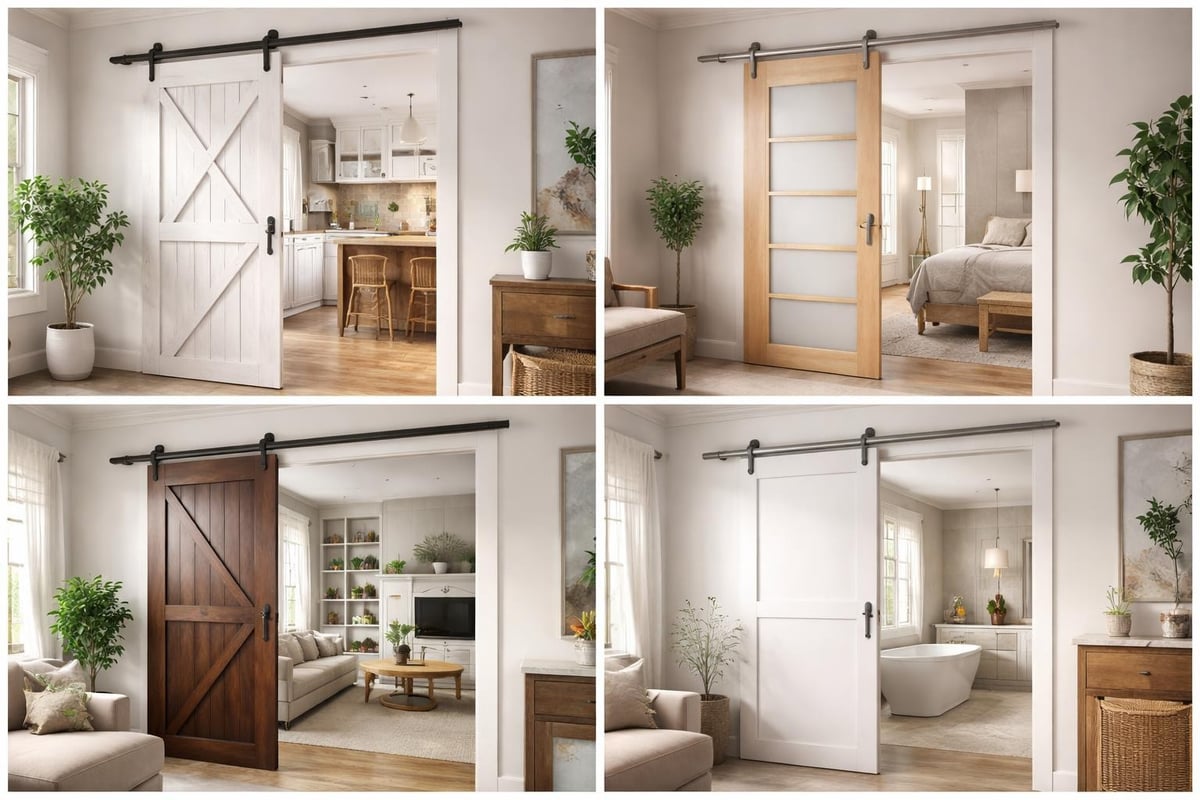

Finish and Style Coordination
The hardware finish doesn't change the engineering. Black rollers work exactly like brushed nickel rollers. But mismatched finishes look terrible. We maintain consistent finish standards across our hardware collections. Matte black is the same powder coat formula whether you're buying a single door kit or handles and pulls.
Available finishes in full component ranges:
- Matte Black (our most popular finish)
- Black
- Arch Bronze
- Silver Metallic
- Brushed Stainless Steel
- Raw Steel (for industrial applications)
- 17 Goldberg Brothers finishes total across the full collection
The finish affects durability more than people realize. Powder coat finishes resist scratching and wear better than painted hardware. We've seen matte black installations from 2017 that still look new despite daily use.
If you're matching existing door hardware throughout your home, bring a handle or hinge to compare. Phone photos don't capture finish texture accurately. The difference between satin nickel and brushed nickel is subtle in pictures but obvious in person.
Mixing Modern and Traditional Elements
Modern barn door hardware uses flat track designs and minimal brackets. Farmhouse styles feature decorative strap rollers and visible hardware. These aren't different systems — they're aesthetic variations of the same engineering.
A modern flat track carries the same weight as a traditional horseshoe track. The rollers use the same Delrin wheel technology. You can install modern hardware on a rustic barn door or farmhouse hardware on a contemporary flush panel. The door style and hardware style operate independently. We see this frequently in transitional designs where homeowners want sliding functionality without committing fully to one aesthetic.
Track Length Calculations for Unusual Openings
Standard formula: door width times two, plus 6 inches. That works for centered installations with equal clearance on both sides.
Real walls have windows, adjacent doorways, corners, and electrical boxes. The door might need to slide completely to one side instead of centering over the opening.
Single-side slide calculation: Door width plus opening width plus 6" minimum. A 36" door covering a 48" opening needs 90" of track when sliding fully to one side.
Offset installations: Measure from the center of your opening to the nearest obstruction on each side. The track needs to extend past center by at least the door width in your preferred slide direction.
We had a customer with a 36" door, 42" opening, with a window starting 50" from the opening center. Traditional centered installation would have the door sliding into the window frame. Solution: offset the track 10" toward the opposite wall. The door slides completely away from the window. Track length stayed at 84", but mounting positions shifted.
Extended tracks up to 16 feet handle wide openings and offset requirements. The track comes in sections for openings beyond single-piece shipping limits. Splices use internal joiners that maintain smooth roller travel.
Not sure about your measurements? Our barn door clearances and measurements guide walks through every scenario with diagrams.
Door Thickness and Roller Compatibility
Standard interior doors measure 1-3/8" thick. Exterior doors and custom builds often use 1-3/4" or thicker. Our standard kits accommodate doors 1-3/8" to 1-3/4" thick. The heavy-duty kits handle up to 2-1/4" thick doors — useful for solid hardwood builds or thicker custom slabs.
What changes with thicker doors:
- Weight (more material = heavier door = heavy-duty hardware consideration)
- Handle mounting depth (you need longer screws)
- Floor guide positioning (guide sits further from wall)
Nothing else changes. The track doesn't care about door thickness within its rated range. The rollers don't care. The mounting brackets adjust.
Floor Guides and Bottom Rollers for Stability
A door hanging from top-mounted rollers wants to swing like a pendulum. Floor guides prevent this without restricting slide motion. The guide mounts to your floor or wall centered under the door edge. A small bracket on the door's bottom edge rides within the guide channel. The door can only move along the track path, not swing out.
| Guide Type | Best For | Mounting | Starting Price |
|---|---|---|---|
| T Floor Guide | Most standard installs | Floor surface | From $30.00 |
| Adjustable U Floor Guide | Adjustable fit for varying door thickness | Floor surface | From $46.00 |
| All-in-One Wall Mounted Floor Guide | Finished hardwood, tile, or LVP — no floor drilling | Baseboard or wall | From $62.00 |
| Continuous Floor Guide | Long-travel doors where static guide disengages | Routed floor channel | $126.00 |
Some installers skip floor guides on shorter doors in low-traffic areas. We don't recommend it. A door with no bottom stabilization will swing at the bottom edge when opened quickly — enough to damage drywall or baseboards over time.
One important note: almost all kits include a floor-mounted T guide — but if you have finished hardwood, tile, LVP, or any flooring you don't want to drill into, you'll need to swap it for a wall-mounted guide before you can finish the install. It's the most common post-purchase question we get.
Hardware Finder Tool for Configuration Matching
We built a hardware finder specifically because "custom" requests usually mean "I don't know which standard configuration fits my situation." Input your door dimensions, weight estimate, and wall configuration. The tool filters our inventory to compatible options — narrowing 200+ products down to the 8–12 that actually fit your situation.
If you're still uncertain after using it, contact us. We'll ask about your wall structure, floor type, and any obstacles. Nine times out of ten, we identify a standard solution.
Lead Times and Availability
Custom hardware means waiting. Custom fabrication for barn door track takes 6–12 weeks depending on the shop's backlog. Custom finishes add another 2–4 weeks for powder coating.
Our standard configurations ship on a clear schedule depending on what you order:
| Hardware Type | Lead Time |
|---|---|
| Quick Ship kits (select styles) | Next business day |
| Goldberg Brothers standard & heavy-duty kits | 10–15 business days |
| Stainless steel hardware | 14–21 business days |
| Custom fabrication (third-party) | 6–12 weeks + shipping |
If your renovation has a deadline, the Quick Ship kits — like the Classic J-Strap Next Business Day Shipping kit starting at $226.00 — ship the next business day. For Goldberg Brothers hardware, plan for 10–15 business days. For stainless steel, allow 14–21 business days.
Real timeline comparison from a recent project:
- Custom track: 8 weeks fabrication + 2 weeks shipping = 10 weeks total
- Goldberg Brothers heavy-duty kit: 10–15 business days processing + shipping
- Cost difference: $800+ custom vs from $297.00 standard heavy-duty
- Functional difference: None
Installation Complexity: Standard vs Custom
Standard hardware kits include installation instructions written for competent DIYers. You need a drill, level, stud finder, and socket set. Most first-time installs take an afternoon.
Custom hardware often lacks detailed instructions because each installation is unique. You're working from engineering drawings or general guidelines. Professional installation becomes necessary, adding $300–600 to project costs.
We include installation guides with specific torque specs, mounting patterns, and troubleshooting steps.
Common installation mistakes we see:
- Mounting into drywall instead of studs (door falls within weeks)
- Insufficient track overhang (door can't fully clear opening)
- Misaligned roller height (door drags or gaps at bottom)
- Skipped floor guide (door swings and damages wall)
- Wrong lag bolt length (doesn't reach stud or penetrates too far)
Standard hardware forgives minor errors through adjustment ranges. Custom hardware has tighter tolerances — a small mounting error may mean reordering components.
Cost Analysis: Standard Solutions vs Custom Fabrication
Real numbers from comparable projects quoted in 2026.
Scenario: 84" tall x 42" wide solid wood door, approximately 190 pounds
| Standard Heavy-Duty Solution | Custom Fabrication | |
|---|---|---|
| Track/Kit | From $297.00 (J Strap Heavy Duty) | $425+ |
| Roller Assembly | Included | $280 |
| Mounting Hardware | ~$45 | $95 |
| Finish/Powder Coating | ~$60 (decorative add-ons) | $150 |
| Shipping | Free | $85 |
| Total | ~$402+ | $1,035+ |
The functional difference? None. The aesthetic difference? The custom version had scroll-worked roller faces matching existing home details — beautiful, but not $600+ more beautiful for most budgets.
Hidden Costs of Custom Solutions
Custom doesn't just cost more upfront. It costs more if anything ever needs attention.
Standard hardware uses Goldberg Brothers components backed by a limited lifetime warranty — and because they're a widely stocked American manufacturer, replacement parts are readily available. Custom hardware requires going back to the original fabricator. Lead time starts over. Cost is whatever they decide because you can't source compatible parts elsewhere.
Our limited lifetime warranty covers manufacturing defects under normal installation and use — including repair or replacement of defective components. Note that installation costs and cosmetic wear are excluded, and accessories like soft-stop mechanisms and felt strips carry a one-year coverage period.
American-Made Hardware for Quality Assurance
Goldberg Brothers has manufactured barn door hardware in the USA since 1902. We've stocked them since 2016 and they consistently produce the fewest warranty claims and customer callbacks of any brand we carry. The steel, the powder coating, the engineering tolerances — all held to domestic manufacturing standards.
That quality shows up in long-term performance. We've seen Goldberg Brothers installations from 2017 that still look and operate like new despite daily use. That's not marketing copy — it's what we hear from customers years after their install.
Frequently Asked Questions
Do I actually need custom barn door hardware? Probably not. About 85% of situations people describe as "custom" — oversized doors, heavy doors, unusual walls — are solved by standard configurations. Heavy-duty kits, extended tracks, wall spacers, and ceiling mount systems handle the vast majority of non-standard installs. Use our hardware finder or contact us to confirm before pursuing custom fabrication.
How do I calculate the track length I need? For a centered installation: door width × 2 + 6 inches. For a single-side slide (door moves entirely to one side): door width + opening width + 6 inches minimum. If your opening has obstructions like windows or adjacent doorways, offset your calculation accordingly. Our measurements guide covers every scenario.
What's the difference between standard and heavy-duty barn door hardware? The main difference is track width and weight capacity. Standard kits use 1-1/2 in wide track and handle up to 200 lbs per door. Heavy-duty kits use 2 in wide track — same 3/16 in steel, scaled up — and handle up to 400 lbs per door. Our heavy-duty kits start at $297.00.
What if my wall doesn't have studs where I need to mount the track? Wall spacers can bridge obstructions like bulkheads or crown molding. If you have no usable wall studs — glass walls, steel framing — a ceiling mount kit attaches to ceiling joists instead. Contact us with your wall situation and we'll confirm the right approach.
How do I cover a wide opening with sliding doors? For openings over roughly 60–72", a bypass system with two doors on parallel tracks is the most practical solution. For very wide openings or tight spaces without adequate slide room, a bifold system folds onto itself and needs roughly half the wall clearance of a standard slider.
How long does standard hardware take to ship vs custom? Quick Ship kits ship the next business day. Goldberg Brothers standard and heavy-duty kits ship in 10–15 business days. Stainless steel hardware ships in 14–21 business days. All ship free to the continental US. Custom fabrication typically takes 6–12 weeks for production alone.
My floor is tile or hardwood — do I need a different floor guide? Yes. Most kits include a floor-mounted T guide, which requires drilling into the floor. If you have finished hardwood, tile, or LVP, you'll need an All-in-One Wall Mounted Floor Guide instead — starting at $62.00. It mounts to your baseboard or wall and does the same job without touching your flooring.
What does your warranty cover? Our limited lifetime warranty covers manufacturing defects in hardware sets and tracks under normal installation and use. It provides for repair or replacement of defective components. It does not cover installation costs, cosmetic wear, or rust on non-stainless hardware. Accessories like soft-stop mechanisms carry a one-year coverage period.
Most situations calling for custom sliding interior doors actually need smart configuration of standard components. Heavy-duty kits, extended tracks, ceiling mounts, and bypass systems solve the vast majority of unusual requirements without custom lead times or costs.
When you truly need custom solutions, we'll tell you honestly and point you toward qualified fabricators. For everything else, we have the hardware combinations that work.
Browse our complete hardware kit selection or reach out to our team for configuration help on your specific project.
